RG-EST330F-P, puente inalámbrico de 3 km y 13 dBi

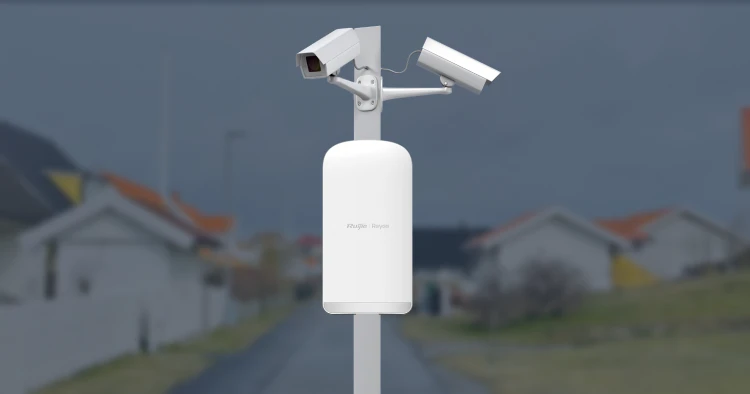

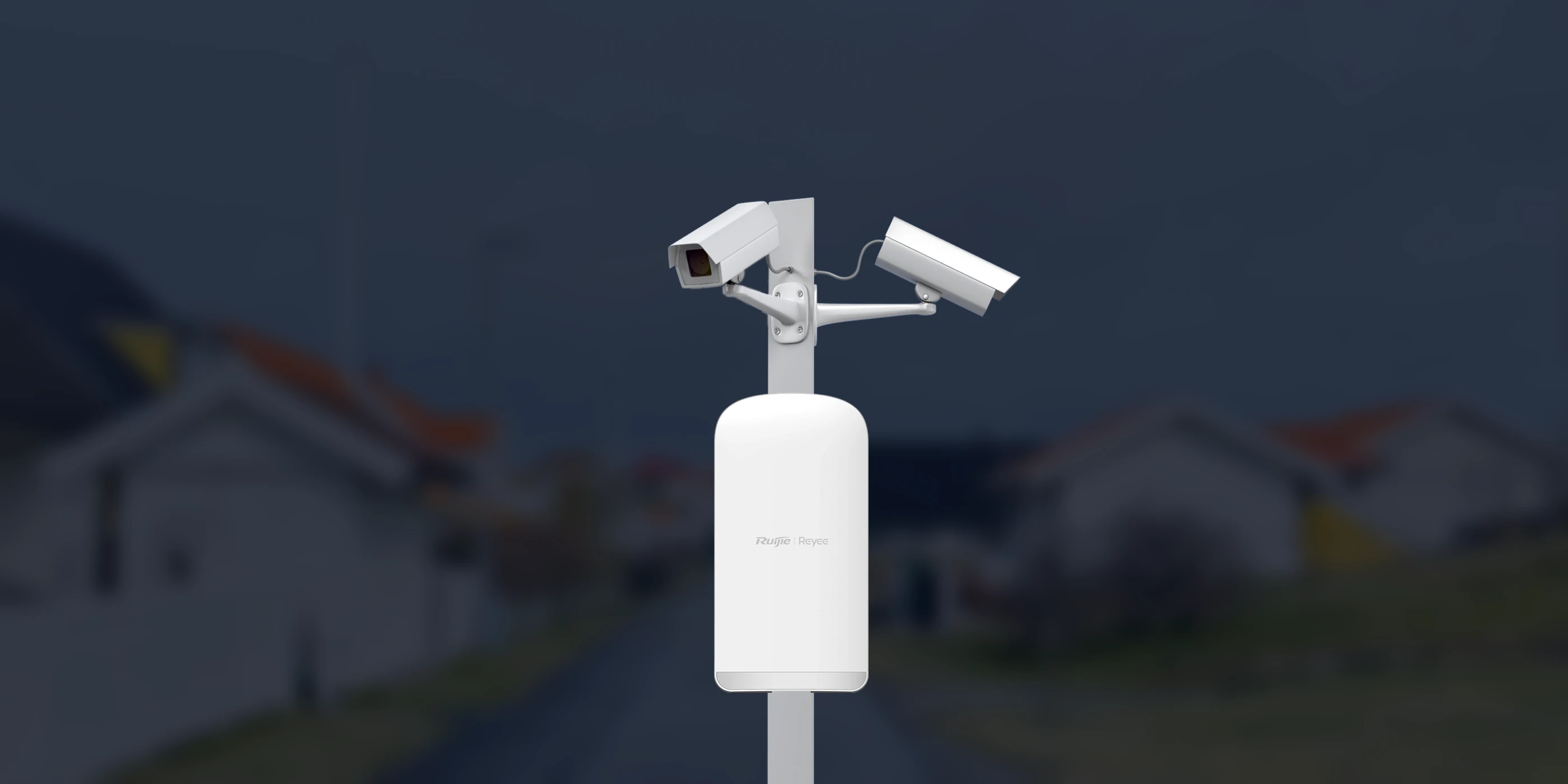

Calle, edificio, campus, granja, fábrica, etc.

Modelos
RG-EST330F-P

3 puertos FE, incluidos 2 puertos de salida PoE
Serie
500 metros PTP PTMP Station PTP/PTMP de 1 km PTP/PTMP de 3 km PTP/PTMP de 5 km
Datasheet Sales Enquiry
Add to Favorites
Características destacadas
  • 3 puertos FE, incluidos 2 puertos de salida PoE
  • Admite 3 opciones de fuente de alimentación: 12 V CC, PoE pasivo, 802.3af/at
  • Compatible con TDMA
  • Compatible con SON
Sales Enquiry
Funciones

RG-EST330F-P

Puente EST, funciona a 3 km de distancia

  • 13 dBi

  • 5 GHz, 867 Mbps

  • H: 30°, V: 30°

  • 3 km

  • TDMA

  • IP55
    Resistente
    al agua

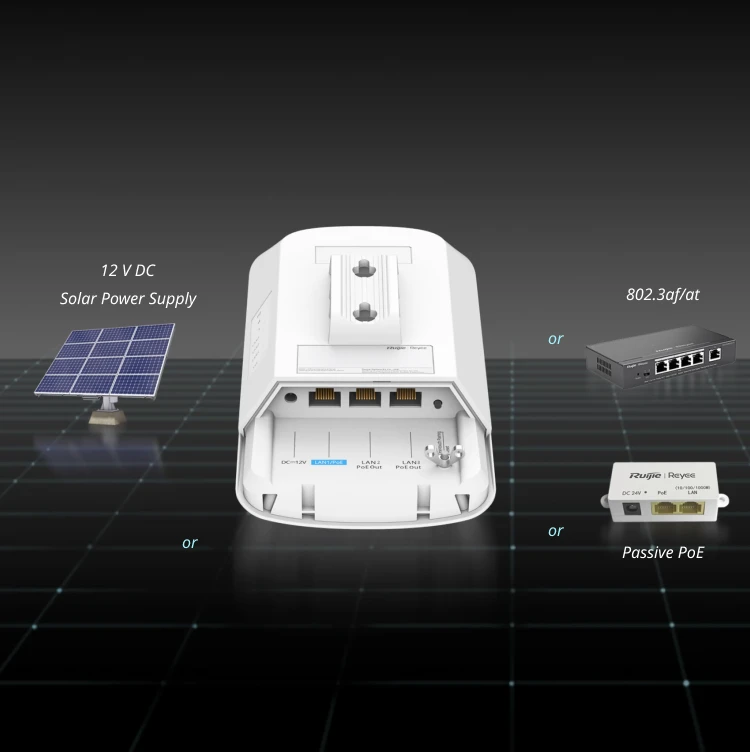

Tres opciones de entrada de energía para una implementación flexible

  • 3 puertos FE

  • 3 años de garantía

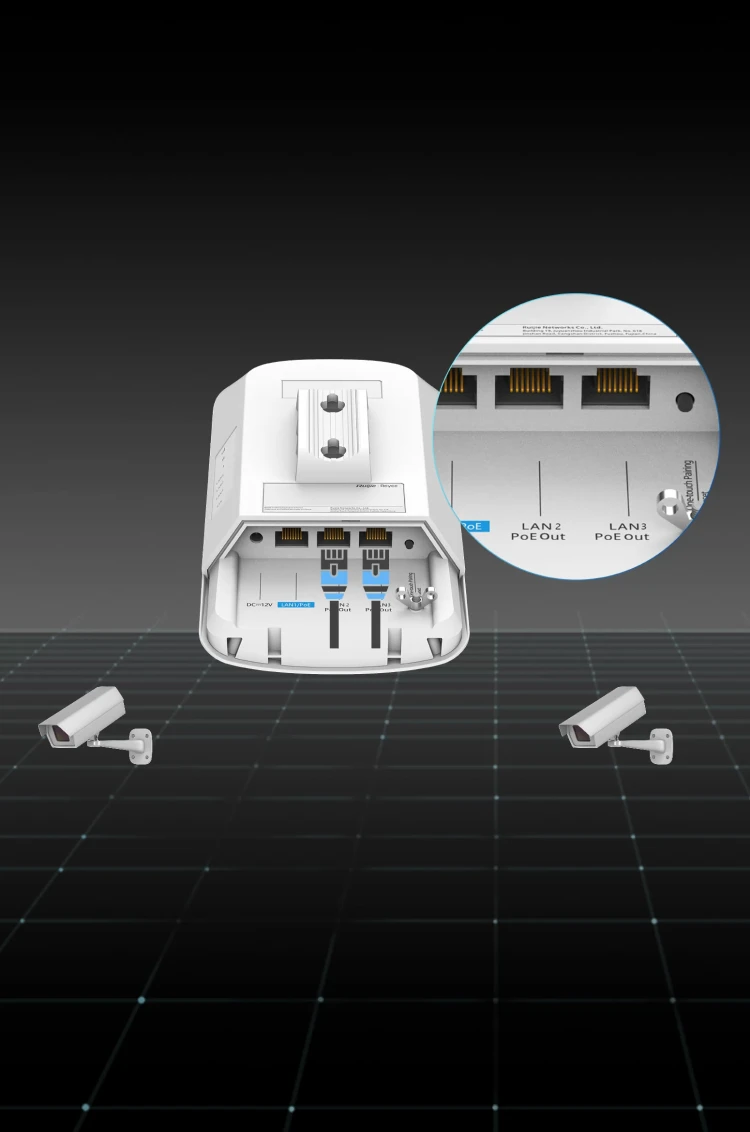

Salida PoE dual para rentabilidad

Salida PoE dual para rentabilidad

Potencia de salida total: 802.3af

Nota: La potencia de salida real depende de la potencia de entrada del puente y de los entornos reales del proyecto. Nota: La potencia de salida real depende de la potencia de entrada del puente y de los entornos reales del proyecto.

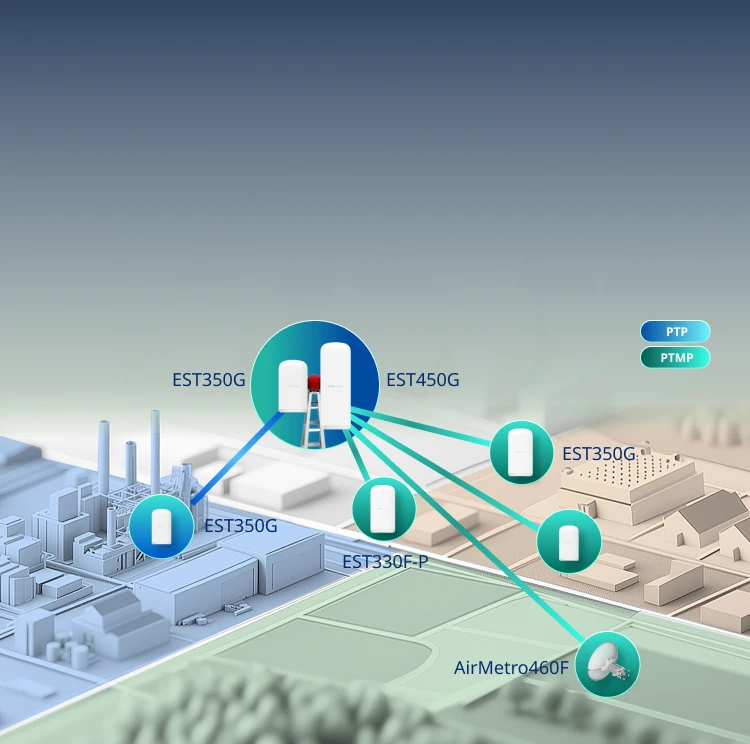

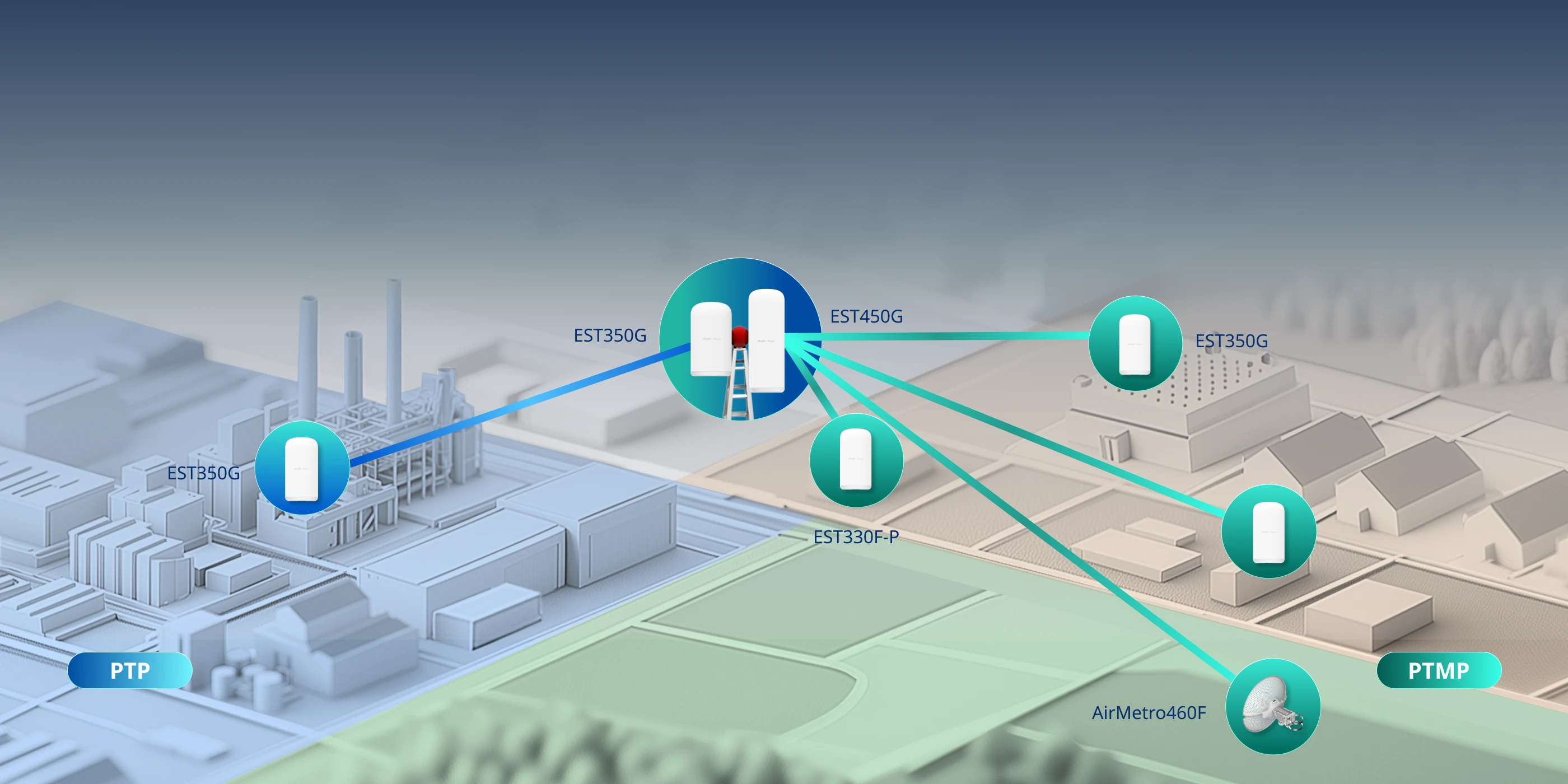

Puente para dispositivos alimentados por TDMA de series diferentes

Los nuevos EST y AirMetro se pueden combinar para tender un puente con TDMA activado

La nube hace su negocio más fácil

  • SON

  • Herramienta de
    alineación

  • Escaneo del espectro

  • Monitoreo y
    configuración

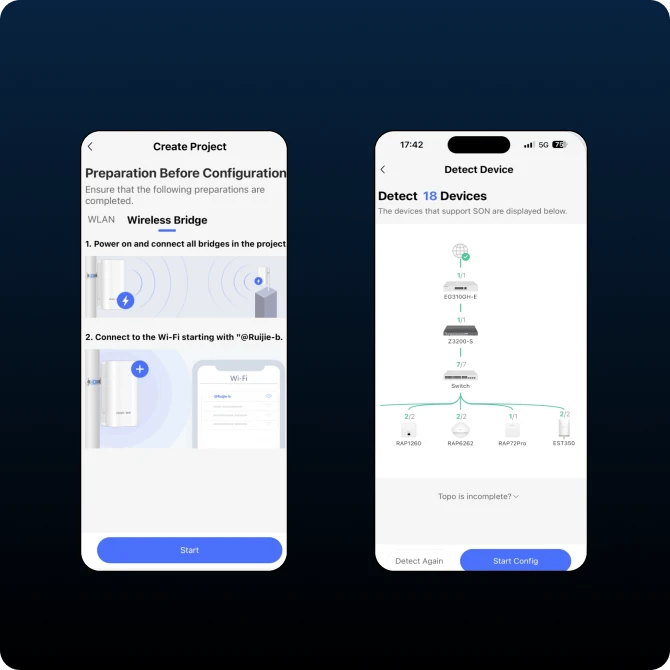

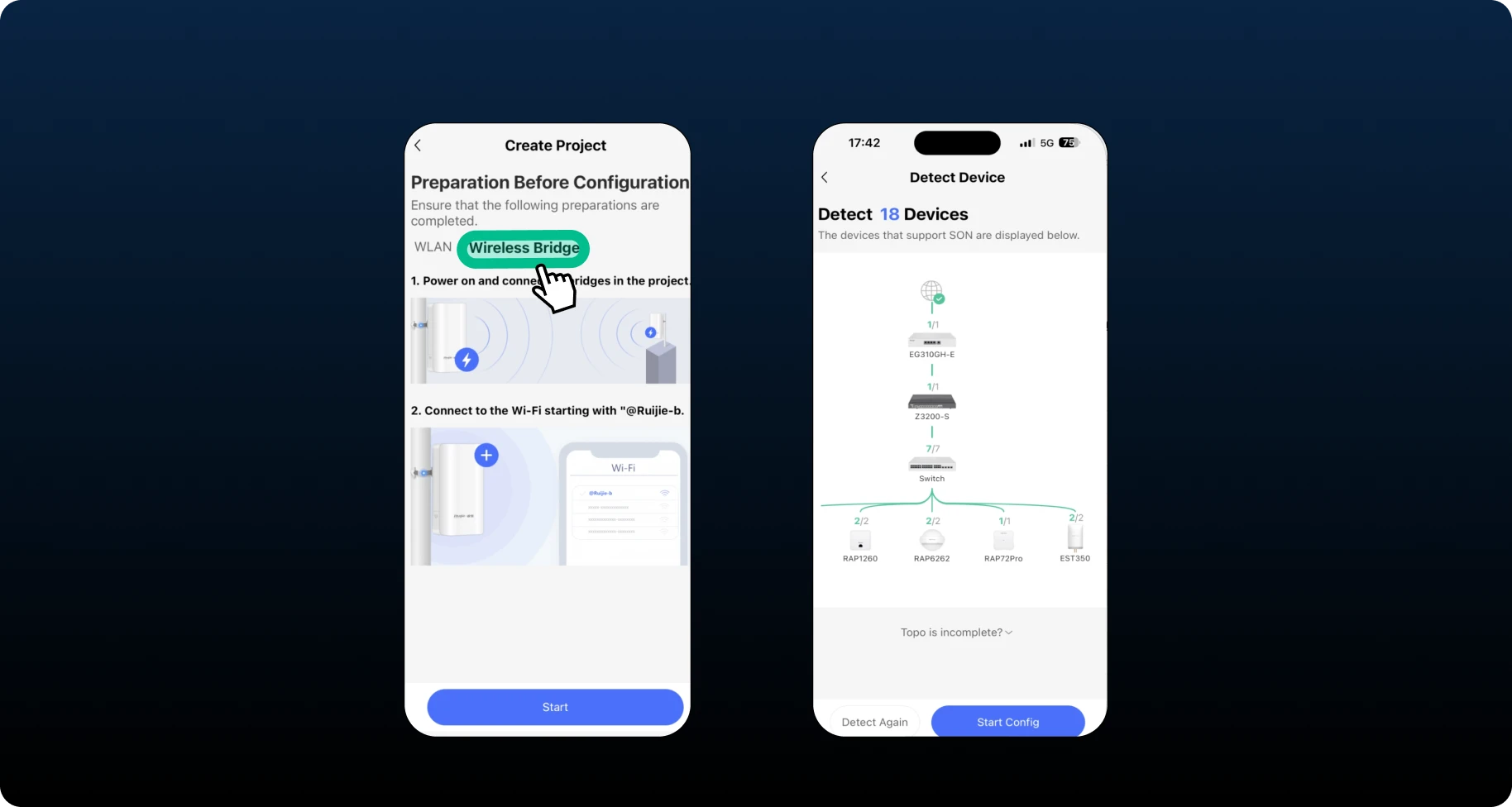

Red de autoorganización rápida para puente

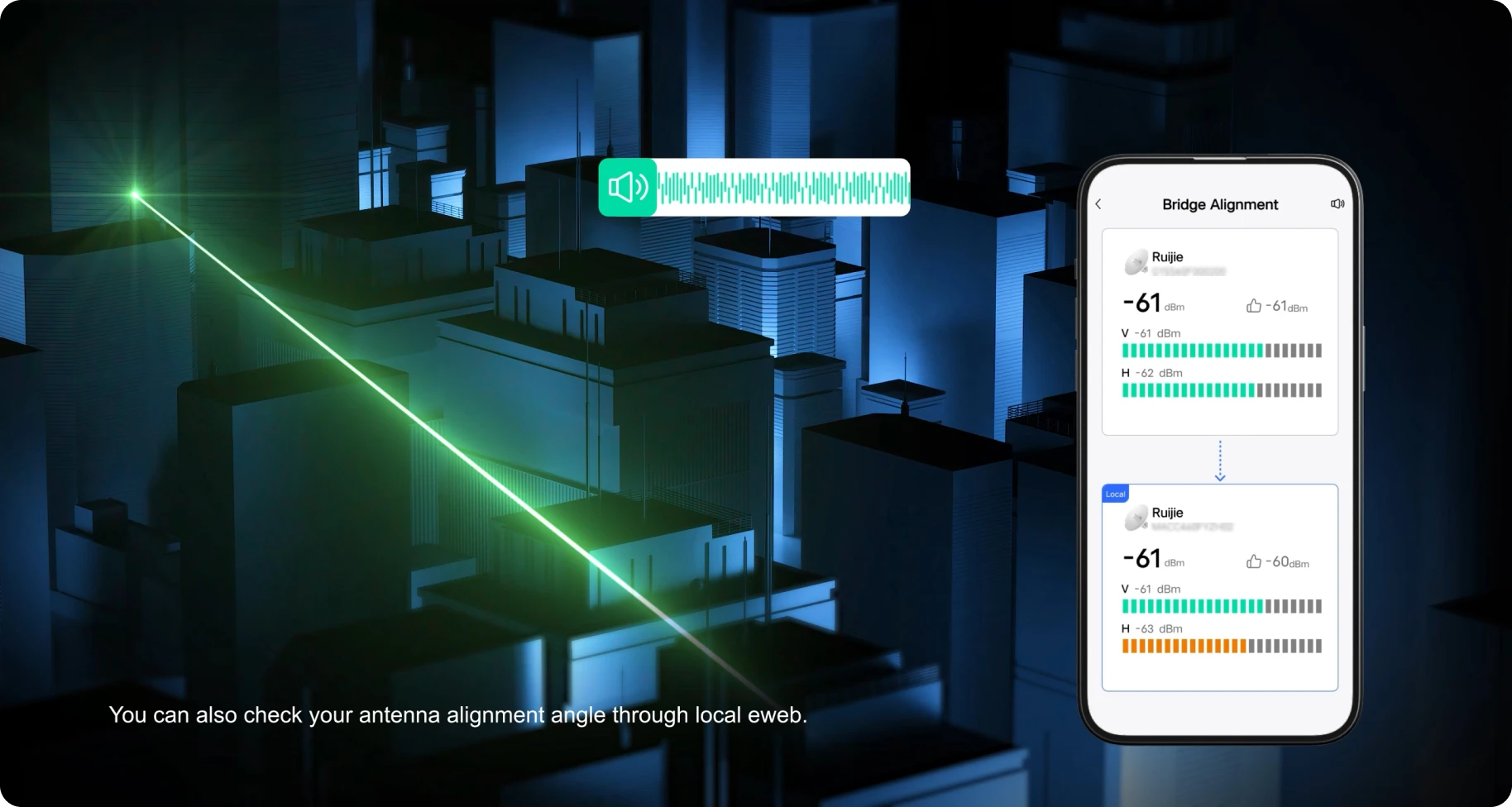

Herramienta de alineación, una guía de voz potente que le ahorrará tiempo

Escaneo del espectro y optimización de enlaces

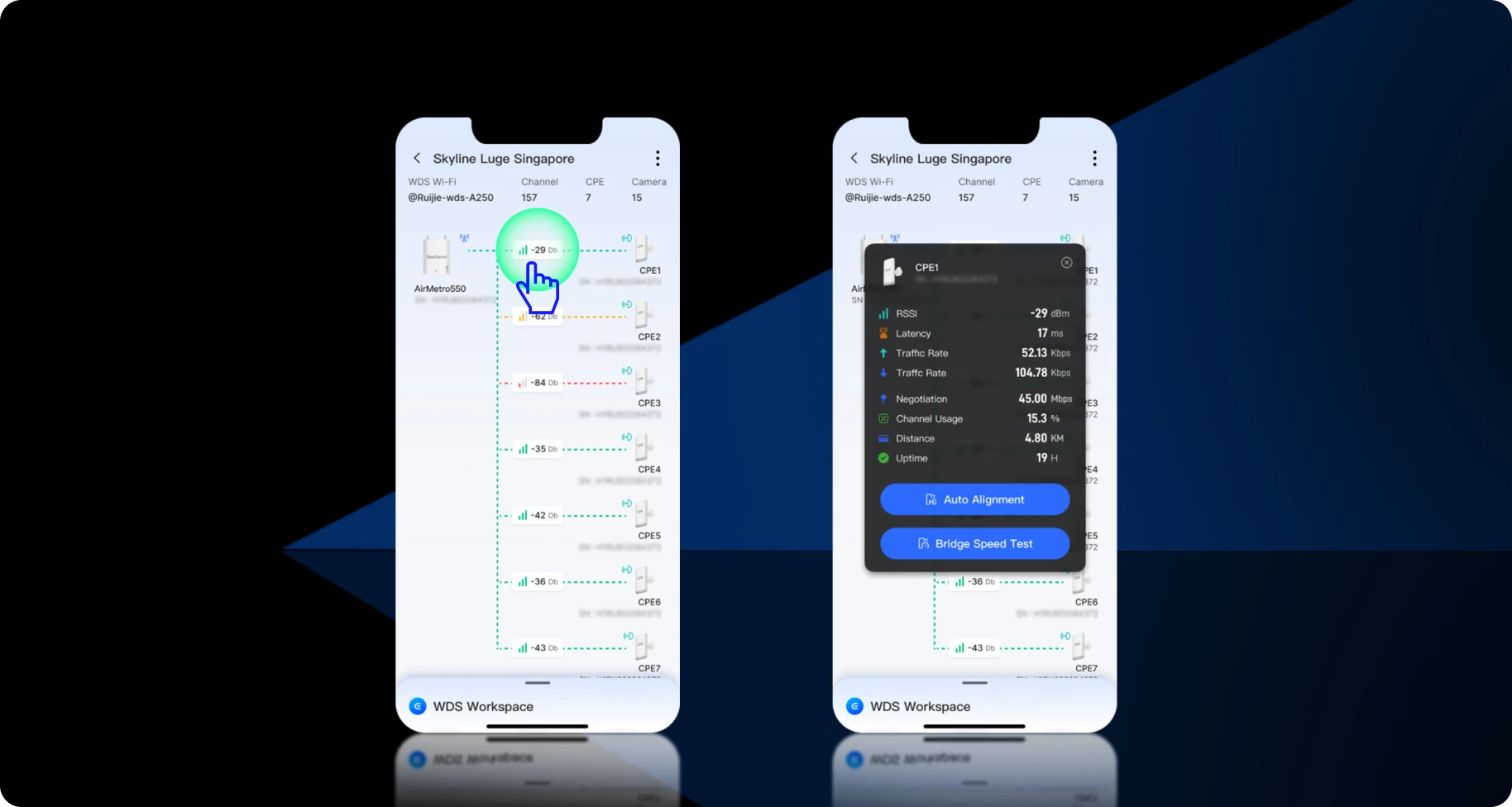

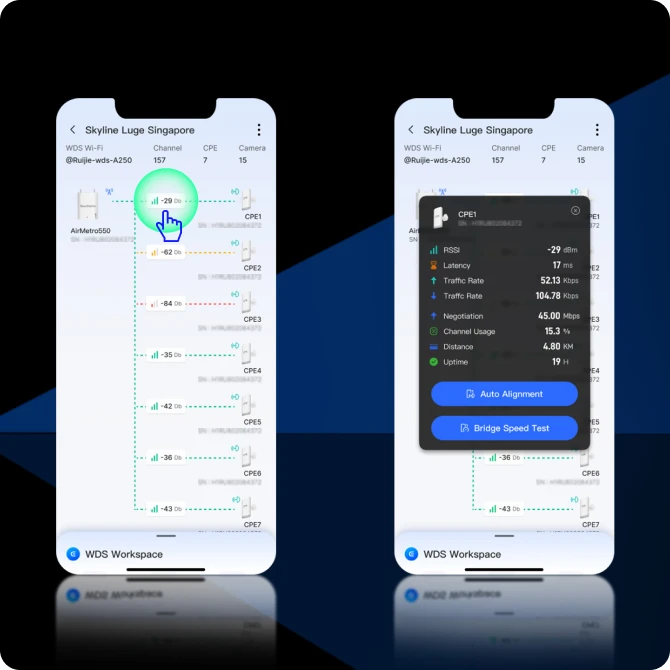

Monitoreo y configuración integral del estado del puente en tiempo real

SON

Red de autoorganización rápida para puente

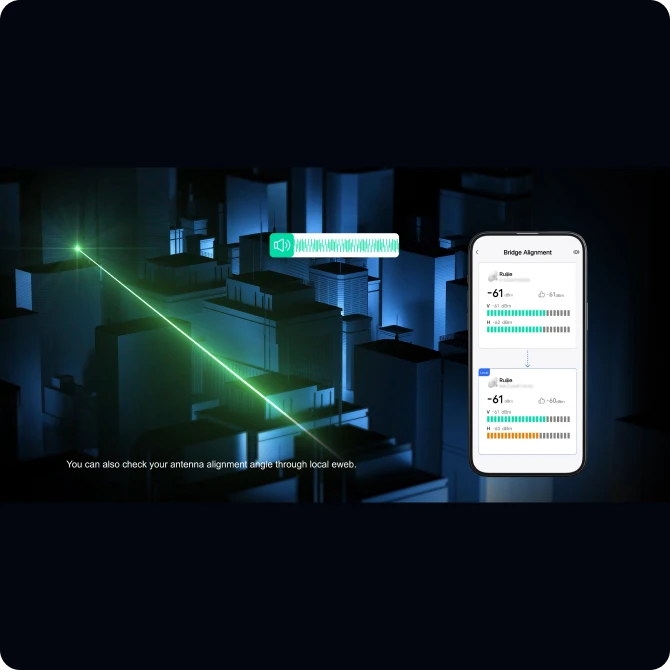

Herramienta de alineación

Herramienta de alineación, una guía de voz potente que le ahorrará tiempo

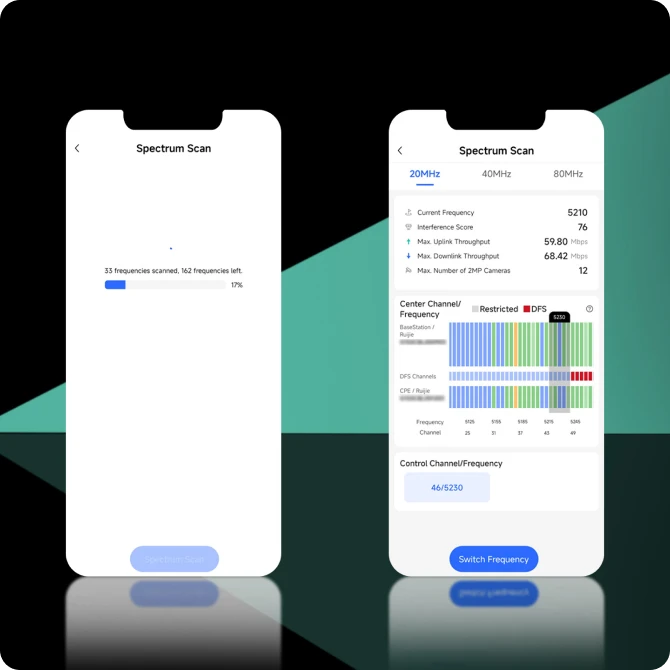

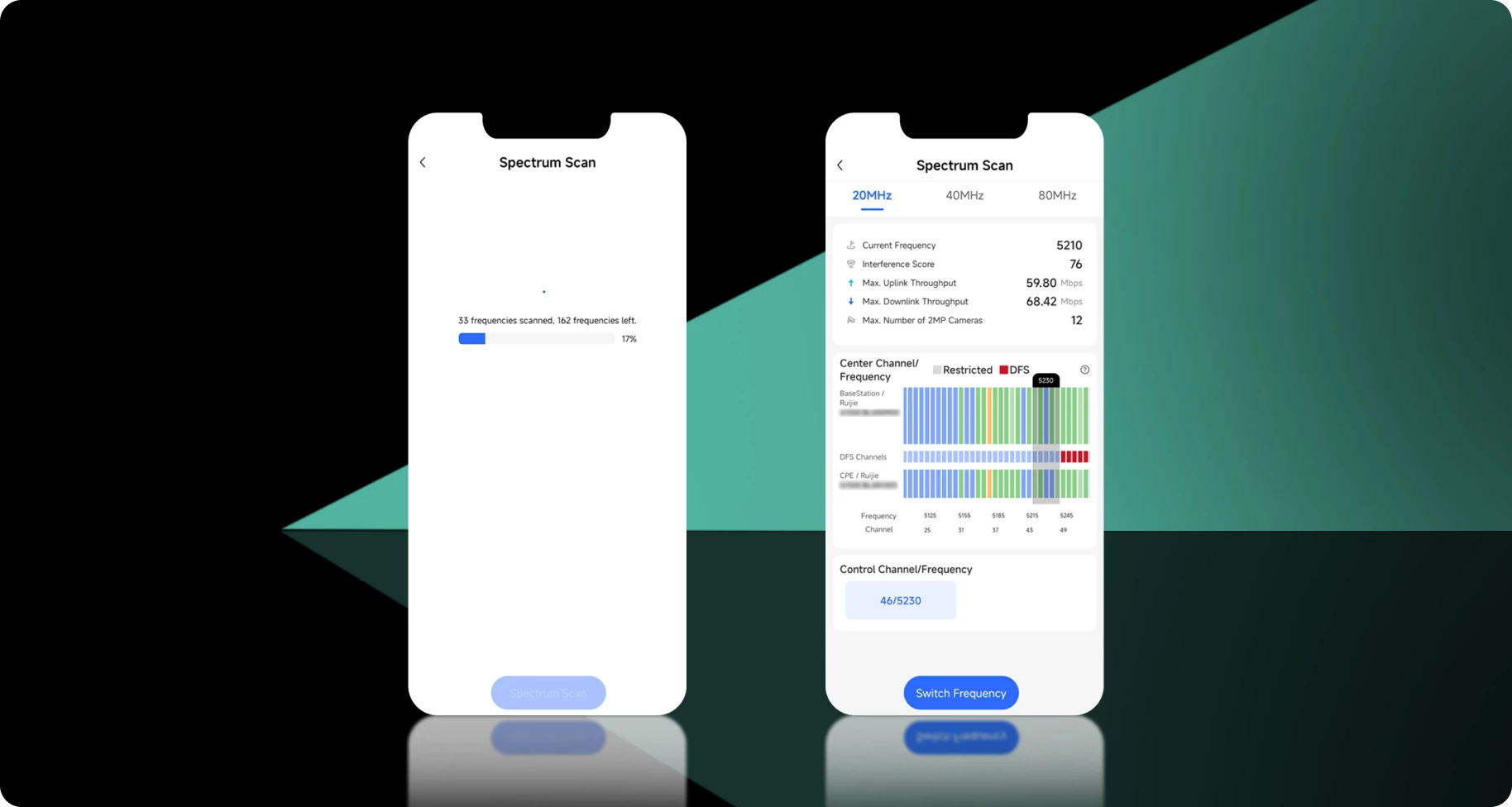

Escaneo del espectro

Escaneo del espectro y optimización de enlaces

Monitoreo y configuración

Monitoreo y configuración integral del estado del puente en tiempo real

Key Specifications
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    3 spatial streams
    ● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
    ● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width
  • Auto/20/40 MHz
5 GHz channel width
  • Auto/20/40/80 MHz
Power Supply and Consumption
Number of PoE In ports
  • 1
Number of PoE/PoE+ In ports
  • 1
Number of PoE Out ports
  • 2
Software Specifications
WLAN
Bridge speed test
  • Yes
Network Management and Monitoring
SON
  • Yes
AI heatmap
  • Yes
Restarting devices through Ruijie Reyee App
  • Yes
SNMPv1, v2c, and v3
  • No
