RG-NBS5200-24GT4XS-P-V2, Switch PoE con 24 porte Gigabit, Livello 3, 4 porte Uplink SFP+

Aziende, settore alberghiero, fabbriche, scuole, negozi al dettaglio ecc.

Models
RG-NBS5200-24GT4XS

24 porte Gigabit, 4 porte SFP+

 RG-NBS5200-24GT4XS-P

24 porte Gigabit, 4 porte SFP+, 370W

 RG-NBS5200-24SFP/8GT4XS

8 porte combo Gigabit, 24 porte SFP, 4 porte SFP+

 RG-NBS5200-48GT4XS

48 porte Gigabit, 4 porte SFP+

 RG-NBS5200-48GT4XS-UP

48 porte Gigabit, 4 porte Uplink SFP+

 RG-NBS5300-8MG2XS-UP

Switch gestito 10 porte Multi-Gigabit,8 porte PoE++,2 porte di uplink SFP+

 RG-NBS5200-24GT4XS-P-V2

24 porte Gigabit, 370 W, 4 porte SFP+
Series
Switch L3 fisso da 10G Switch L3 fisso da 1G Telaio/ Switch L3 modulare
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • Switch PoE con 24 porte Gigabit, Livello 3, gestito, 4 porte uplink SFP+
  • Qualità e funzionalità di classe enterprise, per prestazioni eccezionali
  • Criteri di sicurezza multipli proteggono la tua rete
  • Riconoscimento telecamera IP, valore unico per rete di telecamere a circuito chiuso
  • Gestione per tutto il ciclo vitale su Ruijie Cloud in qualsiasi momento e ovunque
Sales Enquiry
Caratteristiche

RG-NBS5200-24GT4XS-P-V2

Switch PoE gestito su cloud con 24 porte Gigabit, Livello 3, 4 porte uplink SFP+

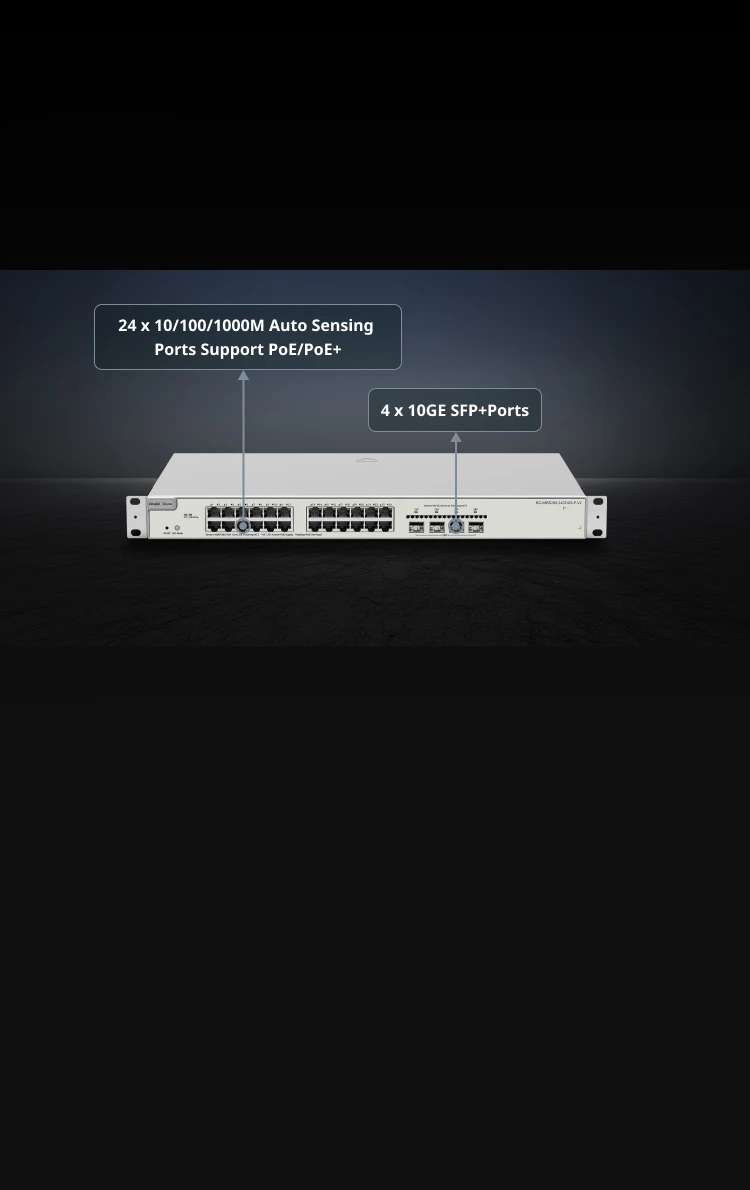

24 porte Ethernet 10/100/1000M con rilevamento
automatico Supporta PoE/PoE+

4 porte SFP+ 10GE

  • Capacità di commutazione
    128 Gbps

  • Velocità di inoltro
    96 Mpps

  • 5 anni
    Garanzia

  • Ventola PWM
    Ottimizzata per bassa rumorosità

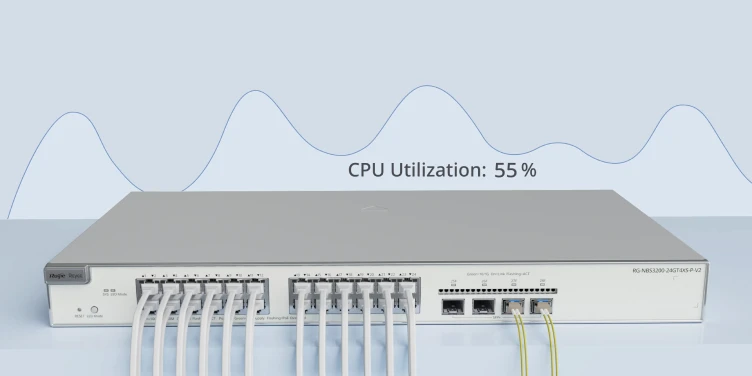

La qualità di classe enterprise garantisce prestazioni elevate

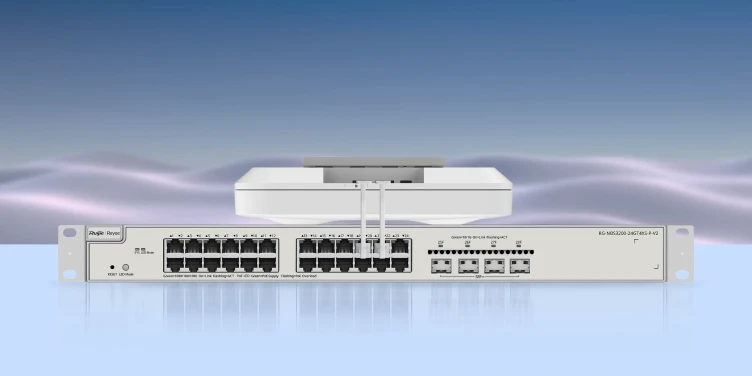

  • Aggregazione dei collegamenti

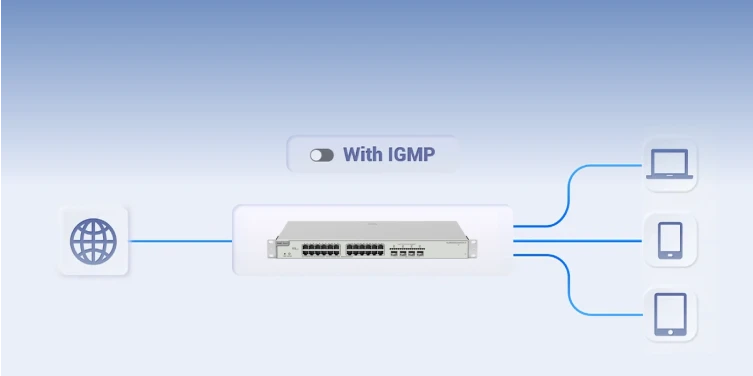

  • Snooping IGMP

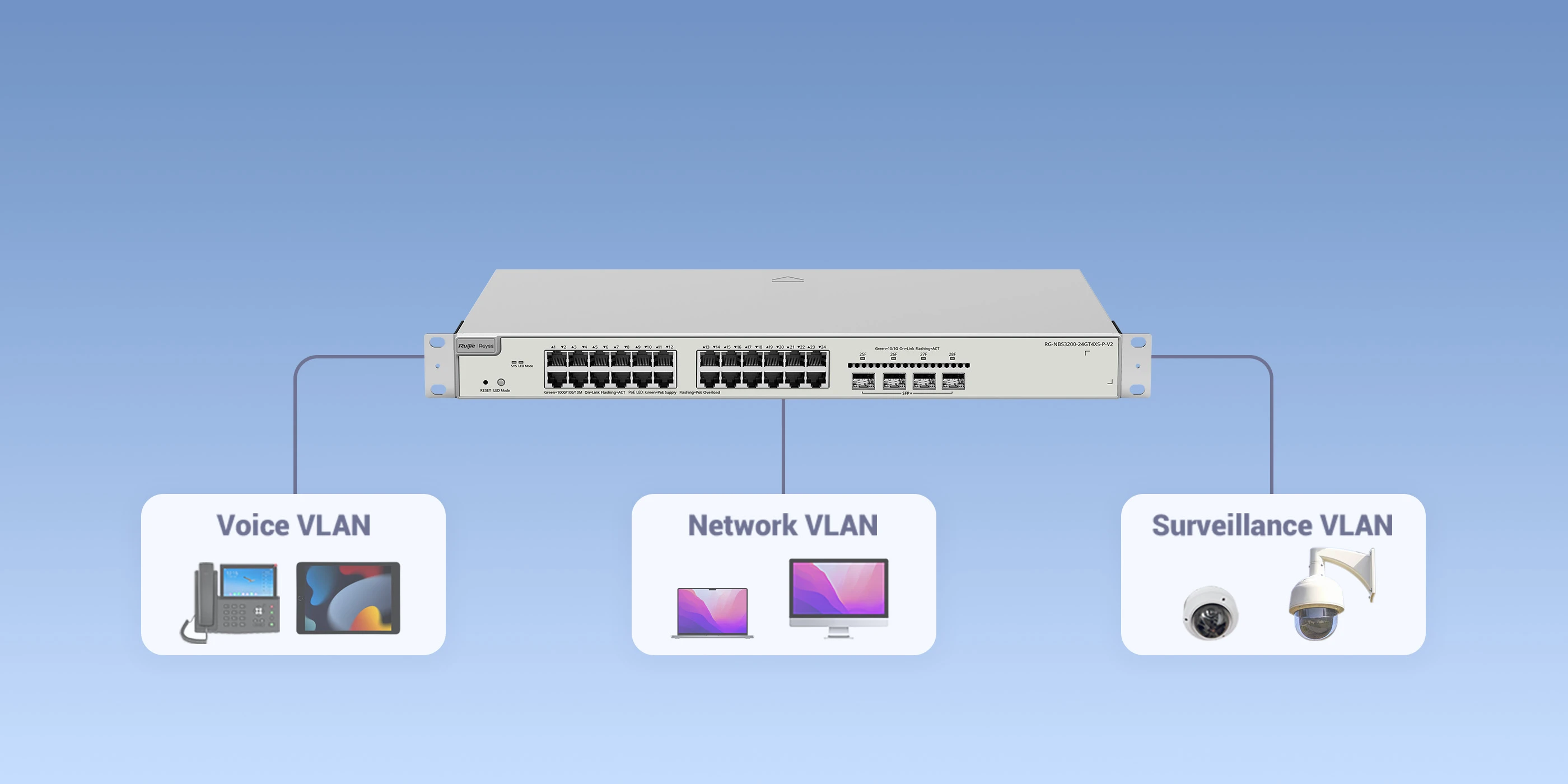

  • VLAN

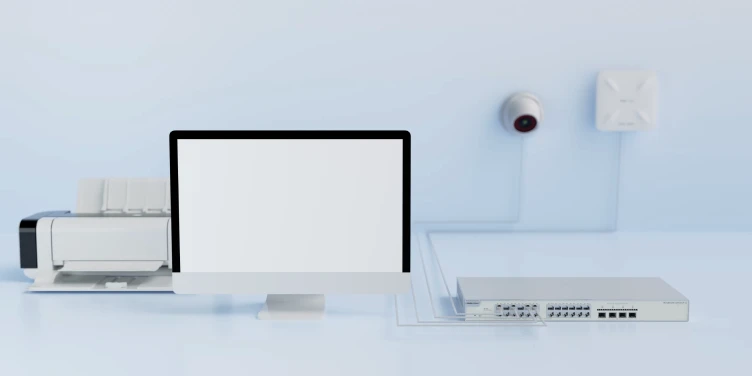

Criteri di sicurezza multipli proteggono la tua rete

  • Sicurezza

  • Stabilità

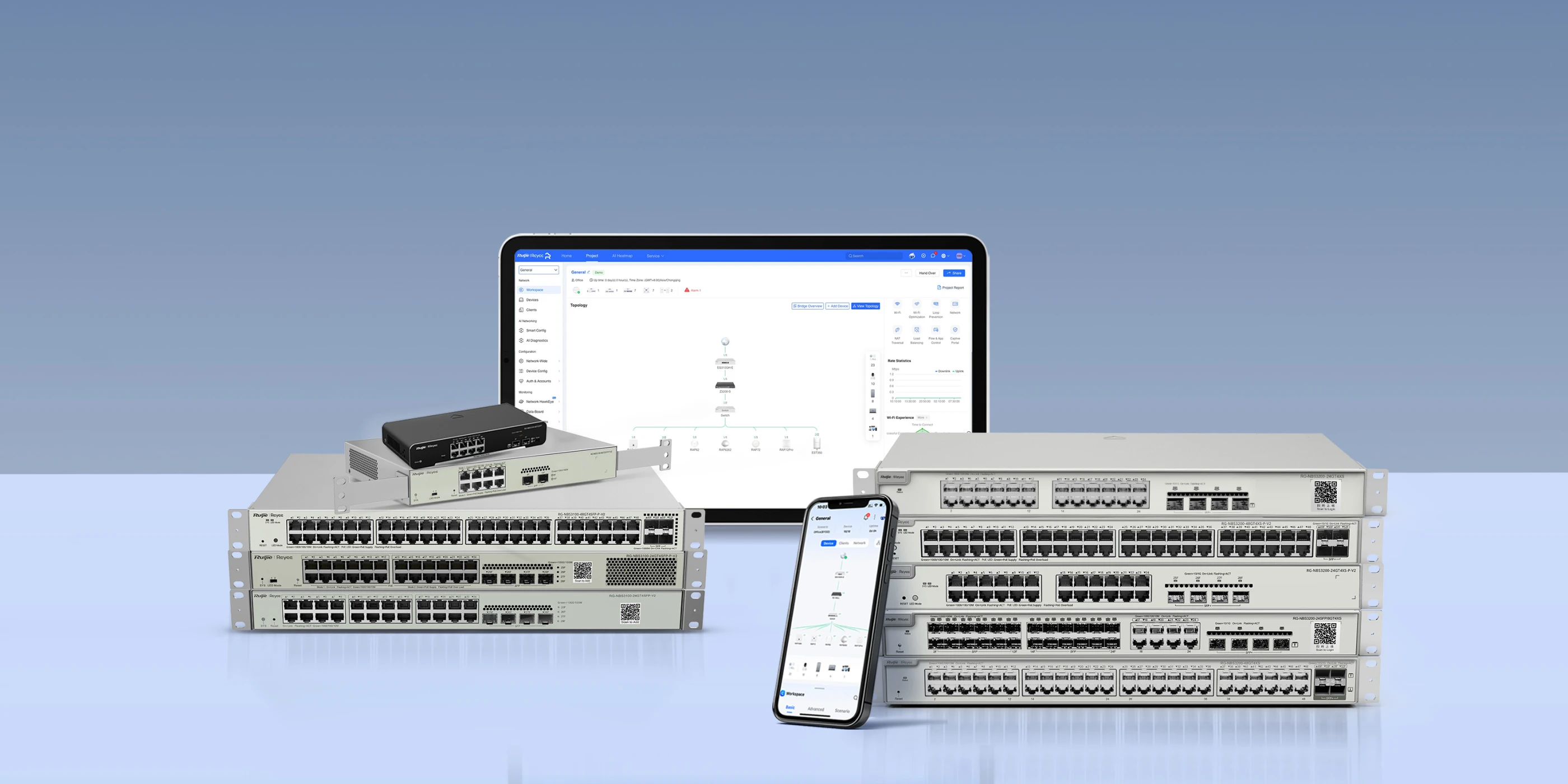

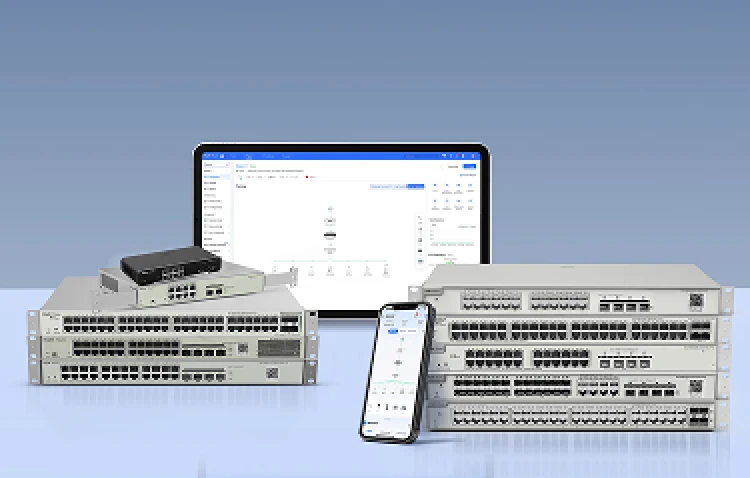

Ruijie Cloud: Semplifica la tua attività

  • Supporta SON e provisioning zero-touch su Ruijie Cloud
  • Configura le VLAN sull'app Ruijie Reyee
  • Monitora le statistiche degli switch in qualsiasi momento e ovunque
  • Facile manutenzione, riduzione di tempi e costi in loco

Key Specifications
Product Information
Product Category
Product Category
  • Layer 3
Hardware Specifications
Product Information
Warranty
  • 5 years
Port Specifications
Total number of RJ45 ports
  • 24
Total number of optical ports
  • 4
Number of 1GE combo ports
  • No
Number of 1GE SFP ports
  • No
Number of 10GE SFP+ ports
  • 4
Number of 10/100BASE-T ports
  • No
Number of 10/100/1000BASE-T ports
  • 24
Number of 10/100/1000/2500BASE-T ports
  • No
Number of 100/1000/2.5G/5G/10GBASE-T ports
  • No
Power Supply and Consumption
Number of PoE Out ports
  • 24
Number of PoE/PoE+ Out ports
  • 24
Number of PoE/PoE+/PoE++ Out ports
  • No
PoE budget
  • 370 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 96 Mpps
Switching capacity
  • 128 Gbps(bit/s)
Environment and Reliability
MTBF
  • 400,000 hours
Operating temperature
  • 0°C to +50°C (32°F to 122°F)
Altitude
  • Operating altitude: 0 m to +5,000 m (0 ft. to +16,404.20 ft.)
    Storage altitude: 0 m to +5,000 m (0 ft. to +16,404.20 ft.)
Surge protection
  • Service port: ±6 kV for common mode
    Power connector: ±6 kV for both common mode and differential mode
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Interface
Jumbo frame length (MTU)
  • 9216 bytes (interface configuration mode)
Security
Port isolation
  • Yes
Broadcast storm control
  • Yes
