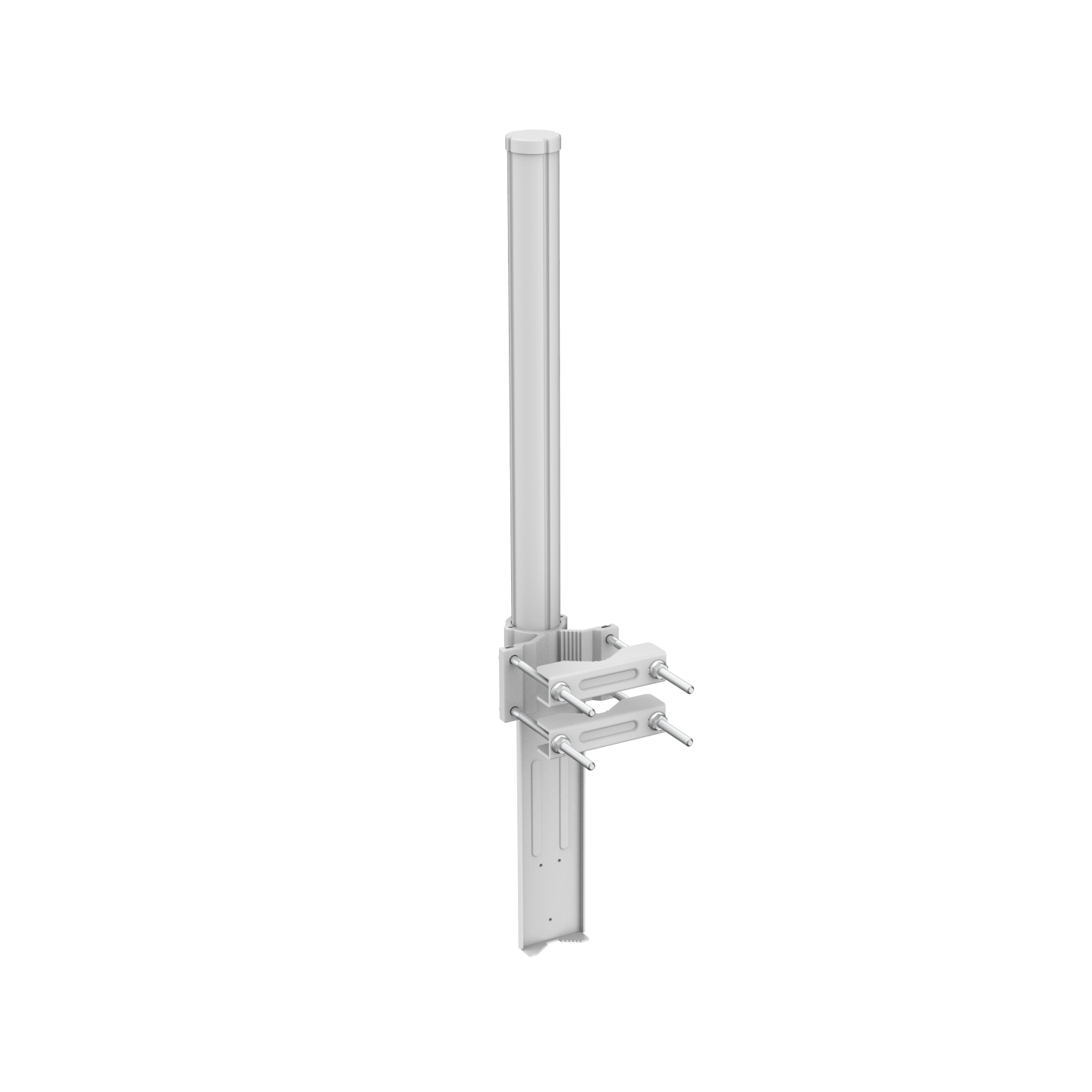

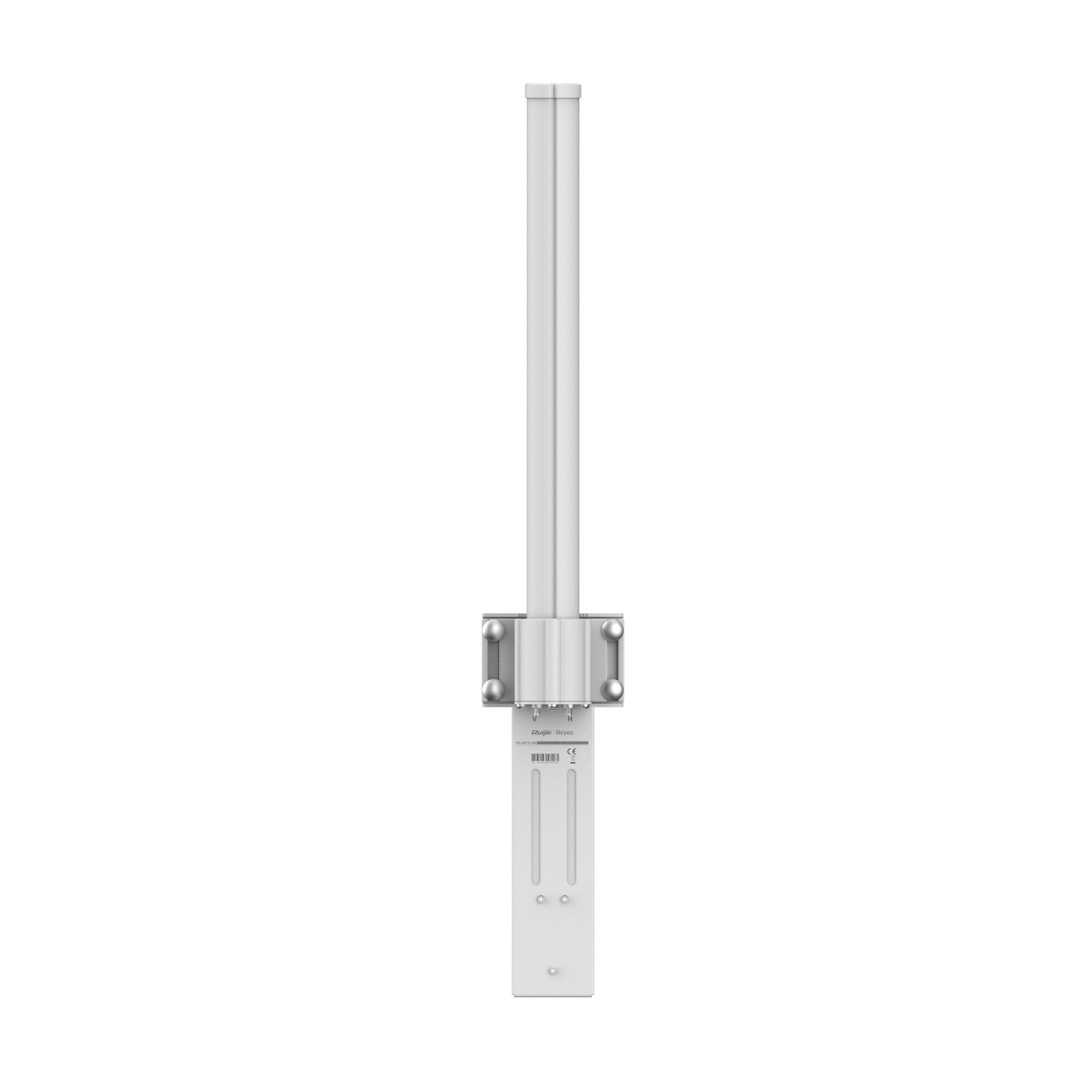

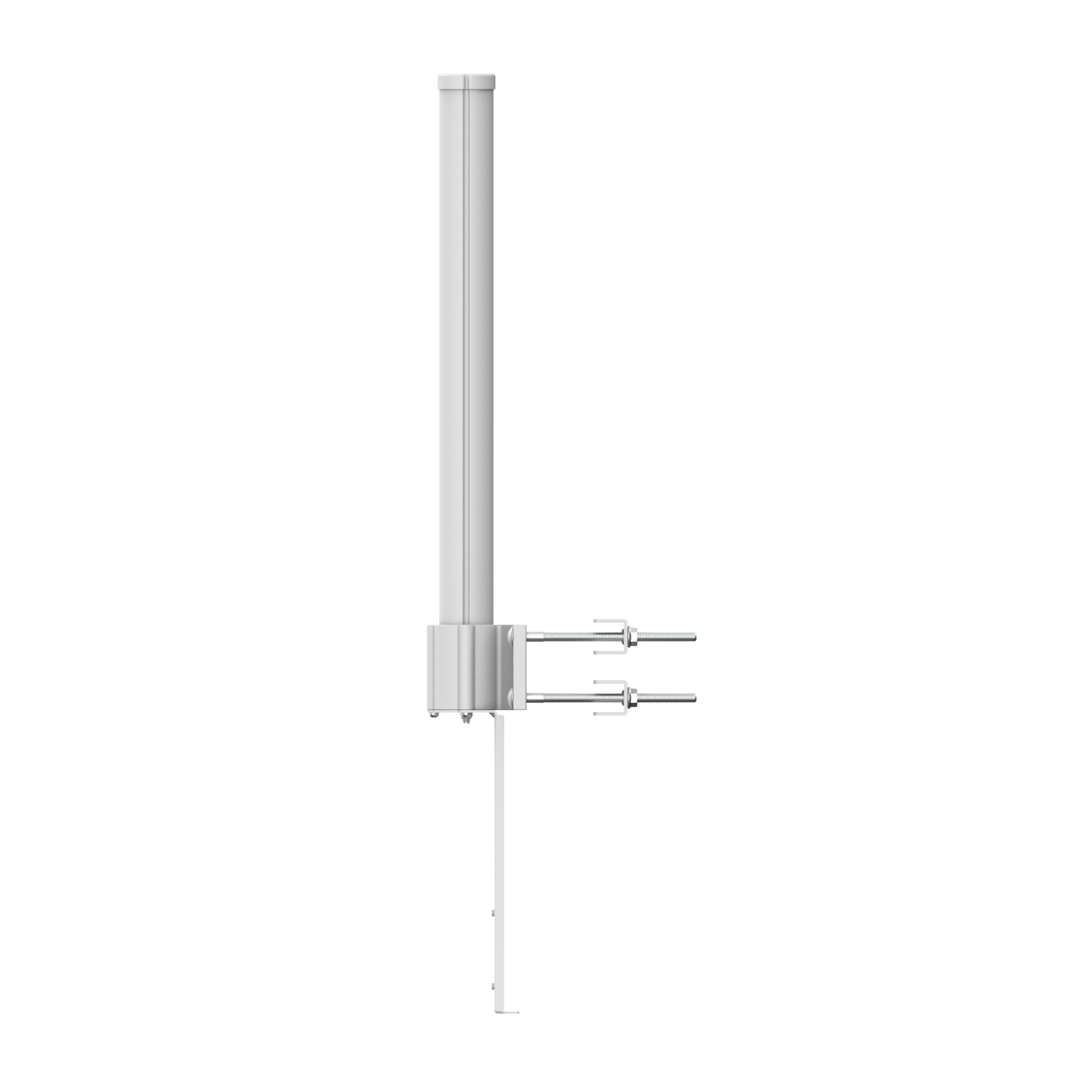

RG-ANT13-360, antenna omnidirezionale a 360° per ponti wireless della serie RG-AirMetro

WISP, TVCC, città, strade urbane, fabbriche, ecc.

Models
RG-ANT13-360

Antenna omnidirezionale a 360°, 2 km

 RG-AirMetro550G-B

Fino a 867 Mbps a 5 GHz, PTMP max.,da 1 a 32 stazioni base con 2 porte GE

 RG-ANT16S-120

Antenna a settore a 120°, 5 km

 RG-ANT20S-90

Antenna a settore a 90°, 10 km
Series
PTMP Station PTP/PTMP CPE
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • Scegli tra tre antenne per diversi scenari
  • Grado di protezione IP55 contro gli ambienti più difficili
  • La gestione da cloud tutto in uno semplifica il percorso dell'utente
Sales Enquiry
Key Specification
Fitur

Ponti Wireless
Serie RG-AirMetro

Quando associato con CPE, il ponte supporta:

  • 10km

    Trasmissione wireless
    fino a 10 km

  • 32PTMP

    Fino a 32 collegamenti
    PTMP

  • Strumento di indagine del
    sito semplice da utilizzare

  • Gestione cloud tutto
    in uno

Stazione base

Un abbinamento perfetto per diversi dispositivi e scenari

  • 867 Mbps

    Dual-Stream 802.11ac 5 GHz

  • Fino a 32 collegamenti PTMP

    TDMA

Associazione
one-touch

Associazione one-touch Tutto in 30 sec

Mappa di calore IA per ponte

Antenne

Dispositivi tripli, oltre le scelte triple

Cloud
tutto
in uno

Guida il tuo percorso senza preoccupazioni

Scenari
principali

La scelta ideale per gli scenari WISP e TVCC

Un abbinamento perfetto per diversi
dispositivi e scenari

Associazione rapida

Associazione one-touch Tutto in 30 sec

Antenne

Dispositivi tripli, oltre le scelte triple

  • RG-ANT20S-90

    5 GHz, 20 dBi

    O: 90°, V: 7°

    10 km

  • RG-ANT16S-120

    5 GHz, 16 dBi

    O: 120°, V: 10°

    5 km

  • RG-ANT13-360

    5 GHz, 13 dBi

    O: 360°, V: 7°

    2 km

Ancora stabile

Non teme gli ambienti difficili

  • IP55 Resistente alle intemperie
  • 220.32 km/h
    (137 mph)     Resistenza al vento
  • Protezione da sovratensione 6 kV
  • ESD a ±24 kV per contatto/aria

PTMP

Fino a 32 collegamenti

WISP

Copertura estesa senza connessioni in fibra

TVCC

Eccellenza a prezzi accessibili e sorveglianza impeccabile

Mappa di calore IA per ponte

Il tuo vero compagno di avventure all'aperto

Strumento di allineamento

La tua guida a voce alta e salva-tempo

Scansione dello spettro e ottimizzazione dei collegamenti

Guida per l'approvazione

  • Scansione interferenza canale con un clic per tutti i punti

  • Consigli per l'ottimizzazione automatica

  • Risparmia tempo e fatica

Disponibile sia su Ruijie Cloud che sull'app Ruijie Reyee

Il Cloud semplifica la tua attività

Cloud tutto in uno

Configurazione rapidaMonitoraggio basato su una topologia reale e completaIdentificazione dei problemi tramite allarme automatico

Comparison
PTP
PTMP
Antenna
Polarizzazione
Distanza consigliata
Protocollo
Velocità di trasmissione massima
Gamma di frequenza*
Classificazione IP
Spesifikasi
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
