RG-ES209MG-P, 8-portowy zarządzany w chmurze przełącznik PoE 2.5G, 1 łącze Uplink 10G

Biuro, szkoła, willa, sklep detaliczny, mieszkanie itp.

Models
RG-ES205GC-P

5 gigabitowych portów, 4 PoE+, 54W

 RG-ES206GC-P

6 gigabitowych portów, 4 PoE+, 54W

 RG-ES209GC-P

9 Gigabit Ports, 8 PoE+, 120W

 RG-ES210GC-LP

10 gigabitowych portów, 8 PoE+, 70W

 RG-ES218GC-P

Porty 16 gigabitowe PoE+, 2 SFP, 240W

 RG-ES226GC-P

Porty 24 gigabitowe PoE+, 2 SFP, 370W

 RG-ES206GS-P

6-portowy gigabitowy przełącznik zarządzalny z 4 portami PoE+ i 1 portem Combo

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES228GS-LP

24 porty 10/100/1000BASE-T PoE+, 2 porty 10/100/1000BASE-T, 2 porty 1GE SFP, 250 W

 RG-ES220GS-LP

16 portów 10/100/1000BASE-T PoE+, 2 porty 10/100/1000BASE-T, 2 porty 1GE SFP, 130 W

 RG-ES209MG-P

8 portów 10/100/1000/2500BASE-T PoE+, 1 port 10GE SFP+, budżet PoE: 130 W

 RG-ES206MG-P

4 porty 10/100/1000/2500BASE-T PoE+, 1 port 10/100/2500BASE-T, 1 port 10GE SFP+, budżet PoE: 70 W
Series
Model Non-PoE Model PoE
Datasheet Sales Enquiry
Add to Favorites
Highlight Features

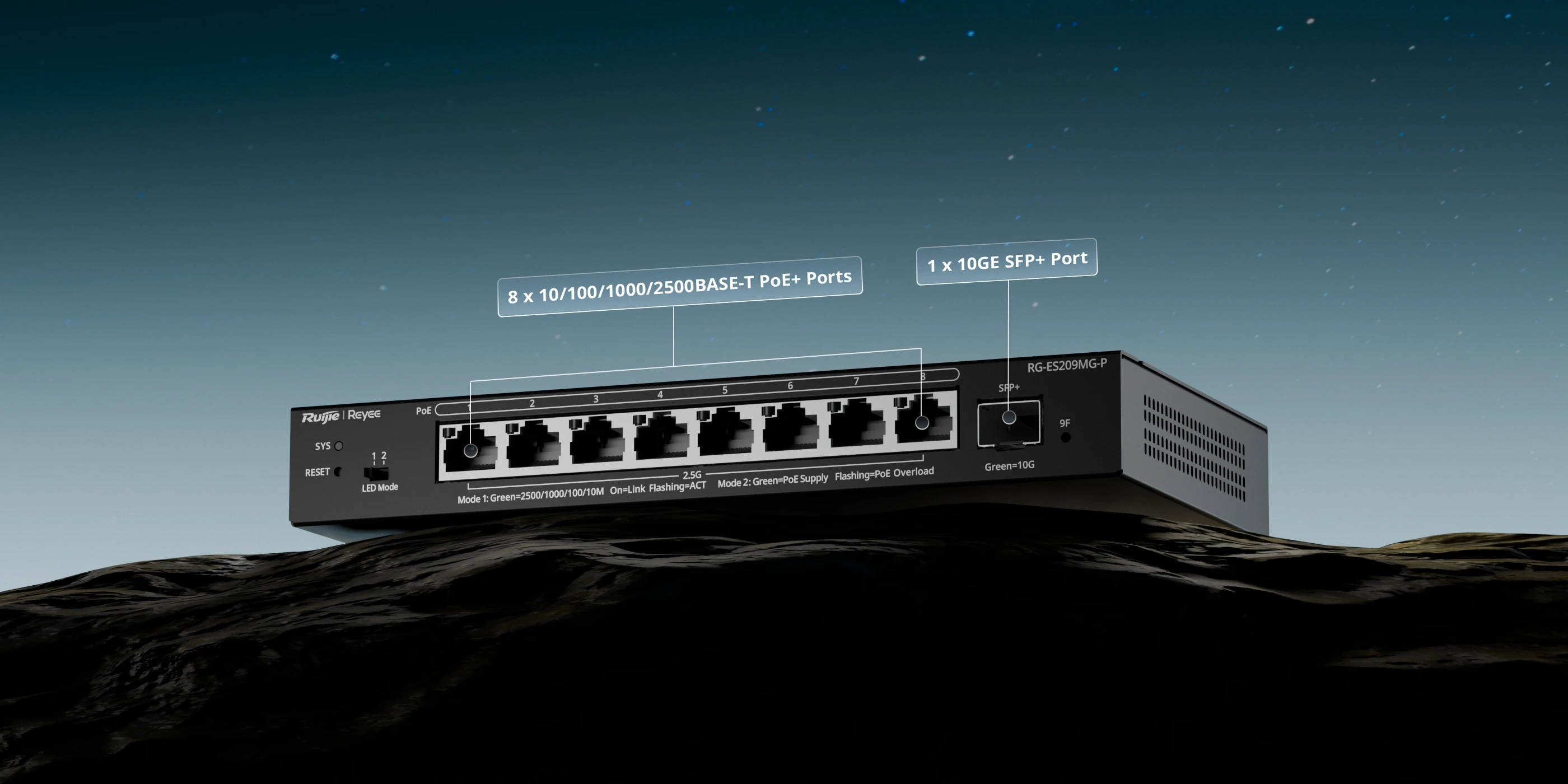

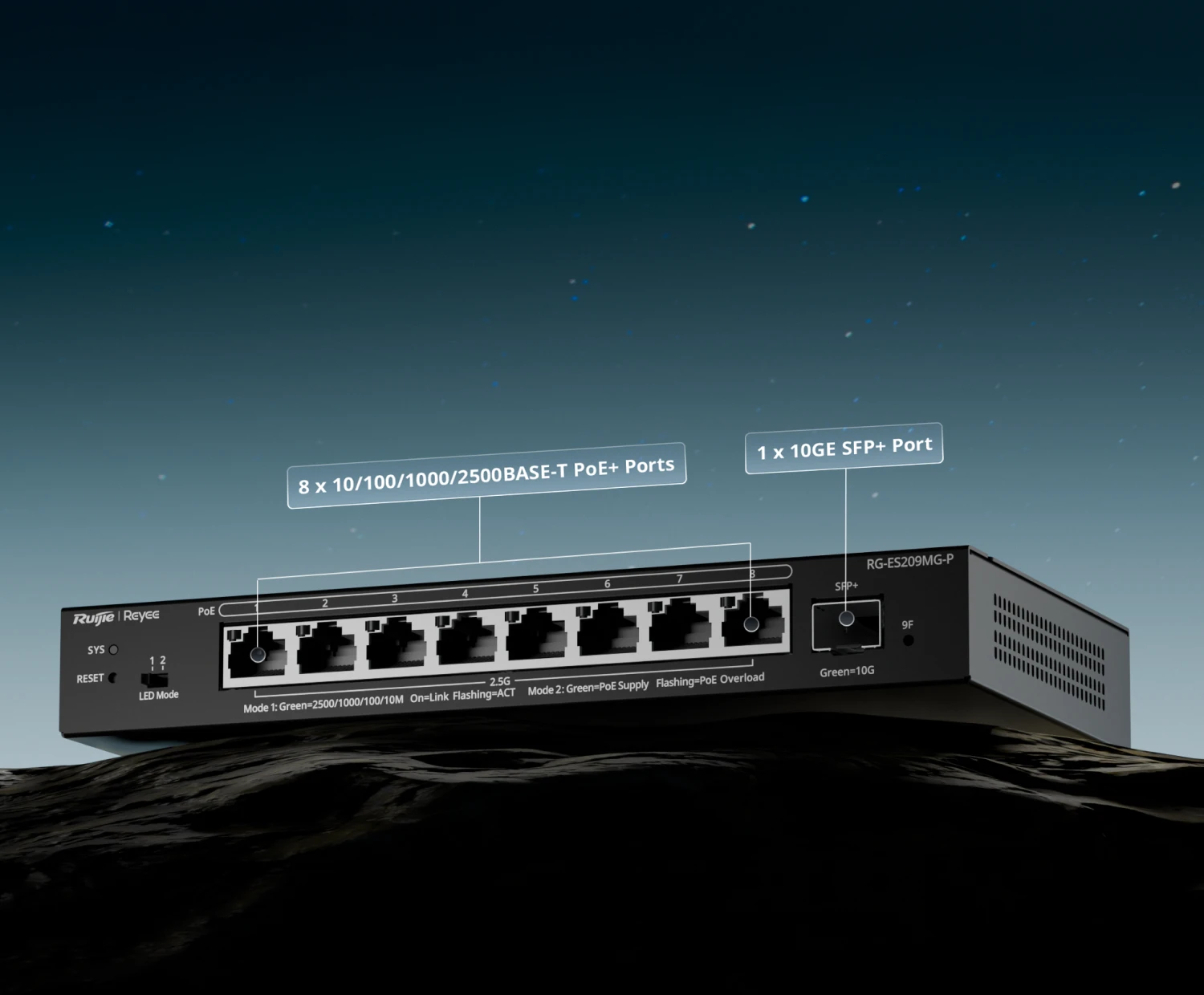

  • 8 portów 2.5G i 1 port 10GE SFP+ zapewniające wyższą wydajność sieci
  • 8 portów wyjściowych PoE obsługujących standardy IEEE 802.3 af/at, budżet PoE: 130 W
  • Agregacja do 4 portów, co umożliwia odblokowanie większej szybkości sieci
  • Ekonomiczne przełączniki Smart zarządzane w chmurze
  • Dożywotnie bezpłatne zarządzanie w chmurze Ruijie Cloud w dowolnym miejscu i czasie
Sales Enquiry
Funkcje

RG-ES209MG-P

8-portowy, zarządzany w chmurze przełącznik PoE 2,5 Gb/s, 1 łącze Uplink SFP+

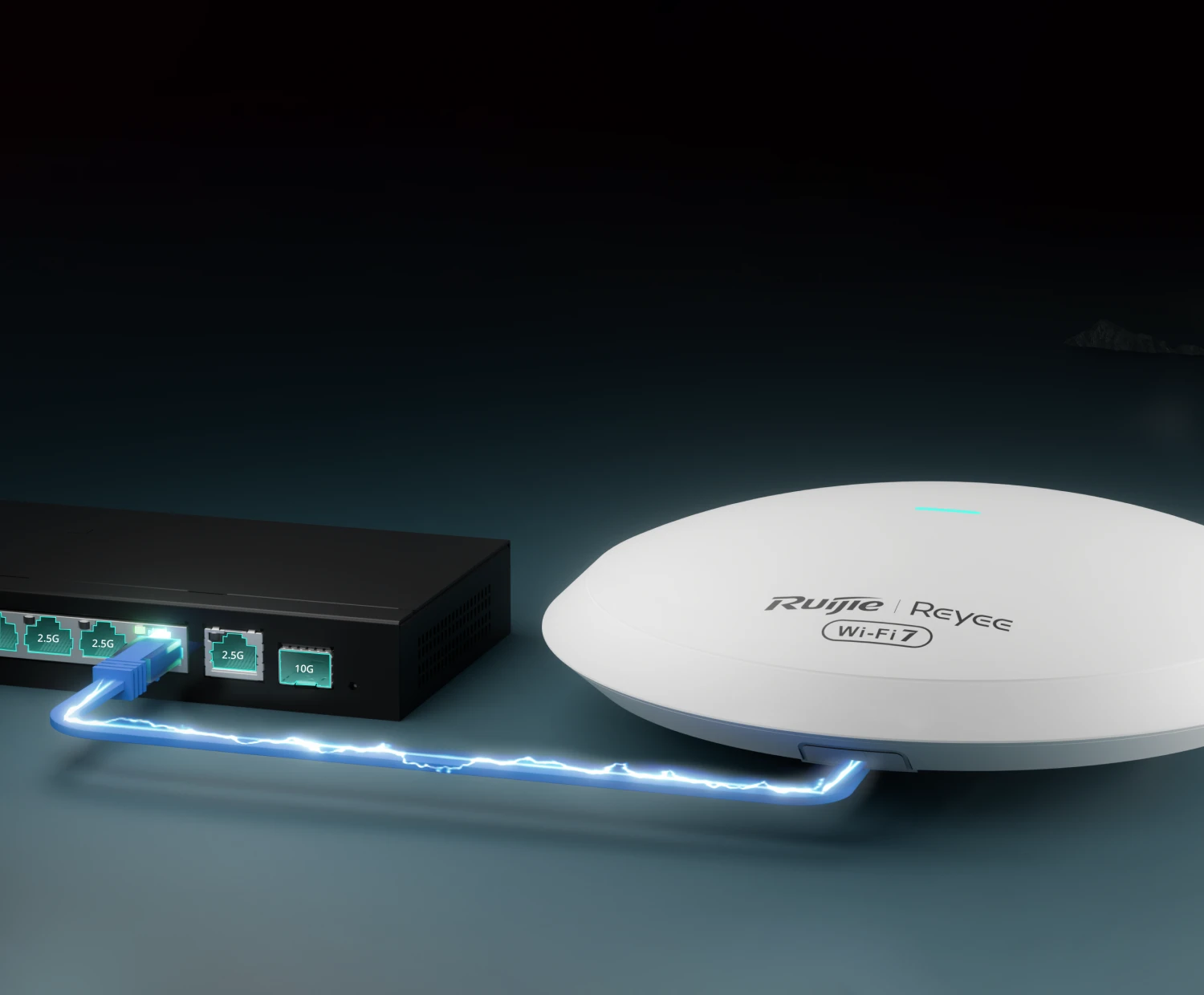

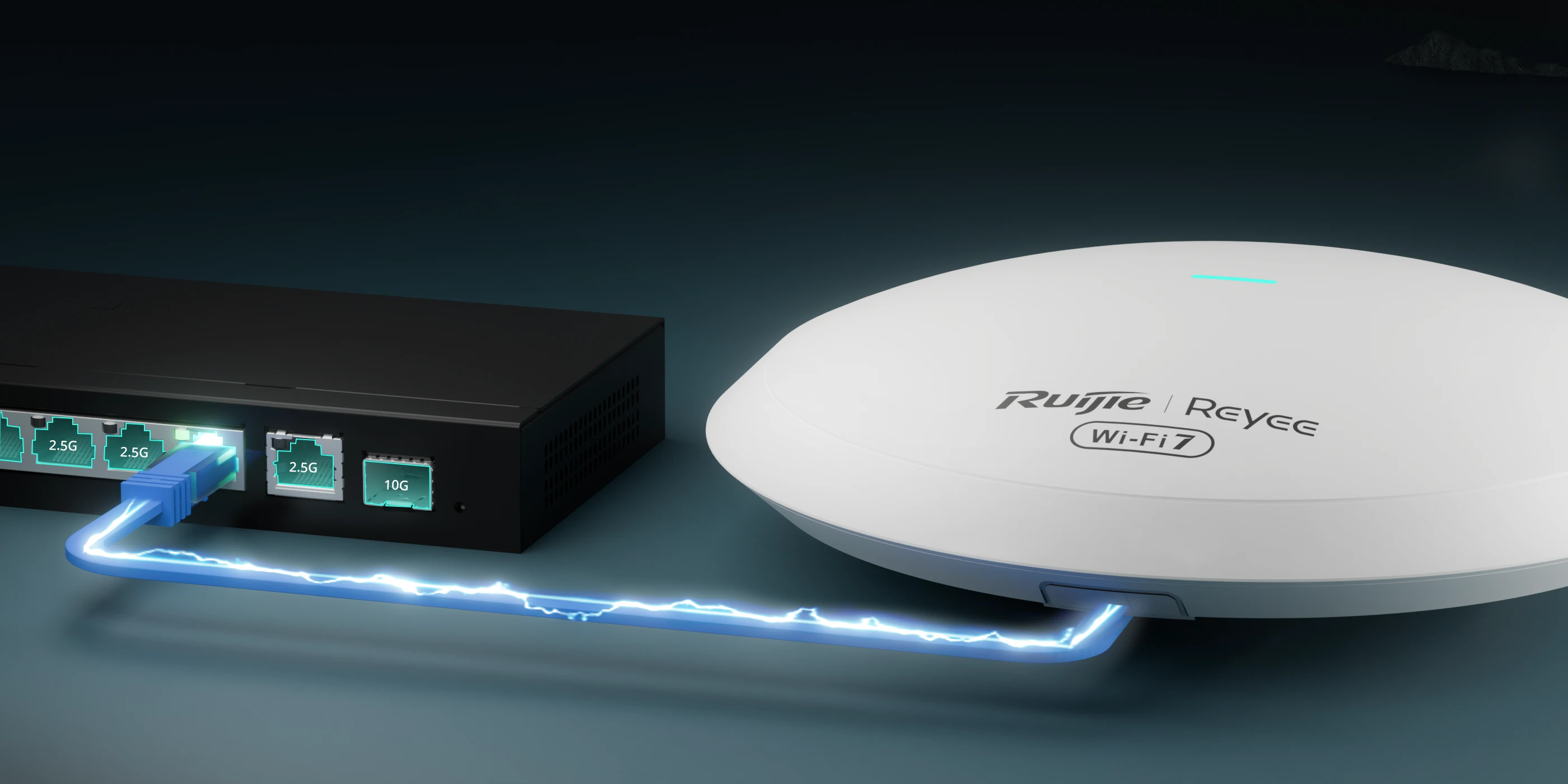

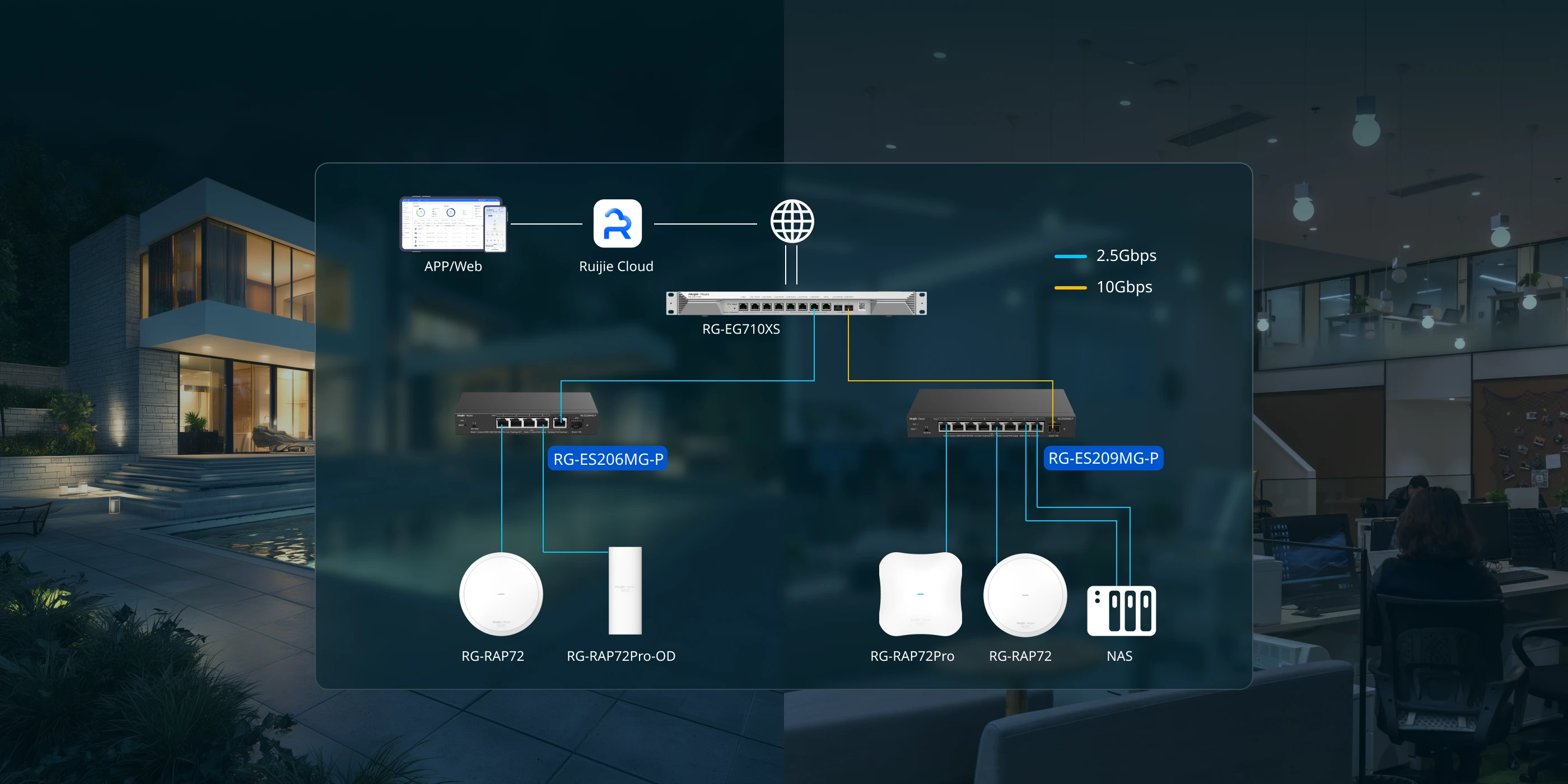

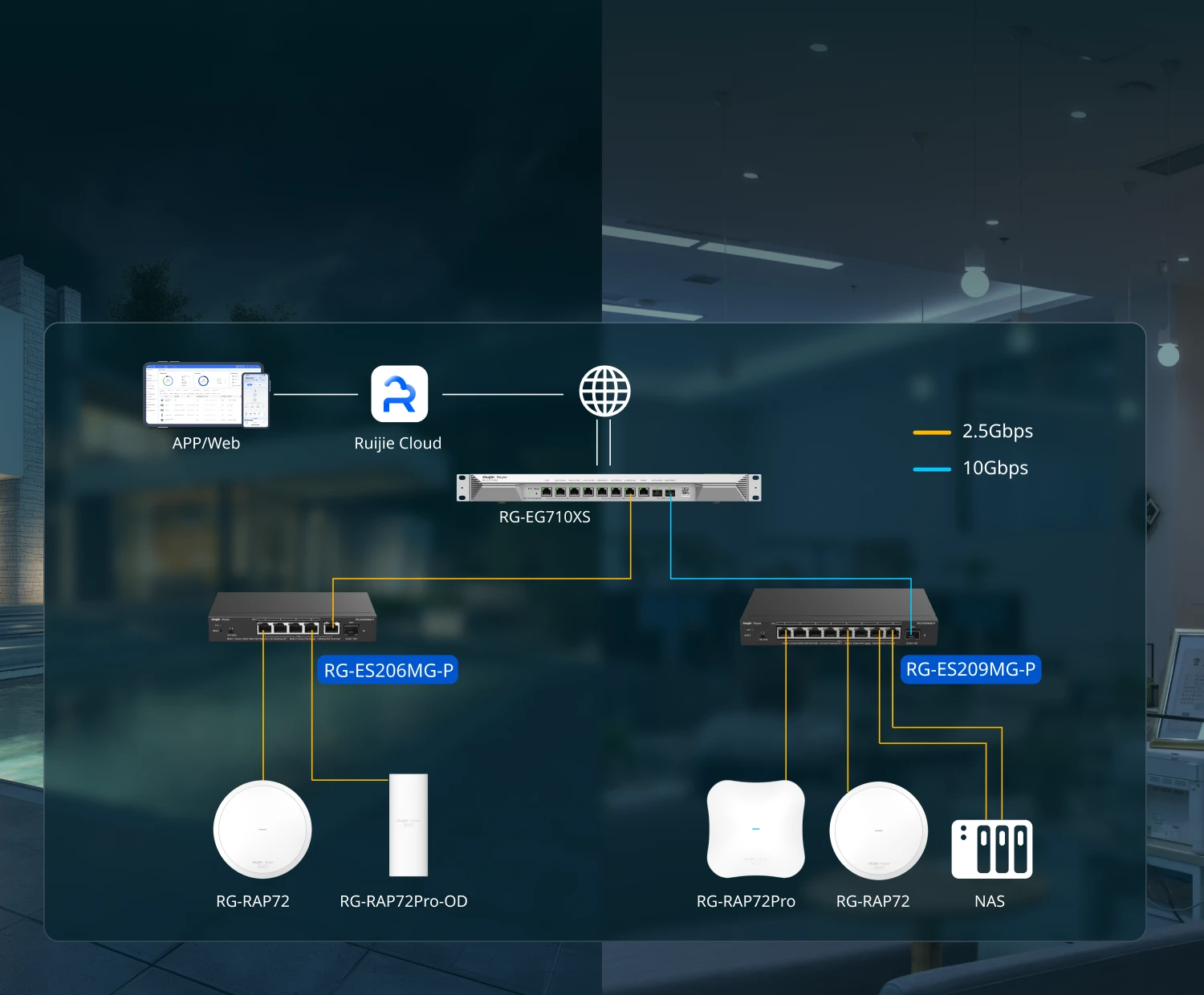

Pełna moc sieci Wi-Fi 7

Większa przepustowość, maksymalna stabilność

Przełamujemy ograniczenia sieci — pełna moc sieci Wi-Fi 7

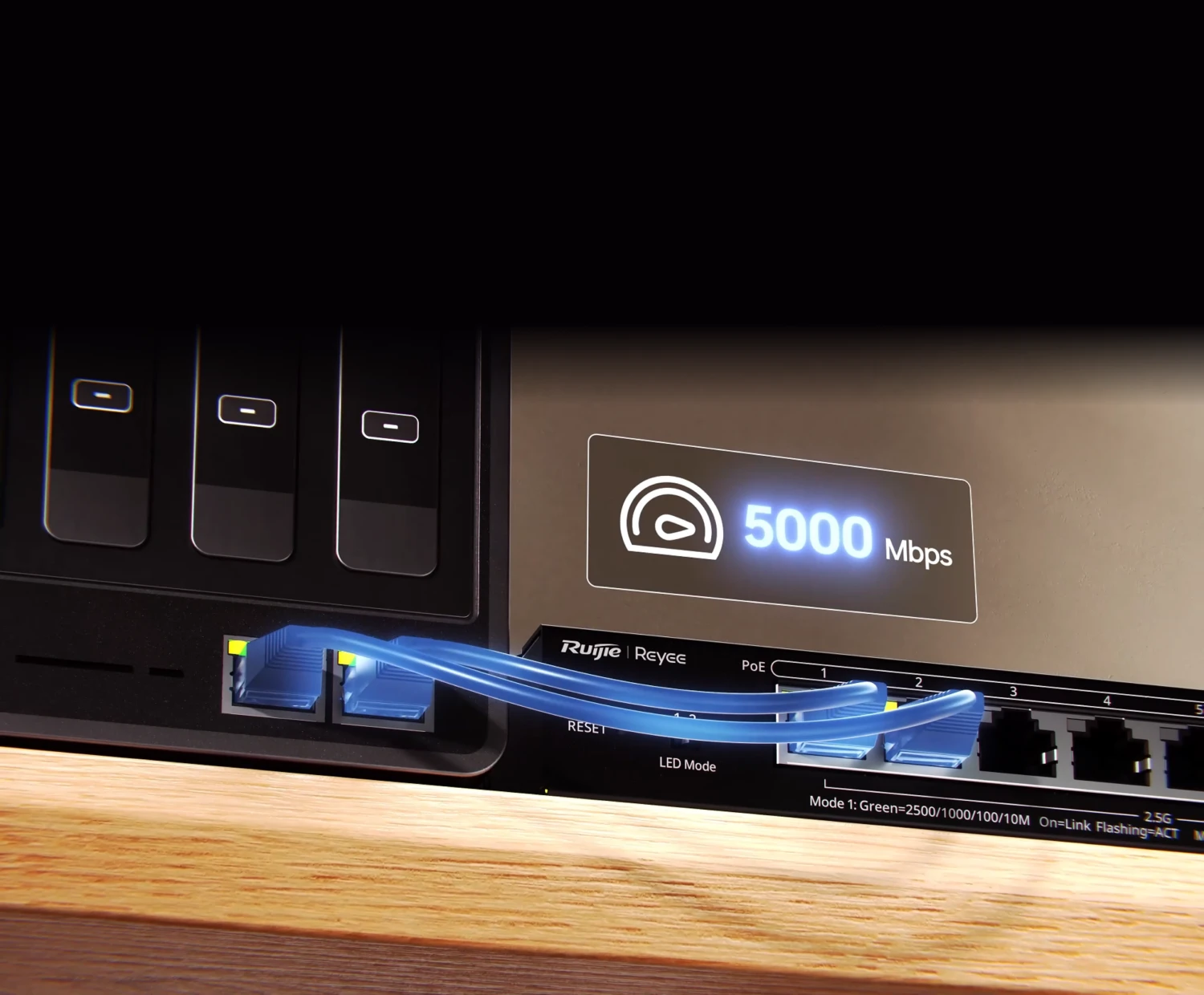

Dlaczego nie korzystać z szybkości 2,5 Gb/s na każdym porcie?

  • Większa przepustowość sieci wewnętrznej i płynniejsza praca w godzinach szczytu.
  • Nieograniczona wydajność sieci bezprzewodowej.
  • Wykorzystanie każdego gigabita bez marnowania przepustowości.

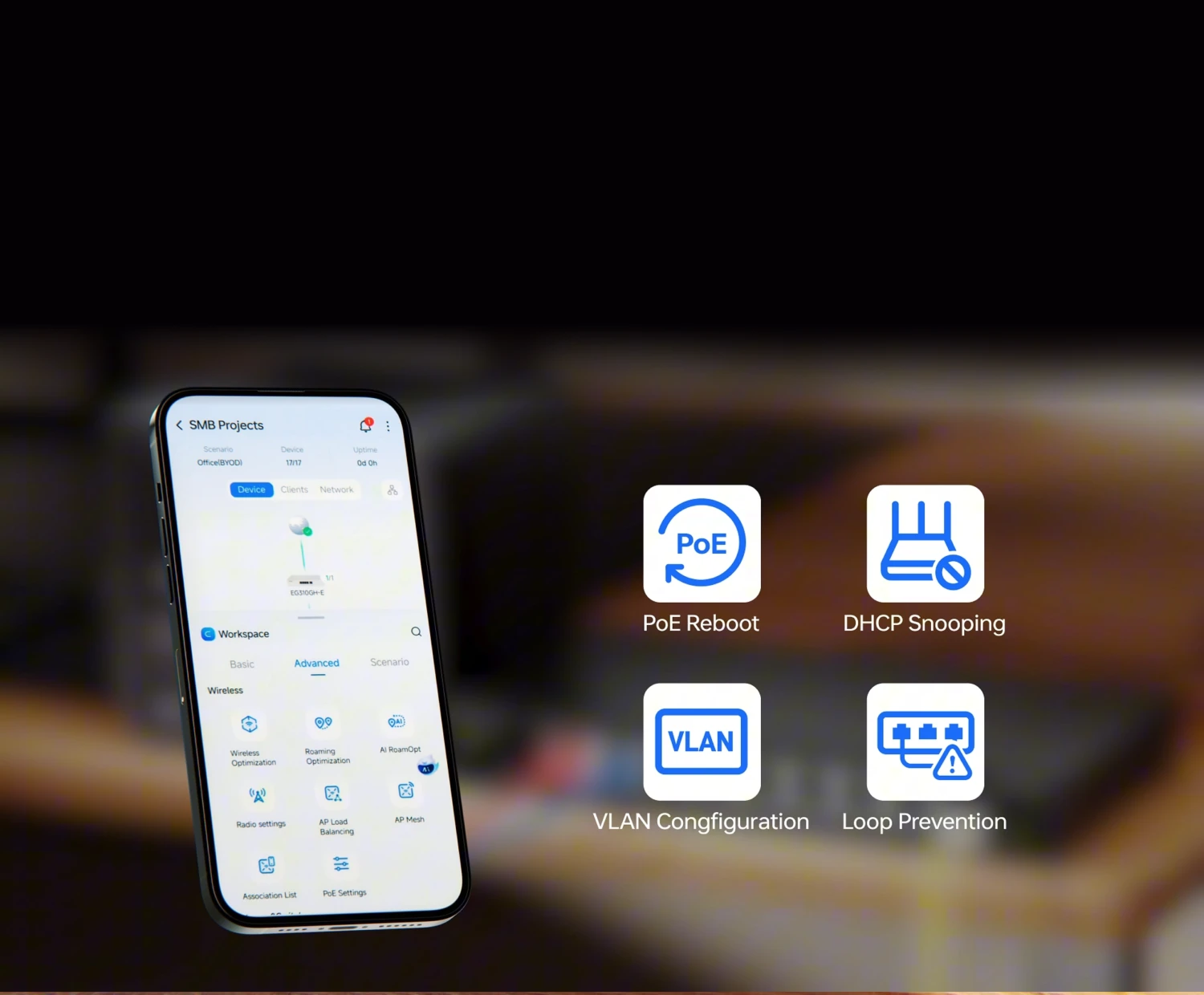

Chmura ułatwia prowadzenie działalności

Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 8
Total number of optical ports
  • 1
Number of 10GE SFP+ ports
  • 1
Number of 10/100/1000/2500BASE-T ports
  • 8
Power Supply and Consumption
Number of PoE Out ports
  • 8
Number of PoE/PoE+ Out ports
  • 8
PoE budget
  • 130 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 45 Mpps
Switching capacity
  • 60 Gbps (bit/s)
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
