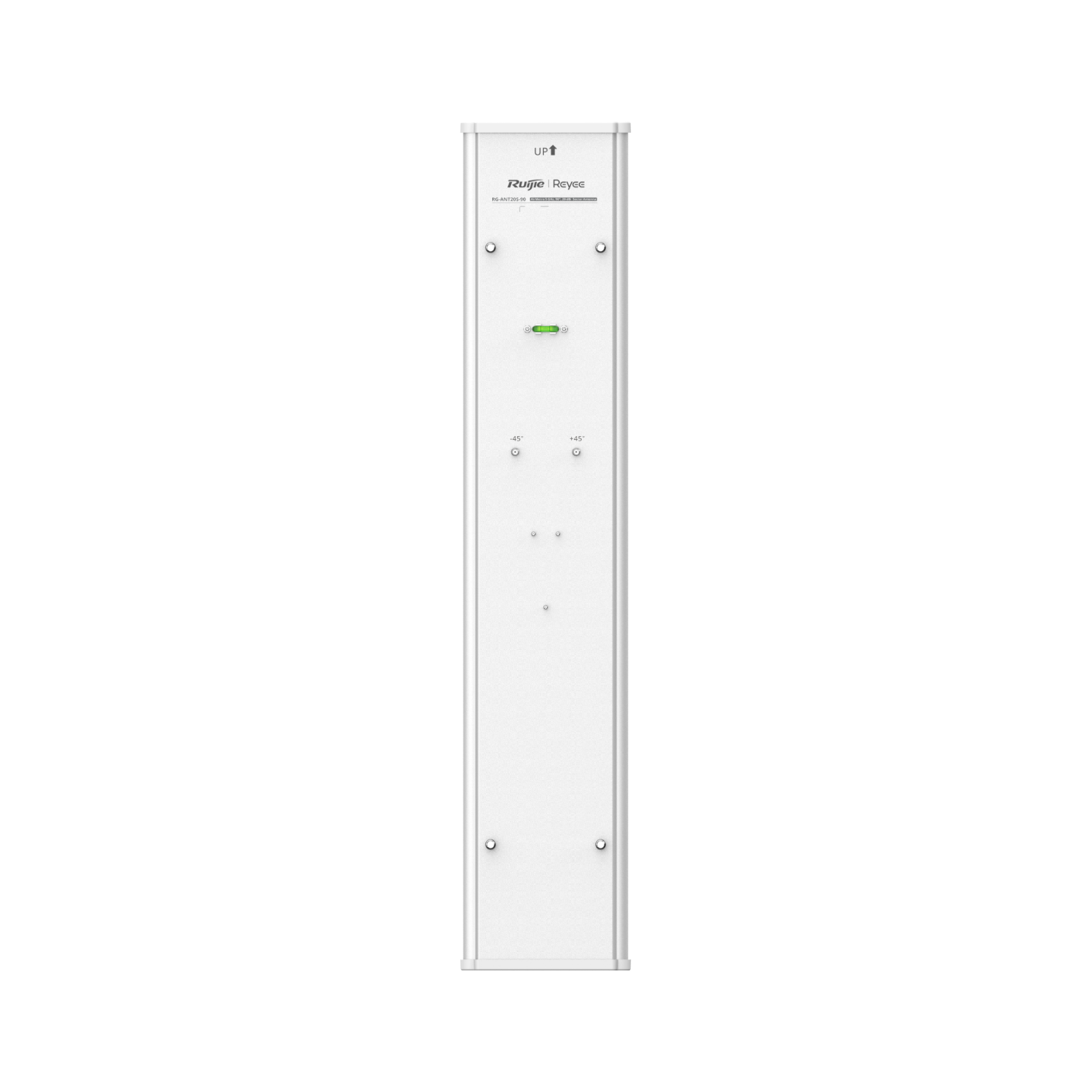

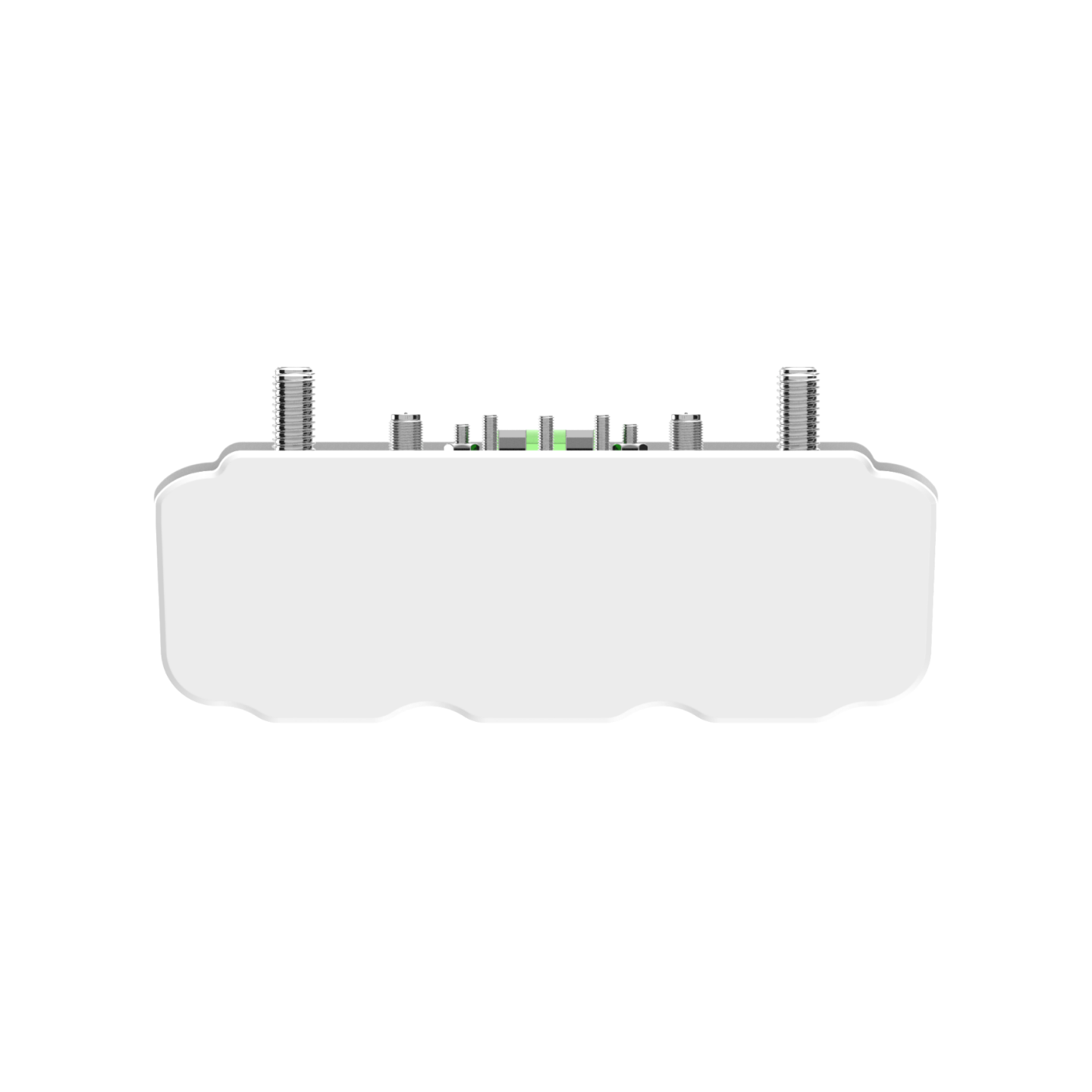

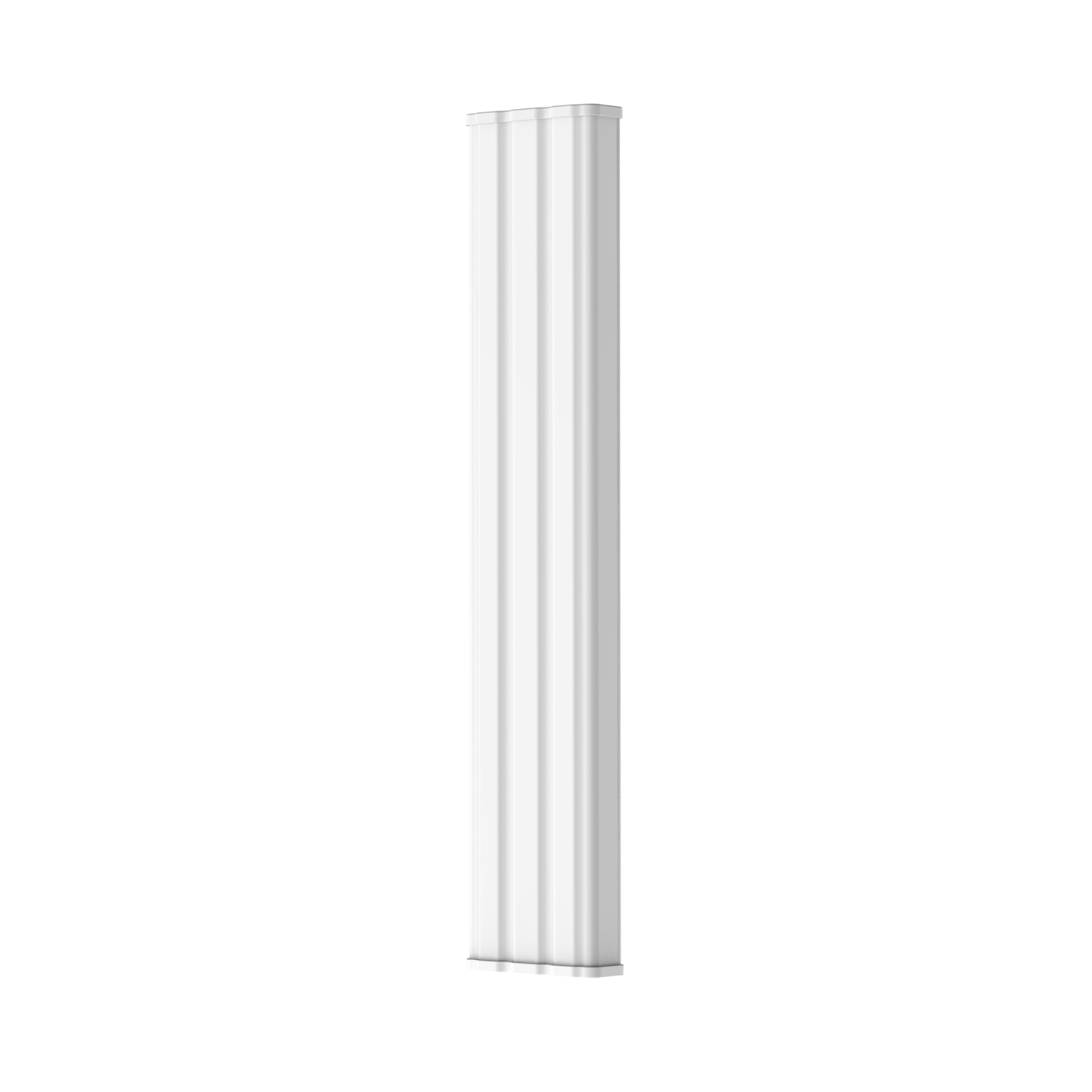

RG-ANT20S-90, Antena sektorowa 90° do mostów bezprzewodowych serii RG-AirMetro

WISP, CCTV, miasto, droga miejska, fabryka itp.

Models
RG-ANT13-360

Antena dookólna 360°, 2 km

 RG-AirMetro550G-B

Do 867 Mb/s przy 5 GHz, maks. od 1 do 32 stacji bazowych PTMP z 2 portami GE

 RG-ANT16S-120

120°, 5 km Antena sektorowa

 RG-ANT20S-90

90°, 10 km Antena sektorowa
Series
PTMP Station PTP/PTMP CPE
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • Wybór spośród trzech anten dla różnych scenariuszy
  • Stopień ochrony IP55 dla trudnych warunków środowiskowych
  • Kompleksowe zarządzanie w chmurze upraszcza podróż użytkownika
Sales Enquiry
Key Specification
Features

Mostki bezprzewodowe
serii RG-AirMetro

Po sparowaniu z urządzeniami CPE mostek obsługuje:

  • 10km

    Transmisję bezprzewodową
    do 10 km

  • 32PTMP

    Do 32 łączy
    PTMP

  • Narzędzie Easy Site
    Survey

  • Zarządzanie chmurą
    All-in-One

Stacja bazowa

Idealne dopasowanie do różnych urządzeń i scenariuszy

  • 867 Mb/s

    Podwójny strumień 5 GHz 802.11ac

  • Do 32 łączy PTMP

    TDMA

Parowanie jednym
dotknięciem

Parowanie jednym dotknięciem Wszystko w 30 sekund

AI Heatmap dla Bridge

Anteny

Potrójne urządzenia, poza potrójnym wyborem

All
in One
Cloud

Zrealizuj swoją podróż bez przeszkód

Główne
scenariusze

Idealny wybór dla scenariuszy WISP i CCTV

Idealne dopasowanie do różnych
Urządzenia i scenariusze

Szybkie parowanie

Parowanie jednym dotknięciem w 30 sekund

Anteny

Potrójne urządzenia, poza potrójnym wyborem

  • RG-ANT20S-90

    5 GHz, 20 dBi

    H: 90°，V: 7°

    10 km

  • RG-ANT16S-120

    5 GHz, 16 dBi

    H:120°，V:10°

    5 km

  • RG-ANT13-360

    5 GHz, 13 dBi

    H: 360°，V: 7°

    2 km

Stabilny

Niezawodny w trudnych warunkach środowiskowych

  • Odporność na warunki atmosferyczne IP55
  • 220.32 km/h
    (137 mph)     Wytrzymałość na wiatr
  • Ochrona przeciwprzepięciowa 6 kV
  • 24 kV ESD kontaktowe/powietrze

PTMP

Do 32 łączy PTMP

WISP

Szeroki zasięg bez połączeń światłowodowych

CCTV

Doskonałość w przystępnej cenie i płynny nadzór

AI Heatmap dla Bridge

Prawdziwy towarzysz przygód na świeżym powietrzu

Narzędzie do wyrównywania

Twój przewodnik pozwalający na oszczędność czasu

Skanowanie widma i optymalizacja łącza

Przewodnik Thumbs-Up

  • Skanowanie zakłóceń kanału jednym kliknięciem dla wszystkich punktów

  • Automatyczne zalecenia dotyczące optymalizacji

  • Oszczędność czasu i wysiłku

Dostępne zarówno w Ruijie Cloud, jak i Ruijie Reyee App

Chmura, ułatwi Ci prowadzenie działalności

All-in-One Cloud

Szybka konfiguracjaMonitorowanie w oparciu o rzeczywistą, kompletną topologięIdentyfikacja problemów przez autoalarm

Comparison
Specifications
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
