RG-APF1250, AC1200 e-Lighten Multi-Service Wall-Mount AP

Hotel, Resort, Villa, Apartment, Factory, Enterprise, Education, etc.

Models
RG-APF1250

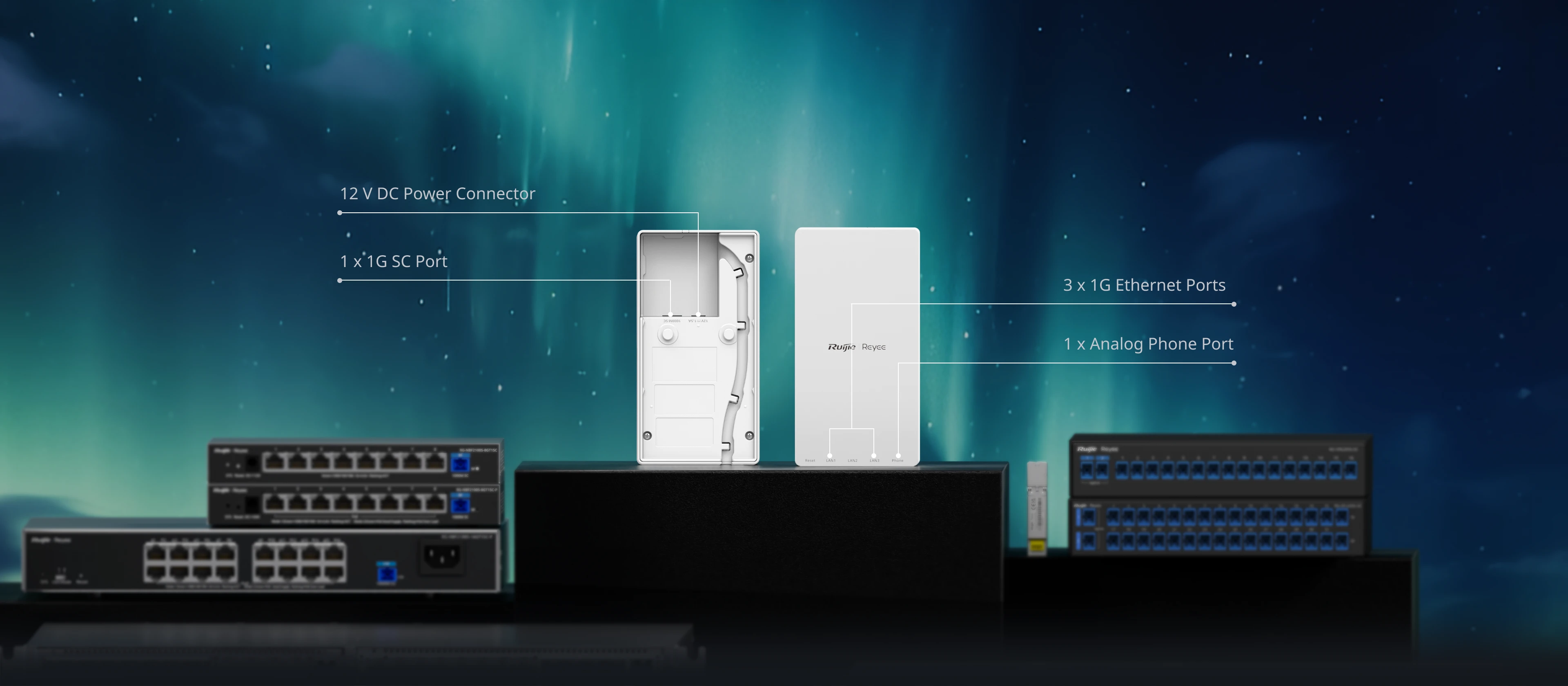

Wi-Fi 5,1167Mbps,3 x 1G Ethernet Ports + 1 x Analog Phone Port + 1 x 1G SC Port
Series
Настенная точка доступа
Datasheet Sales Enquiry
Highlight Features
  • Passive Optical Networking Support
  • Integrating Phone, IPTV, and Wi-Fi Services
  • Wi-Fi 5, AC1200
  • AI Roaming
  • Free Cloud Management
Sales Enquiry
Key Specification
Функции

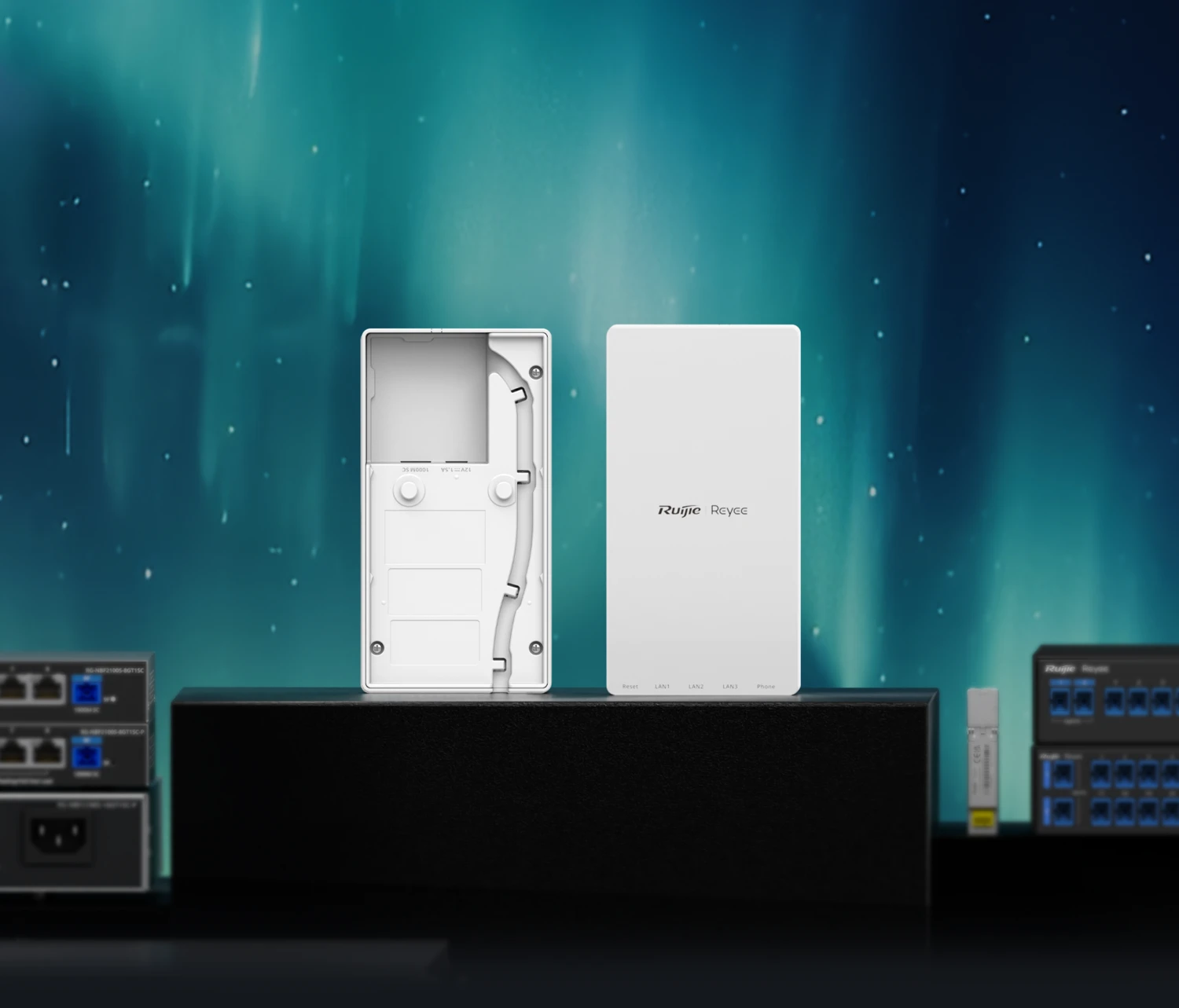

e-Lighten AP

RG-APF1250

  • Triple-Play of Wi-Fi & IPTV & Phone

  • Turn Analog Phones into IP Phones

  • AI Roaming Between
    Ethernet & e-Lighten APs

  • Easy Optical Network Setup

  • All-in-One Cloud

  • Triple-Play of Wi-Fi
    & IPTV & Phone

    Turn Analog Phones
    into IP Phones

  • AI Roaming
    Between Ethernet &
    e-Lighten APs

  • Easy Optical
    Network Setup

  • All-in-One Cloud

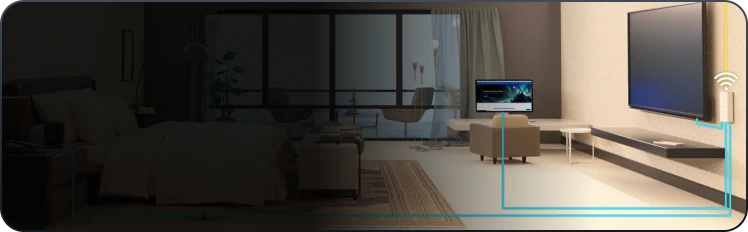

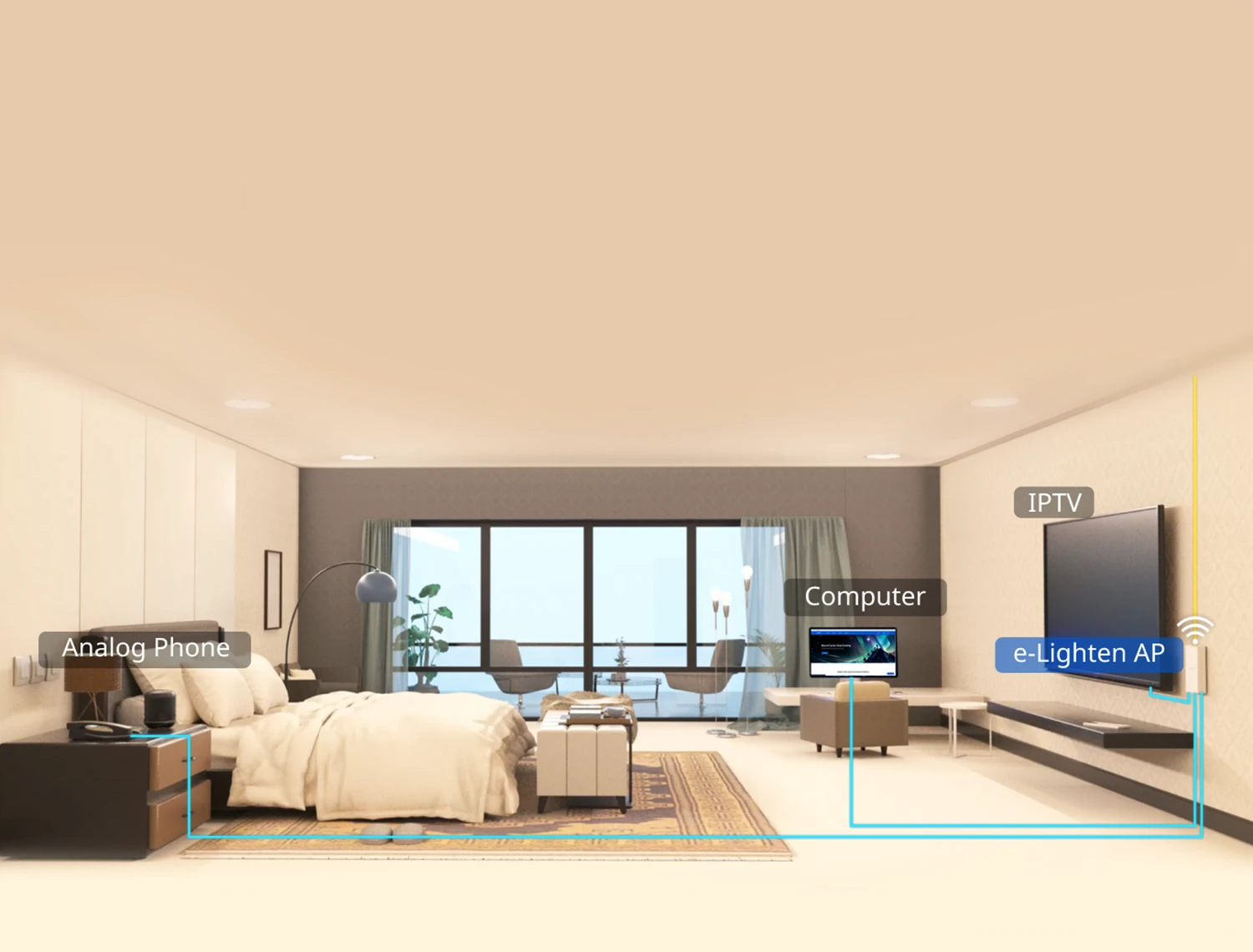

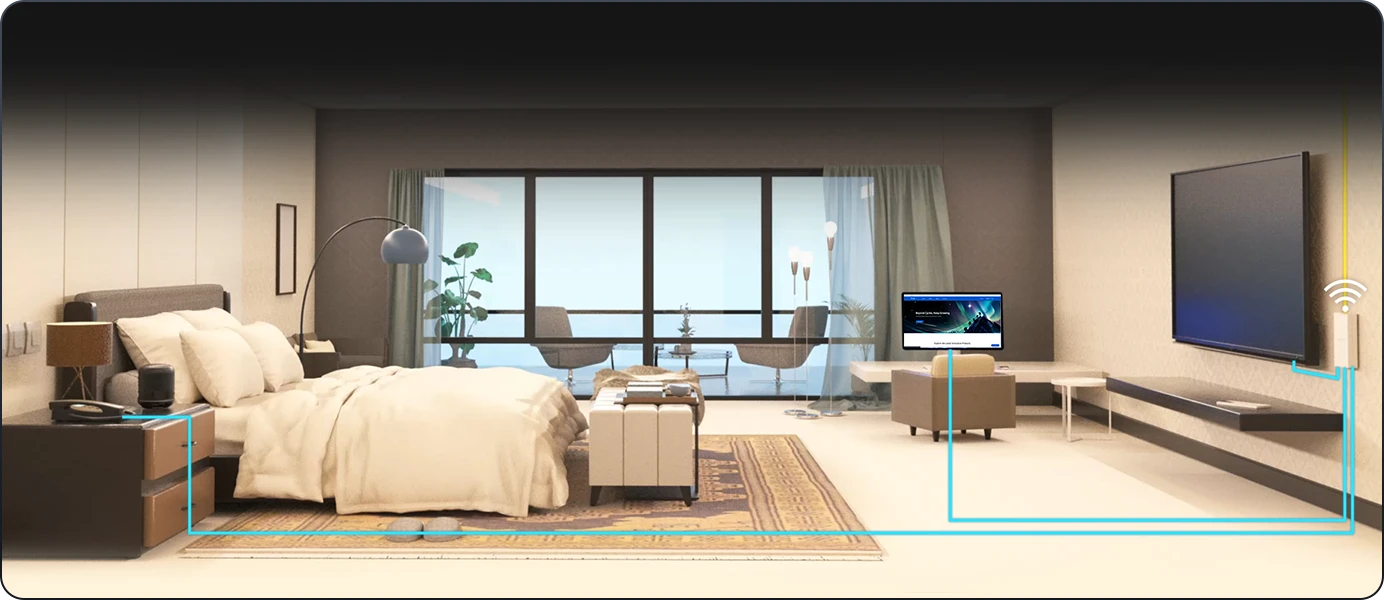

Triple-Play Service, Effortless Wiring

Triple-Play Service,
Effortless Wiring

One fiber carrying network, IPTV, and telephone services

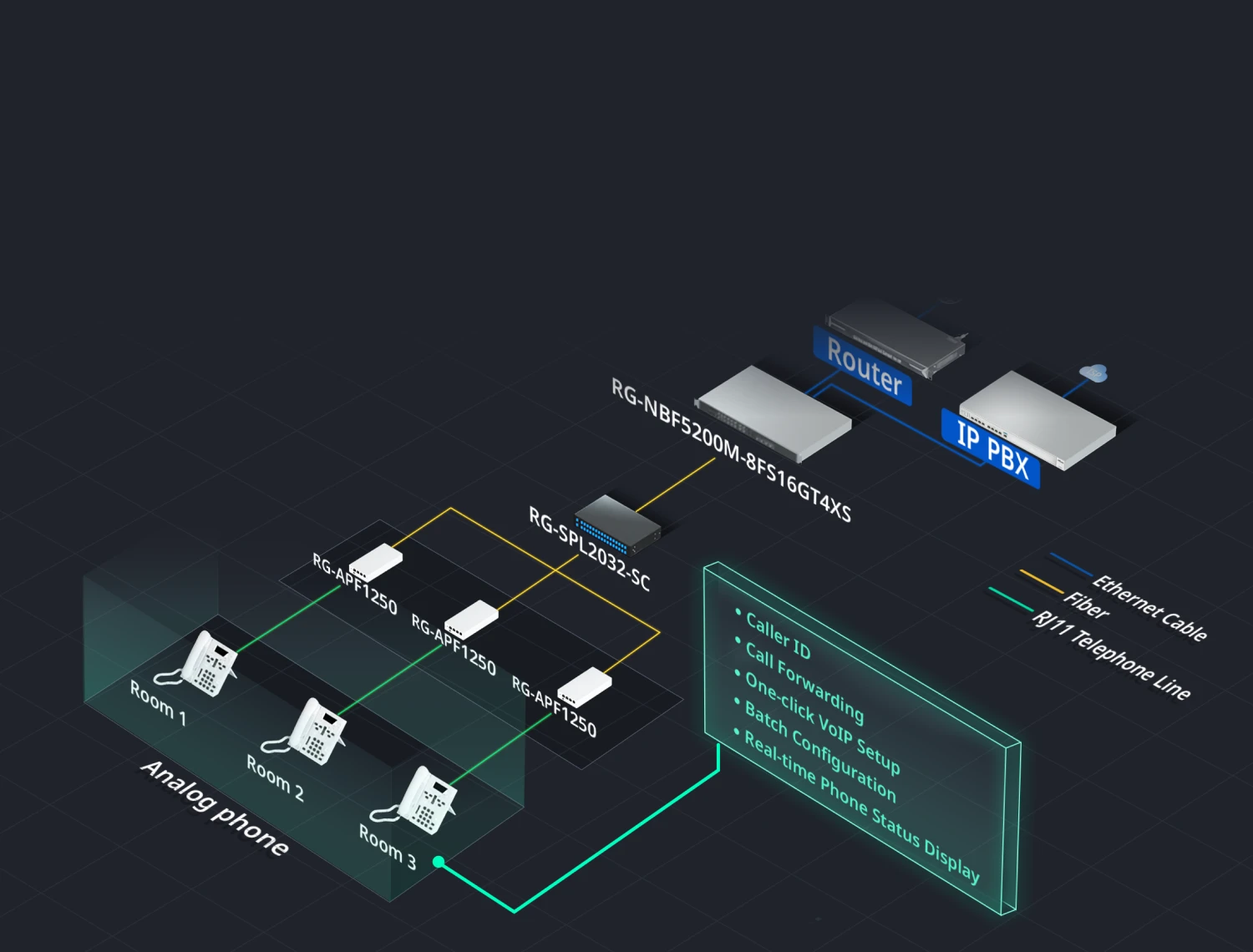

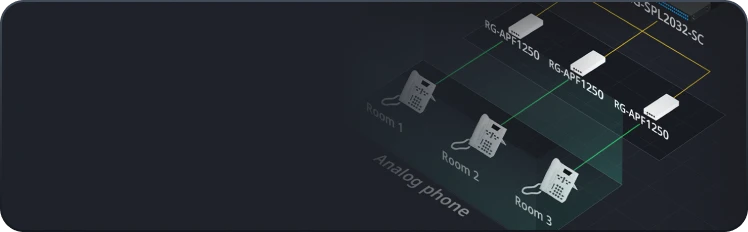

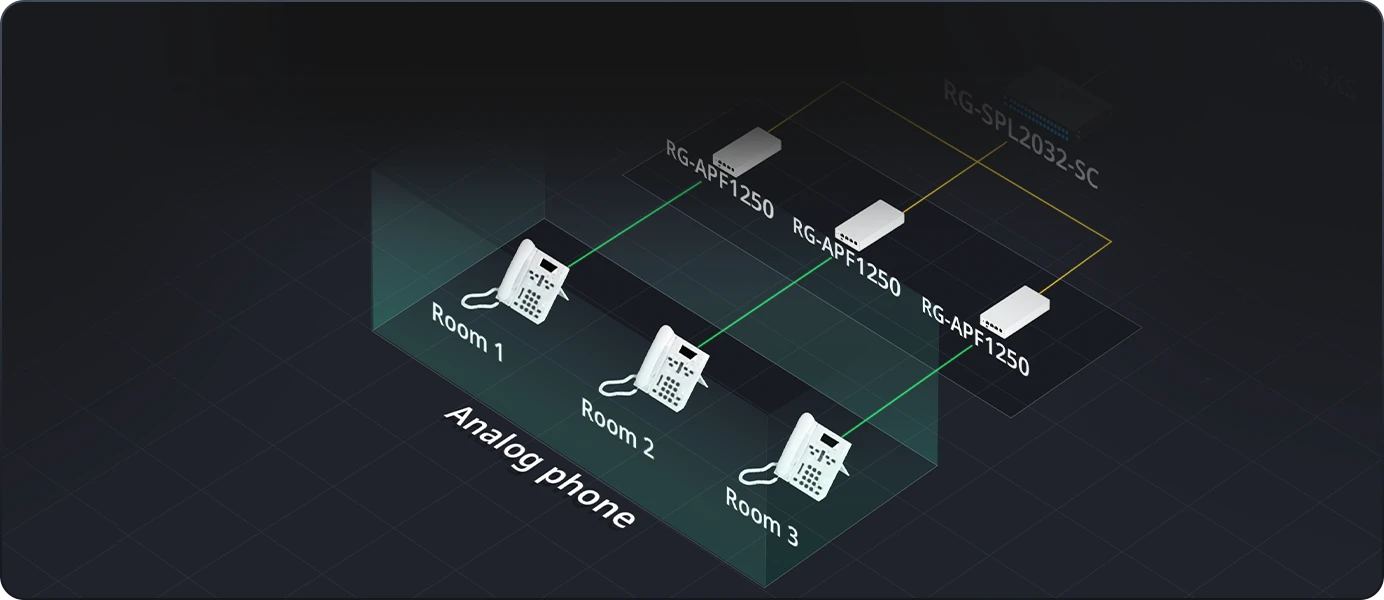

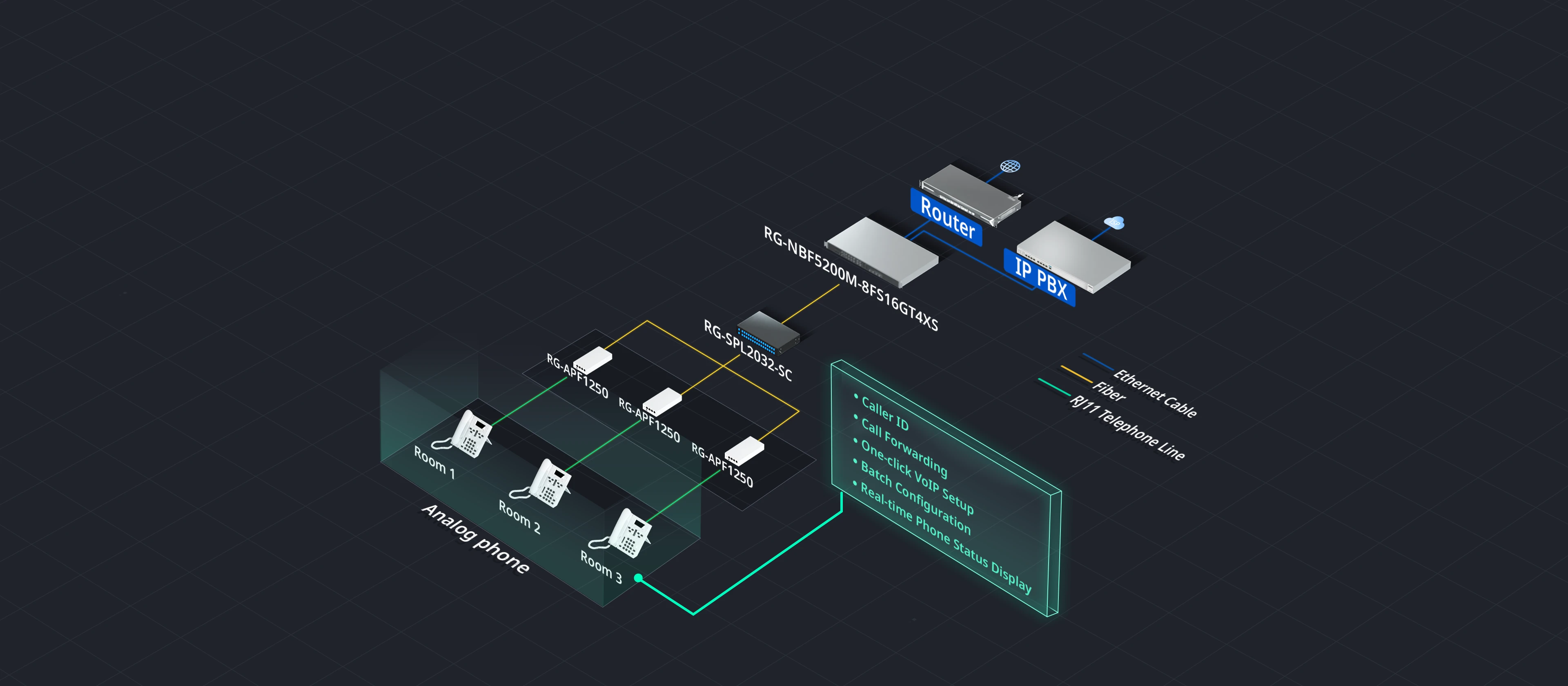

Smart Savings, Smarter Telephony
Enjoy IP Phone Experience on Analog Phones

Smart Savings,
Smarter Telephony

Enjoy IP Phone Experience on Analog Phones

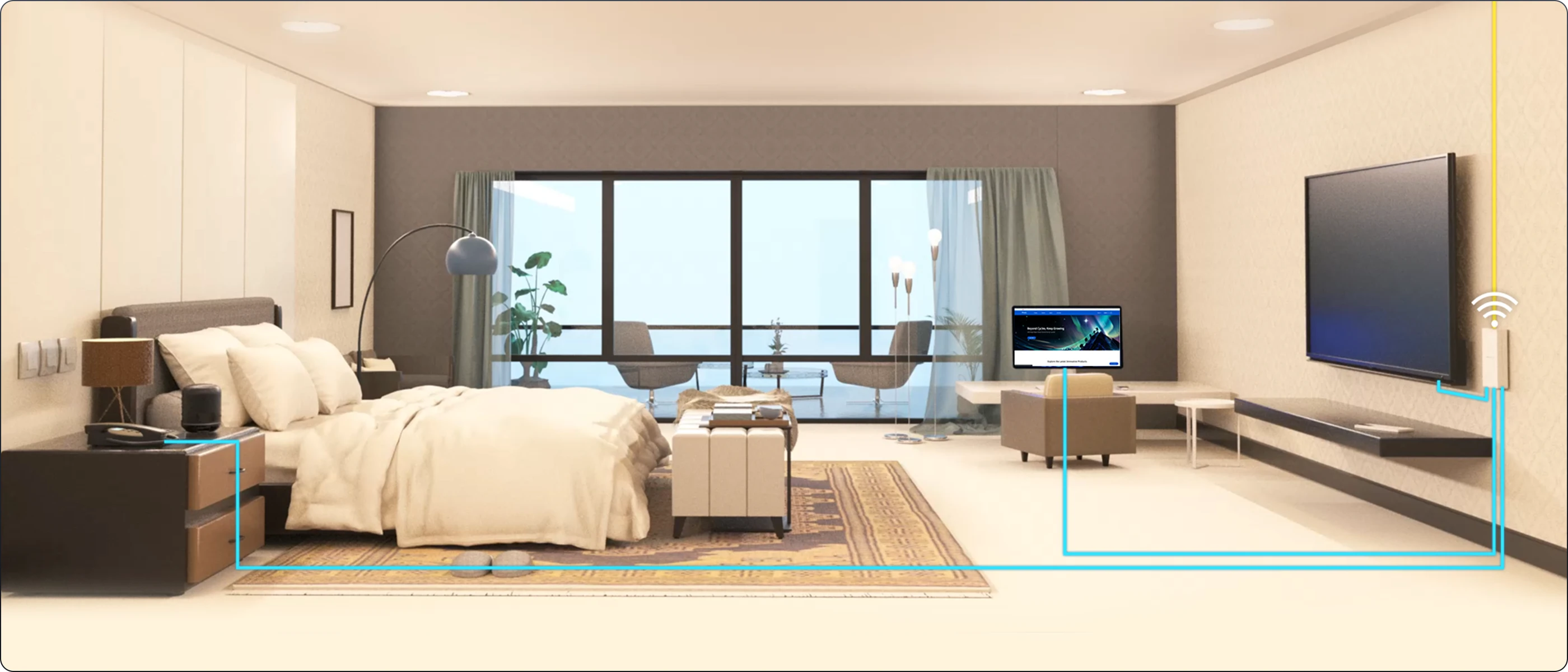

AI Roaming between Ethernet & e-Lighten APs

AI Roaming between
Ethernet & e-Lighten APs

Hotel-wide Optical Network Roaming

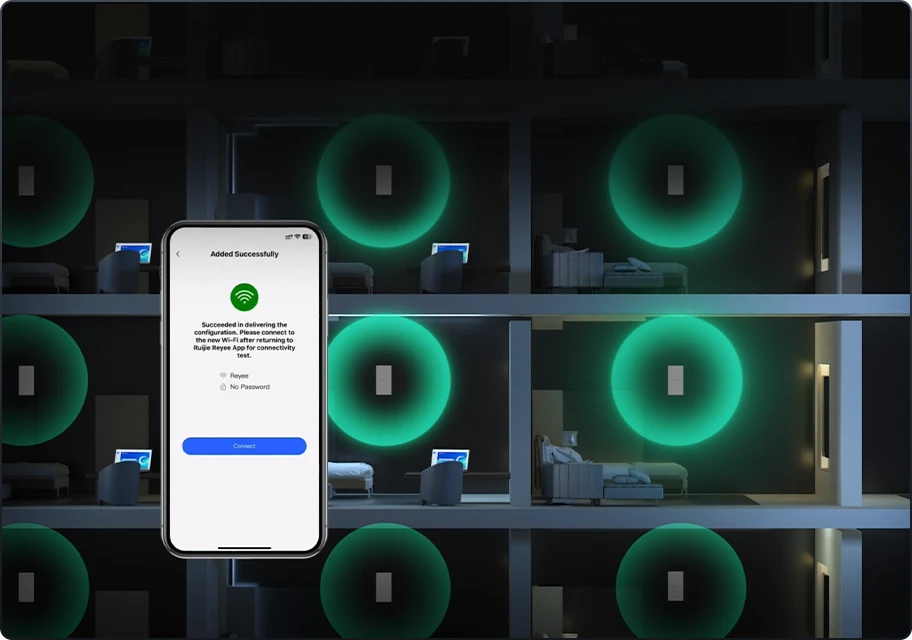

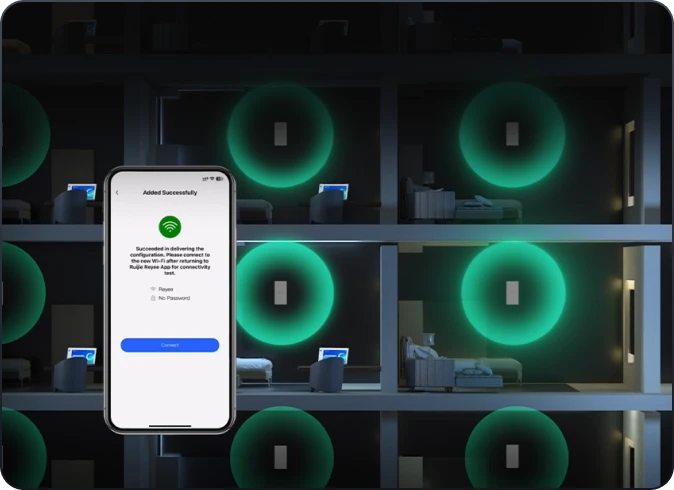

Easy Optical Network Setup in 3 Minutes

Easy Optical Network Setup
in 3 Minutes

With our Self-Organizing Networking (SON) technology,
an optical network can be effortlessly set up via Ruijie Cloud.

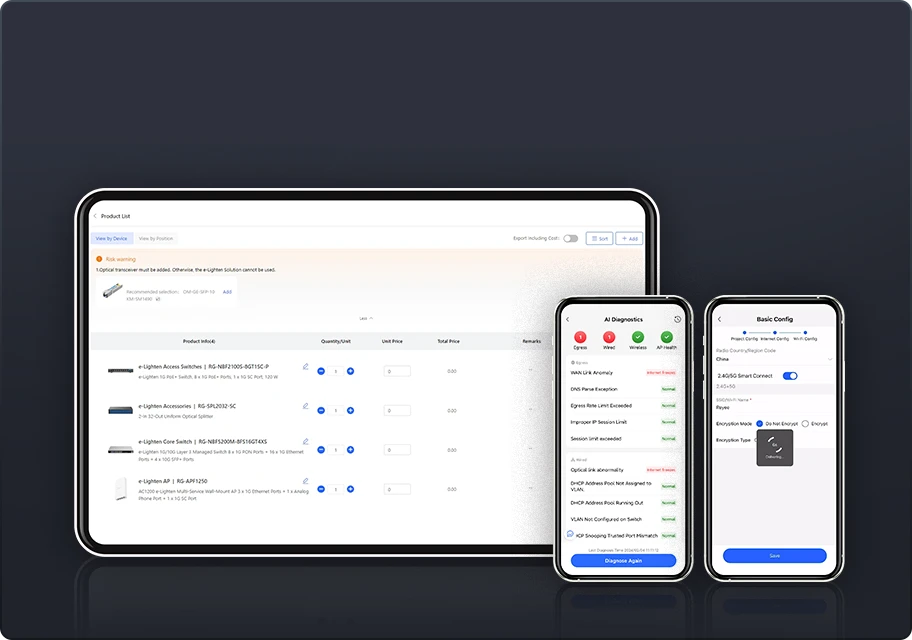

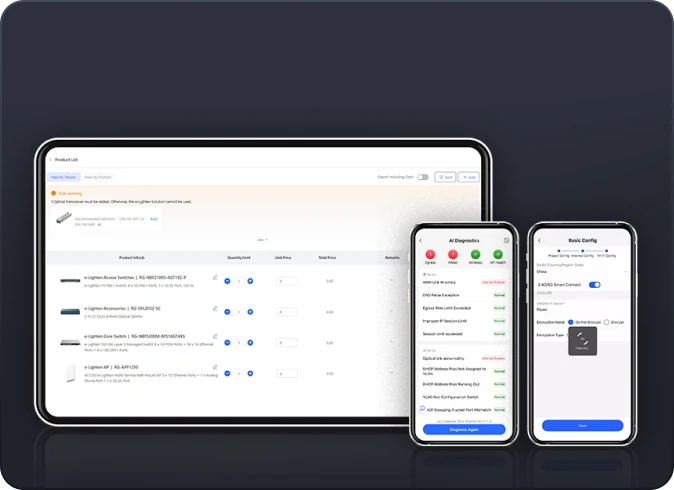

Cloud, Make Your Business Easy

  • Pre-Sale

  • Deployment

  • Post-Sale

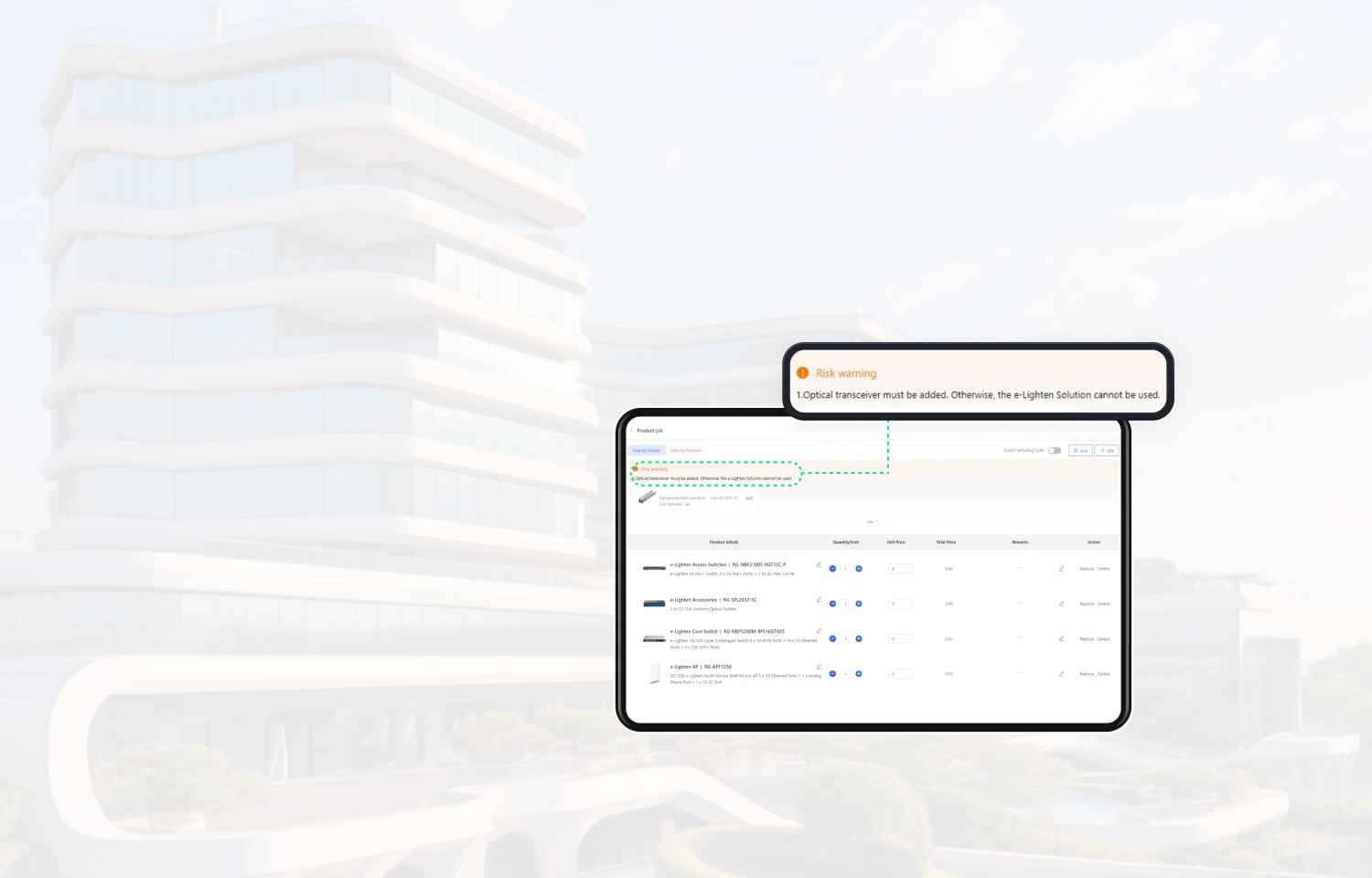

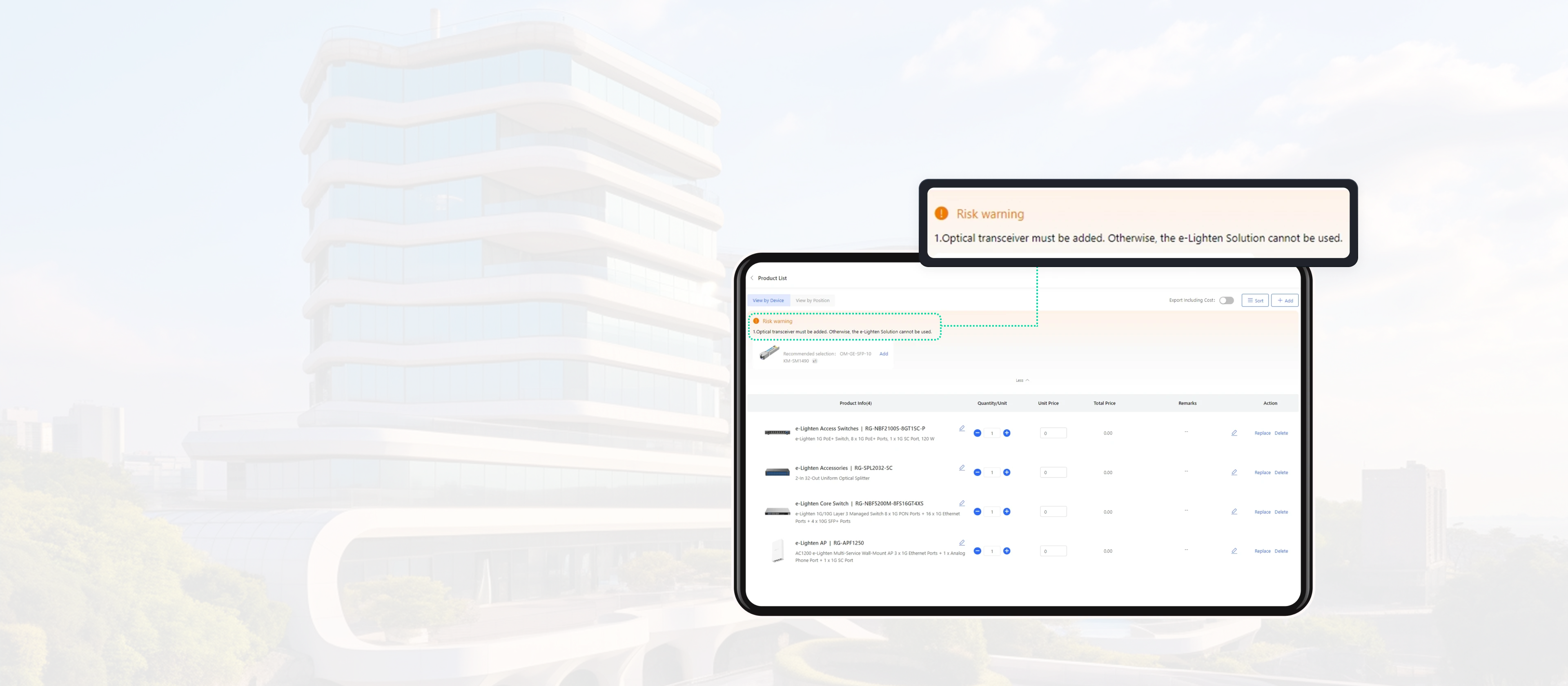

  • Easy BOM

    Automated validation of the
    e-Lighten BOM for accuracy     Automated
    validation of the
    e-Lighten BOM
    for accuracy

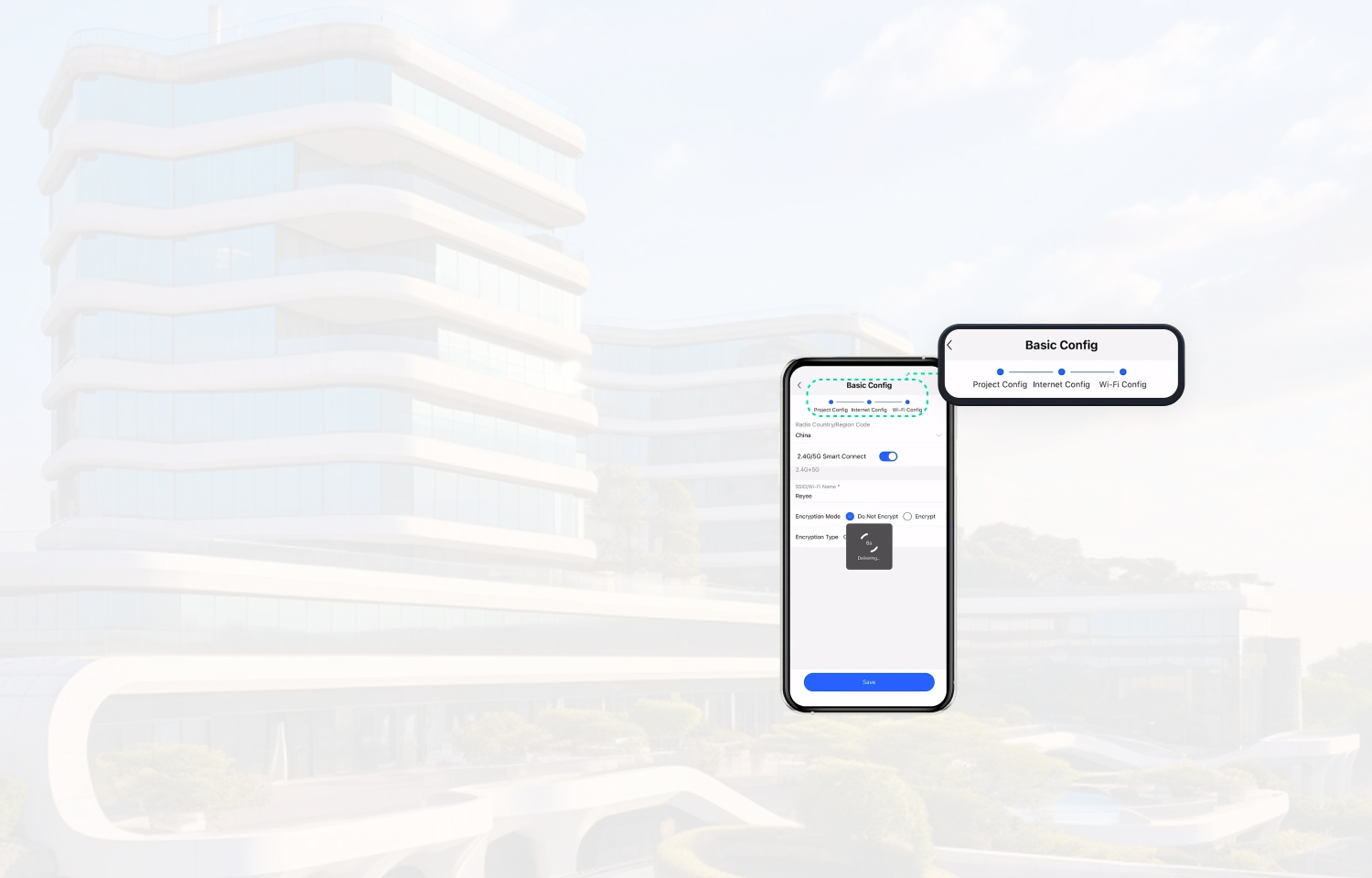

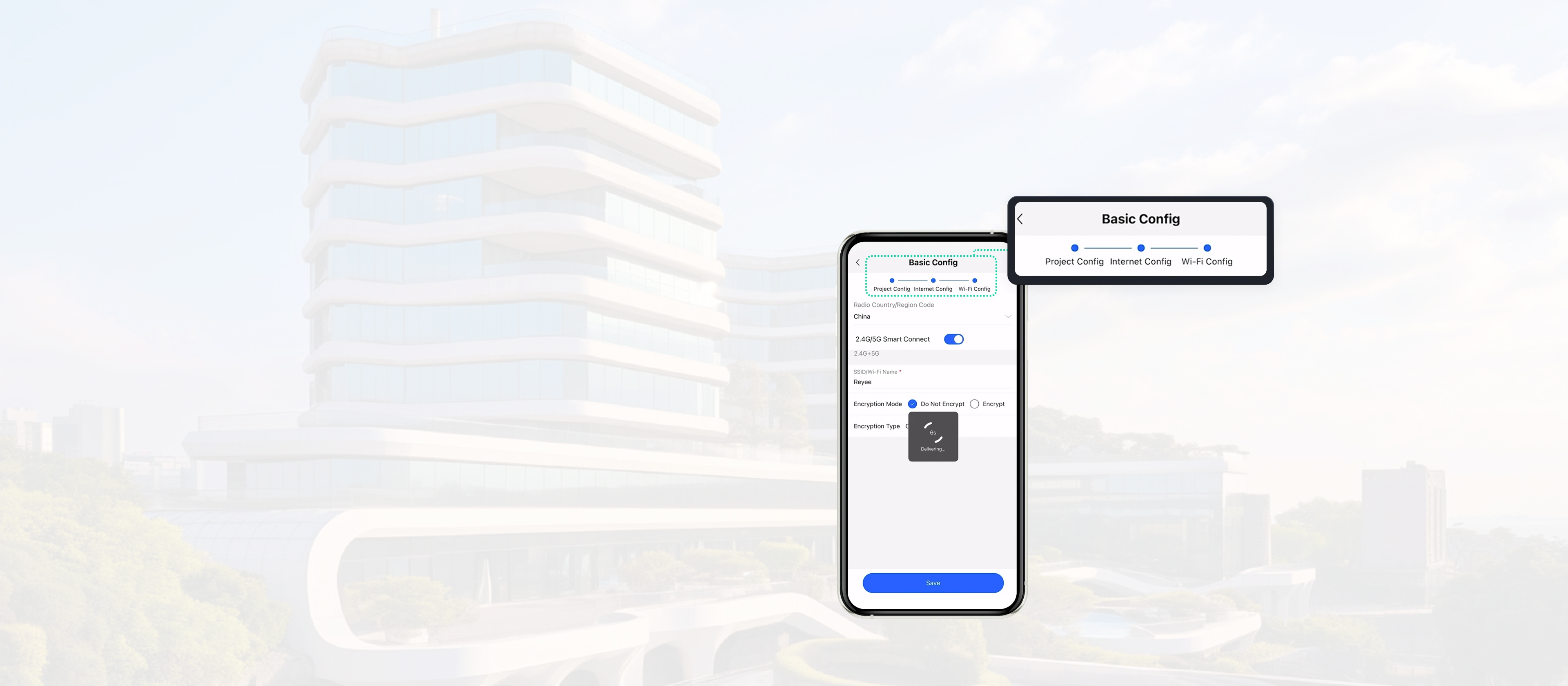

  • Easy Configuration

    Unified configuration of optical networks,
    Ethernet and telephony systems     Unified configuration
    of optical networks,
    Ethernet and
    telephony systems

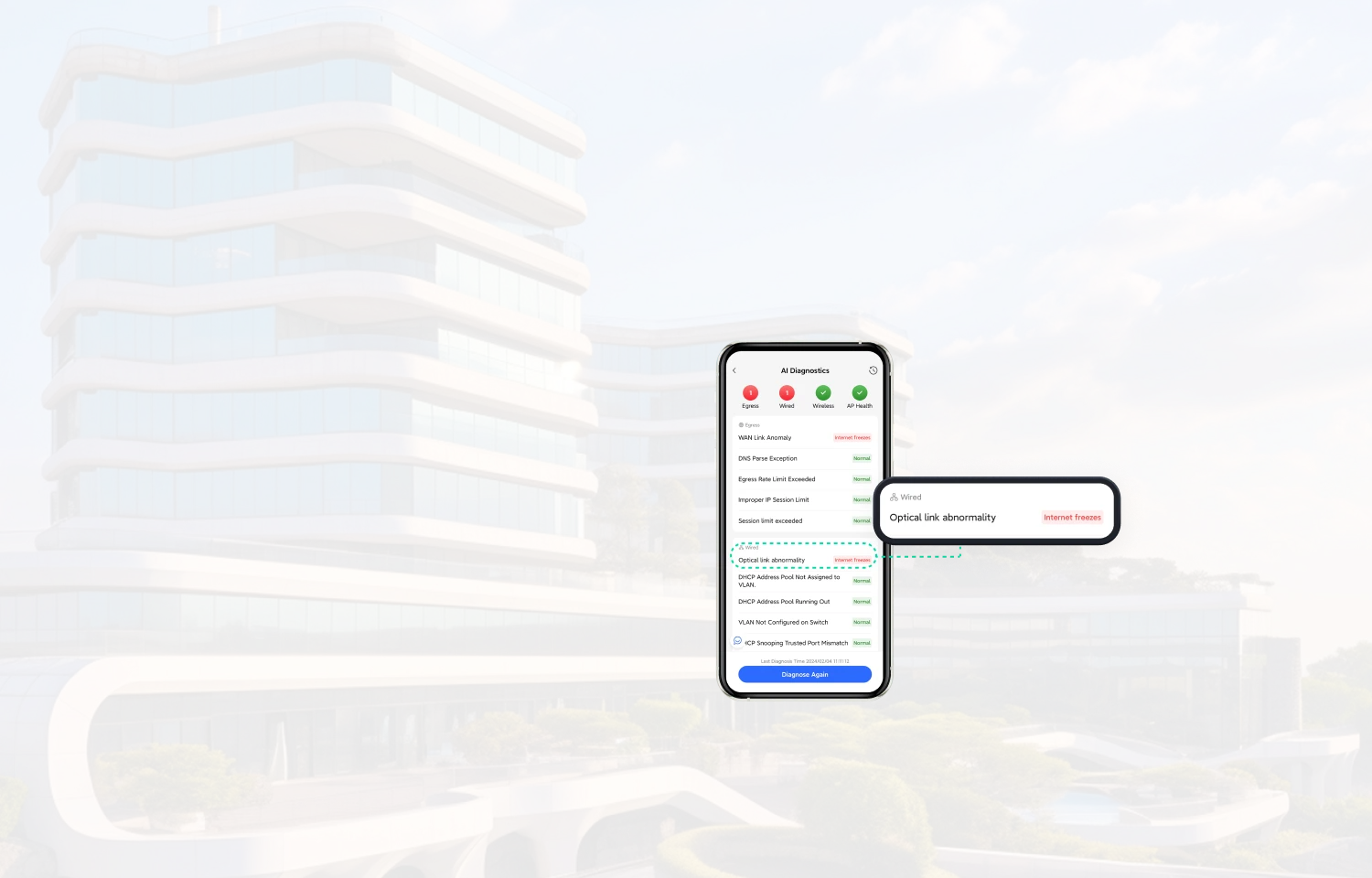

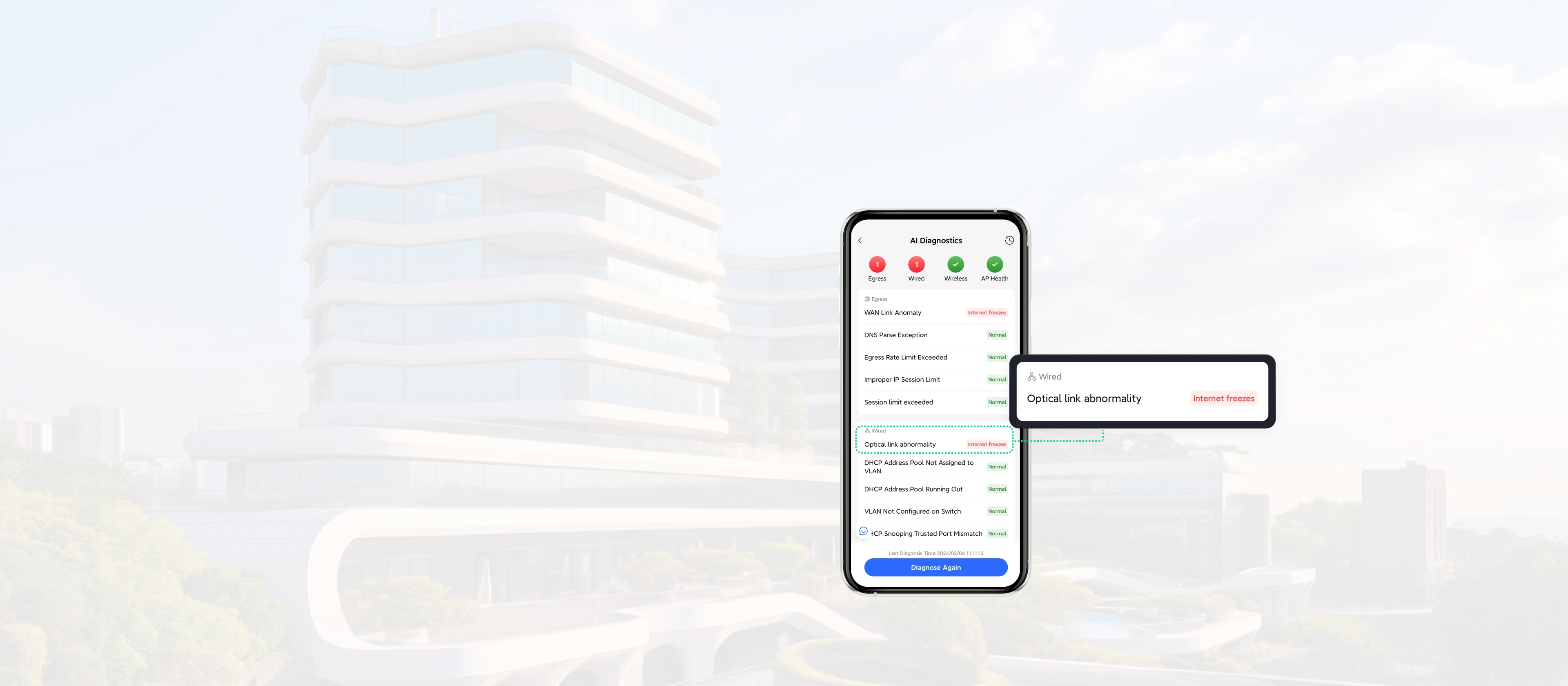

  • Easy Maintenance

    One-click AI troubleshooting to remotely
    resolve 90% of faults     One-click AI
    troubleshooting to
    remotely resolve 90%
    of faults
Технические характеристики
Model RG-APF1250
Hardware Specifications
Wireless Data Rate 2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Max. Wireless Data Rate: 1167 Mbps
Number of Spacial Streams 2.4 GHz, two spatial streams, 2x2 MIMO
5 GHz, two spatial streams, 2x2 MIMO
2.4 GHz Wi-Fi Protocols Wi-Fi 4: IEEE 802.11b/g/n
5 GHz Wi-Fi Protocols Wi-Fi 4: IEEE 802.11a/n
Wi-Fi 5: IEEE 802.11ac Wave 2
Antenna Gain 2 dBi
2.4 GHz Recommended Wi-Fi Coverage Range 15 m (49.21 ft.)
Note: The data is obtained under ideal environment without obstruction.
Performance may vary depending on client capabilities and environmental interference.
5 GHz Recommended Wi-Fi Coverage Range 15 m (49.21 ft.)
Note: The data is obtained under ideal environment without obstruction.
Performance may vary depending on client capabilities and environmental interference.
Dimensions (W x D x H) 165 mm x 86 mm x 29 mm
(6.5 in. x 3.39 in. x 1.14 in.) (excluding the mounting bracket)
IP Rating IP41
QAM Support 256-QAM
Number of Phone & IPTV Transparent Transmission Ports 0
Power Supply Options DC: 12 V/1.5 A
Max. Power Consumption < 12.95 W
Mounting Wall-mount
Operating Temperature 0°C to 40°C (32°F to 104°F)
Software Features
Recommended Wireless Client Load 8 (2.4 GHz) + 24 (5 GHz) =32
Number of SSIDs 8
AP Mesh N
AP Group Y
Maximum No. of AP Groups 8
Disconnecting Clients with a Low RSSI Y
IPTV Y
TV Projection Y
AP Load Balancing N
OFDMA N
MU-MIMO Y
Multi-Link Operation (MLO) N
Multiple Resource Unit (MRU) N
WMM (Wi-Fi Multimedia) Y
Beamforming Y
Bypass AC Mode N
Wireless Intelligent Optimization (WIO) Y
Layer 2 Roaming Y
Layer 3 Roaming N
AI Roaming Y
802.11k/v Roaming Y
Quick Roaming (802.11r) N
SNMP N
802.1X Authentication N
AP Portal Authentication N
AP Portal Server N
Password Authentication N
Max. Number of Blocklists and Allowlists per WLAN 256
Max. Number of Blocklists and Allowlists per SSID 256
Number of Global Blocklists and Allowlists 256
Number of OUI-based Blocklists N
SSID-based Blocklist and Allowlist N
Default Login Address/Password One-Device entry: 10.44.77.254/eweb.ruijie.com.cn;
Network-wide Management entry: 10.44.77.253/Password: admin
Management via Web Interface Y
Management via Ruijie Reyee App Y
Management via Ruijie Cloud Y
