RG-EG406XS-P, 5-портовый (4 PoE/PoE+) 2,5-гигабитный маршрутизатор с облачным управлением, 1 порт 10G

Для частных домов (например, вилл, больших квартир, бунгало), небольших и средних офисов, ресторанов, торговых сетей и т. д.

Models
RG-EG406XS-P

6 портов (4 x PoE), 400 клиентов, пропускная способность 2500 Мбит/с, 100 туннелей IPsec VPN

 RG-EG406XS

6 портов, 400 клиентов, пропускная способность 2500 Мбит/с, 100 туннелей IPsec VPN
Series
Серия EG100 Серия EG1500 Серия EG200 Серия EG300 Серия EG400 Серия EG700
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • Поддержка до 400 одновременных клиентов и 4 порта с выходом PoE
  • Высокопроизводительный маршрутизатор с пропускной способностью 2,5 Гбит/с для различных сетевых сценариев
  • Мощный VPN, до 100 туннелей для филиалов и удаленных сотрудников
  • Эффективное управление пропускной способностью для приложений и пользователей
  • Поддержка нескольких сетей WAN, интеллектуальная балансировка нагрузки
  • Бесплатное управление из Ruijie Cloud в любое время и из любой точки (на протяжении всего срока службы*)
    * Подразумевается срок службы продукта в соответствии с политиками об окончании срока эксплуатации.
Sales Enquiry
Описание

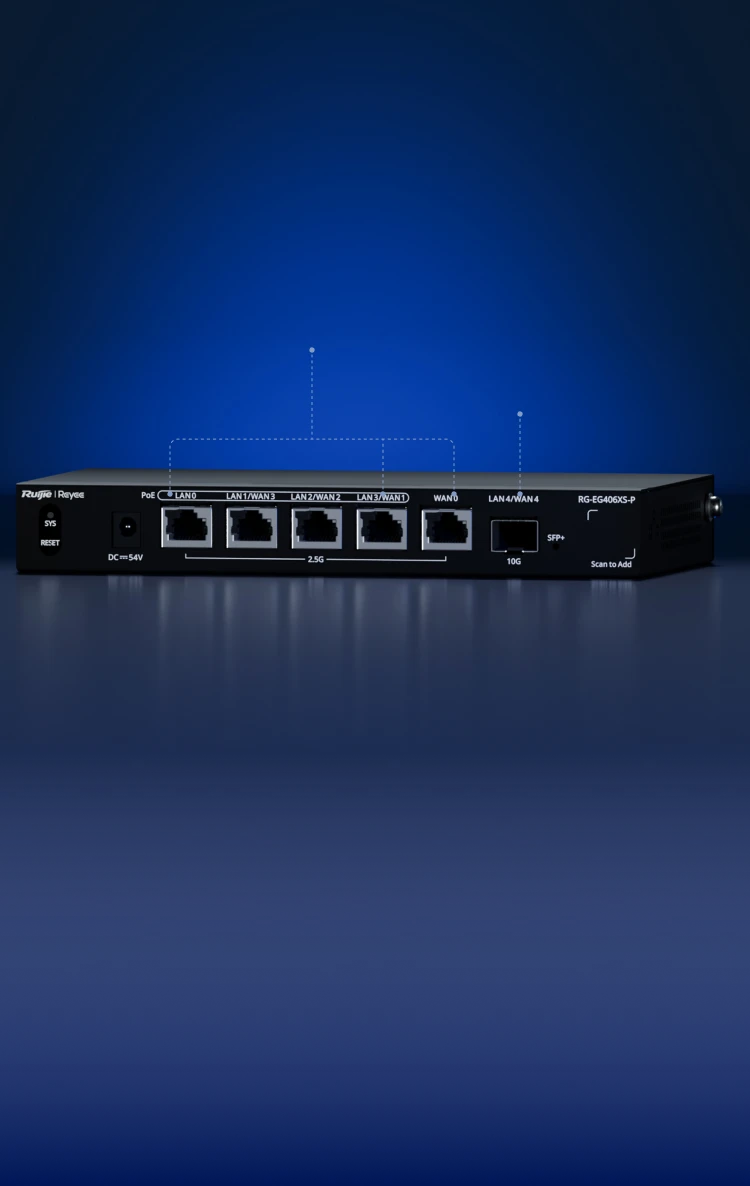

RG-EG406XS-P

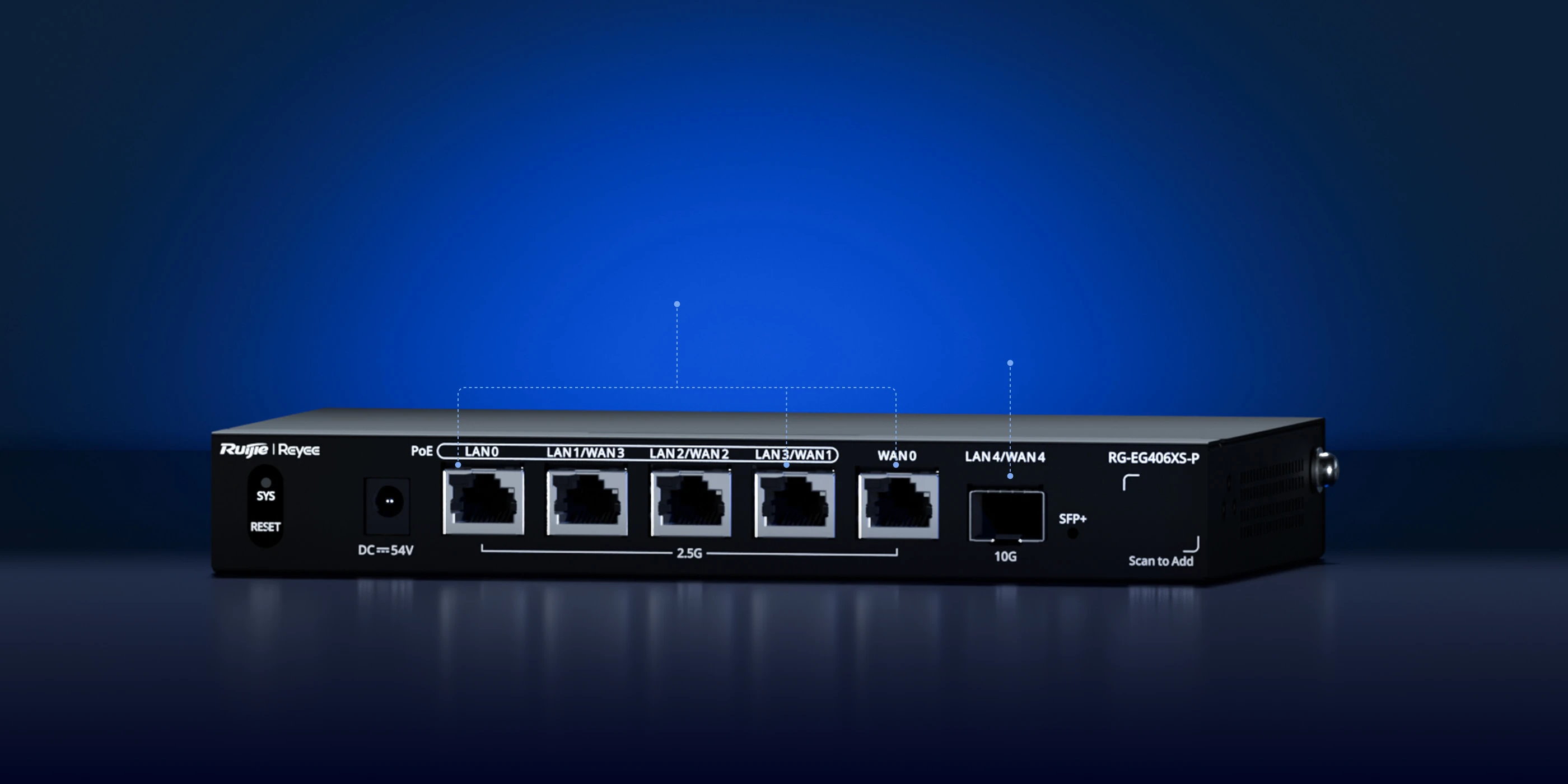

Unleashing Multi-Gig, Elevating Performance

  • 5 x 10/100/1000/2500BASE-T Ports

  • 1 x 10GE SFP+ Port

  • 4 x PoE Out Ports

  • 400
    Concurrent Clients

  • 100
    VPN Tunnels

  • 2.5 Gbps
    Throughput

  • Multi-WAN
    Load Balancing

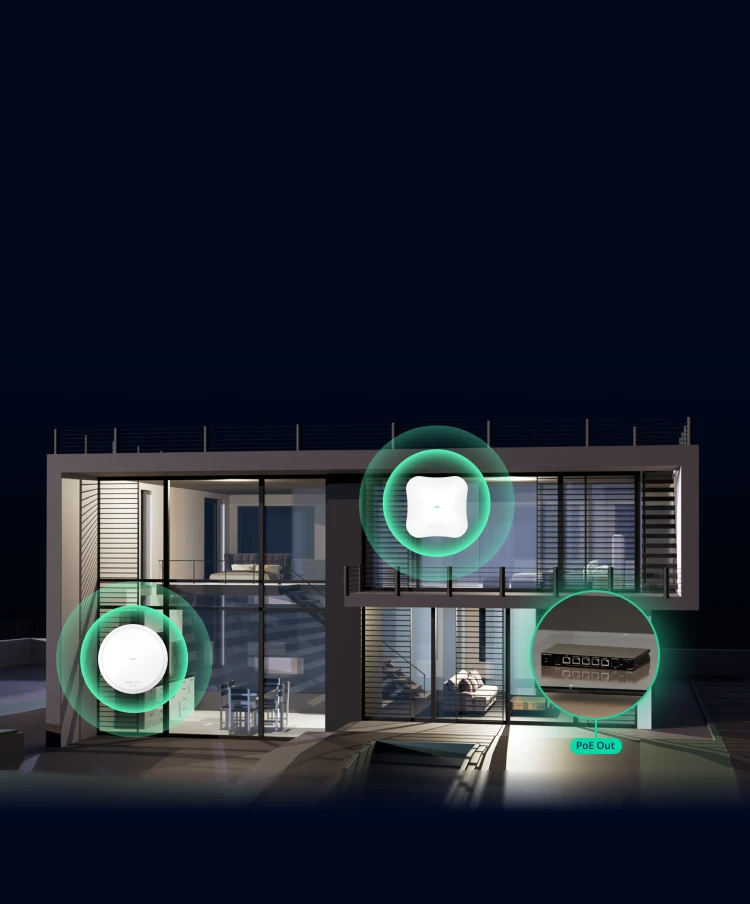

Whole-Home 2.5G, Designed for Your Ideal Living

Empower every corner with ultra-fast,
intelligent connectivity

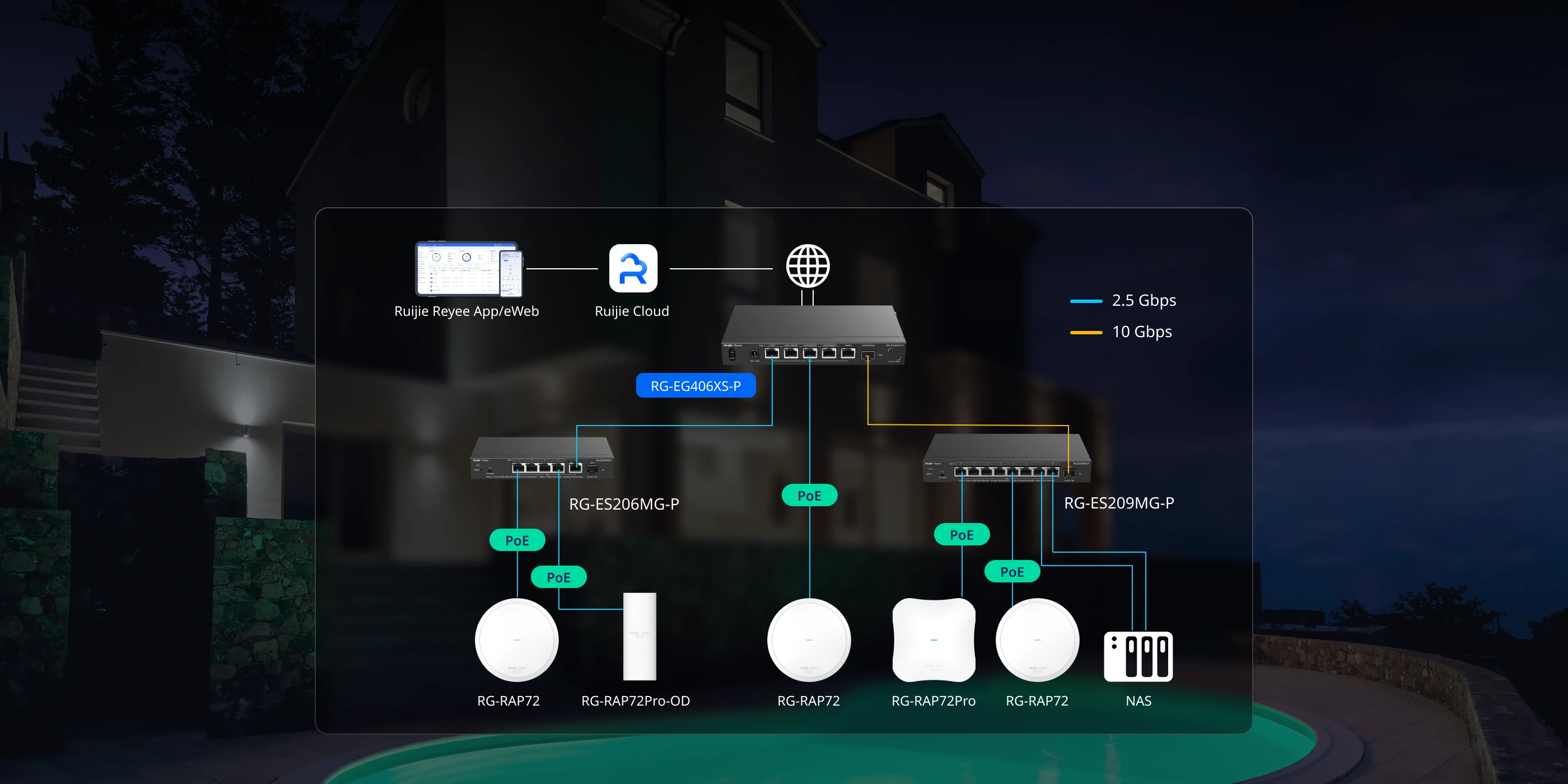

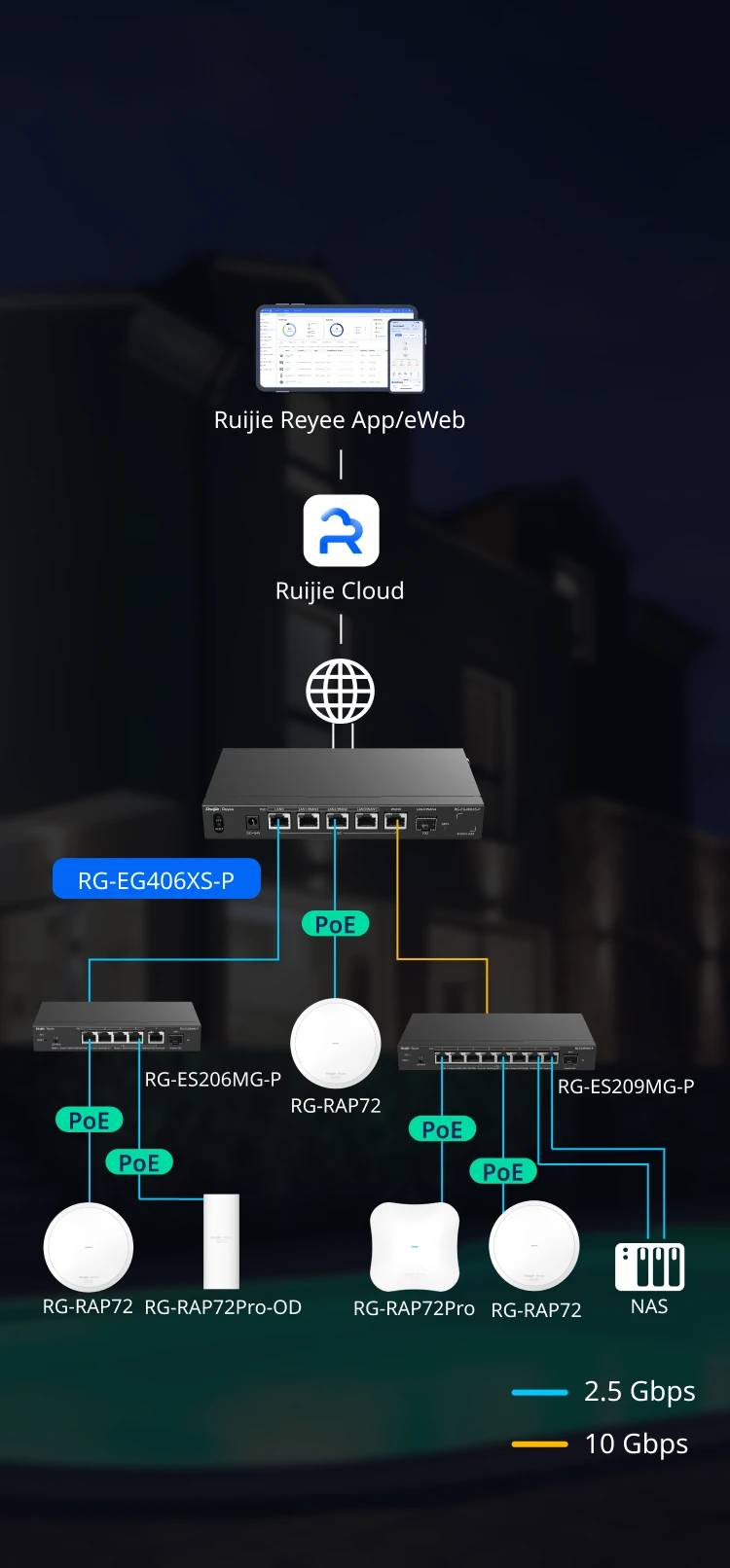

Full-Link 2.5G Network Solution
Unleash the Full Power of Wi-Fi 7

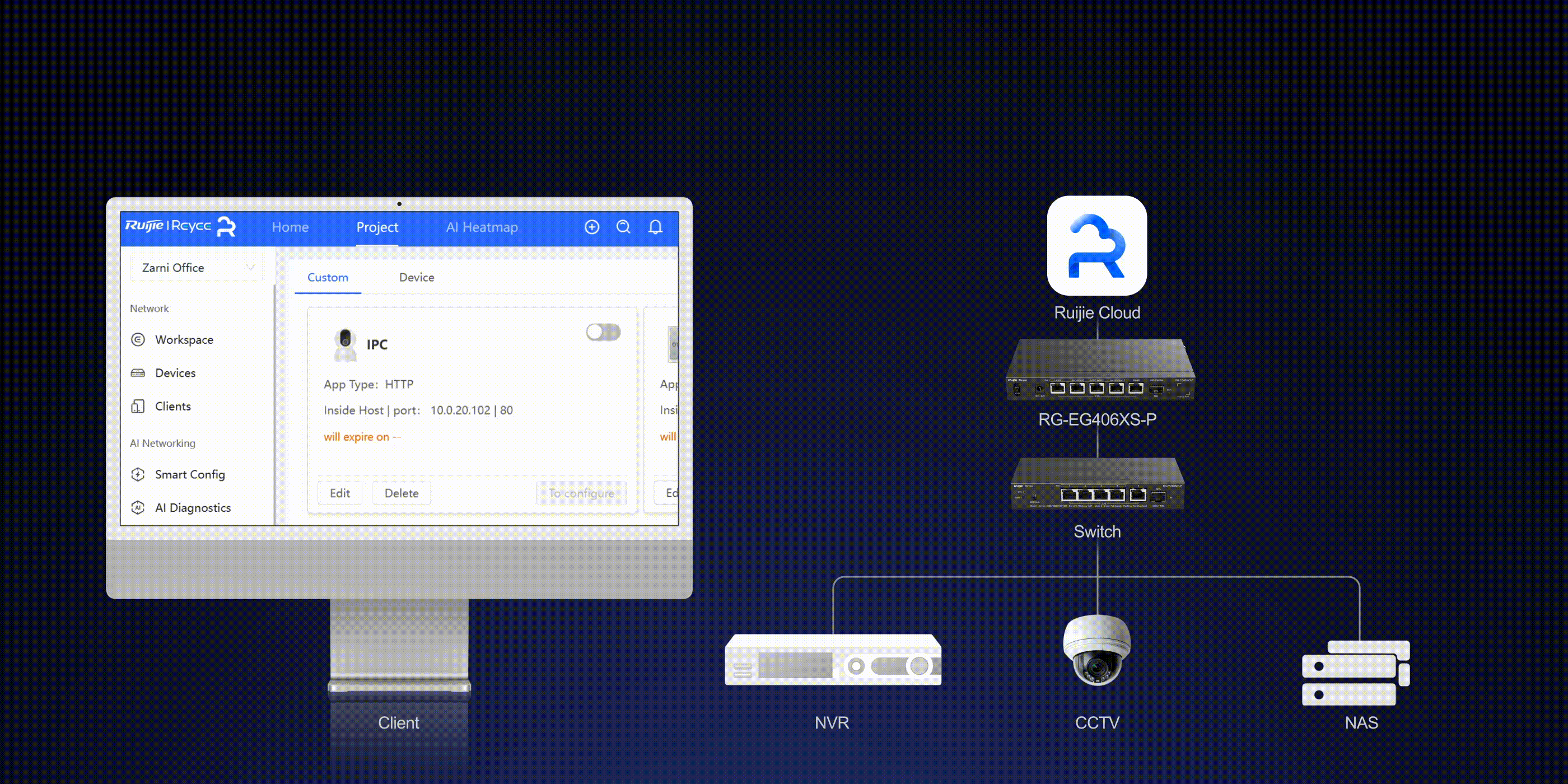

Easy NAT Traversal

The management console uniformly displays all third-party devices, enabling easy intranet access
and one-click links to their web interfaces.

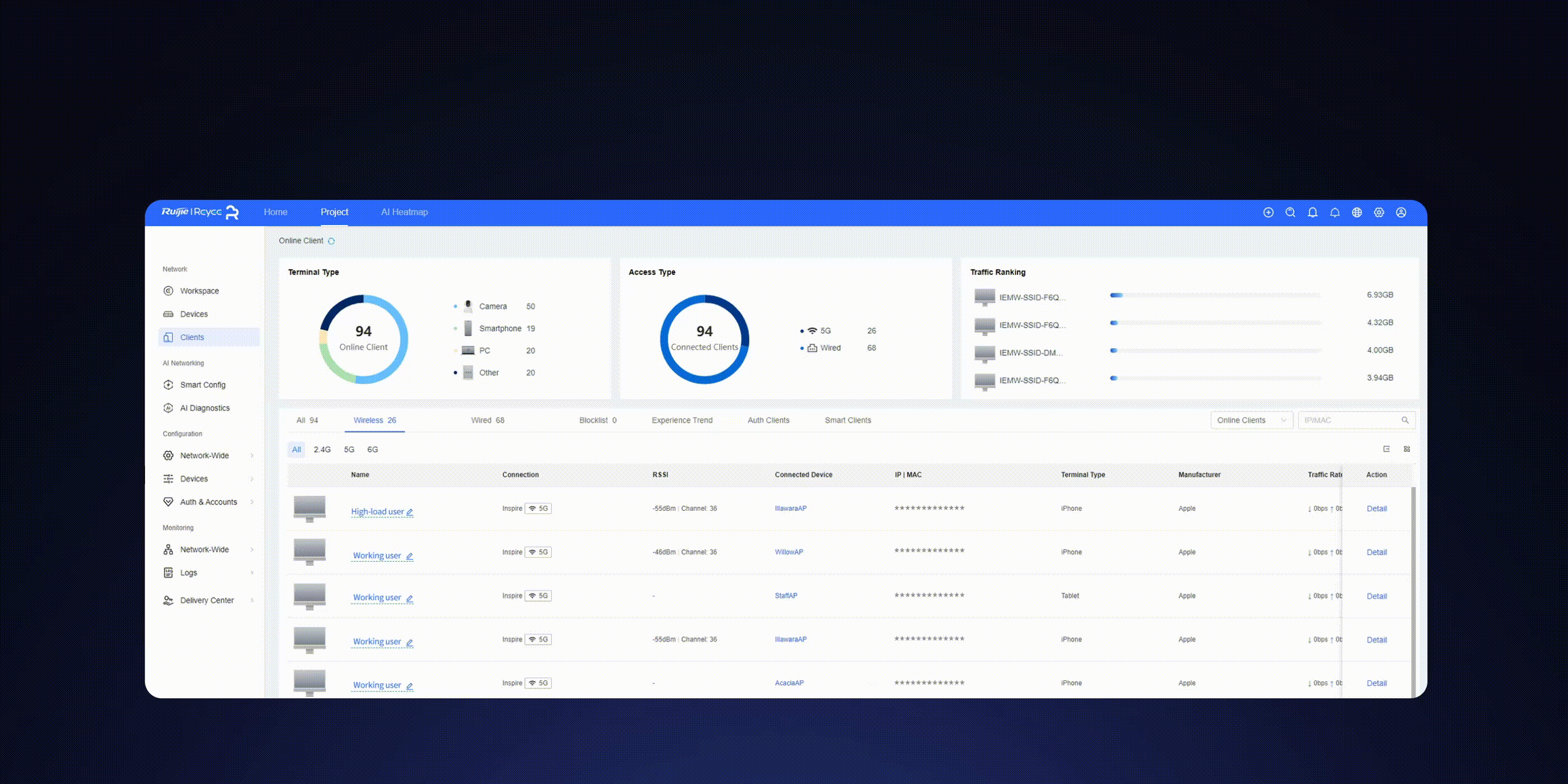

Client Recognition & Flow Control

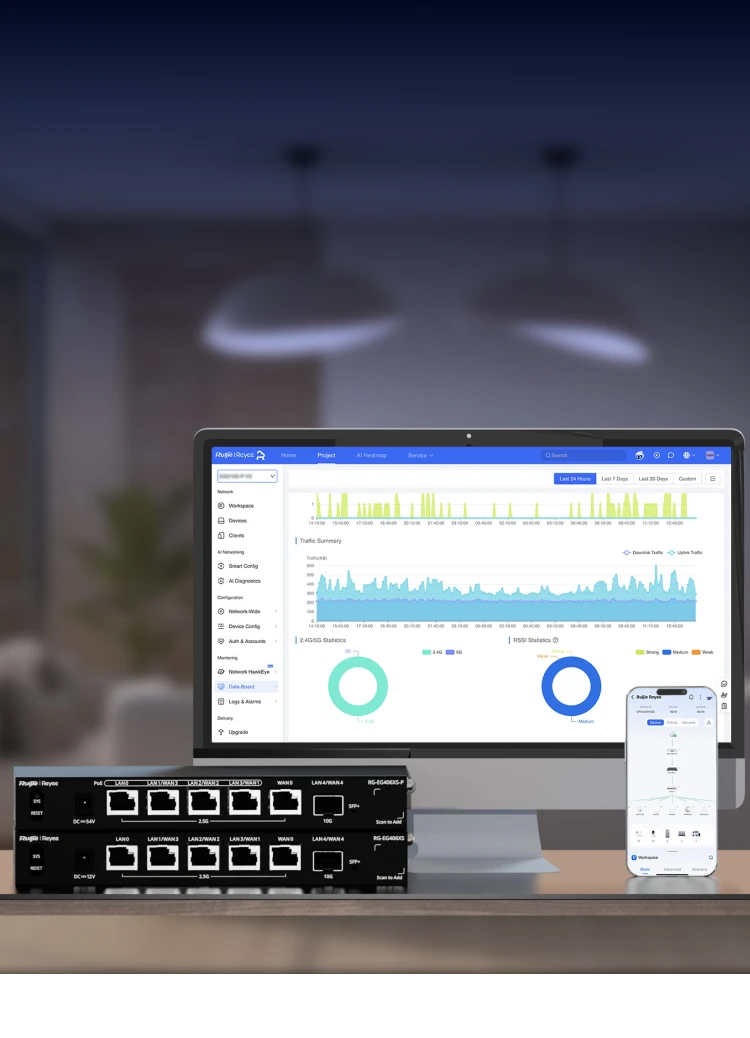

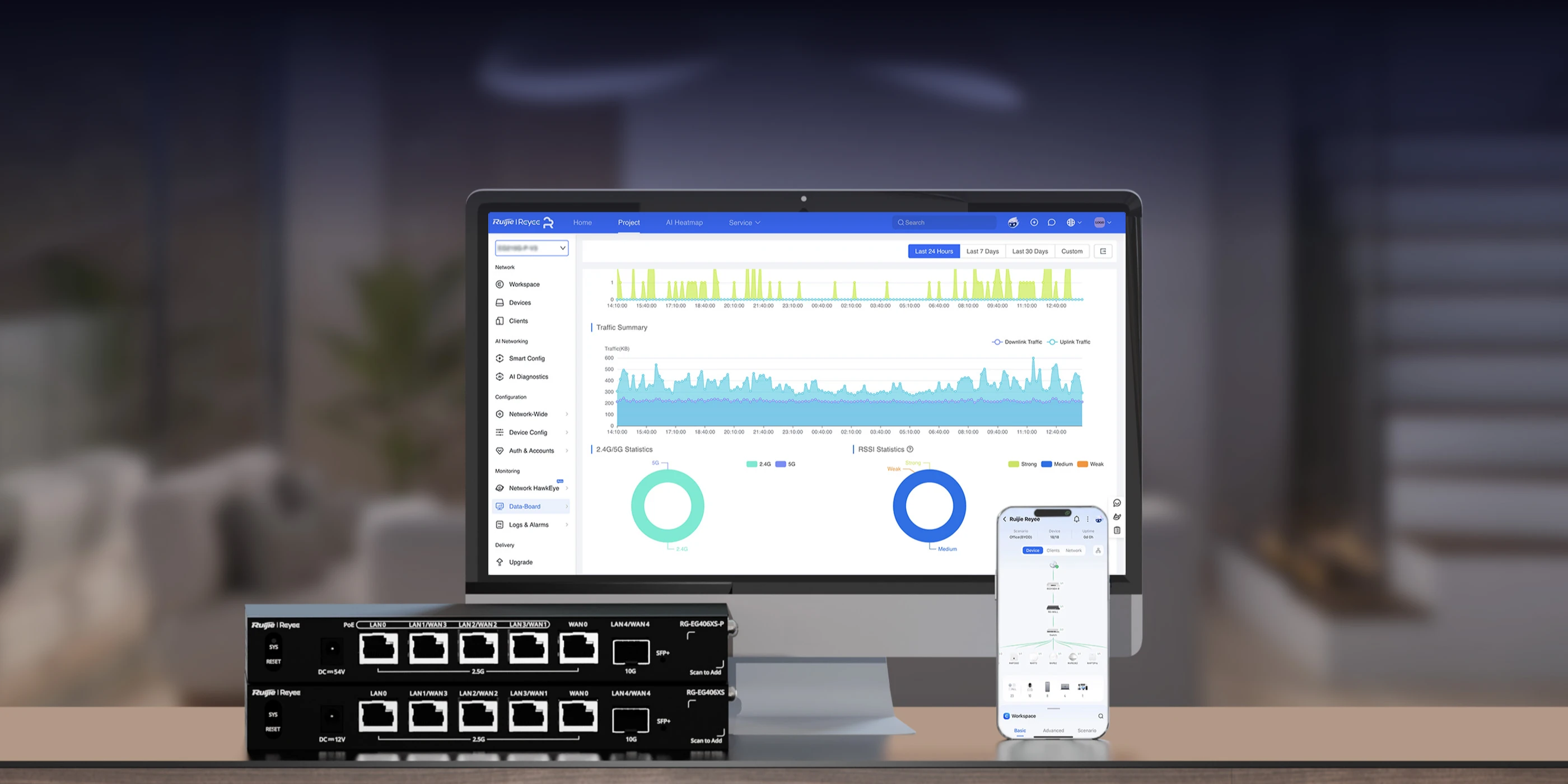

Cloud, Make Your Business Easy

  • Self-organizing network
  • Quick service setup by app
  • Scenario-based configuration guide
  • Marketing portal authentication

*Product images and videos are computer-generated for illustration purposes only. Actual products may vary in details, features, or appearance.

Key Specifications
Hardware Specifications
Port Specifications
Number of 10/100/1000/2500BASE-T ports
  • 5
Number of 10GE SFP+ ports
  • 1
Number of fixed LAN ports
  • 1
Number of fixed WAN ports
  • 1
System Specifications
CPU
  • Quad-core processor, 2.0 GHz clock frequency per core
Flash memory
  • 256 MB
RAM
  • 1 GB
Power Supply and Consumption
PoE budget
  • 110 W
Dimensions and Weight
Product dimensions (W x D x H)
  • 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.1 in.)
Weight
  • 0.62 kg (1.37 lbs)
Environment and Reliability
Mounting options
  • Desk
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Software Specifications
System Performance Capacity
Recommended number of concurrent clients
  • 400
Throughput
  • 2500 Mbps
