Hình ảnh
So sánh

RG-ES228GS-P-V2, Bộ chuyển mạch PoE thông minh 26 cổng gigabit được quản lý trên Cloud với 2 cổng SFP

CCTV, Văn phòng, Khách sạn, Nhà máy, Bán lẻ, v.v.

Model
RG-ES220GS-LP

16 x Cổng PoE 10/100/1000BASE-T, 2 x Cổng 10/100/1000BASE-T, 2 x Cổng SFP 1GE, 130 W

RG-ES207GS-HP

2 x cổng PoE++ 10/100/1000BASE-T, 2 x cổng PoE+ 10/100/1000BASE-T, 2 x cổng 1 GE, 1 x cổng SFP 1 GE

RG-ES211GS-LP

8 x cổng PoE+ 10/100/1000BASE-T, 2 x cổng 10/100/1000BASE-T, 1 x cổng SFP 1 GE

RG-ES207GS-P

4 x cổng PoE+ 10/100/1000BASE-T, 2 x cổng 10/100/1000BASE-T, 1 x cổng SFP 1 GE

RG-ES228GS-P-V2

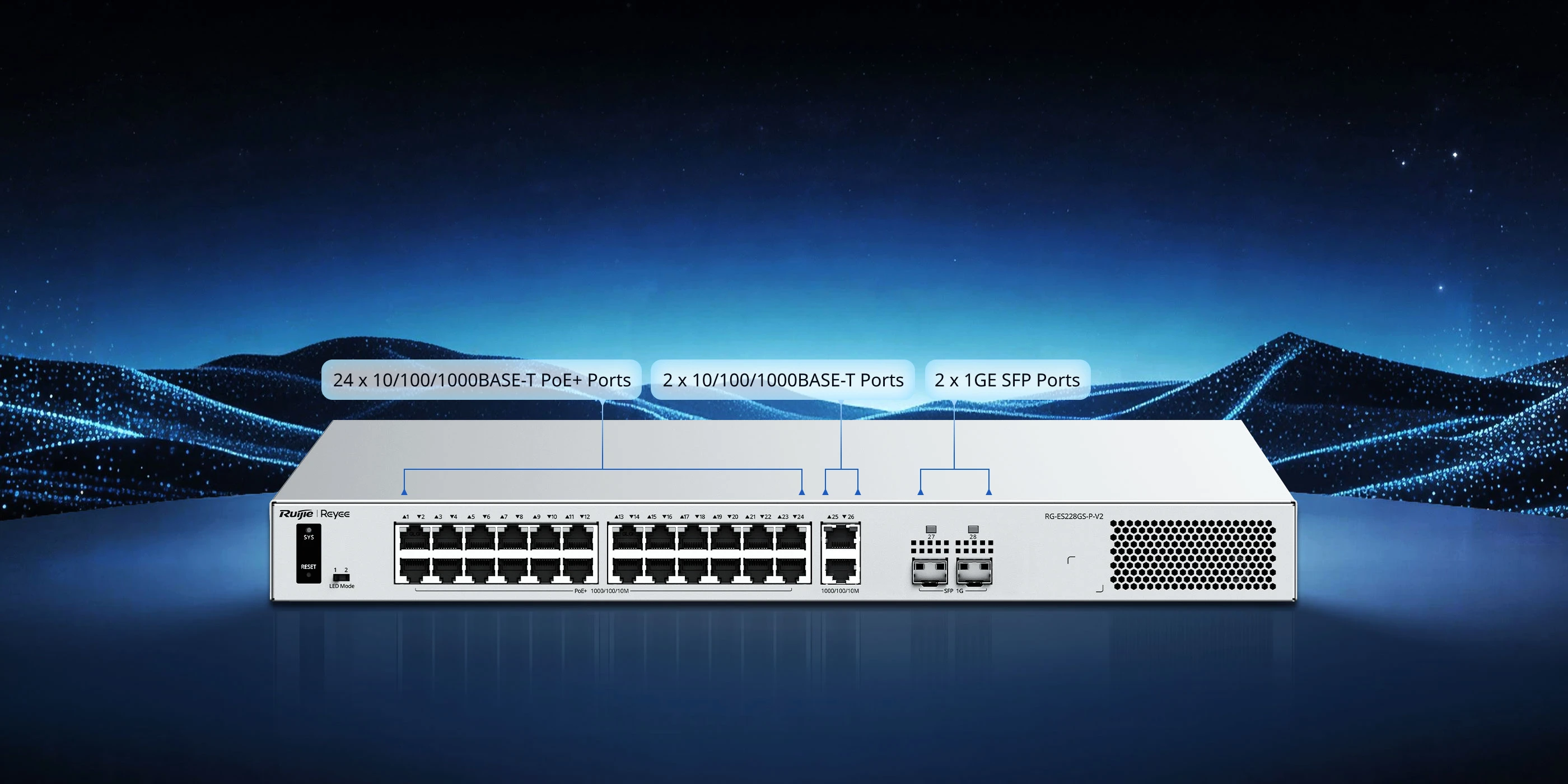

24 x cổng PoE+ 10/100/1000BASE-T, 2 x cổng 10/100/1000BASE-T, 2 x cổng SFP 1 GE

RG-ES220GS-P-V2

16 x cổng PoE+ 10/100/1000BASE-T, 2 x cổng 10/100/1000BASE-T, 2 x cổng SFP 1 GE

RG-ES207GS-LP

4 x cổng PoE+ 10/100/1000BASE-T, 2 x cổng 10/100/1000BASE-T, 1 x cổng SFP 1 GE

RG-ES211GS-P

8 x cổng PoE+ 10/100/1000BASE-T, 2 x cổng 10/100/1000BASE-T, 1 x cổng SFP 1 GE

RG-ES207GS-AC-OD

Bộ chuyển mạch ngoài trời 7 cổng, 5 x cổng RJ45 1 G, 2 x cổng uplink SFP

RG-ES207GS-PI-OD

Bộ chuyển mạch ngoài trời 7 cổng, 5 x cổng RJ45 1 G, 2 x cổng uplink SFP

RG-ES209MG-P

8 x Cổng PoE+ 10/100/1000/2500BASE-T, 1 x Cổng SFP+ 10GE, Tổng công suất PoE 130 W

RG-ES206MG-P

4 x Cổng PoE+ 10/100/1000/2500BASE-T, 1 x Cổng 10/100/2500BASE-T, 1 x Cổng SFP+ 10GE, Tổng công suất

RG-ES205GC-P

5 cổng Gigabit, 4 cổng PoE+, 54W.

RG-ES228GS-LP

24 x Cổng PoE 10/100/1000BASE-T, 2 x Cổng 10/100/1000BASE-T, 2 x Cổng SFP 1GE, 250 W

RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

RG-ES206GS-P

6 Cổng Gigabit ,4 Cổng PoE+, 1 Cổng Combo

RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

RG-ES209GC-P

9 cổng Gigabit, 8 cổng PoE+, 120W.

Dòng
Sales Enquiry
Add to Favorites
Tính năng nổi bật
  • 2 x cổng SFP cho ERPS
  • Bộ chuyển mạch tiết kiệm chi phí
  • Tính năng nhận diện Camera IP (IPC) giúp nâng tầm giá trị cho hệ thống CCTV
  • Bảo vệ thông minh để luôn duy trì kết nối liền mạch
  • PoE liên tục (Perpetual)
  • Quản lý trọn đời trên Ruijie Cloud mọi lúc, mọi nơi
Sales Enquiry
Tính năng

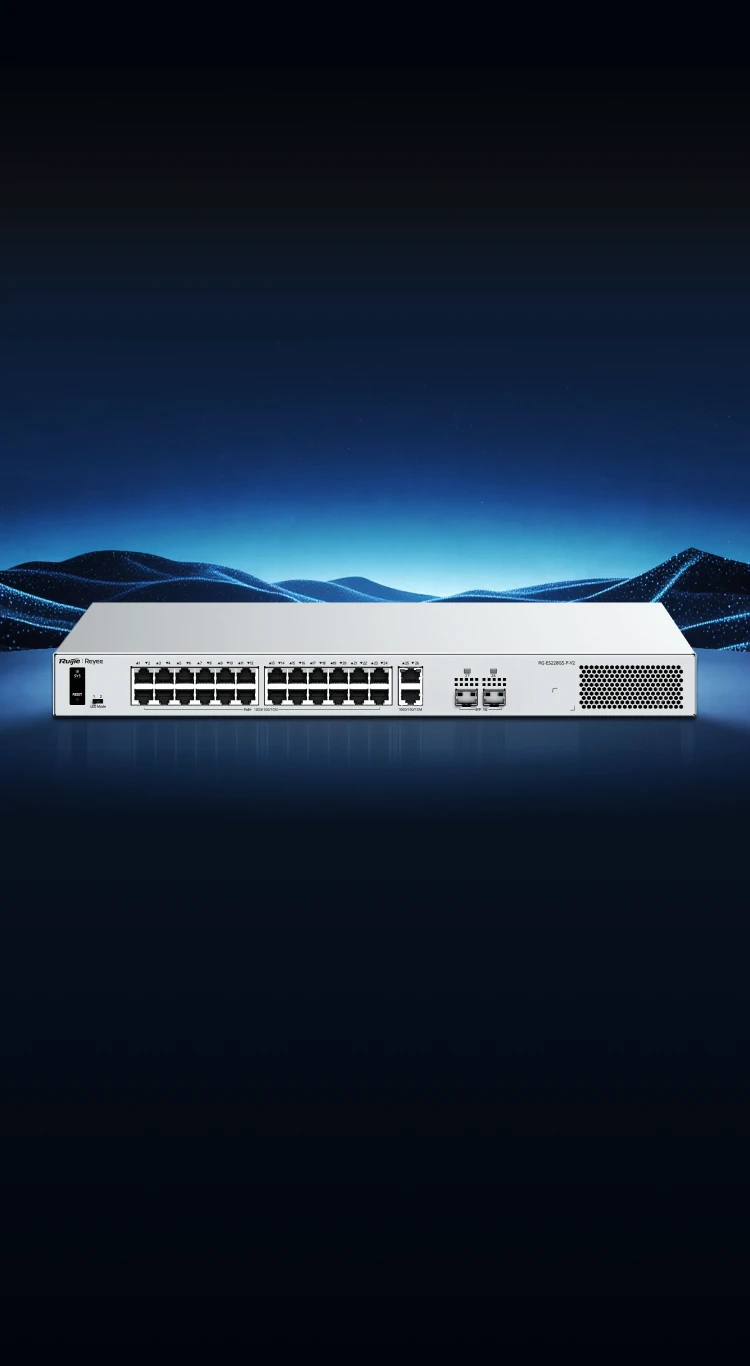

RG-ES228GS-P-V2

28-Port Gigabit Smart Cloud-
Managed PoE Switch

  • PoE Budget 370 W

  • ERPS Supported

  • Flexible Uplink Options

  • 3-Year Warranty

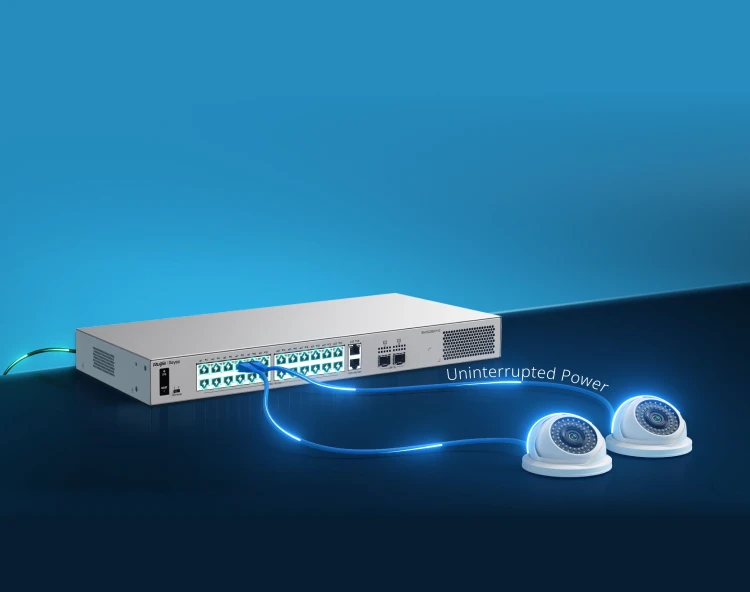

Perpetual PoE

PoE ports provide uninterrupted power even
during switch restarts.

6 kV Surge Protection for Harsh Environments

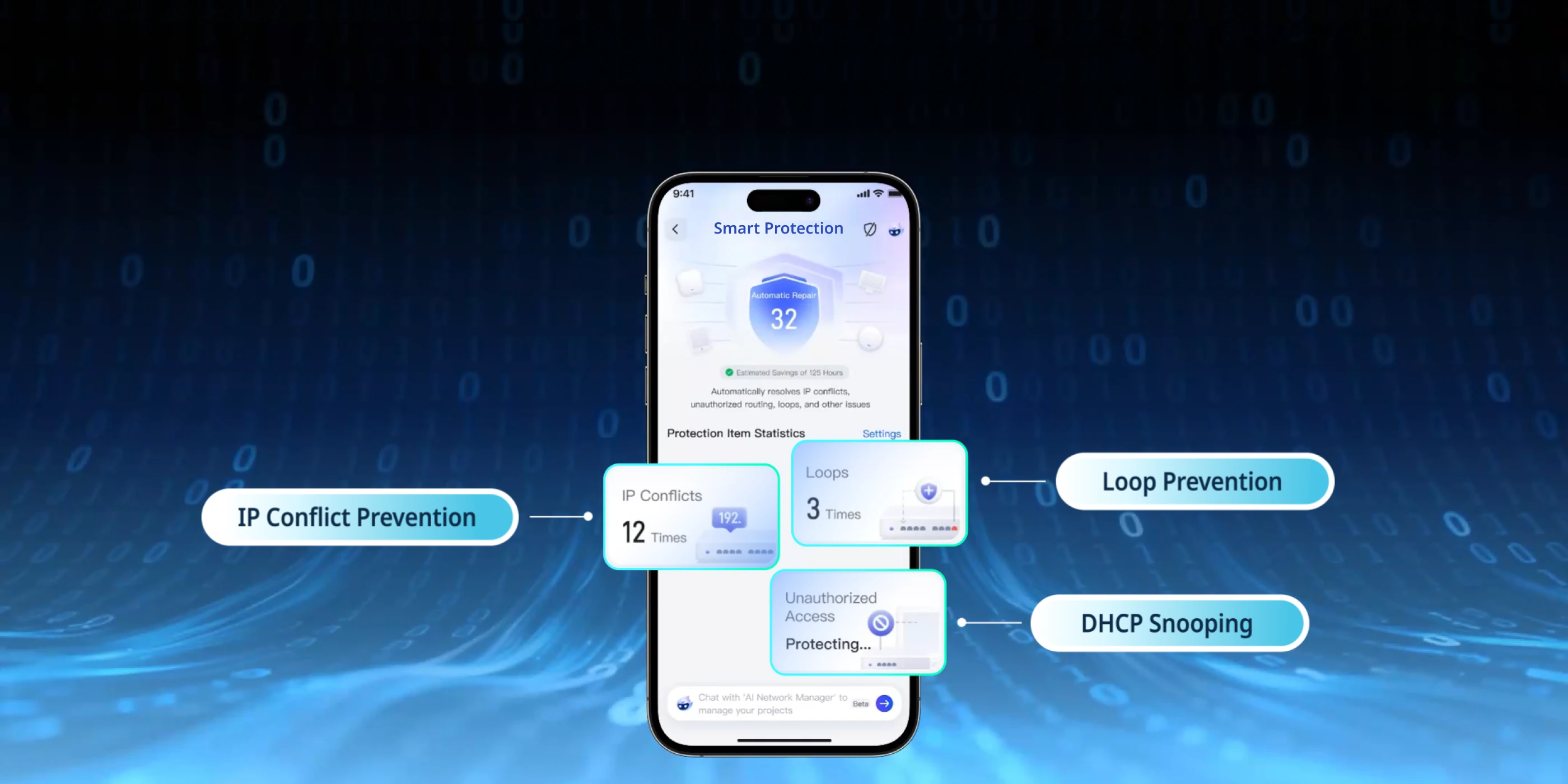

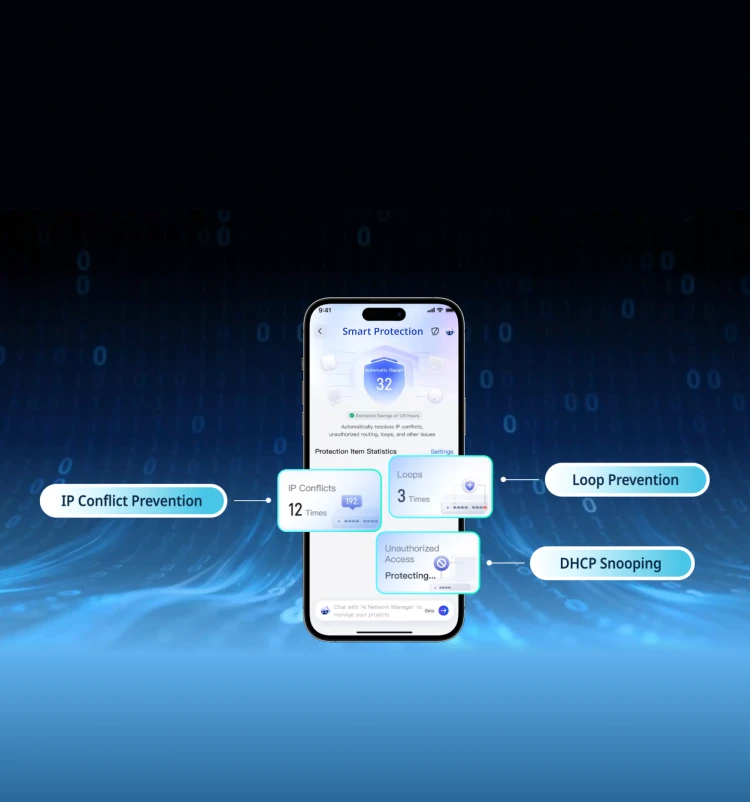

One Click Smart Protection to Prevent
Multiple After-Sales Issues

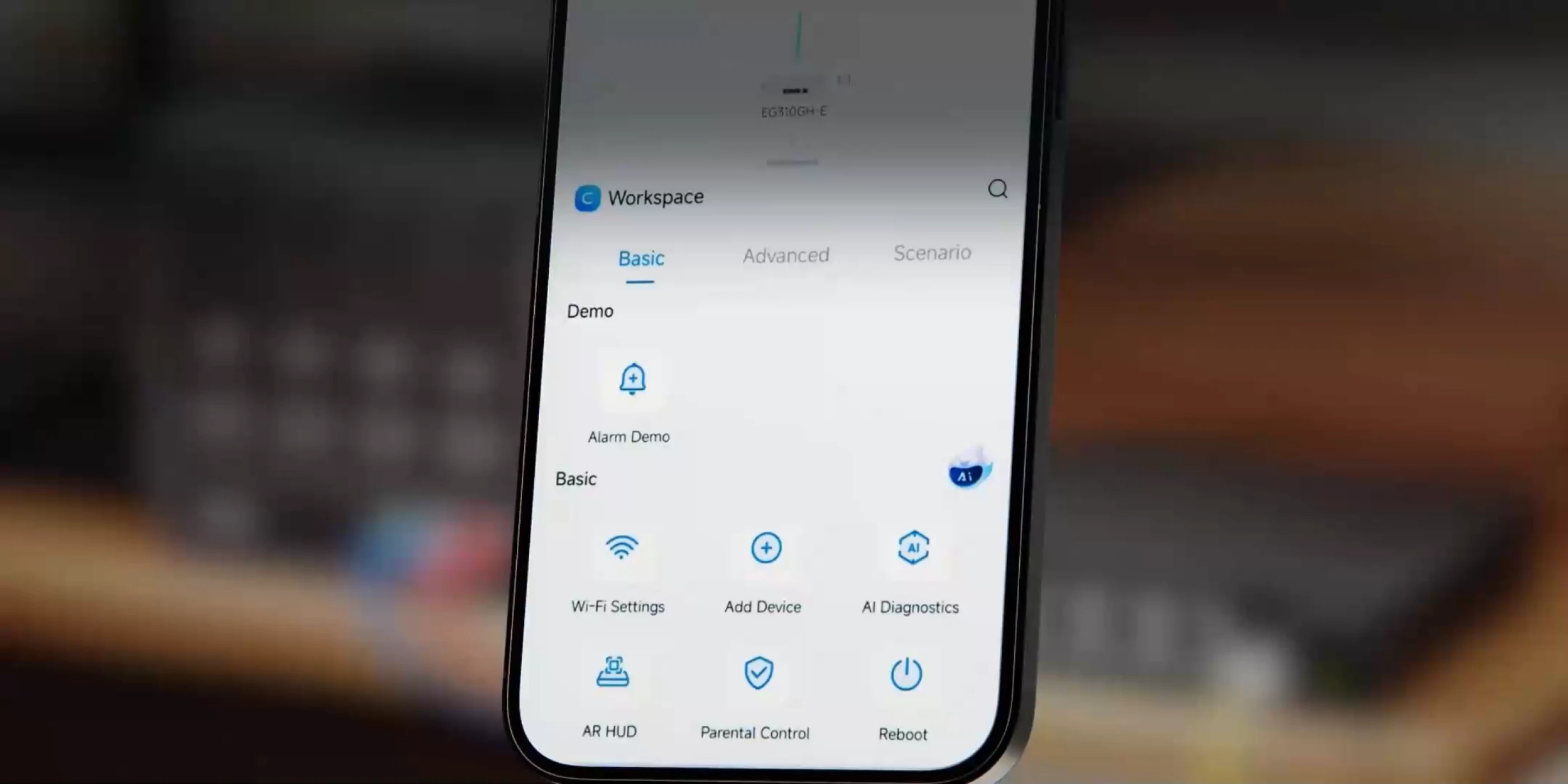

Cloud, Make Your Business Easy

Thông số chính
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 26
Total number of optical ports
  • 2
Number of 1GE SFP ports
  • 2
Number of 10/100/1000BASE-T ports
  • 26
Power Supply and Consumption
Number of PoE Out ports
  • 24
Number of PoE/PoE+ Out ports
  • 24
PoE budget
  • 370 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 41.664 Mpps
Switching capacity
  • 56 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
