Ruijie Networks introduced the Ruijie RG-RAP62-Wall series wall-plate Wi-Fi 6 access points, including RG-RAP62-Wall and RG-RAP62-Wall-Lite. This series combines strong practicality, elegant design, and remote cloud management, delivering intelligent wall-mounted network solutions tailored for commercial spaces.

I. Core Highlights of the Series:

1. True Gigabit Wi-Fi 6 with High-Density Coverage

  - Dual-band concurrent speeds reaching up to 2.974 Gbps (5 GHz: 2x2 MU-MIMO, 2401 Mbps | 2.4 GHz: 2x2 MU-MIMO, 573 Mbps), supporting 160 MHz channel width.

  - OFDMA + MU-MIMO technology ensures stable access for up to 256 clients.

2. Enterprise-Grade Reliability

  - WPA3 encryption and VLAN-based service isolation for strong security protection.

3. Invisible Aesthetic Design

  - Sleek, thin pure white design that blends perfectly into indoor environments.

RG-RAP62-Wall Series for Indoor

4. Zero-Touch Cloud Management Ecosystem

  - Fully supports the Ruijie Cloud platform and Ruijie Reyee App for rapid deployment of large-scale networks in minutes.

  - Supports advanced AI-powered cloud features such as AI Roaming, AI Network Optimization, AI Heatmap Pro, and AI Diagnostics, for a smooth network experience.

Ruijie Reyee Cloud-Based AP

II. Differentiated Features by Model

1. RG-RAP62-Wall:

• Key Strength: Strong practicality, full Gigabit wired connections with 4 LAN ports

  - 1×1GE WAN port + 4× E LAN ports, with LAN4 supporting PoE Out, offering multiple wired network connections.

  - Compatible with 86 mm, EU, and US standard junction boxes.

  - One AP effectively covers up to 55 ㎡ (592.02 sq. ft.) indoor area.

•  Recommended Scenarios:

  - Hotel guest rooms (integrated IPTV/ IP phone/ PC, etc.);

  - Enterprise desks (combined wired & wireless deployment).

2. RG-RAP62-Wall-Lite:

• Key Strength: Elegant design, blending into the indoor environment

  - Equipped with only 1 x Gigabit WAN/LAN port (PoE In), the device focuses purely on wireless coverage.

  - Compatible with 86 mm and EU standard junction boxes.

  - One AP effectively covers up to 45 ㎡ (484.38 sq. ft.) indoor area.

• Recommended Scenarios:

  - Hotel guest rooms or small offices – ideal for renovation of older buildings or high-density wireless-only environments.

RG-RAP62-Wall-Lite Features

III. Value Comparison

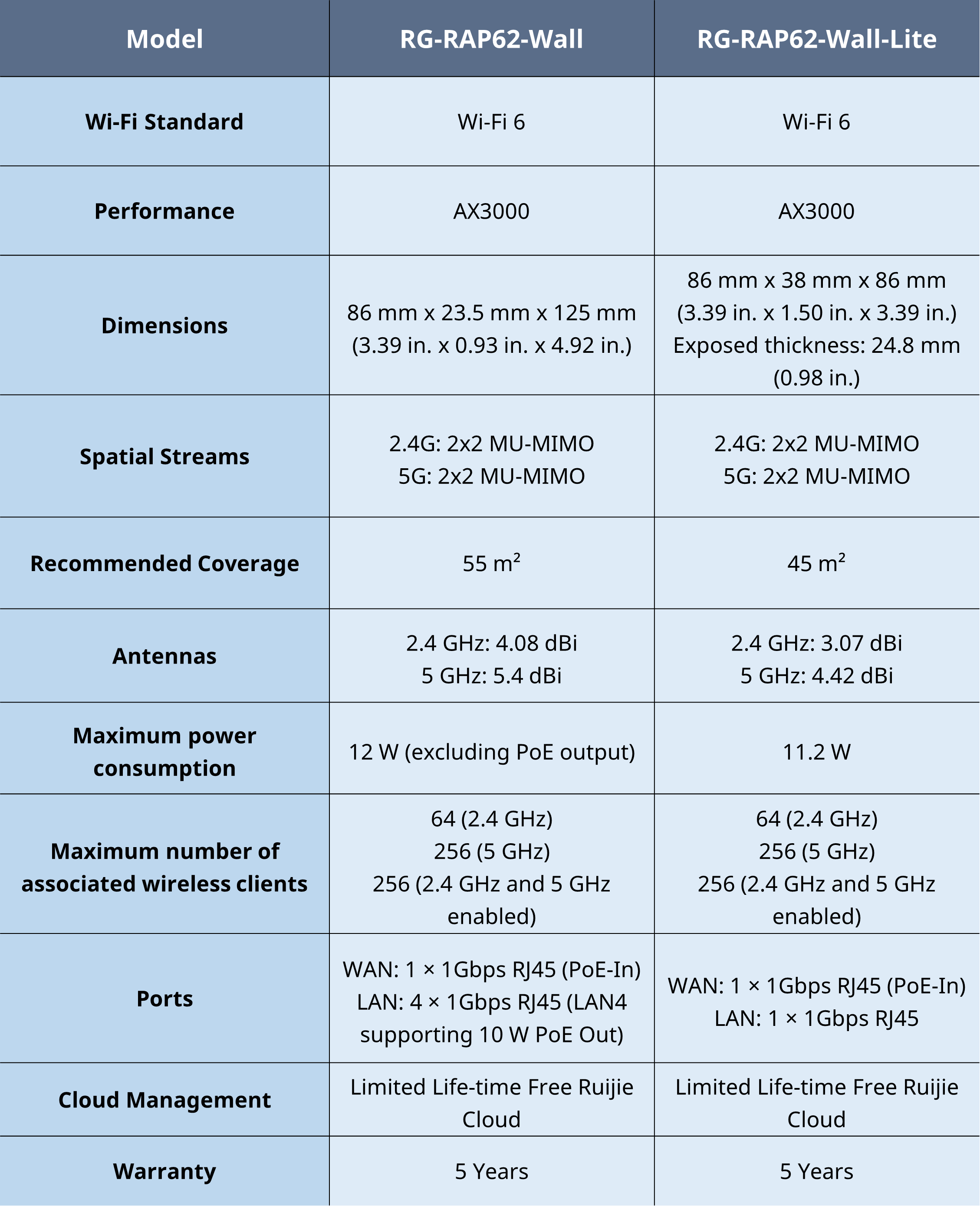

RG-RAP62-Wall Series Value Comparison

Available globally through Ruijie authorized partners.

► RG-RAP62-Wall Official Website

► RG-RAP62-Wall-Lite Official Website
