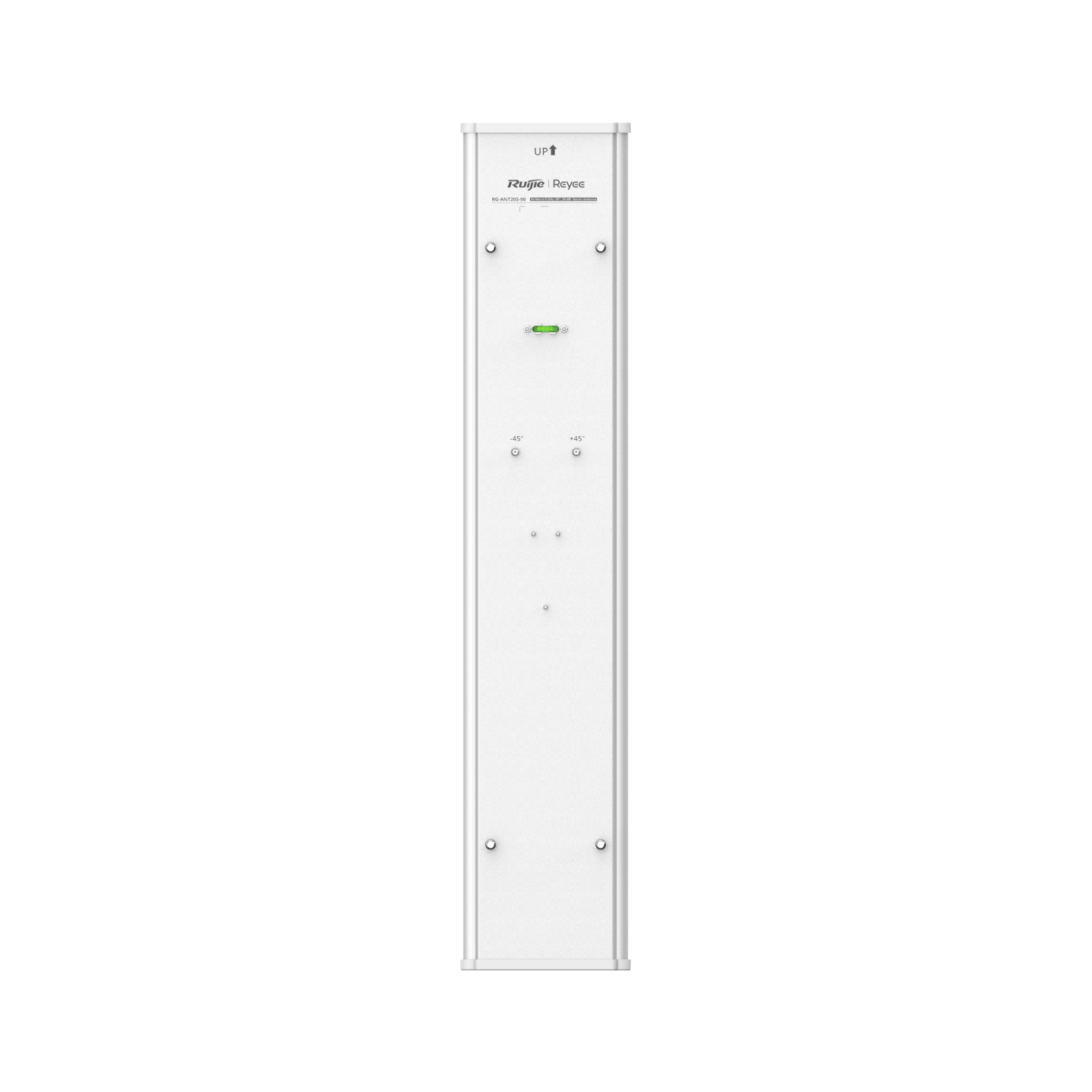

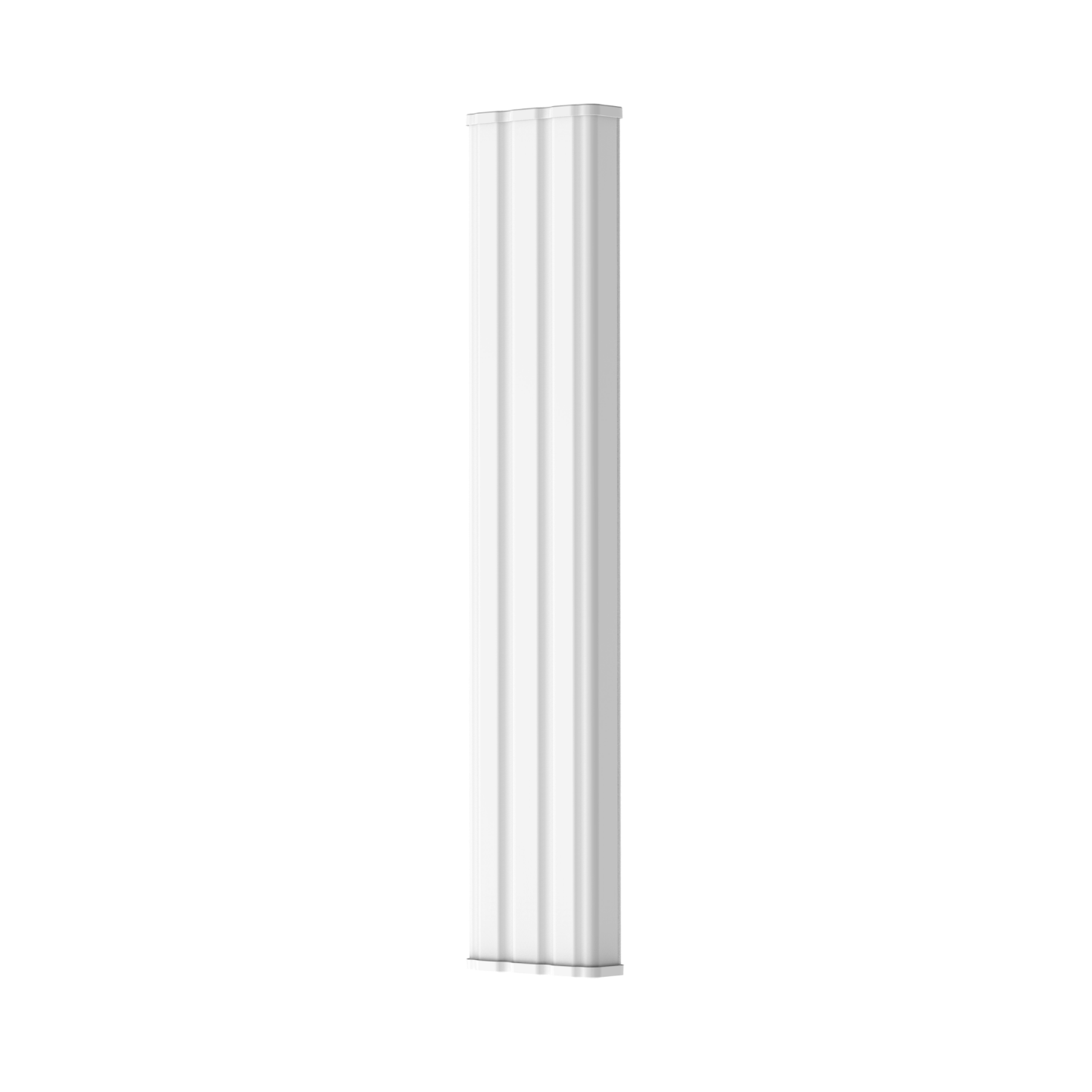

RG-ANT20S-90, 90° Sektorantenne für RG-AirMetro Serie Drahtlosbrücken

WISP, CCTV, Ort, Stadt, Werk etc.

Models
Series
Highlight Features
  • Wählen Sie aus drei Antennentypen für diverse Szenarien
  • IP55 Schutzart gegen Raue Umgebung
  • Alles-in-Einem-Cloud-Management vereinfacht das Benutzererlebnis
Sales Enquiry
Key Specification
Features

RG-AirMetro Serie
Drahtlosbrücken

Bei Kopplung mit CPE unterstützt die Brücke:

  • 10km

    Bis zu 10 km
    Drahtlosübertragung

  • 32PTMP

    Bis zu 32 PTMP
    Links

  • Einfaches
    Standortplanungstool

  • Alles-in-Einem
    Cloud-Management

Basisstation

Der perfekte Treffer für verschiedene Geräte und Szenarien

  • 867 Mbps

    5 GHz Dual-Stream 802.11ac

  • Bis zu 32 PTMP Links

    TDMA

One-Touch-Koppeln

One-Touch-Koppeln Alle in 30 s

KI-Heatmap für Brücke

Antennen

Dreifache Geräte, mehr als dreifache Auswahl

Alles in
Einem
Cloud

Führt Sie durch eine sorgenfreie Reise

Hauptszenarien

Die perfekte Wahl sowohl für WISP als auch CCTV Szenarien

Der perfekte Treffer für verschiedene
Geräte und Szenarien

Schnelles Koppeln

One-Touch-Koppeln Alle in 30 Sek.

Antennen

Dreifache Geräte, mehr als dreifache Auswahl

  • RG-ANT20S-90

    5 GHz, 20 dBi

    H: 90°,V: 7°

    10 km

  • RG-ANT16S-120

    5 GHz, 16 dBi

    H:120°,V:10°

    5 km

  • RG-ANT13-360

    5 GHz, 13 dBi

    H: 360°,V: 7°

    2 km

Immer noch stabil

Keine Angst vor rauen Umgebungen

  • IP55 Wetterfest
  • 220.32 km/h
    (137 mph)
    Windfestigkeit
  • 6kV Blitzschutz
  • 24kV
    Kontakt/Luft
    ESD

PTMP

Bis zu 32 PTMP Links

WISP

Ausgedehnte Abdeckung ohne Faserverbindungen

CCTV

Erschwingliche Exzellenz und Glatte Überwachung

KI-Heatmap für Brücke

Ihr Echter Begleiter bei Outdoor-Abenteuern

Ausrichtungsinstrument

Ihre große Stimme, Zeitsparende Anleitung

Spektralscan und Link-Optimierung

Daumen-Hoch-Anleitung

  • Ein-Klick-Kanalinterferenz-Scan für Alle Punkte

  • Automatische Optimierungsempfehlungen

  • Zeit und Aufwand sparen

Sowohl in der Ruijie Cloud als auch der Ruijie Reyee App verfügbar

Cloud macht Ihr Unternehmen einfach

Alles-in-Einem-Cloud

Schnelle EinrichtungÜberwachung auf Basis Echter, Kompletter TopologieProblemerkennung über Auto-Alarm

Comparison
PTP
PTMP
Antenne
Polarisierung
Empfohlene Entfernung
Protokoll
Maximaler Durchsatz
Frequenzbereich*
IP-Schutzart
Spesifikasi
Model Bridging Performance RSSI (dBm) Throughput & Camera Limits
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)
–58/1 km
–66/3 km
–70/5 km
–78/10 km
50/1 km
45/3 km
20/5 km
16/10 km
30/1 km
25/3 km
12/5 km
8/10 km
20/1 km
13/3 km
8/5 km
5/10 km
15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40)
–58/1 km
–66/3 km
–70/5 km
–78/10 km
12/1 km
12/3 km
10/5 km
6/10 km
8/1 km
8/3 km
6/5 km
4/10 km
6/1 km
6/3 km
5/5 km
3/10 km
4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B 200 Mbps/1 km (HT40)
180 Mbps/3 km (HT40)
100 Mbps/5 km (HT40)
-60/1 km
-68/3 km
-75/5 km
35/1 km
30/3 km
16/5 km
20/1 km
16/3 km
10/5 km
15/1 km
12/3 km
6/5 km
10/1 km
8/3 km
5/5 km
RG-EST100-E 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)
–58 dBm/100 m
–68 dBm/500 m
10/100 m
5/500 m
6/100 m
3/500 m
3/100 m
1/500 m
3/100 m
1/500 m
RG-EST310 V2 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)
40 Mbps/2 km (HT40)
–52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km
–75 dBm/2 km
16/100 m
16/500 m
16/1 km
6/2 km
10/100 m
10/500 m
10/1 km
4/2 km
7/100 m
7/500 m
7/1 km
3/2 km
5/100 m
5/500 m
5/1 km
2/2 km
RG-EST350 V2 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
–58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km
50/1 km
45/3 km
20/5 km
30/1 km
25/3 km
12/5 km
20/1 km
13/3 km
8/5 km
15/1 km
12/3 km
6/5 km
Show More
