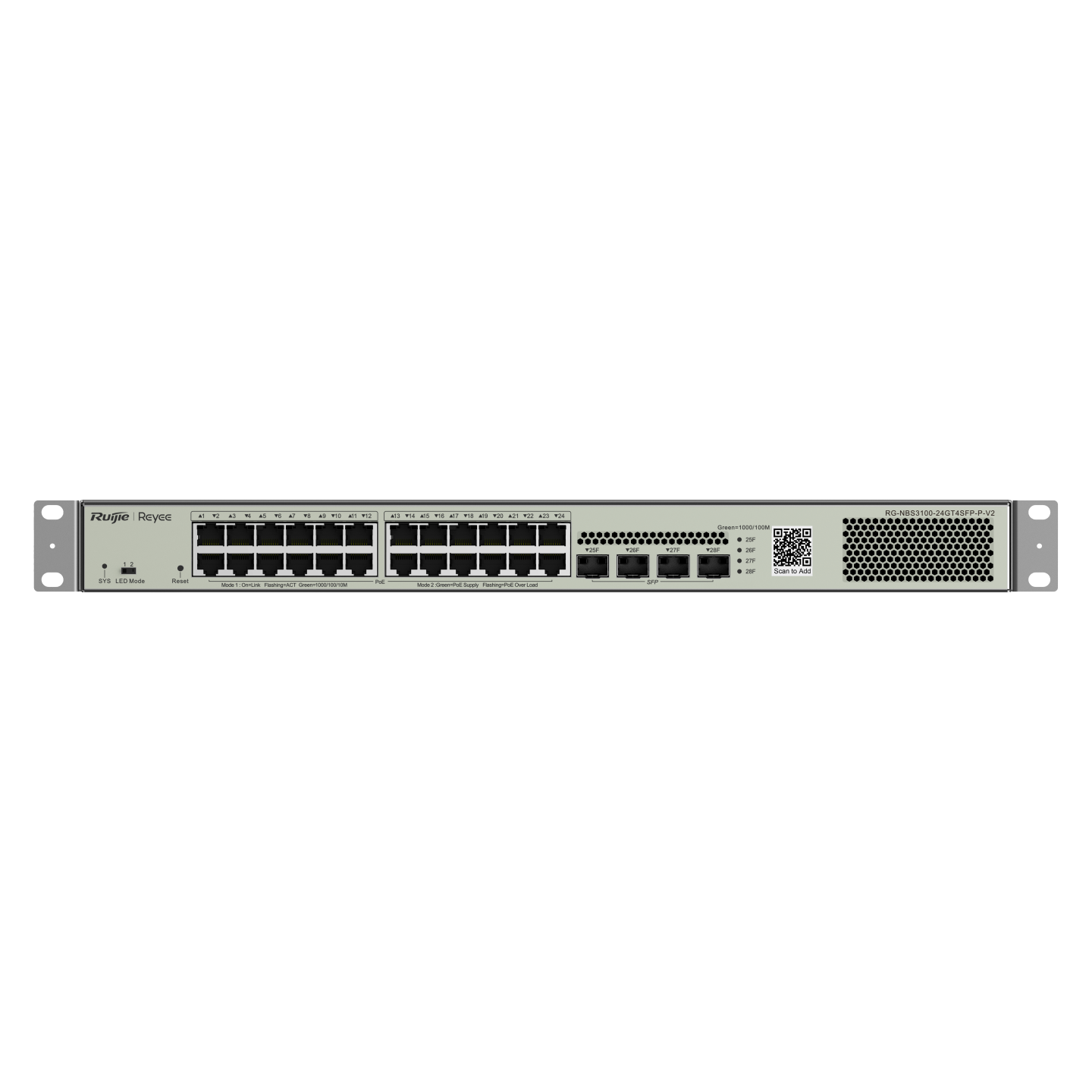

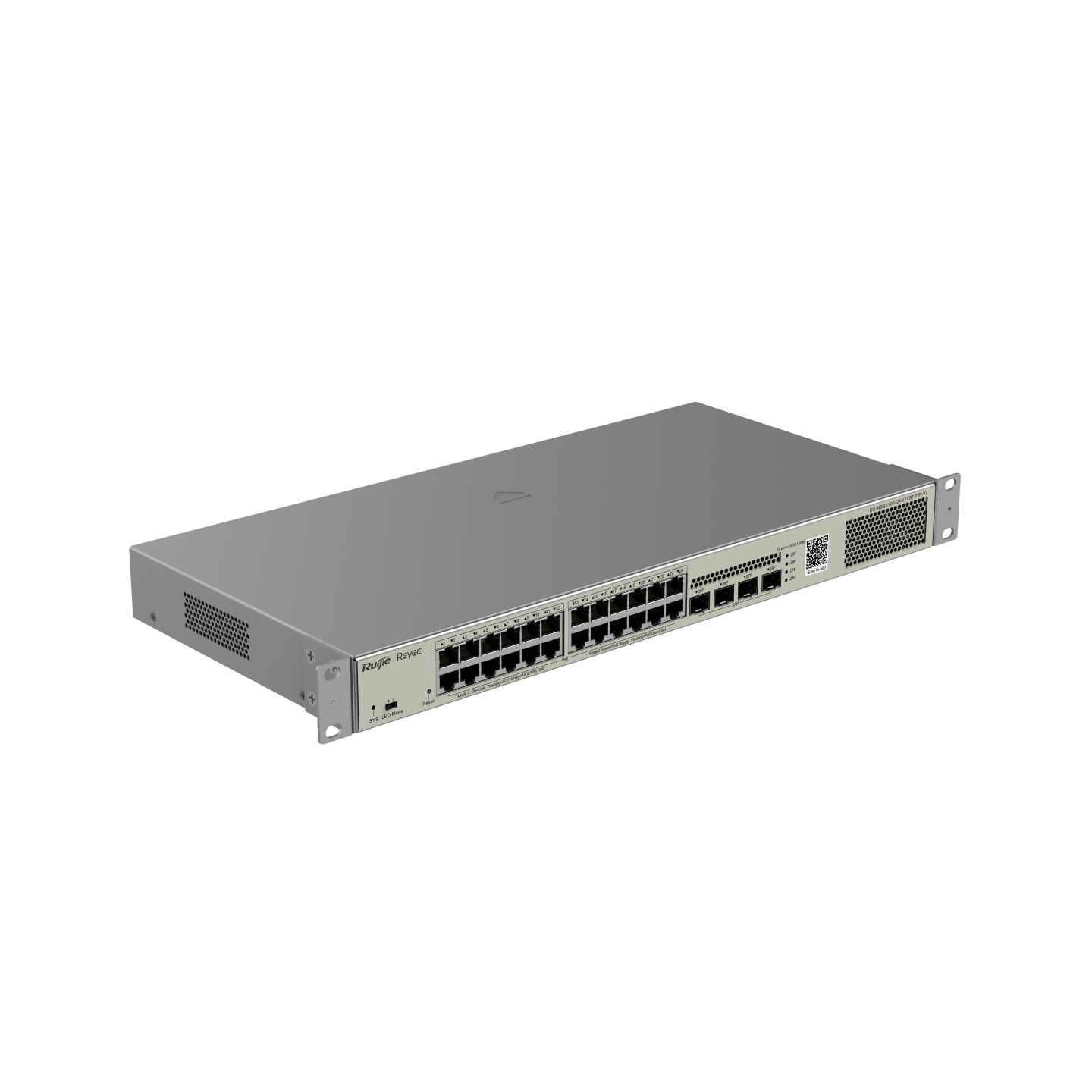

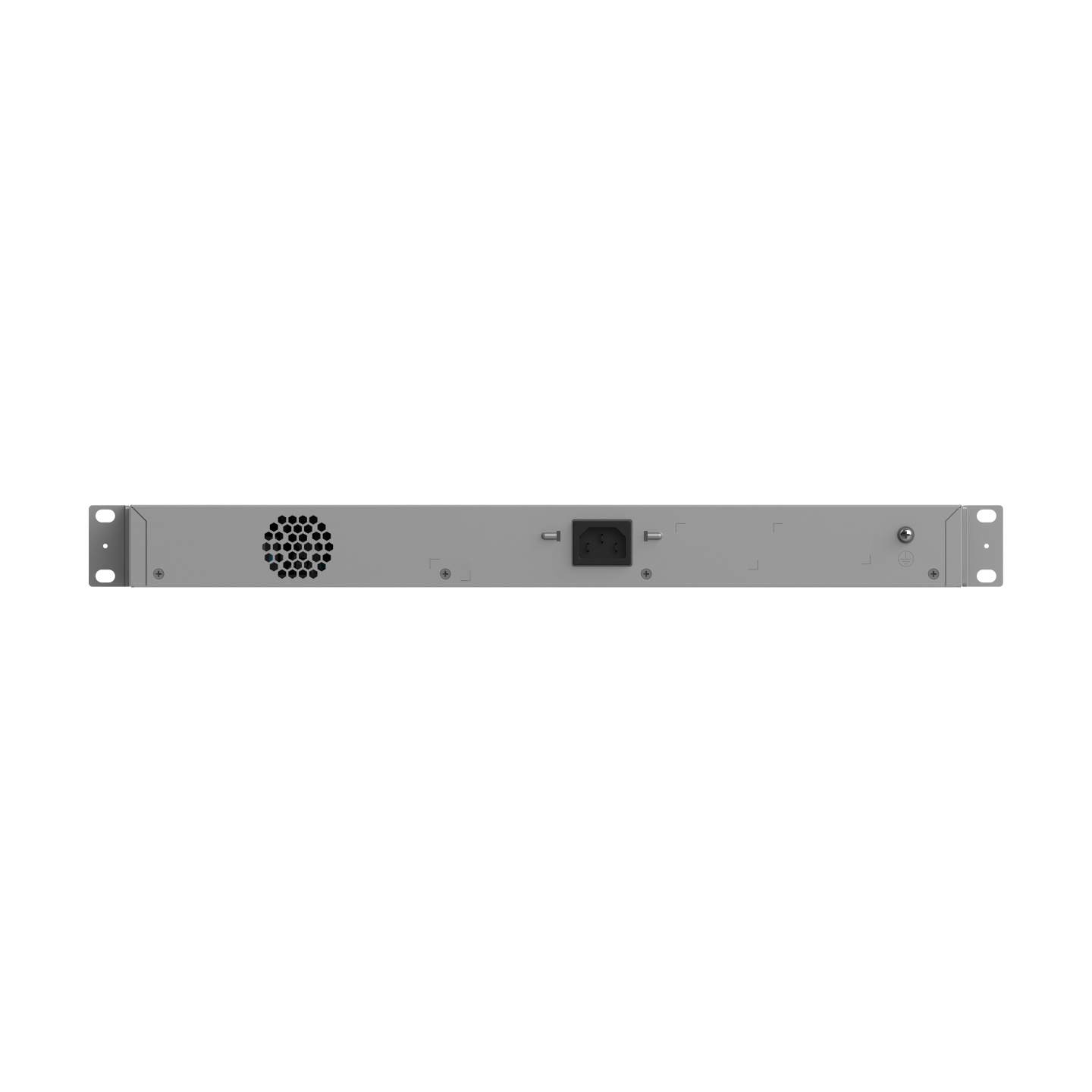

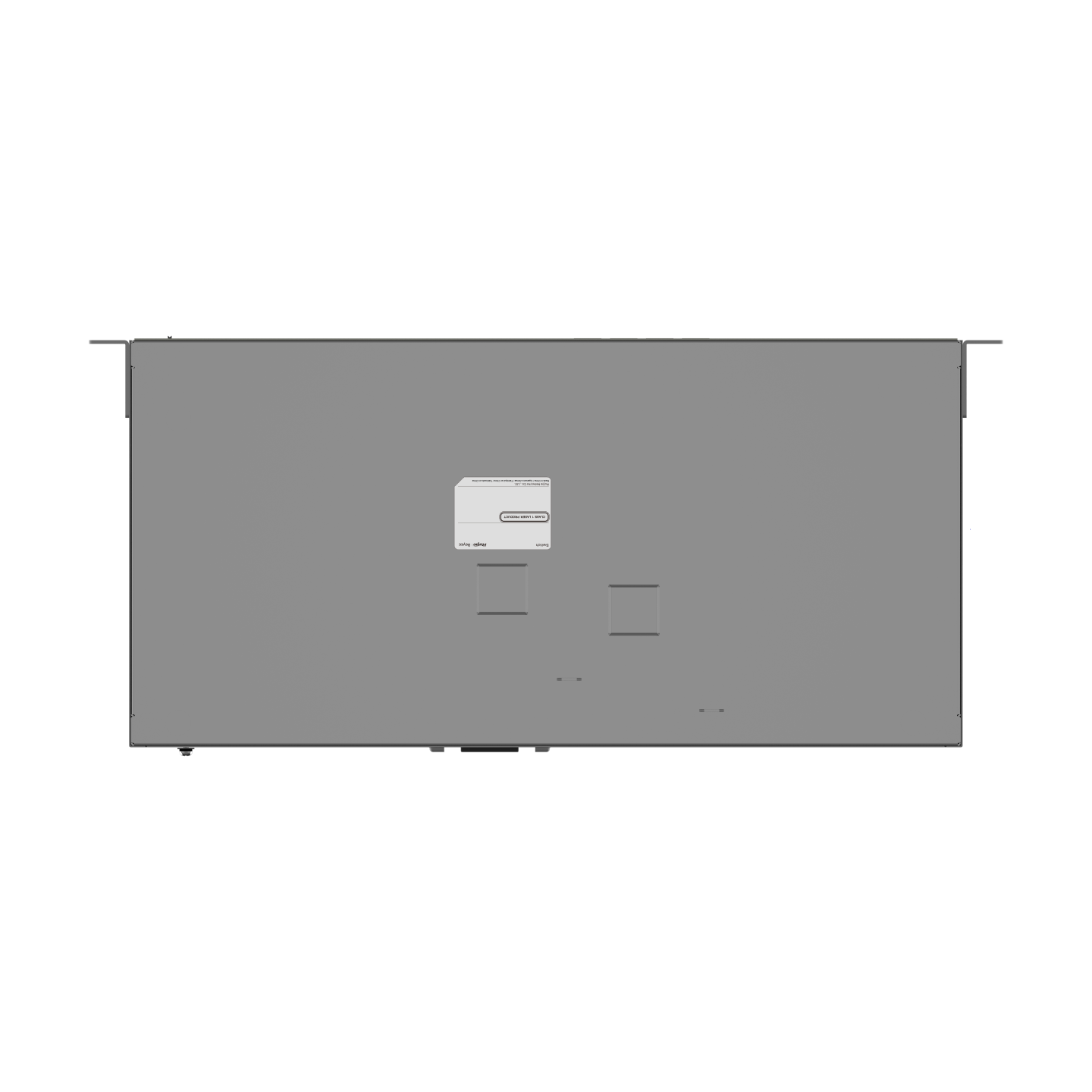

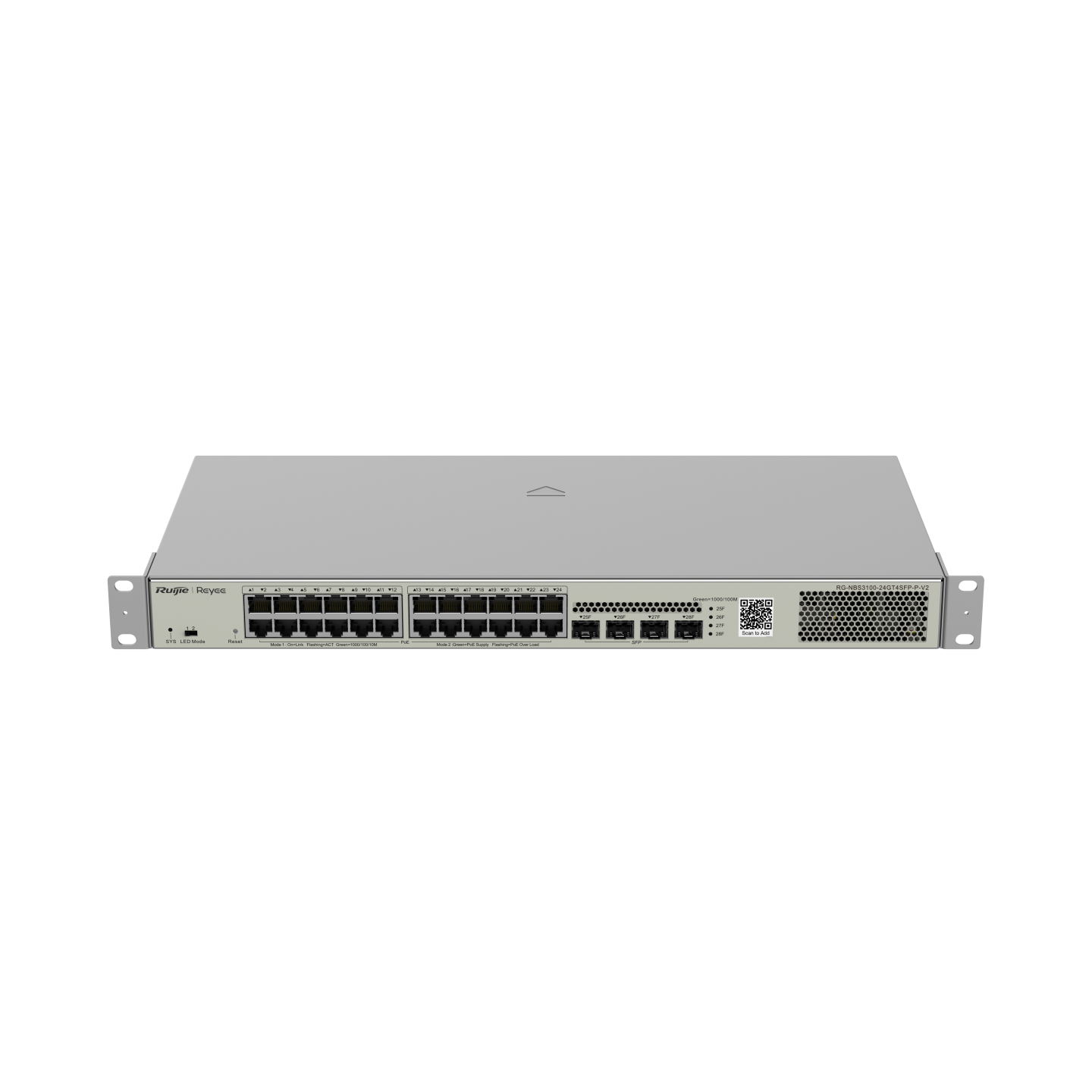

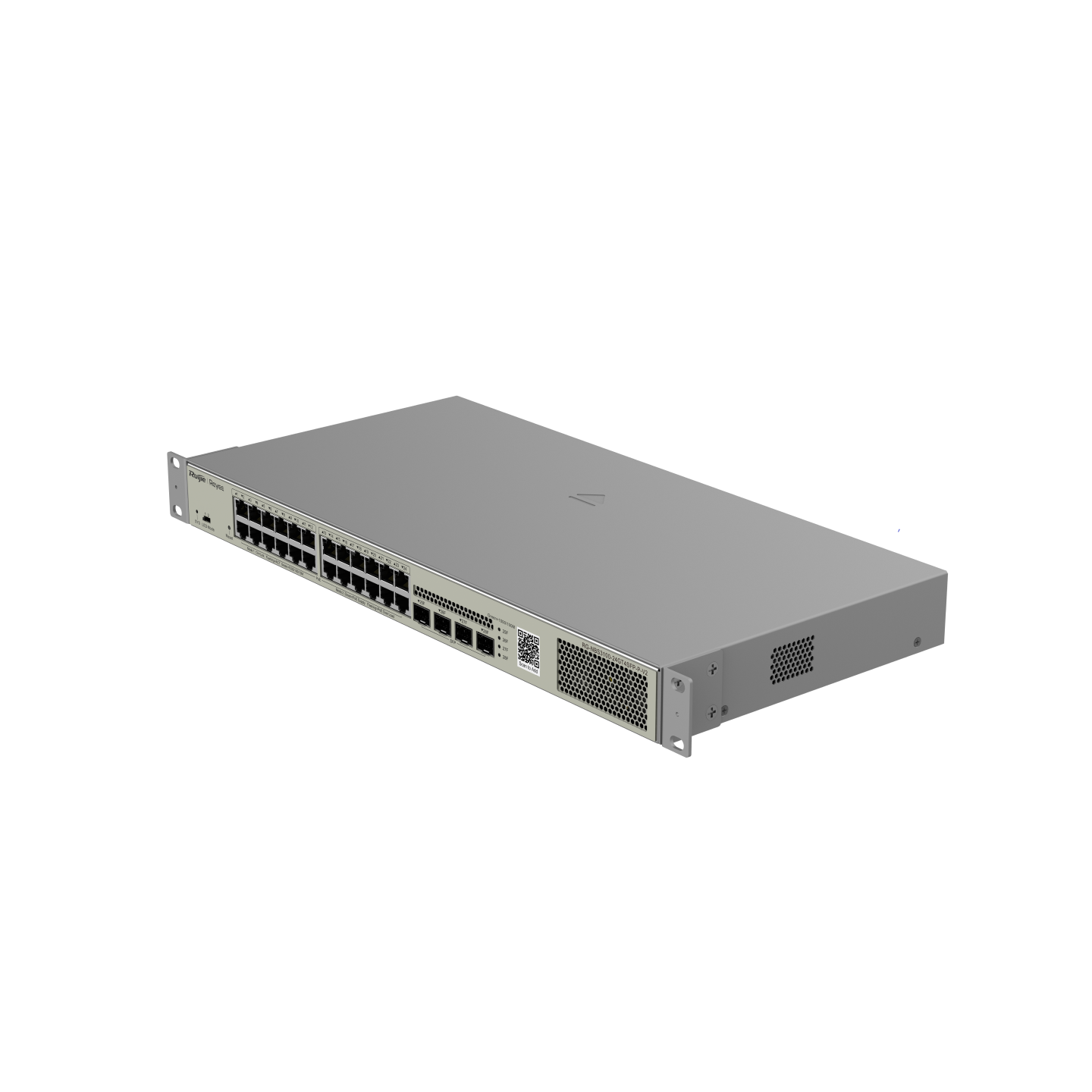

RG-NBS3100-24GT4SFP-P-V2, 28-port Gigabit Layer 2 Cloud-verwalteter PoE Switch

Unternehmen, Gastgewerbe, Fabrik, Bildung, Einzelhandel, Überwachung usw.

Models
RG-NBS3100-8GT2SFP

8 Gigabit Ports, 2 SFP

 RG-NBS3100-8GT2SFP-P

8 Gigabit PoE Ports, 2 SFP, 125W

 RG-NBS3100-8GT2SFP-P-V2

8 Gigabit PoE+ Ports, 2 SFP Ports, 125 W

 RG-NBS3100-24GT4SFP

24 Gigabit Ports, 4 SFP

 RG-NBS3100-24GT4SFP-P

24 Gigabit PoE Ports, 4 SFP, 370W

 RG-NBS3100-24GT4SFP-V2

24 Gigabit Ports, 4 SFP

 RG-NBS3100-24GT4SFP-P-V2

24 Gigabit PoE Ports, 4 SFP, 370W

 RG-NBS3100-48GT4SFP-P

48 Gigabit PoE Ports, 4 SFP, 370W

 RG-NBS3100-48GT4SFP-P-V2

48 x 10/100/1000BASE-T PoE+-Ports, 4 x 1GE SFP-Ports, 370 W
Series
Fixed 10G Up L2+ Switch Fixed 1G Up L2 Switch
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • 28-Port gigabit Layer 2 verwalteter PoE-Switch 4 SFP-Uplink
  • Qualität der Enterprise-Klasse sorgt für hohe Leistung
  • IP-Kameraerkennung, einzigartiger Wert für CCTV­Netzwerk
  • Multiple Sicherheitsrichtlinien Schützen Ihr Netzwerk
  • Lebenslange Verwaltung in der Ruijie-Cloud, jederzeit und überall

Sales Enquiry
Funktionen

RG-NBS3100-24GT4SFP-P-V2

28-Port gigabit Layer 2 verwalteter PoE-Switch 4 SFP-Uplink

  • Schaltkapazität
    56 Gbps

  • Übertragungsrate
    42 Mpps

  • 5 Jahre
    Garantie

Vielfältige PoE-Anwendungsszenarien



  • PoE Budget
    370W

  • Max. 30W
    on jeder Anschluss

  • Überstromschutz
    6KV

  • Leistung
  • Eigenschaften
Qualität der Enterprise-Klasse sorgt für hohe Leistung
  • Link-Aggregation
  • IGMP-Snooping
  • VLAN
Multiple Sicherheitsrichtlinien schützen Ihr Netzwerk
  • Sicherheit
  • Stabilität
Cloud, machen Sie Ihr Geschäft einfach
  • SONero-Touch-Bereitstellung in der Cloud
  • Überwachung der Switch-Statistiken zu jeder Zeit und überall
  • Konfiguration von VLANs auf der Ruijie Cloud-APP
  • Leichte Wartung, spart Zeit und Kosten vor Ort















Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 5 years
Port Specifications
Total number of RJ45 ports
  • 24
Total number of optical ports
  • 4
Number of 1GE combo ports
  • No
Number of 1GE SFP ports
  • 4
Number of 10GE SFP+ ports
  • No
Number of 10/100BASE-T ports
  • No
Number of 10/100/1000BASE-T ports
  • 24
Number of 10/100/1000/2500BASE-T ports
  • No
Number of 100/1000/2.5G/5G/10GBASE-T ports
  • No
Power Supply and Consumption
Number of PoE Out ports
  • 24
Number of PoE/PoE+ Out ports
  • 24
Number of PoE/PoE+/PoE++ Out ports
  • No
PoE budget
  • 370 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 42 Mpps
Switching capacity
  • 56 Gbps(bit/s)
Environment and Reliability
MTBF
  • 400,000 hours
Operating temperature
  • 0~50°C0°C to +50°C (32°F to 122°F)
Altitude
  • Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
    Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Surge protection
  • Service port: ±6 kV for common mode
    Power connector: ±6 kV for both common mode and differential mode
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Interface
Jumbo frame length (MTU)
  • 9216 bytes (global configuration mode)
Security
Port isolation
  • Yes
Broadcast storm control
  • Yes
