RG-NBS6002 Layer 3 Cloud-verwalteter Switch

Unternehmen, Hotel, Fabrik, Ausbildung, Einzelhandel usw.

Models
RG-NBS7003

3 Service-Slots,2 Leistungs-Slots

 RG-NBS7006

6 Service-Slots, 2 Supervisor-Engine-Module

 RG-NBS6002

2 Service-Schlitze,2 Power-Schlitze,2 Lüfter
Series
Chassis/Modular L3 Switch Fixed 10G Up L3 Switch Fixed 1G Up L3 Switch
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • Modulares Design sorgt für Skalierbarkeit und Flexibilität
  • Hochstufige Redundanz, die einen Nonstop-Service gewährleistet
  • Komplette Netzwerklösung, eigens für SMB-Szenarien entwickelt
  • Lebenslanges Management in der Ruijie Cloud, jederzeit und überall
Sales Enquiry
Funktionen

RG-NBS6002
Modularer Core-Switch mit zwei Schlitzen

  • 4 optional
    Leitungskarten
  • 32,000
    MAC-Addressen
  • 8,000
    ARP-Tabelle
  • 1,92 Tbit/s
    Umschaltkapazität
  • 132Mpps
    Paketweiterleitungsrate

Hoher kosteneffizienter Core-Switch

Genießen Sie die Leistung von zweien zum Preis von einem

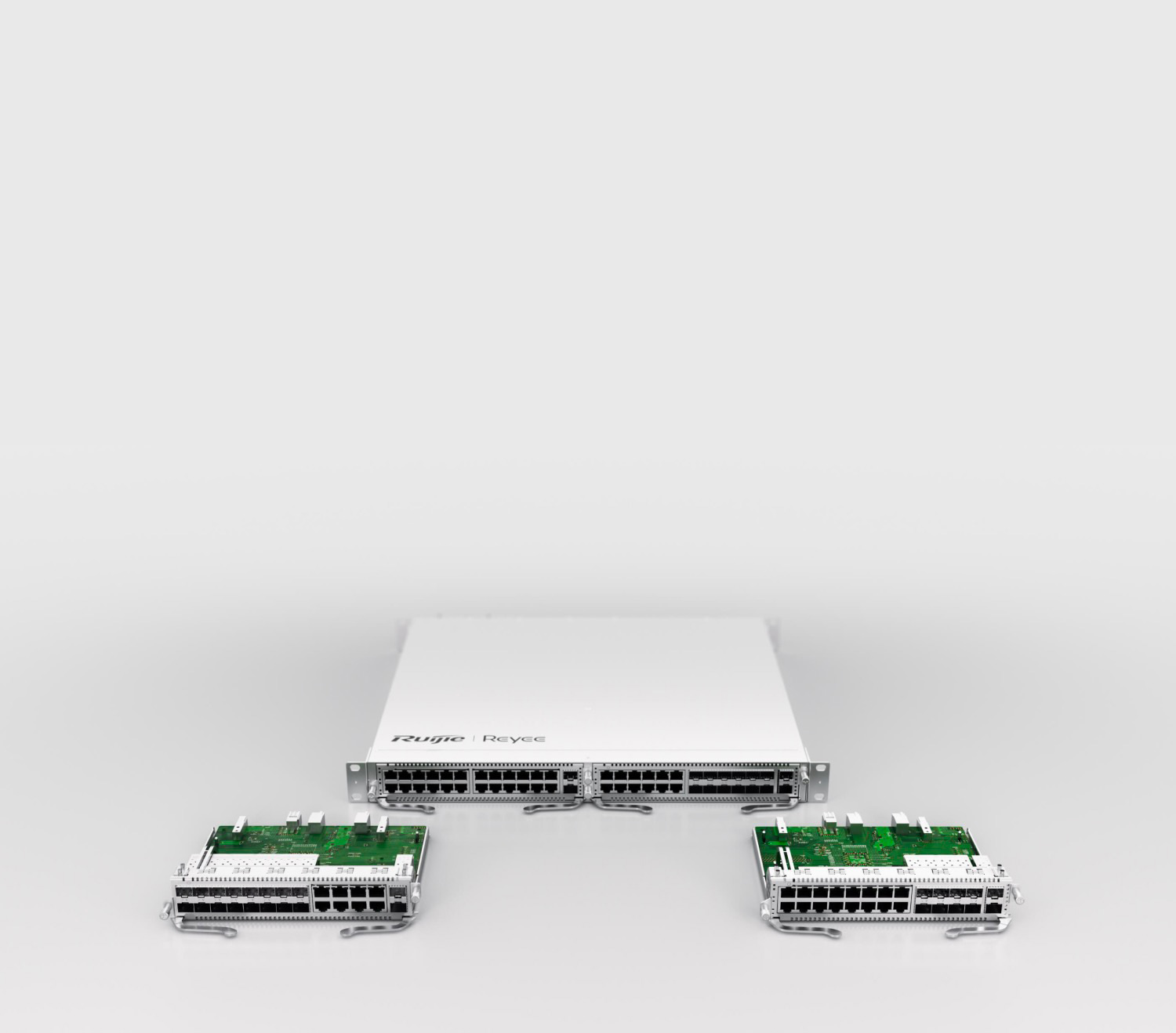

Modulardesign: Hohe Leistung, Skalierbarkeit und Flexibilität

Unterstützt 4 Arten von Leitungskarten, 11 Kombinationen

Hochstufige Redundanz, die einen Nonstop-Service gewährleistet

  • Redundante Module
  • Virtuelles Cluster-Switching (VCS)

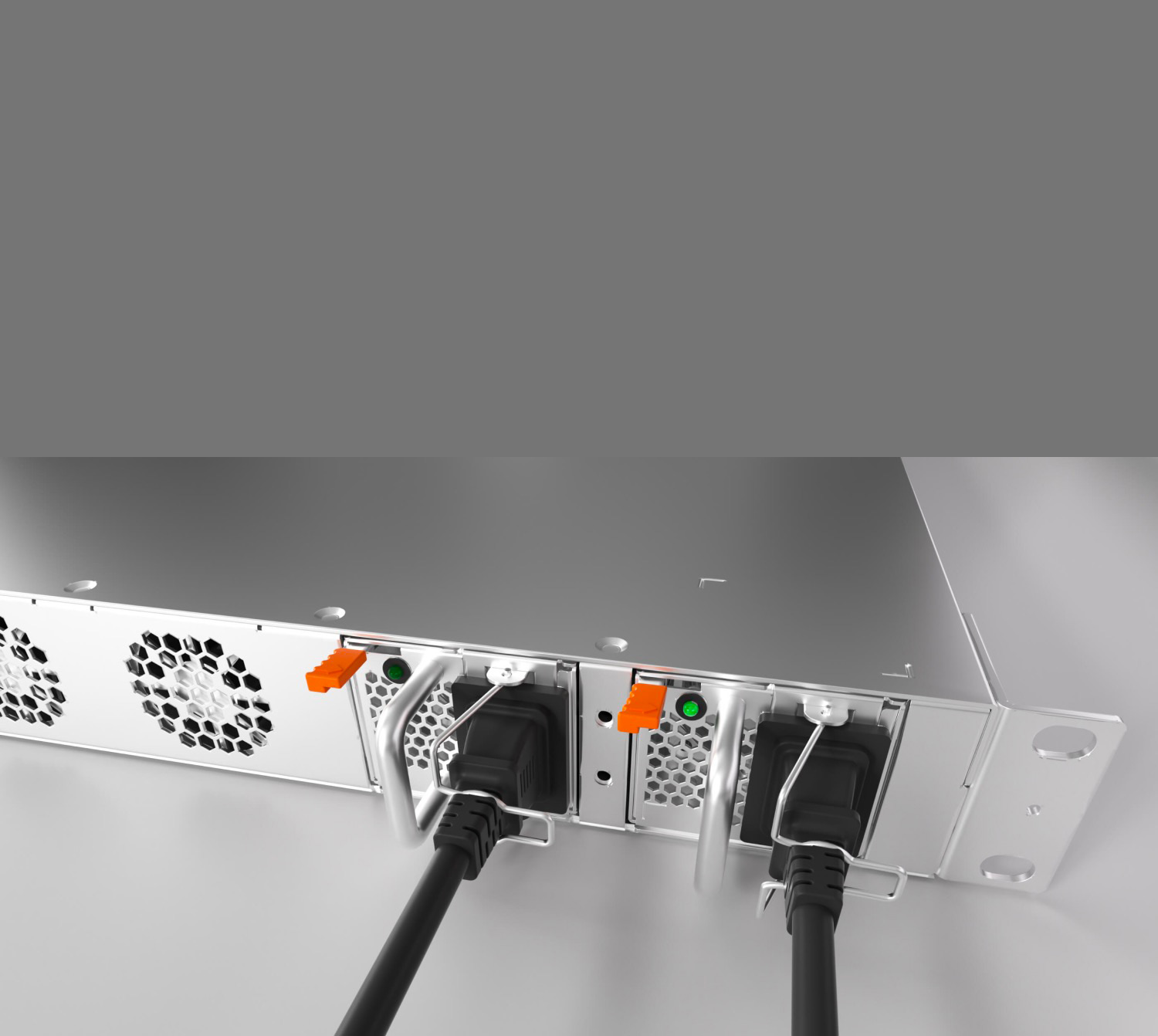

2 Leistungsschlitze: Sicherstellung der Betriebskontinuität

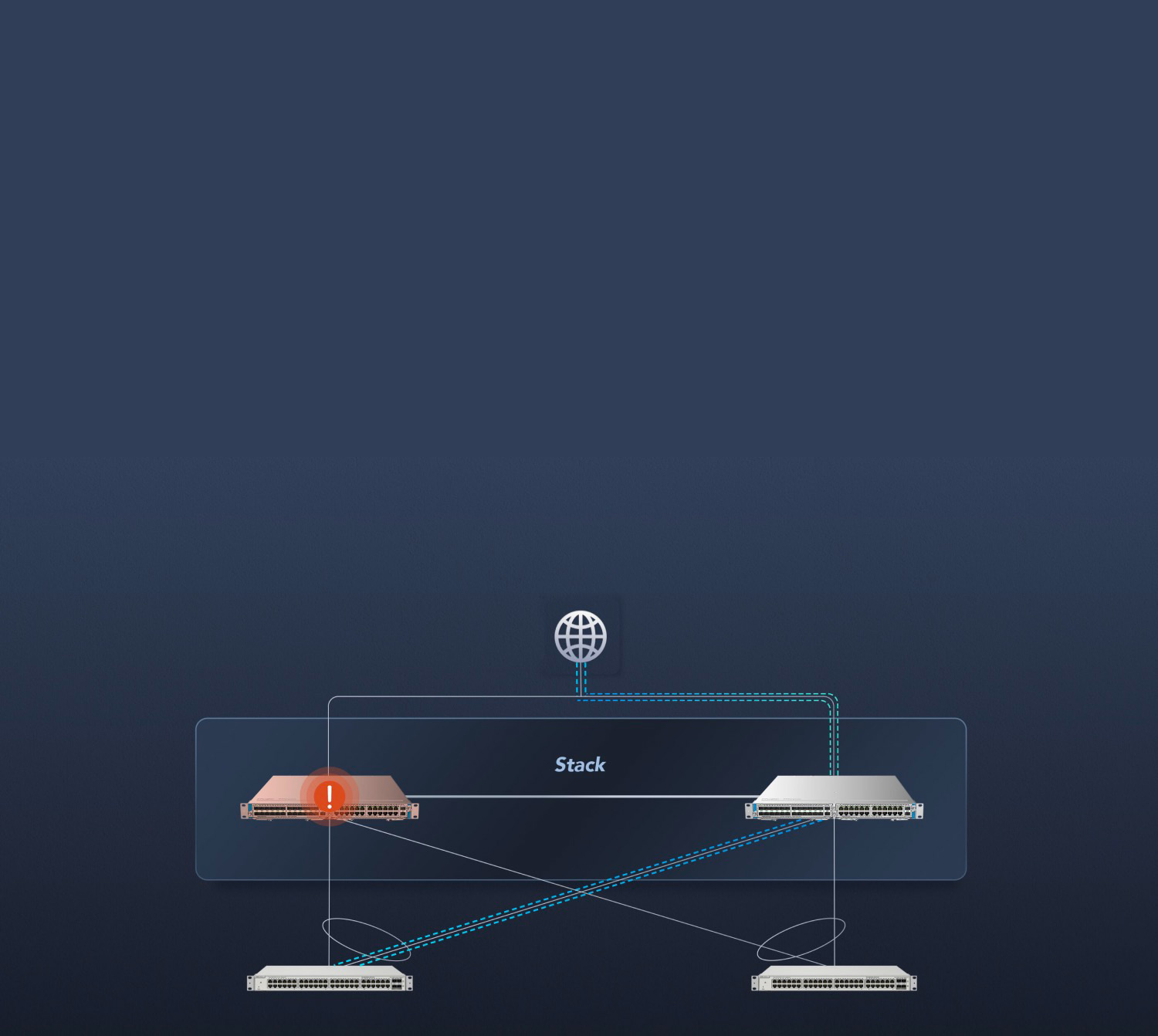

Virtual Cluster Switching (VCS): Service-Failover innerhalb von Sekunden

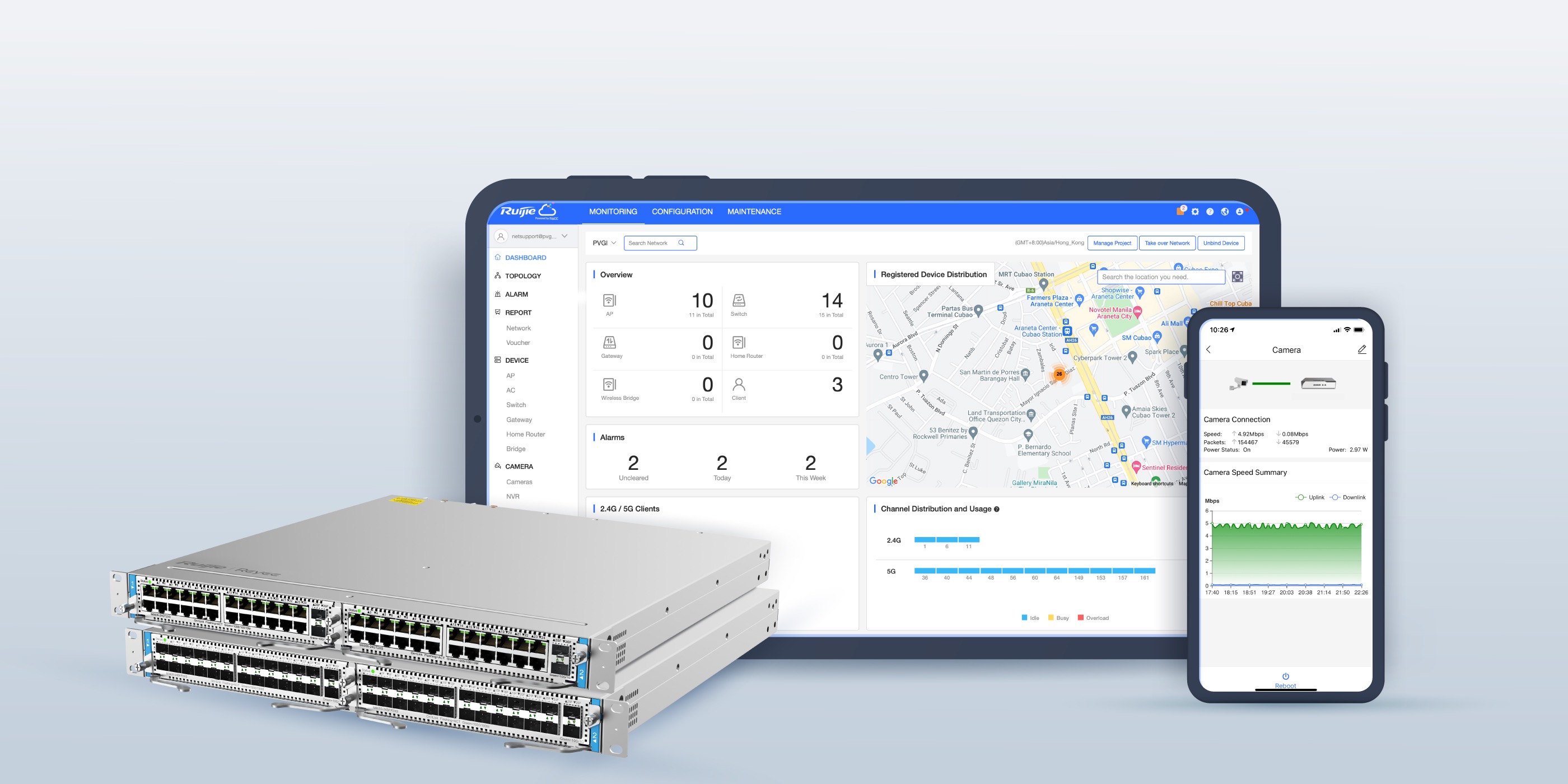

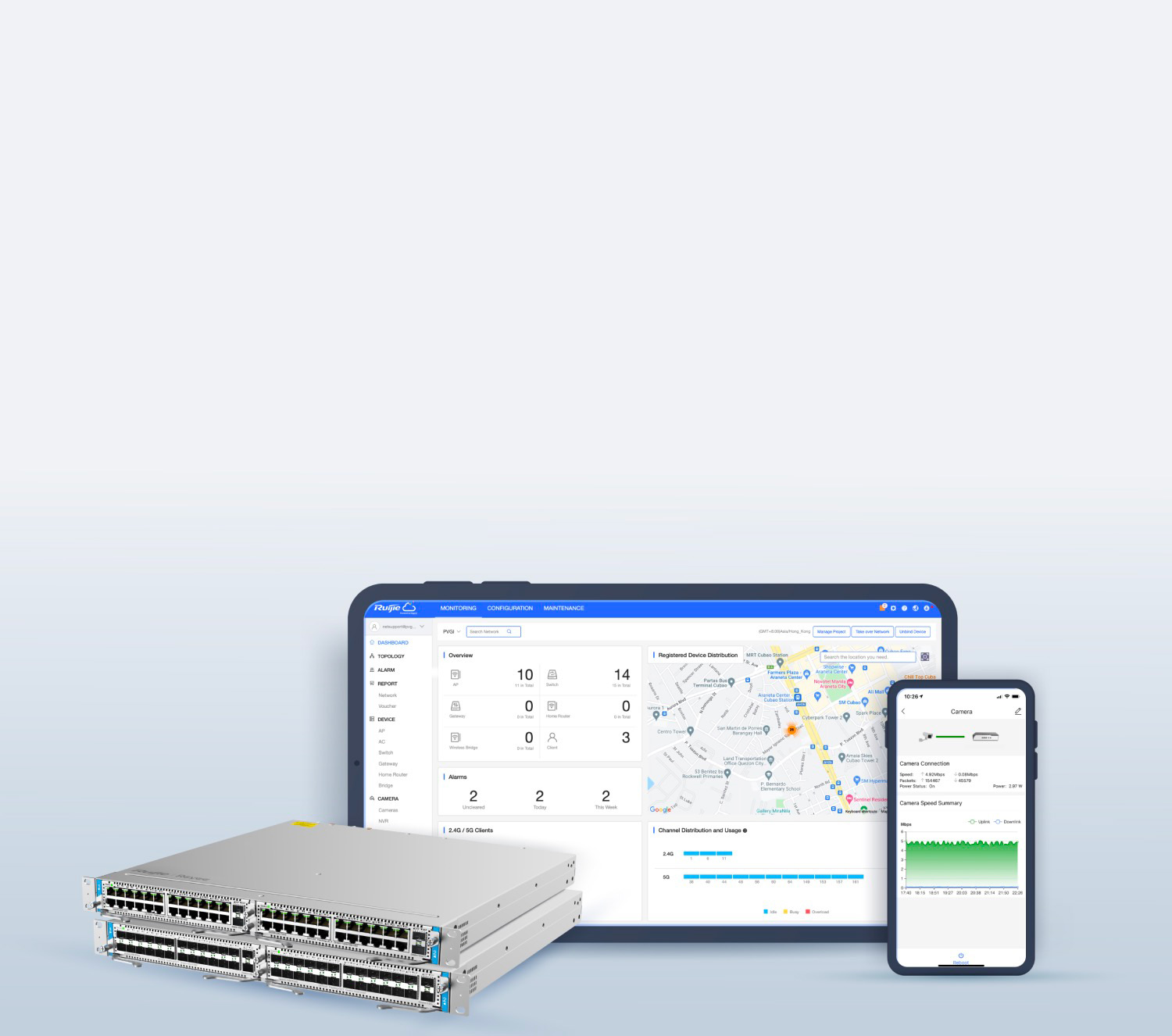

Cloud, Erleichtern Sie Ihr Business

  • SON, Zero-Touch-Bereitstellung in der Cloud
  • Überwachung der Switch-Statistiken zu jeder Zeit und an jedem Ort
  • Konfiguration von VLANs auf Ruijie Cloud APP
  • Einfache Wartung, Zeit und Kosten vor Ort einsparen

Key Specifications
Product Information
Product Category
Product Category
  • Layer 3
Hardware Specifications
Product Information
Warranty
  • 5 years
Port Specifications
Total number of RJ45 ports
  • Determine the quantity based on the type and number of line cards.
Total number of optical ports
  • No
Number of 1GE combo ports
  • No
Number of 1GE SFP ports
  • No
Number of 10GE SFP+ ports
  • Determine the quantity based on the type and number of line cards.
Number of 10/100BASE-T ports
  • No
Number of 10/100/1000BASE-T ports
  • Determine the quantity based on the type and number of line cards.
Number of 10/100/1000/2500BASE-T ports
  • No
Number of 100/1000/2.5G/5G/10GBASE-T ports
  • No
System Specifications
Forwarding rate
  • 132 Mpps
Switching capacity
  • 176 Gbps(bit/s)
Environment and Reliability
MTBF
  • 400,000 hours
Operating temperature
  • 0°C to +50°C (32°F to 122°F)
Altitude
  • Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
    Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Surge protection
  • Service port: ±6 kV for common mode
    Power connector: ±6 kV for both common mode and differential mode
Software Specifications
Basic Configurations
PoE watchdog
  • No
Interface
Jumbo frame length (MTU)
  • 9216 bytes (interface configuration mode)
Security
Port isolation
  • Yes
Broadcast storm control
  • Yes
