RG-ES106D-P V2, 6-Anschluss 10 100Mbit/s-Desktop nicht verwalteter Switch

Home Office, Einzelhandel, Café, Villa , Überwachung usw.

Models
RG-ES105D

5 FE

 RG-ES106F-P

6 FE,54 W

 RG-ES106D-P V2

6 FE, 54W

 RG-ES108D

8 FE

 RG-ES110F-P

10FE,110W

 RG-ES110D-P

8 FE, 2 GE, 110W

 RG-ES110FG-P

8 FE,2 GE,110 W

 RG-ES118S-LP

16 FE, 2 GE, 120W

 RG-ES118FGS-LP

16 FE,2 GE,120 W

 RG-ES126S-P V2

24 FE, 2 GE, 370W

 RG-ES126S-LP V2

24 FE, 2 GE, 180W

 RG-ES126FGS-P

24 FE,2 GE,370 W

 RG-ES126FGS-LP

24 FE,2 GE,180 W

 RG-ES110GS-P-L

9 GE,1 SFP,120 W

 RG-ES116G-L

16 GE

 RG-ES118GS-P-L

16 GE,2 SFP,247 W

 RG-ES124G-L

24 GE

 RG-ES105GD

5 GE

 RG-ES108GD

8 GE

 RG-ES110GDS-P

8 GE, 2 SFP, 120W

 RG-ES116G

16 GE

 RG-ES118GS-P

16 GE, 2 SFP, 247W

 RG-ES124GD

24 GE
Series
Metallgehäuse Plastikgehäuse
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • 6-Anschluss 10 100Mbit/s Desktop nicht verwalteter PoE Switch
  • Nicht verwalteter Switch, der auf der Ruijie-Cloud sichtbar ist
  • Großer Puffer für problemlose Datenübertragung
  • Intelligente PoE-Verwaltung
  • Hohe Netzwerkzuverlässigkeit
  • Hochwertiges Qualitätsdesign
  • Anpassung an verschiedene Szenarien
Sales Enquiry
Funktionen


RG-ES106D-P V2

6-Anschluss 10/100Mbit/s Desktop nicht verwalteter Switch

  • Plug & Play

  • Gigabit-Geschwindigkeit

  • 3 Jahre Garantie

Nicht verwalteter Switch, der auf der Ruijie-Cloud sichtbar ist

Großer Puffer für reibungslose Datenübertragung

Hardware-Flow-Kontrolle, die einen großen Puffer sicherstellt

Intelligente PoE-Verwaltung

Anwendung an verschiedenen elektrische Geräte (PDs), Einzelanschluss bis zu 30 W

Hohe Netzwerkzuverlässigkeit

Stabilität ohne häufigen Neustart

  • Lüfterloses und stilles Design

  • Grün (802.3az)

  • Energiesparend

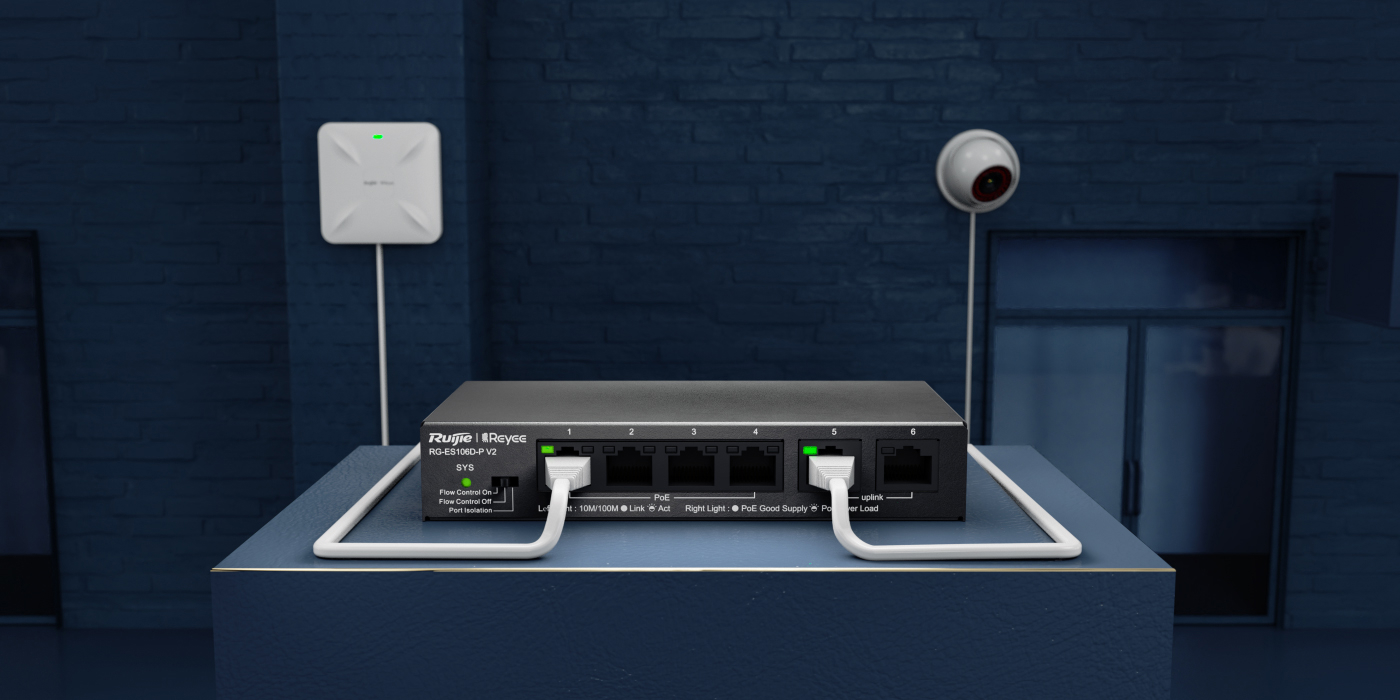

Anpassung an verschiedene Szenarien

Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 6
Number of 10/100BASE-T ports
  • 6
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • 54 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 0.89 Mpps
Switching capacity
  • 1.2 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • 0°C to 45°C (32°F to 113°F)
Software Specifications
Security
Port isolation
  • When port isolation is eN/Abled, ports 1-4 are isolated from each other, but can communicate with ports 5 and 6
