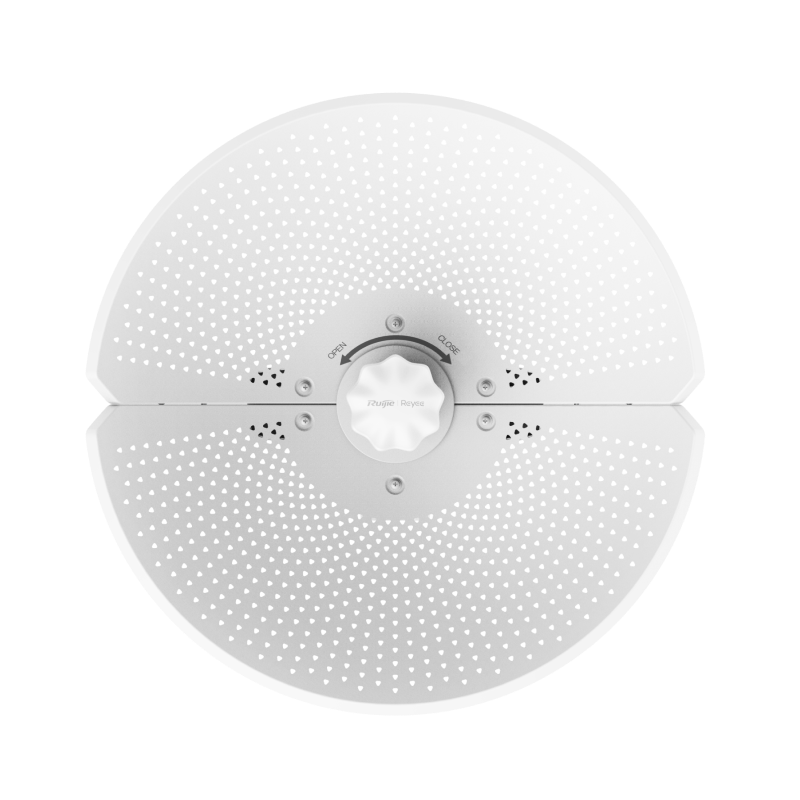

RG-AirMetro460F - 1

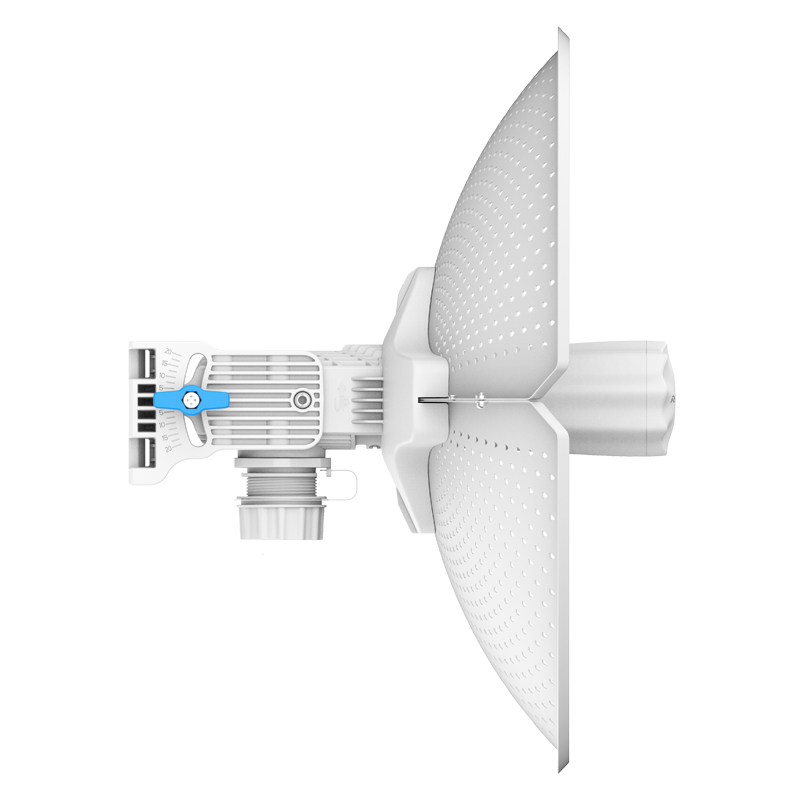

RG-AirMetro460F - 2

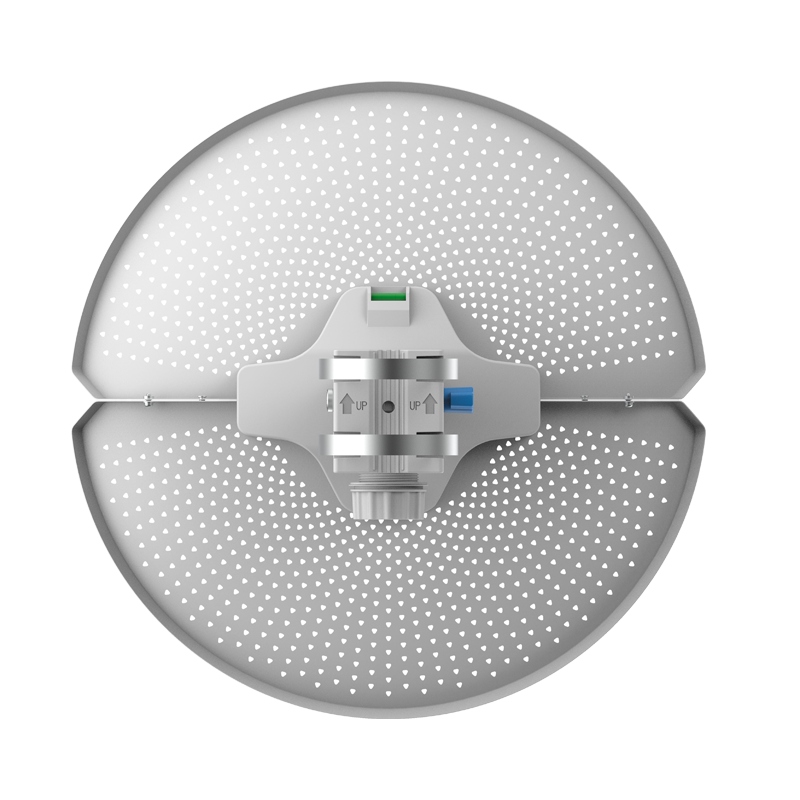

RG-AirMetro460F - 3
RG-AirMetro460F - 1
RG-AirMetro460F - 2
RG-AirMetro460F - 3

RG-AirMetro460F, CPE von RG-AirMetro Serie Drahtlosbrücken

WISP, CCTV, Ort, Stadt, Werk etc.

Models
RG-AirMetro460F

1 FE Port CPE

 RG-AirMetro460G

1 GE Port CPE
Series
PTMP Station PTP/PTMP CPE
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • PTP Max. 15 km Funktionsreichweite
  • PTMP Einfaches Koppeln Alle in 30 s
  • 24 V Passiv PoE
  • IP65, 6 kV Überspannungsschutz und ±24 kV ESD gegen Raue Umgebungen
  • 220.32 km/h (137 mph) Windbeständigkeit
  • Alles-in-Einem Cloud-Management vereinfacht das Benutzererlebnis
Sales Enquiry
Key Specification
Features

RG-AirMetro Series
Drahtlosbrücken

Bei Kopplung mit einer Basisstation, unterstützt die Brücke:

  • 15km

    Bis zu 15 km
    Drahtlosübertragung

  • 32PTMP

    Bis zu 32 PTMP
    Links

  • Einfaches
    Standortplanungstool

  • Alles-in-Einem
    Cloud-ManagementCloud

CPE

Beliebig mischen für diverse Szenarien

  • RG-AirMetro460F

    1 x 10/100 Mbps Port

  • RG-AirMetro460G

    1 x 10/100/1000 Mbps Port

Signalverstärkung

Das Geheimnis der kreisförmigen Anmut

KI-Heatmap für Brücke

Betriebsmodi

Unterstützt sowohl PTP
als auch PTMP

Alles in
Einem
Cloud

Führt Sie durch eine sorgenfreie Reise

Hauptszenarien

Die perfekte Wahl sowohl für WISP als auch CCTV Szenarien

CPE

Beliebig mischen für diverse Szenarien

RG-AirMetro460G

1 x 10/100/1000 Mbps Port

15 km, 23 dBi

5 GHz, 867 Mbps

RG-AirMetro460F

1 x 10/100 Mbps Port

15 km, 23 dBi

5 GHz, 867 Mbps

Signalverstärkung

Das Geheimnis der kreisförmigen Anmut

Im Vergleich mit quadratischen Antennen

Die Gesamtverstärkung der kreisförmigen Antenne wird erhöht
Die Verstärkung sowohl in horizontaler als auch vertikaler Richtung ist ausgeglichener;

Daher ist das Signal der kreisförmigen Antenne im gleichen Abdeckungsbereich stärker,

*Alle hier angegebenen Daten sind theoretische Werte, die von internen Ruijie Reyee Laboren durch Tests unter bestimmten Bedingungen erhalten wurden. Tatsächliche Daten können je nach Unterschieden in individuellen Produkten, Software-Versionen, Anwendungsbedingungen und Umgebungsfaktoren abweichen. Alle Daten hängen vom tatsächlichen Einsatz ab.

Immer noch stabil

Keine Angst vor rauen Umgebungen

  • IP65 Wetterfest
  • 220.32 km/h
    (137 mph)     Windfestigkeit
  • 6 kV Überspannungsschutz
  • 24 kV
    Kontakt/Luft     ESD

  • PTMP

    Bis zu 32 PTMP Links

  • PTP

    Bis zu 15 km

WISP

Ausgedehnte Abdeckung ohne Faserverbindungen

CCTV

Erschwingliche Exzellenz und Glatte Überwachung

KI-Heatmap für Brücke

Ihr Echter Begleiter bei Outdoor-Abenteuern

Ausrichtungsinstrument

Ihre große Stimme, Zeitsparende Anleitung

Spektralscan und Link-Optimierung

Daumen-Hoch-Anleitung

  • Ein-Klick-Kanalinterferenz-Scan für Alle Punkte

  • Automatische Optimierungsempfehlungen

  • Zeit und Aufwand sparen

Sowohl in der Ruijie Cloud als auch der Ruijie Reyee App verfügbar

Cloud macht Ihr Unternehmen einfach

Alles-in-Einem-Cloud

Schnelle EinrichtungÜberwachung auf Basis Echter, Kompletter TopologieProblemerkennung über Auto-Alarm

Comparison
PTP
PTMP
Antenne
Polarisierung
Empfohlene Entfernung
Protokoll
Maximaler Durchsatz
Frequenzbereich*
IP-Schutzart
Spesifikasi
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
