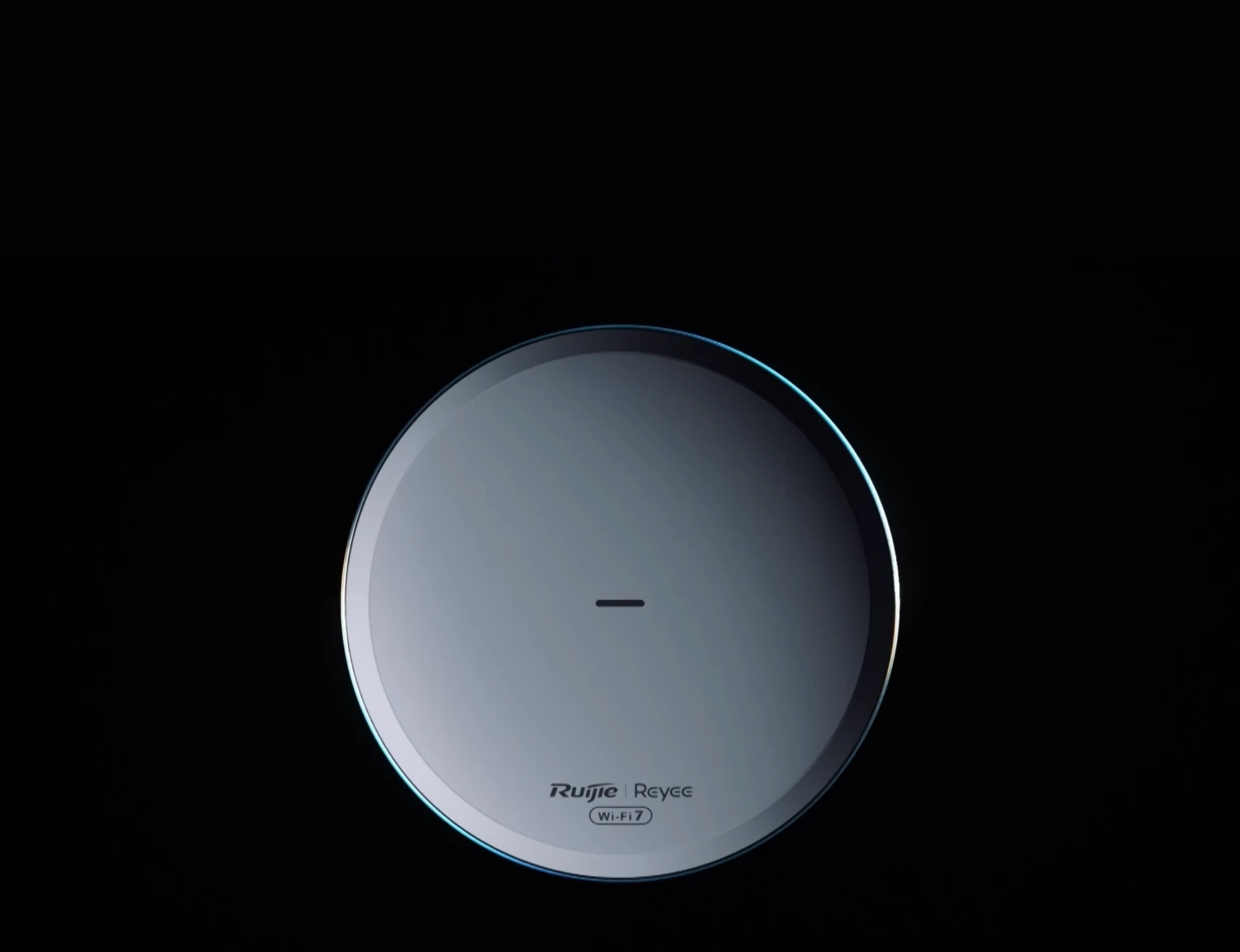

RG-RAP72,Wi-Fi 7 BE3600 Access Point zur Deckenmontage

Smart Home, Hotel, Büro usw.

Models
RG-RAP72Pro

Wi-Fi 7,BE5040,2,5GE Port

 RG-RAP73HD

Wi-Fi 7, 18658 Mbps, 1 x 10G, 1 x GE, 1 x SFP+, MLO

 RG-RAP72

Wi-Fi 7, BE3060, 2,5GE Port
Series
Wi-Fi 5 Decken-AP Wi-Fi 6 Decken-AP Wi-Fi 7 Decken-AP
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • KI-gestützter Wi-Fi 7-AP zur Deckenmontage mit Dual-Radio-Leistung
  • Unterstützt KI-Optimierung (WIO 3.0)
  • Einfache Installation, kompakte Größe
  • Neues kreisförmiges Design, das sich nahtlos in verschiedene Dekorationsstile einfügt
  • Maßgeschneidert für Einzelhandelsunternehmen mit Reyee Mesh, Standalone-Portal, und KI-Roaming-Funktionen
Sales Enquiry
Funktionen

  • Geschwindigkeit der nächsten Generation, zum Greifen nah

  • Profi-Leistung, Einsteigerpreis

    Wi-Fi 7 | 2,5 GbE Port | BE3600

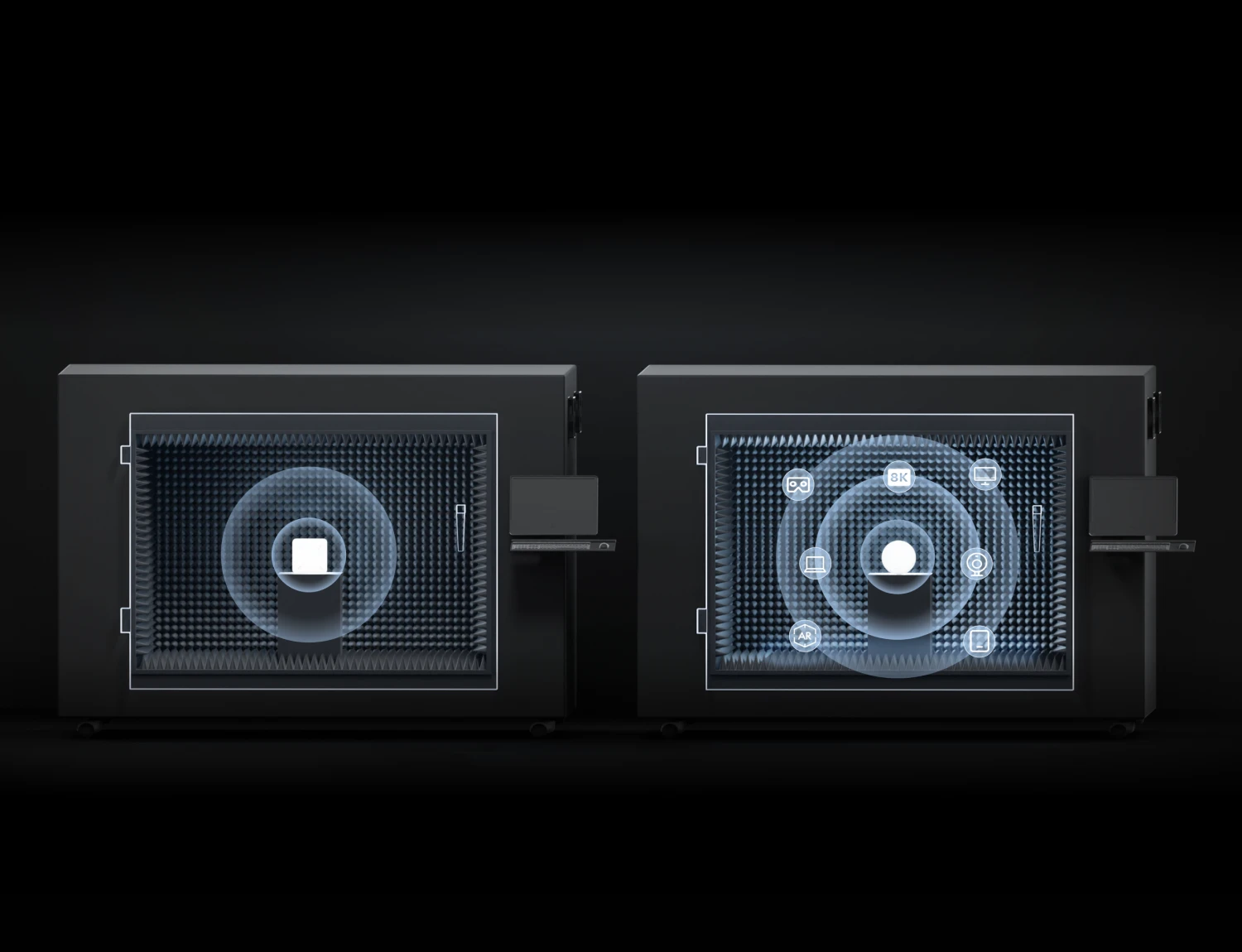

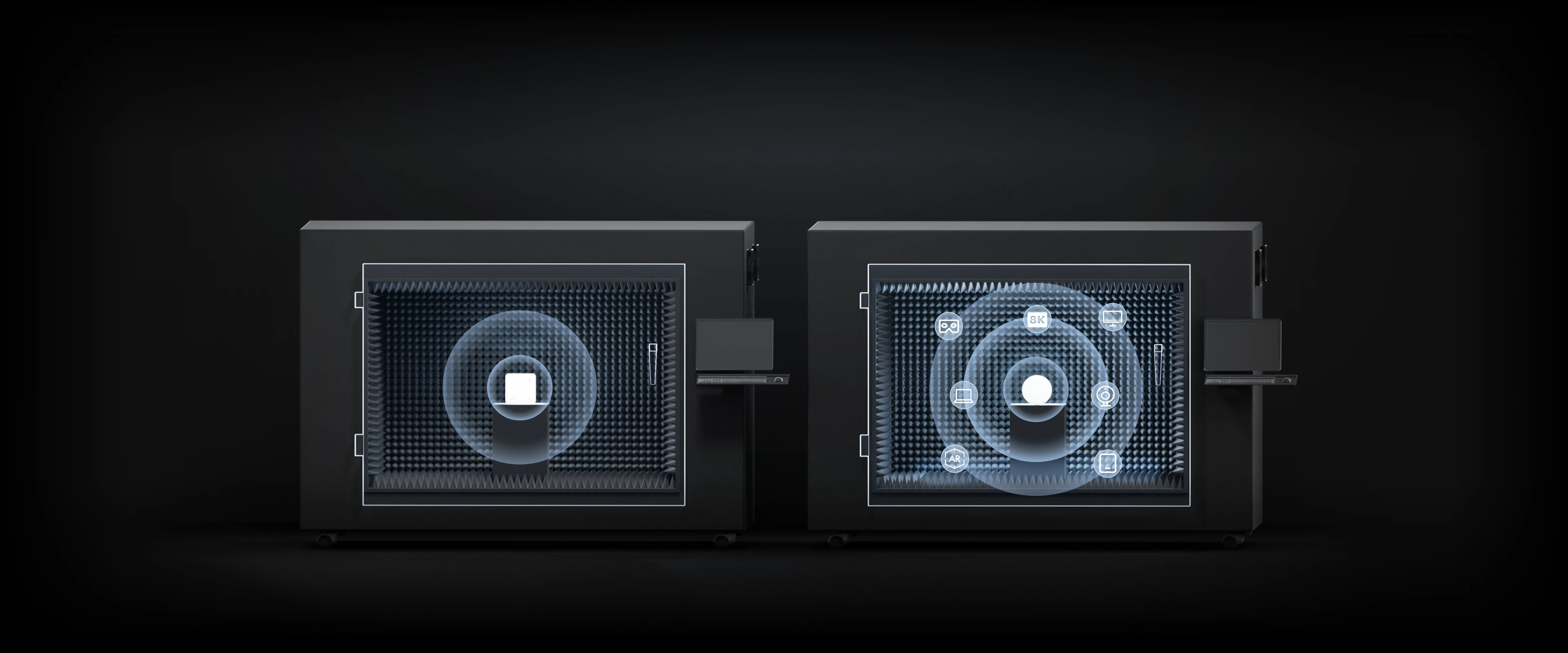

Algorithmus auf Unternehmensebene zur Signaloptimierung

    • Profi-Leistung, Einsteigerpreis

      Abdeckung: 110 m² vs. Standard 140 m² bei 5 GHz

      Herkömmliche WiFi 6-Geräte: 110 m²

      RAP72: 140 m²

  • Tatsächliche Geschwindigkeit: 2.714 Mbit/s
    (Laborumgebung)

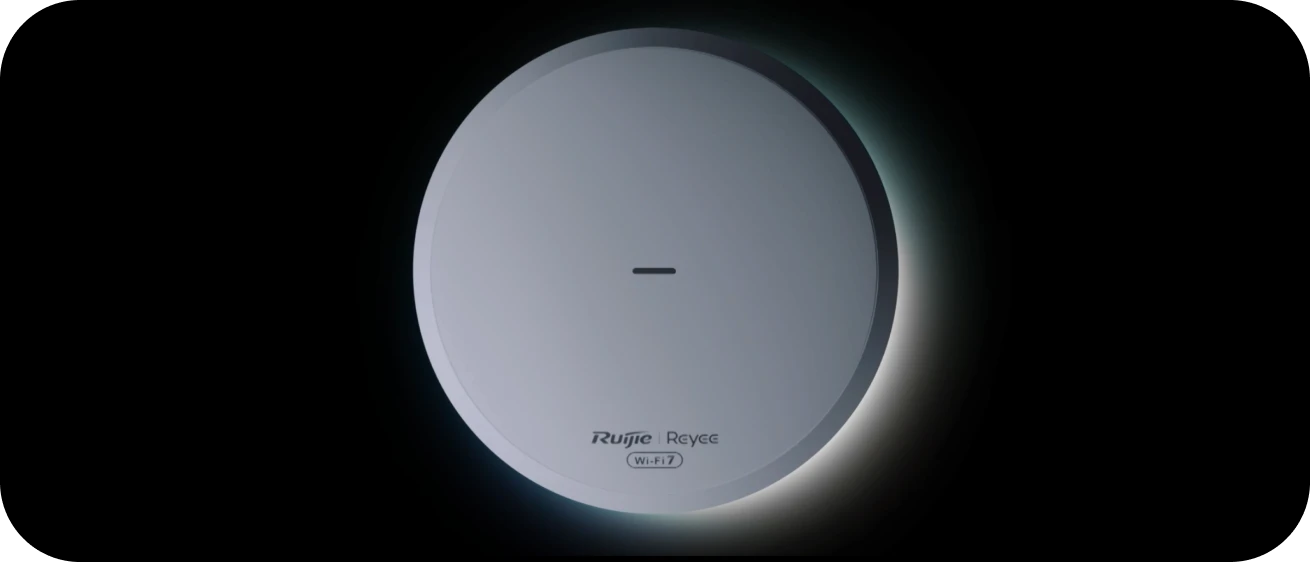

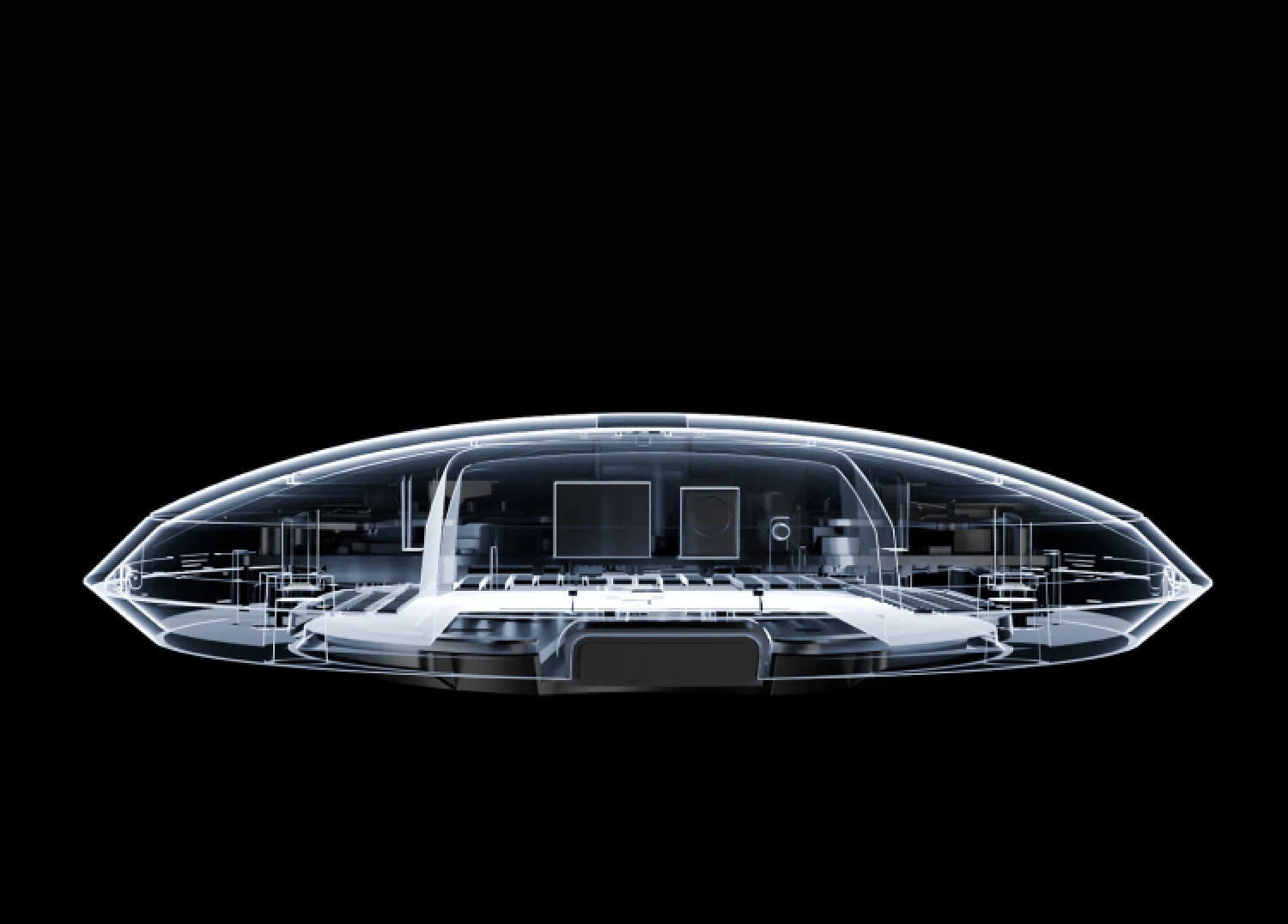

Wo Minimalismus auf Signalbeherrschung trifft

  • Von Polygonkonzepten zu
    optimaler omnidirektionaler Form

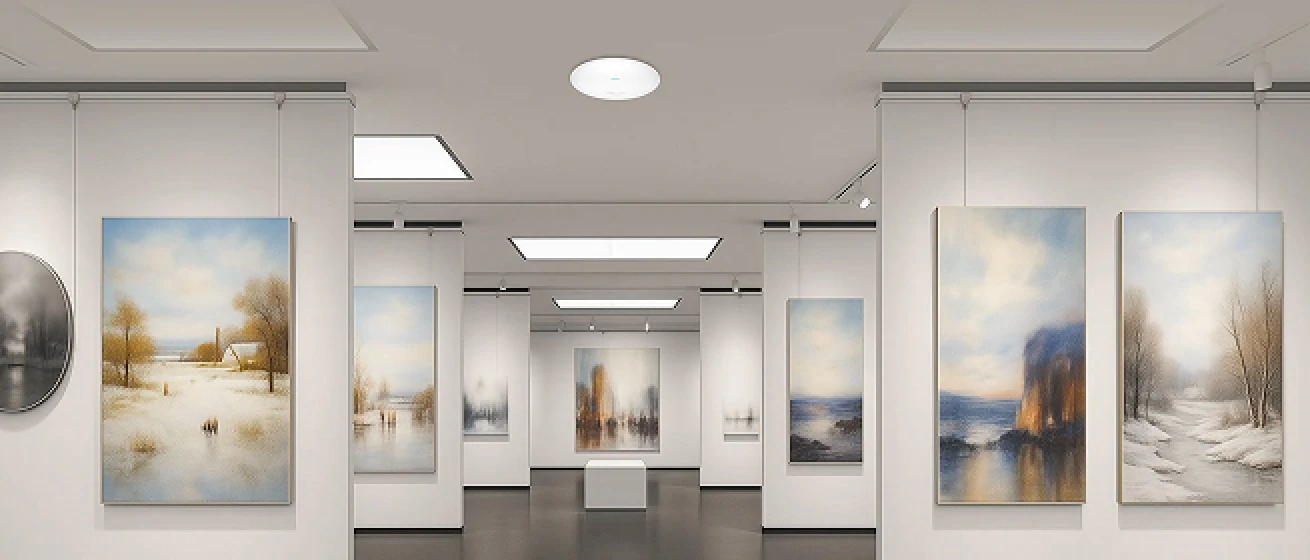

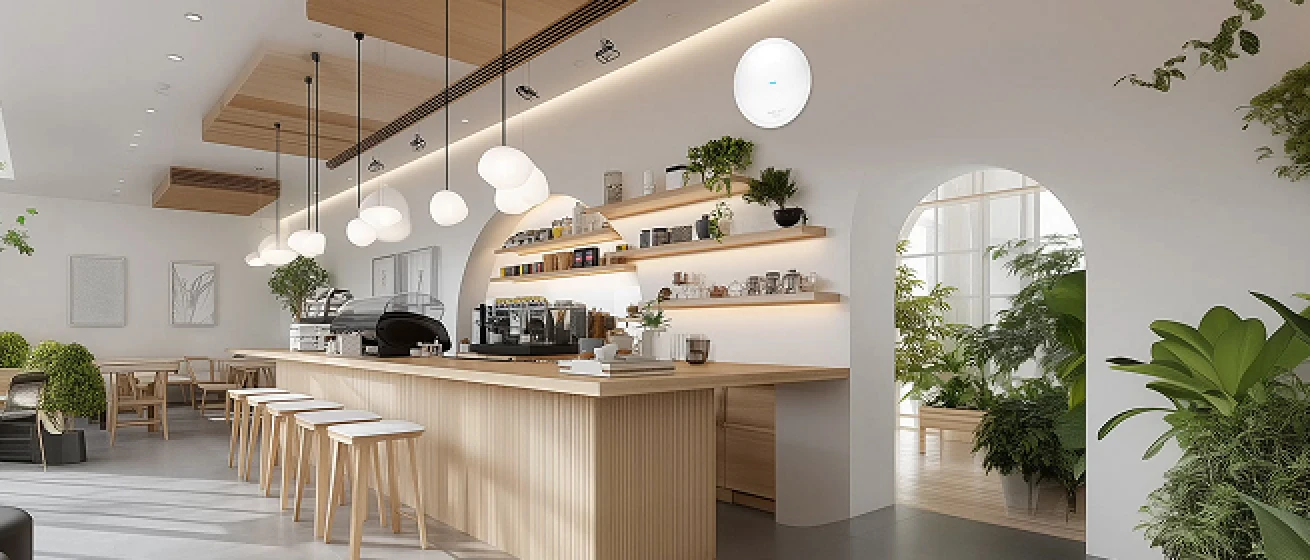

  • Nahtlose Integration
    in moderne Räume

  • Nahtlose Integration
    in moderne Räume

  • Nahtlose Integration
    in moderne Räume

Ein weiteres Gerät, endlose Möglichkeiten

  • Bürobereich

    100+ Gleichzeitige Verbindungen

  • Spielzone

    < 10 ms Garantierte Latenz

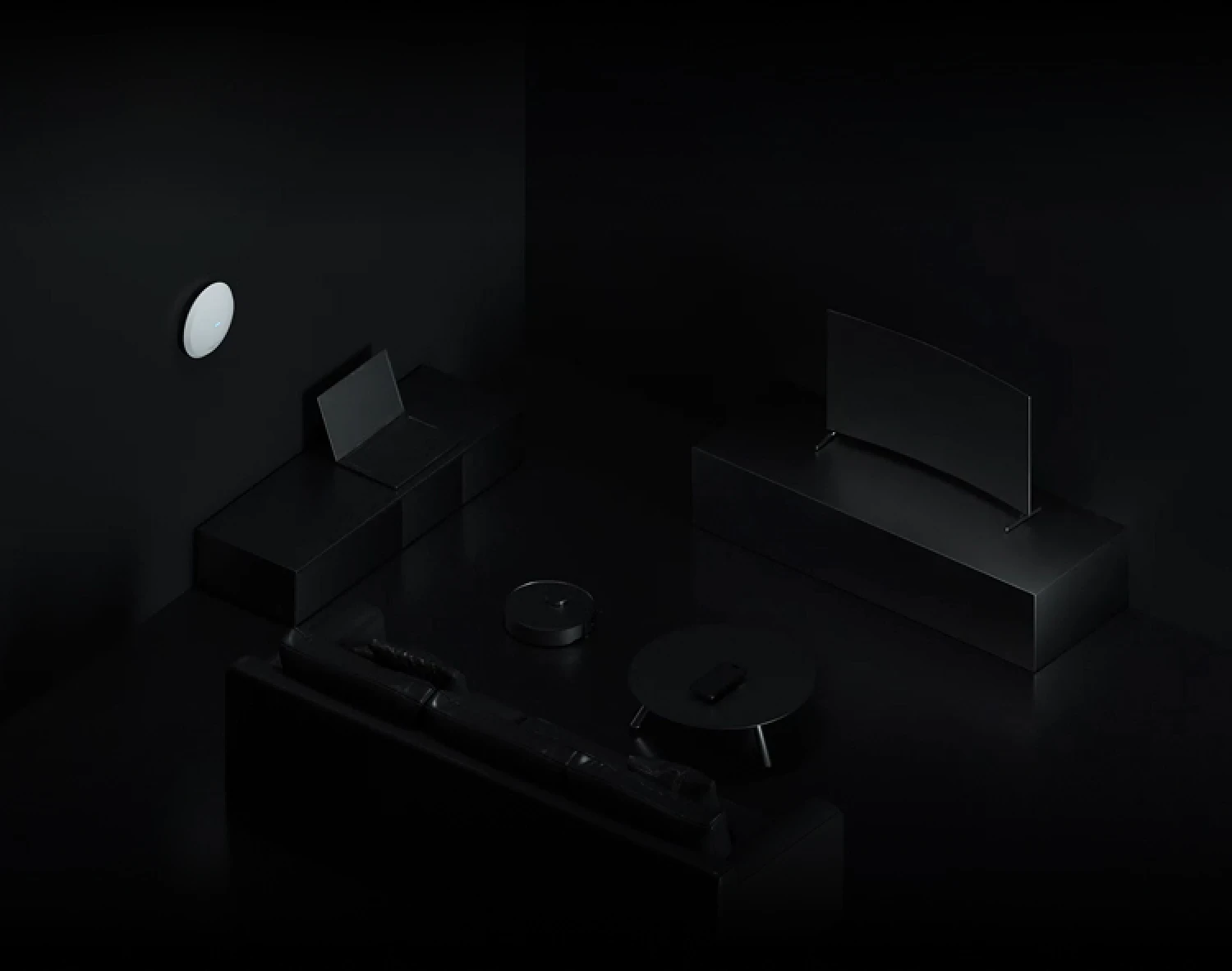

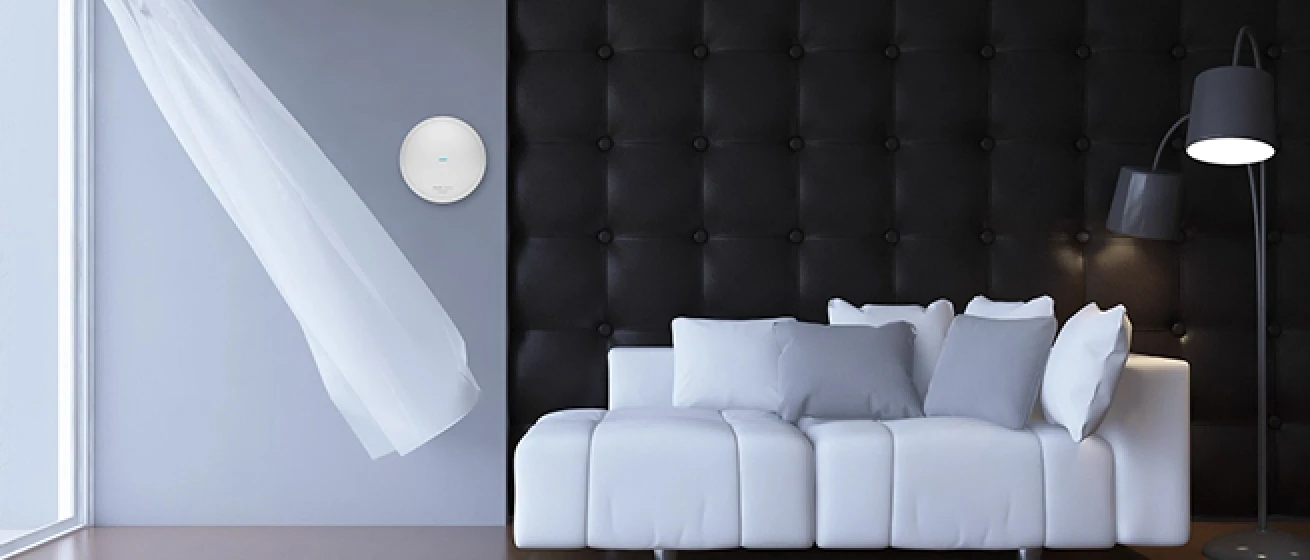

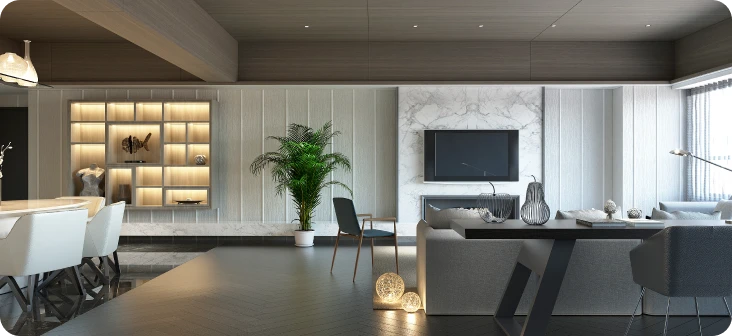

  • Heimszenario

    - 20 °C bis 60 °C Betriebsbereich

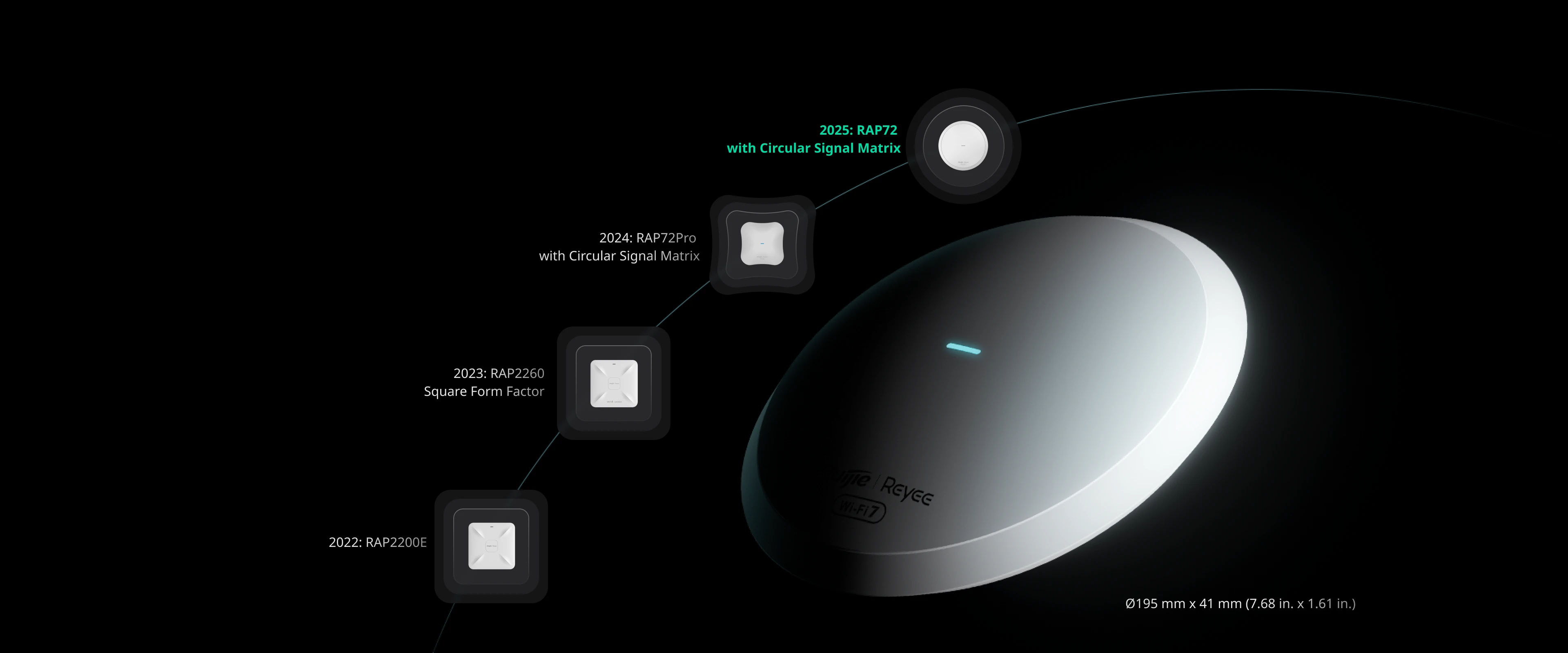

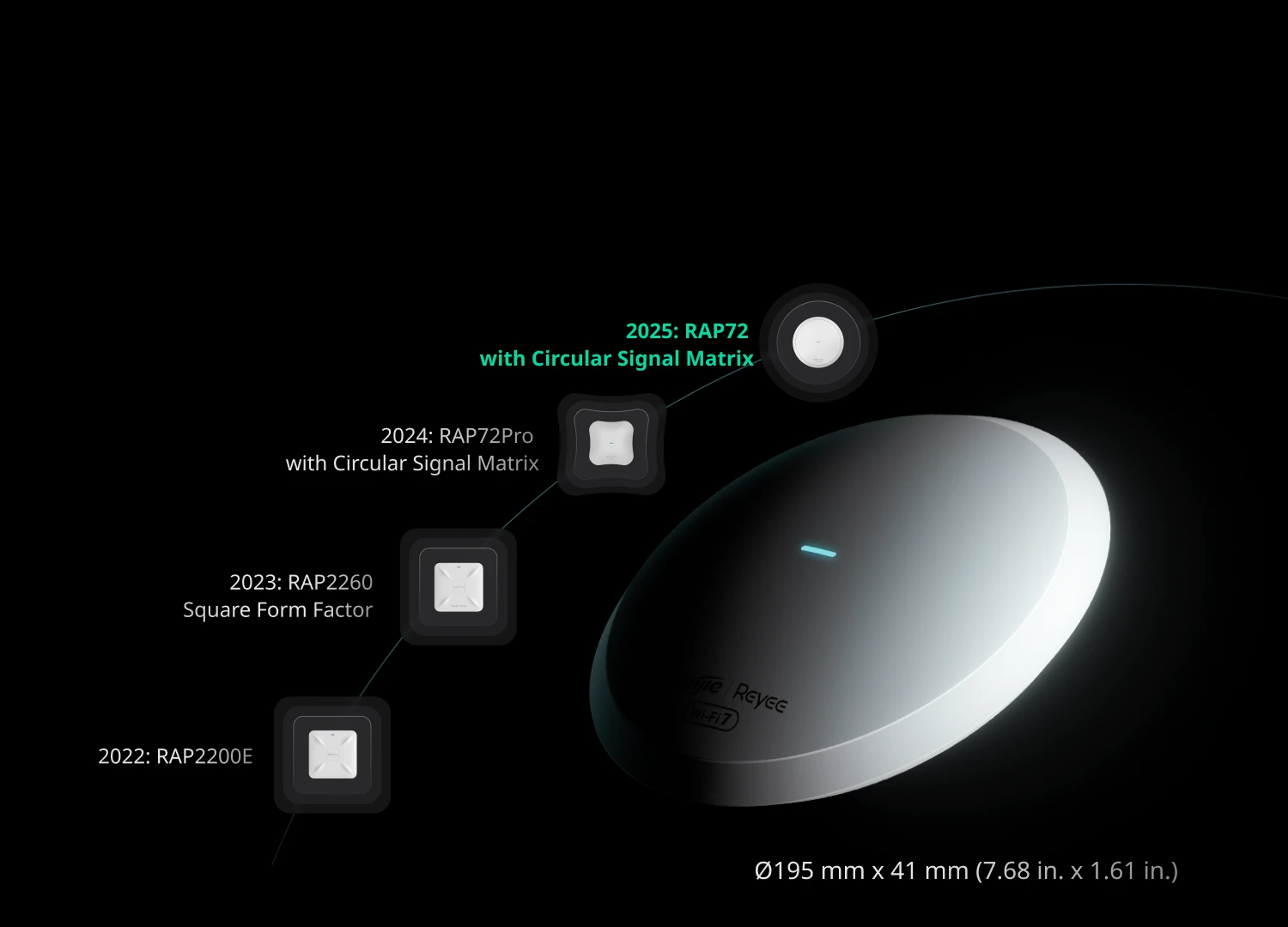

Sich entwickelndes Design,
kontinuierliche Exzellenz

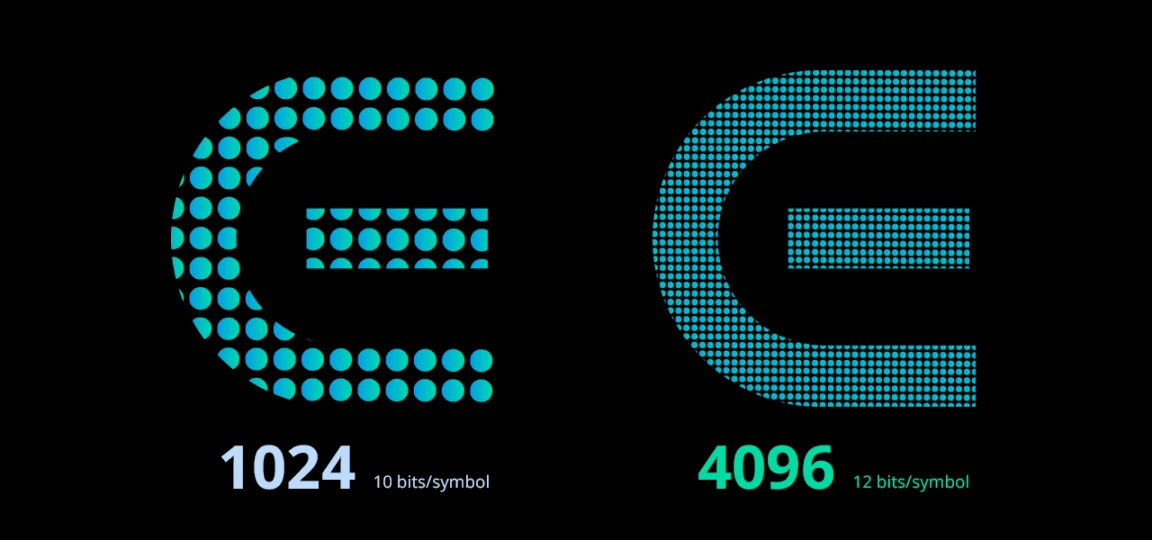

4K QAM

4K QAM

Bietet bis zu 20 % schnellere Datengeschwindigkeiten für ultra-reaktionsschnelles Streaming und Gaming

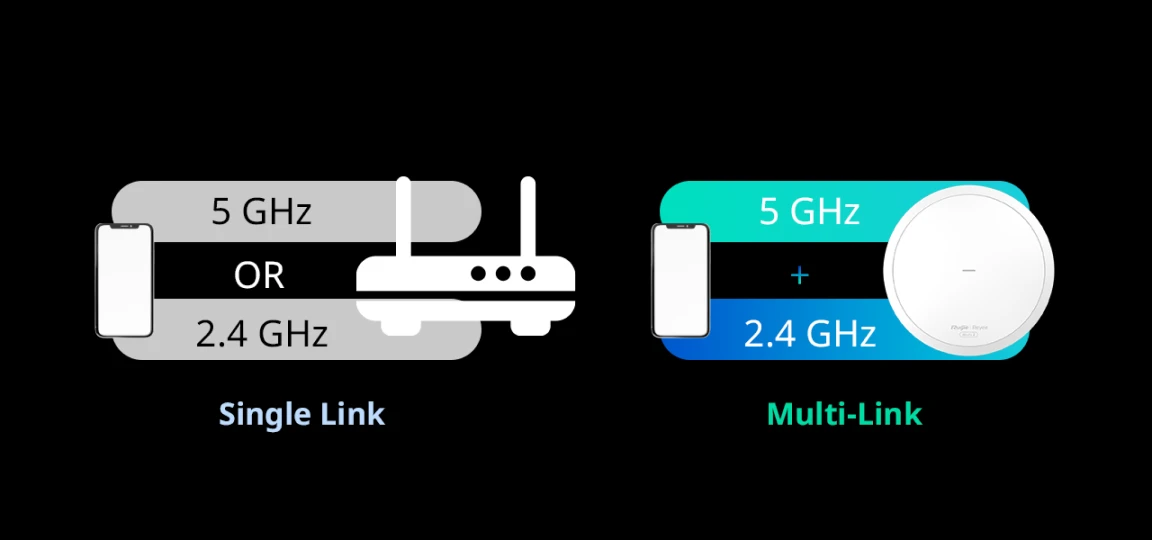

MLO

Multi-Link-Betrieb

Sorgt für nahtlose Konnektivität und reduzierte Verzögerungen durch gleichzeitige Bündelung der 2,4-GHz- und 5-GHz-Bänder

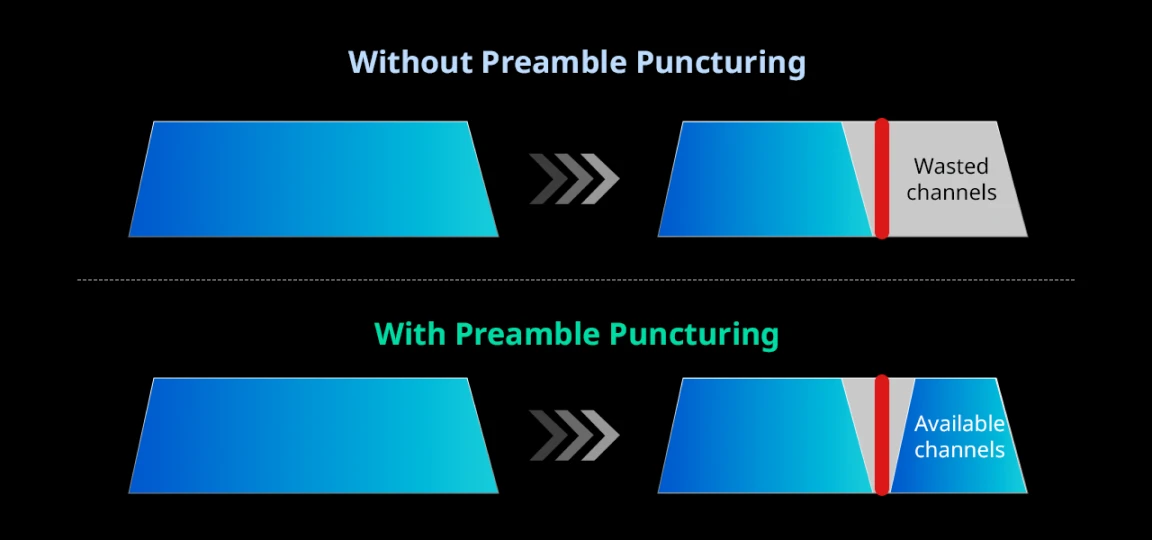

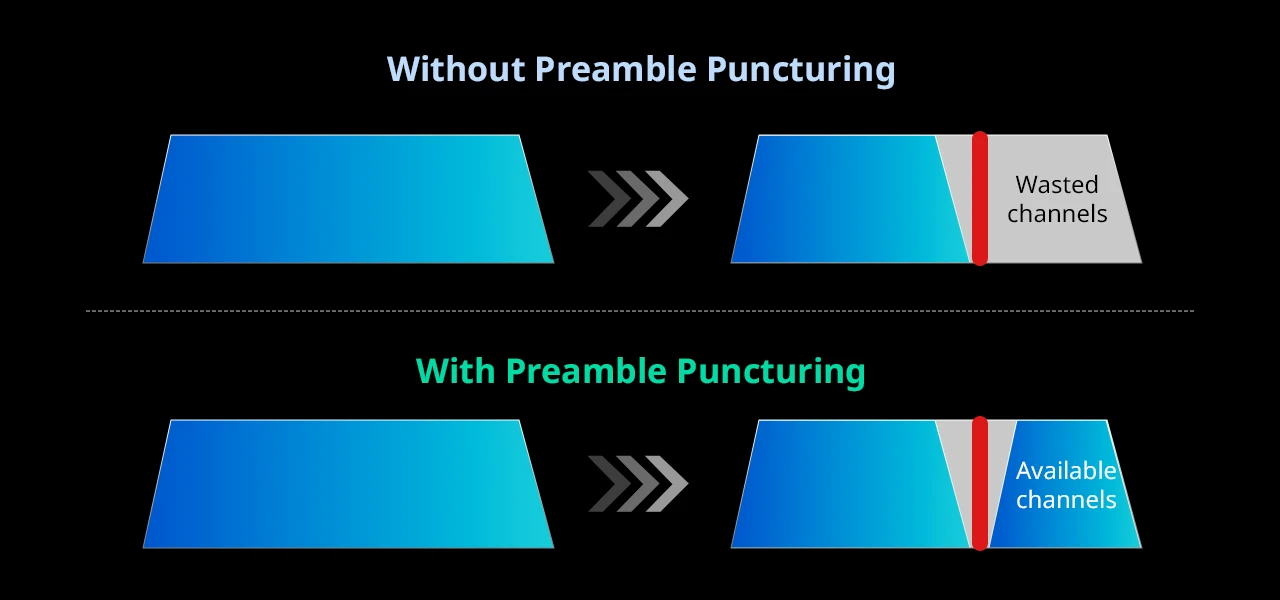

Präambelpunktierung

Präambelpunktierung

Maximiert die nutzbare Bandbreite in überfüllten Umgebungen durch Umgehung störungsanfälliger Kanäle

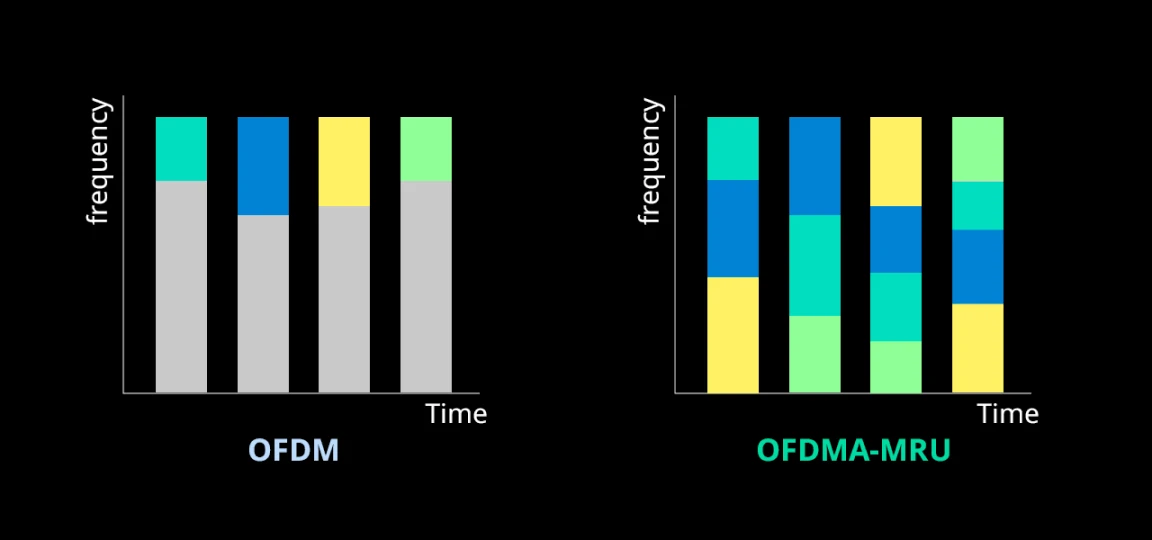

MRU

Mehrfache Ressourceneinheiten

Steigert die Netzwerkeffizienz und -kapazität für eine reibungslose Leistung mit mehreren angeschlossenen Geräten

Vereinfachen Sie Ihr Geschäft mit der Cloud

  • Reyee Mesh

    Reduzieren Sie die Verkabelungskosten

  • WIO 3

    Unterstützt durch KI

  • Eigenständiges AP-Portal

    Kostenlos und einfach

  • Heatmap

    Visualisierung des Installationsprozesses

Key Specifications
Product Information
Product Type
Product Type
  • Ceiling AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    4 spatial streams
    ● 2.4 GHz: 2 x 2, MU-MIMO
    ● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
  • 3570 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 2882 Mbps
2.4 GHz wireless data rate
  • 688 Mbps
Antenna
Antenna
  • 2.4 GHz: 2 built-in omnidirectional antennas
    5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)
  • Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket)
Color
  • White
Weight
  • ≤ 0.6 kg (1.32 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000/2500BASE-T ports
  • 1
Power Supply and Consumption
Power supply
  • ● DC power adapter
    ● PoE/PoE+
    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
  • Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE budget
  • No
Maximum power consumption
  • 14 W
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Mounting options
  • Ceiling/Wall
IP rating
  • IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    511 (5 GHz)
    511 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
