RG-ES206MG-P, Switch PoE gerenciado na nuvem com 5 portas de 2,5G e 1 uplink de 10G

Escritório, escola, vila, varejo, apartamento etc.

Models
RG-ES205GC-P

5 portas Gigabit, 4 PoE+, 54W

 RG-ES206GC-P

6 portas Gigabit, 4 PoE+, 54W

 RG-ES206GS-P

Switch Gigabit de 6 portas gerenciável com 4 portas PoE+, 1 porta combo

 RG-ES209GC-P

9 portas Gigabit, 8 PoE+, 120W

 RG-ES210GC-LP

10 portas Gigabit, 8 PoE+, 70W

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES218GC-P

16 portas Gigabit PoE+, 2 SFP, 240W

 RG-ES226GC-P

24 portas Gigabit PoE+, 2 SFP, 370W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES228GS-LP

24 portas 10/100/1000BASE-T PoE+, 2 portas 10/100/1000BASE-T, 2 portas 1GE SFP, 250 W

 RG-ES220GS-LP

16 portas 10/100/1000BASE-T PoE+, 2 portas 10/100/1000BASE-T, 2 portas 1GE SFP, 130 W

 RG-ES209MG-P

8 portas 10/100/1000/2500BASE-T PoE+, 1 porta 10GE SFP+, orçamento PoE de 130 W

 RG-ES206MG-P

4 portas 10/100/1000/2500BASE-T PoE+, 1 porta 10/100/2500BASE-T, 1 porta 10GE SFP+, orçamento PoE de
Series
Modelo PoE Modelo não PoE
Datasheet Sales Enquiry
Add to Favorites
Highlight Features

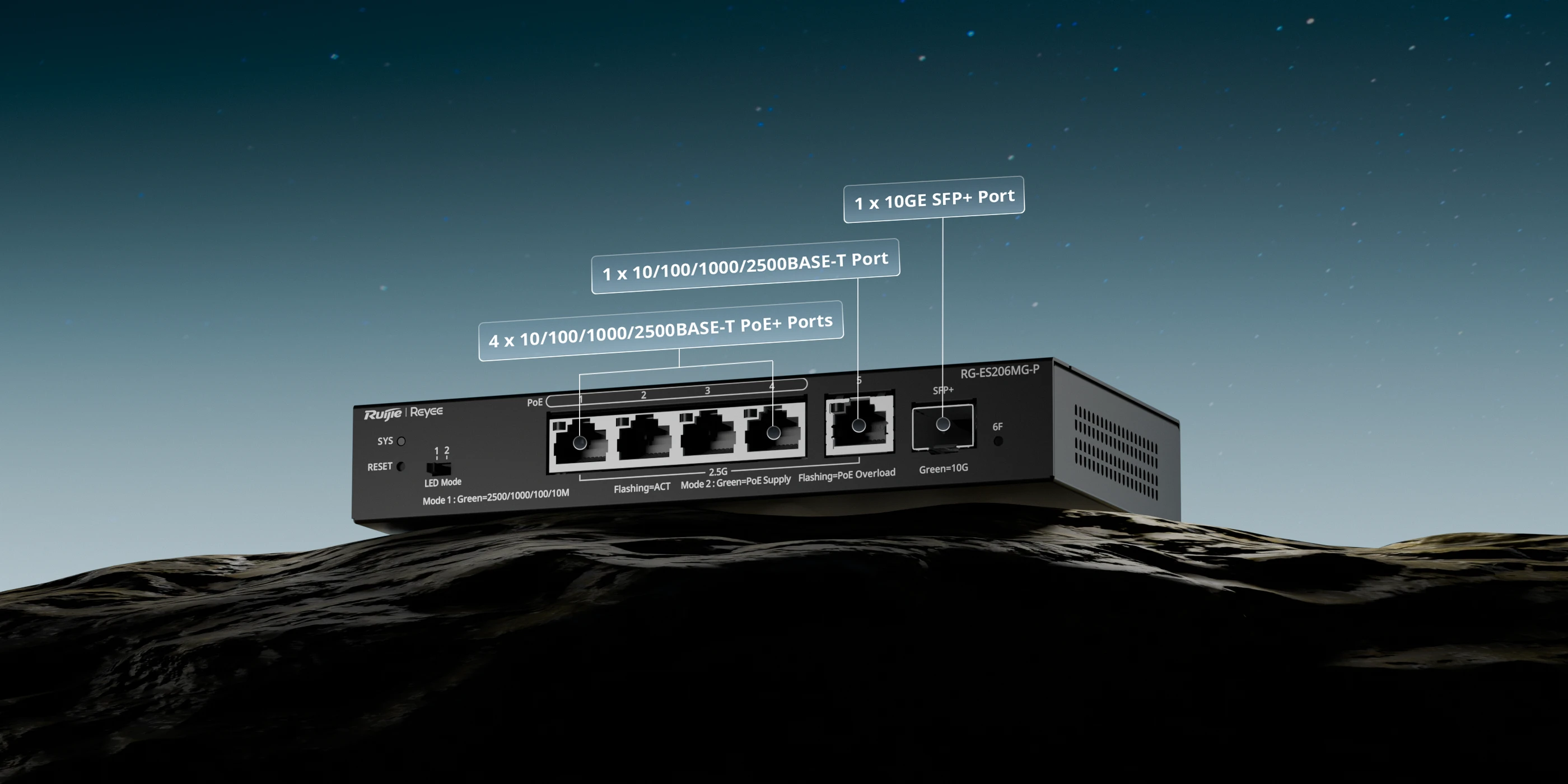

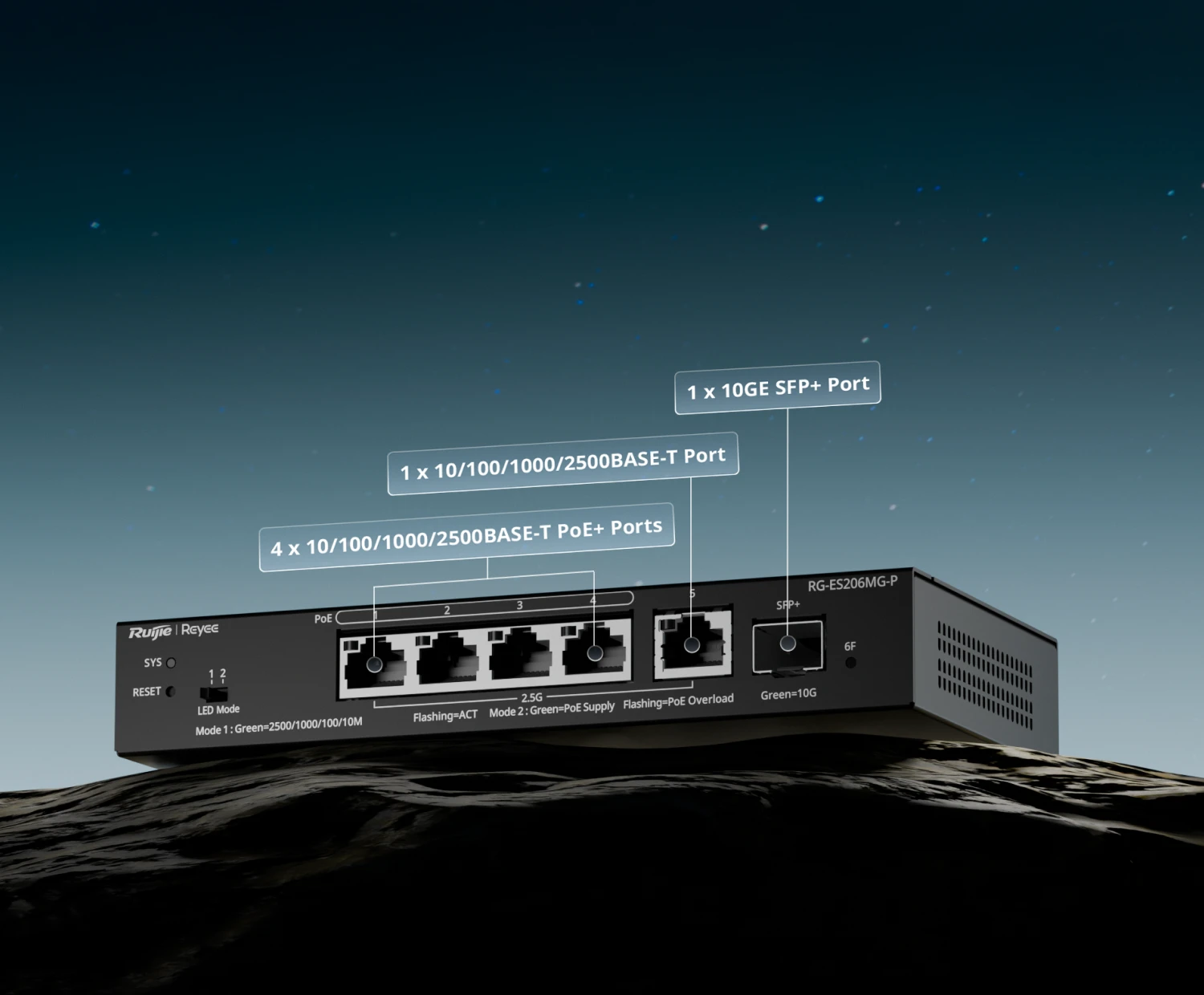

  • 5 portas 2,5G e 1 porta 10GE SFP+ para maior desempenho de rede
  • 4 portas de saída PoE com suporte aos padrões IEEE 802.3 af/at, orçamento PoE de 70 W

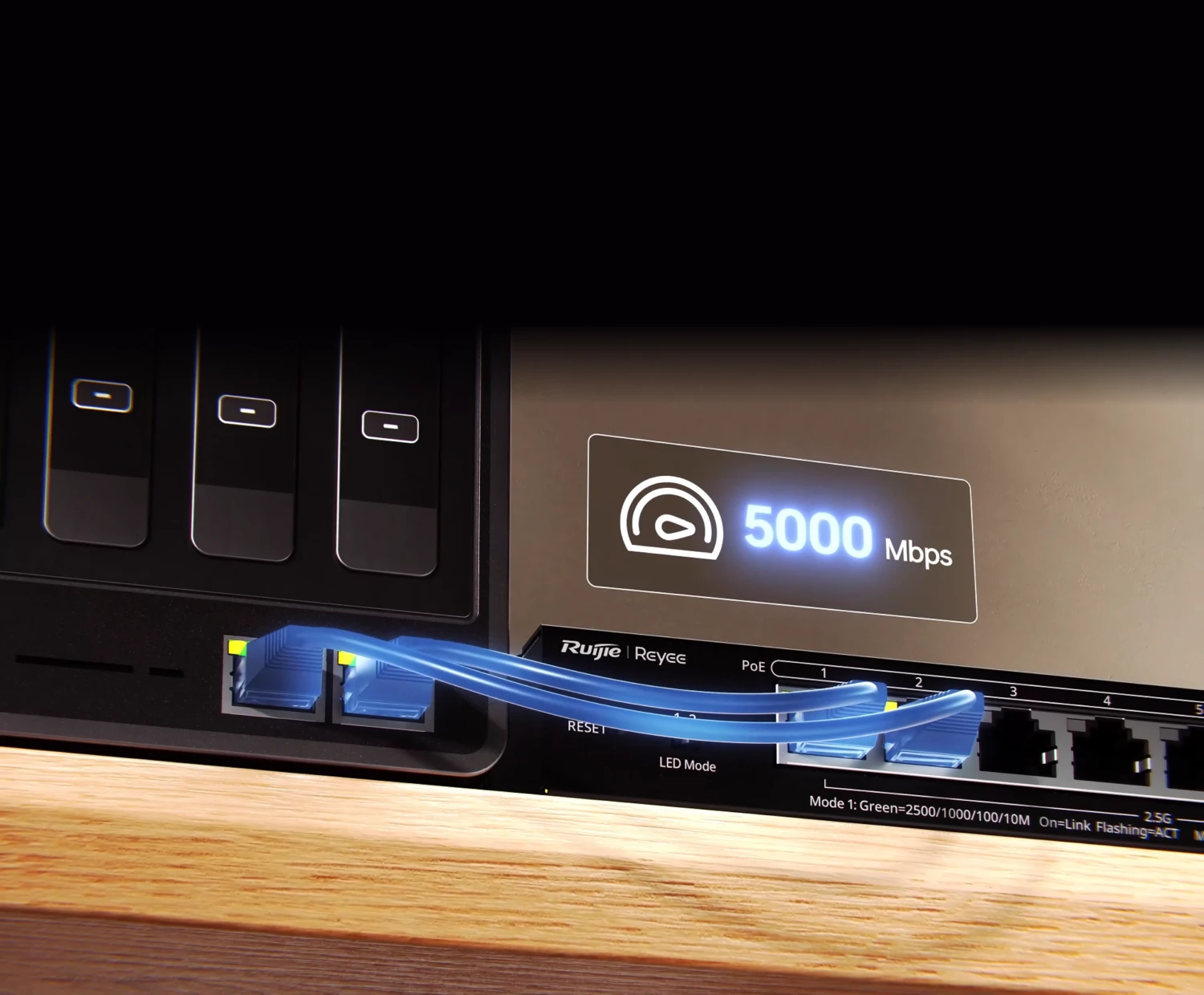

  • Agregação de até 4 portas, desbloqueando maior velocidade de rede
  • Switches econômicos com gerenciamento inteligente na nuvem
  • Gerenciamento em nuvem gratuito e vitalício pela Ruijie Cloud a qualquer momento, em qualquer lugar
Sales Enquiry
Visão geral

RG-ES206MG-P

Switch PoE gerenciado na nuvem com 5 portas 2,5 Gigabit e 1 uplink SFP+

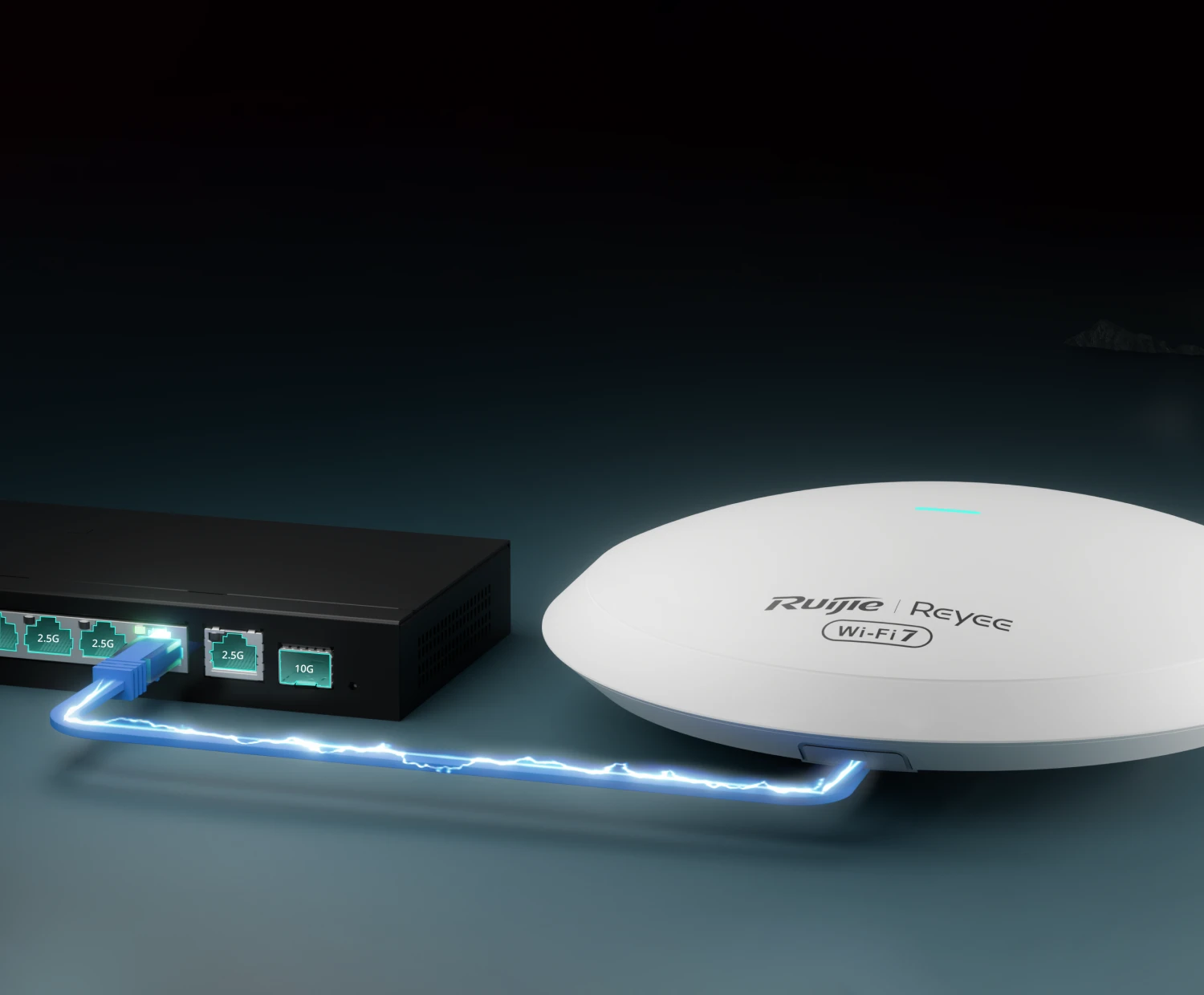

Liberando todo o poder
do Wi-Fi 7

Aumente a produtividade e maximize a estabilidade

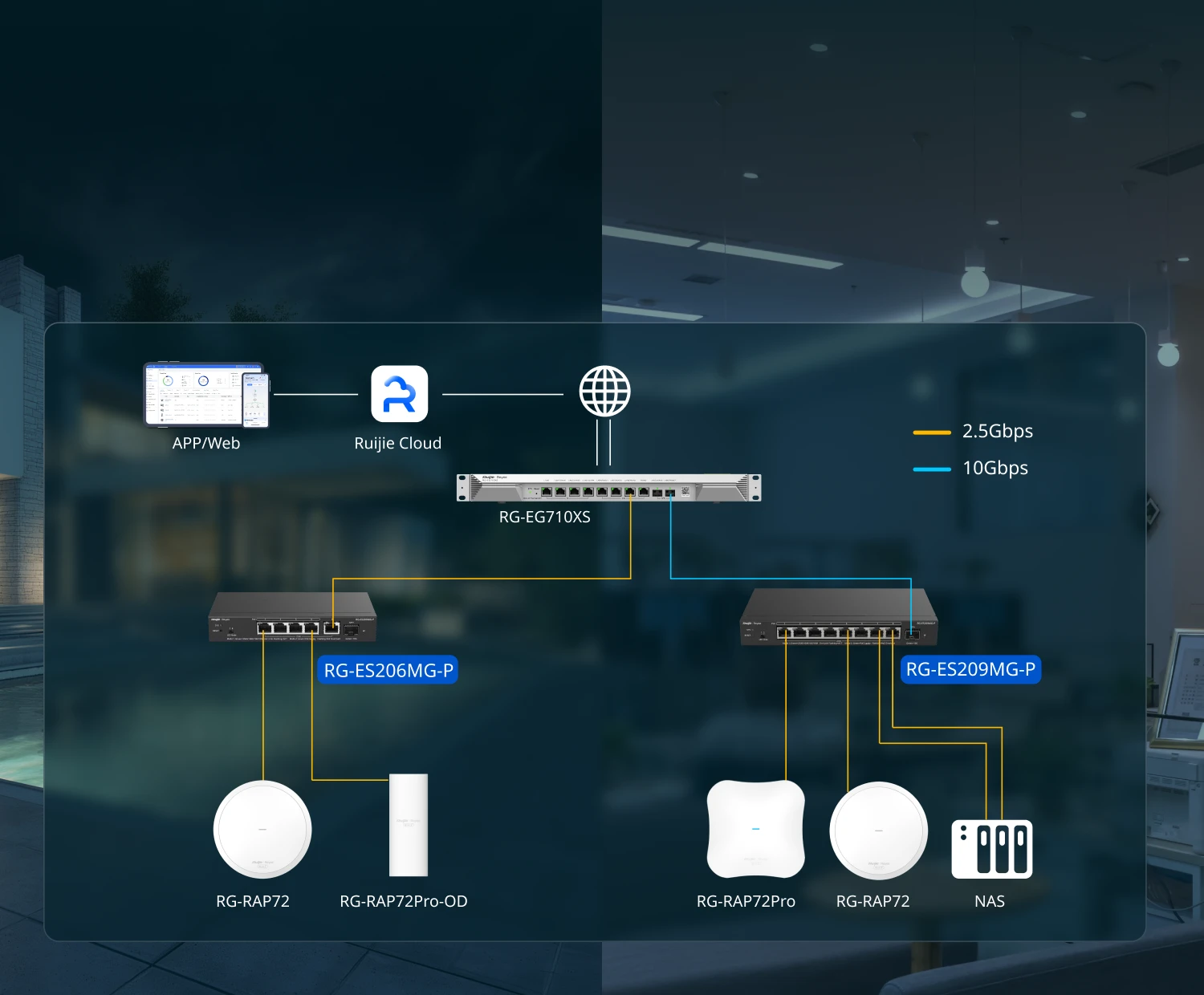

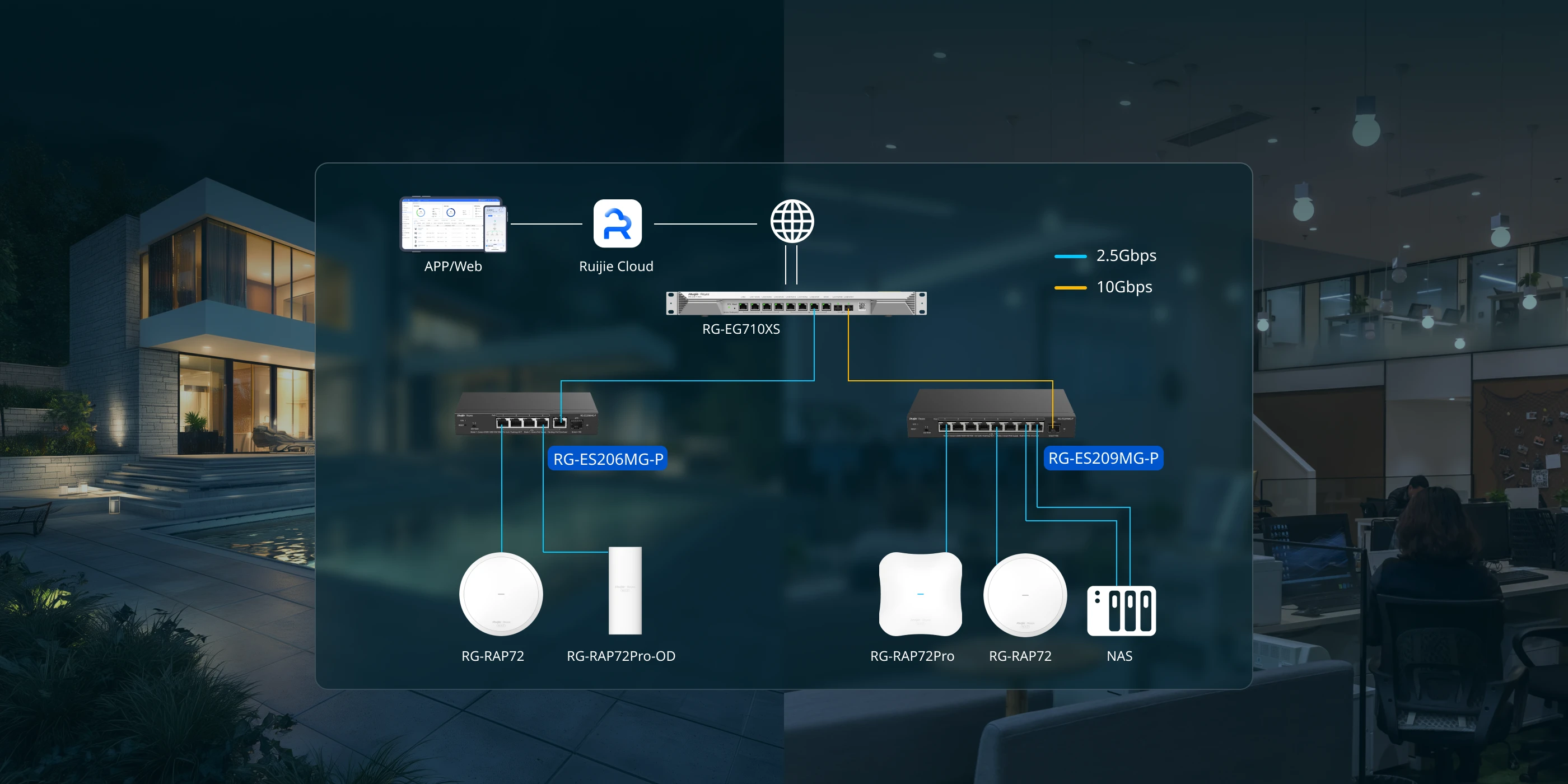

Quebre os limites da rede — Libere todo o poder do Wi-Fi 7

Por que não 2,5 Gbps em todas as portas?

  • Maior rendimento de rede interna, desempenho mais suave durante horários de pico.
  • Experimente o desempenho sem fio sem limites.
  • Faça cada show valer a pena sem perder largura de banda.

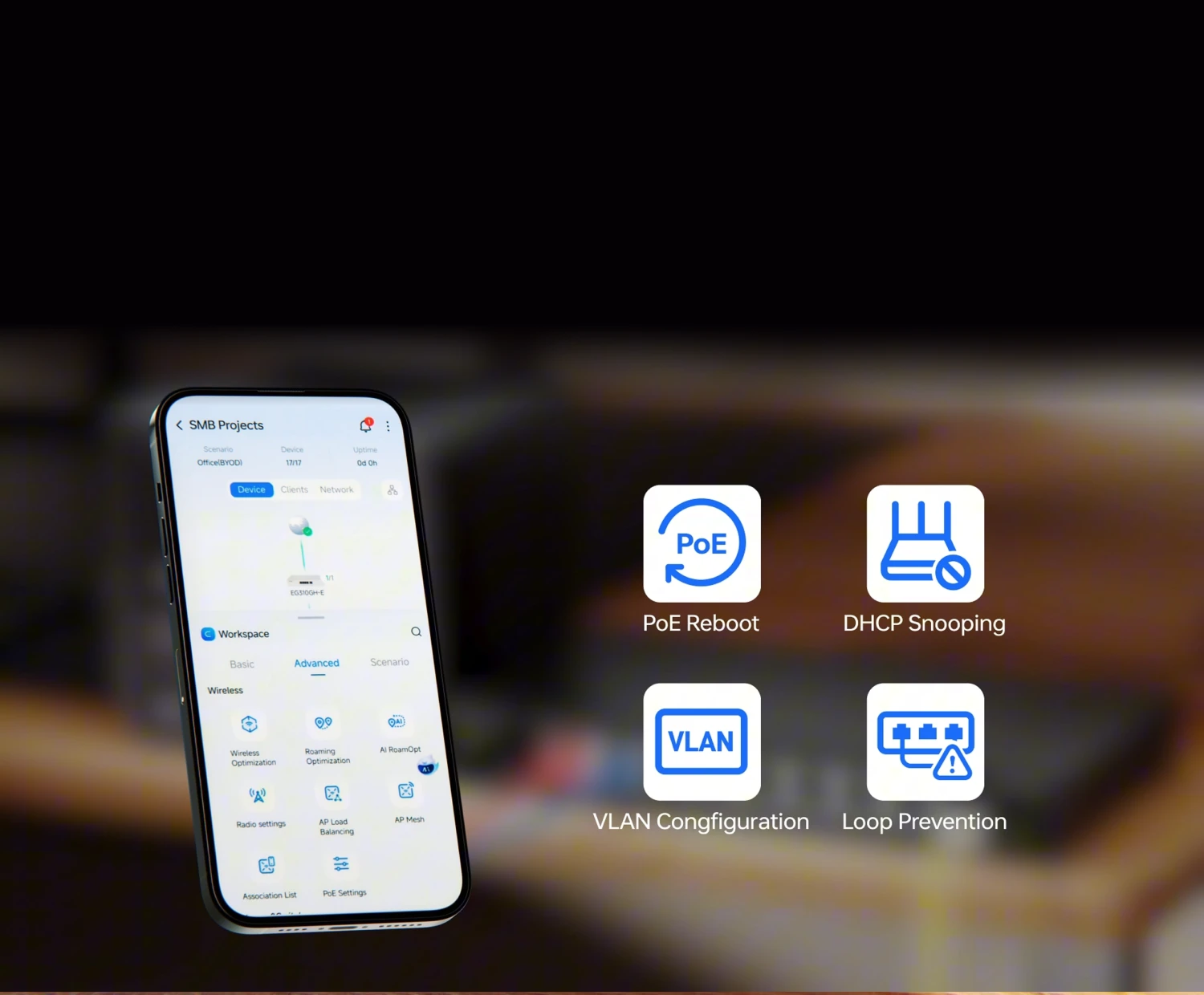

A nuvem facilita seus negócios

Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 5
Total number of optical ports
  • 1
Number of 10GE SFP+ ports
  • 1
Number of 10/100/1000/2500BASE-T ports
  • 5
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • 70 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 33.75 Mpps
Switching capacity
  • 45 Gbps (bit/s)
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
