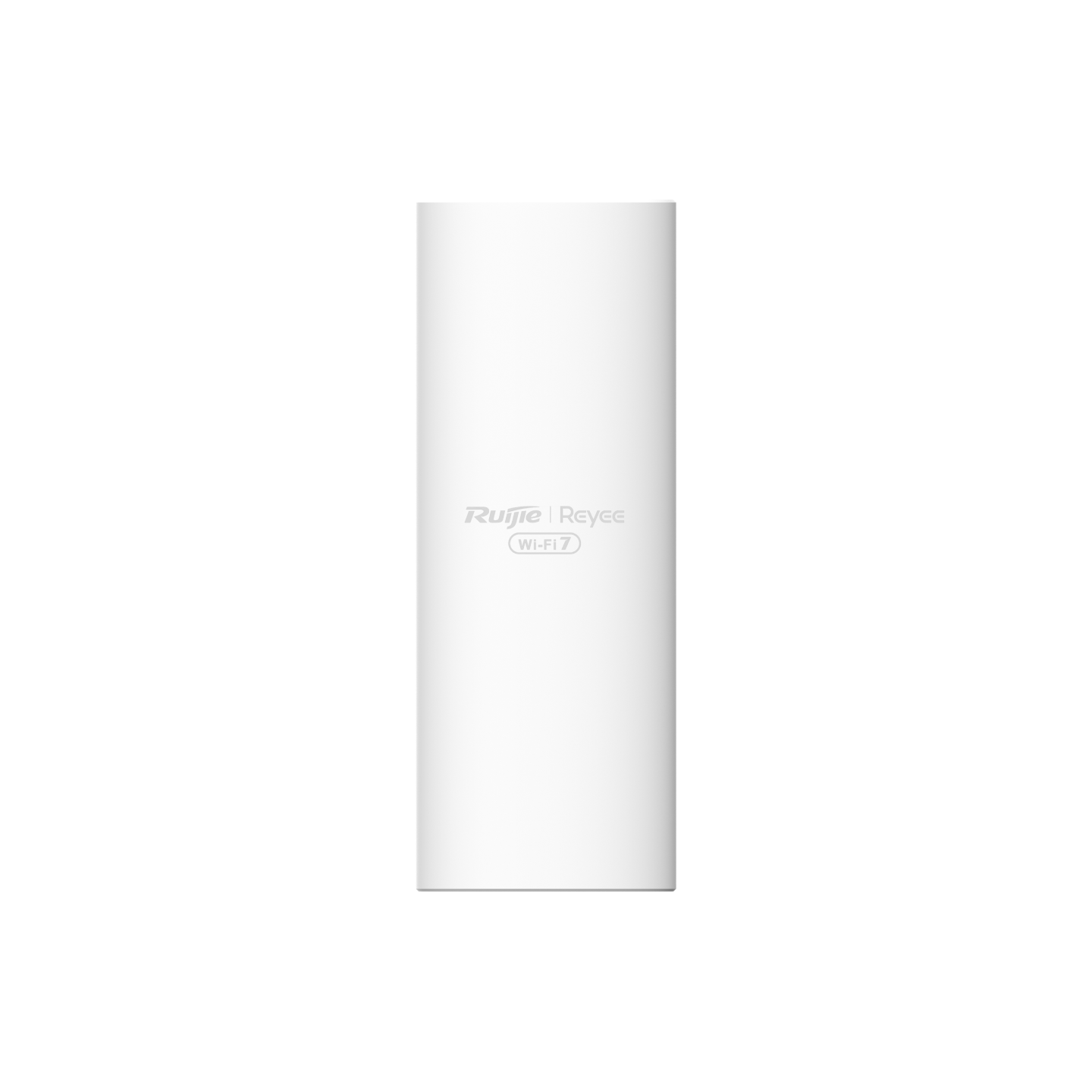

RG-RAP72Pro-OD - 1

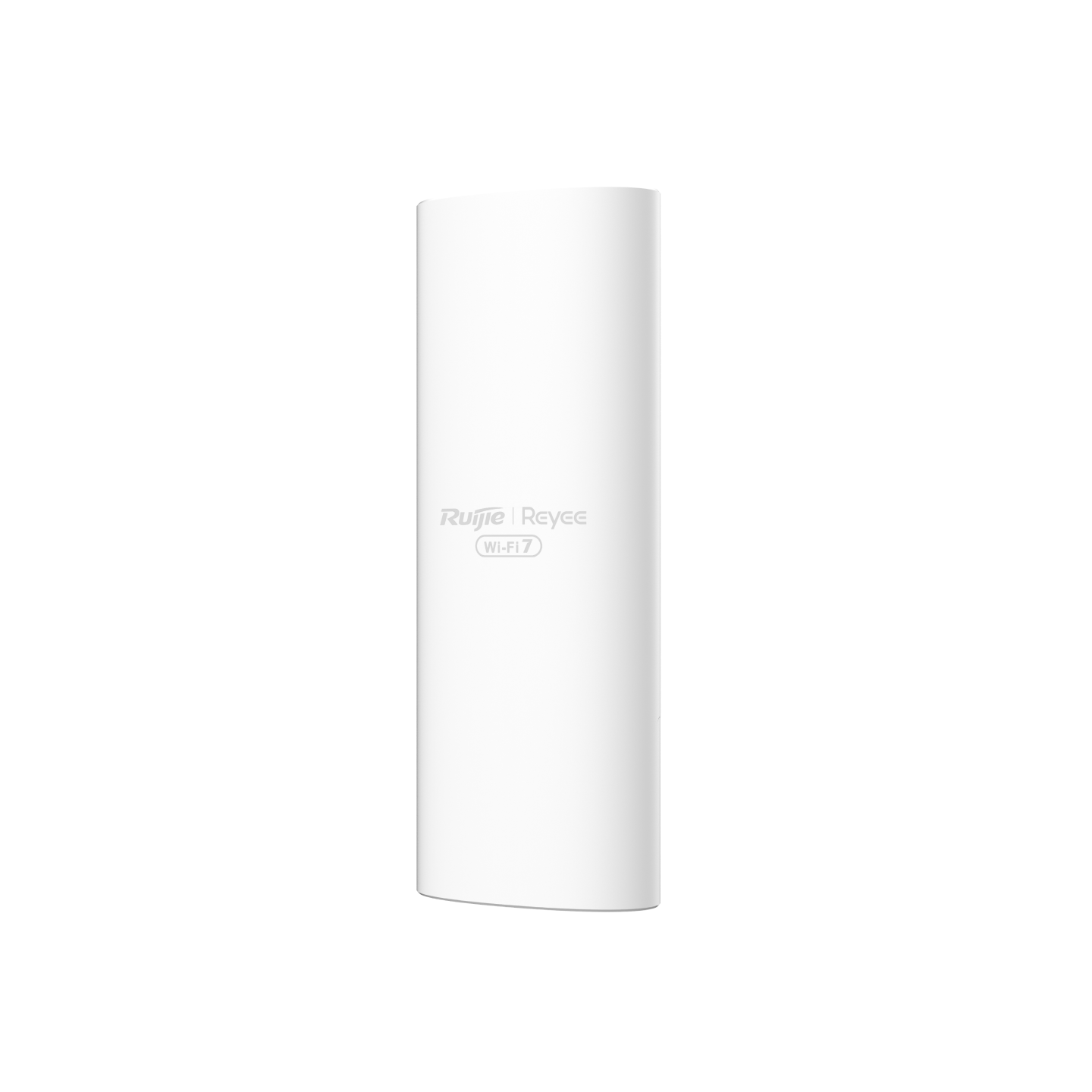

RG-RAP72Pro-OD - 2

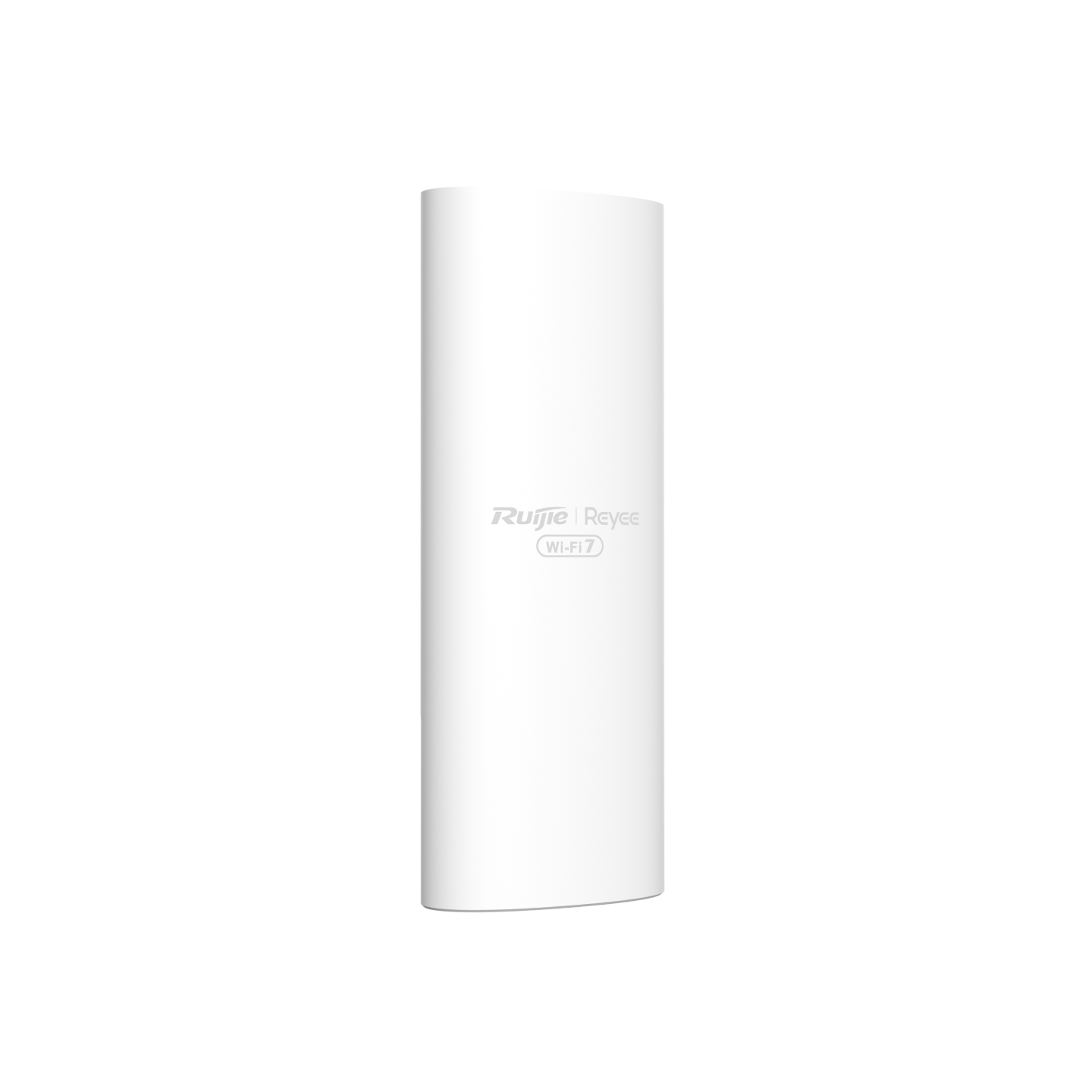

RG-RAP72Pro-OD - 3
RG-RAP72Pro-OD - 4

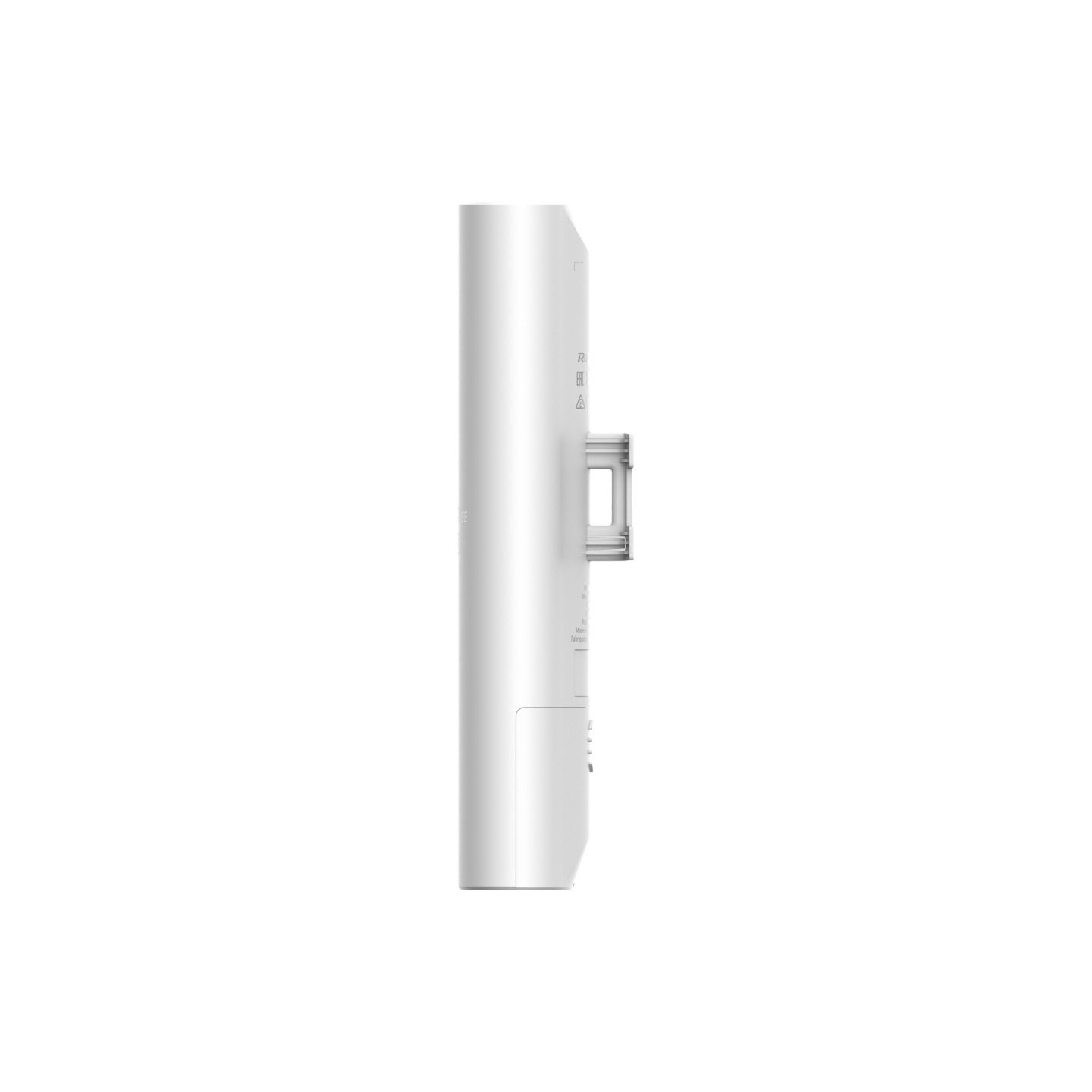

RG-RAP72Pro-OD - 5

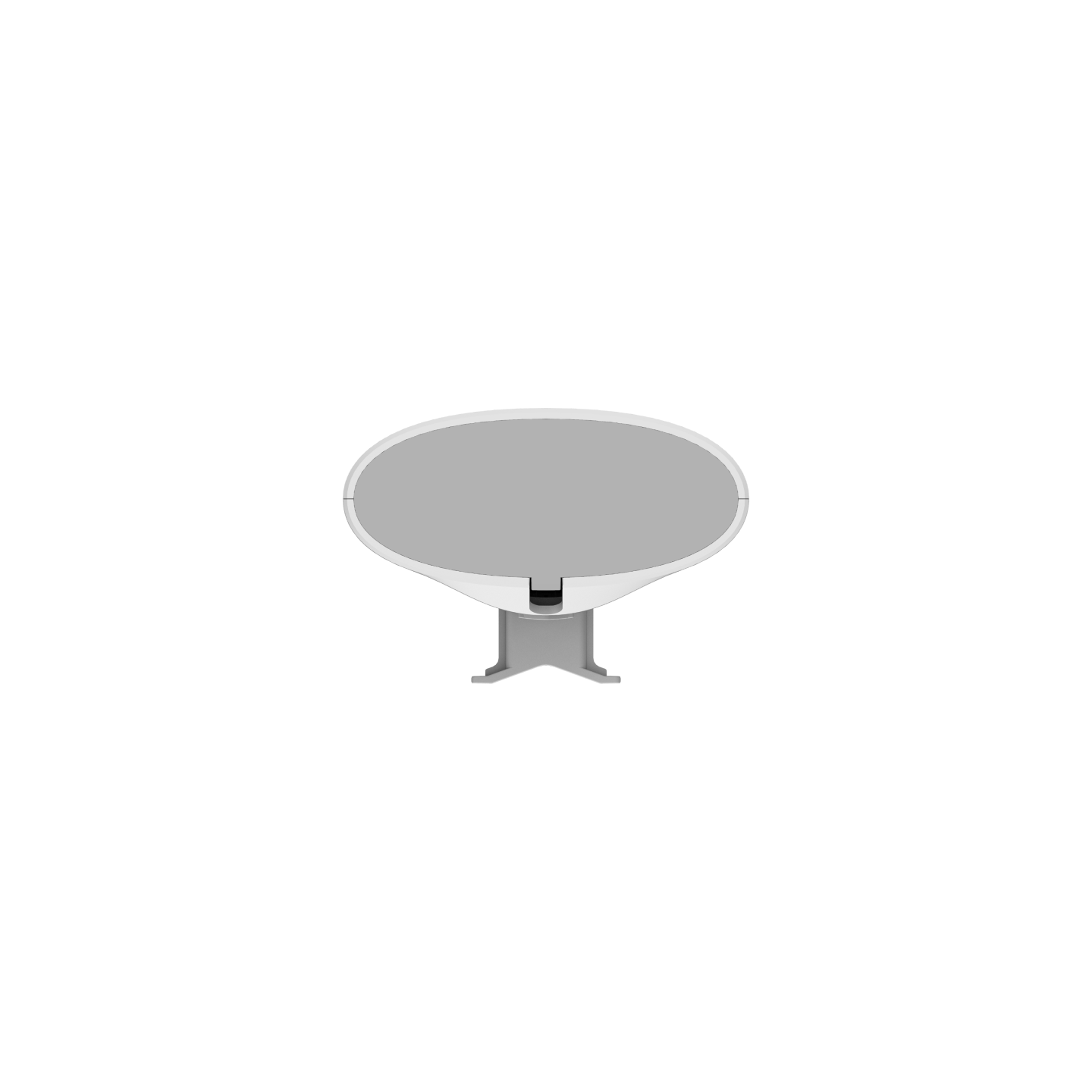

RG-RAP72Pro-OD - 6

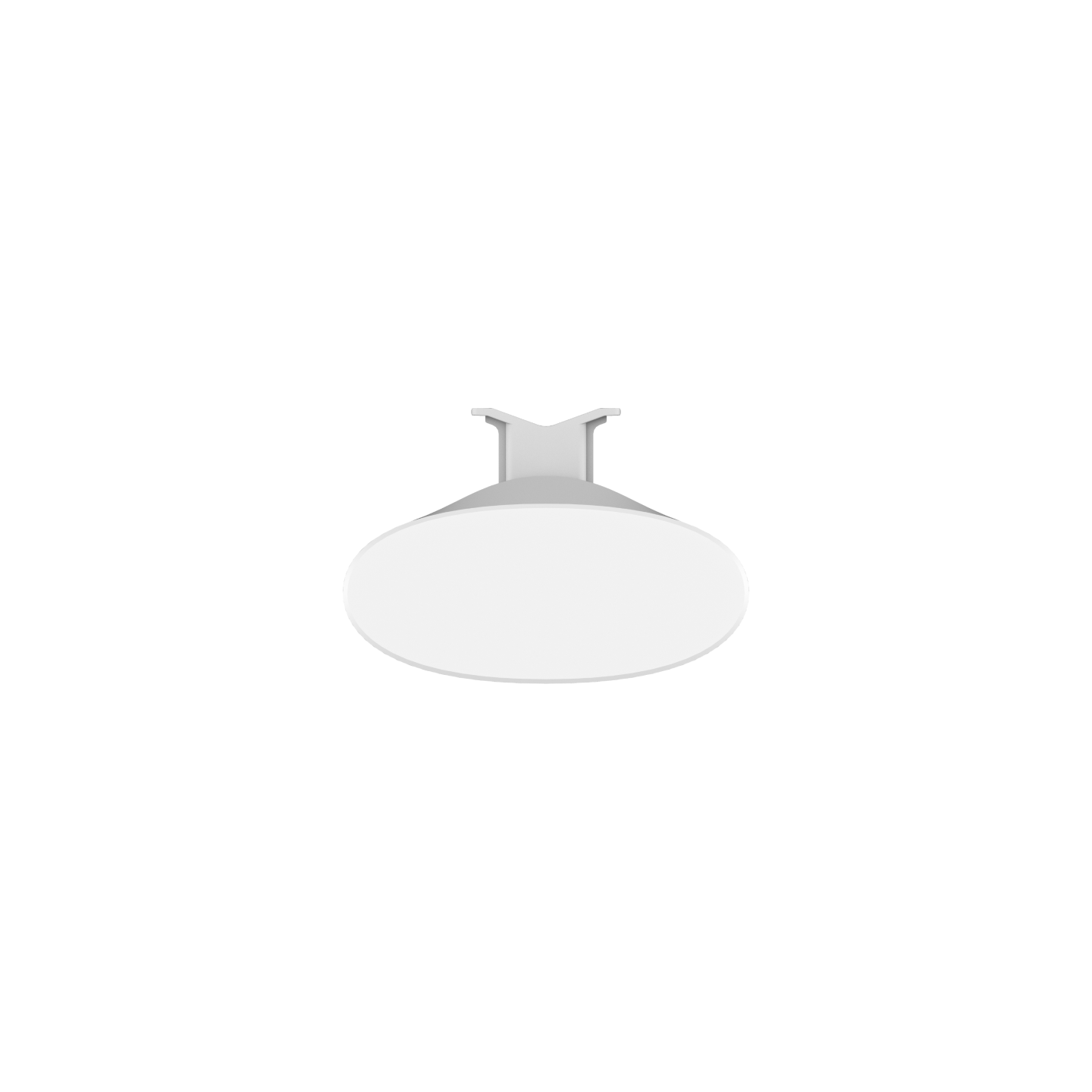

RG-RAP72Pro-OD - 7

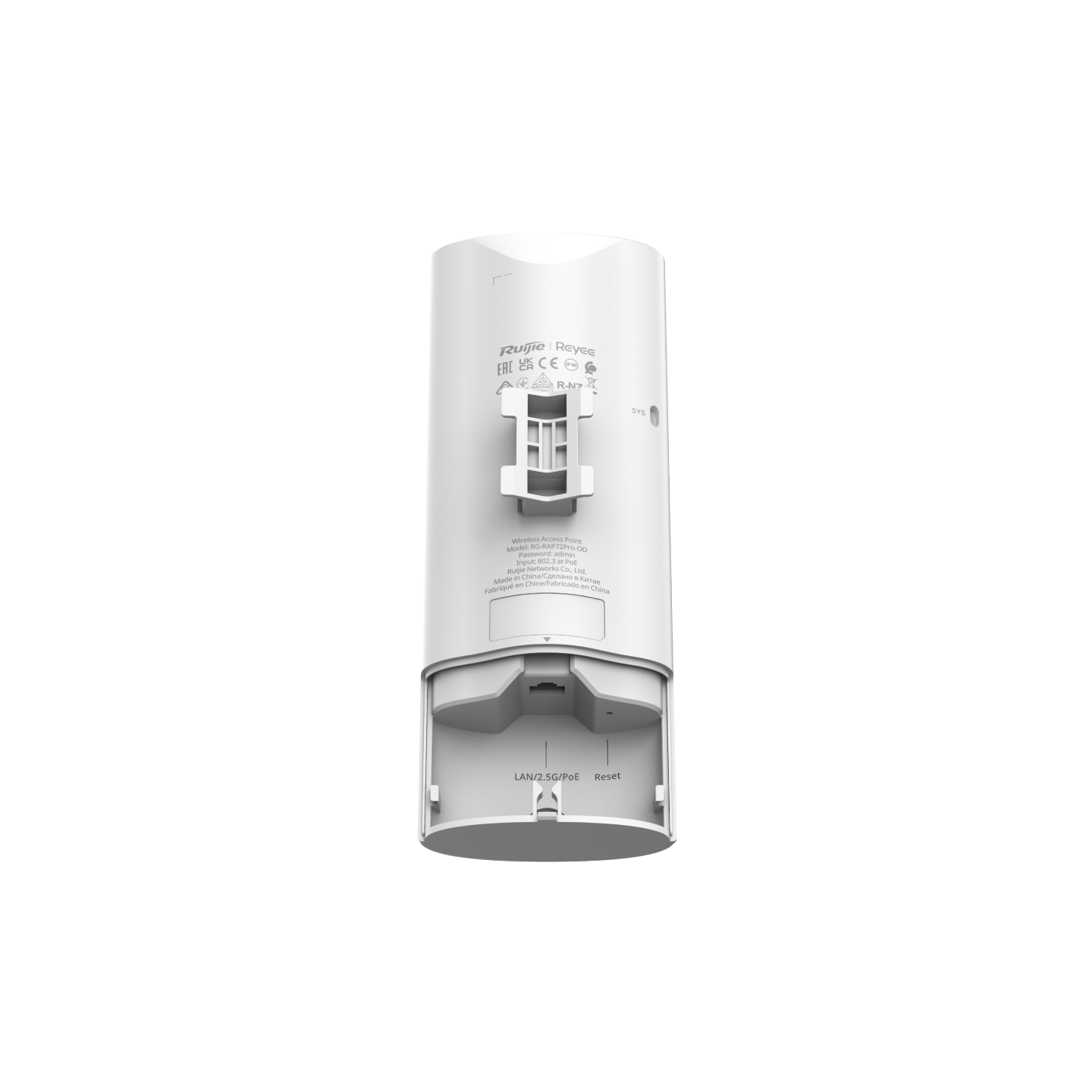

RG-RAP72Pro-OD - 8

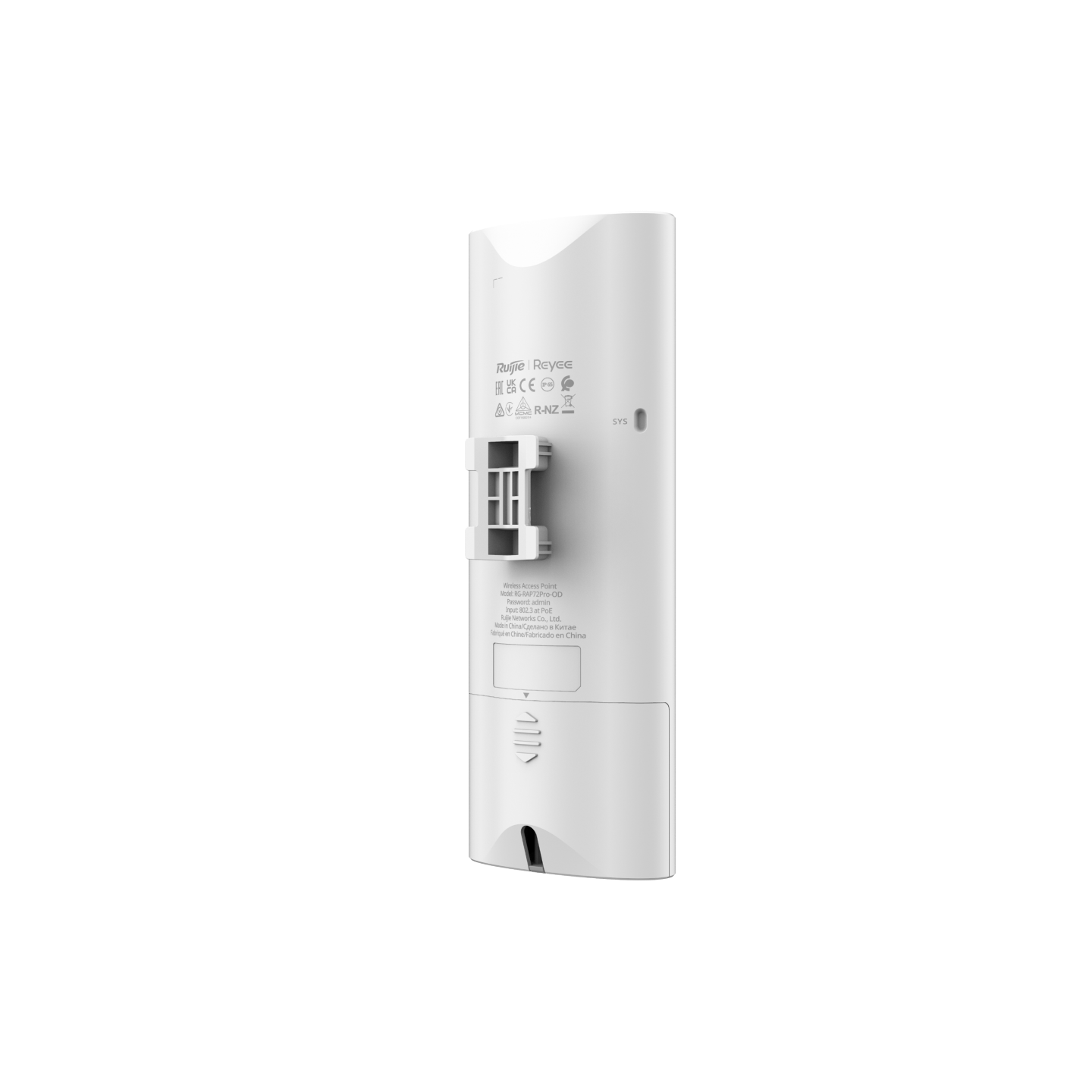

RG-RAP72Pro-OD - 9
RG-RAP72Pro-OD - 10
RG-RAP72Pro-OD - 11

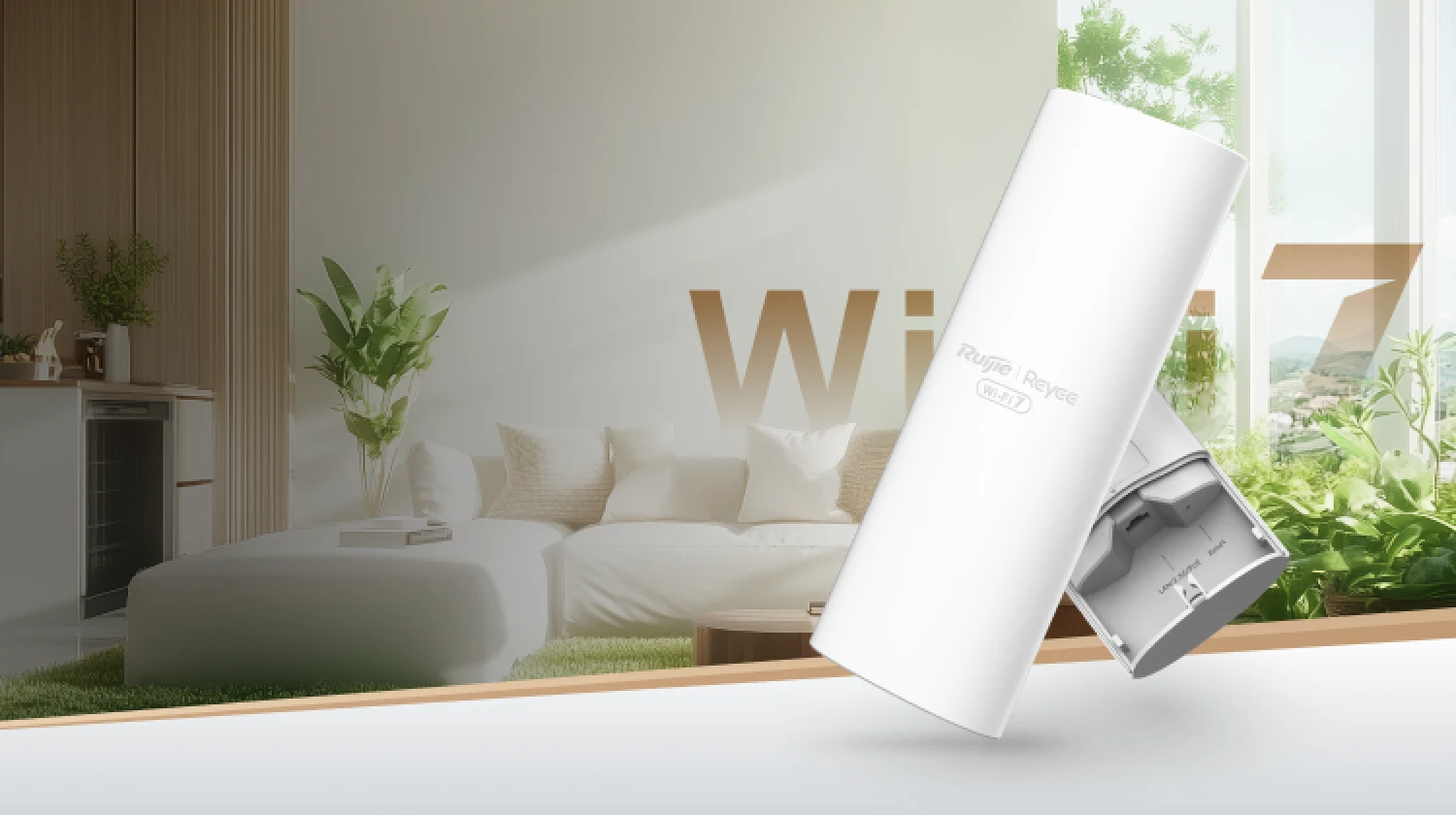

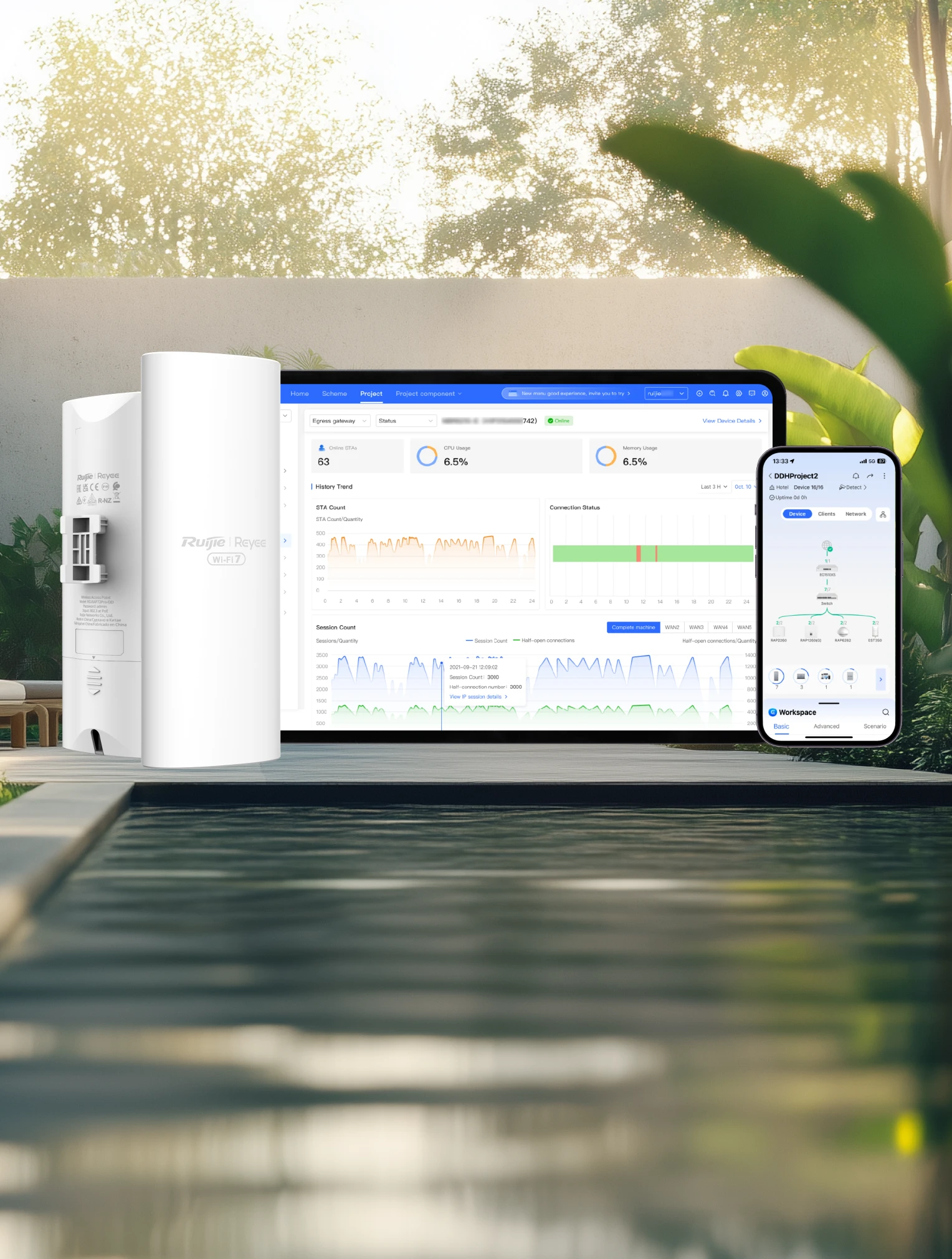

RG-RAP72Pro-OD, BE5040 Wi-Fi 7 Indoor/Outdoor Versatile Access Point

Open Dining Area, Corridor, Backyard, Pool & Spa/Jacuzzi

Models
RG-RAP72Pro-OD

BE5040,Wi-Fi 7,Indoor/Outdoor Versatile
Series

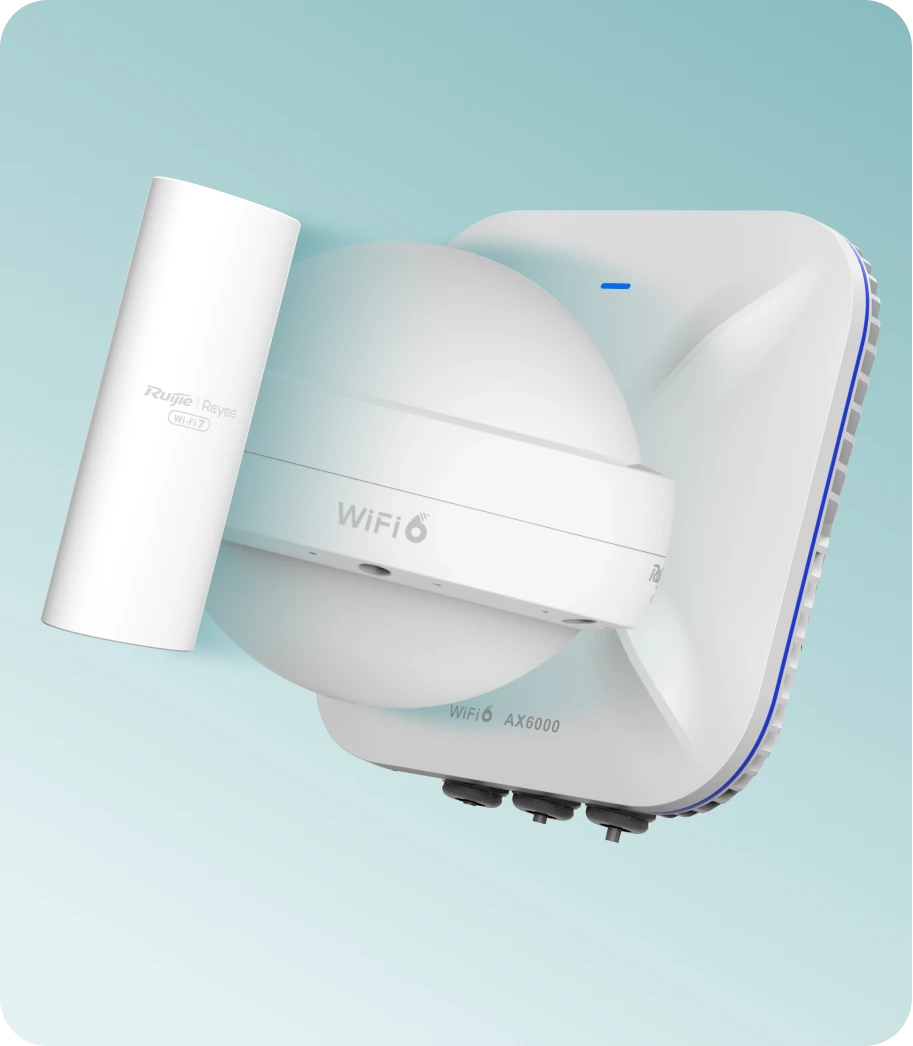

Wi-Fi 5 Outdoor AP Wi-Fi 6 Outdoor AP Wi-Fi 7 Outdoor AP
Datasheet Sales Enquiry
Highlight Features
  • AI-Powered Wi-Fi 7 Versatile Outdoor/Indoor Mesh AP
  • Wall or Pole Mounting to Fit in Any Location
  • IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability
  • Build-in Antennas for Customized Coverage Where Needed
  • Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features
Sales Enquiry
Key Specification
Features

RG-RAP72Pro-OD

Decor in Cutting-Edge,
Elegant Wi-Fi 7

Reyee BE5040 Wi-Fi 7
Dual-Band Versatile
Access Point

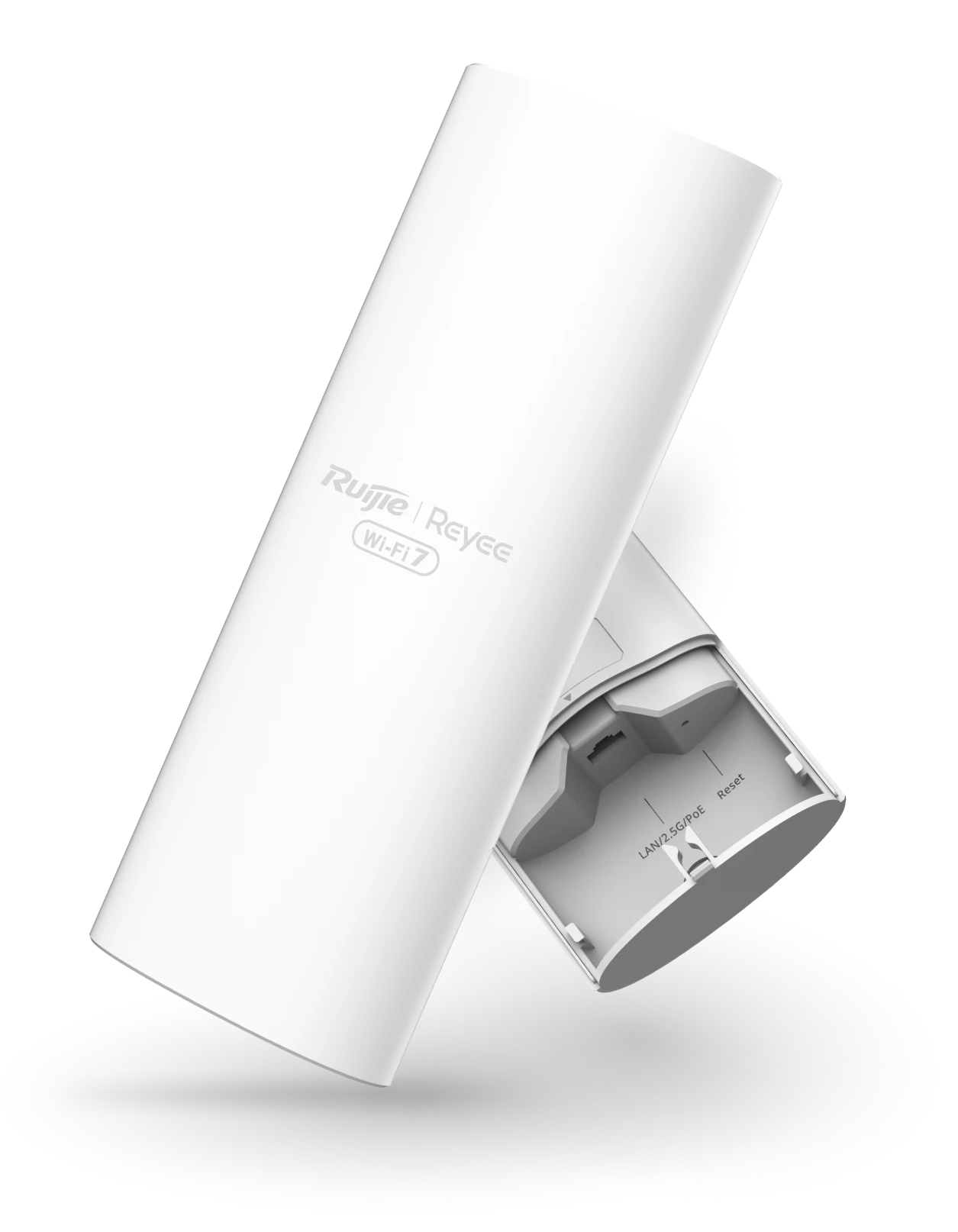

RG-RAP72Pro-OD

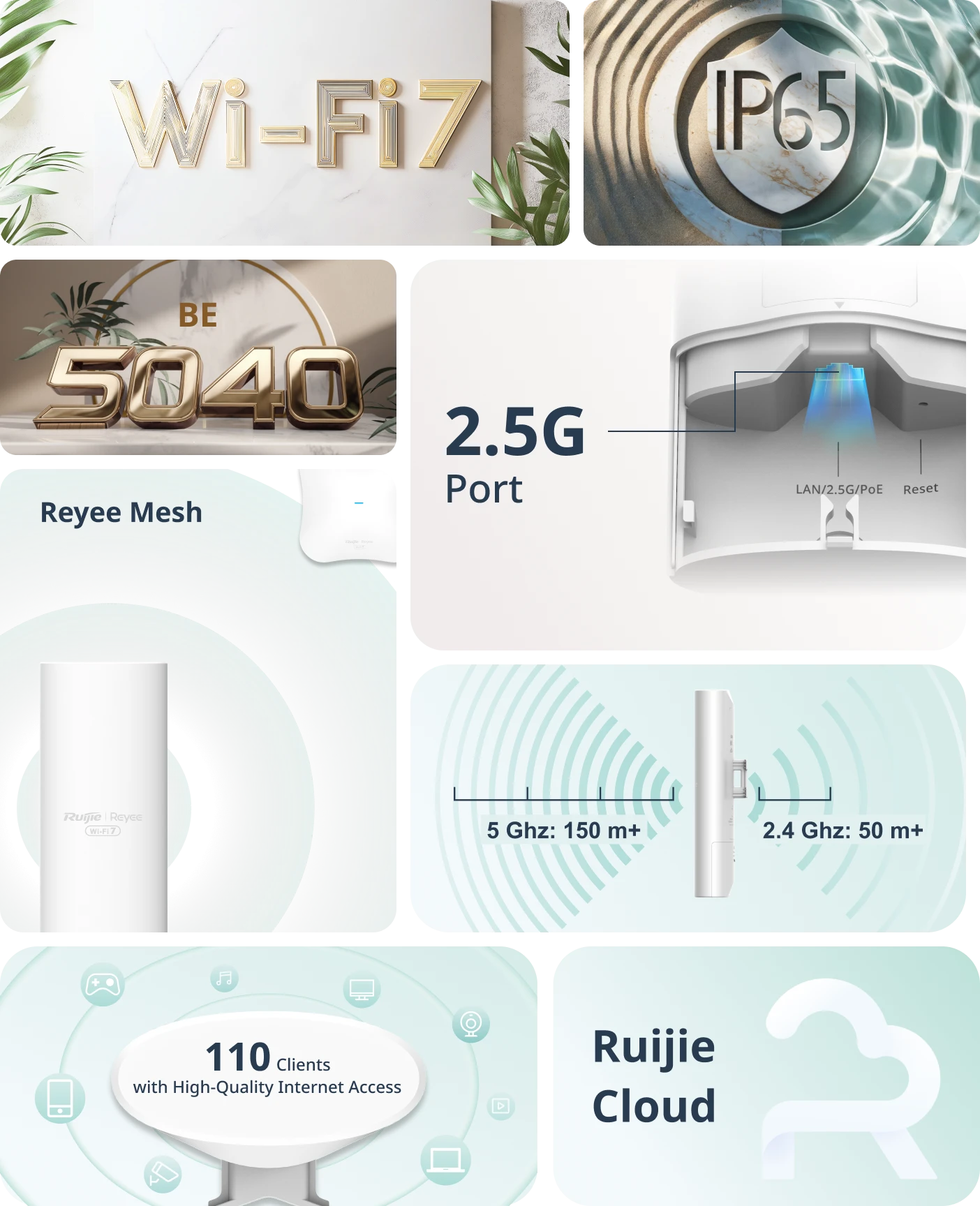

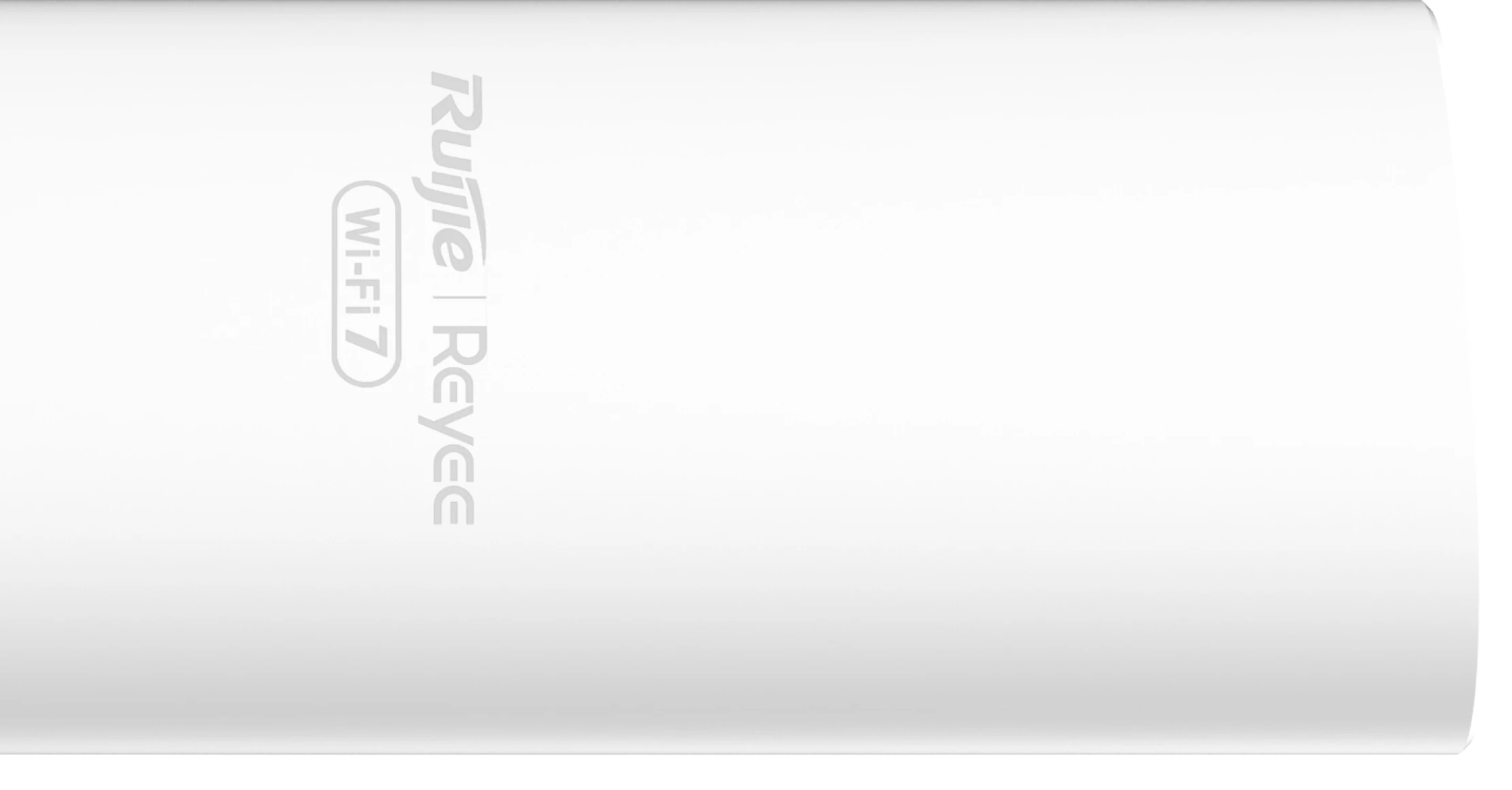

Elegant Design
with Cutting-Edge Technology

  • Smaller

    Ultimate performance in thin and light design

  • Faster

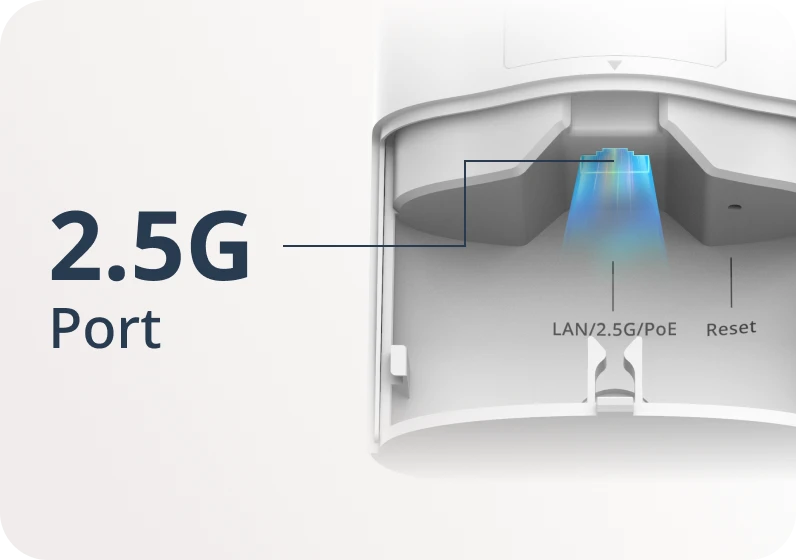

    2.5G Port + Wi-Fi 7,
    with speeds up to

  • More

    Powered by
    Wi-Fi 7 technology

Surf The Future

See Never Seen

Learn More

  • MLO on, Latency lower avg.

    55.19 %

    with the same interference, compared to a single 5 GHz band.

  • MLO on, avg. loss rate reduced by

    35.71 %

    with the same interference, compared to a single 5 GHz band.

  • Speed test

    2.3G

    Maximize transmission performance

  • Preamble Puncturing technology

  • Measured Performance

Wi-Fi 7's MLO technology leverages multiple frequency bands, allowing clients to connect to the optimal band for better performance.

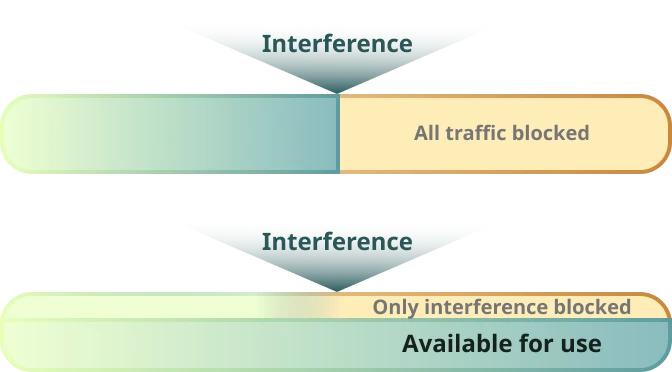

Preamble puncturing blocks interference-affected channels and enables cross-frequency bonding of uninterrupted channels, improving overall channel utilization by up to 7 times.

Wi-Fi 7's MLO technology leverages multiple frequency bands, allowing clients to connect to the optimal band for better performance.

  • MLO on, Latency lower avg.

    55.19 %

    with the same interference, compared to a single 5 GHz band.

  • MLO on, avg. loss rate reduced by

    35.71 %

    with the same interference, compared to a single 5 GHz band.

  • Speed test

    2.3G

    with the same interference, compared to a single 5 GHz band.

Preamble puncturing blocks interference-affected channels and enables cross-frequency bonding of uninterrupted channels, improving overall channel utilization by up to 7 times.

  • Preamble Puncturing technology

  • Measured Performance

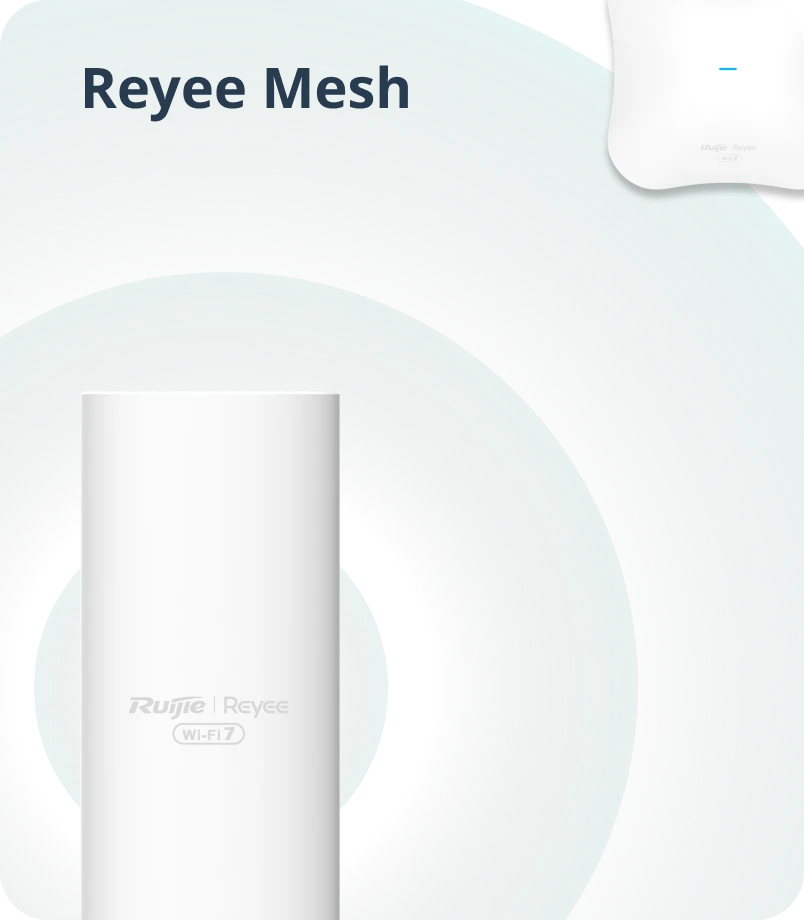

  • Reyee Mesh

    Reduce Cabling Costs

  • WIO 3

    A.I have it

  • Standalone AP Portal

    Free & Easy

  • Heatmap

    Visualize the Installation Process

Spesifikasi
　 RG-RAP72Pro-OD RG-RAP62-OD RG-RAP52-OD
5 GHz Wi-Fi Protocols Wi-Fi 4: IEEE 802.11a/n
Wi-Fi 5: IEEE 802.11ac Wave2
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be		 Wi-Fi 4: IEEE 802.11a/b/g/n
Wi-Fi 5: IEEE 802.11ac Wave 2
Wi-Fi 6: IEEE 802.11ax		 Wi-Fi 4: IEEE 802.11a/n
Wi-Fi 5: IEEE 802.11ac Wave2
2.4 GHz Wi-Fi Protocols Wi-Fi 4: IEEE 802.11b/g/n
Wi-Fi 6: IEEE 802.11ax
Wi-Fi 7: IEEE 802.11be		 Wi-Fi 4: IEEE 802.11b/g/n
Wi-Fi 6: IEEE 802.11ax		 Wi-Fi 4: IEEE 802.11b/g/n
5 GHz Spatial Streams 3 spatial streams, 3x3 MIMO 2 spatial streams, 2x2 MIMO 2 spatial streams, 2x2 MIMO
2.4 GHz Spatial Streams 2 spatial streams, 2x2 MIMO 2 spatial streams, 2x2 MIMO 2 spatial streams, 2x2 MIMO
Wireless Data Rates 5011 Mbps 2974Mbps 1266Mbps
Dimensions
(excluding mounting kits)		 90 mm x 46 mm x 239 mm
(3.54 in. x 1.81 in. x 9.41 in. )		 200 mm x 70 mm x 35 mm
(7.87 in. x 2.76 in. x 1.38 in.)		 220 mm × 50 mm × 35.7 mm
(8.66 in. x 1.97 in. x 1.41 in.)
antenna size: 185mm (7.28 in.)
Weight (excluding mounting kits) ≤ 0.7 kg (1.54 lbs.) ≤ 0.4 kg (0.88 lbs.) ≤ 0.4 kg (0.88 lbs.)
Number of 10/100/1000BASE-T Ports 1 1 (supports 802.3at PoE) 1 (supports 802.3af PoE)
Number of 1 Gbps Optical Ports (SFP) 0 0 0
DC(Local Power) No No No
DC Port Dimensions No No No
802.3af Yes (2.4 GHz: 1T1R; 5 GHz: 2T2R) Yes Yes
802.3at Yes Yes Yes
24 V passive PoE N/A Yes Yes
48 V passive PoE N/A Yes N/A
Power Consumption < 21 W < 16 W < 13.5 W
Operating Temperature –30°C to +65°C (–22°F to +149°F) –30°C to +65°C (–22°F to +149°F) –30°C to +65°C (–22°F to +149°F)
IP Rating IP65 IP65 IP65
Max. Number of Clients 64 (2.4 GHz) + 511 (5 GHz) = 511 64( 2.4G) + 512 (5G) = 512 64 (2.4G) + 110 (5G) = 110
Recommend Number of Clients BW160 11be/ax: 16 (2.4 GHz) + 94 (5 GHz) = 110
BW80 11ax: 16 (2.4 GHz) + 64 (5 GHz) = 80
11ac: 8 (2.4 GHz) + 32 (5 GHz) = 40		 BW160 11AX: 16 (2.4G) +94 (5G) = 110
BW80 11AX: 16 (2.4G) + 64 (5G) = 80
11AC: 8 (2.4G) + 32 (5G) = 40		 32 (2.4G) + 64 (5G) = 96
Certification CE, RoHS, FCC, ISED, cTUVus CE, RoHS, FCC, ISED, cTUVus CE, RoHS, ISED, cTUVus
