RG-ES220GS-LP, Switch PoE Terkola Awan Pintar Gigabit 20-Port

CCTV, Kantor, Hotel, Pabrik, Pengecer, dll.

Models
RG-ES205GC-P

5 Gigabit Ports, 4 PoE , 54W

 RG-ES206GC-P

6 Gigabit Ports, 4 PoE , 54W

 RG-ES209GC-P

9 Gigabit Ports, 8 PoE , 120W

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

 RG-ES218GC-P

16 Gigabit PoE ports, 2 SFP, 240W

 RG-ES226GC-P

24 Gigabit PoE ports, 2 SFP, 370W

 RG-ES206GS-P

Switch Manage 6-Port Gigabit dengan 4 port PoE+, 1 Port Combo

 RG-ES210GC-LP

10 Gigabit Ports, 8 PoE , 70W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES228GS-LP

24 x Port PoE+ 10/100/1000BASE-T, 2 x Port 10/100/1000BASE-T, 2 x Port SFP 1GE, 250 W

 RG-ES220GS-LP

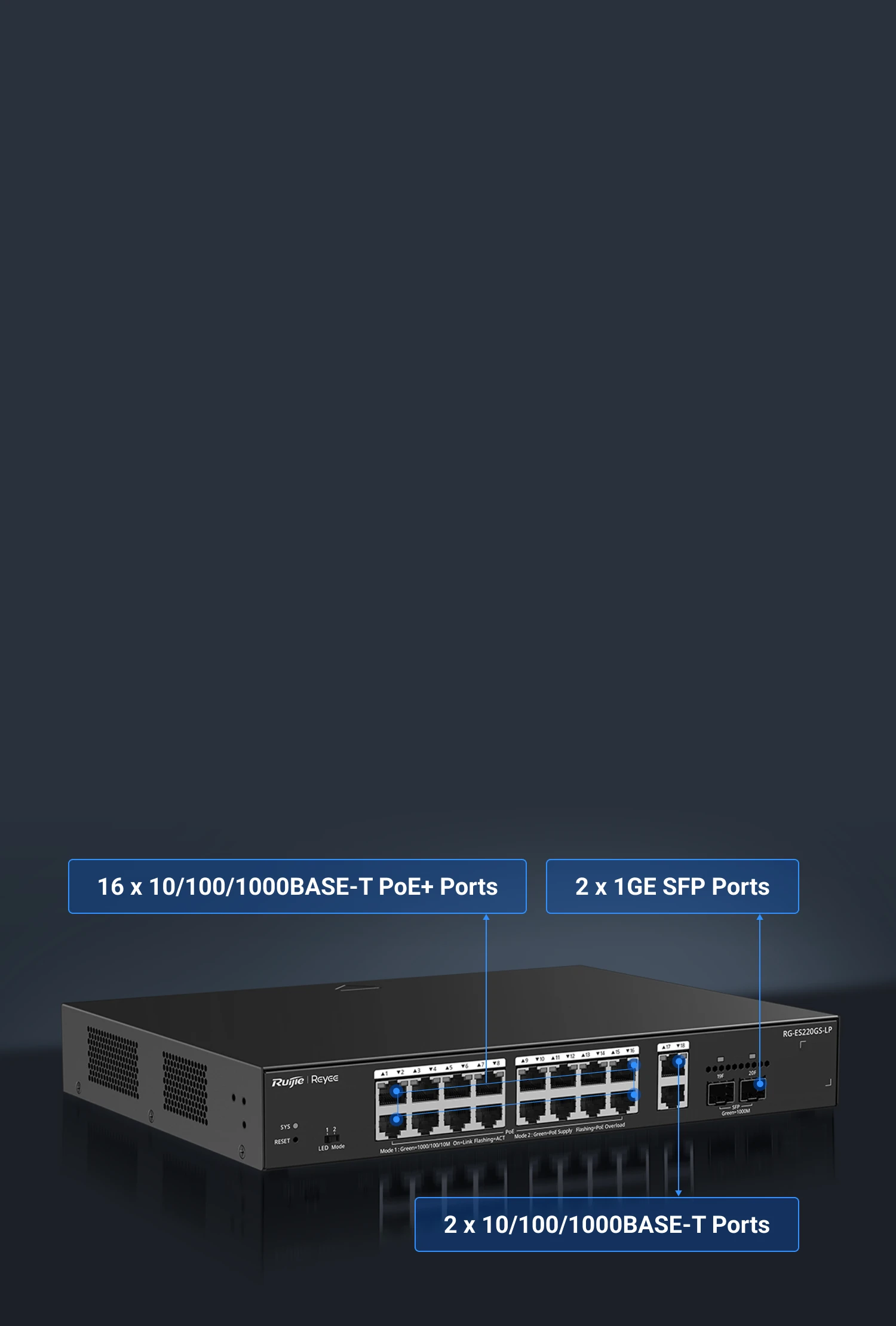

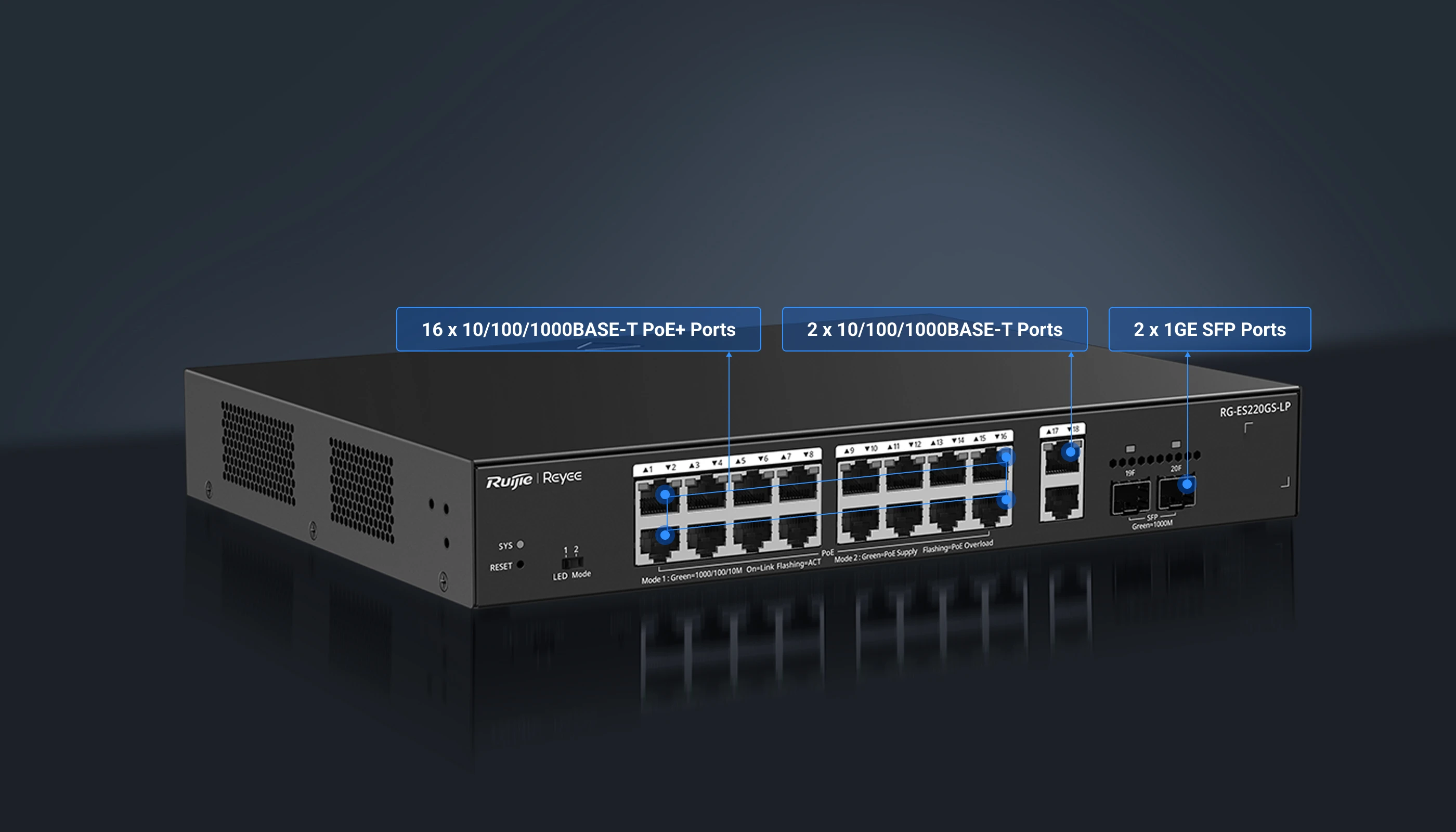

16 x Port PoE+ 10/100/1000BASE-T, 2 x Port 10/100/1000BASE-T, 2 x Port SFP 1GE, 130 W

 RG-ES209MG-P

8 x Port PoE+ 10/100/1000/2500BASE-T, 1 x Port SFP+ 10GE, Anggaran PoE 130 W

 RG-ES206MG-P

4 x Port PoE+ 10/100/1000/2500BASE-T, 1 x Port SFP+ 10/100/2500BASE-T, 1 x Port SFP+ 10GE, Anggaran

Seri
Model Non-PoE Model PoE
Datasheet Sales Enquiry
Add to Favorites
Fitur Penting
  • Switch Terkelola Awan Gigagbit 20-Port dengan 16 Port PoE+
  • Switch Terkelola Awan Pintar Hemat Biaya
  • Pengenalan Kamera IP, Nilai Unik untuk Jaringan CCTV
  • Pencegahan Loop Otomatis, Memastikan Kelangsungan Layanan
  • Manajemen Seumur hidup di Ruijie Cloud Kapan dan Di mana saja
Sales Enquiry
Fitur

RG-ES220GS-LP
Switch PoE Terkelola Awan Pintar Gigabit 20-Port

Switch PoE akses gigabit yang dirancang untuk jaringan UKM
Anggaran PoE
130 W
Skenario Aplikasi yang Berlimpah
Tanpa Kipas, Tenang dan Ramah Lingkungan
Garansi
3 Tahun

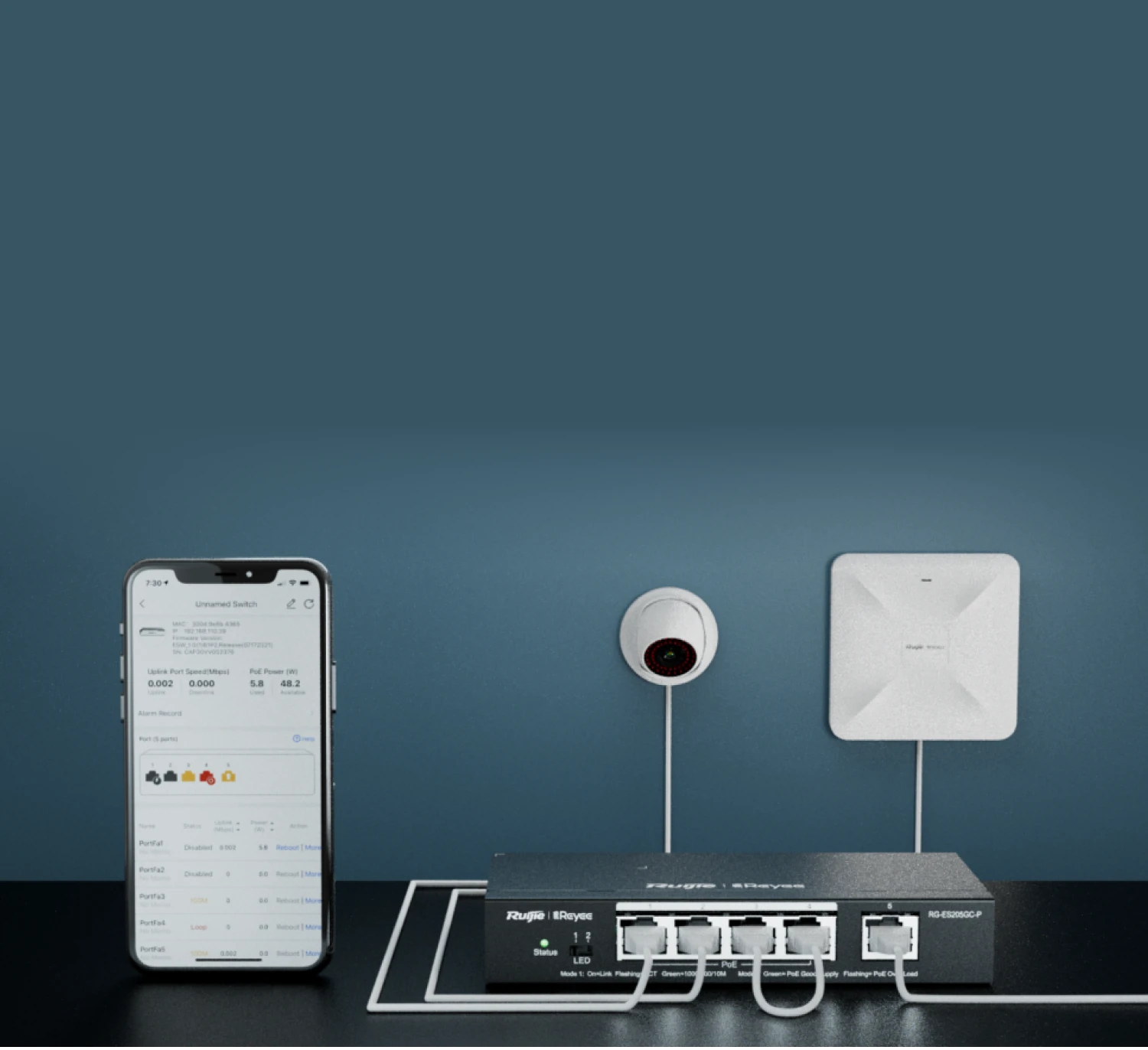

Nilai Unik untuk Jaringan CCTV

Transmisi
250 Meter*
Mode Perpanjangan
Fleksibel
Alarm
Offline IPC
Memulai ulang
Port Satu Per Satu
* Setelah transmisi jarak jauh diaktifkan, kecepatan port akan dibatasi hingga 10 Mbps.

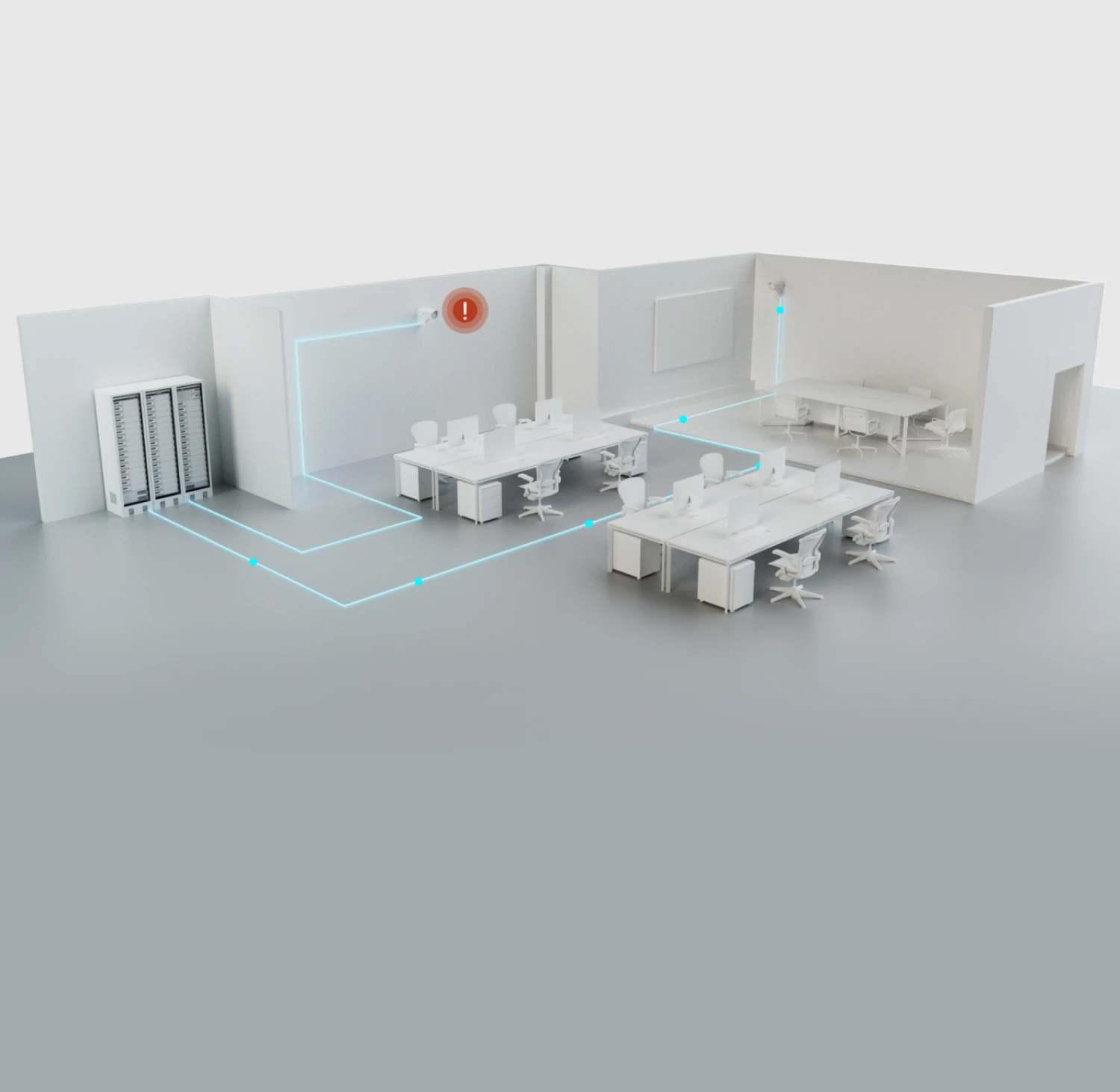

Pencegahan Loop Otomatis Memastikan Kelangsungan Layanan

Jaringan tetap terhubung saat terjadi loop jaringan

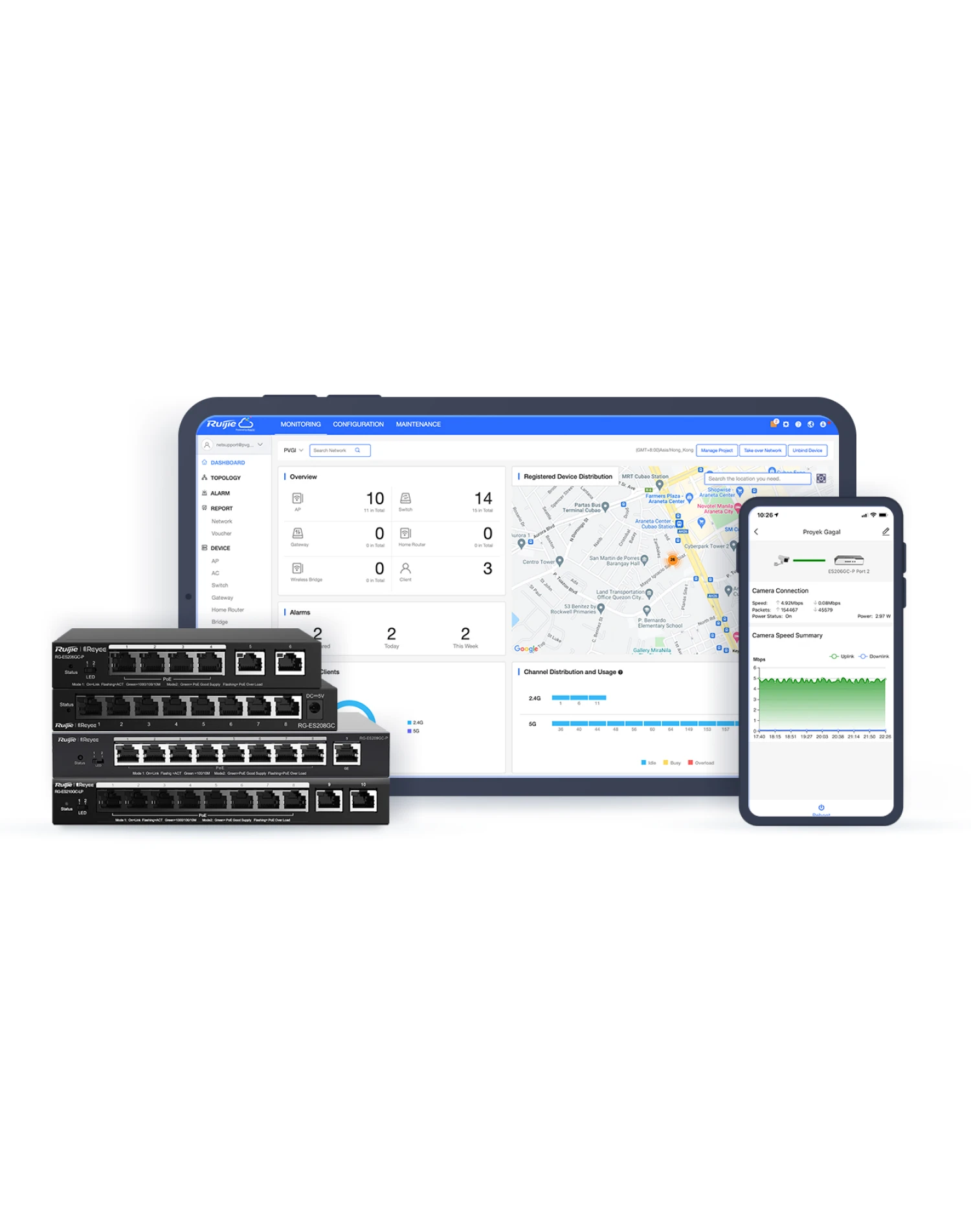

Switch Terkelola Awan Pintar Hemat Biaya

ES200 mengadopsi desain manajemen Awan yang ringan, menyediakan respons yang lebih cepat untuk mendukung fitur yang lebih kaya.
Pengenalan
Kamera IP/NVR
Pencegahan
Loop Otomatis
Konfigurasi
VLAN Mobile
PoE Adaptif
Cerdas

Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 18
Total number of optical ports
  • 2
Number of 1GE SFP ports
  • 2
Number of 10/100/1000BASE-T ports
  • 18
Power Supply and Consumption
Number of PoE Out ports
  • 16
Number of PoE/PoE+ Out ports
  • 16
PoE budget
  • 130 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 29.76 Mpps
Switching capacity
  • 40 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
