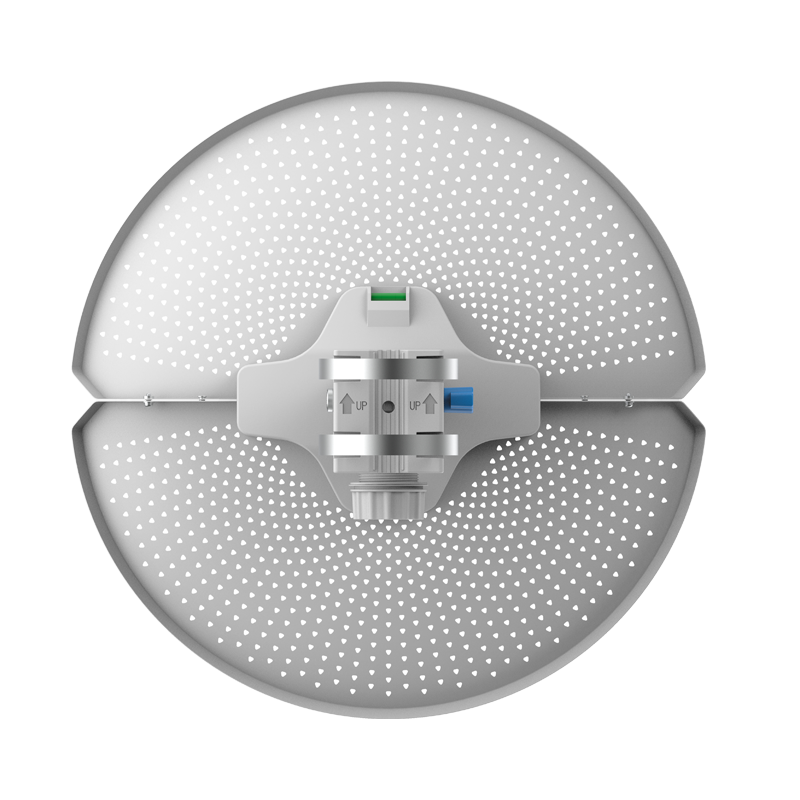

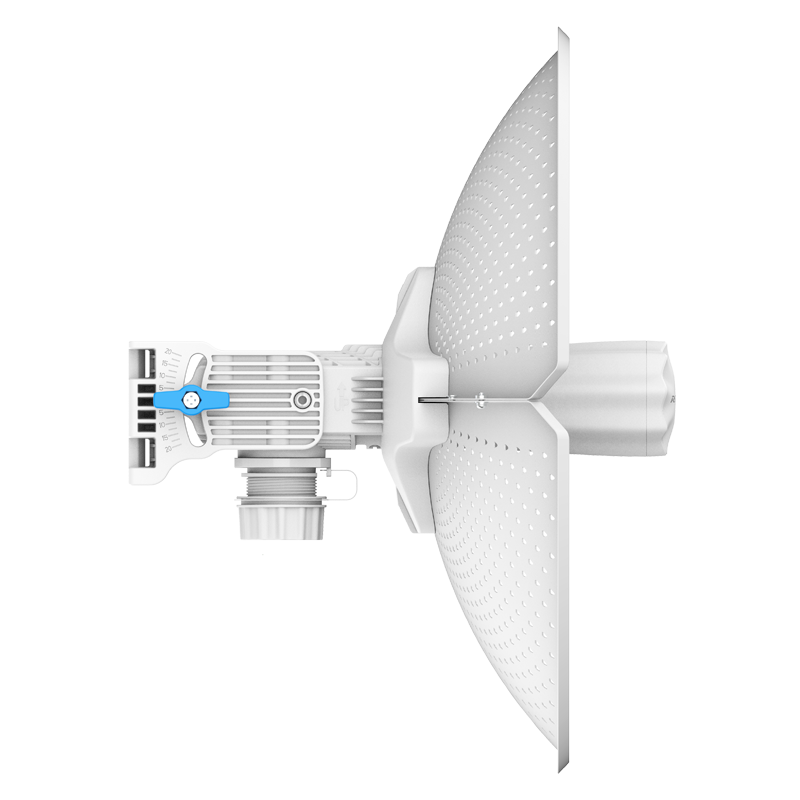

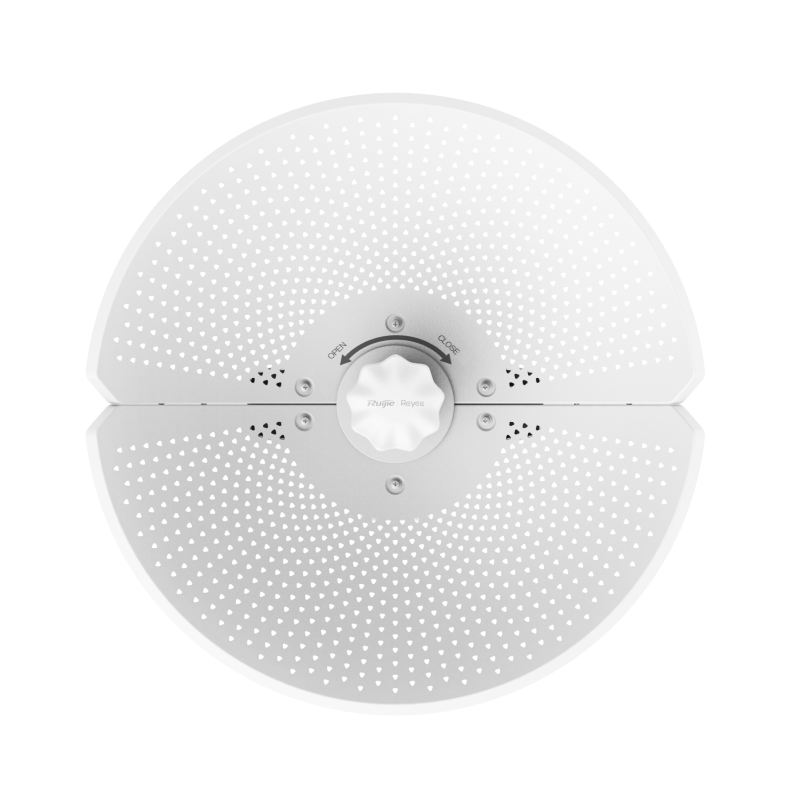

RG-AirMetro460F, CPE Bridge Wireless Seri RG-AirMetro

WISP, CCTV, Kota, Jalanan Kota, Pabrik, dll.

Models
RG-AirMetro460F

1 Port CPE FE

 RG-AirMetro460G

1 Port CPE GE
Seri
PTMP Station PTP/PTMP CPE
Datasheet Sales Enquiry
Add to Favorites
Fitur Penting
  • Jarak Kerja PTP Maks. 15 km
  • Pair Semua PTMP dengan Mudah dalam 30 dtk
  • PoE Pasif 24 V
  • IP65, Perlindungan Lonjakan 6 kV dan ±24 kV ESD Terhadap Lingkungan Keras
  • 220.32 km/h (137 mph) Ketahanan Angin
  • Manajemen Cloud Terpadu Menyederhanakan Perjalanan Pengguna
Sales Enquiry
Spesifikasi Penting
Features

Bridge Wireless
Seri RG-AirMetro

Ketika di-pair dengan stasiun basis, bridge mendukung:

  • 15km

    Hingga 15 km
    Transmisi Wireless

  • 32PTMP

    Hingga 32 Link
    PTMP

  • Peralatan Survey
    Lapangan Mudah

  • Manajemen Cloud
    Terpadu

CPE

Kombinasikan dengan Bebas untuk Berbagai Skenario

  • RG-AirMetro460F

    1 port 10/100 Mbps

  • RG-AirMetro460G

    1 port 10/100/1000 Mbps

Peningkatan
Sinyal

Rahasia Keapikan Lingkaran

Heatmap AI untuk Bridge

Mode Kerja

Mendukung PTP
dan PTMP

Cloud
Terpadu

Memandu Perjalanan Anda Tanpa Khawatir

Skenario
Utama

Pilihan Utama untuk Skenario WISP dan CCTV

CPE

Kombinasikan dengan Bebas untuk Berbagai Skenario

RG-AirMetro460G

1 port 10/100/1000 Mbps

15 km, 23 dBi

5 GHz, 867 Mbps

RG-AirMetro460F

1 port 10/100 Mbps

15 km, 23 dBi

5 GHz, 867 Mbps

Peningkatan Sinyal

Rahasia Keapikan Lingkaran

Dibandingkan dengan Antena Persegi:

Penguatan total antena lingkaran meningkat;
Penguatan arah horizontal dan vertikal lebih seimbang;

Sehingga, di bawah area cakupan yang sama, sinyal dari antena lingkaran itu lebih kuat.

*Seluruh data di sini merupakan nilai teori yang didapat oleh laboratorium internal Ruijie Reyee melalui serangkaian tes yang dilakukan dalam kondisi tertentu. Data aktual bisa beragam tergantung perbedaan masing-masing produk, versi perangkat lunak, kondisi penerapan, dan faktor lingkungan. Semua data merupakan subjek terhadap penggunaan aktual.

Tetap Stabil

Tidak Takut Lingkungan Keras

  • Tahan Cuaca IP65
  • 220.32 km/h
    (137 mph)     Ketahanan Angin
  • Perlindungan Lonjakan 6 kV
  • 24kV
    ESD     Kontak/Udara

  • PTMP

    Hingga 32 Link PTMP

  • PTP

    Hingga 15 km

WISP

Cakupan Luas Tanpa Koneksi Fiber

CCTV

CCTV yang Lancar dan Unggul yang Terjangkau

Heatmap AI untuk Bridge

Sahabat Sejati Petualangan Outdoor Anda

Peralatan Penyelarasan

Suara-Besar Anda, Menghemat Waktu Pemanduan

Pemindaian Spektrum dan Optimisasi Link

Panduan Jempol

  • Pemindaian Interferensi Kanal dalam Satu Klik untuk Seluruh Titik

  • Rekomendasi Optimisasi Otomatis

  • Menghemat Waktu dan Tenaga

Tersedia pada Ruijie Cloud dan App Ruijie Reyee

Cloud, Memudahkan Bisnis Anda

Cloud Semua-dalam-Satu

Pengaturan CepatPemantauan berdasarkan Topologi Nyata, LengkapIdentifikasi Masalah dengan Alarm Otomatis

Perbandingan
PTP
PTMP
Antena
Polarisasi
Jarak yang Disarankan
Protokol
Keluaran Maksimal
Rentang Frekuensi* Catatan: Frekuensi dan band yang diizinkan bisa berbeda tergantung pada regulasi negara tertentu.
Tingkat IP
Specifications
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
