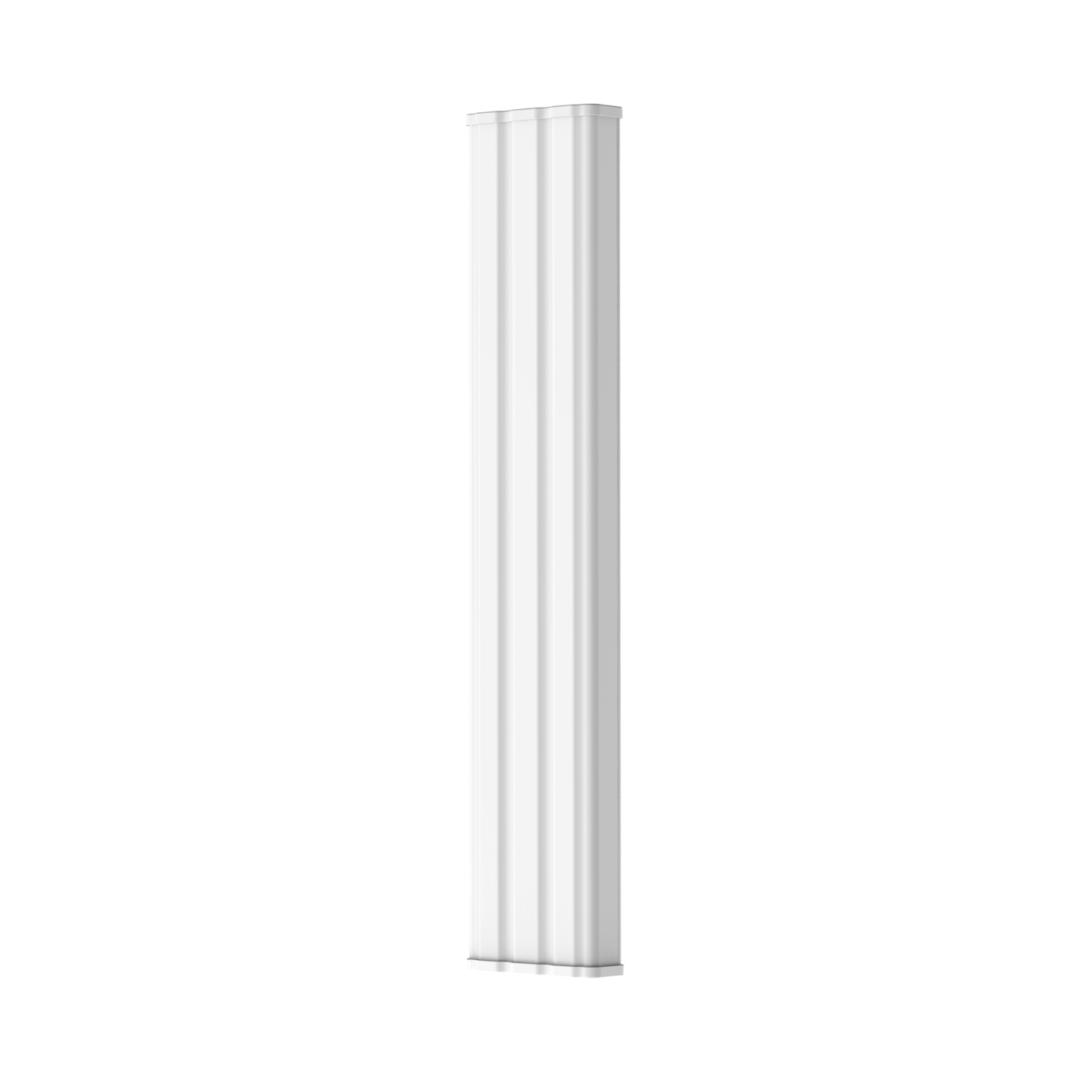

RG-ANT20S-90 - 1

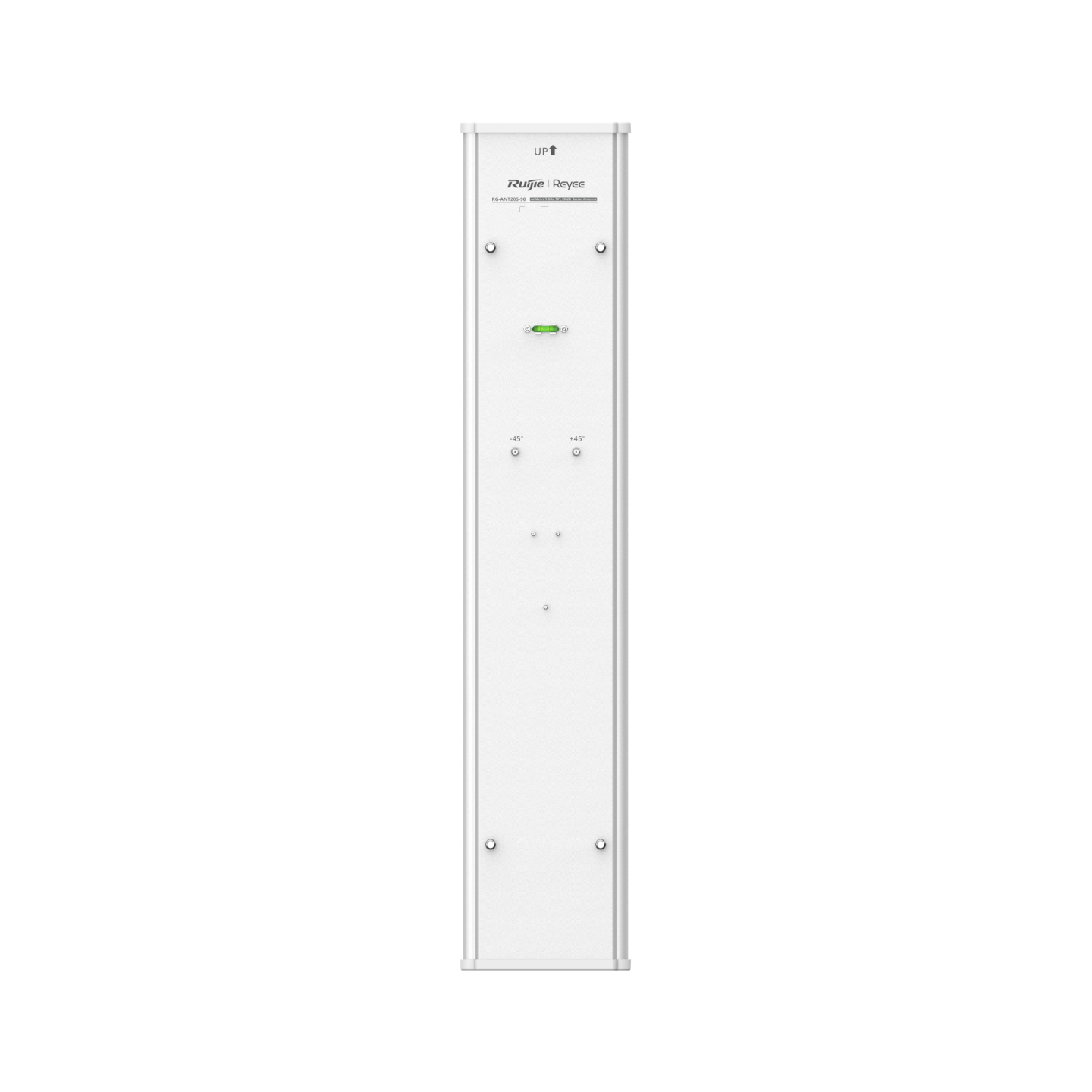

RG-ANT20S-90 - 2

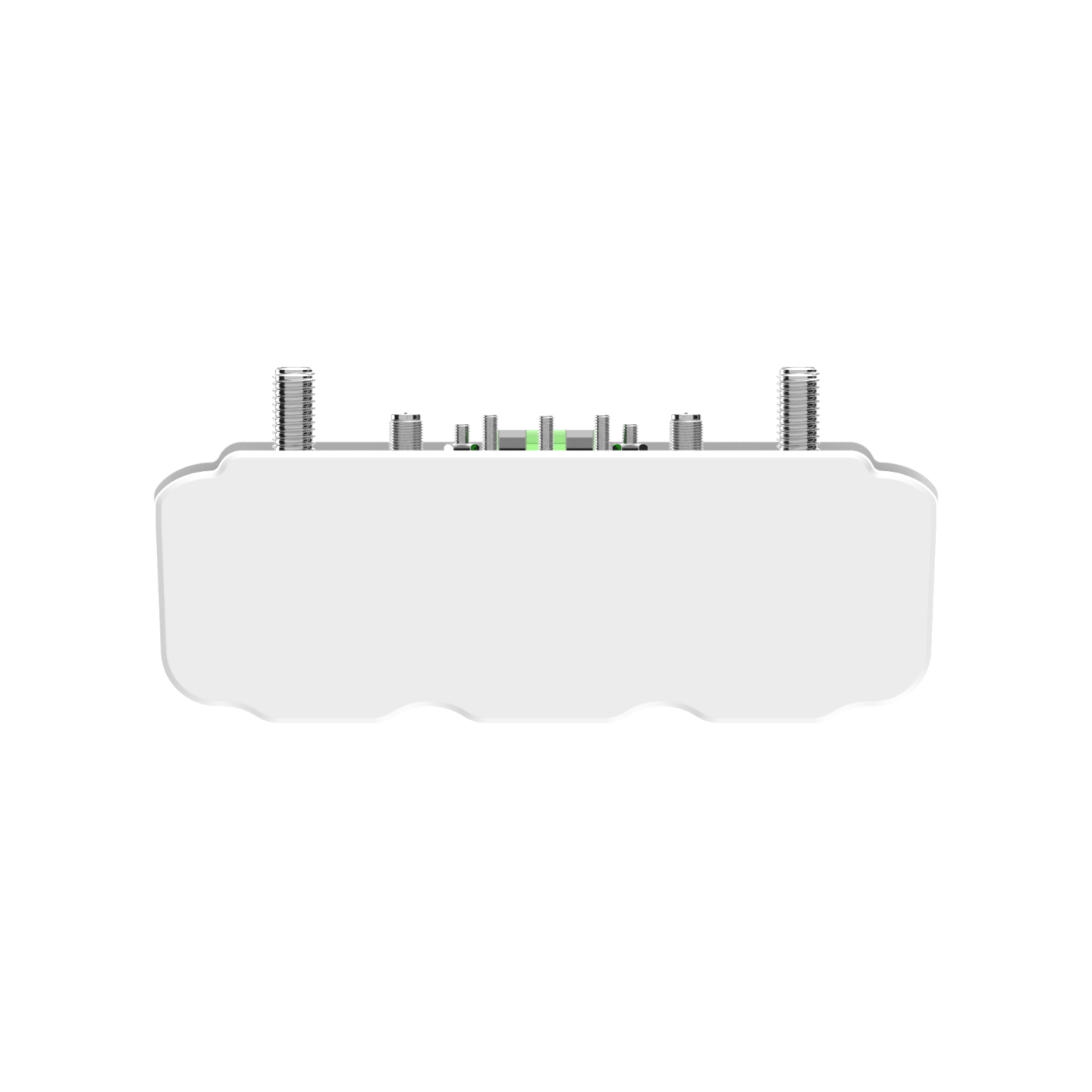

RG-ANT20S-90 - 3
RG-ANT20S-90 - 1
RG-ANT20S-90 - 2
RG-ANT20S-90 - 3

RG-ANT20S-90, 90° Antena Sektor untuk Bridge Wireless Seri RG-AirMetro

WISP, CCTV, Kota, Jalanan Kota, Pabrik, dll.

Models
RG-ANT16S-120

120°,Antena Sektor 5 km

 RG-ANT20S-90

90°,Antena Sektor 10 km

 RG-ANT13-360

360°,Antena Omnidireksional 2 km

 RG-AirMetro550G-B

Hingga 867 Mbps pada 5 GHz, Maks,1 hingga 32 Stasiun Basis PTMP dengan port 2 GE
Seri
PTMP Station PTP/PTMP CPE
Datasheet Sales Enquiry
Add to Favorites
Fitur Penting
  • Pilih dari Tiga Antena untuk Skenario Berbeda
  • Tingkat IP55 Terhadap Lingkungan Keras
  • Manajemen Cloud Terpadu Menyederhanakan Perjalanan Pengguna
Sales Enquiry
Spesifikasi Penting
Features

Bridge Wireless
Seri RG-AirMetro

Ketika di-pair dengan CPE, bridge mendukung:

  • 10km

    Hingga 10 km
    Transmisi Wireless

  • 32PTMP

    Hingga 32 Link
    PTMP

  • Peralatan Survey
    Lapangan Mudah

  • Manajemen Cloud
    Terpadu

Stasiun Basis

Pasangan Sempurna untuk Perangkat dan Skenario Berbeda

  • 867 Mbps

    5 GHz Stream Ganda 802.11ac

  • Hingga 32 Link PTMP

    TDMA

Pair Satu
Sentuhan

Pair Semua dalam Satu Sentuhan dalam 30 dtk

Heatmap AI untuk Bridge

Antena

Tiga Kali Lipat Perangkat, Di Luar Tiga Pilihan

Cloud
Terpadu

Memandu Perjalanan Anda Tanpa Khawatir

Skenario
Utama

Pilihan Utama untuk Skenario WISP dan CCTV

Pasangan Sempurna Untuk Skenario
dan Perangkat Berbeda

Pair Cepat

Pair Semua dalam Satu Sentuhan dalam 30 dtk

Antena

Tiga Kali Perangkat, Di Luar Tiga Pilihan

  • RG-ANT20S-90

    5 GHz, 20 dBi

    H: 90°，V: 7°

    10 km

  • RG-ANT16S-120

    5 GHz, 16 dBi

    H:120°，V:10°

    5 km

  • RG-ANT13-360

    5 GHz, 13 dBi

    H: 360°，V: 7°

    2 km

Tetap Stabil

Tidak Takut Lingkungan Keras

  • Tahan Cuaca IP55
  • 220.32 km/h
    (137 mph)     Ketahanan Angin
  • Perlindungan Lonjakan 6 kV
  • 24 kV ESD Kontak/Udara

PTMP

Hingga 32 Link PTMP

WISP

Cakupan Luas Tanpa Koneksi Fiber

CCTV

CCTV yang Lancar dan Unggul yang Terjangkau

Heatmap AI untuk Bridge

Sahabat Sejati Anda dalam Petualangan Outdoor

Peralatan Penyelarasan

Suara-Besar Anda, Menghemat Waktu Pemanduan

Pemindaian Spektrum dan Optimisasi Link

Panduan Jempol

  • Pemindaian Interferensi Kanal dalam Satu Klik untuk Seluruh Titik

  • Rekomendasi Optimisasi Otomatis

  • Menghemat Waktu dan Tenaga

Tersedia pada Ruijie Cloud dan App Ruijie Reyee

Cloud, Memudahkan Bisnis Anda

Cloud Semua-dalam-Satu

Pengaturan CepatPemantauan berdasarkan Topologi Nyata, LengkapIdentifikasi Masalah dengan Alarm Otomatis

Perbandingan
Specifications
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
