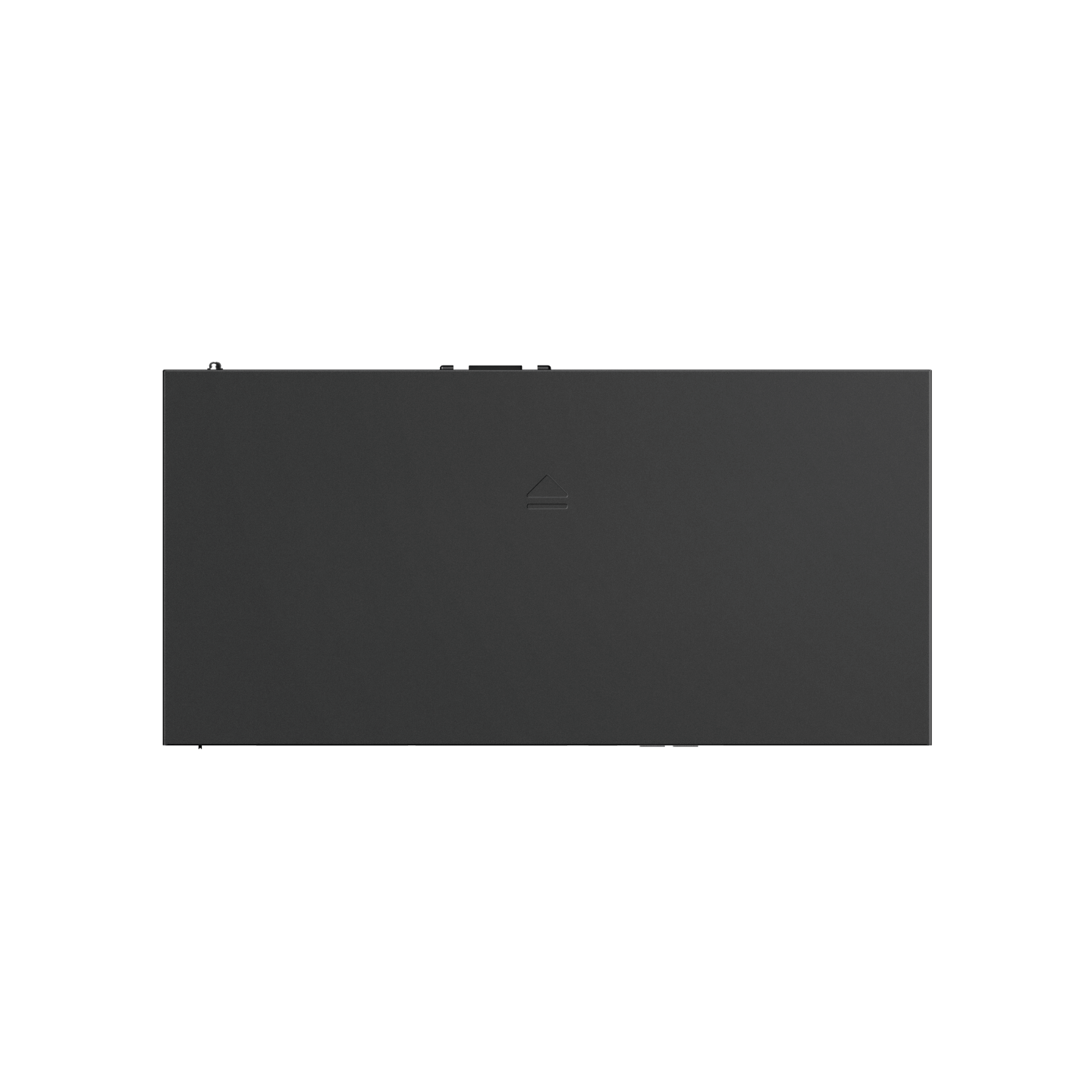

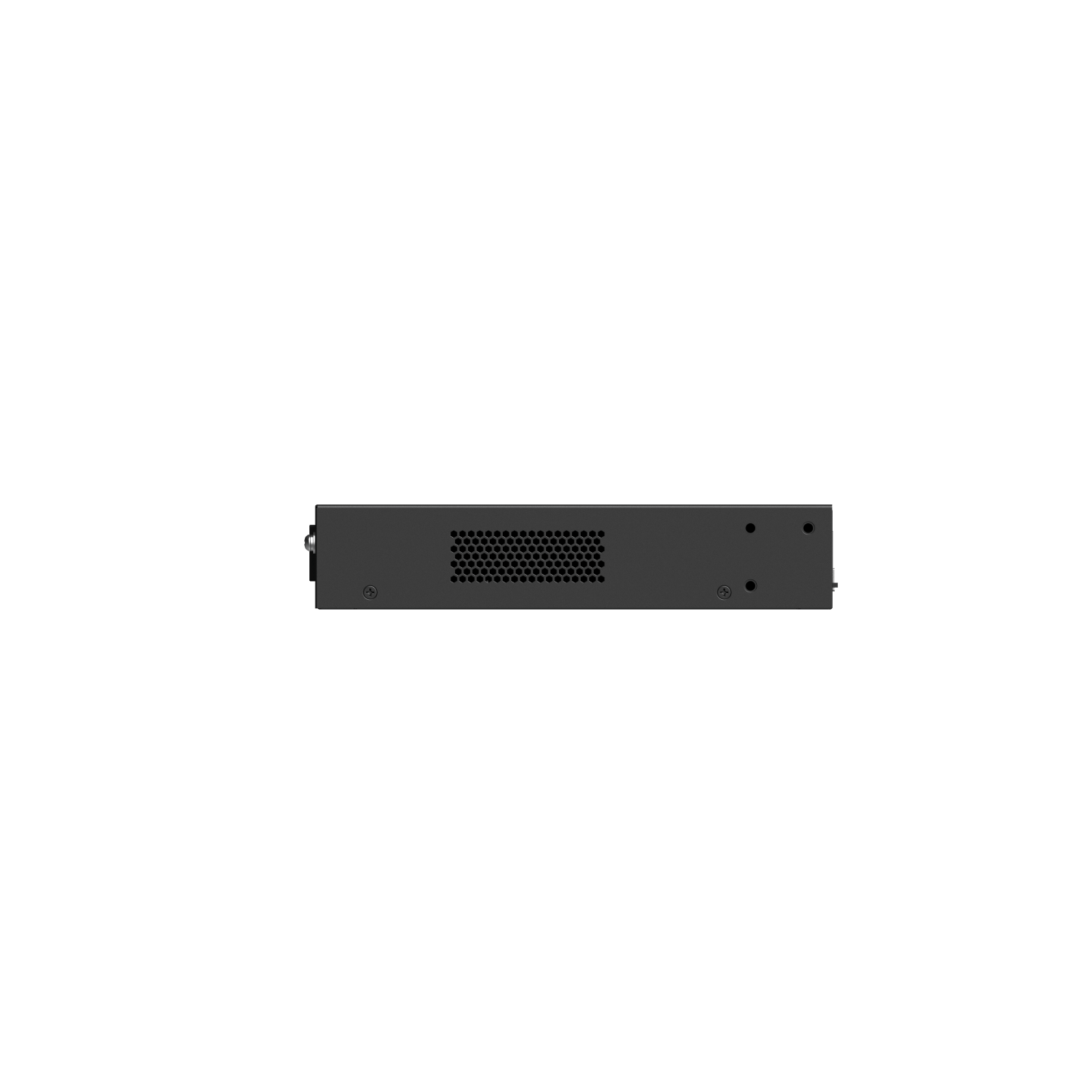

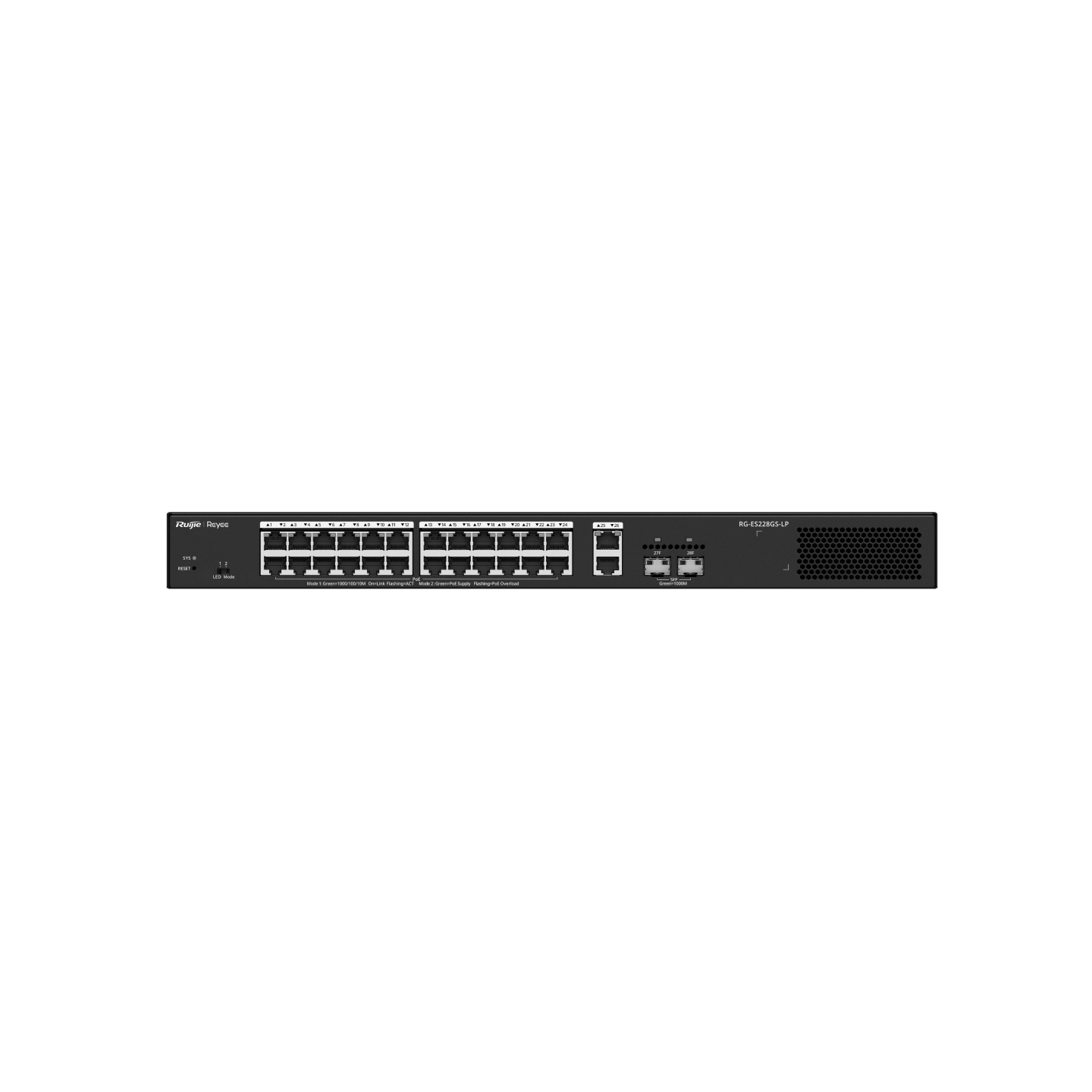

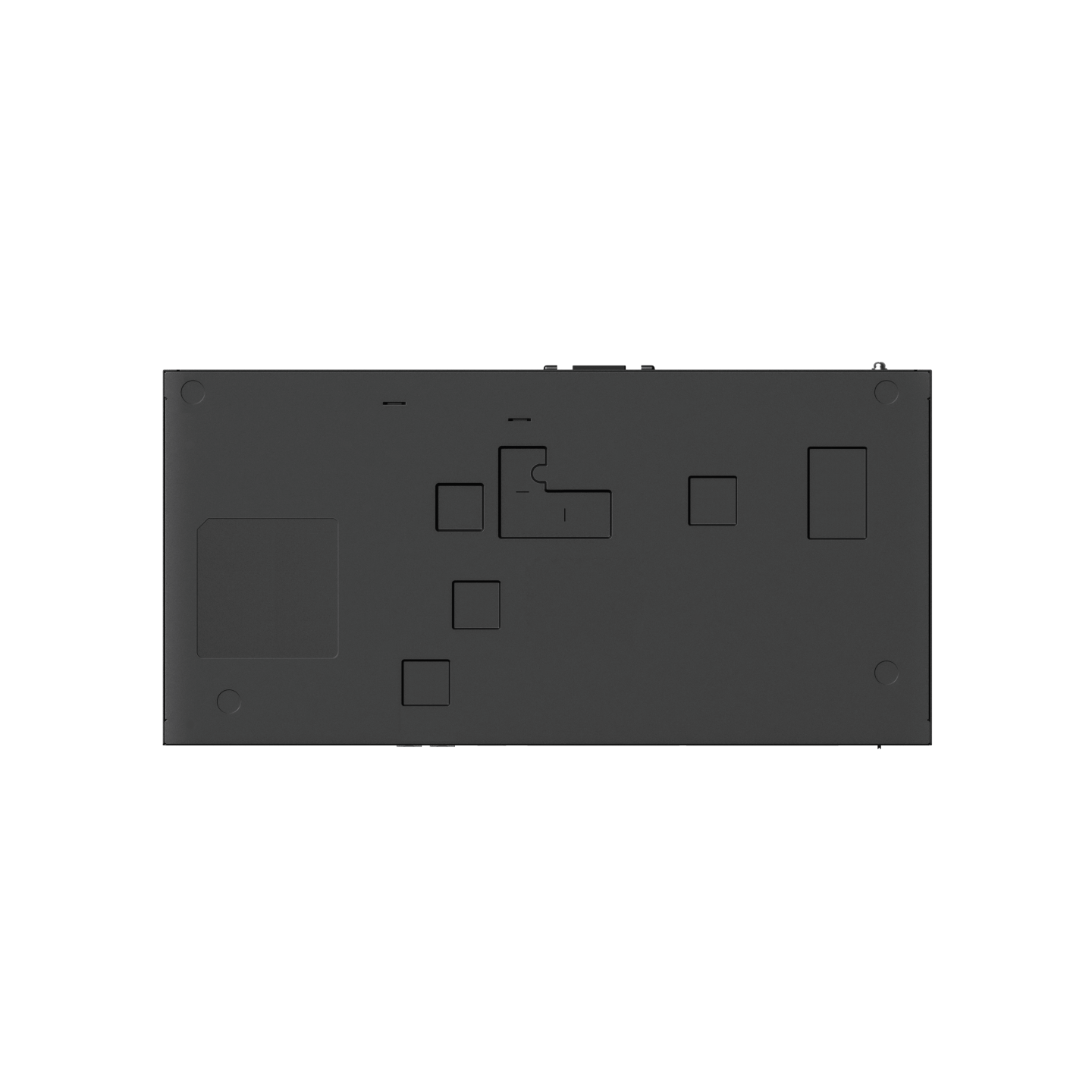

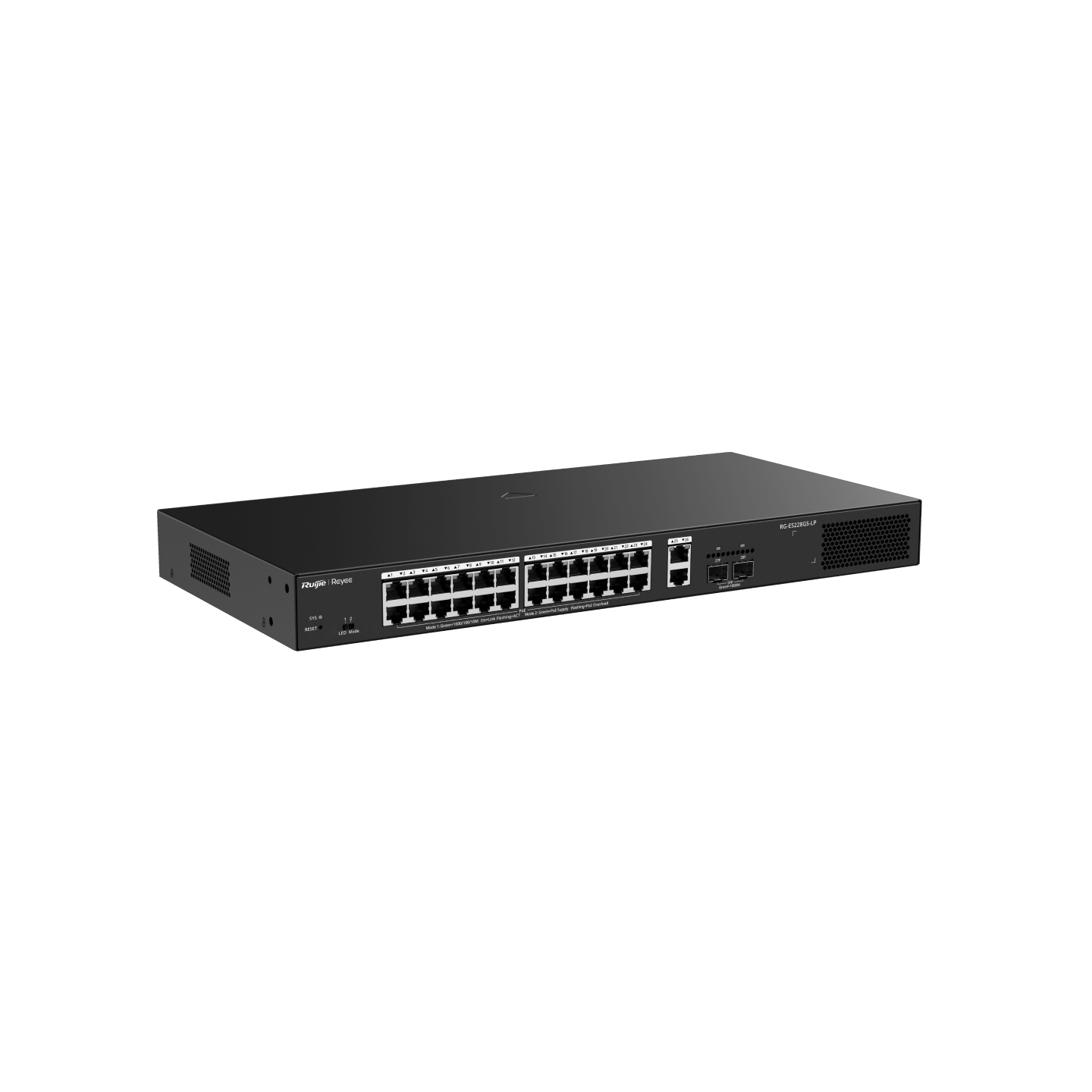

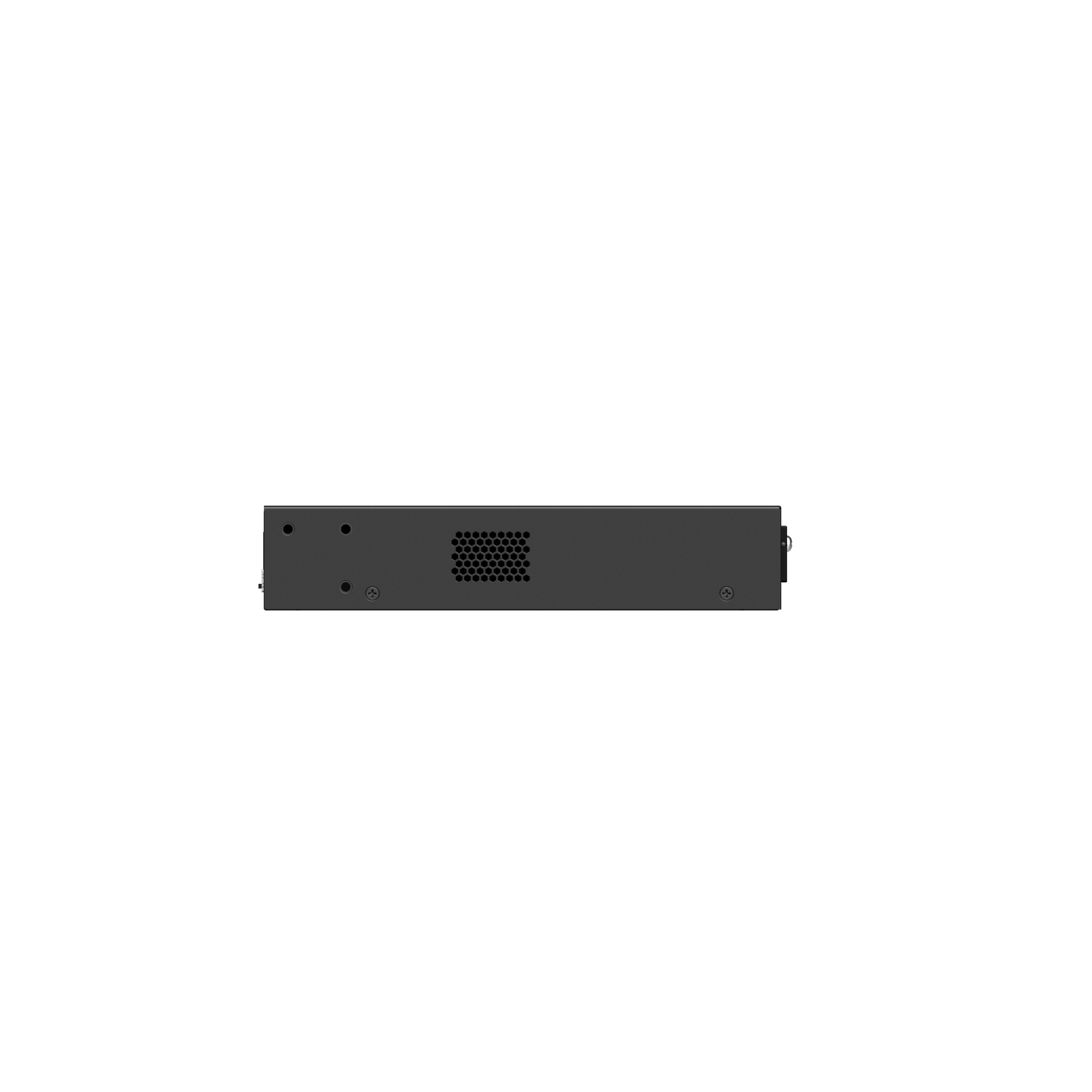

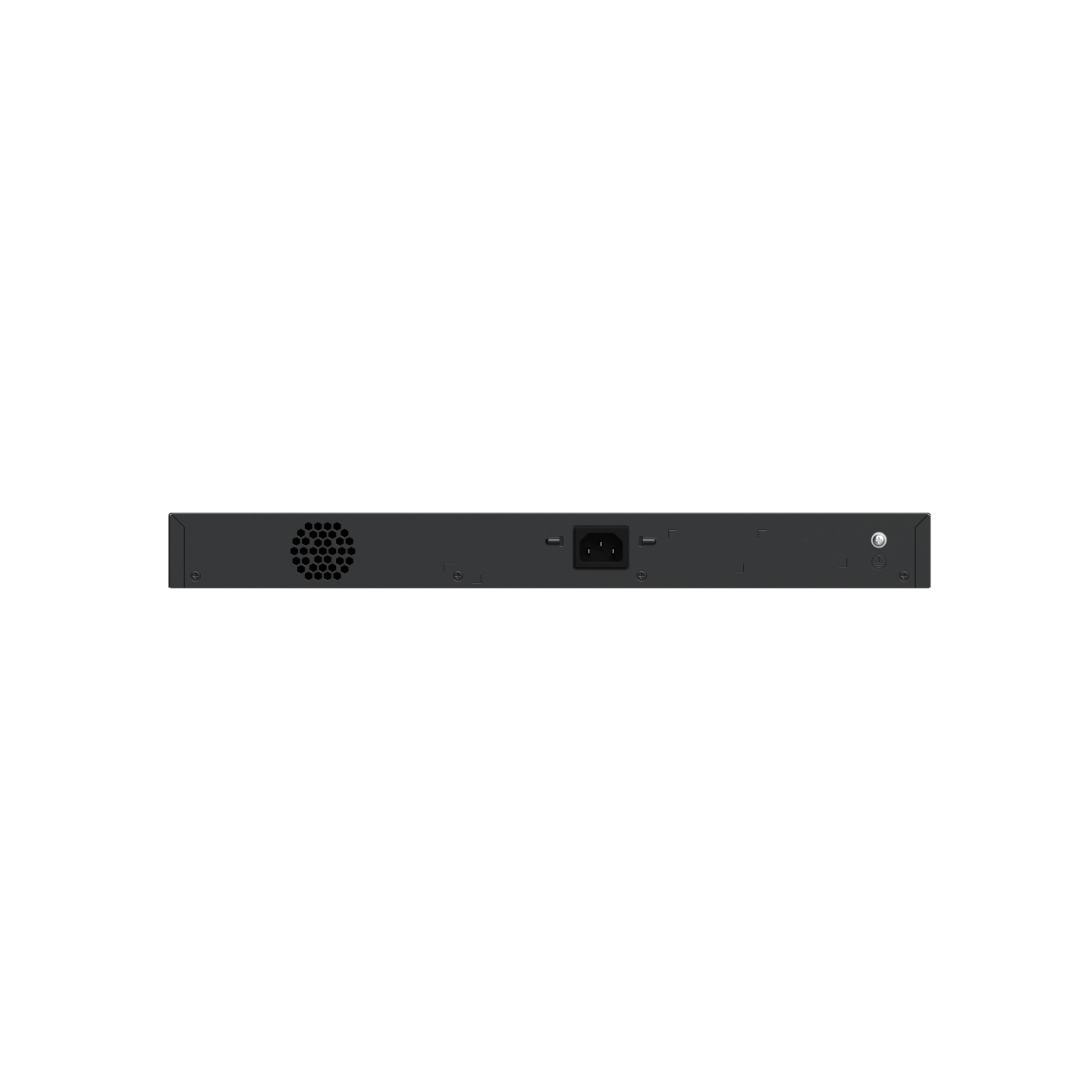

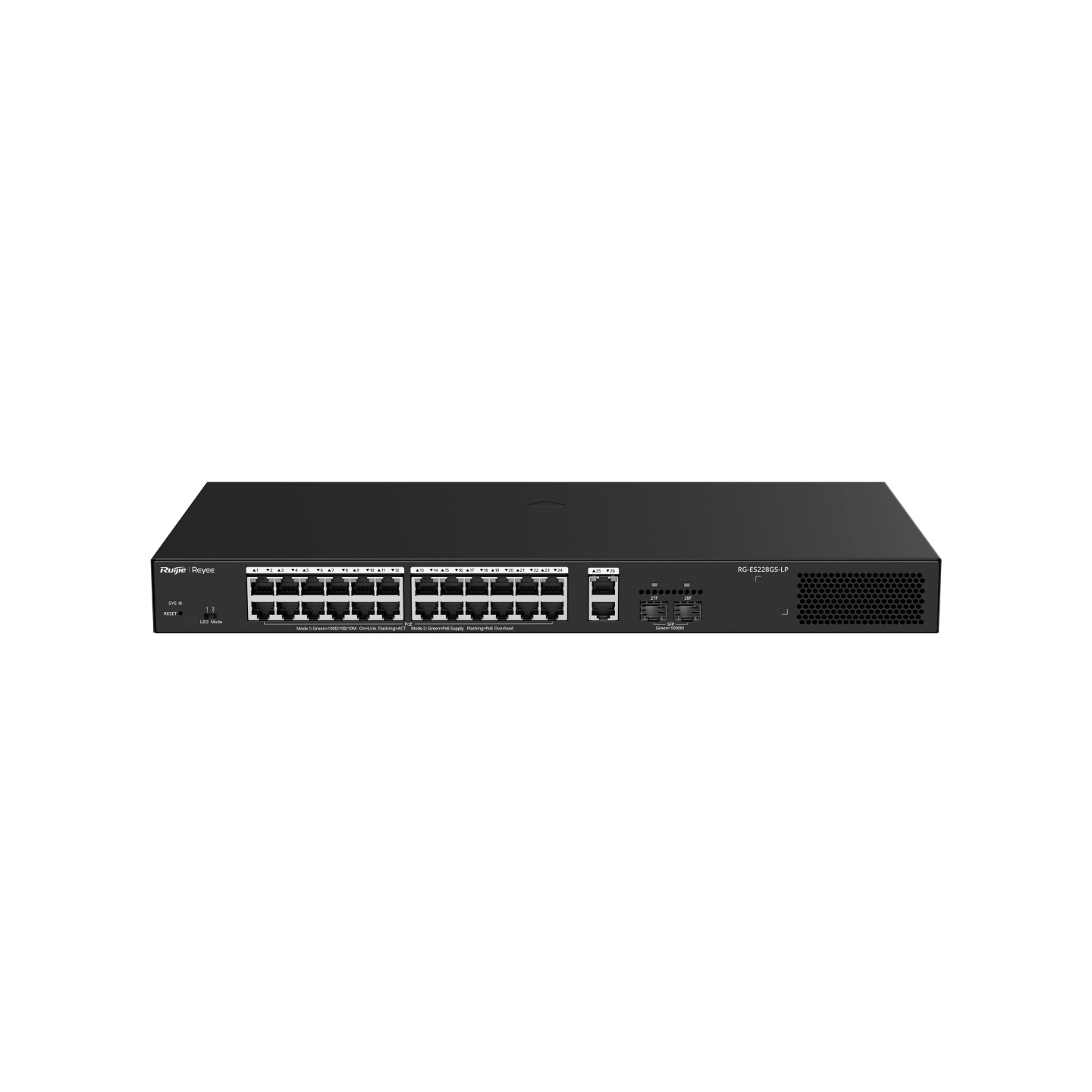

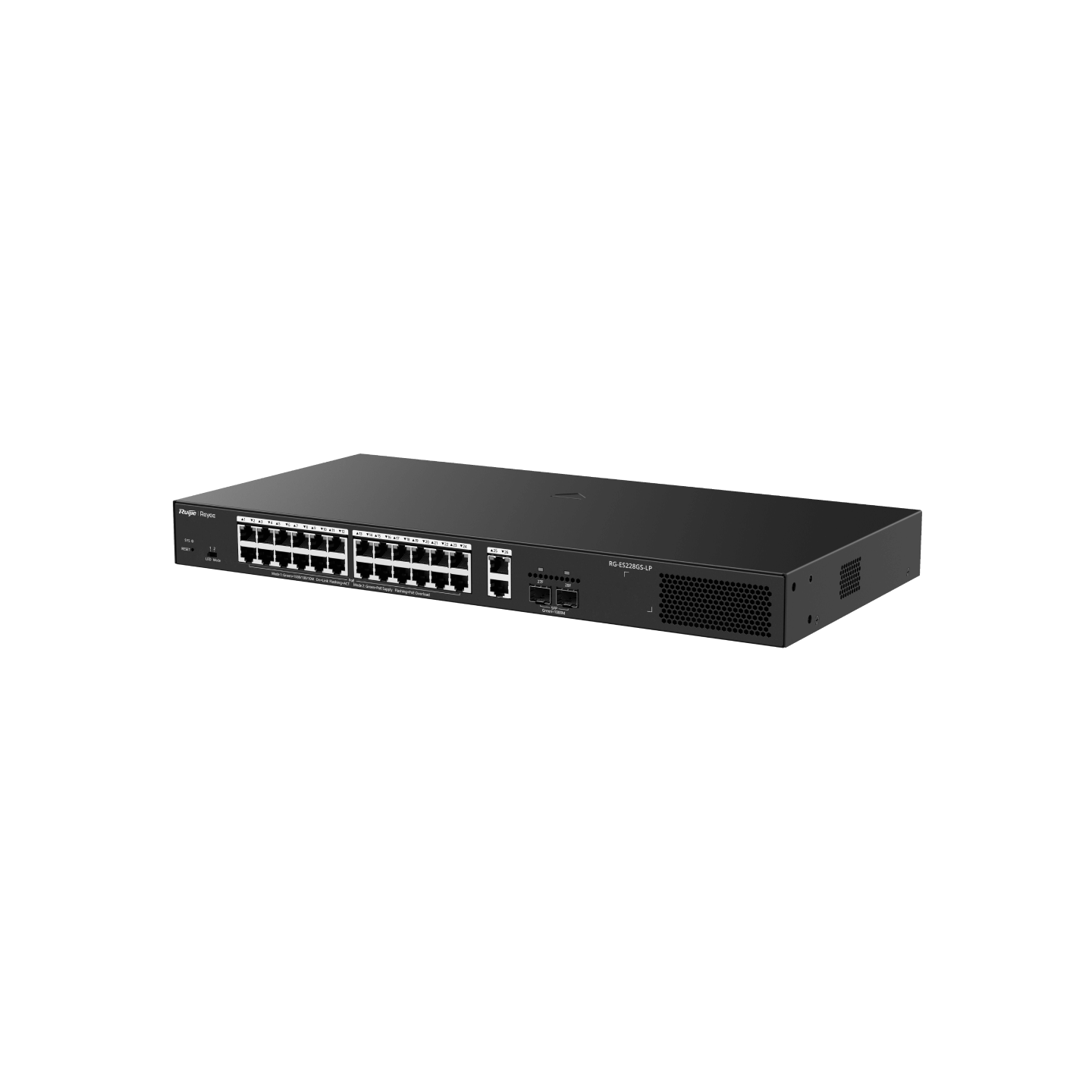

RG-ES228GS-LP, 28-Port Gigabit Smart Cloud Managed PoE Switch

CCTV, Office, Hotel, Factory, Retail, etc.

Models
RG-ES228GS-LP

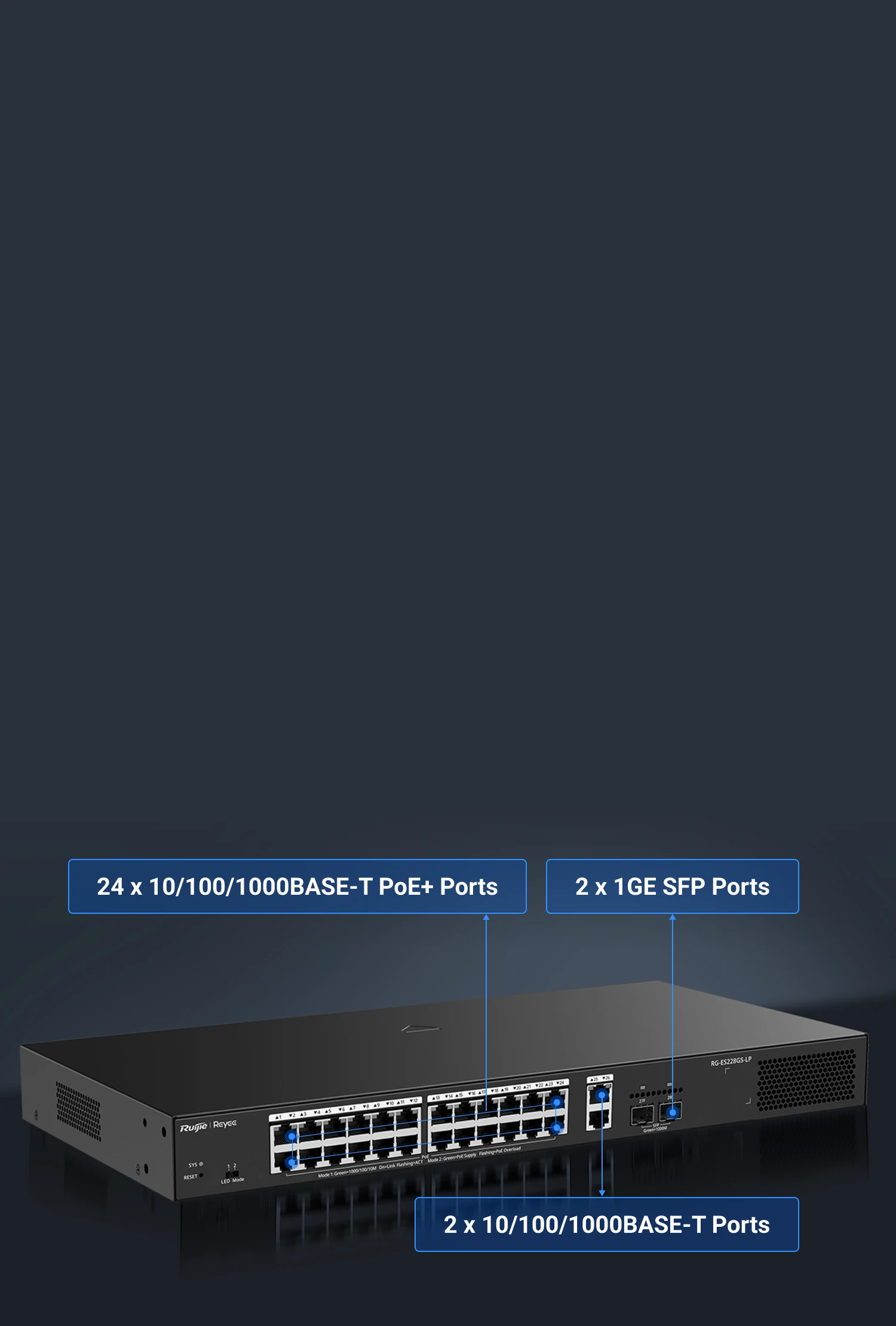

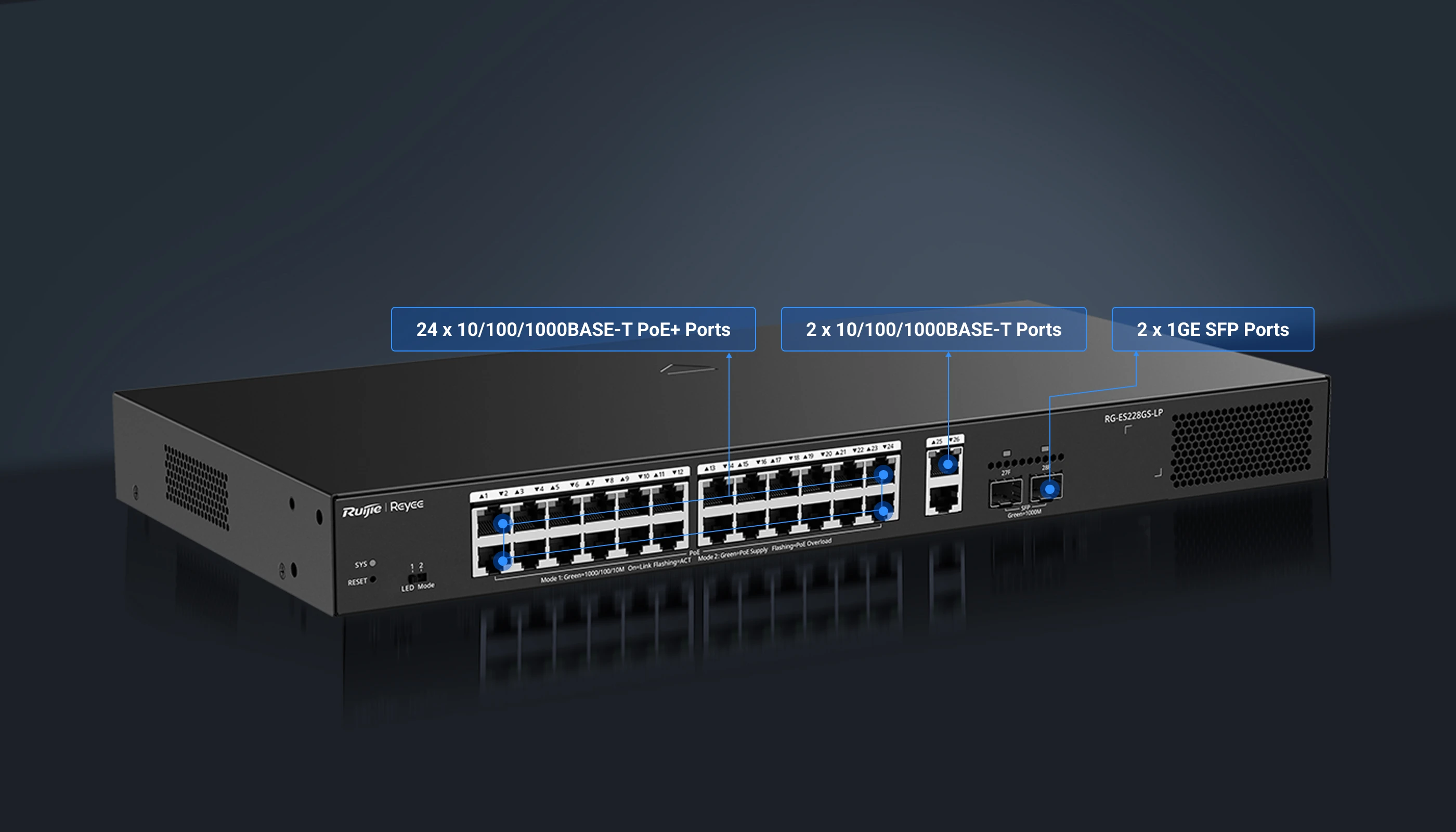

24 x 10/100/1000BASE-T PoE+ Ports, 2 x 10/100/1000BASE-T Ports, 2 x 1GE SFP Ports, 250 W

 RG-ES220GS-LP

16 x 10/100/1000BASE-T PoE+ Ports, 2 x 10/100/1000BASE-T Ports, 2 x 1GE SFP Ports, 130 W

 RG-ES205GC-P

5 Gigabit Ports, 4 PoE+, 54W

 RG-ES206GC-P

6 Gigabit Ports, 4 PoE+, 54W

 RG-ES206GS-P

6 Gigabit Ports, 4 PoE+, 54W

 RG-ES209GC-P

9 Gigabit Ports, 8 PoE+, 120W

 RG-ES210GC-LP

10 Gigabit Ports, 8 PoE+, 70W

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES218GC-P

16 Gigabit PoE+ ports, 2 SFP, 240W

 RG-ES226GC-P

24 Gigabit PoE+ ports, 2 SFP, 370W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES209MG-P

8 x 10/100/1000/2500BASE-T PoE+ Ports, 1 x 10GE SFP+ Port, 130 W PoE Budget

 RG-ES206MG-P

4 x 10/100/1000/2500BASE-T PoE+ Ports, 1 x 10/100/2500BASE-T Port, 1 x 10GE SFP+ Port, 70 W PoE Budget
Series
Non-PoE Model PoE Model
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • 28-Port Gigabit Cloud Managed Switch with 24 PoE+ Ports
  • Cost-Effective Smart Cloud Managed Switch
  • IP Camera Recognition, Unique Value for CCTV Network
  • Automatic Loop Prevention, Ensuring Service Continuity

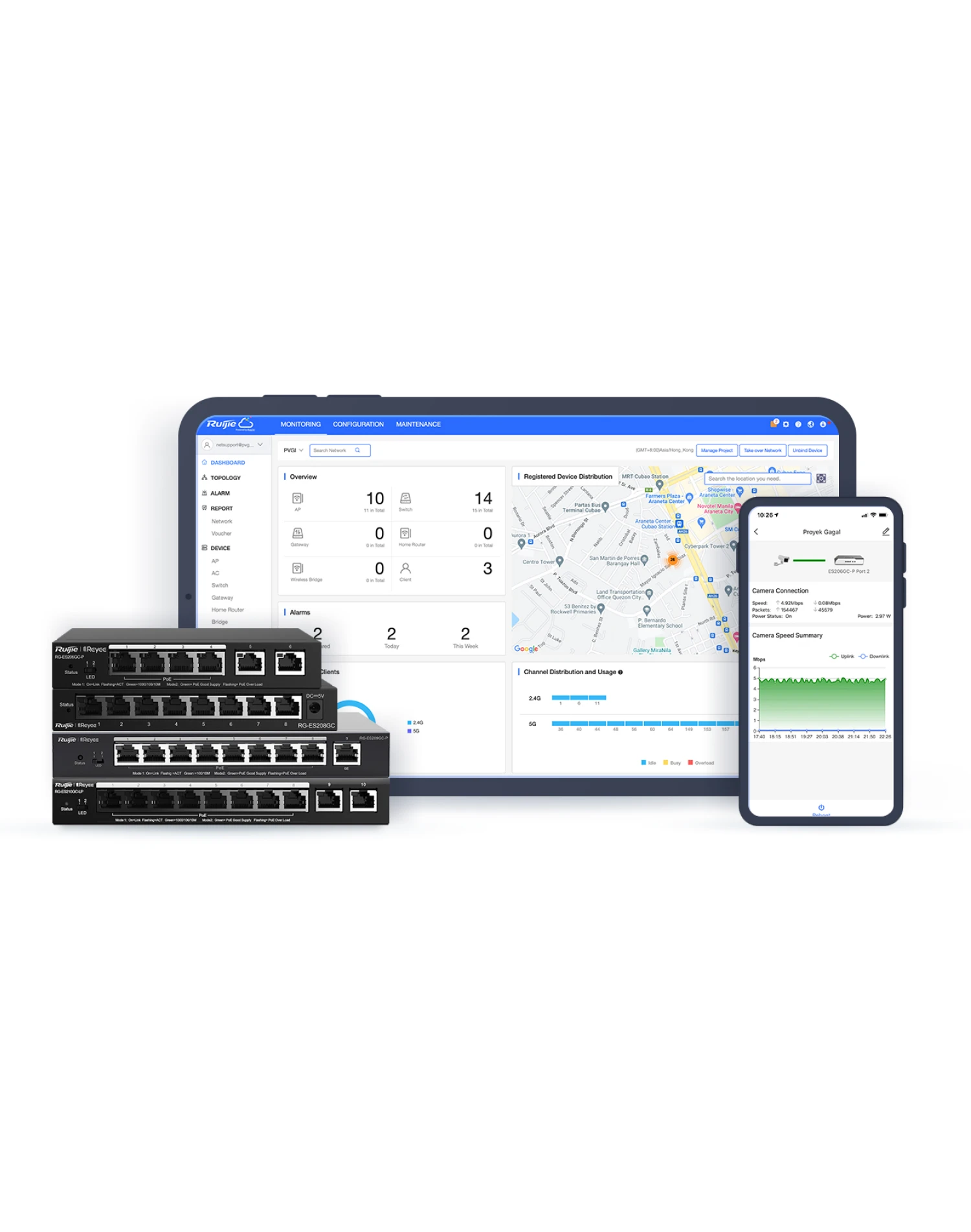

  • Lifetime Management on Ruijie Cloud at Anytime, Anywhere
Sales Enquiry
Features

RG-ES228GS-LP
28-Port Gigabit Smart Cloud-Managed PoE Switch

Gigabit access PoE switch designed for SMB networks
PoE Budget
250 W
Flexible Uplink
Options
Abundant Application Scenarios
3-Year
Warranty

Unique Value for CCTV Network

250 Meters
Transmission*
Flexible
Extend Mode
IPC Offline
Alarm
Individual
Port Reboot
* After long-distance transmission is enabled, the port speed will be limited to 10 Mbps.

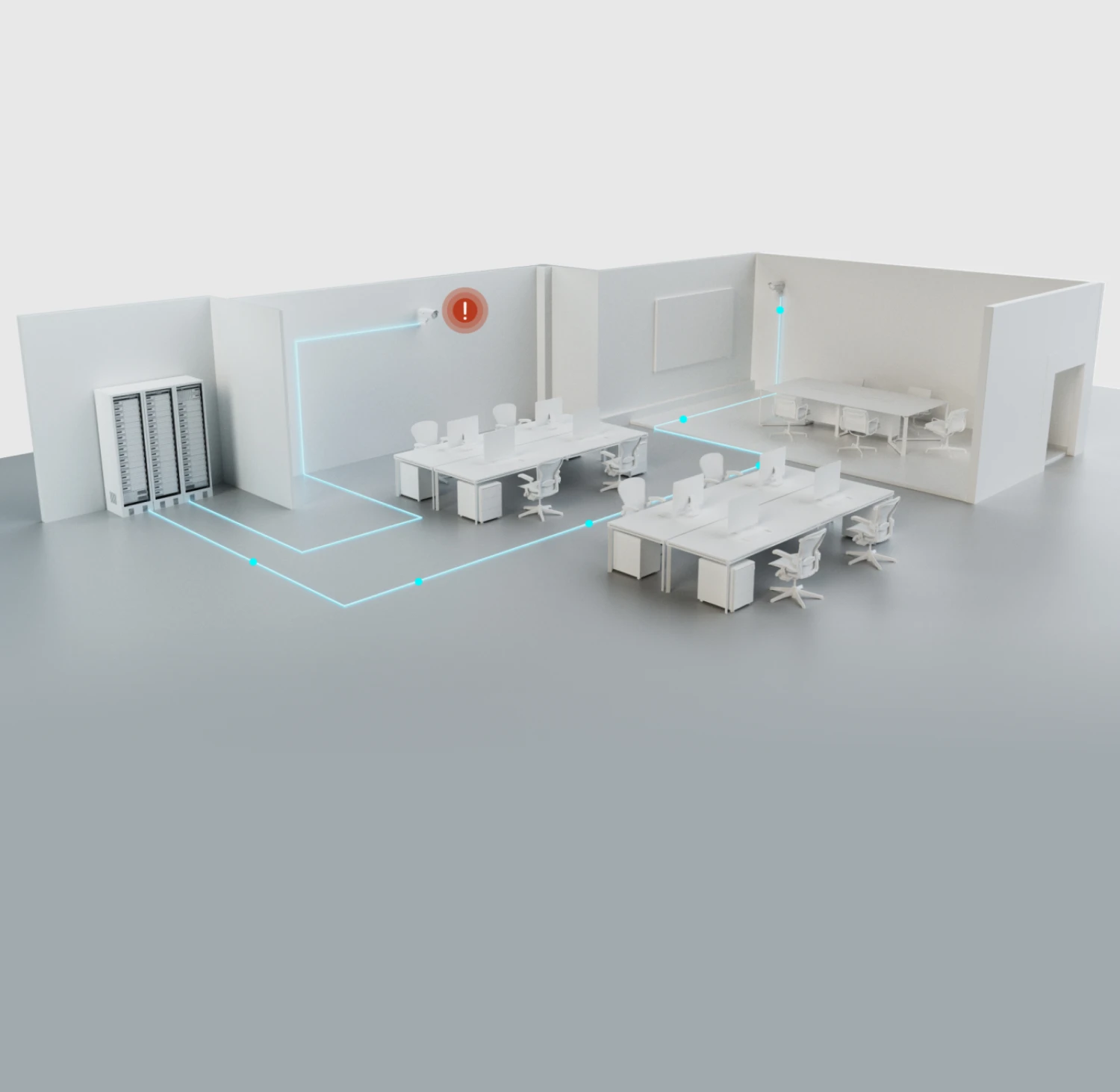

Automatic Loop Prevention Ensures Service Continuity

Network stays connected when network loop happens

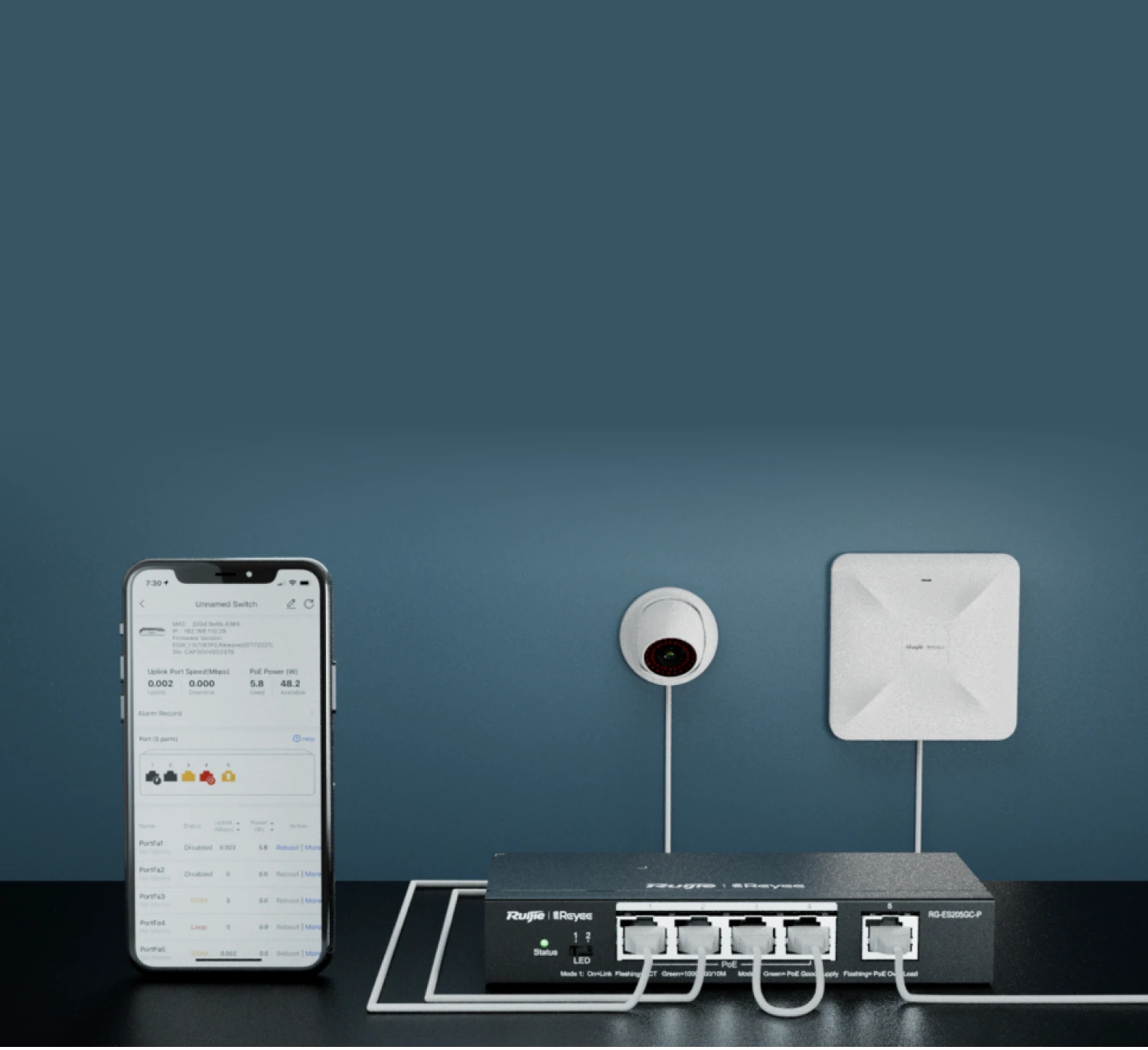

Cost-Effective Smart Cloud Managed Switches

ES200 adopts a light-weighted Cloud management design,providing faster response to support richer features.
IP Camera/NVR
Recognition
Automatic
Loop Prevention
Mobile VLAN
Configuration
Intelligent
PoE Adaptive

Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 26
Total number of optical ports
  • 2
Number of 1GE SFP ports
  • 2
Number of 10/100/1000BASE-T ports
  • 26
Power Supply and Consumption
Number of PoE Out ports
  • 24
Number of PoE/PoE+ Out ports
  • 24
PoE budget
  • 250 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 41.66 Mpps
Switching capacity
  • 56 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
