Comparar

Switch para exteriores gigabit de 7 puertos con entrada PoE/CC

Videovigilancia (CCTV), parques, autopistas, etc.

Modelos
RG-ES207GS-AC-OD

Switch para exteriores de 7 puertos, 5 puertos RJ45 1G, 2 puertos de enlace ascendente SFP

 RG-ES207GS-PI-OD

Switch para exteriores de 7 puertos, 5 puertos RJ45 1G, 2 puertos de enlace ascendente SFP
Serie
Modelo PoE Outdoor Switch
Sales Enquiry
Add to Favorites
Características destacadas
  • Entrada PoE o CC de 12 V
  • 2 puertos SFP para ERPS
  • Switch para exteriores todo en uno con integración 4 en 1
  • Alta resistencia a la intemperie: clasificación IP65, protección contra sobretensiones PoE de ±8 kV
  • Solución de problemas de cámaras
  • Suministro de energía PoE ininterrumpido
Sales Enquiry
Funciones

RG-ES207GS-PI-OD

Switch para exteriores gigabit de 7 puertos con entrada PoE/CC

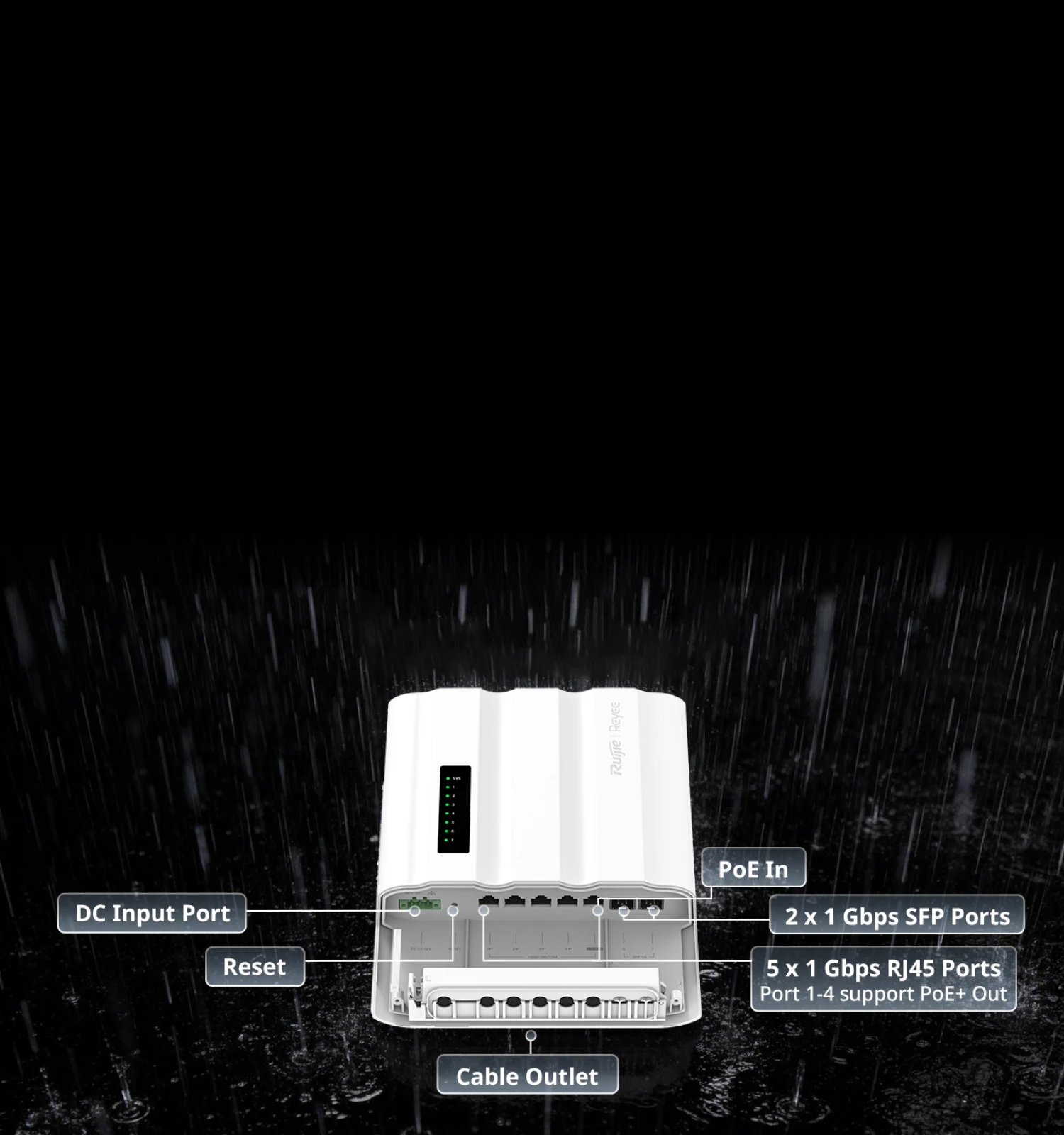

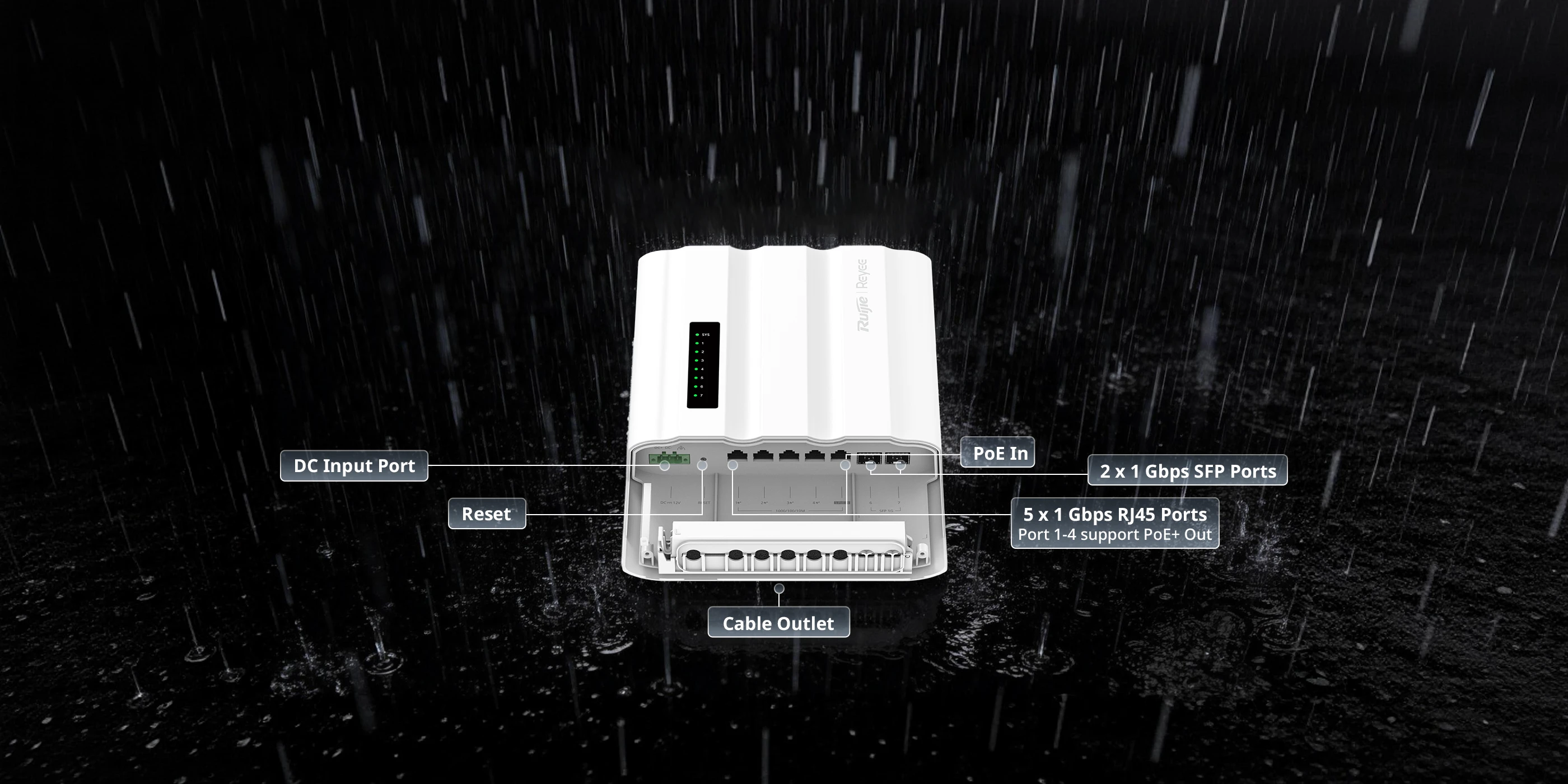

  • Entrada de
    12 V CC

  • Entrada
    PoE

  • Presupuesto
    PoE 60W

  • ERPS

  • 3 años
    de garantía

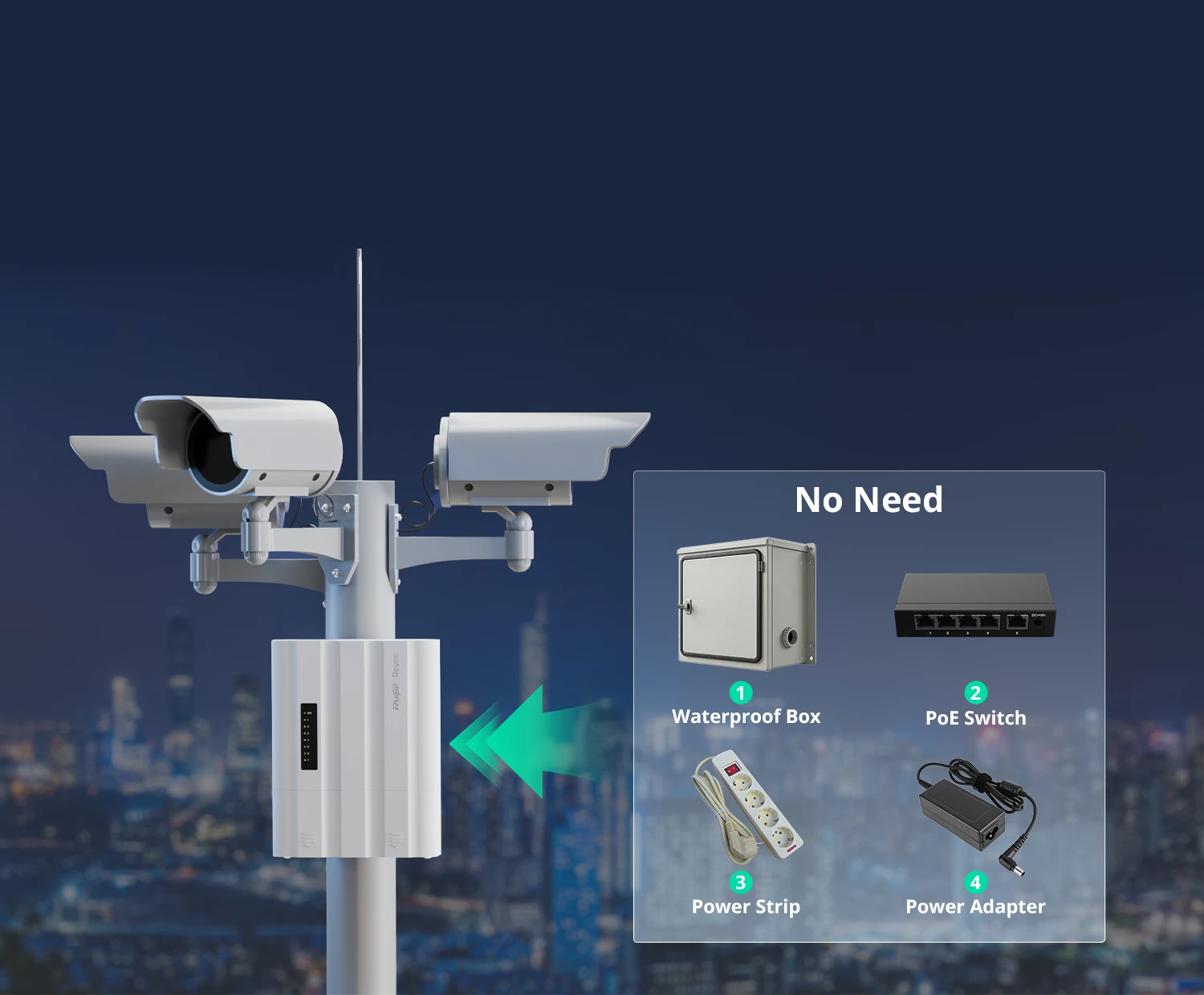

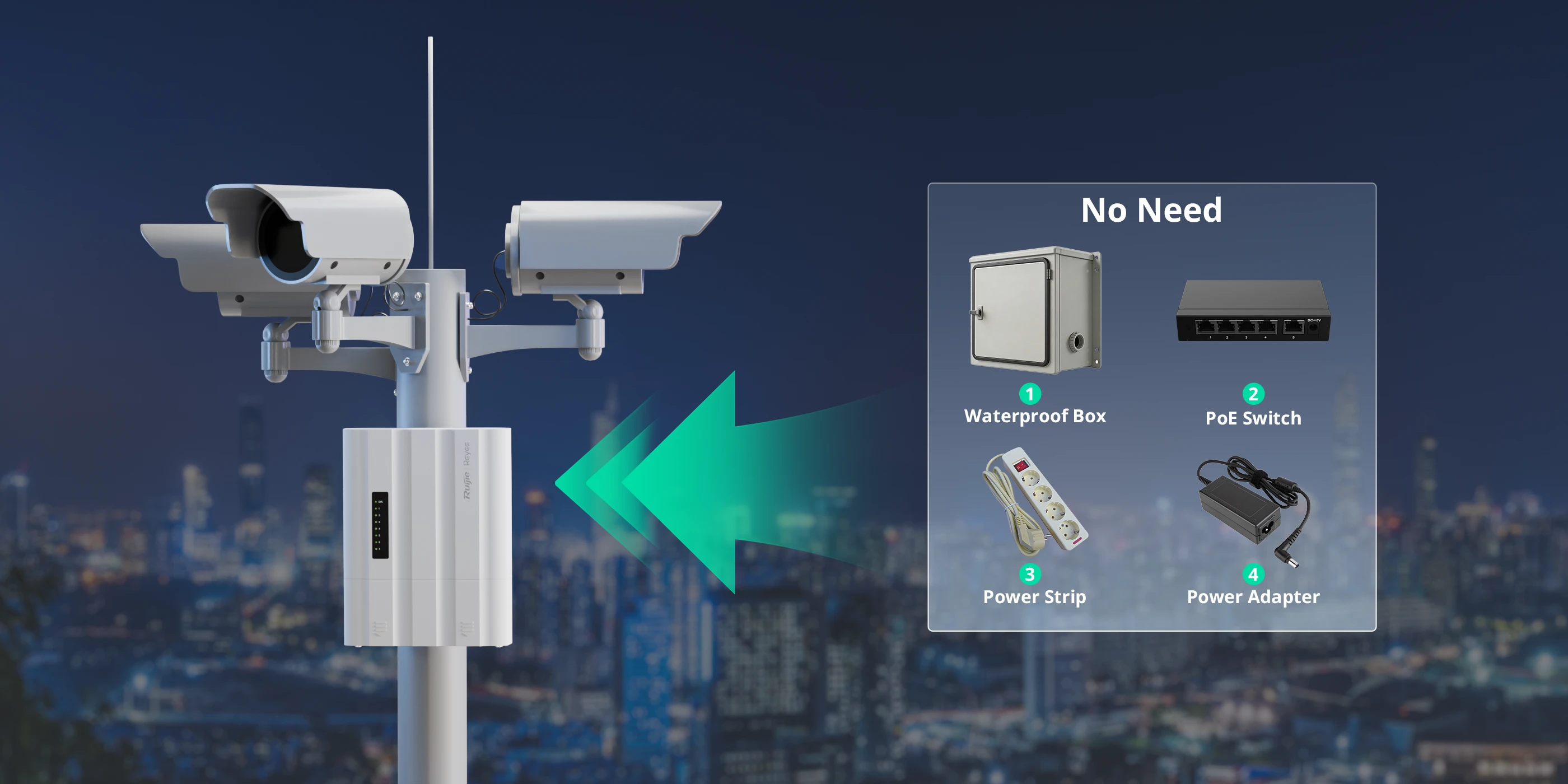

Todo en uno

Combina cuatro dispositivos en uno

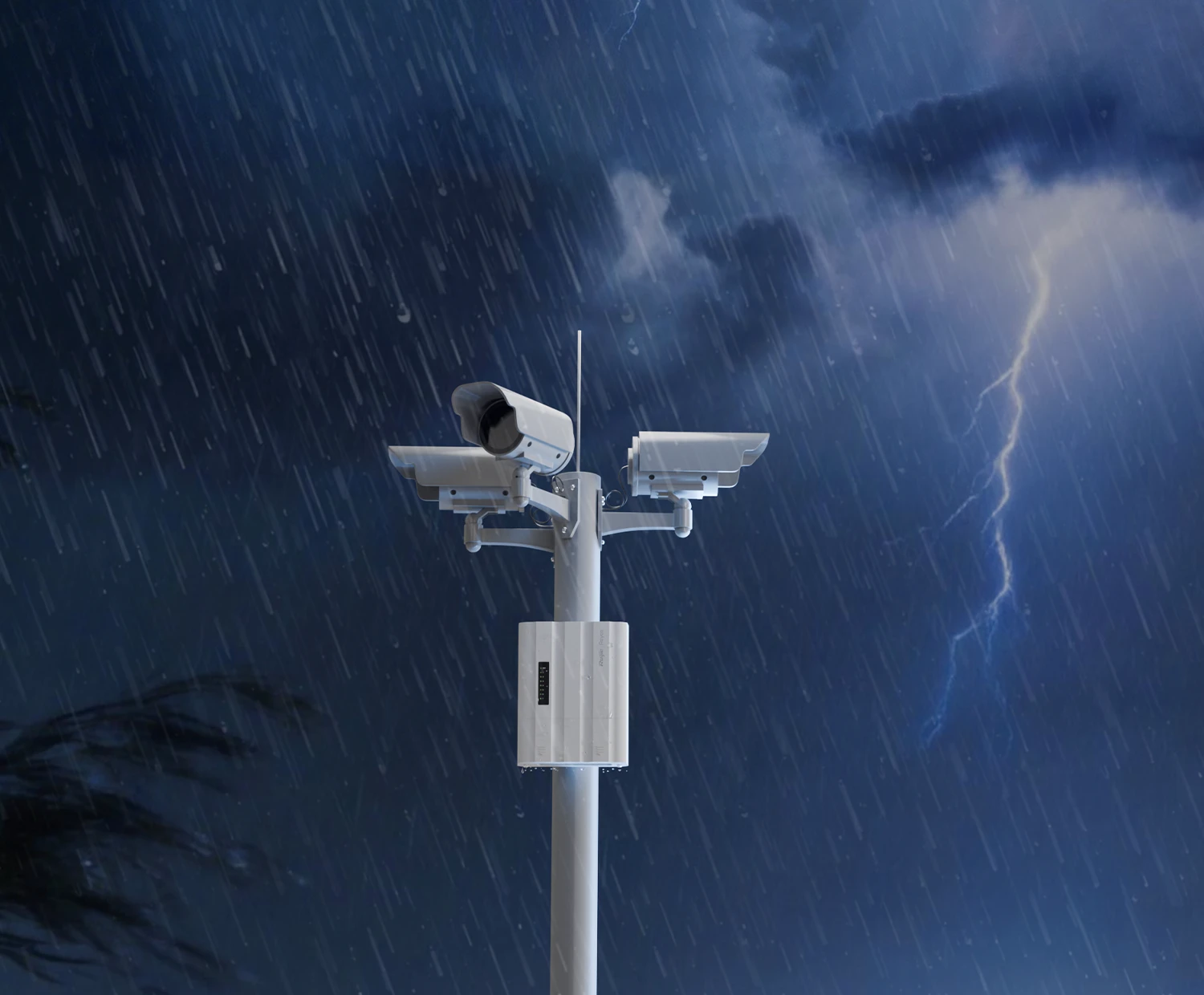

Alto nivel de resistencia al agua

Características aptas para exteriores y entornos adversos

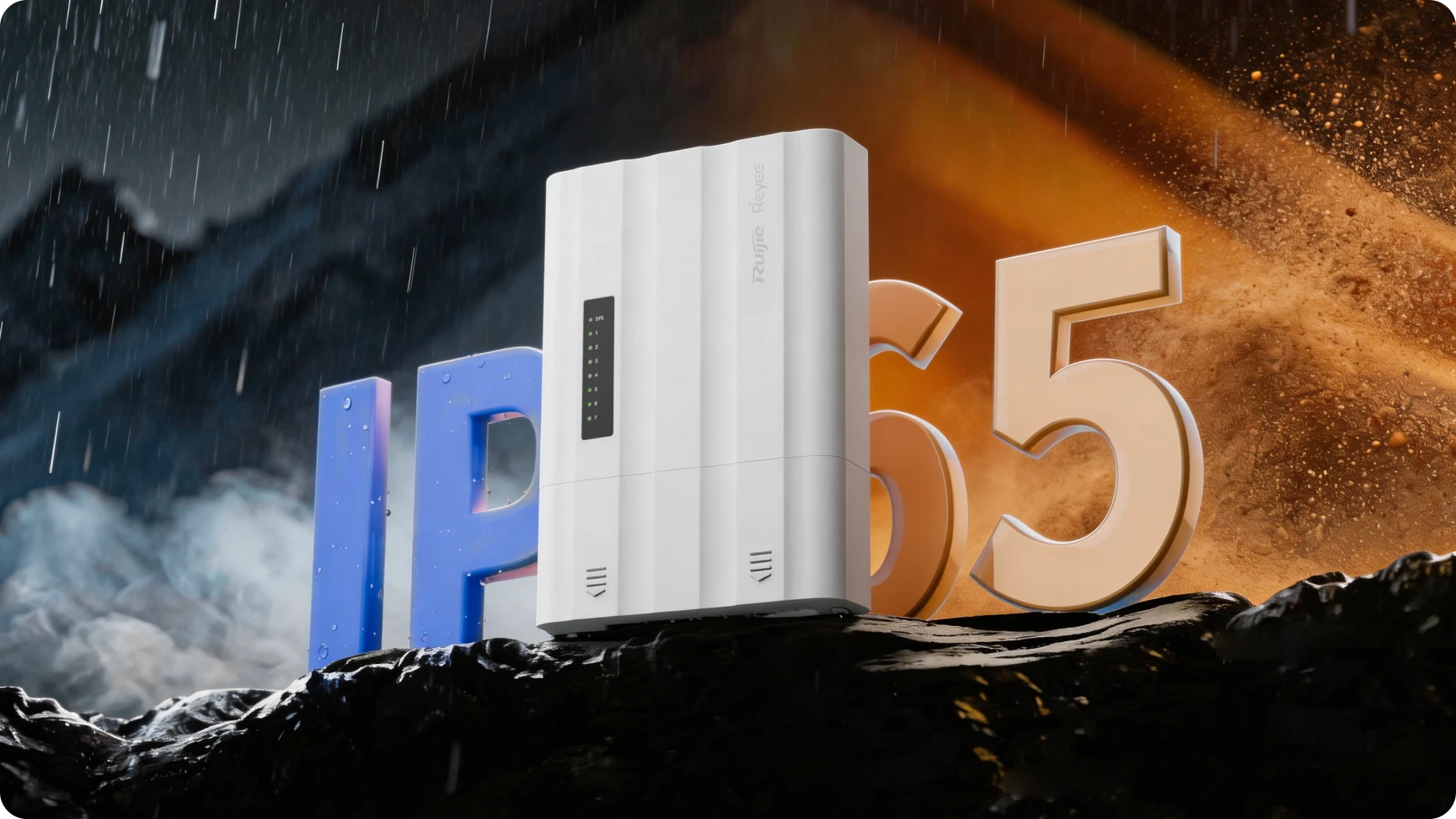

  • IP65

    Totalmente a prueba de polvo, Resistente al agua a presión

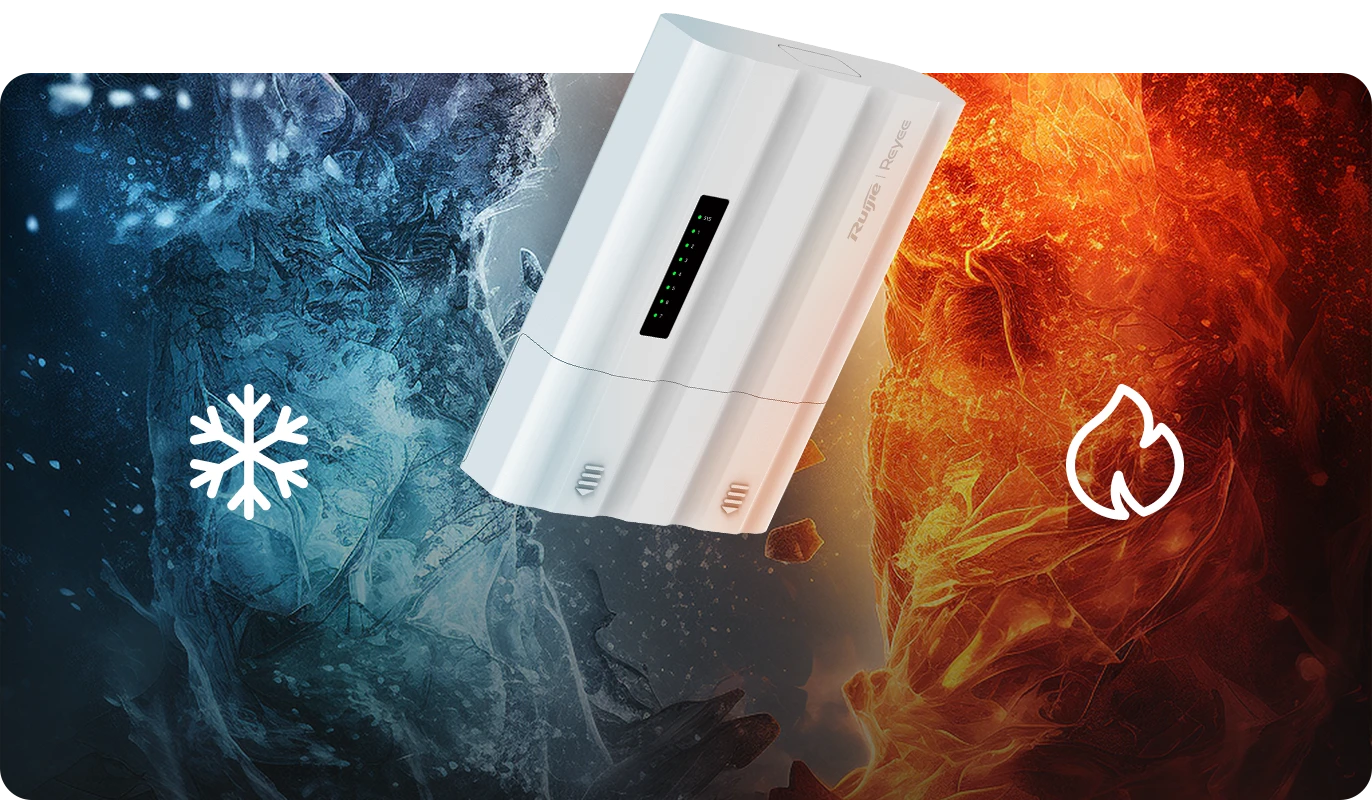

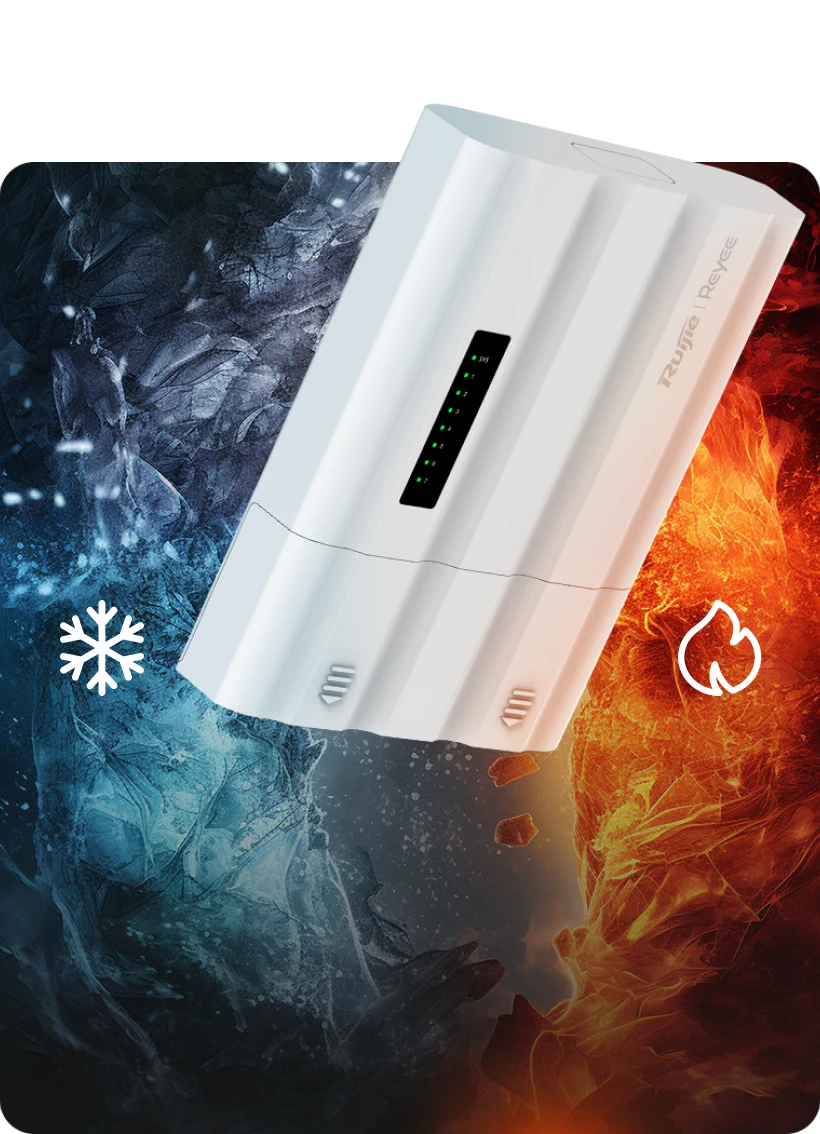

  • –30 °C a 65 °C (–22 °F a 149 °F)

    Amplio rango de temperatura de –30 °C a 65 °C

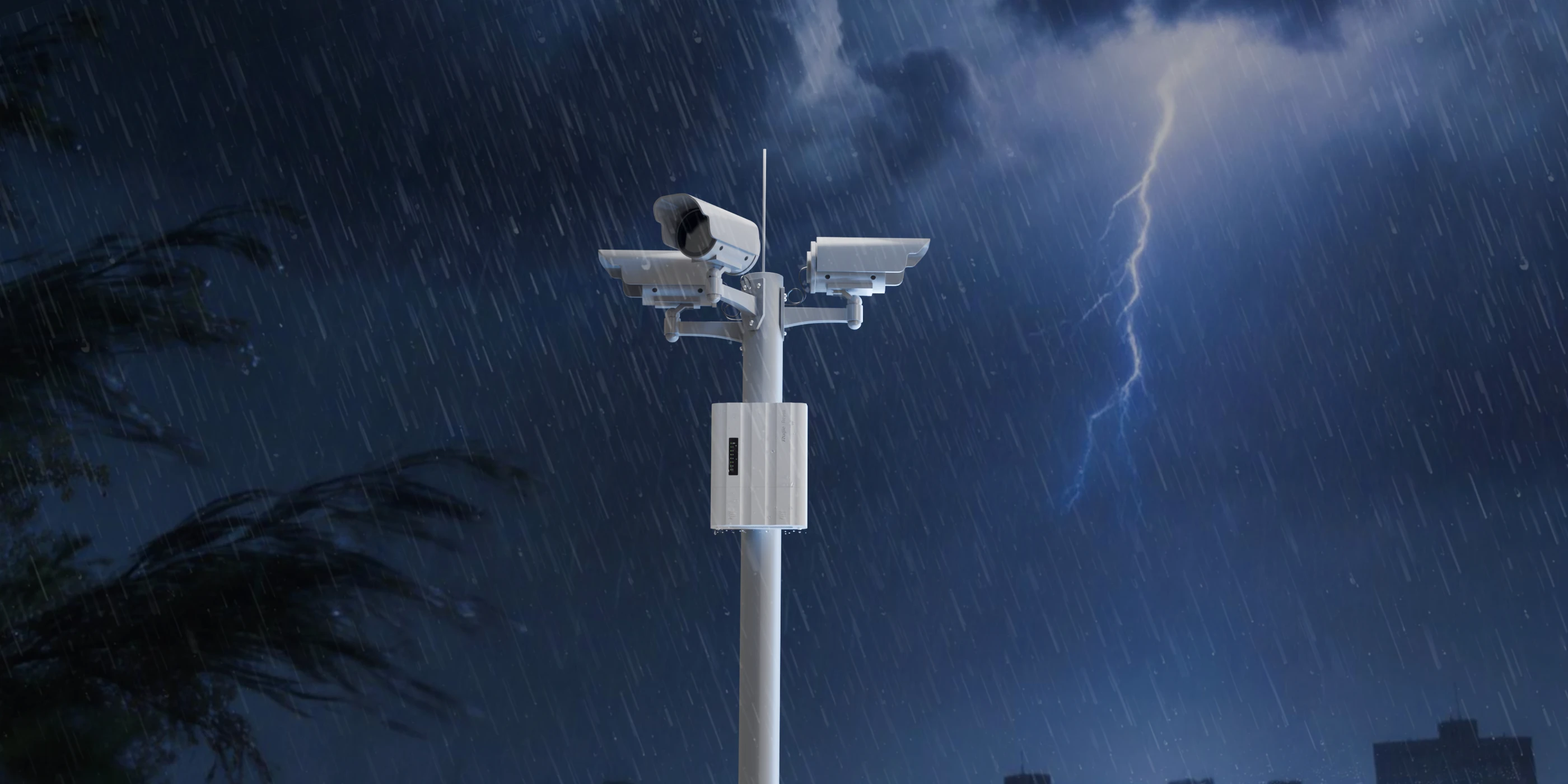

Protección contra sobretensiones PoE: ±8 kV

Protección confiable para la estabilidad de la red

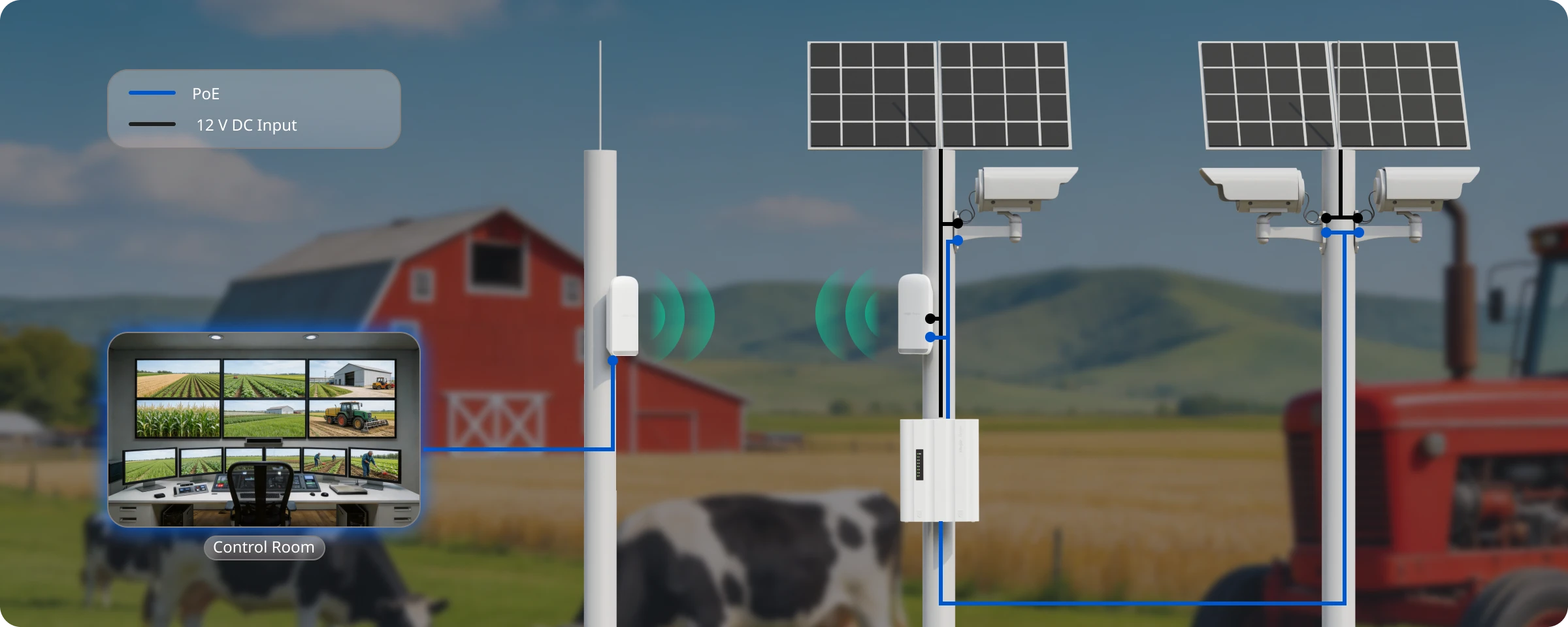

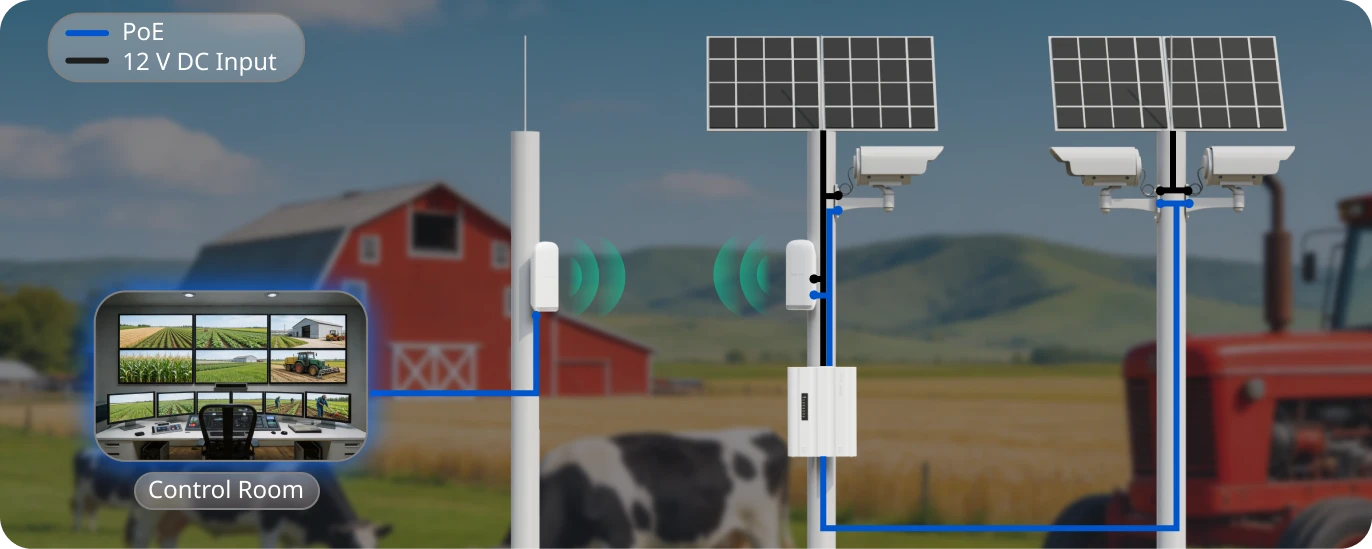

Enlace flexible

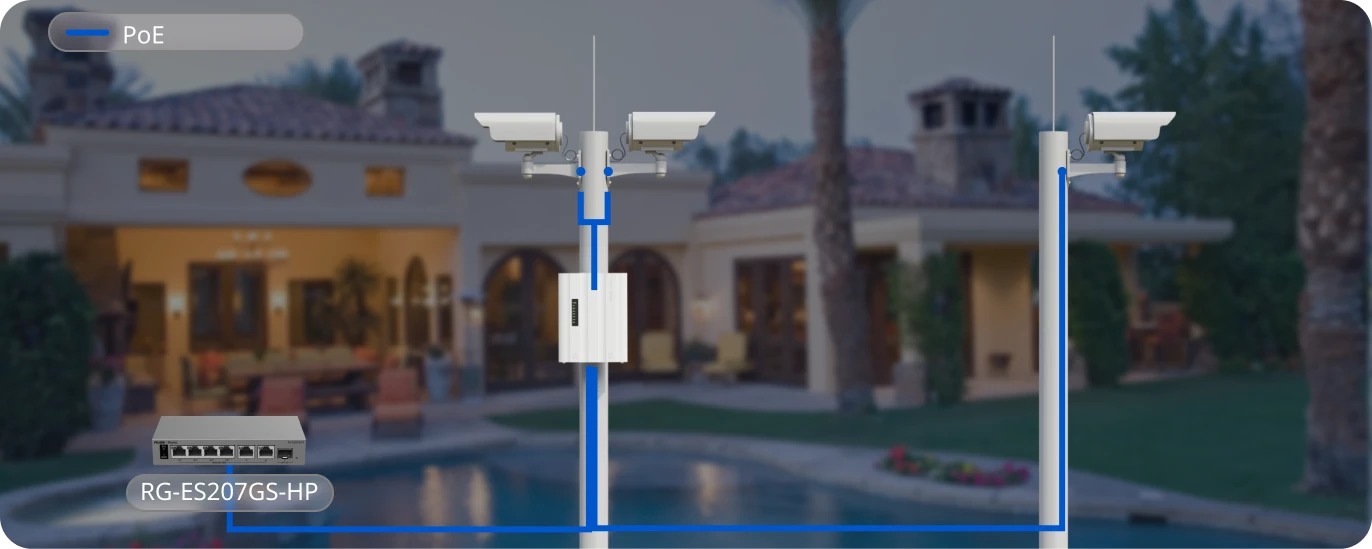

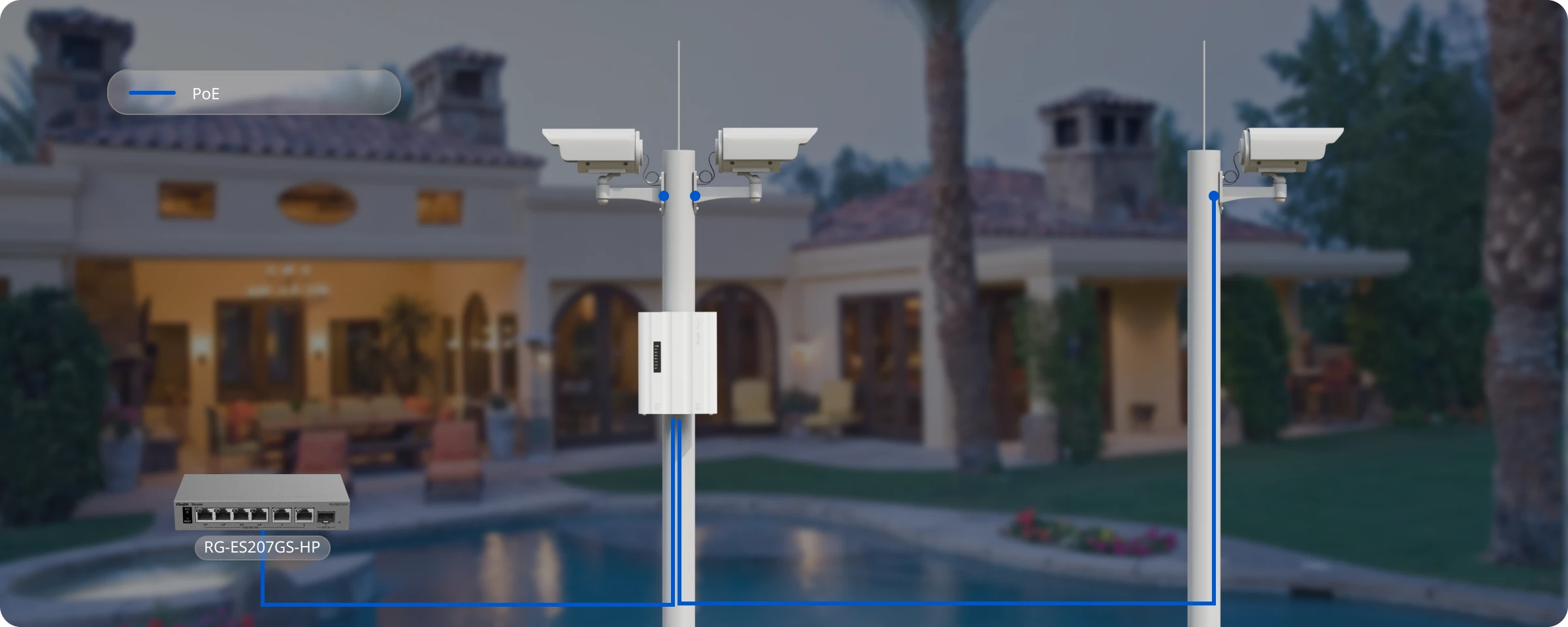

  • Entrada PoE

  • Energía solar

No se requiere cableado de alimentación dedicado

Entorno exterior alimentado por energía solar

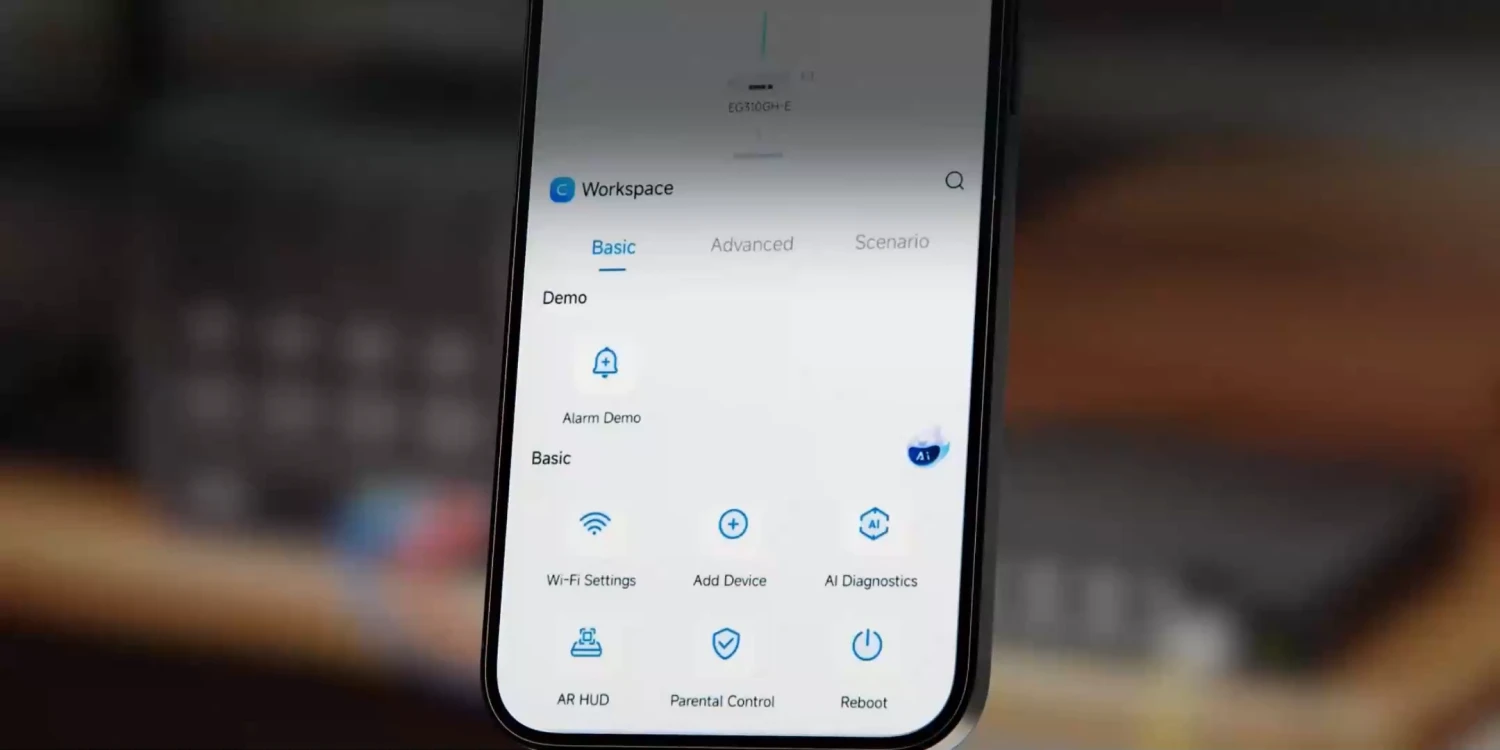

La nube facilita su negocio

Especificaciones clave
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 5
Total number of optical ports
  • 2
Number of 1GE SFP ports
  • 2
Number of 10/100/1000BASE-T ports
  • 5
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • PoE input (PoE++) at 90 W: 60 W
    PoE input (PoE++) at 60 W: 40 W
    PoE input (PoE+) at 30 W: 19 W
    PoE input (PoE) at 15.4 W: 6 W
PoE power pins
  • 1–2 (+), 3–6 (-)
Number of PoE In ports
  • 1
PoE In standard
  • ● IEEE 802.3af (PoE)
    ● IEEE 802.3at (PoE+)
    ● IEEE 802.3bt (PoE++)
System Specifications
Forwarding rate
  • 10.41 Mpps
Switching capacity
  • 14 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • –30°C to +65°C (-22°F to 149°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
Recursos All Resources
Installation
