RG-ES207GS-LP, Switch PoE yang Dikelola Cloud Pintar 6 Port Gigabit dengan 1 Port SFP

CCTV, Kantor, Hotel, Pabrik, Retail, dll.

Models
RG-ES228GS-LP

24 x Port PoE+ 10/100/1000BASE-T, 2 x Port 10/100/1000BASE-T, 2 x Port SFP 1GE, 250 W

 RG-ES228GS-P-V2

24 Port PoE+ 10/100/1000BASE-T, 2 Port 10/100/1000BASE-T, 2 Port 1GE SFP

 RG-ES220GS-P-V2

16 Port PoE+ 10/100/1000BASE-T, 2 Port 10/100/1000BASE-T, 2 Port 1GE SFP

 RG-ES207GS-LP

4 Port PoE+ 10/100/1000BASE-T, 2 Port 10/100/1000BASE-T, 1 Port 1GE SFP

 RG-ES207GS-P

4 Port PoE+ 10/100/1000BASE-T, 2 Port 10/100/1000BASE-T, 1 Port 1GE SFP

 RG-ES211GS-LP

8 Port PoE+ 10/100/1000BASE-T, 2 Port 10/100/1000BASE-T, 1 Port SFP 1GE

 RG-ES207GS-HP

2 Port PoE++ 10/100/1000BASE-T, 2 Port PoE+ 10/100/1000BASE-T, 2 Port 1GE, 1 Port SFP 1GE

 RG-ES211GS-P

8 x 10/100/1000BASE-T PoE+ Ports, 2 x 10/100/1000BASE-T Ports, 1 x 1GE SFP Port

 RG-ES206MG-P

4 x Port PoE+ 10/100/1000/2500BASE-T, 1 x Port SFP+ 10/100/2500BASE-T, 1 x Port SFP+ 10GE, Anggaran

RG-ES209MG-P

8 x Port PoE+ 10/100/1000/2500BASE-T, 1 x Port SFP+ 10GE, Anggaran PoE 130 W

 RG-ES220GS-LP

16 x Port PoE+ 10/100/1000BASE-T, 2 x Port 10/100/1000BASE-T, 2 x Port SFP 1GE, 130 W

 RG-ES205GC-P

5 Gigabit Ports, 4 PoE , 54W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES206GS-P

Switch Manage 6-Port Gigabit dengan 4 port PoE+, 1 Port Combo

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

 RG-ES209GC-P

9 Gigabit Ports, 8 PoE , 120W
Seri
Model Non-PoE Model PoE
Sales Enquiry
Add to Favorites
Fitur Penting
  • 1 Port 1GE SFP untuk Uplink Fleksibel
  • Switch Hemat Biaya
  • Pengenalan IPC untuk Nilai Jaringan CCTV yang Ditingkatkan
  • Perlindungan Pintar untuk Kelancaran Layanan
  • PoE Perpetual
  • Manajemen Masa Pakai di Ruijie Cloud Kapan Saja, Di Mana Saja
Sales Enquiry
Fitur

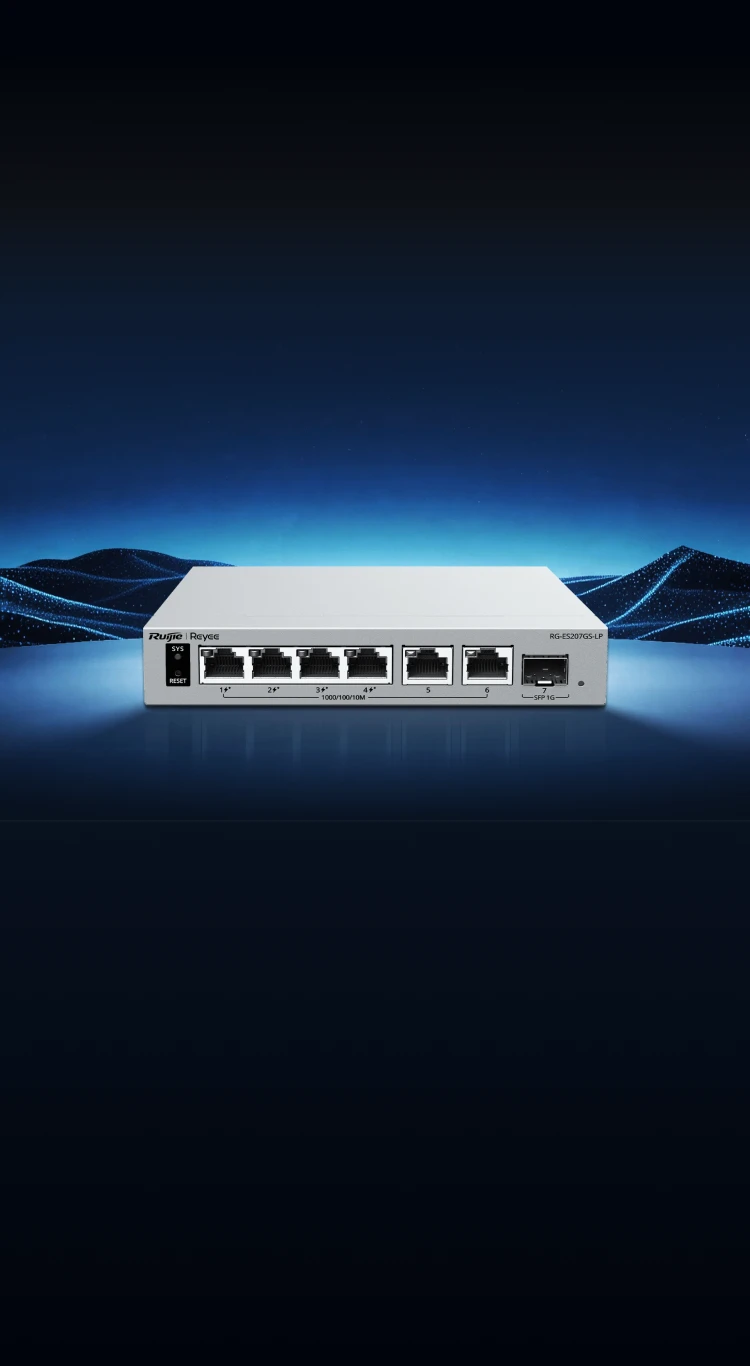

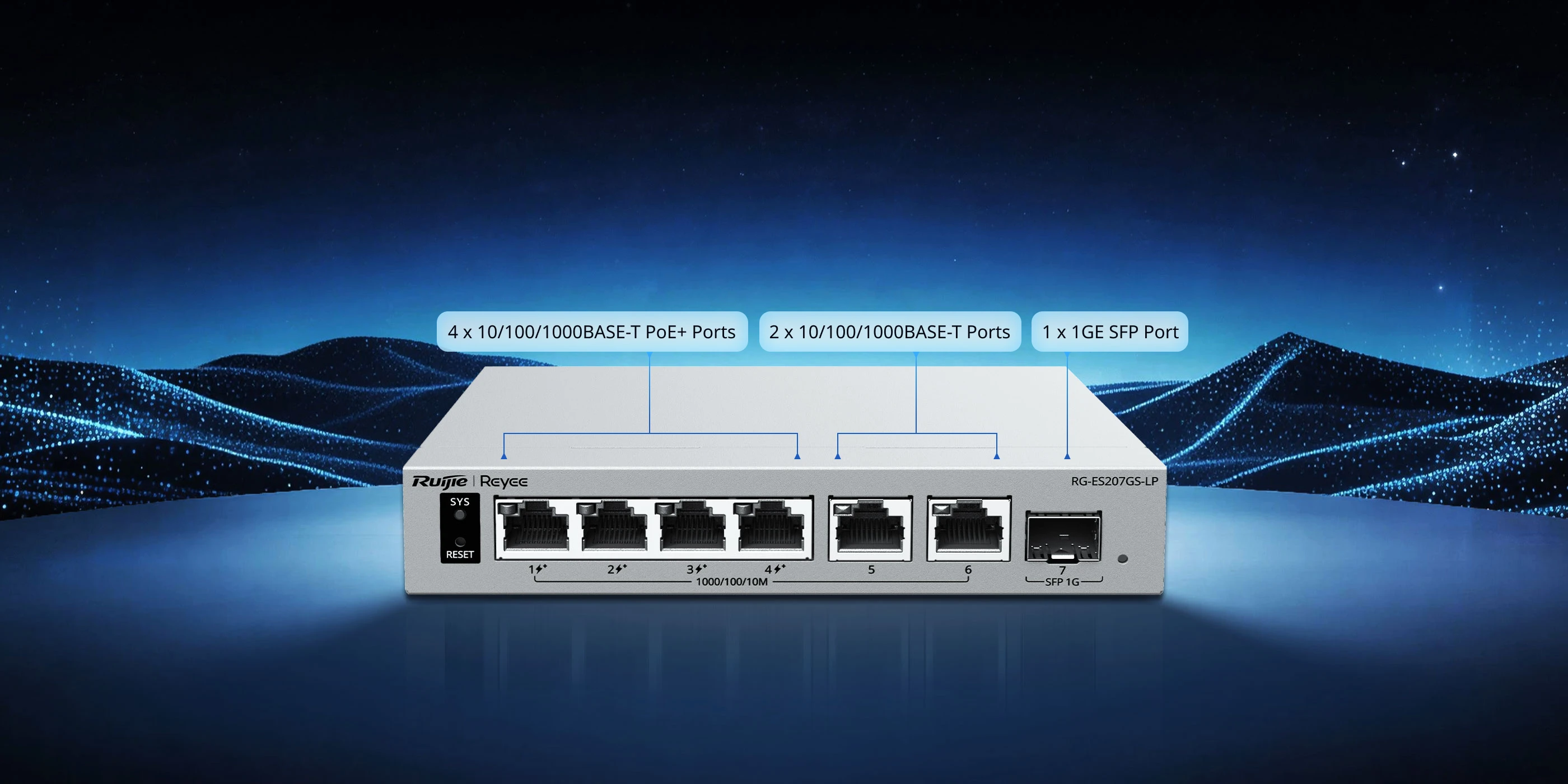

RG-ES207GS-LP

7-Port Gigabit Smart Cloud-
Managed PoE Switch

  • PoE Budget 40 W

  • Link Aggregation Supported

  • Flexible Uplink Options

  • 3-Year Warranty

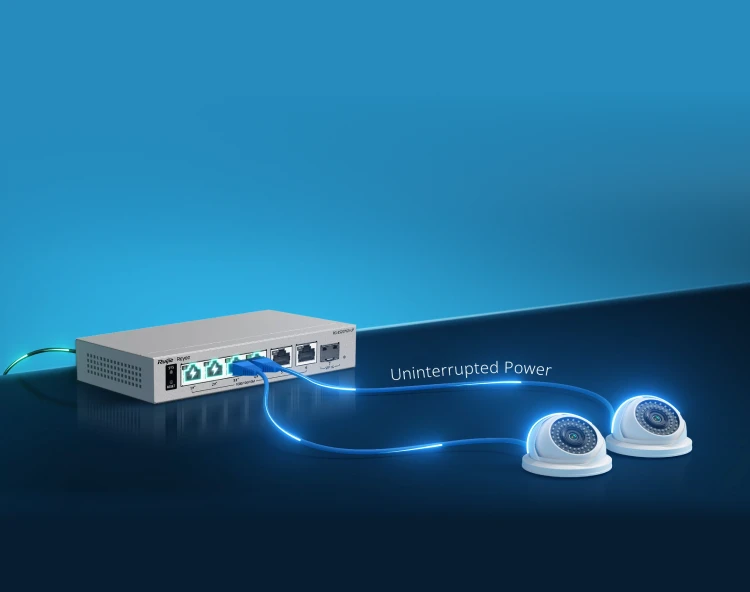

Perpetual PoE

PoE ports provide uninterrupted power even
during switch restarts.

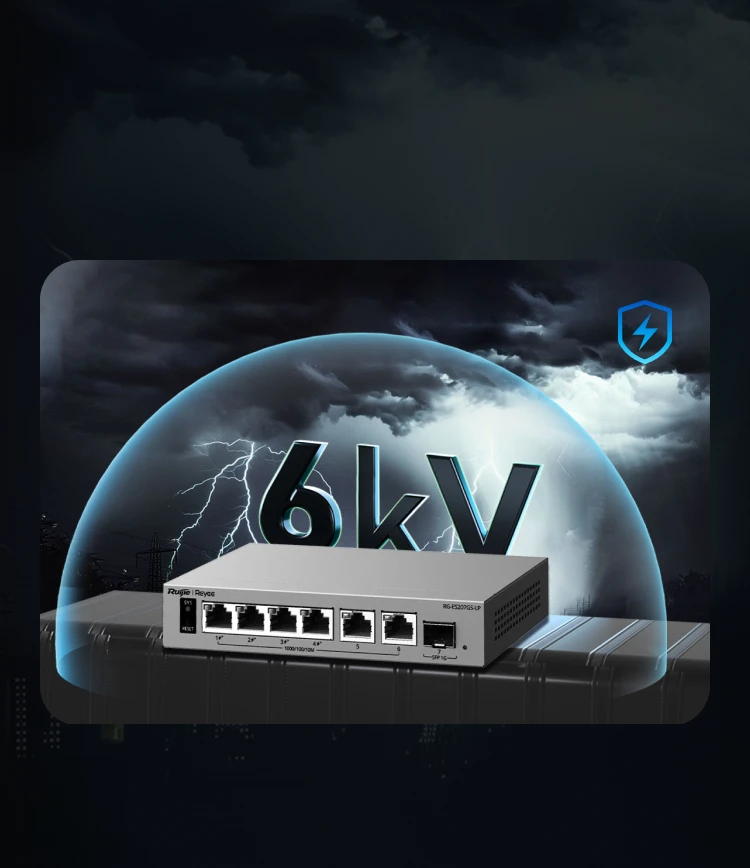

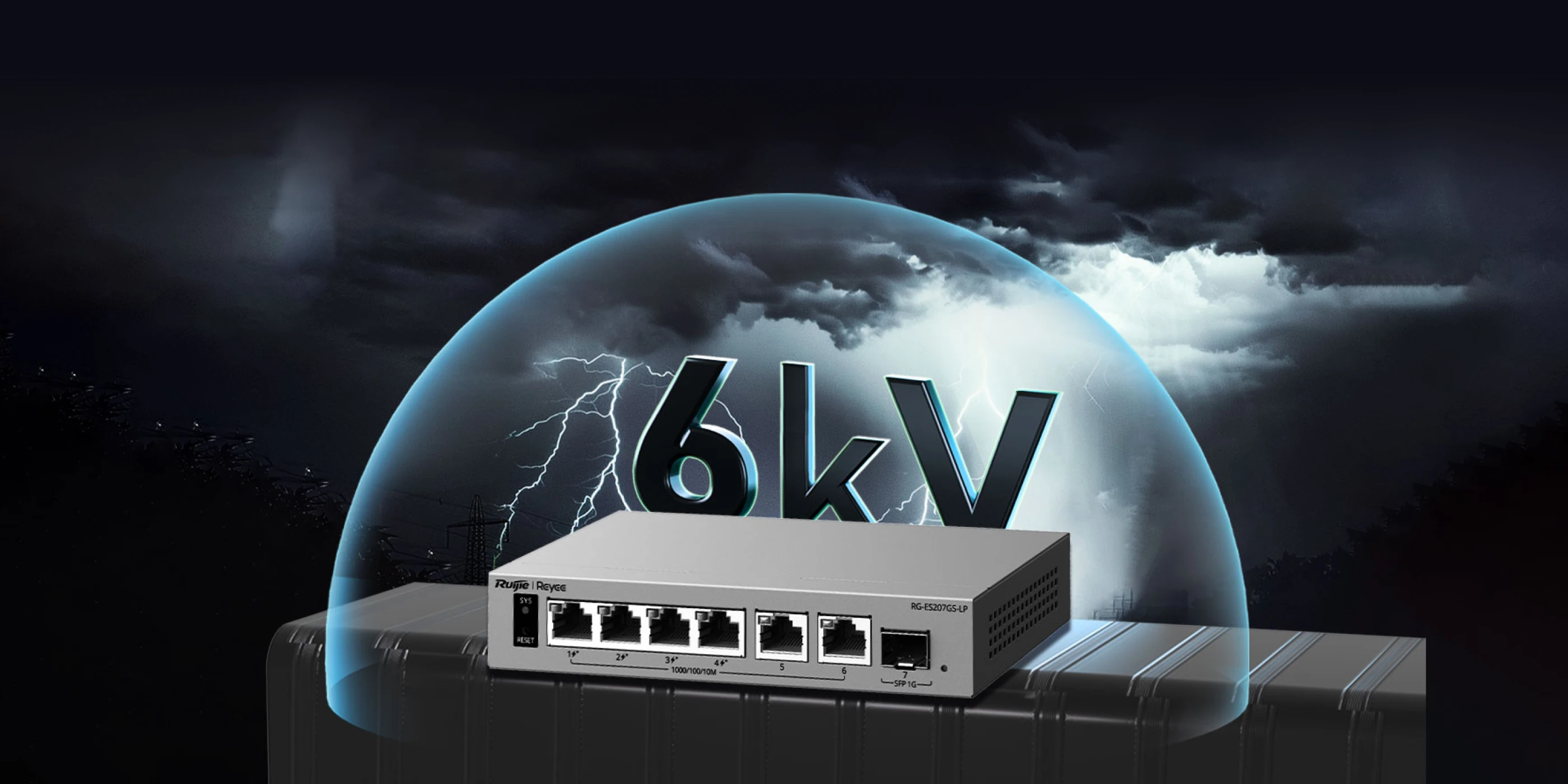

6 kV Surge Protection for Harsh Environments

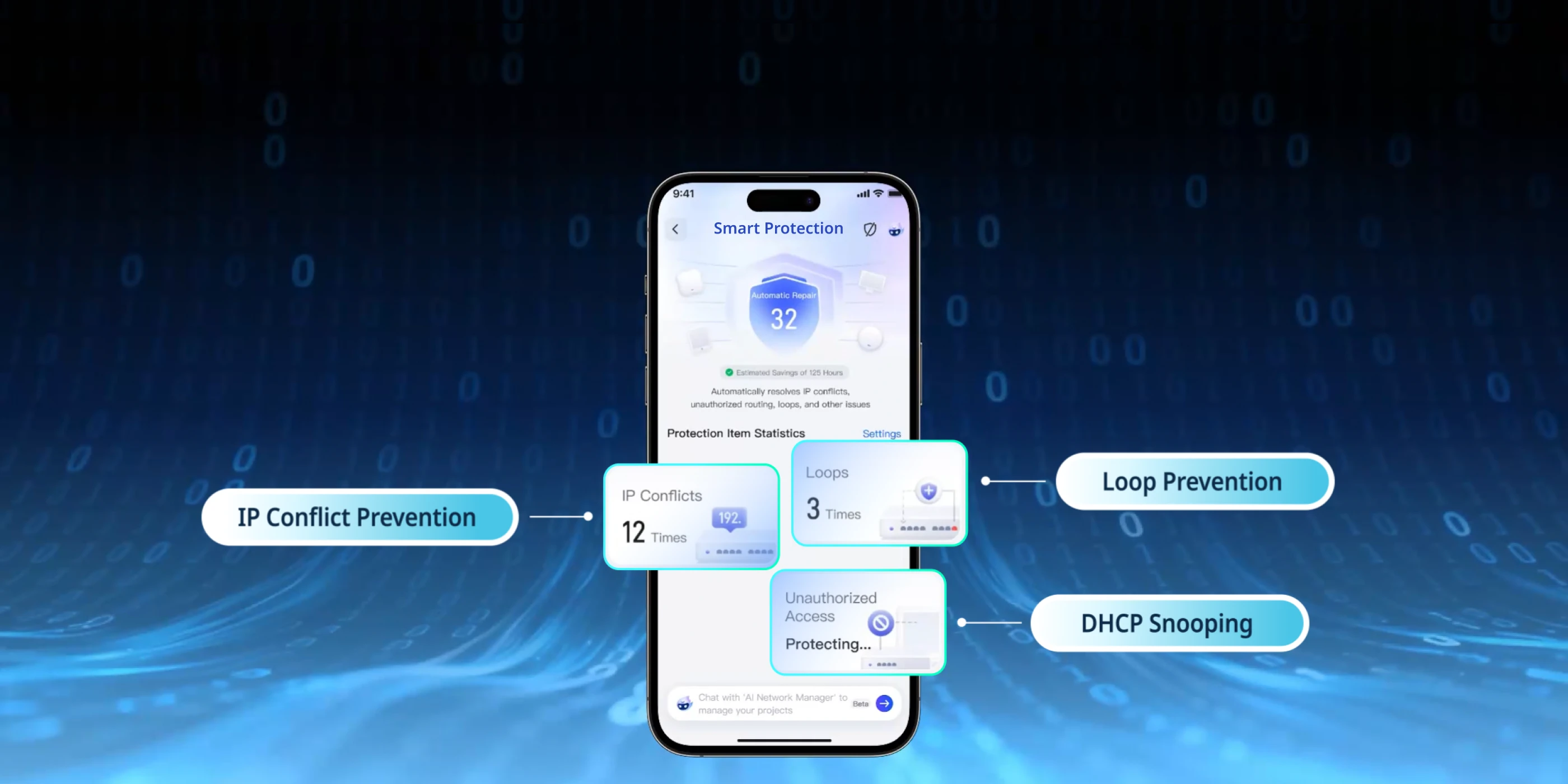

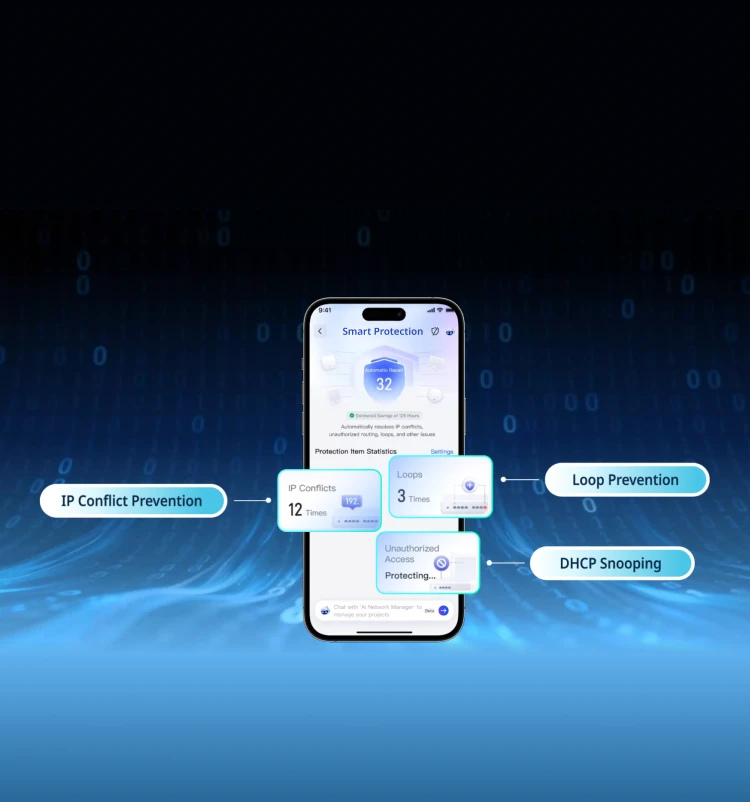

One Click Smart Protection to Prevent
Multiple After-Sales Issues

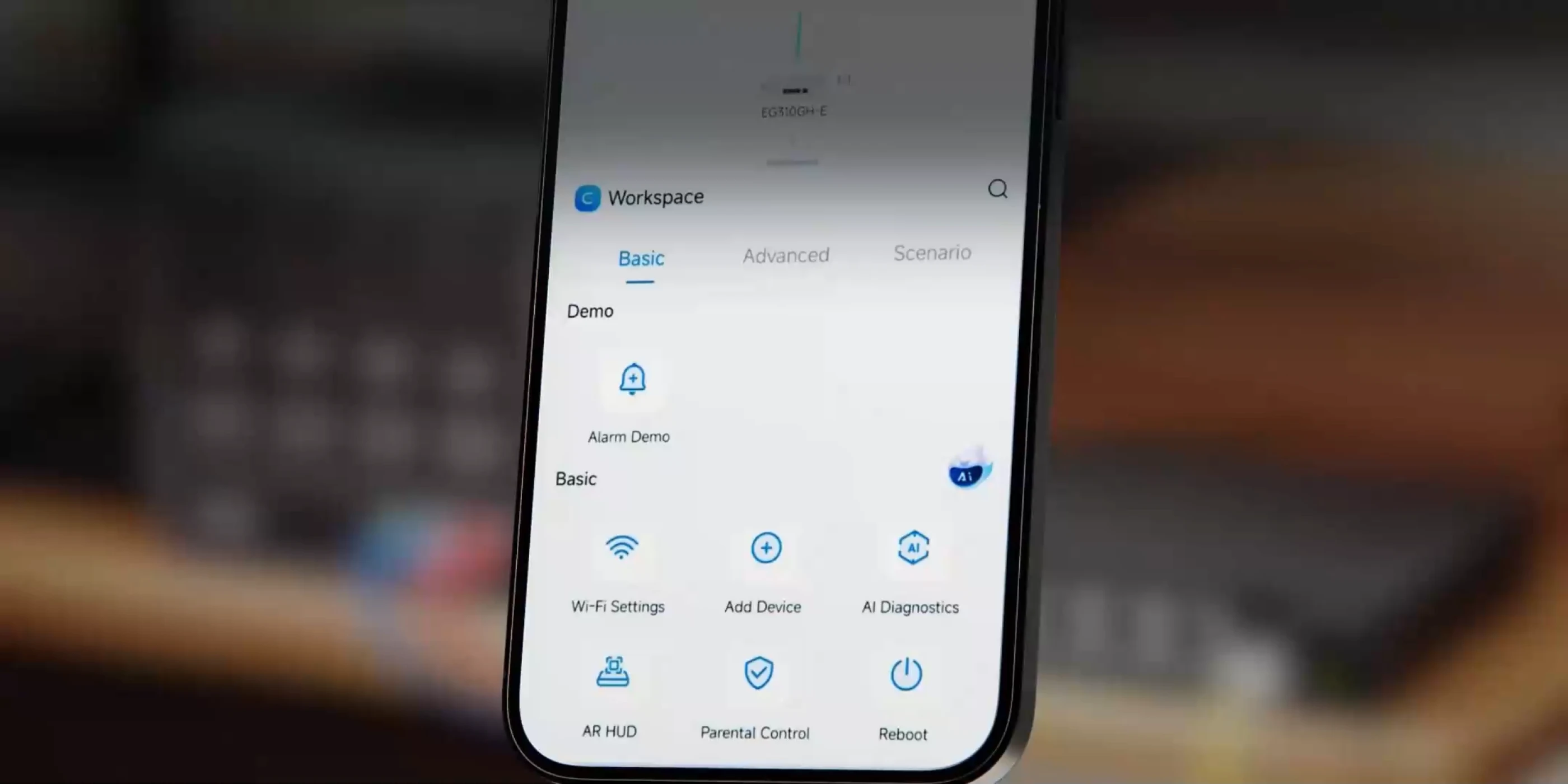

Cloud, Make Your Business Easy

Spesifikasi Utama
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 6
Total number of optical ports
  • 1
Number of 1GE SFP ports
  • 1
Number of 10/100/1000BASE-T ports
  • 6
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • 40 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 10.41 Mpps
Switching capacity
  • 14 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • 0°C to +40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
