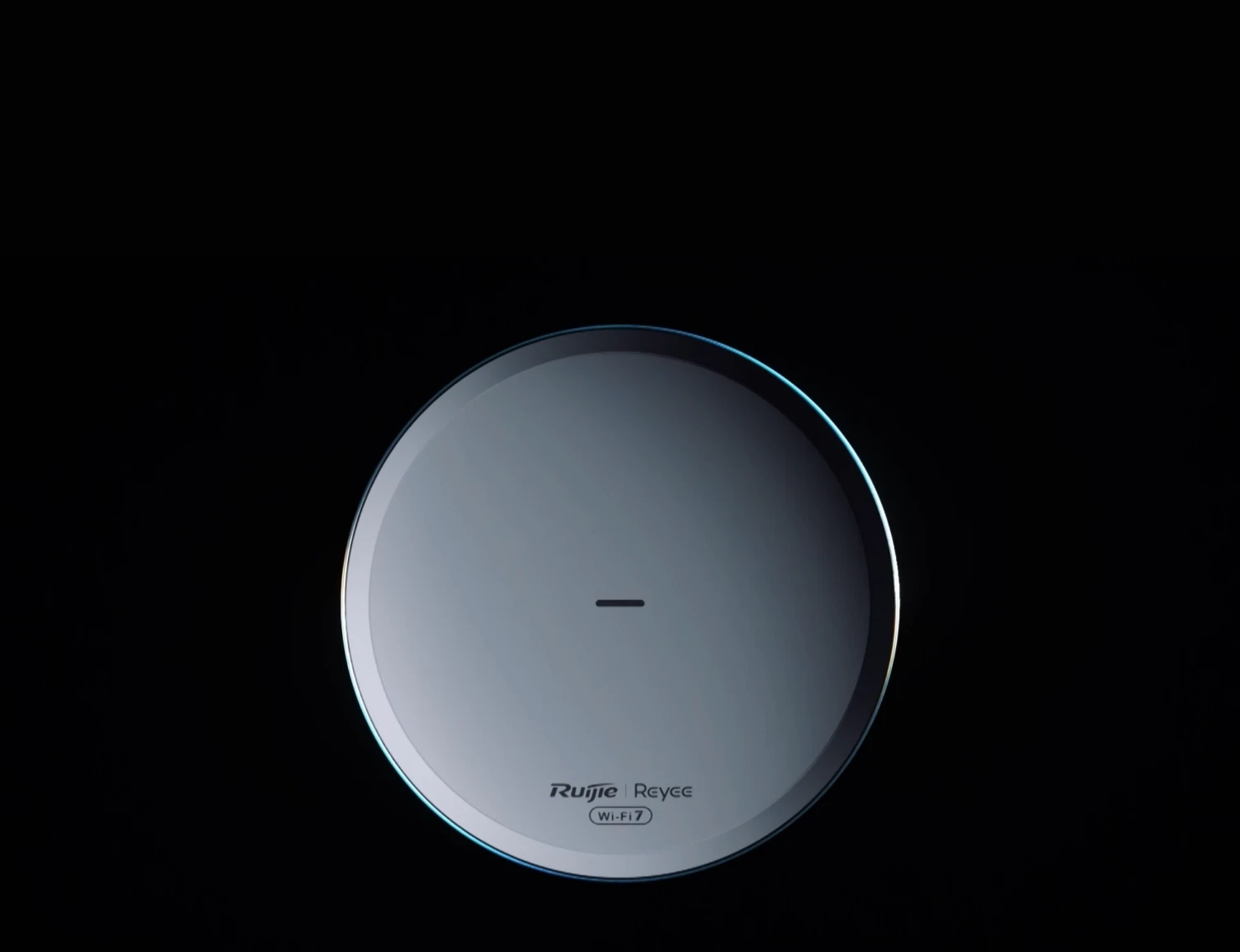

RG-RAP72, Access Point Langit-Langit Wi-Fi 7 BE3600

Rumah pintar, hotel, kantor, dll.

Models
RG-RAP72Pro

Wi-Fi 7,BE5040,Port 2.5GE

 RG-RAP73HD

Wi-Fi 7, 18658 Mbps, 1 x 10G, 1 x GE, 1 x SFP+, MLO

 RG-RAP72

Wi-Fi 7, BE3060, Port 2.5GE
Seri
AP Ceiling Wi-Fi 5 AP Ceiling Wi-Fi 6 AP Ceiling Wi-Fi 7
Datasheet Sales Enquiry
Add to Favorites
Fitur Penting
  • AP langit-langit Wi-Fi 7 yang didukung AI dengan kinerja radio ganda
  • Mendukung Optimasi AI (WIO 3.0)
  • Pemasangan mudah, ukuran kompak
  • Desain sirkular baru, berpadu sempurna di berbagai gaya dekorasi
  • Dirancang khusus untuk kebutuhan bisnis menggunakan Reyee Mesh, portal mandiri, dan fitur roaming AI
Sales Enquiry
Fitur

  • Kecepatan Generasi Berikutnya, Dalam Jangkauan

  • Performa Pro, Harga Pemula

    Wi-Fi 7 | Port 2,5 GbE | BE3600

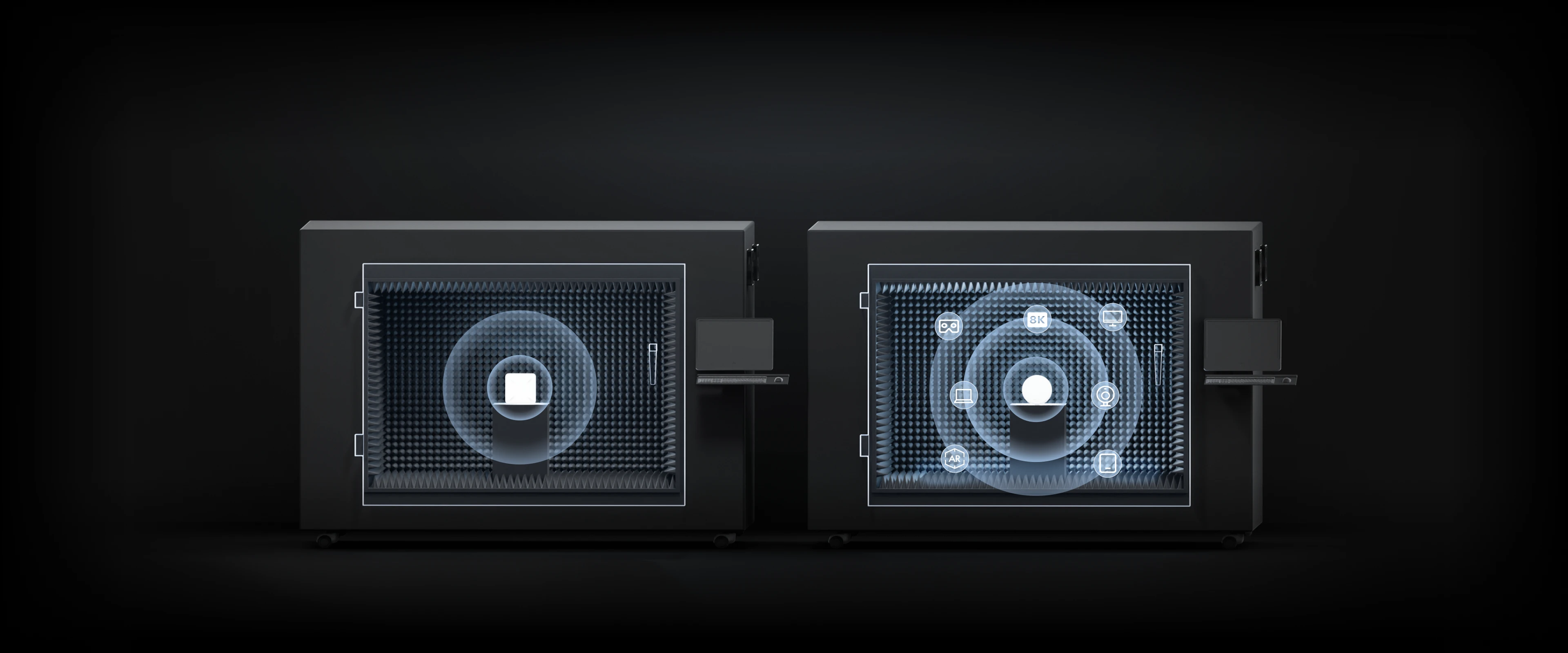

Algoritma Tingkat Perusahaan untuk Optimasi Sinyal

    • Performa Pro, Harga Pemula

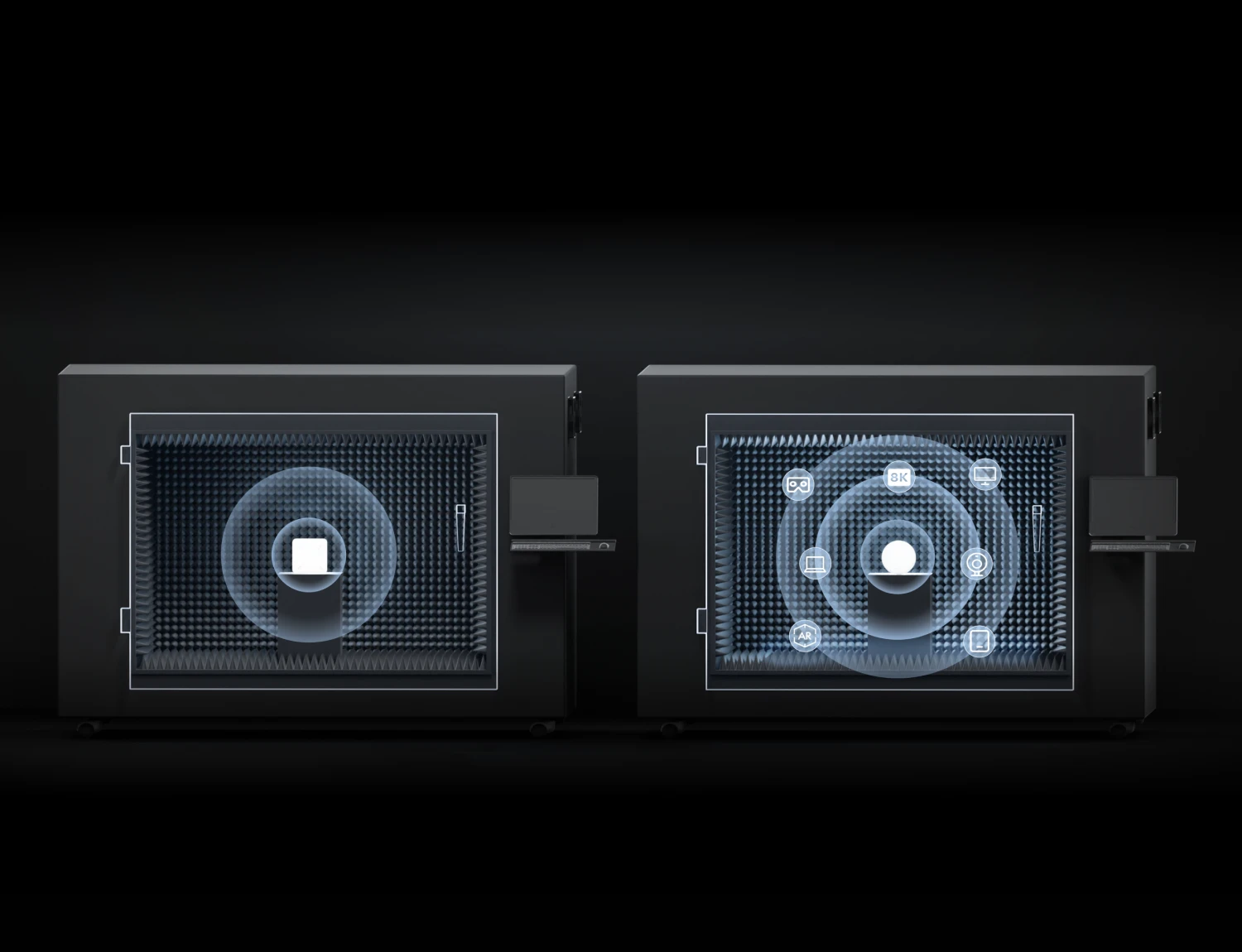

      Cakupan: 110 ㎡ vs Standar 140 ㎡ @ 5 GHz

      Perangkat WiFi 6 tradisional: 110㎡ / 1184,03 kaki persegi

      RAP72: 140 ㎡ /
      1506,95 kaki persegi

  • Kecepatan Sebenarnya: 2,714 Mbps
    (Lingkungan Laboratorium)

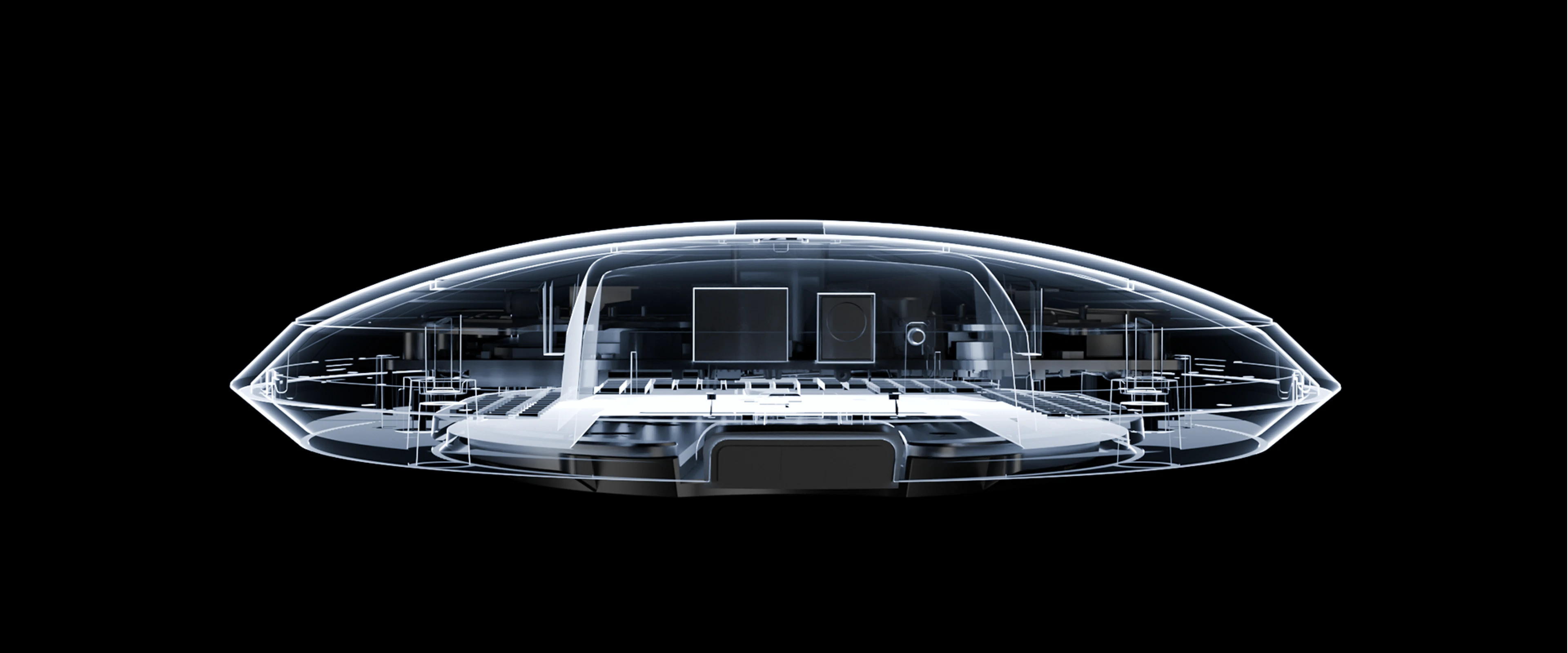

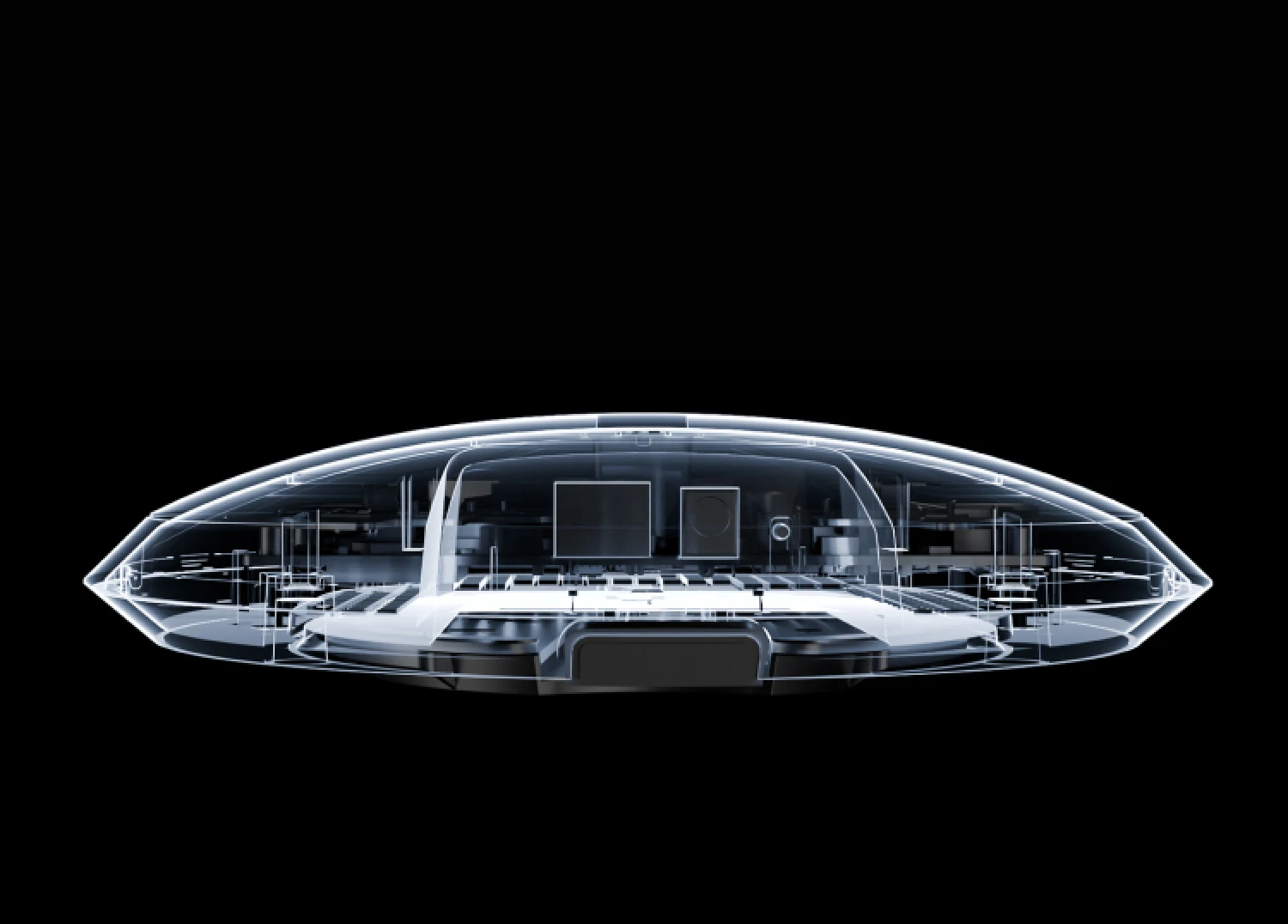

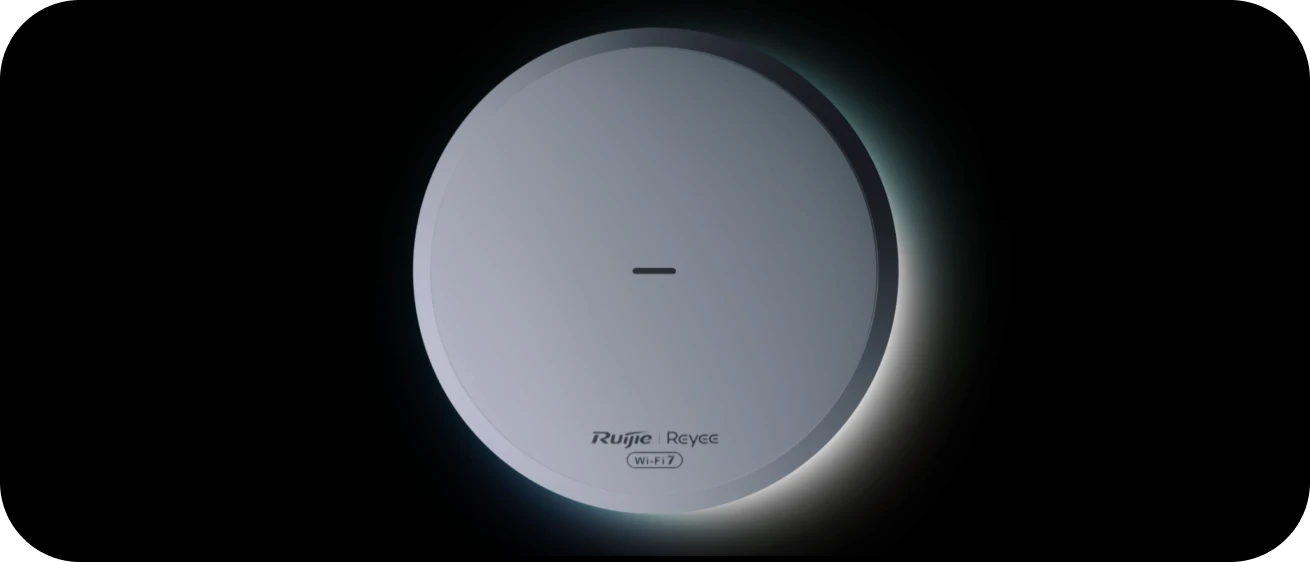

Saat Minimalisme Dipadu dengan Penguasaan Sinyal

  • Dari Konsep Poligon ke
    Bentuk Omni-Directional Optimal

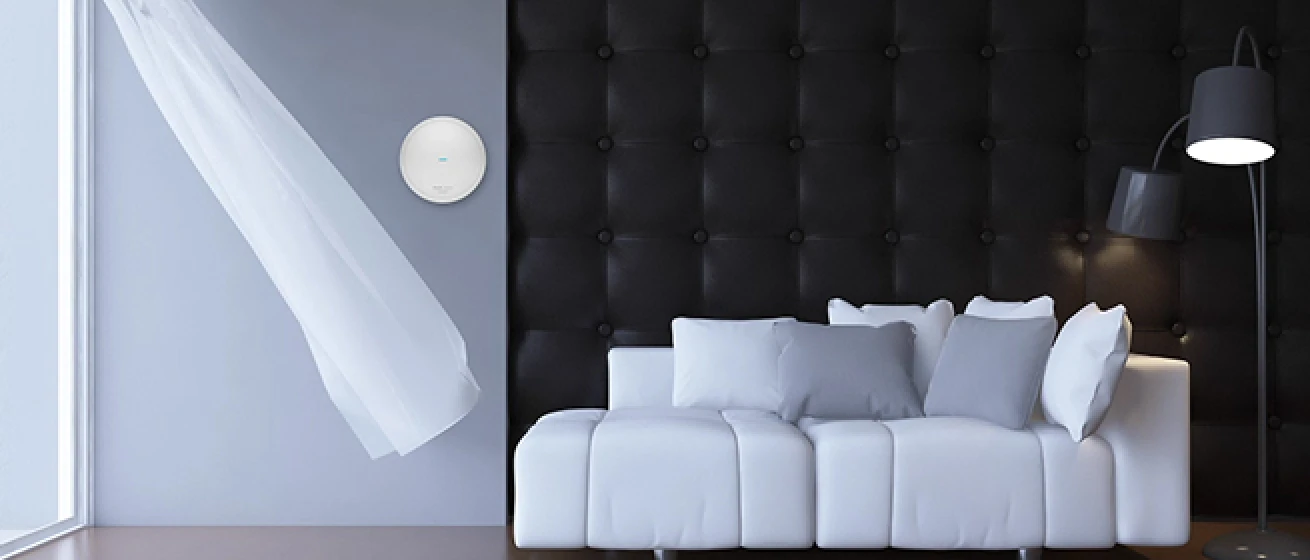

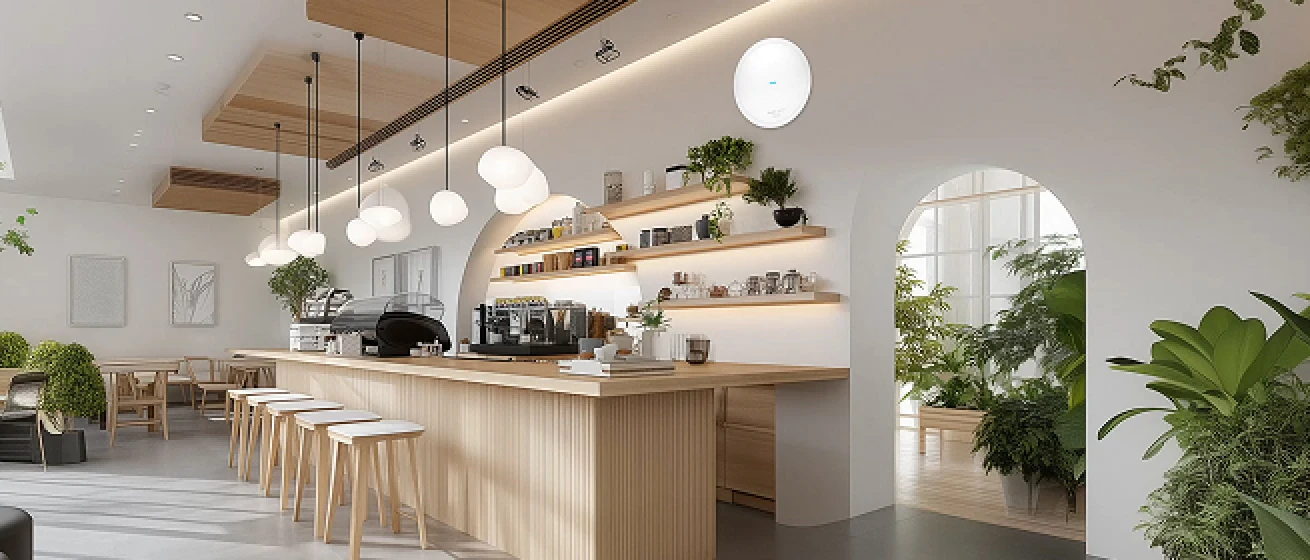

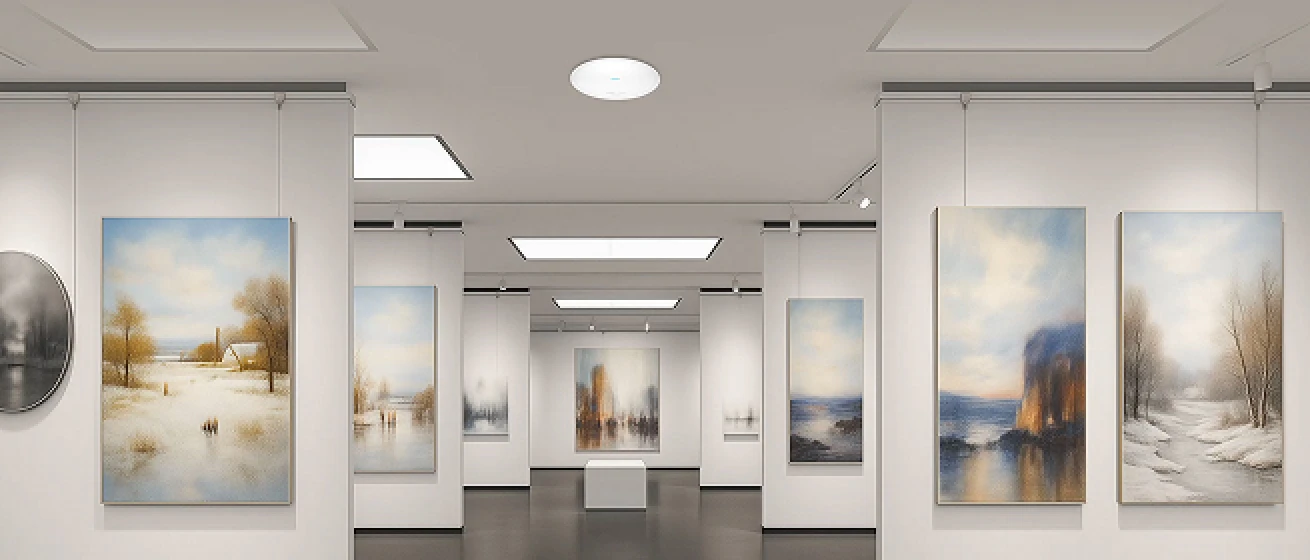

  • Integrasi Sempurna
    di Ruang Modern

  • Integrasi Sempurna
    di Ruang Modern

  • Integrasi Sempurna
    di Ruang Modern

Satu Perangkat Lagi, Kemungkinan Tak Terbatas

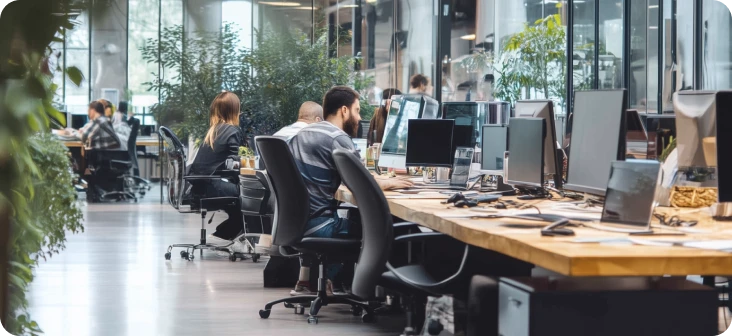

  • Area Kantor

    100+ Koneksi Serentak

  • Zona Permainan

    < 10 md Latensi Dijamin

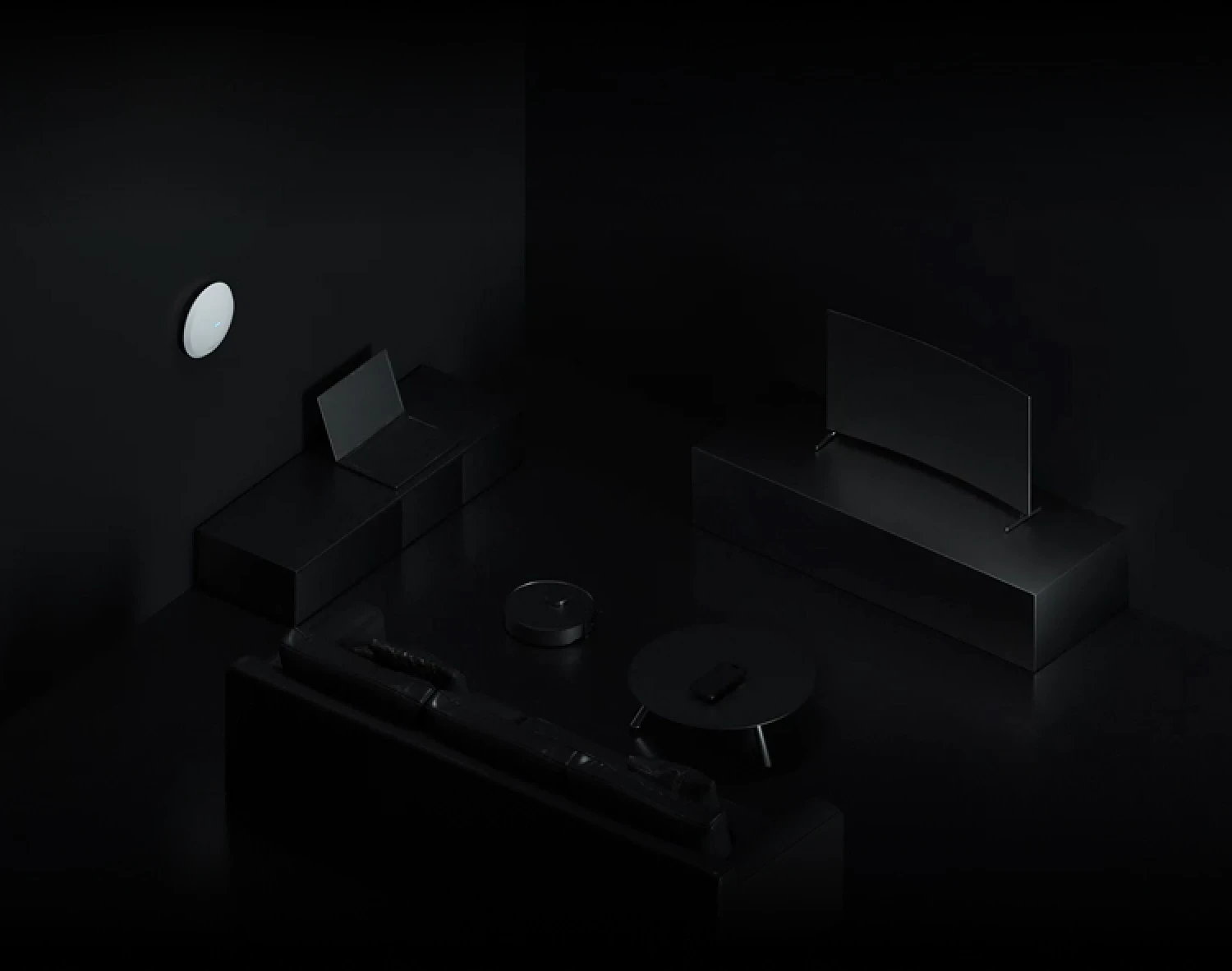

  • Skenario rumah

    - 20 °C hingga 60 °C Rentang Operasional

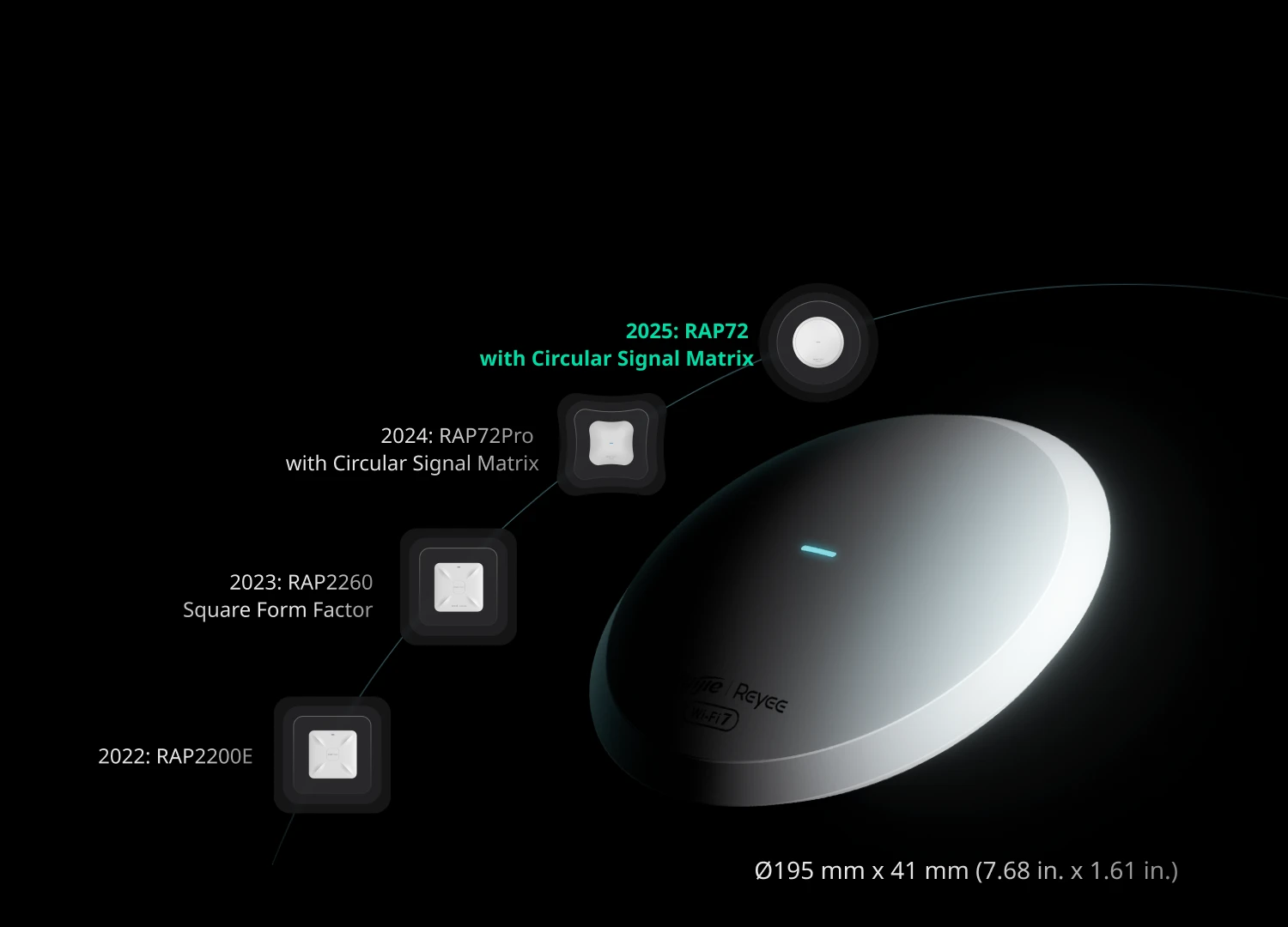

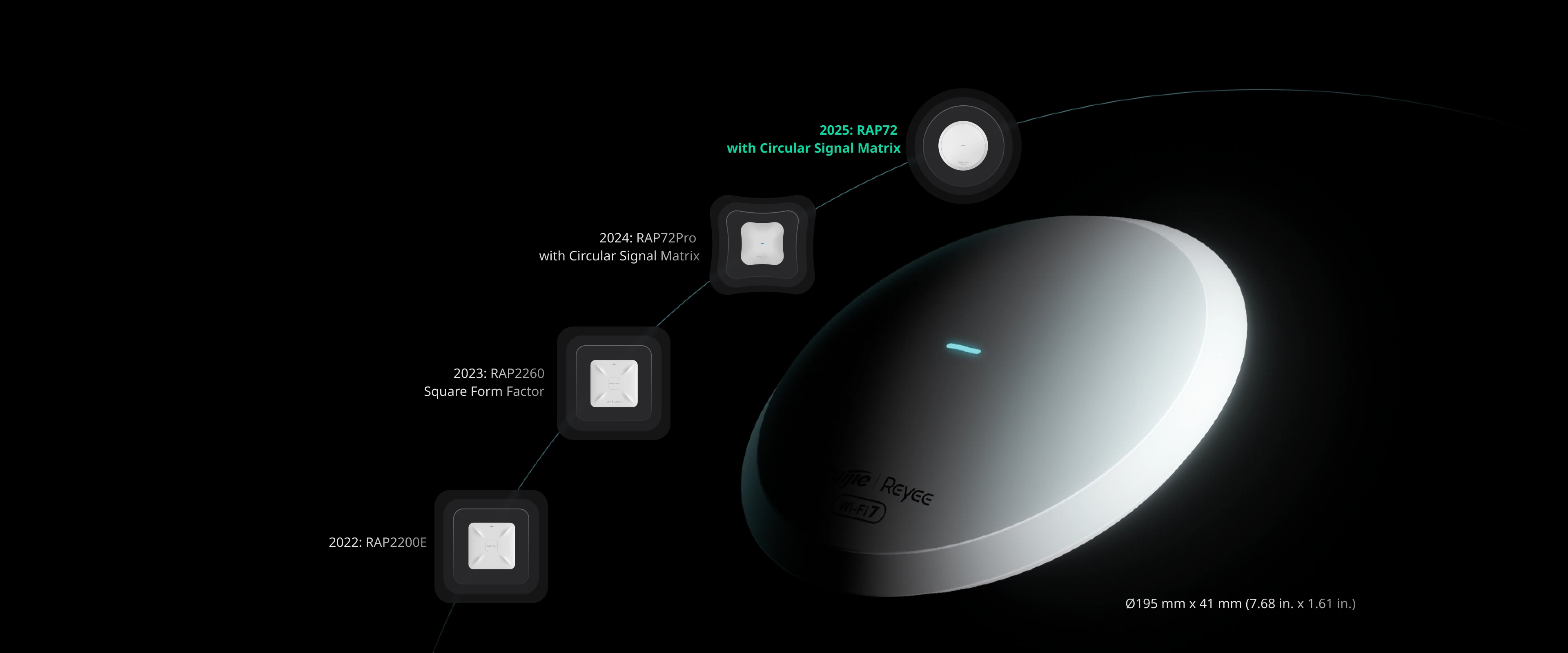

Desain yang Berkembang,
Keunggulan yang Konsisten

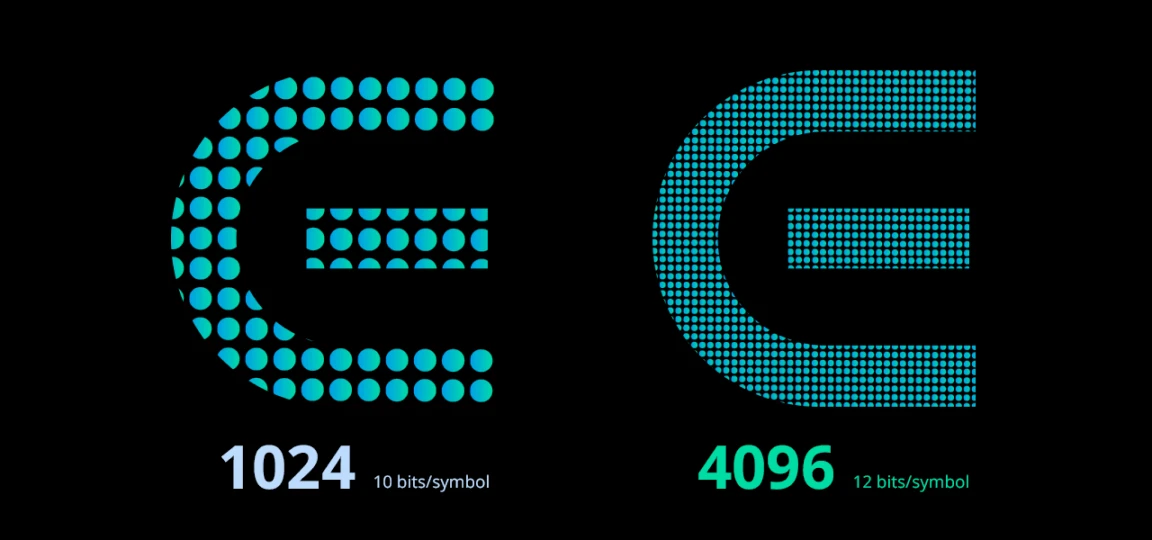

4K QAM

4K QAM

Memberikan kecepatan data hingga 20% lebih cepat untuk streaming dan game yang ultra responsif

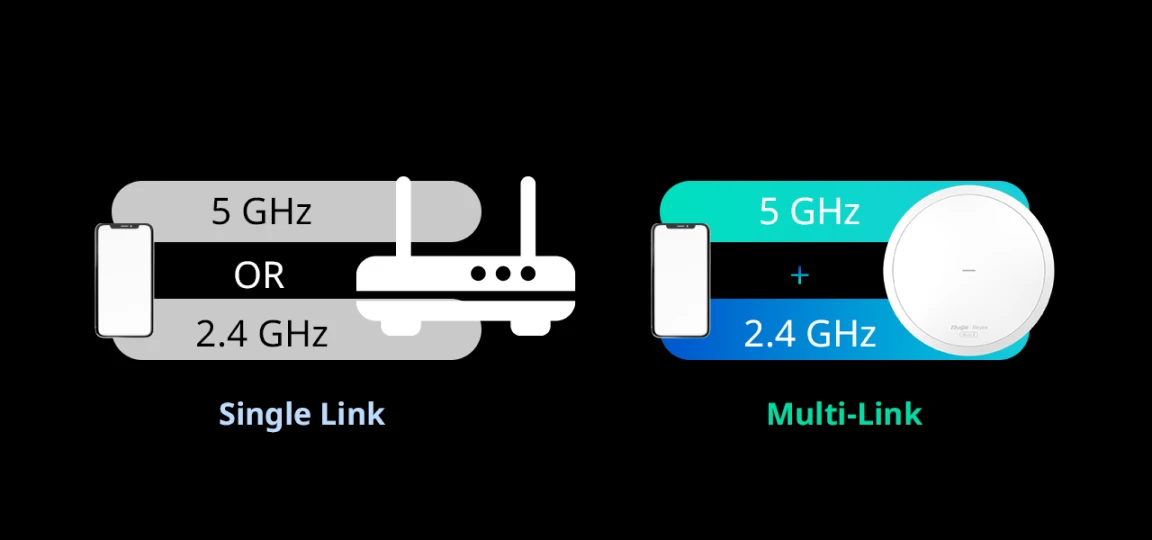

MLO

Operasi Multi-Link

Memastikan konektivitas yang lancar dan mengurangi kelambatan dengan menggabungkan pita 2,4 GHz dan 5 GHz secara bersamaan

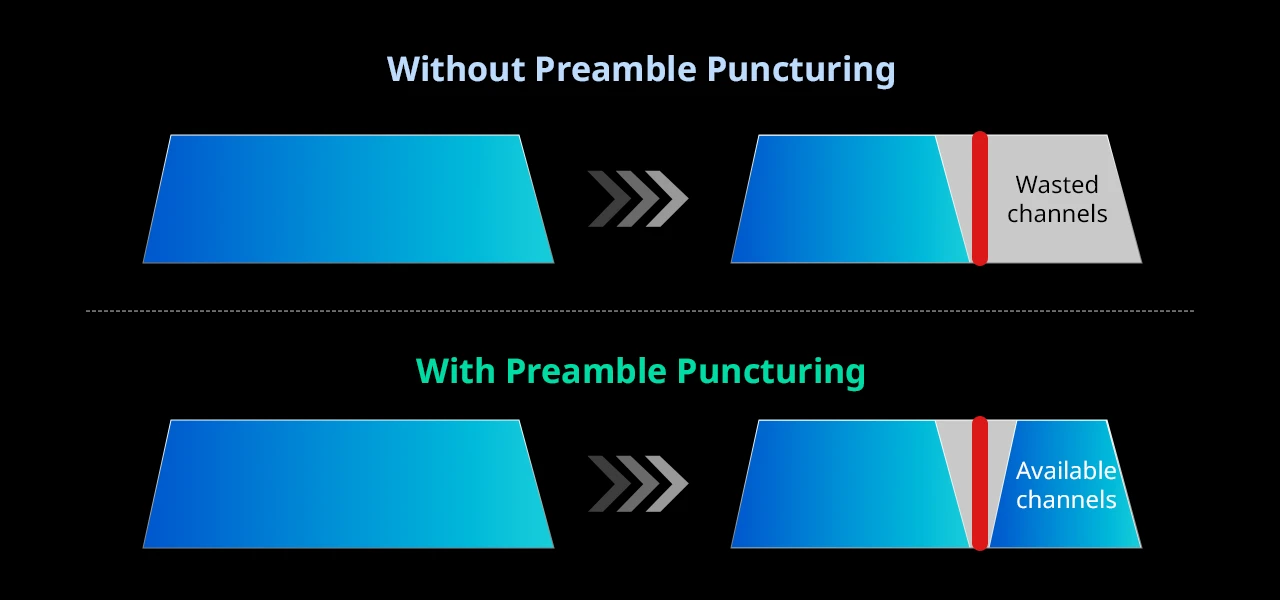

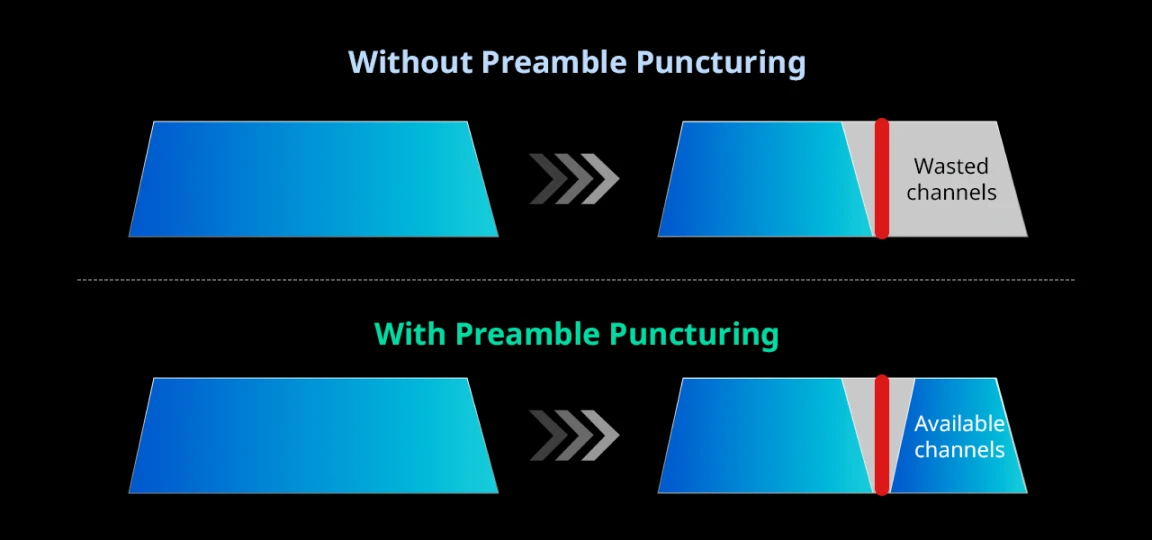

Preamble Puncturing

Preamble Puncturing

Memaksimalkan penggunaan bandwidth di jalur padat dengan melakukan bypass saluran yang rawan gangguan

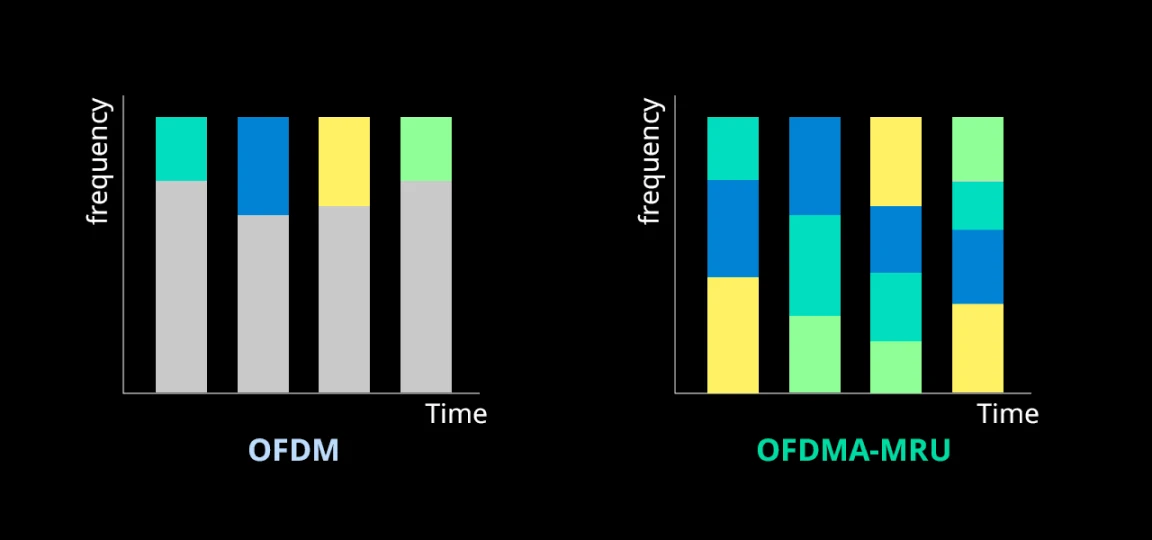

MRU

Banyak Unit Sumber Daya

Meningkatkan efisiensi dan kapasitas jaringan untuk kinerja yang lancar dengan beberapa perangkat yang terhubung

Cloud, Mempermudah Bisnis Anda

  • Mesh Reyee

    Mengurangi Biaya Pengkabelan

  • WIO 3

    Didukung oleh AI

  • Portal AP Mandiri

    Bebas & Mudah

  • Heatmap

    Memvisualisasikan Proses Instalasi

Key Specifications
Product Information
Product Type
Product Type
  • Ceiling AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    4 spatial streams
    ● 2.4 GHz: 2 x 2, MU-MIMO
    ● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
  • 3570 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 2882 Mbps
2.4 GHz wireless data rate
  • 688 Mbps
Antenna
Antenna
  • 2.4 GHz: 2 built-in omnidirectional antennas
    5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)
  • Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket)
Color
  • White
Weight
  • ≤ 0.6 kg (1.32 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000/2500BASE-T ports
  • 1
Power Supply and Consumption
Power supply
  • ● DC power adapter
    ● PoE/PoE+
    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
  • Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE budget
  • No
Maximum power consumption
  • 14 W
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Mounting options
  • Ceiling/Wall
IP rating
  • IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    511 (5 GHz)
    511 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
