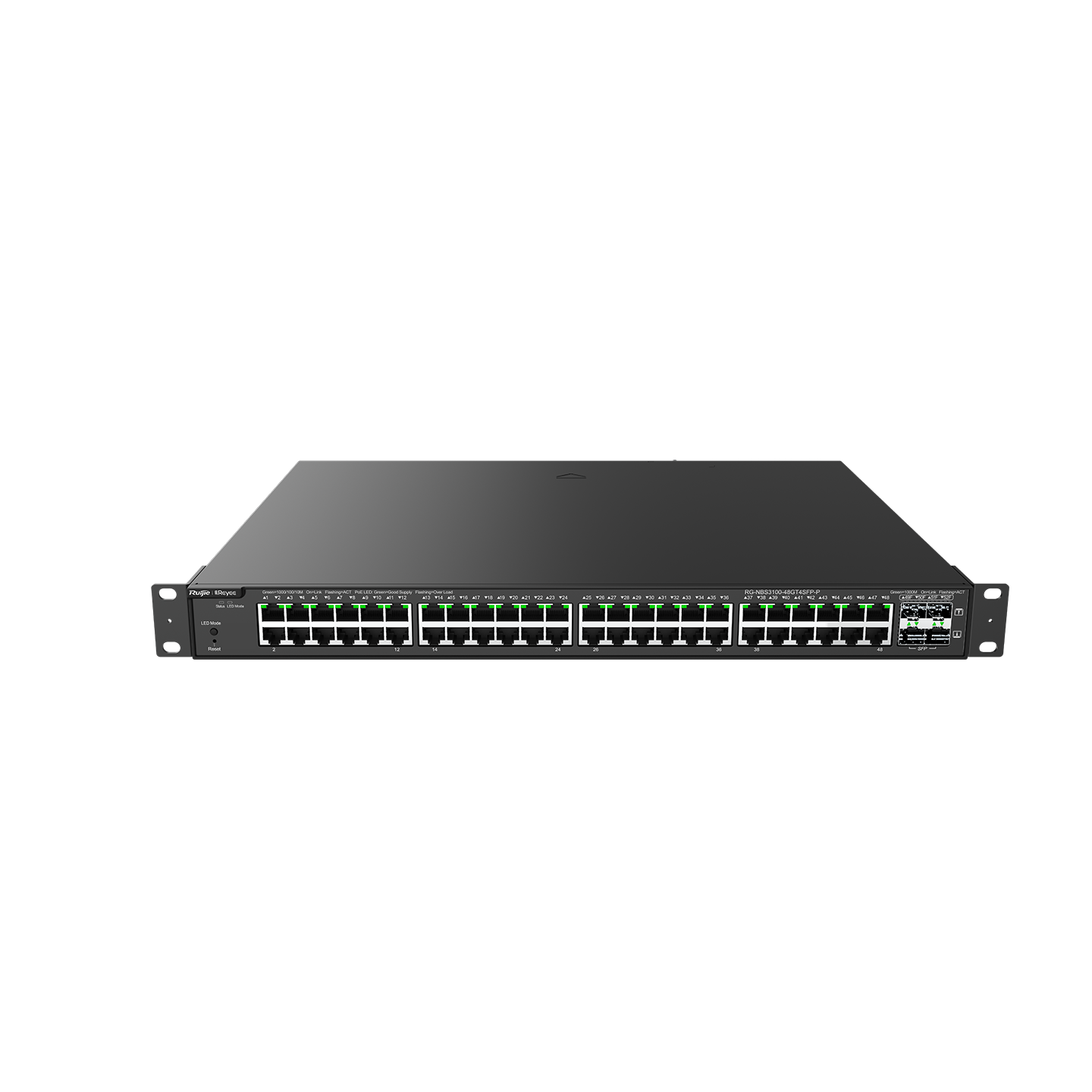

RG-NBS3100-48GT4SFP-P - 2

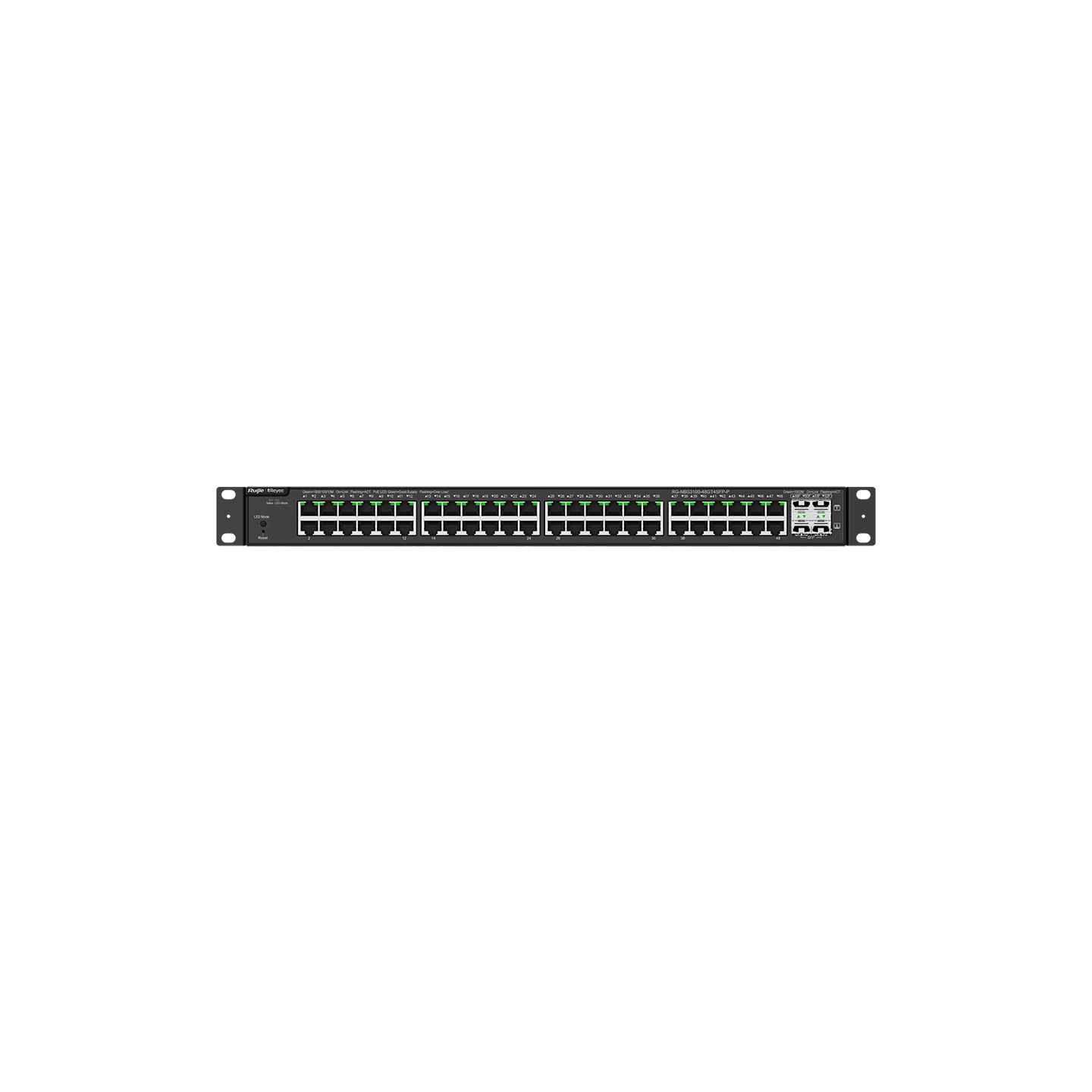

RG-NBS3100-48GT4SFP-P - 3

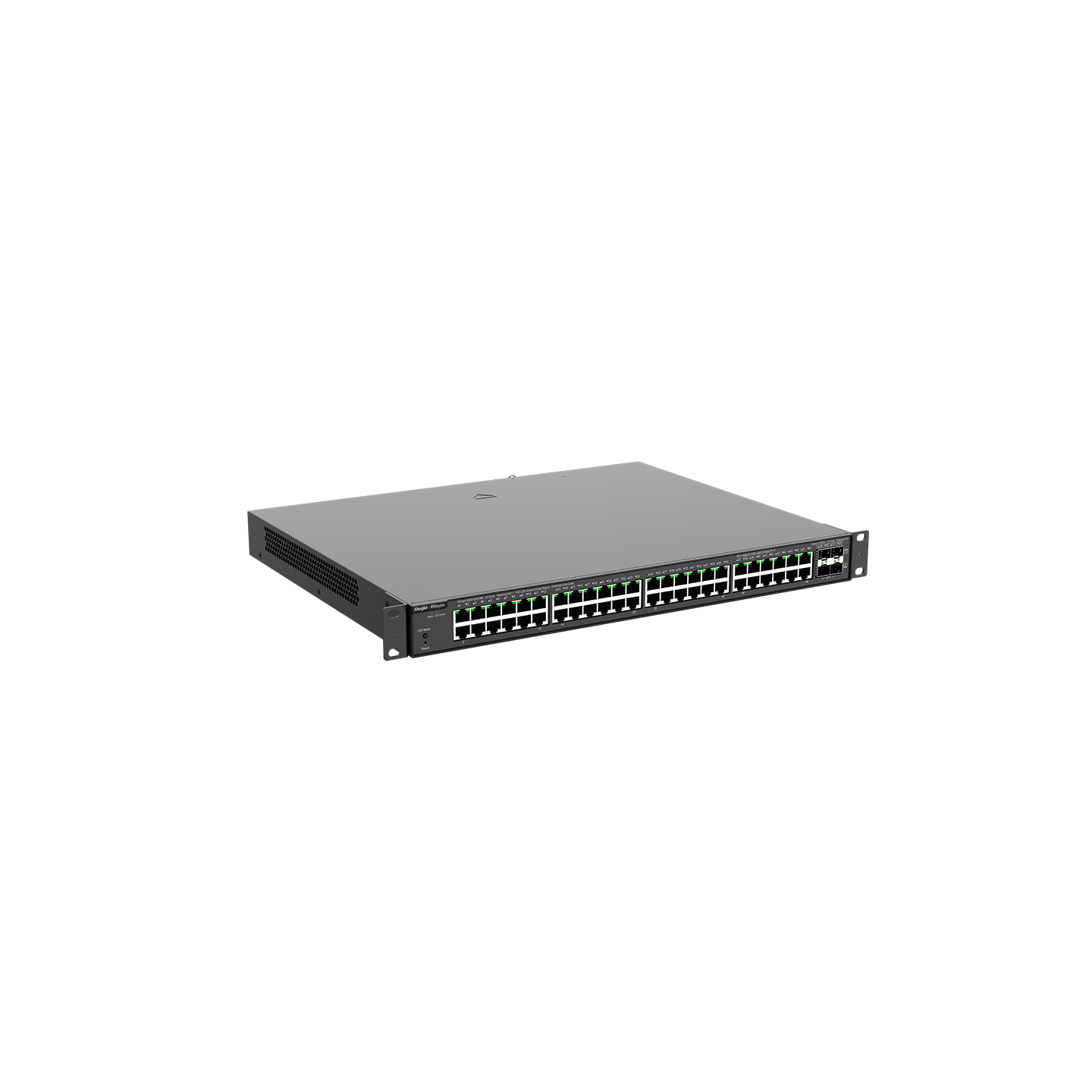

RG-NBS3100-48GT4SFP-P - 4

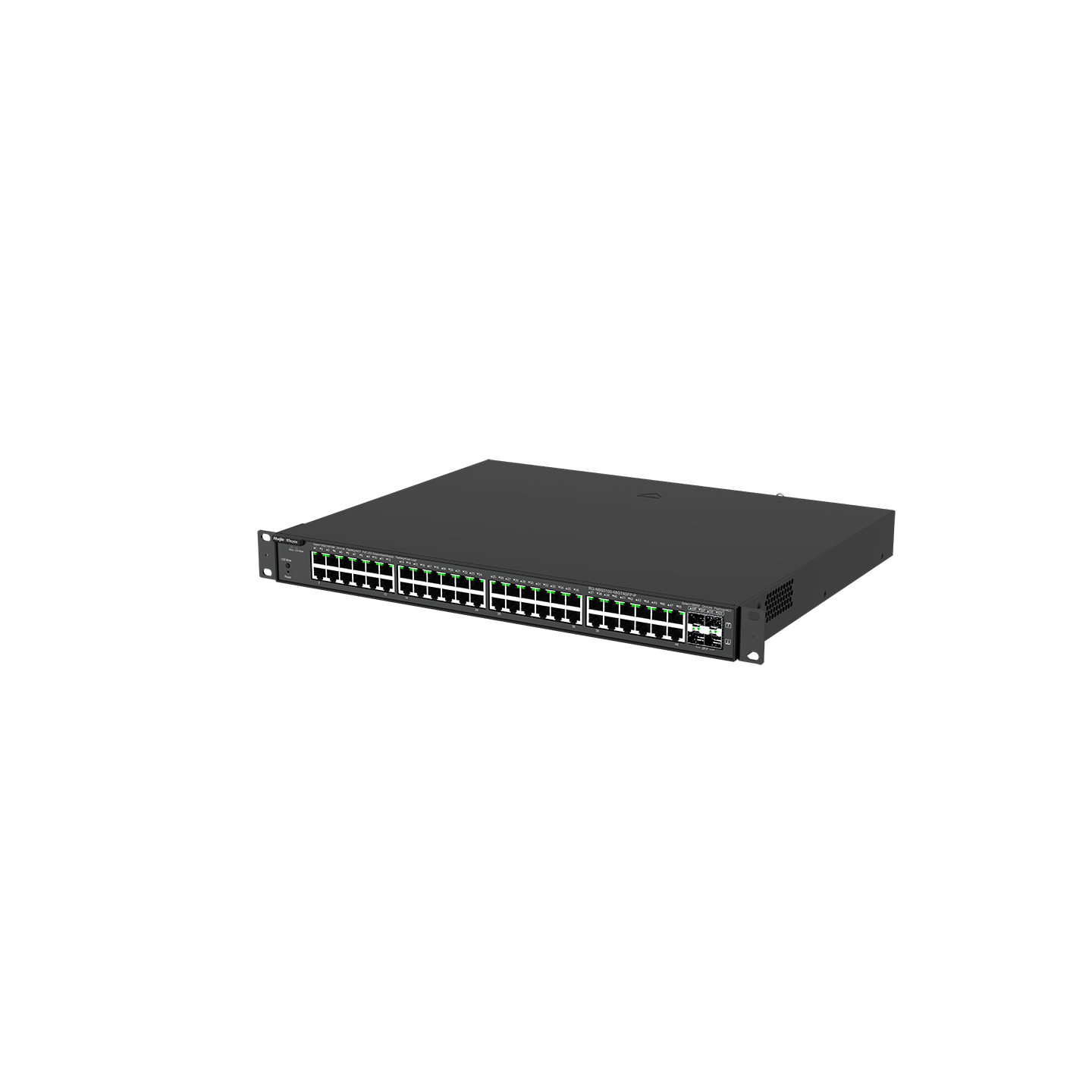

RG-NBS3100-48GT4SFP-P - 5

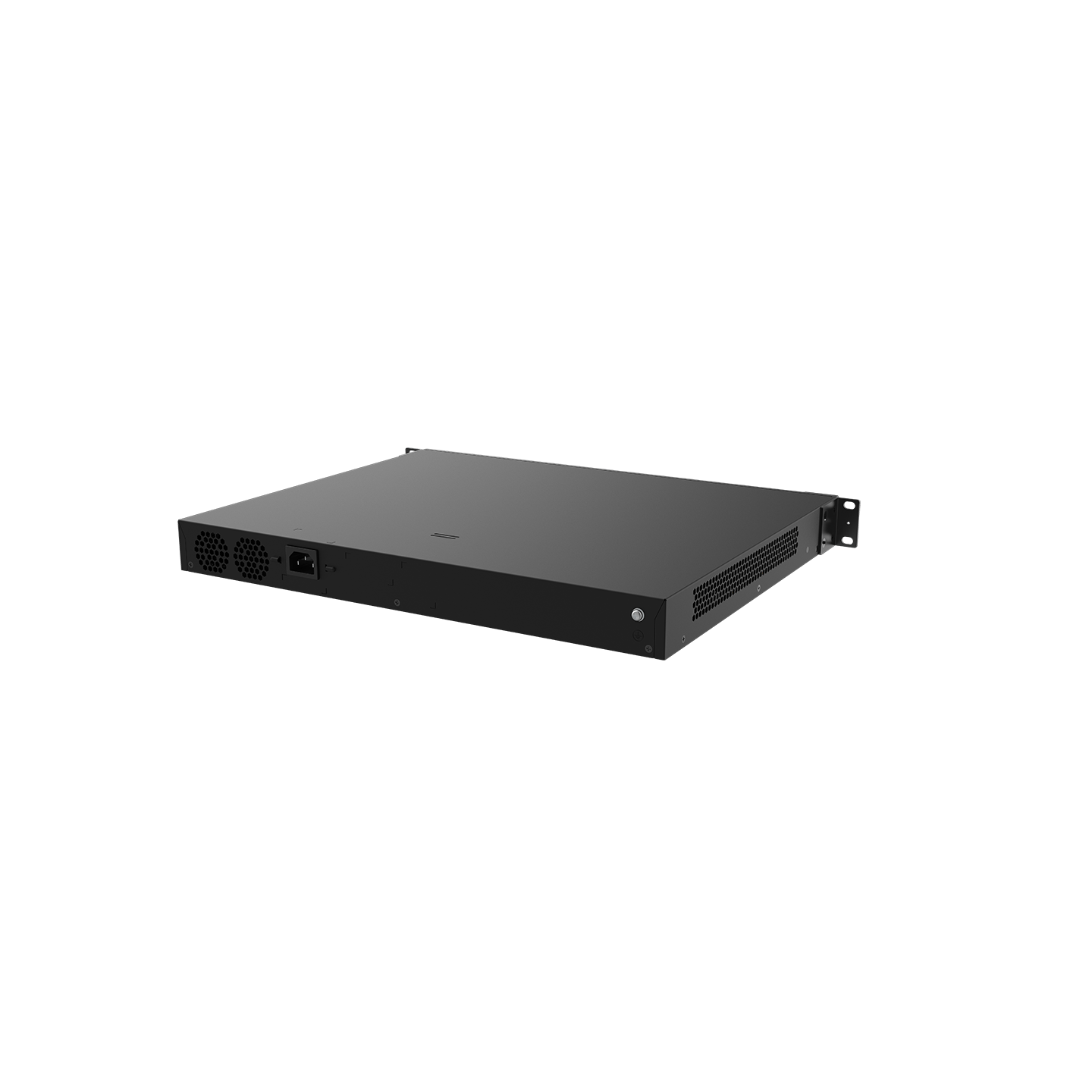

RG-NBS3100-48GT4SFP-P - 6

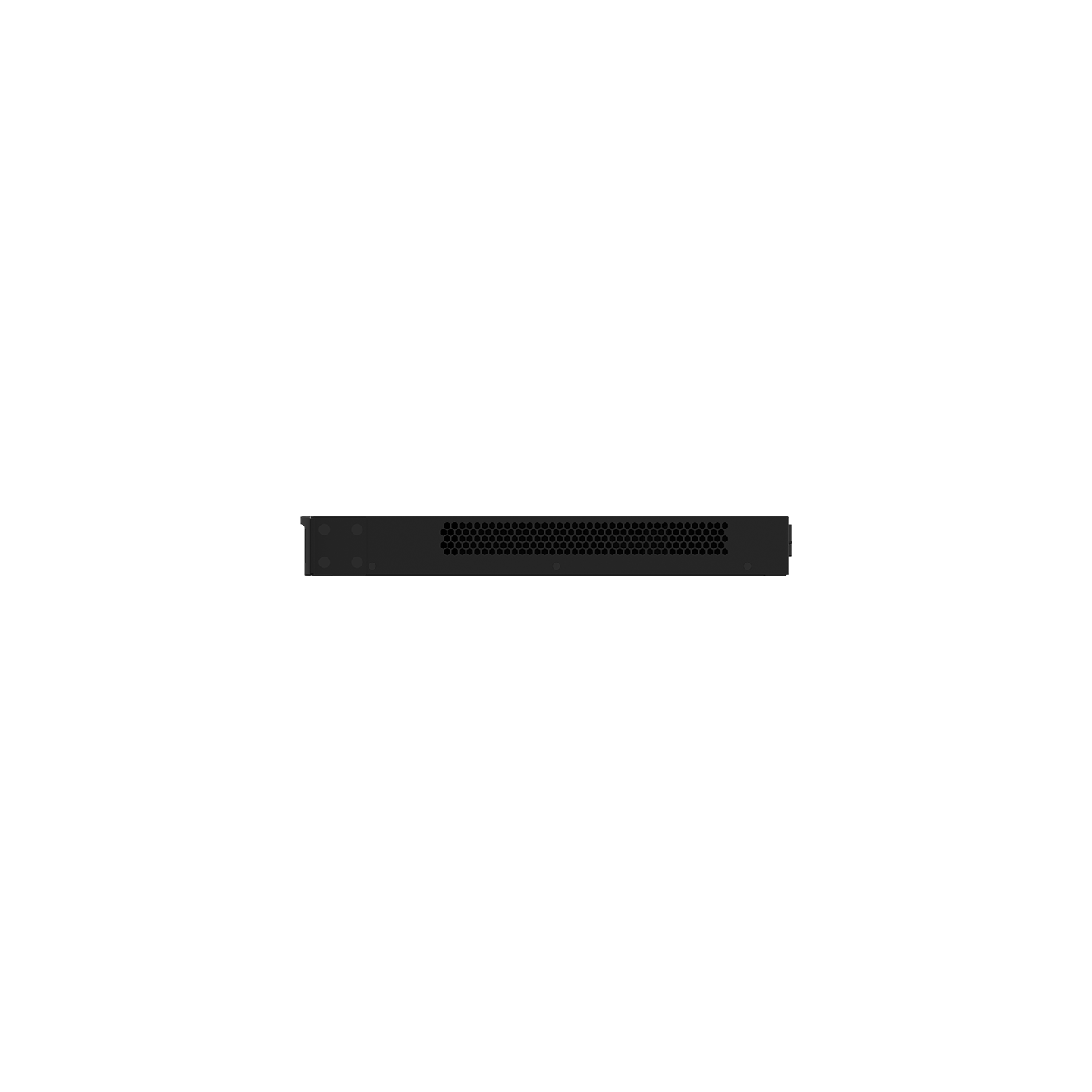

RG-NBS3100-48GT4SFP-P - 7

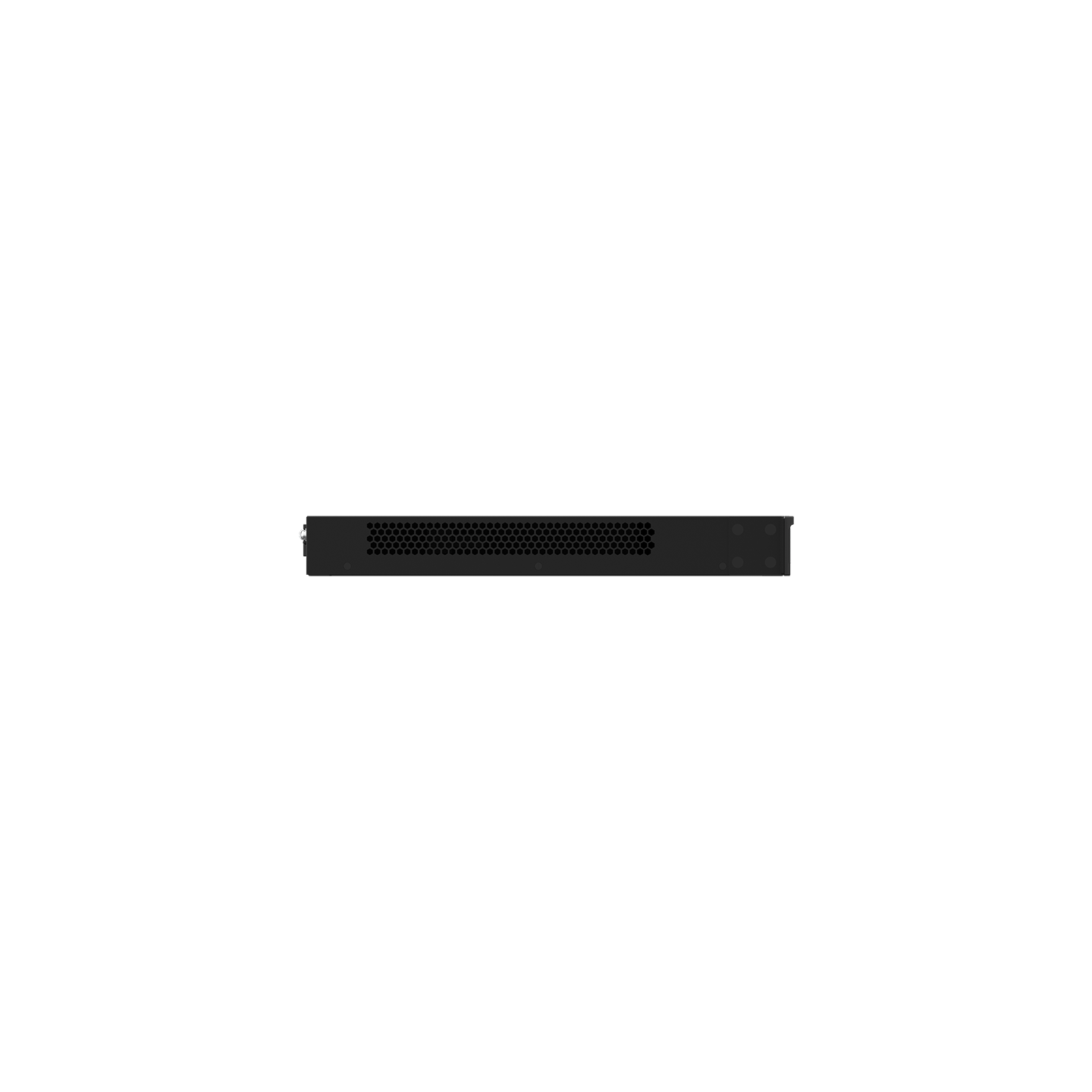

RG-NBS3100-48GT4SFP-P - 8

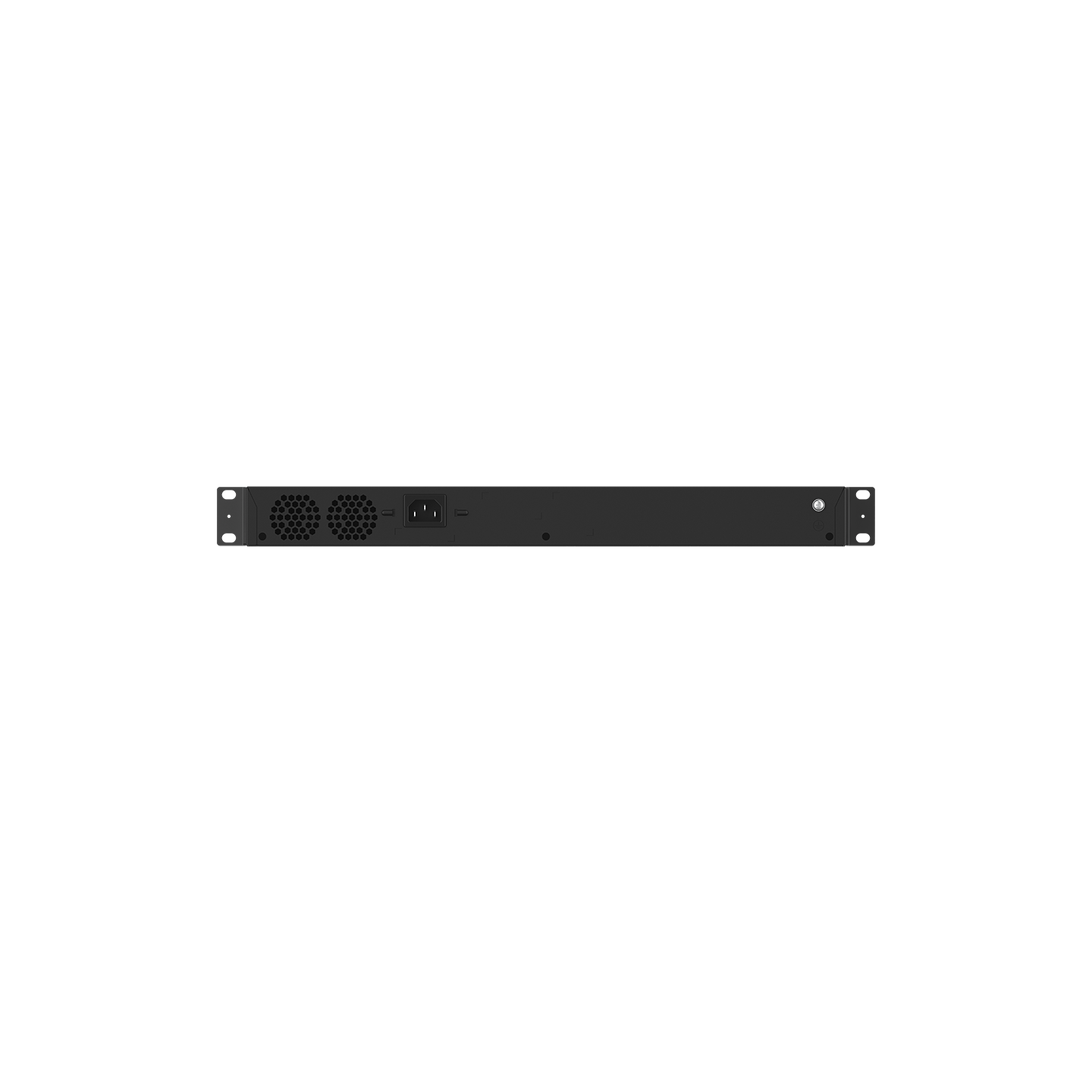

RG-NBS3100-48GT4SFP-P - 9
RG-NBS3100-48GT4SFP-P - 1
RG-NBS3100-48GT4SFP-P - 2
RG-NBS3100-48GT4SFP-P - 3
RG-NBS3100-48GT4SFP-P - 4
RG-NBS3100-48GT4SFP-P - 5
RG-NBS3100-48GT4SFP-P - 6
RG-NBS3100-48GT4SFP-P - 7
RG-NBS3100-48GT4SFP-P - 8
RG-NBS3100-48GT4SFP-P - 9
Confronta

RG-NBS3100-48GT4SFP-P, Switch PoE con 52 porte Gigabit, Livello 2, gestibile via Cloud

Aziende, settore alberghiero, fabbriche, scuole, negozi al dettaglio, sicurezza, ecc.

Models
RG-NBS3100-8GT2SFP

8 Gigabit Ports, 2 SFP

 RG-NBS3100-8GT2SFP-P

8 porte Gigabit PoE+, 2 porte SFP, 125W

 RG-NBS3100-8GT2SFP-P-V2

8 porte Gigabit PoE+,2 porte SFP,125 W

 RG-NBS3100-24GT4SFP

24 porte Gigabit, 4 porte SFP

 RG-NBS3100-24GT4SFP-P

24 porte Gigabit PoE+, 4 porte SFP, 370W

 RG-NBS3100-24GT4SFP-V2

24 porte Gigabit, 4 porte SFP

 RG-NBS3100-24GT4SFP-P-V2

24 porte Gigabit PoE+, 4 porte SFP, 370W

 RG-NBS3100-48GT4SFP-P

48 porte Gigabit PoE+, 4 porte SFP, 370W

 RG-NBS3100-48GT4SFP-P-V2

48 porte 10/100/1000 Base-T PoE+, 4 porte SFP 1GE, 370 W
Series
Switch L2 fisso da 1G Switch L2+ fisso da 10G
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • Switch PoE con 52 porte Gigabit, Livello 2, gestibile, 4 porte Uplink SFP
  • Una qualità di livello aziendale garantisce prestazioni elevate
  • Riconoscimento telecamera IP, valore unico per rete di telecamere a circuito chiuso
  • Criteri di sicurezza multipli per proteggere la tua rete
  • Gestibile vita su Ruijie Cloud in qualsiasi momento e ovunque

Sales Enquiry
Caratteristiche

RG-NBS3100-48GT4SFP-P

Switch PoE con 52 porte Gigabit, Livello 2, gestibile, 4 porte Uplink SFP

  • Capacità di commutazione
    104 Gbps

  • Velocità di trasmissione
    77.37 Mpps

  • 5 anni
    di garanzia

Scenari di applicazione PoE ampi



  • PoE Budget
    370W

  • Max. 30W
    su ogni porta

  • Protezione da sovratensioni
    6KV

  • Performance
  • Funzionalità
Una qualità di livello aziendale garantisce prestazioni elevate
  • Aggregazione link
  • Snooping IGMP
  • VLAN
Criteri di sicurezza multipli proteggono la tua rete
  • Sicurezza
  • Stabilità
Semplifica la tua attività con il cloud
  • SON, Provisioning Zero Touch al cloud
  • Monitora le statistiche degli switch in qualsiasi momento e ovunque
  • Configura le VLAN sull'app Ruijie Cloud
  • Facile manutenzione, risparmio di tempo e costi in loco

Specifiche chiave
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 5 years
Port Specifications
Total number of RJ45 ports
  • 48
Total number of optical ports
  • 4
Number of 1GE combo ports
  • No
Number of 1GE SFP ports
  • 4
Number of 10GE SFP+ ports
  • No
Number of 10/100BASE-T ports
  • No
Number of 10/100/1000BASE-T ports
  • 48
Number of 10/100/1000/2500BASE-T ports
  • No
Number of 100/1000/2.5G/5G/10GBASE-T ports
  • No
Power Supply and Consumption
Number of PoE Out ports
  • 48
Number of PoE/PoE+ Out ports
  • 48
Number of PoE/PoE+/PoE++ Out ports
  • No
PoE budget
  • 370 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 77.38 Mpps
Switching capacity
  • 104 Gbps(bit/s)
Environment and Reliability
MTBF
  • 400,000 hours
Operating temperature
  • 0°C to +50°C (32°F to 122°F)
Altitude
  • Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
    Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Surge protection
  • Service port: ±6 kV for common mode
    Power connector: ±6 kV for both common mode and differential mode
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Interface
Jumbo frame length (MTU)
  • 9216 bytes (interface configuration mode)
Security
Port isolation
  • Yes
Broadcast storm control
  • Yes
Informazioni sull'ordine
Device RG-NBS3100-48GT4SFP-P
Mounting Bracket 2
Foot pad 4
Power supply Power cord
Quick Start Guide 1
Warranty Card 1
Accesories Screws * 8
Package Weight 5.4 kg
Package Dimension (w x d x h) 573 mm x 468 mm x 165 mm
