RG-ES207GS-PI-OD, Switch externo Gigabit de 7 portas com entrada PoE/CC

CFTV, parques, rodovias etc.

Models
RG-ES205GC-P

5 portas Gigabit, 4 PoE+, 54W

 RG-ES206GS-P

Switch Gigabit de 6 portas gerenciável com 4 portas PoE+, 1 porta combo

 RG-ES209GC-P

9 portas Gigabit, 8 PoE+, 120W

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES207GS-P

4 portas PoE+ 10/100/1000BASE-T, 2 portas 10/100/1000BASE-T e 1 porta 1GE SFP

 RG-ES207GS-LP

4 portas PoE+ 10/100/1000BASE-T, 2 portas 10/100/1000BASE-T e 1 porta 1GE SFP

 RG-ES211GS-P

8 portas PoE+ 10/100/1000BASE-T, 2 portas 10/100/1000BASE-T e 1 porta 1GE SFP

 RG-ES207GS-HP

2 portas PoE++ 10/100/1000BASE-T, 2 portas PoE+ 10/100/1000BASE-T, 2 portas 1GE, 1 porta SFP 1GE

 RG-ES228GS-P-V2

24 portas PoE+ 10/100/1000BASE-T, 2 portas 10/100/1000BASE-T e 2 portas 1GE SFP

 RG-ES220GS-P-V2

16 portas PoE+ 10/100/1000BASE-T, 2 portas 10/100/1000BASE-T e 2 portas 1GE SFP

 RG-ES211GS-LP

8 portas PoE+ 10/100/1000BASE-T, 2 portas PoE+ 10/100/1000BASE-T, 1 porta 1GE SFP

 RG-ES207GS-AC-OD

Switch externo de 7 portas, 5 portas RJ45 de 1G, 2 portas de uplink SFP

 RG-ES207GS-PI-OD

Switch externo de 7 portas, 5 portas RJ45 de 1G, 2 portas de uplink SFP

 RG-ES206MG-P

4 portas 10/100/1000/2500BASE-T PoE+, 1 porta 10/100/2500BASE-T, 1 porta 10GE SFP+, orçamento PoE de

 RG-ES209MG-P

8 portas 10/100/1000/2500BASE-T PoE+, 1 porta 10GE SFP+, orçamento PoE de 130 W

 RG-ES220GS-LP

16 portas 10/100/1000BASE-T PoE+, 2 portas 10/100/1000BASE-T, 2 portas 1GE SFP, 130 W

 RG-ES228GS-LP

24 portas 10/100/1000BASE-T PoE+, 2 portas 10/100/1000BASE-T, 2 portas 1GE SFP, 250 W
Series
Modelo PoE Modelo não PoE
Sales Enquiry
Add to Favorites
Highlight Features
  • Entrada PoE ou 12 V CC
  • 2 portas SFP para ERPS
  • Switch externo multifuncional, integração 4 em 1
  • Alta resistência às intempéries: classificação IP65, proteção contra surtos PoE de ±8 kV
  • Solução de problemas da câmera
  • Fonte de alimentação PoE ininterrupta
Sales Enquiry
Visão geral

RG-ES207GS-PI-OD

Switch externo Gigabit de 7 portas com entrada PoE/CC

  • Entrada
    12 V CC

  • Entrada
    PoE

  • Orçamento PoE
    60W

  • ERPS

  • 3 anos
    de garantia

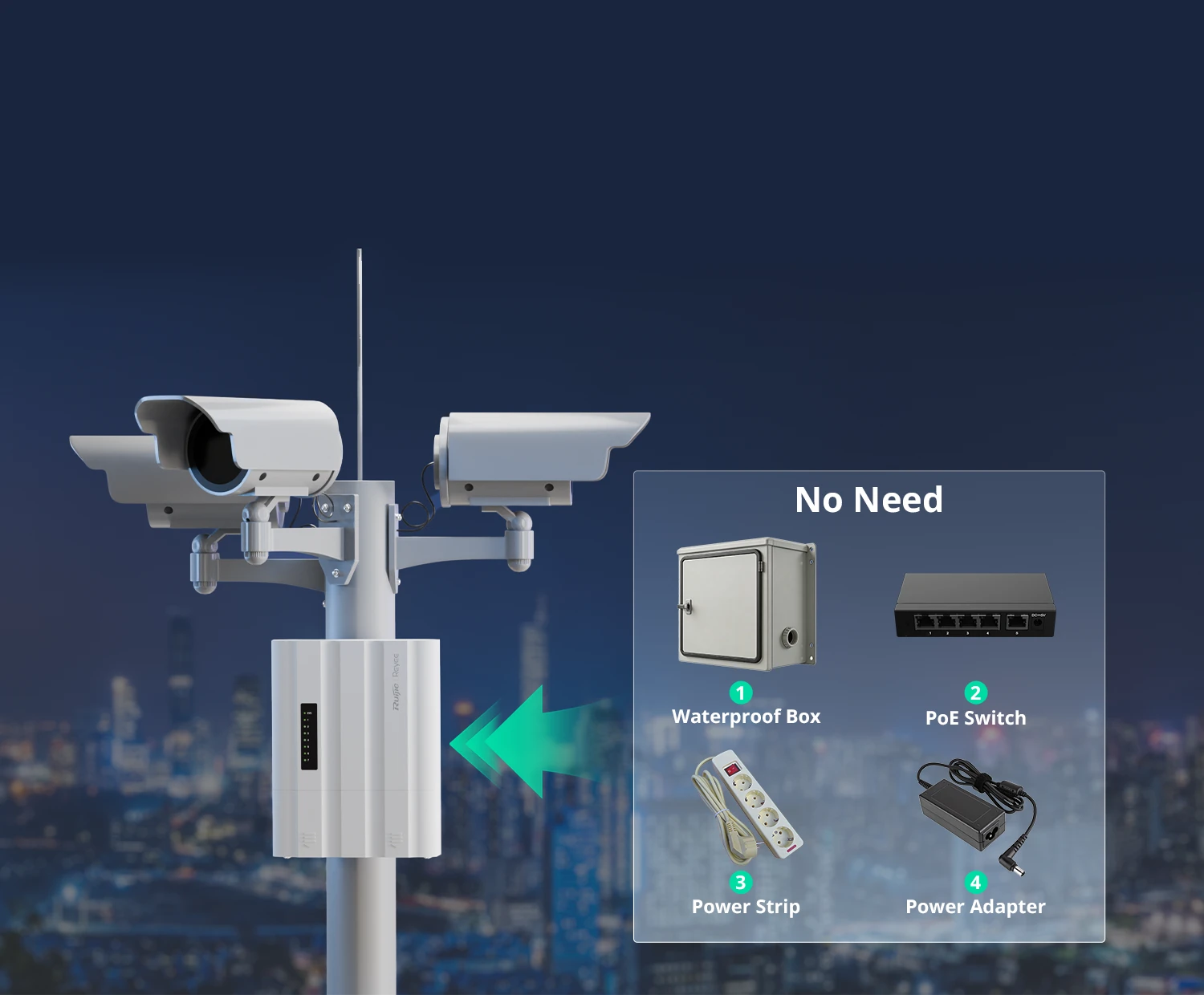

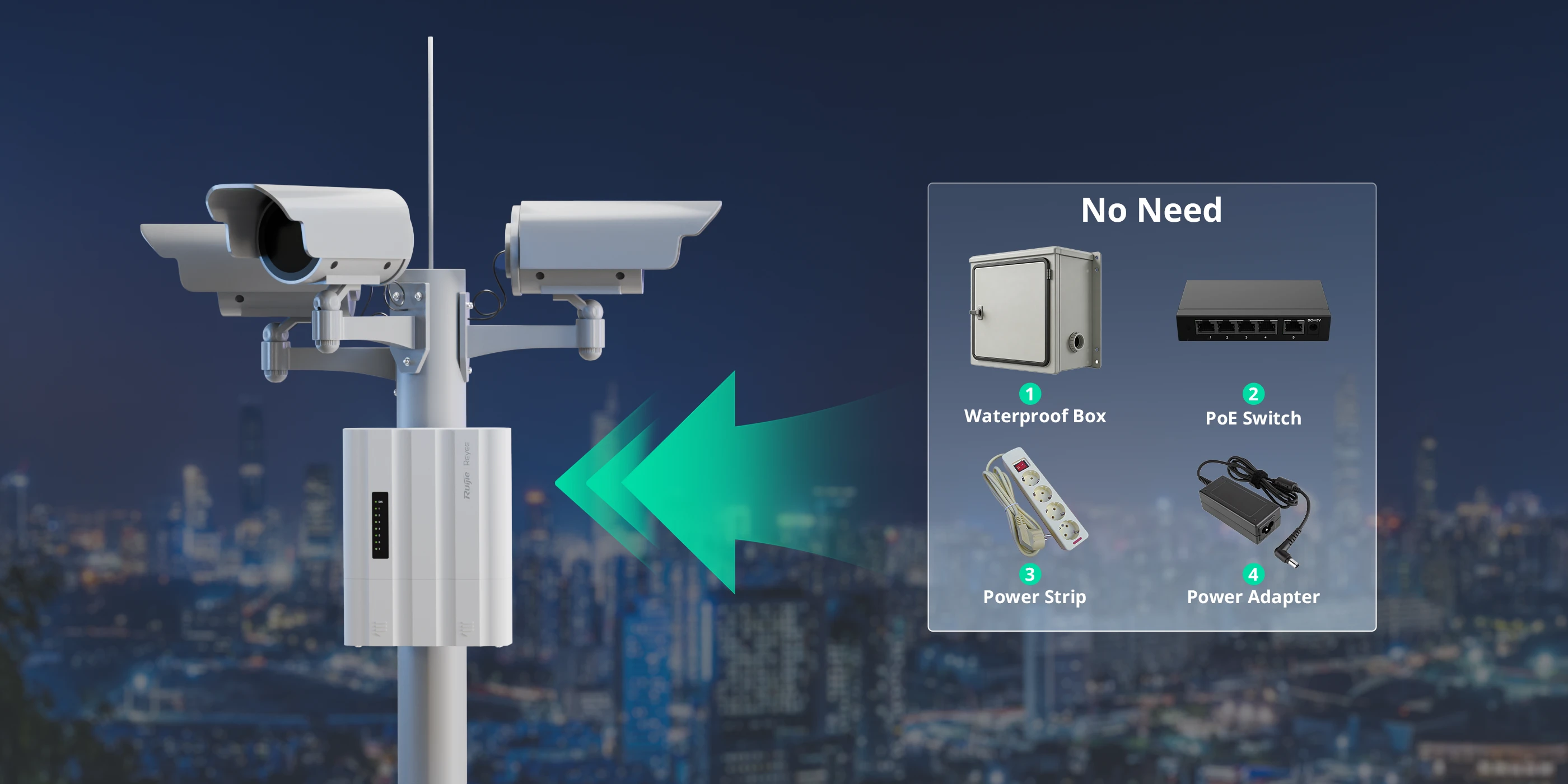

Multifuncional

Combine quatro dispositivos em um só

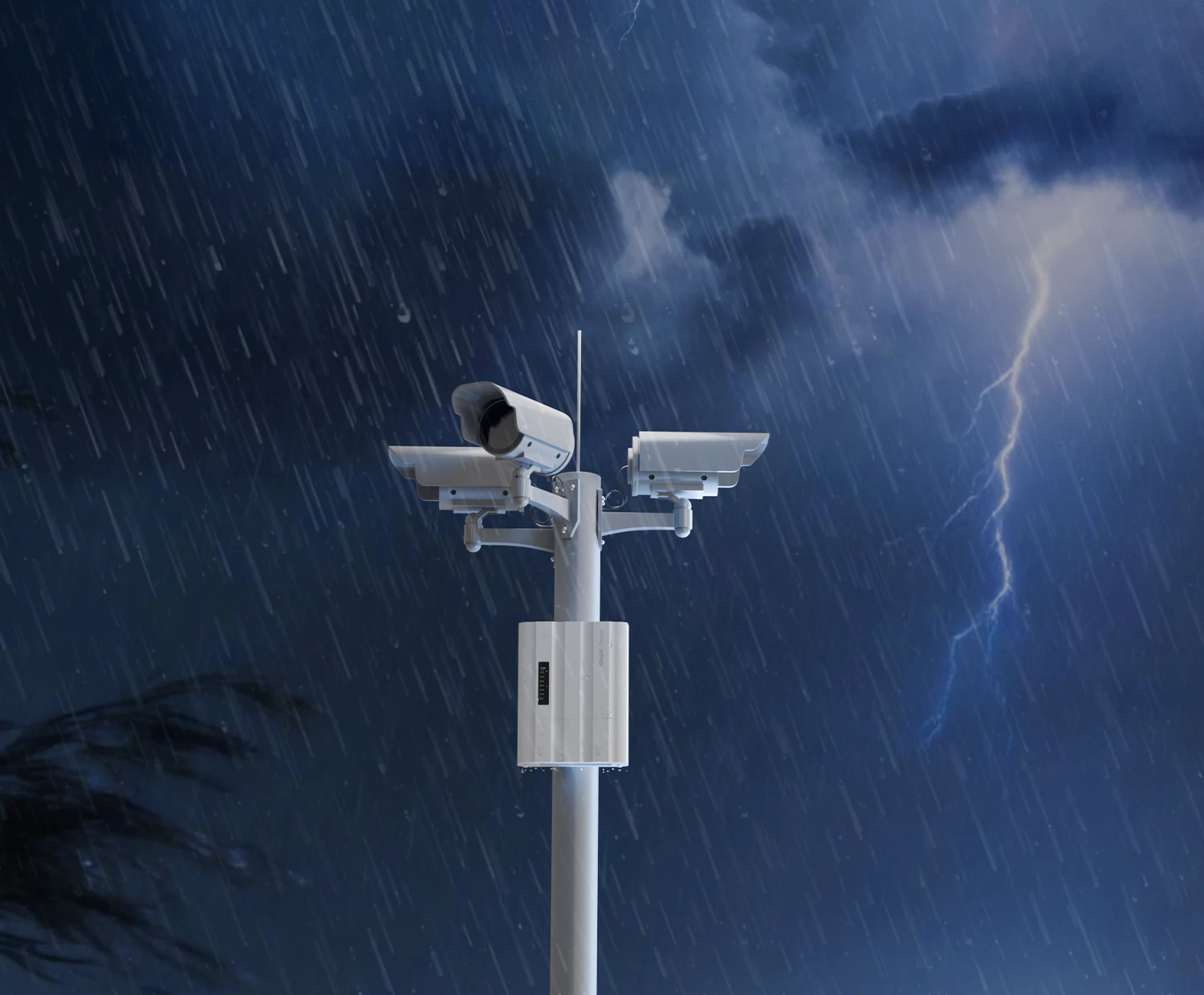

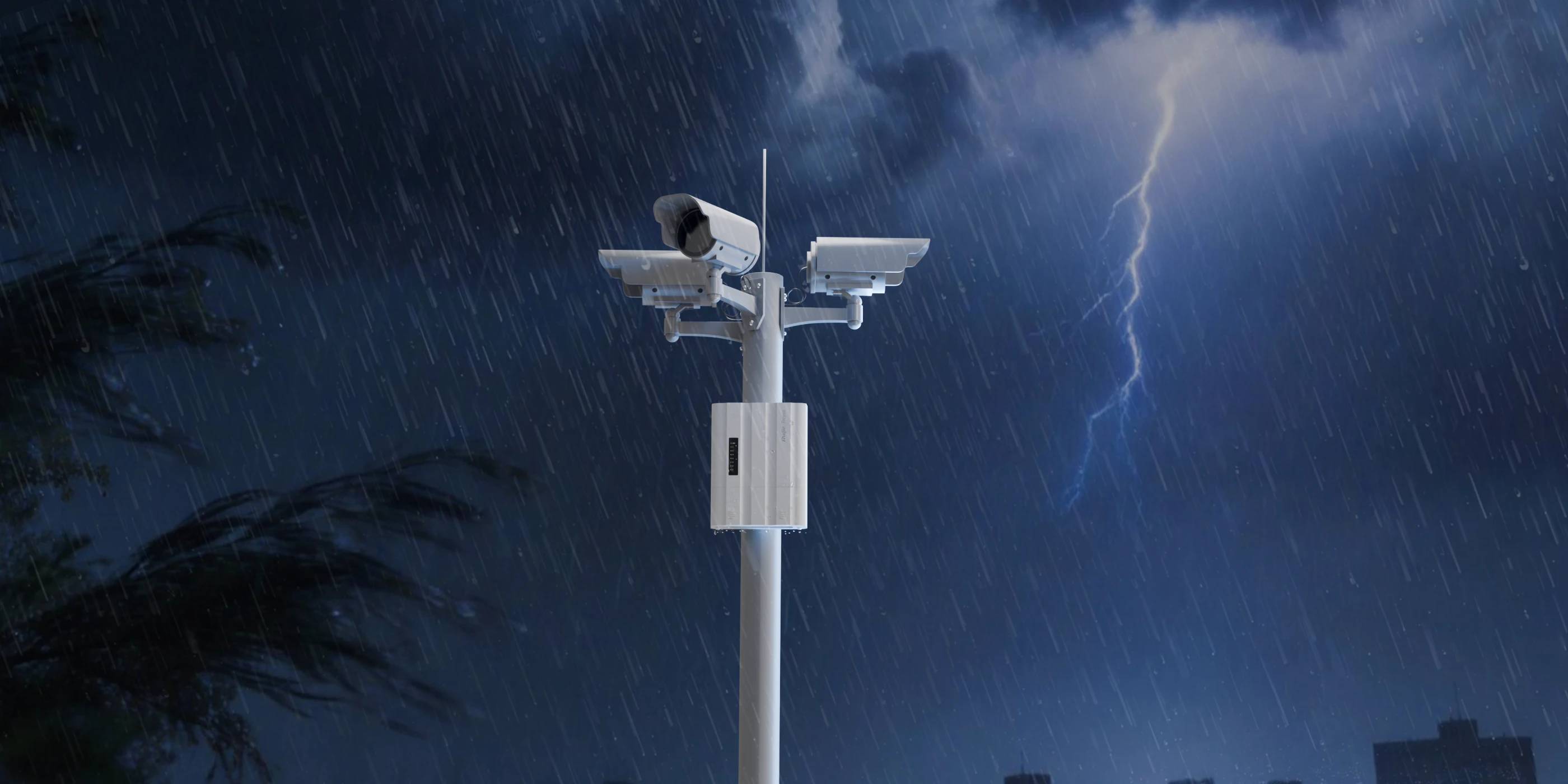

Alto nível de impermeabilidade

Recursos para uso externo em ambientes severos

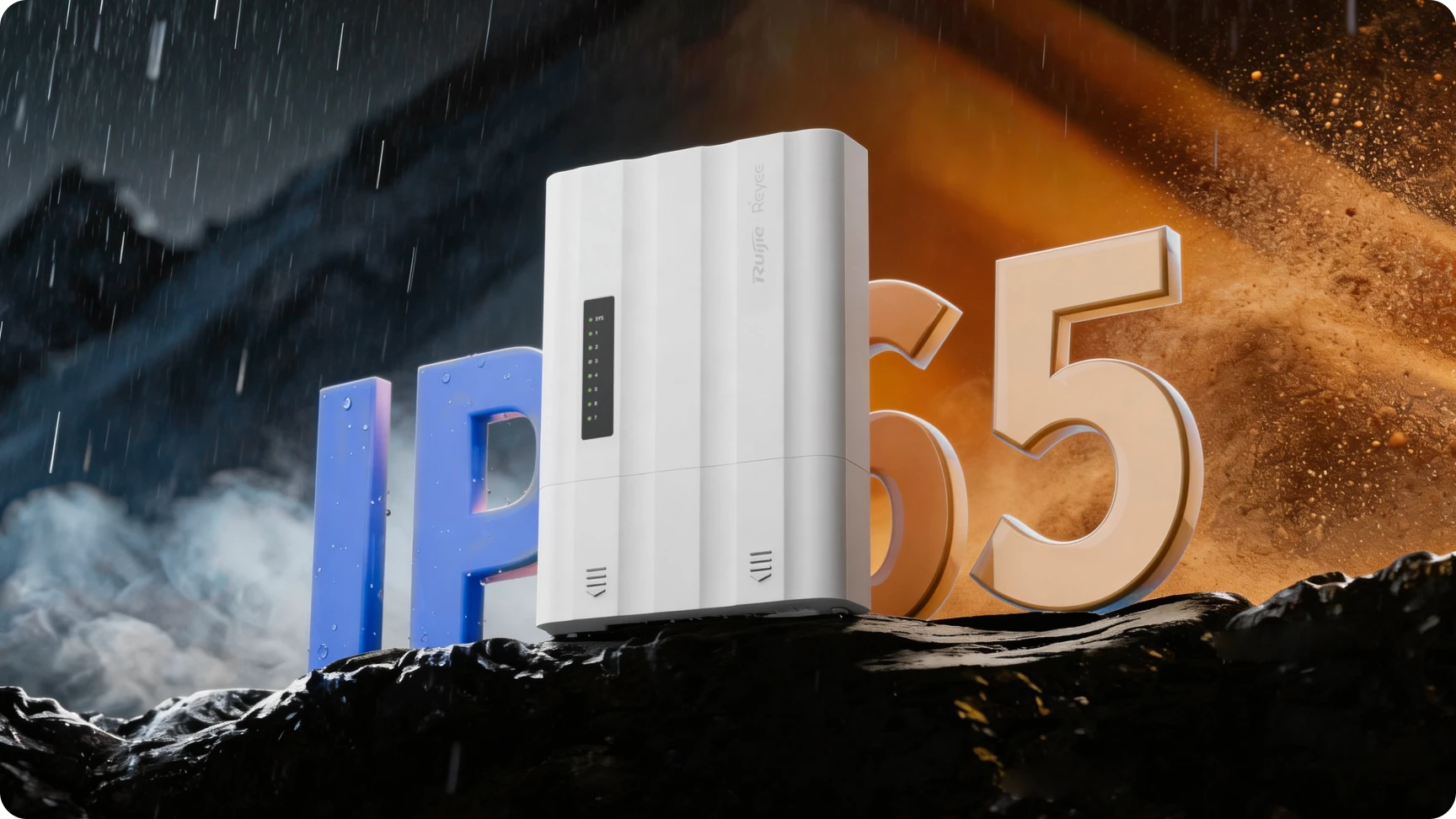

  • IP65

    Totalmente à prova de poeira, Resistente a jatos de água

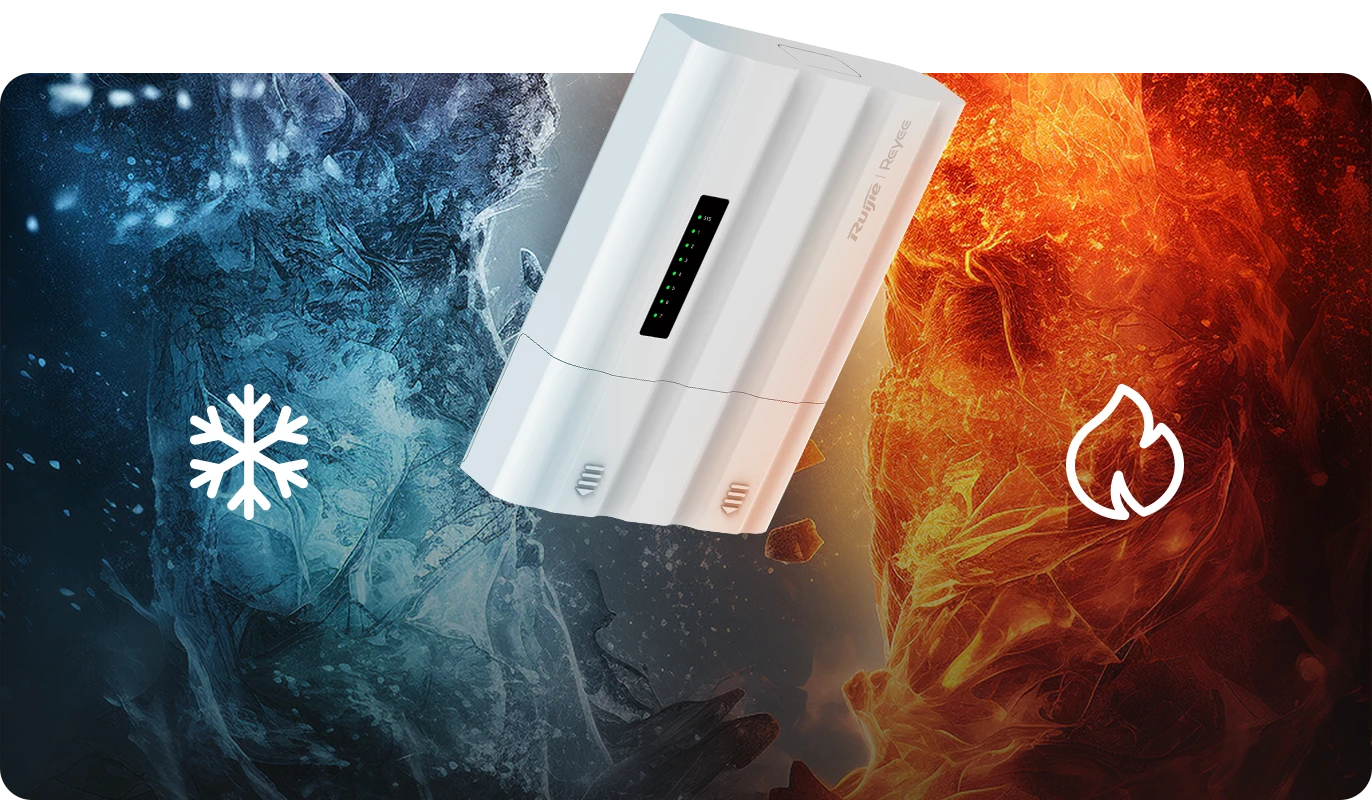

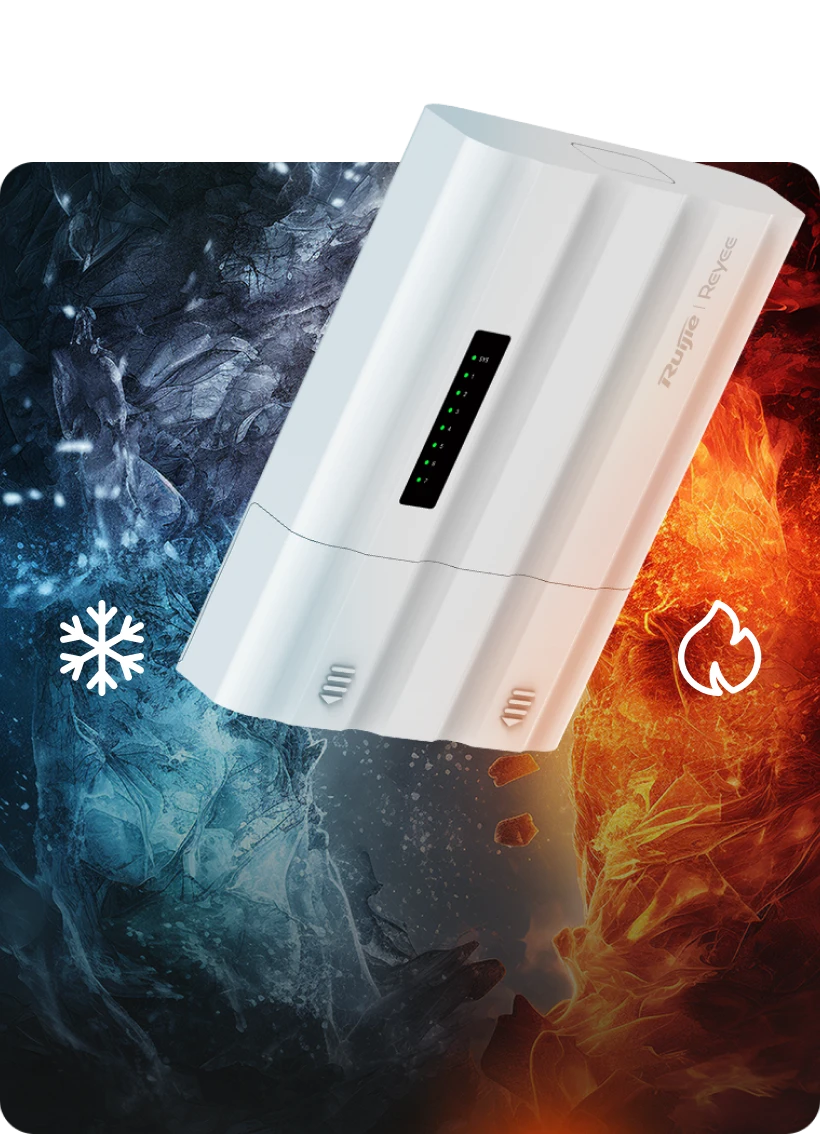

  • –30 °C a 65 °C (–22 °F a 149 °F)

    Ampla faixa de temperatura de -30 °C a 65 °C

Proteção contra surtos PoE: ±8 kV

Proteção confiável para estabilidade da rede

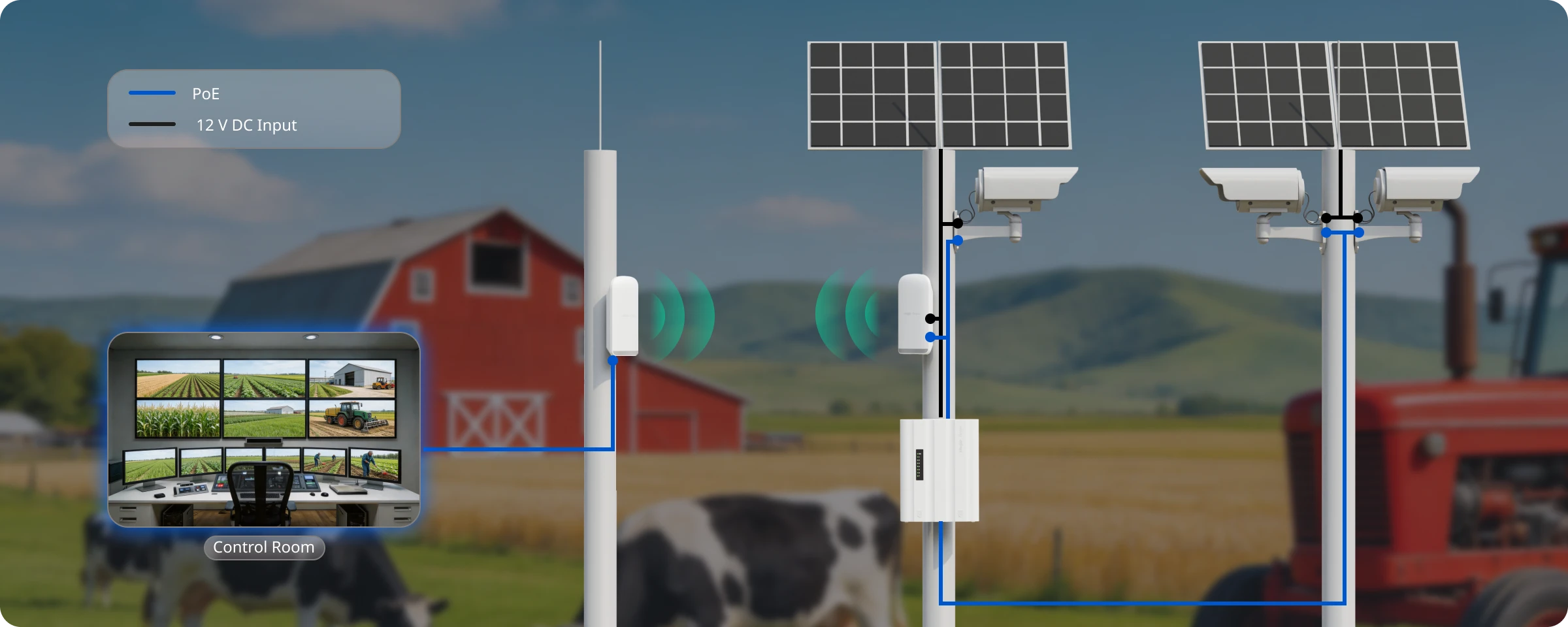

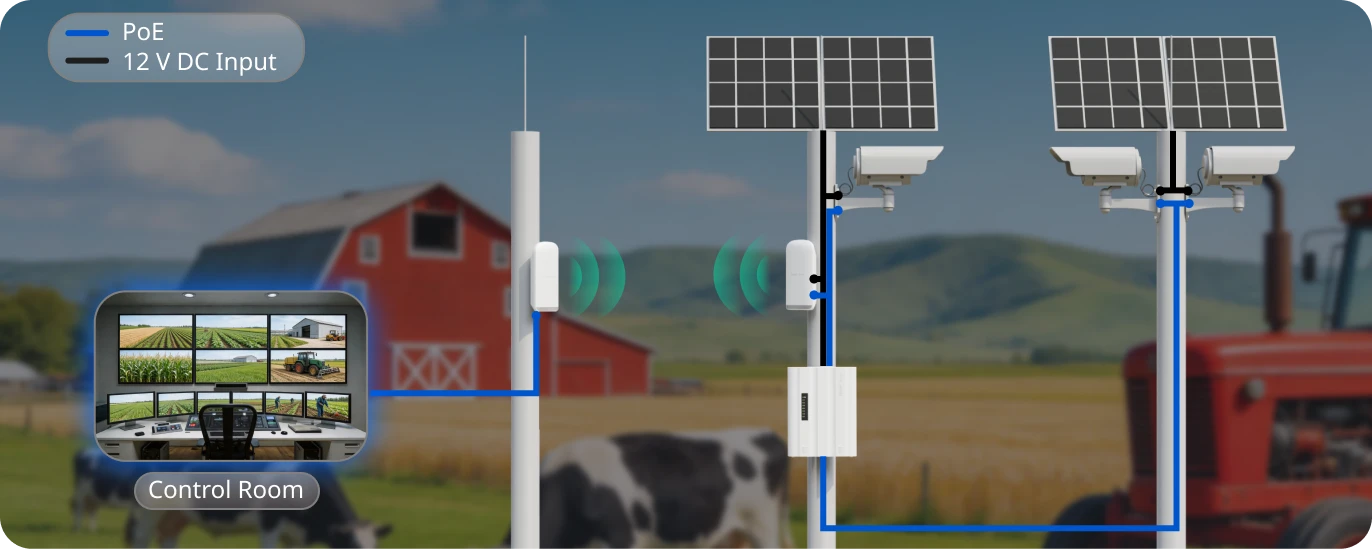

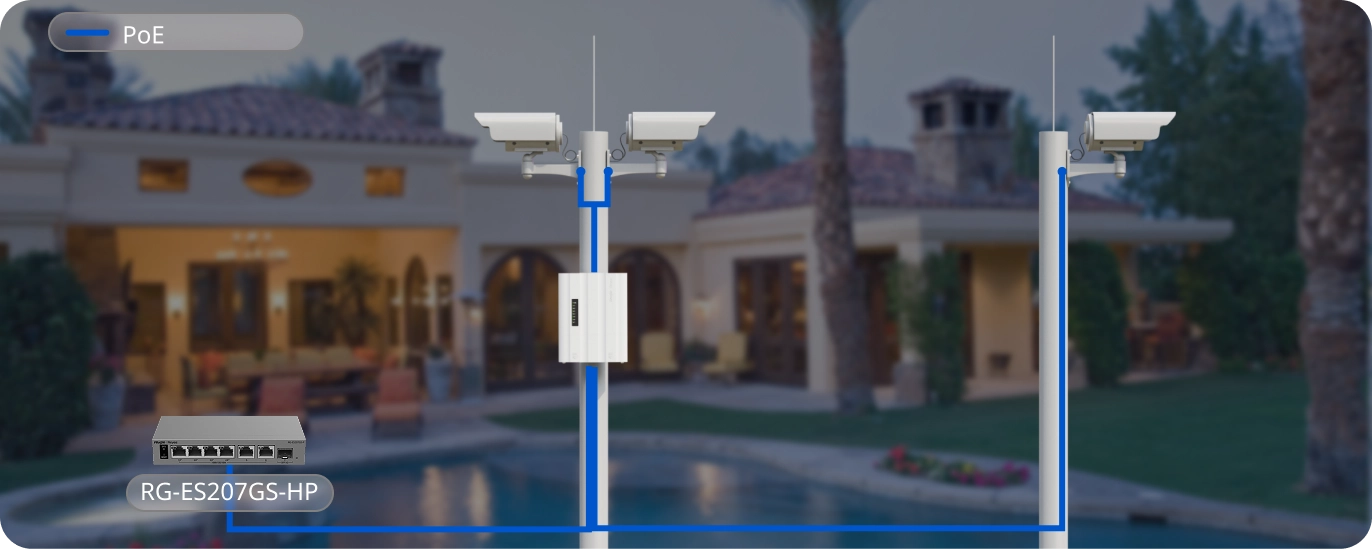

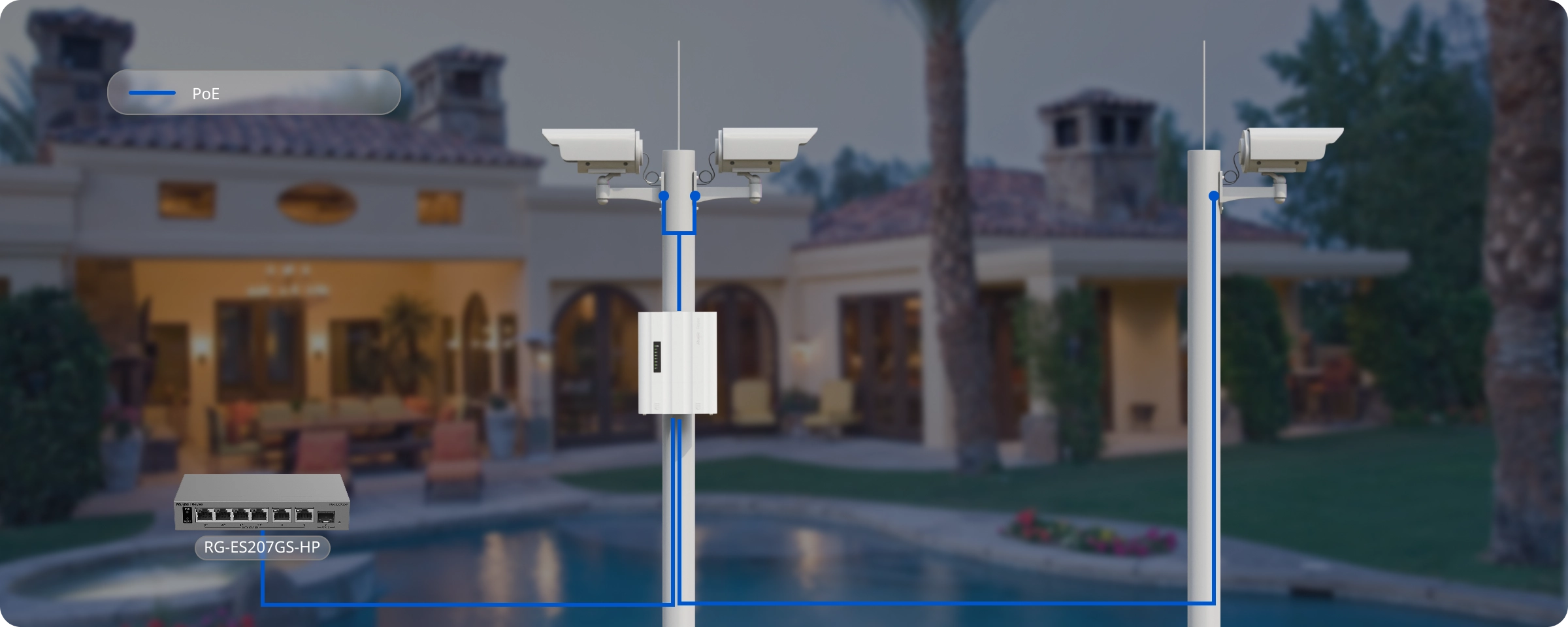

Link flexível

  • Entrada PoE

  • Energia solar

Não é necessário cabeamento de energia dedicado

Ambiente externo alimentado por energia solar

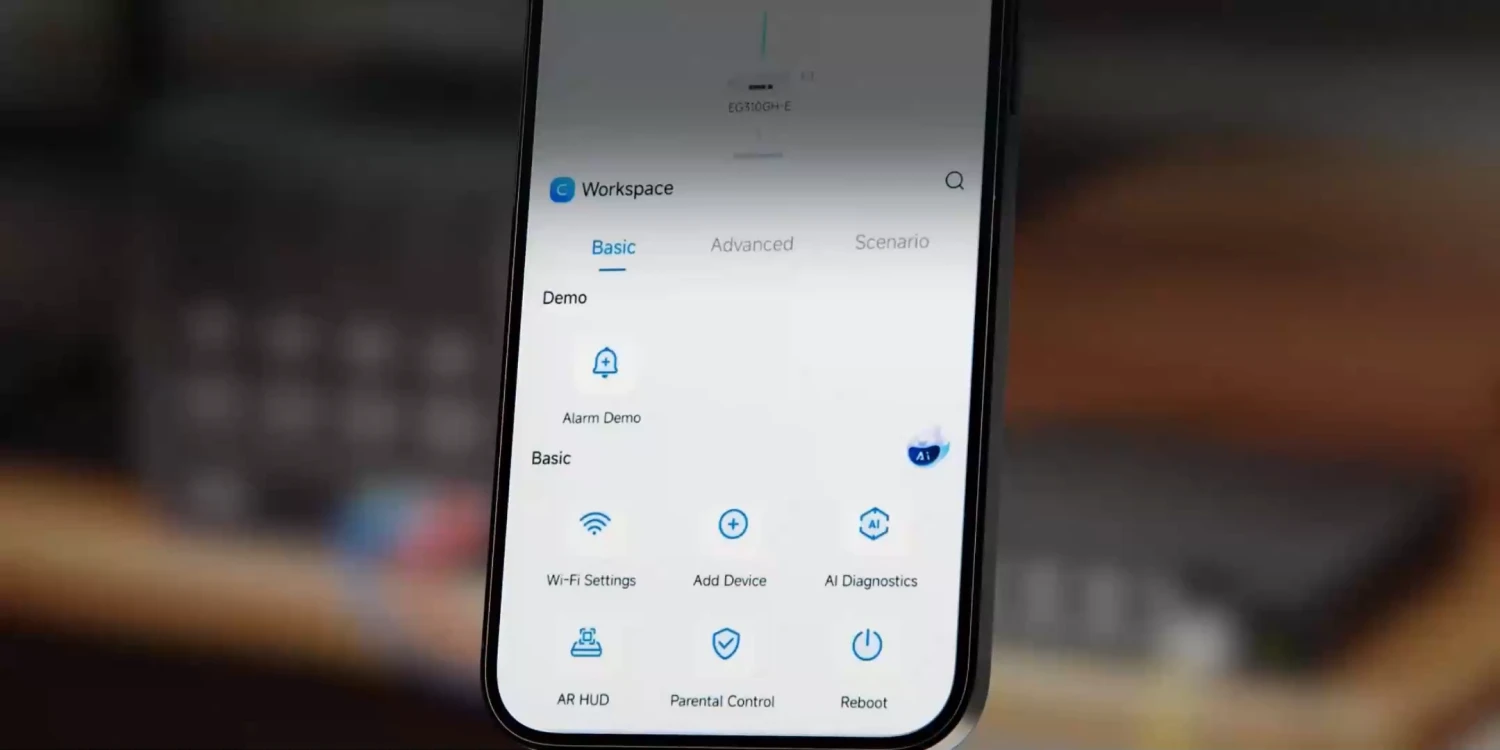

Facilite seus negócios com a nuvem

Principais especificações
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years

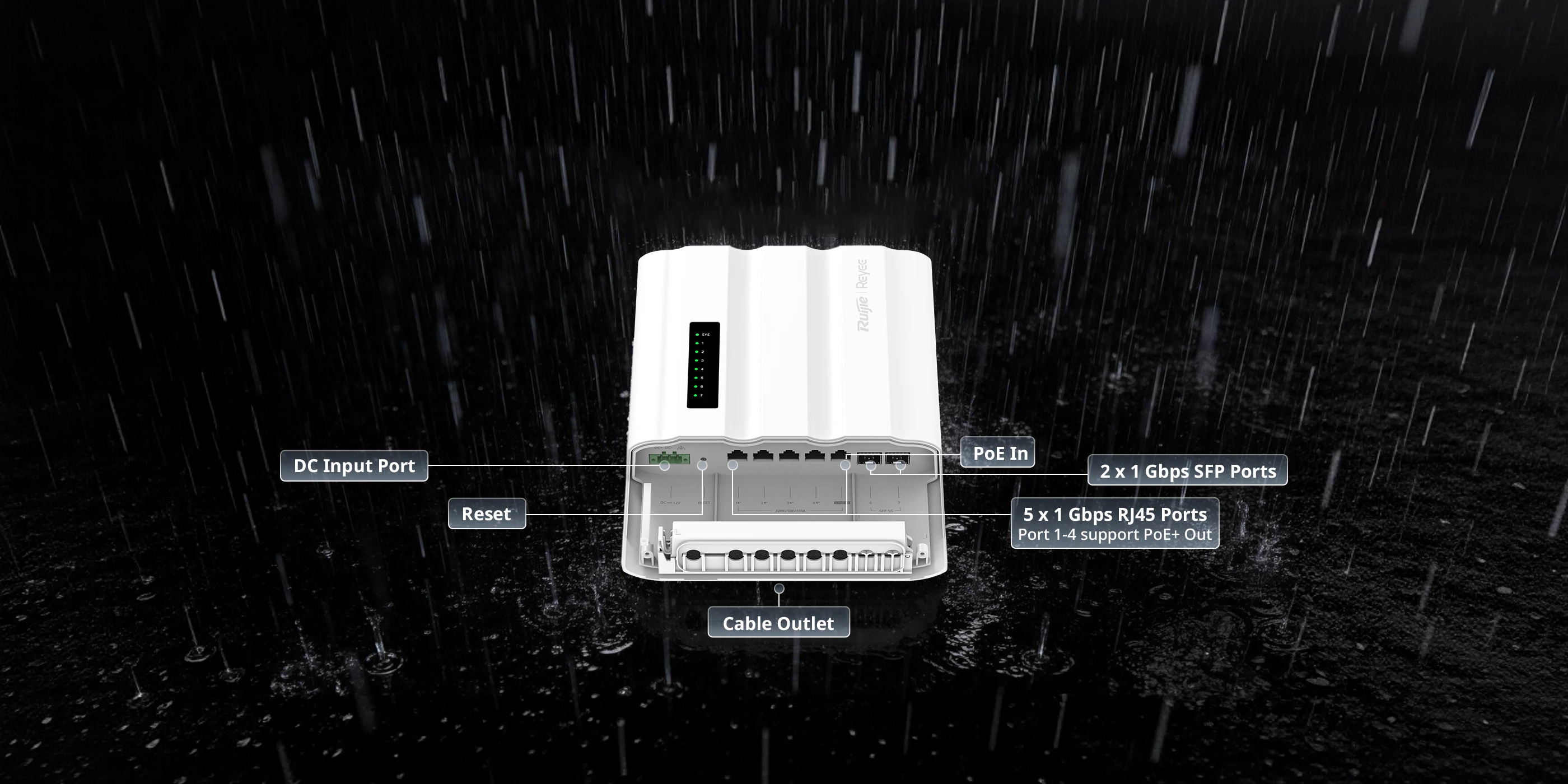

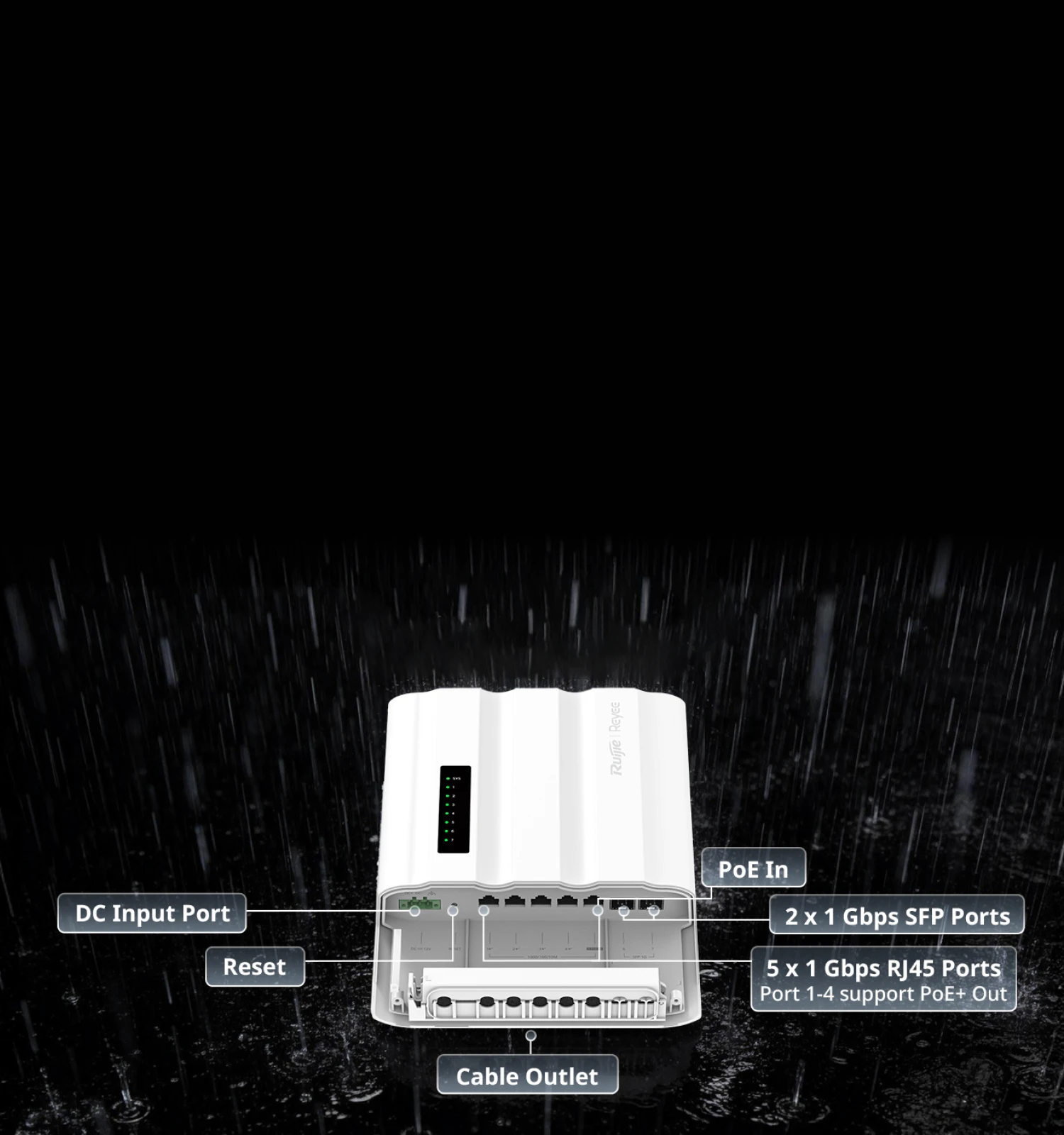

Port Specifications
Total number of RJ45 ports
  • 5
Total number of optical ports
  • 2
Number of 1GE SFP ports
  • 2
Number of 10/100/1000BASE-T ports
  • 5
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • PoE input (PoE++) at 90 W: 60 W
    PoE input (PoE++) at 60 W: 40 W
    PoE input (PoE+) at 30 W: 19 W
    PoE input (PoE) at 15.4 W: 6 W
PoE power pins
  • 1–2 (+), 3–6 (-)
Number of PoE In ports
  • 1
PoE In standard
  • ● IEEE 802.3af (PoE)
    ● IEEE 802.3at (PoE+)
    ● IEEE 802.3bt (PoE++)
System Specifications
Forwarding rate
  • 10.41 Mpps
Switching capacity
  • 14 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • –30°C to +65°C (-22°F to 149°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
