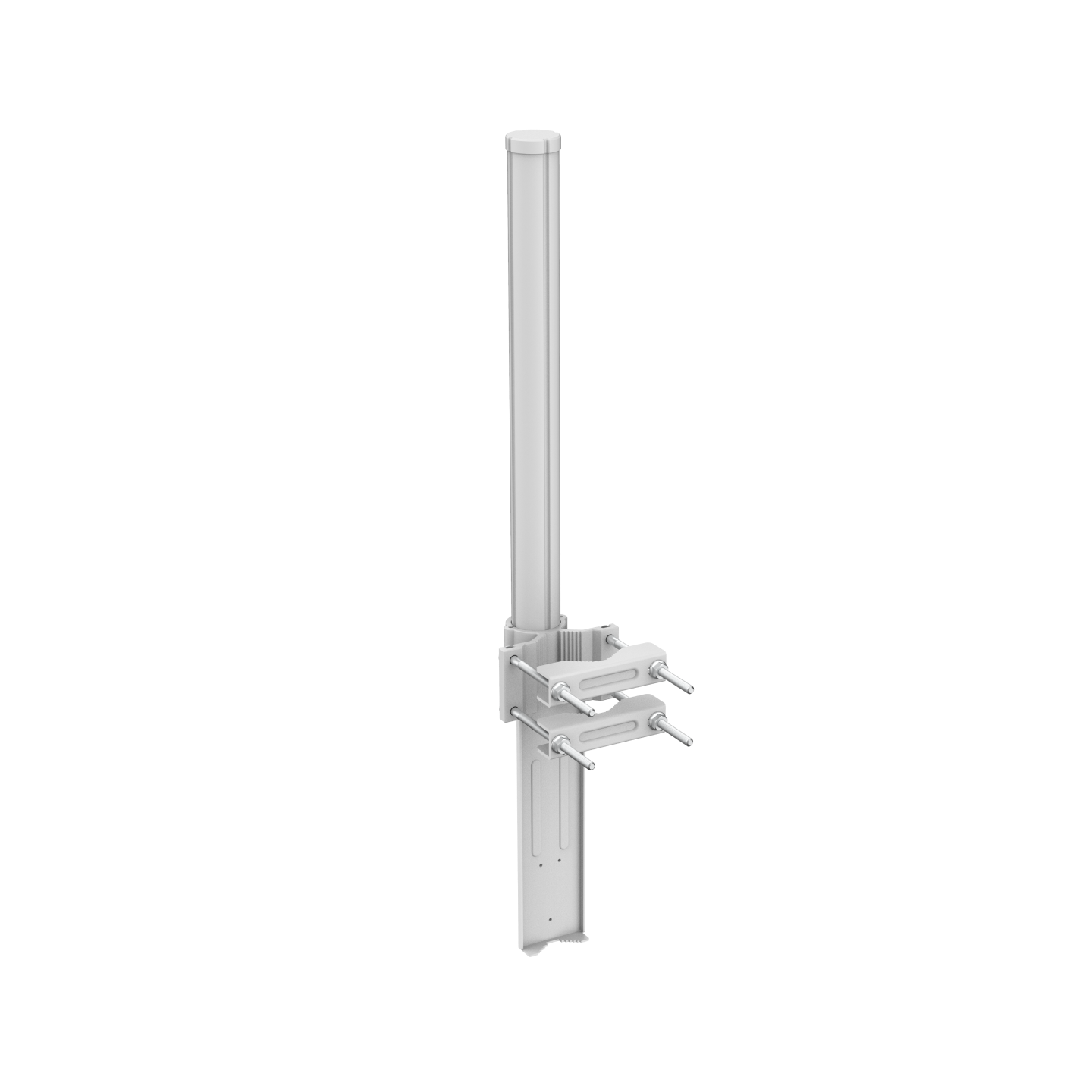

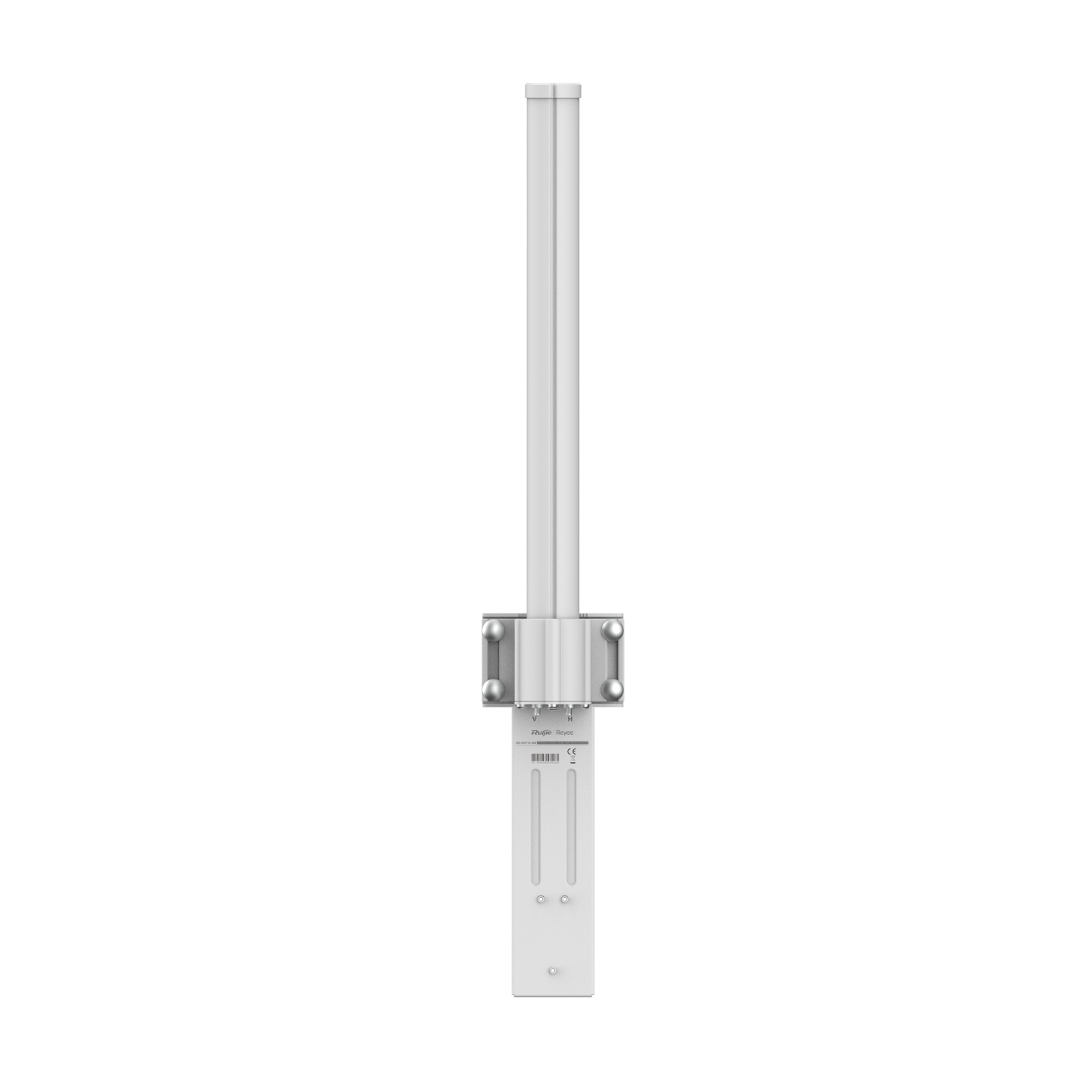

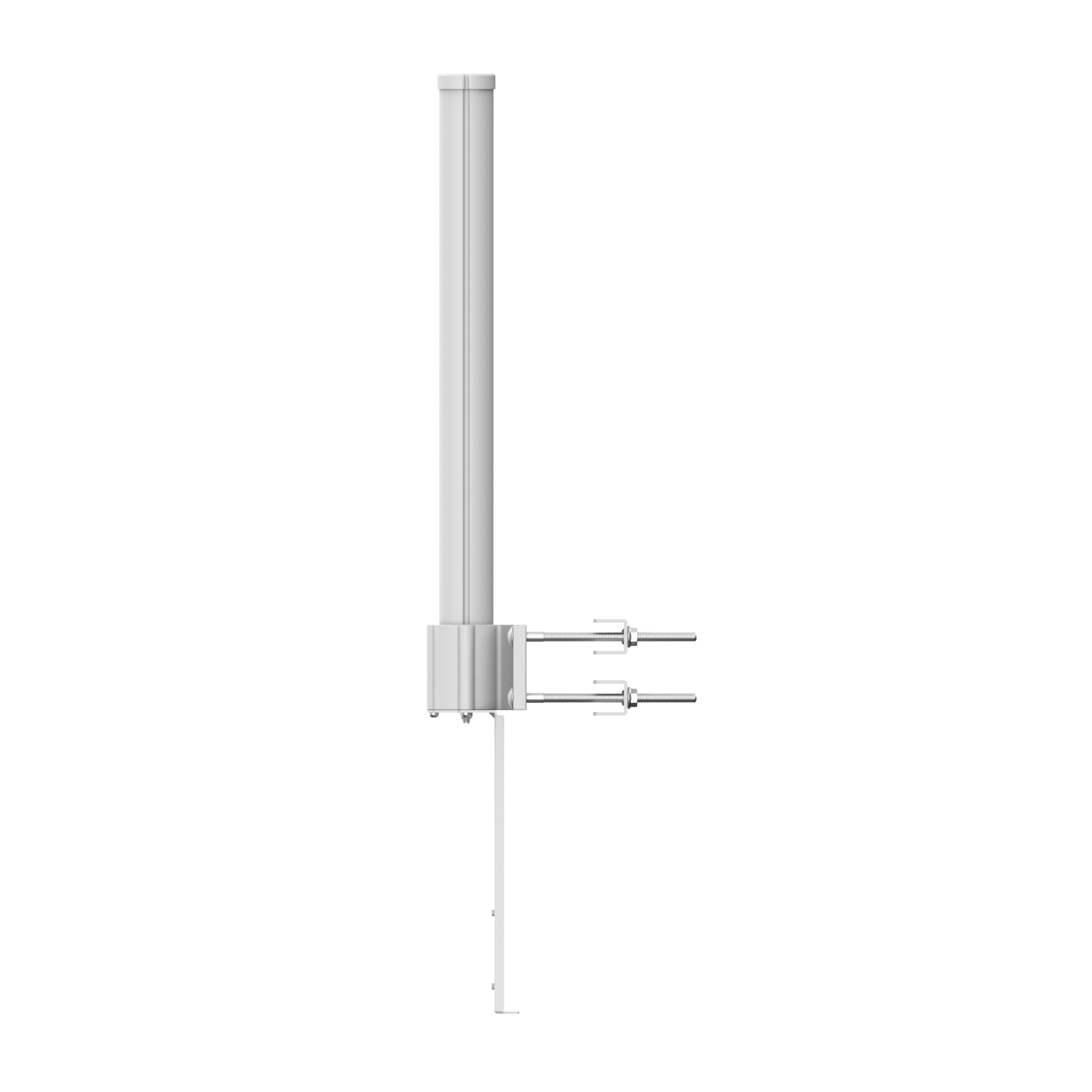

RG-ANT13-360, Antena setorial 360° para CPEs sem fio da série RG-AirMetro

WISP, CFTV, cidades, ruas, fábricas, etc.

Models
RG-ANT13-360

Antena omnidirecional 360°, 2 km

 RG-AirMetro550G-B

Estação base de até 867 Mbps em 5 GHz, 1 a 32 PTMP no máximo, 2 portas GE

 RG-ANT16S-120

Antena setorial 120°, 5 km

 RG-ANT20S-90

Antena setorial 90°, 10 km
Series
PTMP Station PTP/PTMP CPE
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • Escolha entre três antenas para diversos cenários
  • Classificação IP55 contra ambientes agressivos
  • O gerenciamento em nuvem multifuncional simplifica a jornada do usuário
Sales Enquiry
Key Specification
Features

CPEs sem fio da
série RG-AirMetro

Quando emparelhado com CPEs, a interconexão é compatível com:

  • 10km

    Até 10 km de
    transmissão sem fio

  • 32PTMP

    Até 32 links
    PTMP

  • Ferramenta de pesquisa
    de site fácil de usar

  • Gerenciamento em nuvem
    multifuncional

Estação base

Uma combinação perfeita para diferentes dispositivos e cenários

  • 867 Mbps

    em 5 GHz* fluxo duplo 802.11ac

  • Até 32 links PTMP

    TDMA

Emparelhamento com
um toque

Emparelhamento total com um toque em 30 segundos

AI Heatmap para CPE

Antenas

Dispositivos triplos, além de escolhas triplas

Nuvem
multifuncional

Guia para uma jornada sem preocupações

Cenários
principais

A escolha ideal para cenários WISP e CFTV

Uma combinação perfeita para diferentes
dispositivos e cenários

Emparelhamento rápido

Emparelhamento total com um toque em 30 segundos

Antenas

Dispositivos triplos, além de escolhas triplas

  • RG-ANT20S-90

    5 GHz, 20 dBi

    H: 90°，V: 7°

    10 km

  • RG-ANT16S-120

    5 GHz, 16 dBi

    H:120°，V:10°

    5 km

  • RG-ANT13-360

    5 GHz, 13 dBi

    H: 360°，V: 7°

    2 km

Mantém-se estável

Enfrenta ambientes agressivos

  • IP55 à prova de intempéries
  • Resistência a ventos de 220,32 km/h (137 mph)
  • Proteção contra surtos 6 kV
  • ESD de 24 kV por contato/ar

PTMP

Até 32 links PTMP

WISP

Ampla cobertura sem conexões de fibra

CFTV

Excelência acessível e vigilância tranquila

AI Heatmap para CPE

Seu verdadeiro companheiro de aventuras ao ar livre

Ferramenta de alinhamento

Seu guia eficiente e potente que vai economizar seu tempo

Varredura de espectro e otimização de link

Guia aprovado por todos

  • Varredura de interferência de canal com um clique para todos os pontos

  • Recomendações de otimização automática

  • Economia de tempo e esforço

Disponível tanto no Ruijie Cloud quanto no Ruijie Reyee App

A nuvem facilita seus negócios

Nuvem multifuncional

Configuração rápidaMonitoramento baseado em topologia real e completaIdentificação de problemas por alarme automático

Comparison
PTP
PTMP
Antena
Polarização
Distância recomendada
Protocolo
Taxa de transferência máxima
Faixa de Frequência*
Classificação IP
Specifications
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
