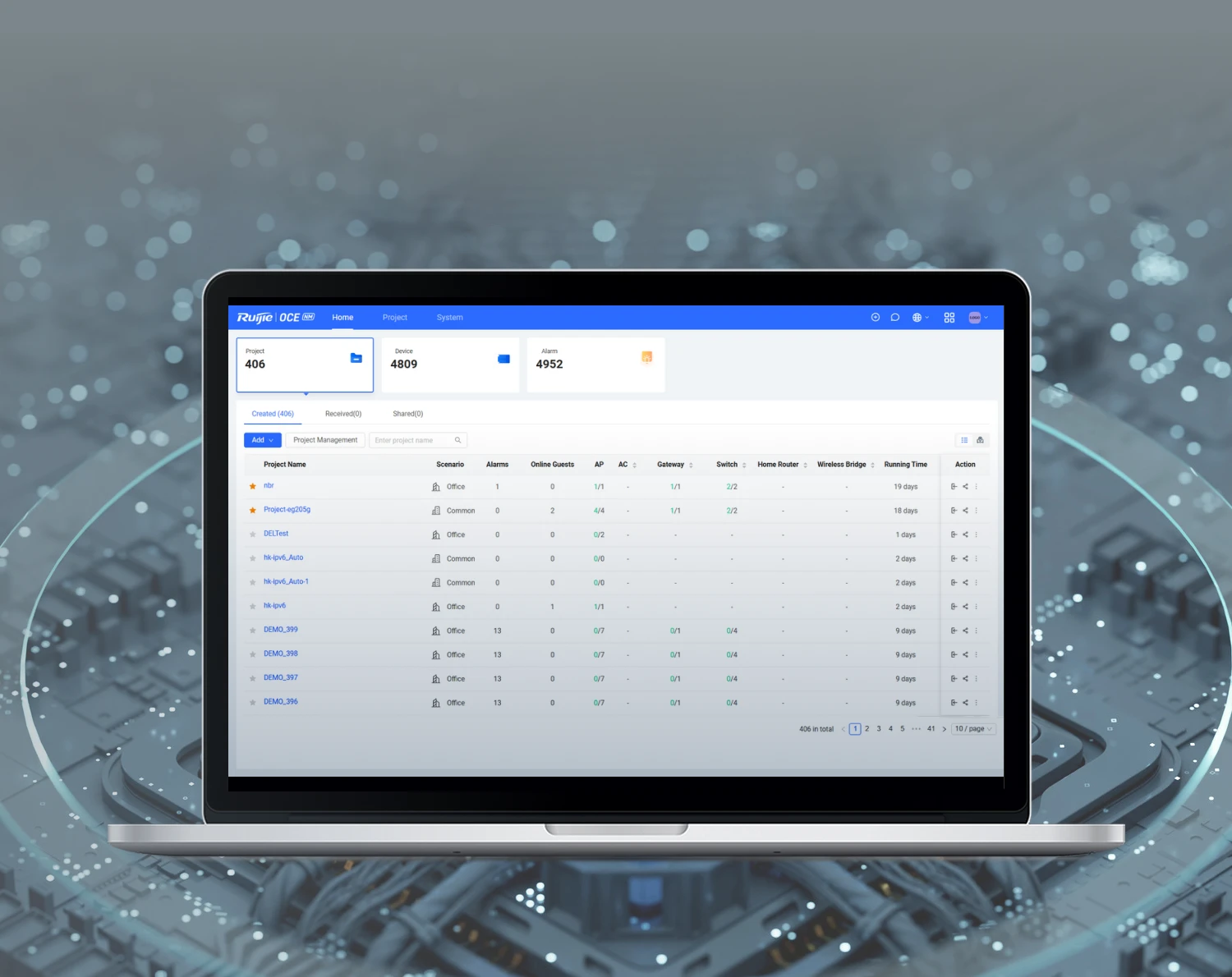

RG-OCE Network Manager

The RG-OCE Network Manager (RG-OCE-NM On-Premises) is a revolutionary device management software that supports unified device management and configuration of access points (APs), switches, and gateways, as well as Third-Party devices.

It consists of various feature modules such as management, monitoring, diagnostic tools, and captive portal authentication, significantly reducing the total cost of ownership while ensuring high usability.

Watch Video

RG-OCE Network Manager

Ruijie OCE On-Premises
Management Module

On-Premises Deployment
Secure and Reliable
Supports
50 to 100,000 Devices
Standalone Deployment
Installed in Minutes

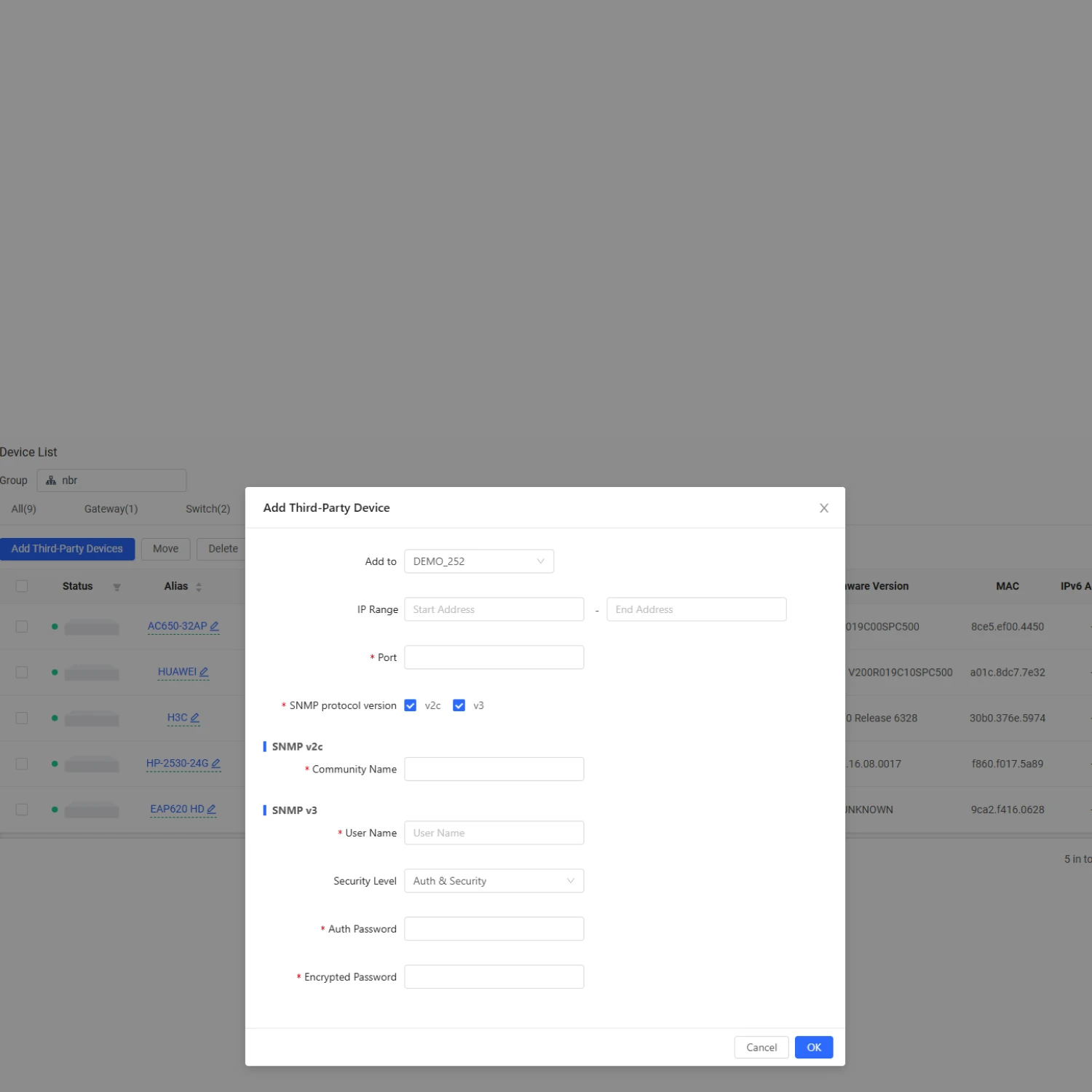

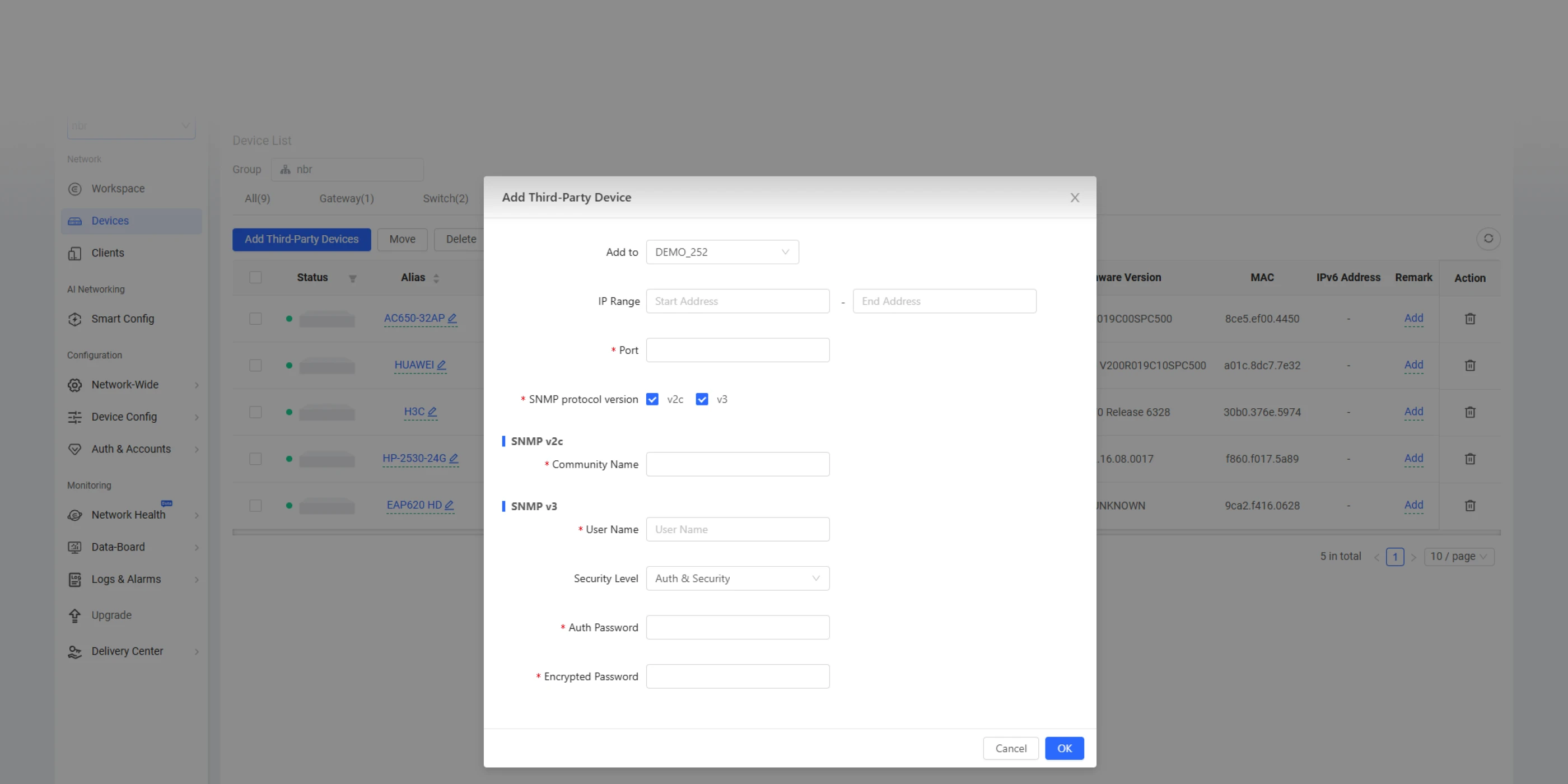

Manage Third-Party Devices with SNMP

Leverage SNMP for managing third-party devices, featuring actual topology display and
real-time alerts generated by SNMP traps.

Leverage SNMP for managing third-party devices, featuring actual topology display and real-time alerts generated by SNMP traps.

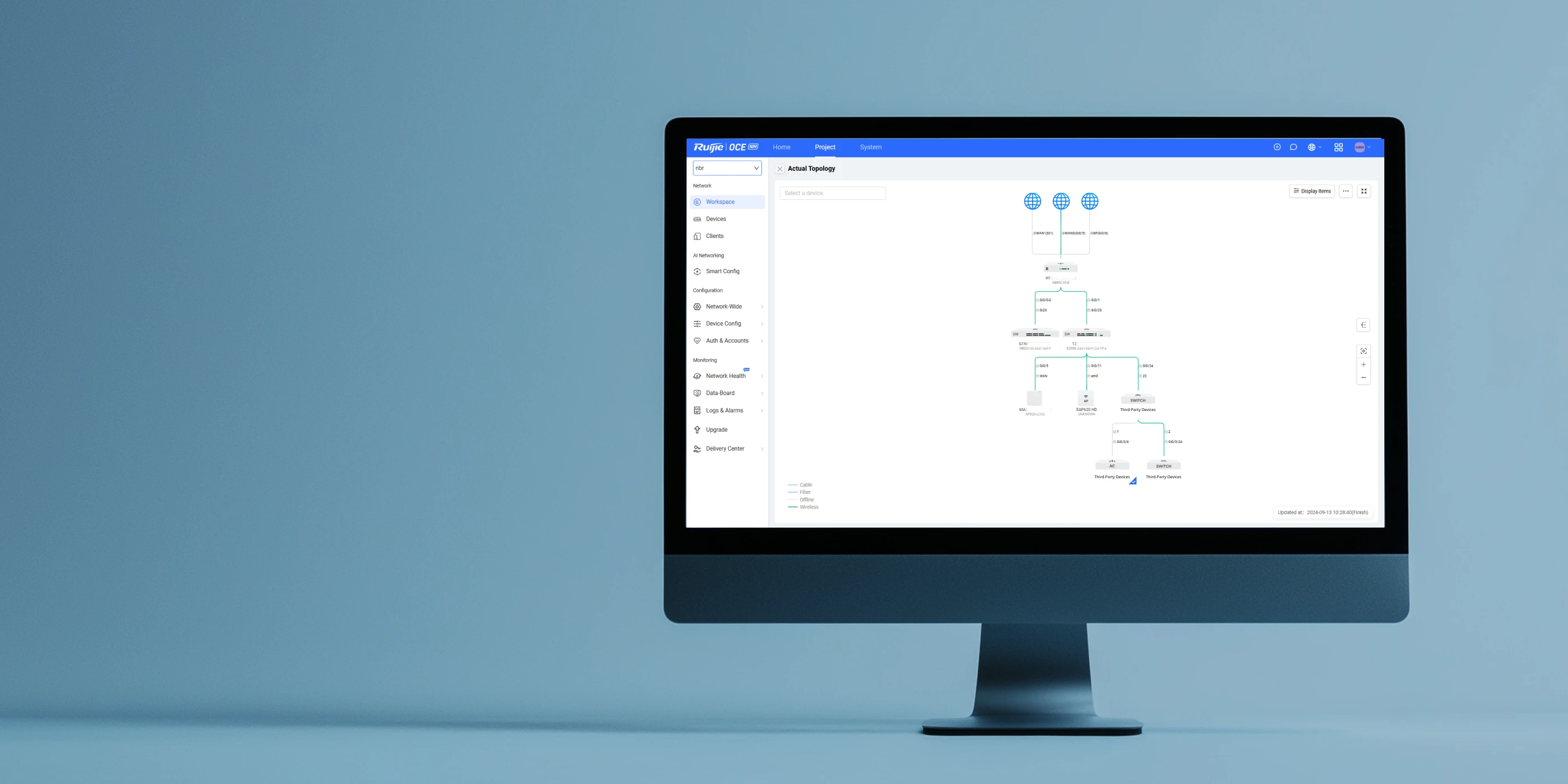

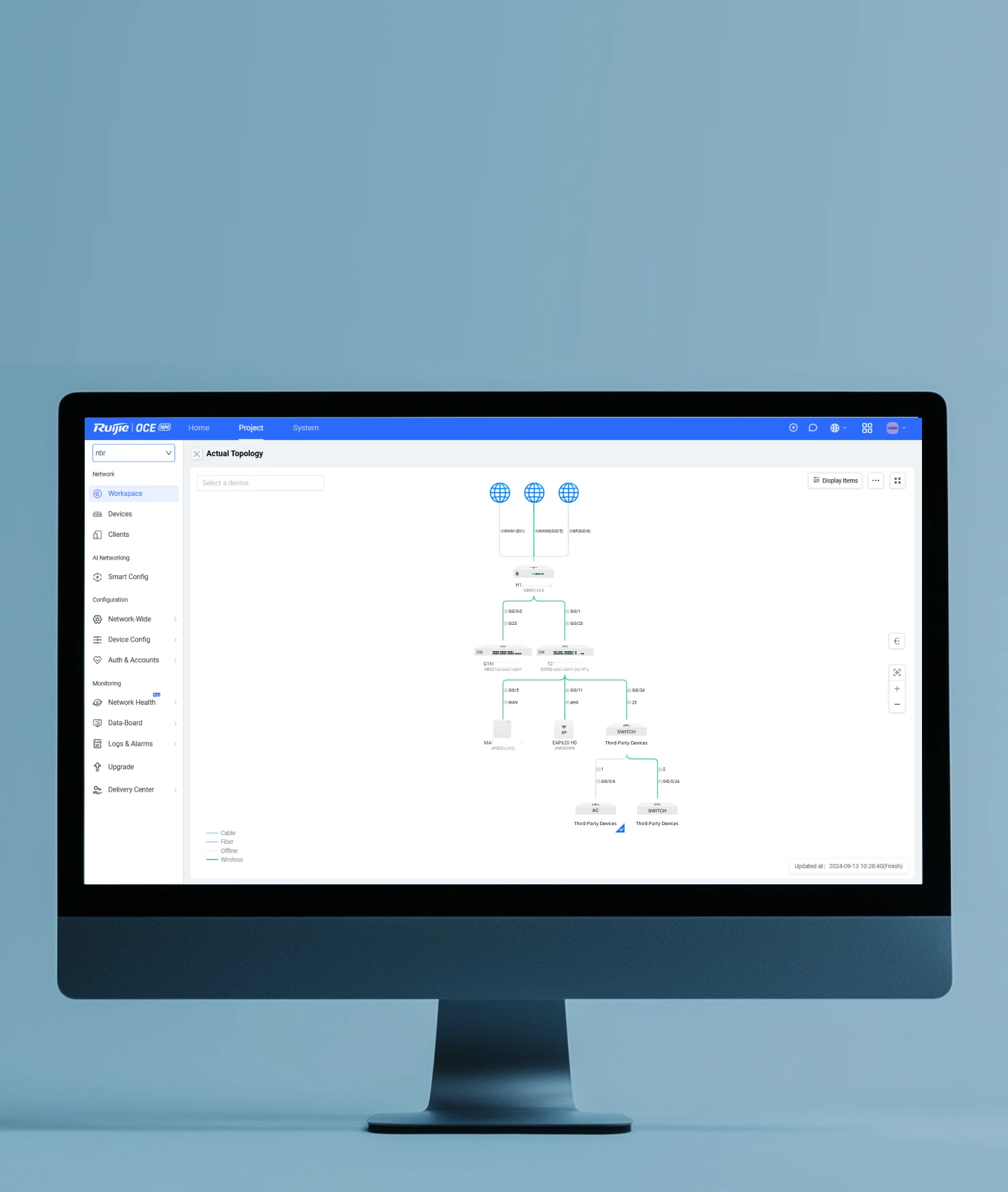

Actual Topology

Provide a clear view of network status and device statistics for intuitive monitoring.

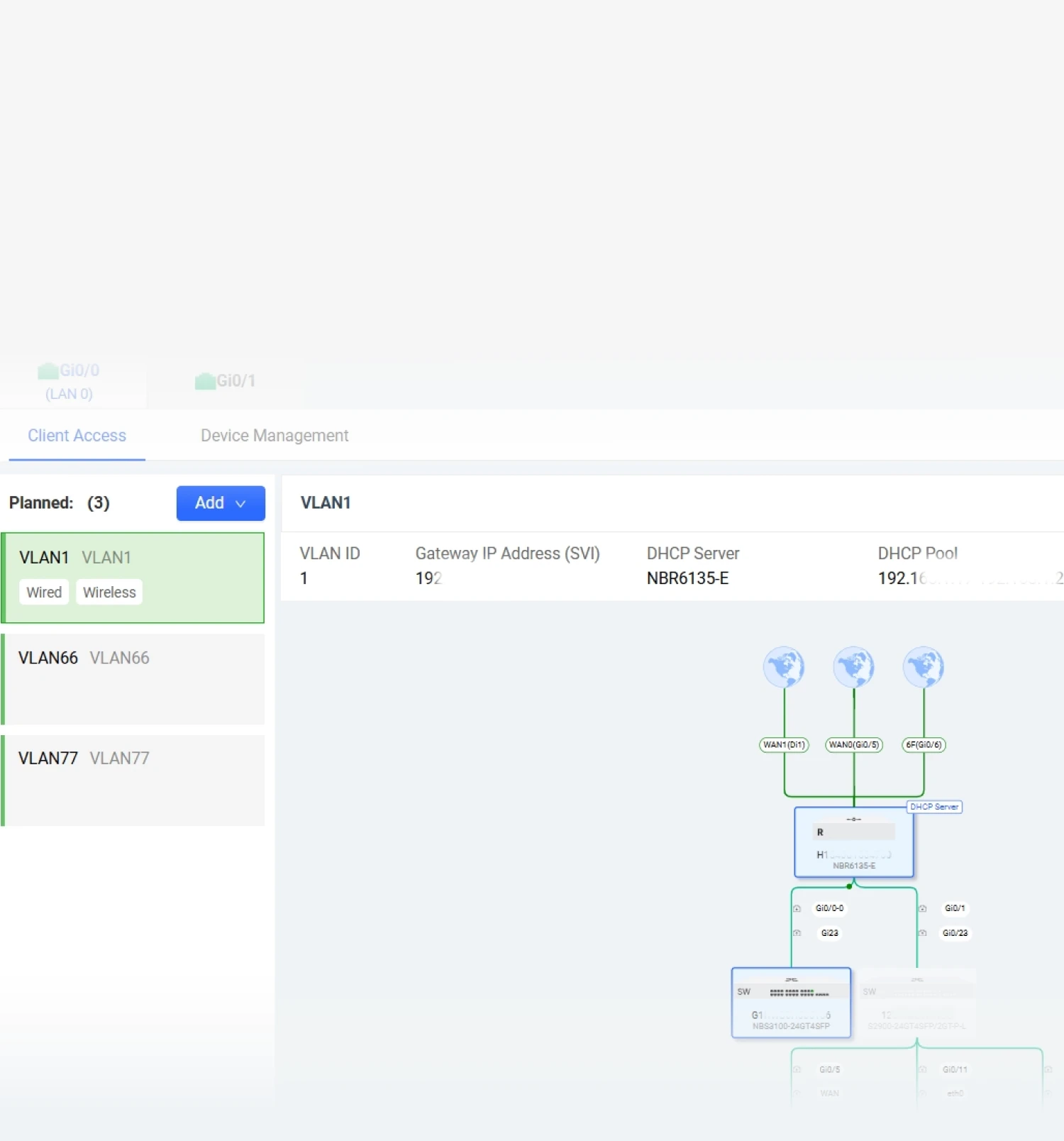

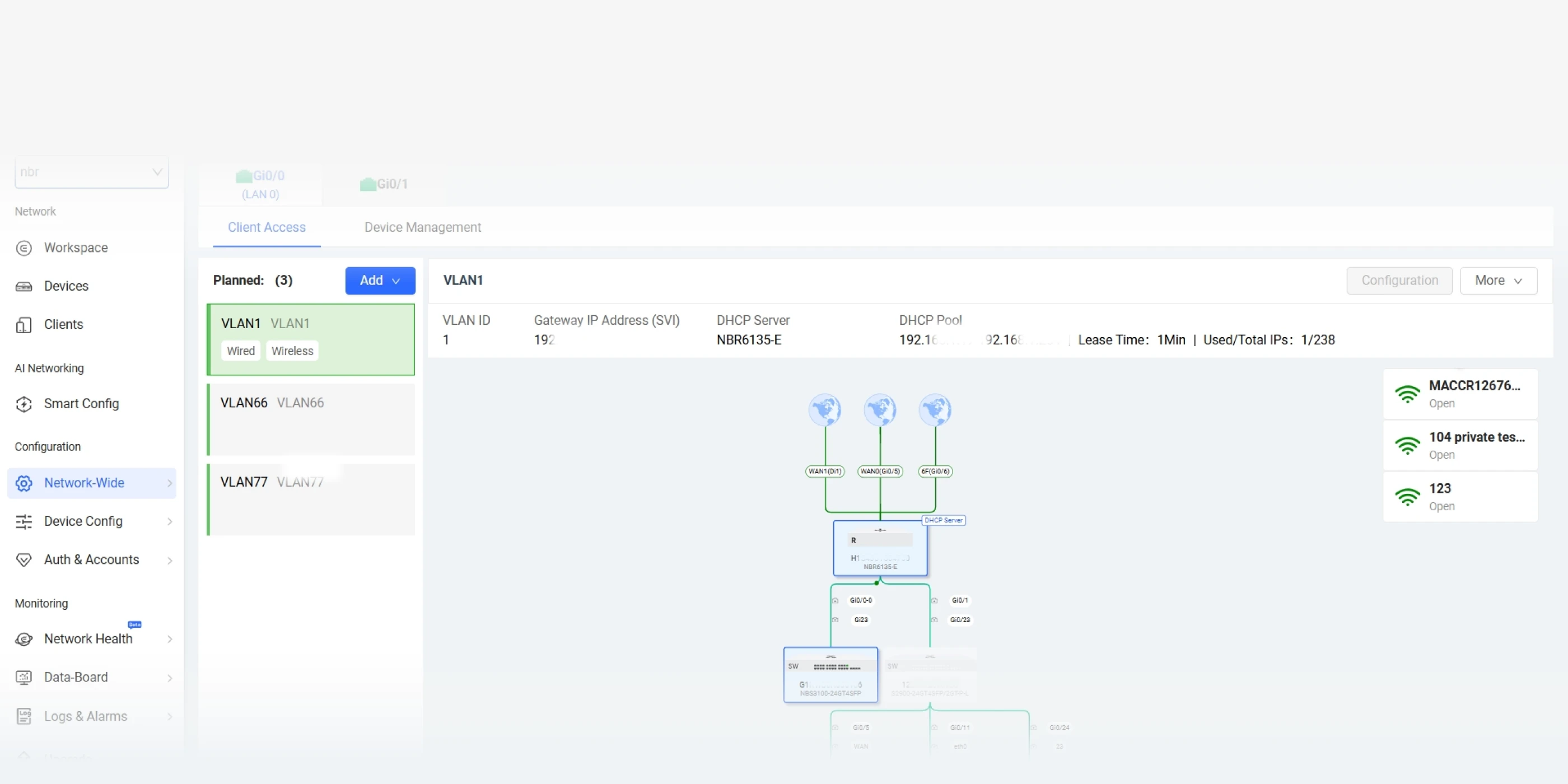

VLAN Visualization

Enable administrators to quickly and easily deploy wired and wireless networks
through VLAN visualization.

Enable administrators to quickly and easily deploy wired
and wireless networks through VLAN visualization.

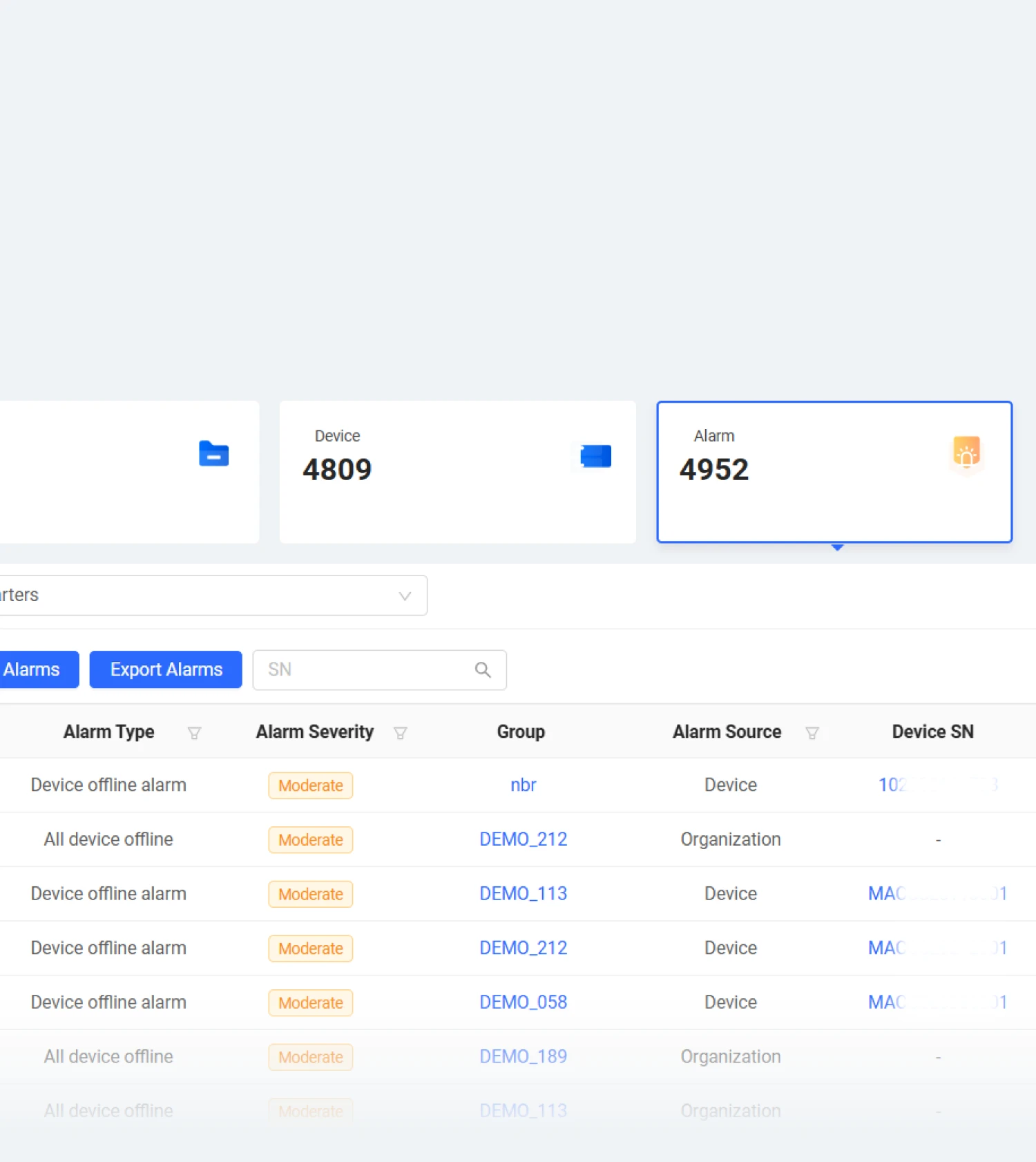

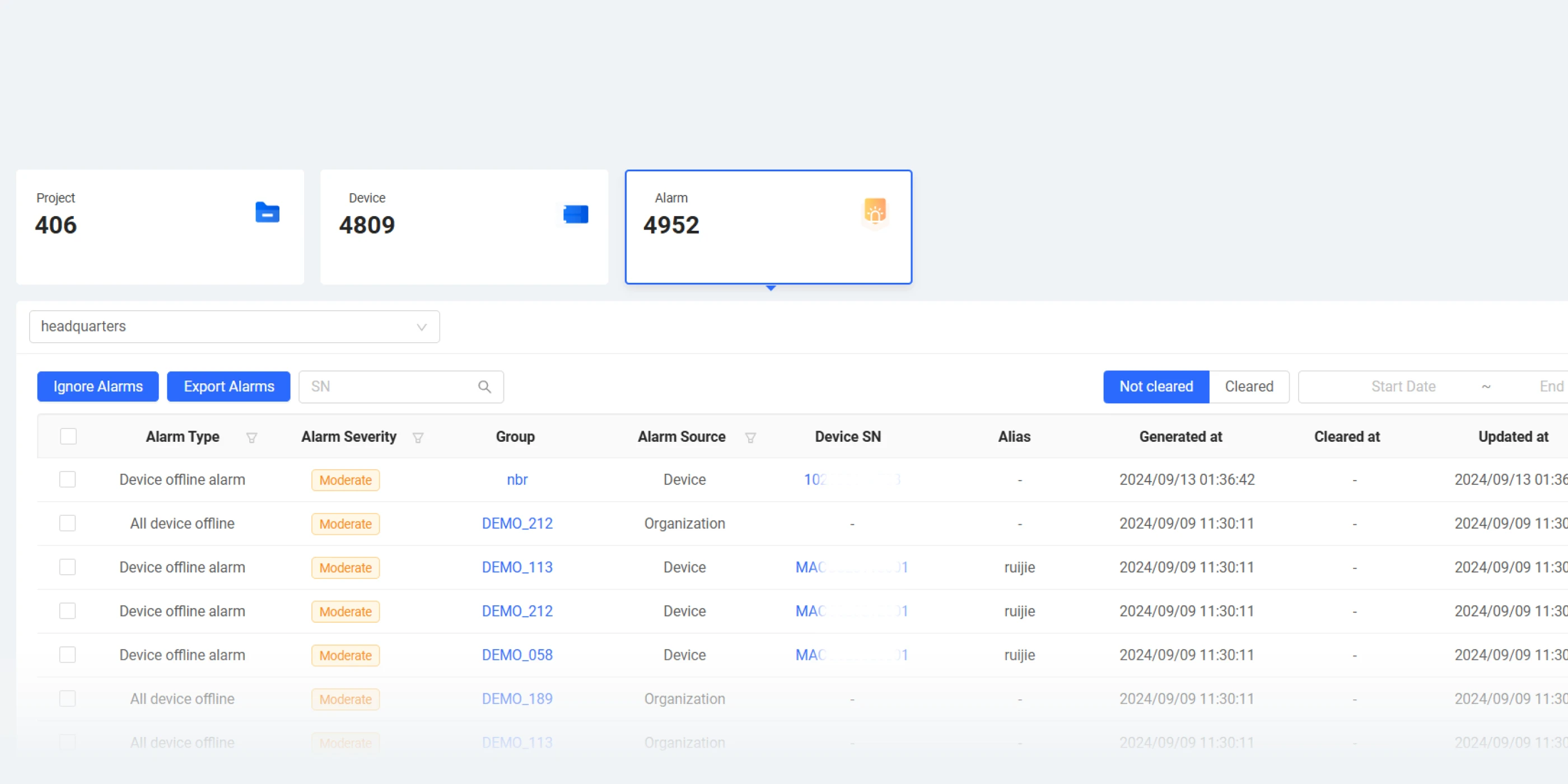

Operating Status, Offline Alarms, and Other Warnings

Operating Status/Offline Alarms
and Other Warnings

Easily trace the cause of each alarm based on the alarm severity, content, and time.

Easily trace the cause of each alarm based on the alarm
severity, content, and time.

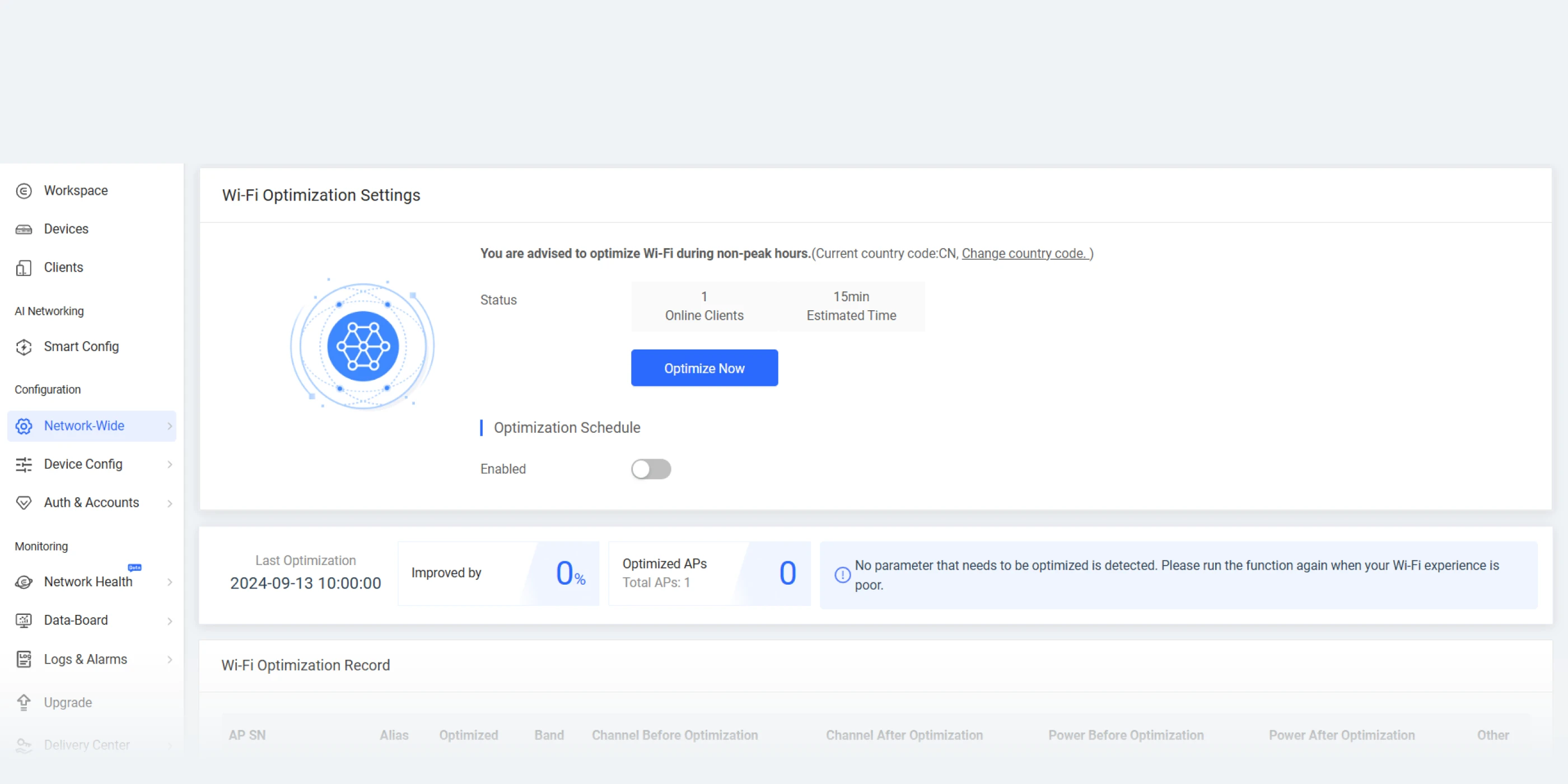

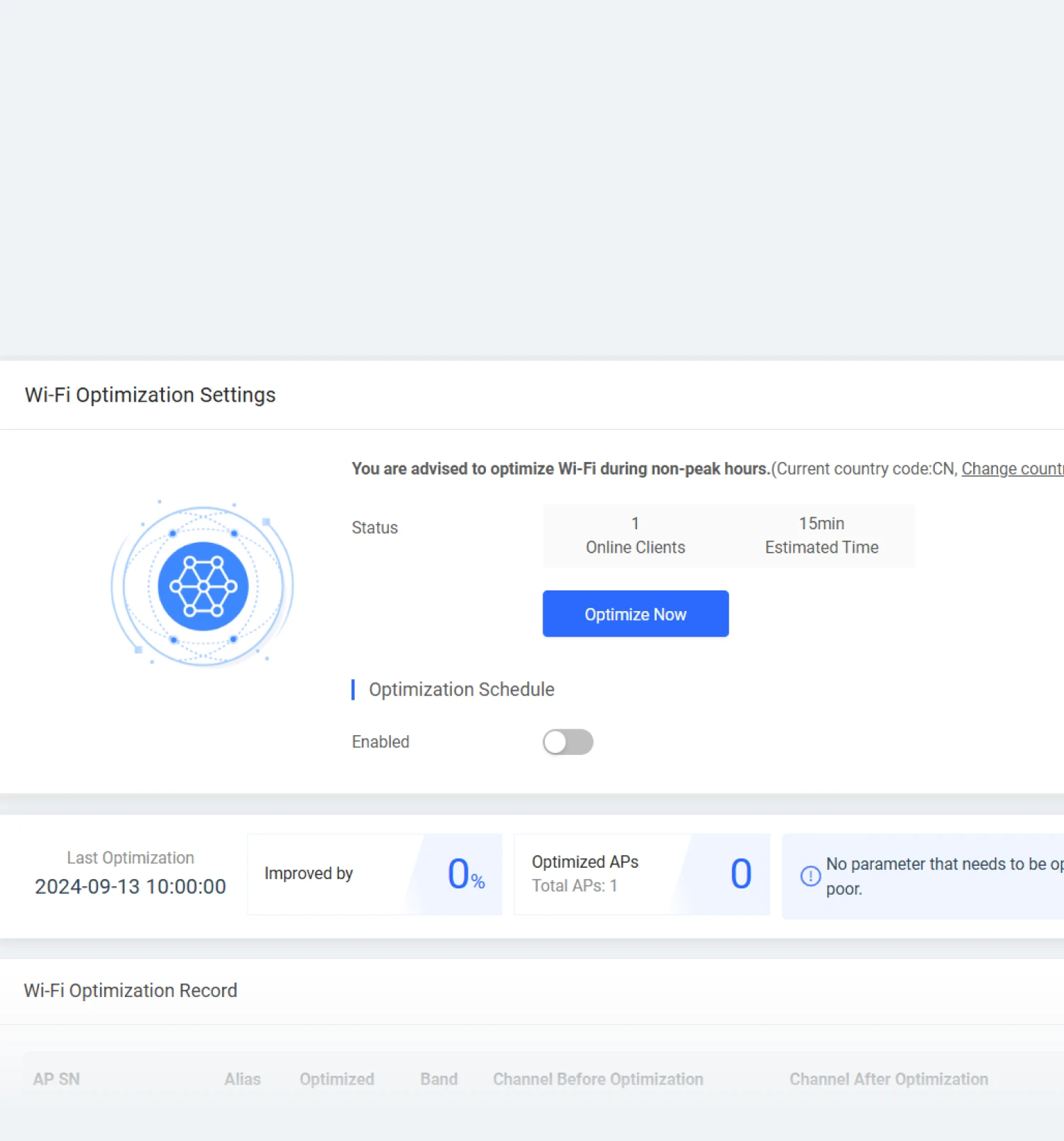

Wi-Fi Optimization

Achieve network optimization automatically with just one click.

Achieve network optimization automatically with just one
click.

Specifications

Specifications	RG-OCE Network Manager
Deployment Mode:
Single-Tenant (for on-premises deployment)	√
Multi-Tenant (fo private/cloud deployment)	√
Network Planning:
Location Planning (Google Map)	√
AP Layout Planning	√
Auto-configured Wired/Wireless Network	√
Wireless Configuration:
SSID Configuration	√
RF Configuration	√
Captive Portal Configuration	√
802.1X Authentication	√
Client-based Bandwidth Limit	√
AP Mesh	√
Layer2/Layer 3 Roaming	√
Client-based Blocklist/Allowlist	√
Switch Configuration:
Interface & VLAN Configuration	√
Voice VLAN	√
802.1X Configuration	√
DHCP Snooping	√
ACL Policy	√
Loop Prevention, Port Protection	√
Storm Control, IP Source Guard	√
Router/Gateway Configuration:
Interface and VLAN Configuration	√
Multi-WAN and Load Balancing	√
Routing (Static Routing/PBR)	√
QoS & App/URL Block	√
DDNS Configuration	√ (Ruijie DDNS Not Supported)
Captive Portal Authentication	√
PPPoE Server	√
VPN (L2TP/IPsec/PPTP/OpenVPN)	√
Monitoring:
Global View (Dashboard)	√
Network Health Insight	√
Egress Traffic Overview	√
Wi-Fi Health Monitoring	√
Device & Client List	√
Maintenance & Optimization:
Firmware Upgrade	√
Delivery Report	√
Auto RF Planning & Scheduled Optimization	√
Specifications	RG-OCE Network Manager
VLAN Visualization	√
Operation/Configuration Logs	√
Alarm Notification	√
System Management:
Tenant Management	√
Role-based Privilege Management (Sub-account)	√
License Management	√
Account Language Support	√
Support:
Online RITA Support	√

Supported Models

Series	Models	Portal Authentication	802.1X Authentication
AP/AC	AP8xx Series, AP6xx Series, AP720-L, AP180P-L, AP180, RAP73Pro, WS6008, WS6512, and WS6108	Y	Y
Switches	CS83, CS85, CS86, S2915-L and NBS3300, NBS5500 Series	N	Y
Routers	EG1510XS, NBR6120-E, NBR6205-E, NBR6210-E, NBR6215-E	Y	N/A

System Requirements

Project Scale	Recommended System Specifications
Number of Devices	CPU & RAM & HDD x Number of Servers
< 100	4 Cores 24GB 150GB SSD
100 to 1000	4 Cores 32GB 200GB SSD
1000 to 5000	8 Cores 64GB 150GB SSD
5000 to 10,000	16 Cores 128GB 1TB SSD
> 10,000	Contact Ruijie sales representative for service deployment requirements.
HA Cluster Mode	Contact Ruijie sales representative for service cluster deployment requirements.

Resources All Resources

Learn about Products or Solutions

Product Datasheet

Order Information

Product Code	OCE Network Manager License
Default Built-in License	Free, 30 Days with 10 Devices Management
RG-OCE-NETWORK-BASE	The RG-OCE Network Manager Base license, supporting 10 devices (Note that if the demo license expires and the Base License is not installed, the system will no longer be operational.)
RG-OCE-NETWORK-LIC-50	RG-OCE NETWORK License for 50 devices Lifetime. Management of 50 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)
RG-OCE-NETWORK-LIC-100	RG-OCE NETWORK License for 100 devices Lifetime. Management of 100 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)
RG-OCE-NETWORK-LIC-500	RG-OCE NETWORK License for 500 devices Lifetime. Management of 500 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)
RG-OCE-NETWORK-LIC-1000	RG-OCE NETWORK License for 1000 devices Lifetime. Management of 1000 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)
RG-OCE-NETWORK-LIC-5000	RG-OCE NETWORK License for 5000 devices Lifetime. Management of 5000 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)
RG-OCE-SSP-1Y	Basic 1 Year Technical Service Support Package (SSP) (Annual Fee) This service is charged annually and covers the following: 1. Technical support and fault resolution: Remote technical support during local office hours (9 hours a day, 5 days a week), including software updates, after-sales technical consultation, fault resolution, and a dedicated channel for submitting service complaints or suggestions. Note: Basic technical services will no longer be provided once the validity period expires.
RG-OCE-CDS	Premium Technical Customization Development Service (Per-Incident Fee) This service is charged on a per-incident basis and covers the following: 1. R&D support: Cluster deployment, cluster data migration, server migration, OCE service restoration after a server restart, remote data backup, and custom function development. (Charges are based on the number of man-days needed from R&D engineers.)
