Comparer

RG-ES207GS-P, Switch PoE intelligent Gigabit administrable dans le cloud à 6 ports avec 1 port SFP

CCTV, bureau, hôtel, usine, commerce de détail, etc.

Modèles
RG-ES220GS-LP

16 x 10/100/1000BASE-T Ports PoE+, 2 x 10/100/1000BASE-T Ports, 2 x 1GE SFP Ports, 130 W

RG-ES207GS-LP

4 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 1 port SFP 1GE

RG-ES207GS-HP

2 ports PoE++ 10/100/1000BASE-T, 2 ports PoE+ 10/100/1000BASE-T, 2 ports 1GE, 1 port SFP 1GE

RG-ES220GS-P-V2

16 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 2 ports SFP 1GE

RG-ES211GS-LP

8 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 1 port SFP 1GE

RG-ES211GS-P

8 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 1 port SFP 1GE

RG-ES228GS-P-V2

24 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 2 ports SFP 1GE

RG-ES207GS-P

4 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 1 port SFP 1GE

RG-ES206MG-P

4 ports PoE+ 10/100/1 000/2 500BASE-T, 1 port 10/100/2 500BASE-T, 1 port 10GE SFP+, budget PoE de 70

RG-ES209MG-P

8 ports PoE+ 10/100/1 000/2 500BASE-T, 1 port 10GE SFP+, budget PoE de 130 W

RG-ES228GS-LP

24 x 10/100/1000BASE-T Ports PoE+, 2 x 10/100/1000BASE-T Ports, 2 x 1GE SFP Ports, 250 W

RG-ES205GC-P

5 ports gigabits, 4 PoE , 54W

RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

RG-ES209GC-P

9 ports Gigabits, 8 PoE , 120W

RG-ES206GS-P

Switch manageable, composé de 6 ports Gigabit, avec 4 ports PoE+ et 1 port combo

RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

Séries
Sales Enquiry
Add to Favorites
Fonctionnalités particulières
  • 1 port SFP 1GE pour liaison montante flexible
  • Switch rentable
  • Reconnaissance IPC pour la valeur ajoutée du réseau CCTV
  • Protection intelligente pour la continuité de service
  • PoE permanent
  • Gestion à vie dans Ruijie Cloud à tout moment, en tout lieu
Sales Enquiry
Caractéristiques

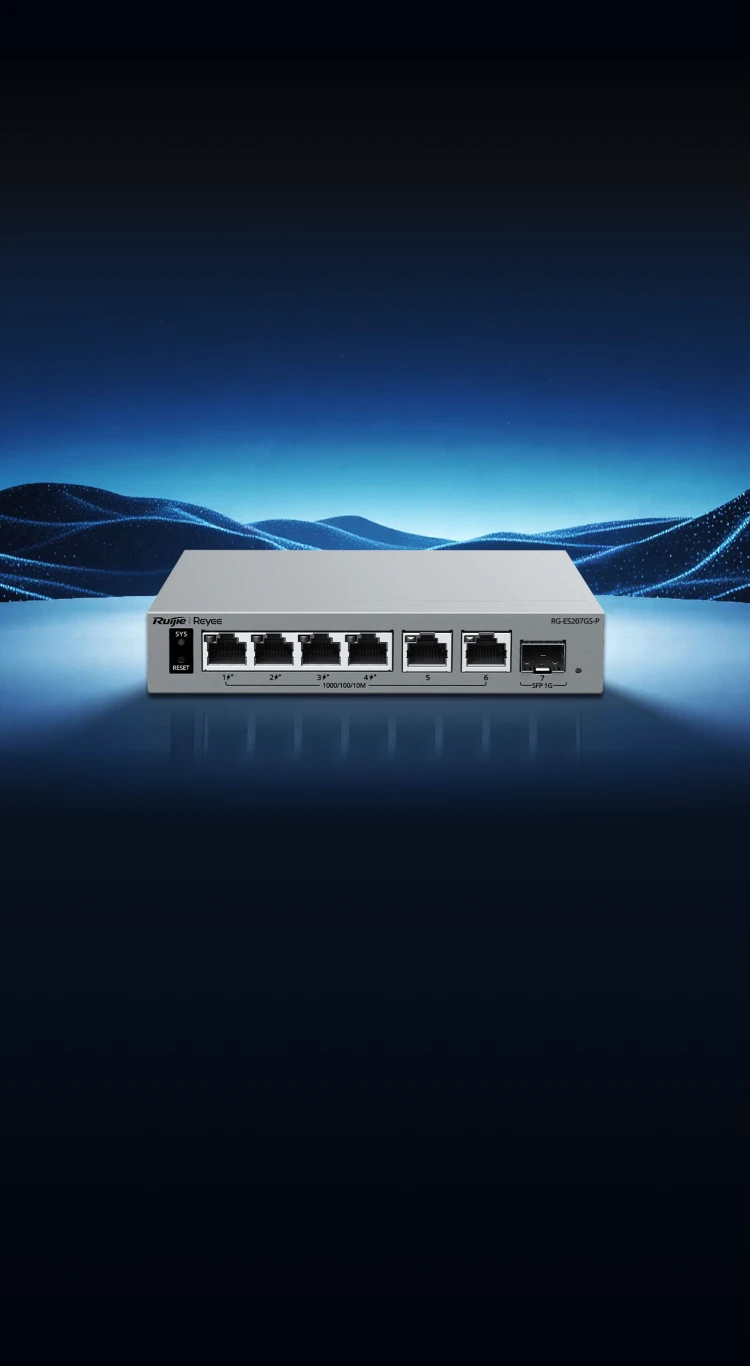

RG-ES207GS-P

7-Port Gigabit Smart Cloud-
Managed PoE Switch

  • PoE Budget 54 W

  • Fanless Design

  • Flexible Uplink Options

  • 3-Year Warranty

Perpetual PoE

PoE ports provide uninterrupted power even
during switch restarts.

6 kV Surge Protection for Harsh Environments

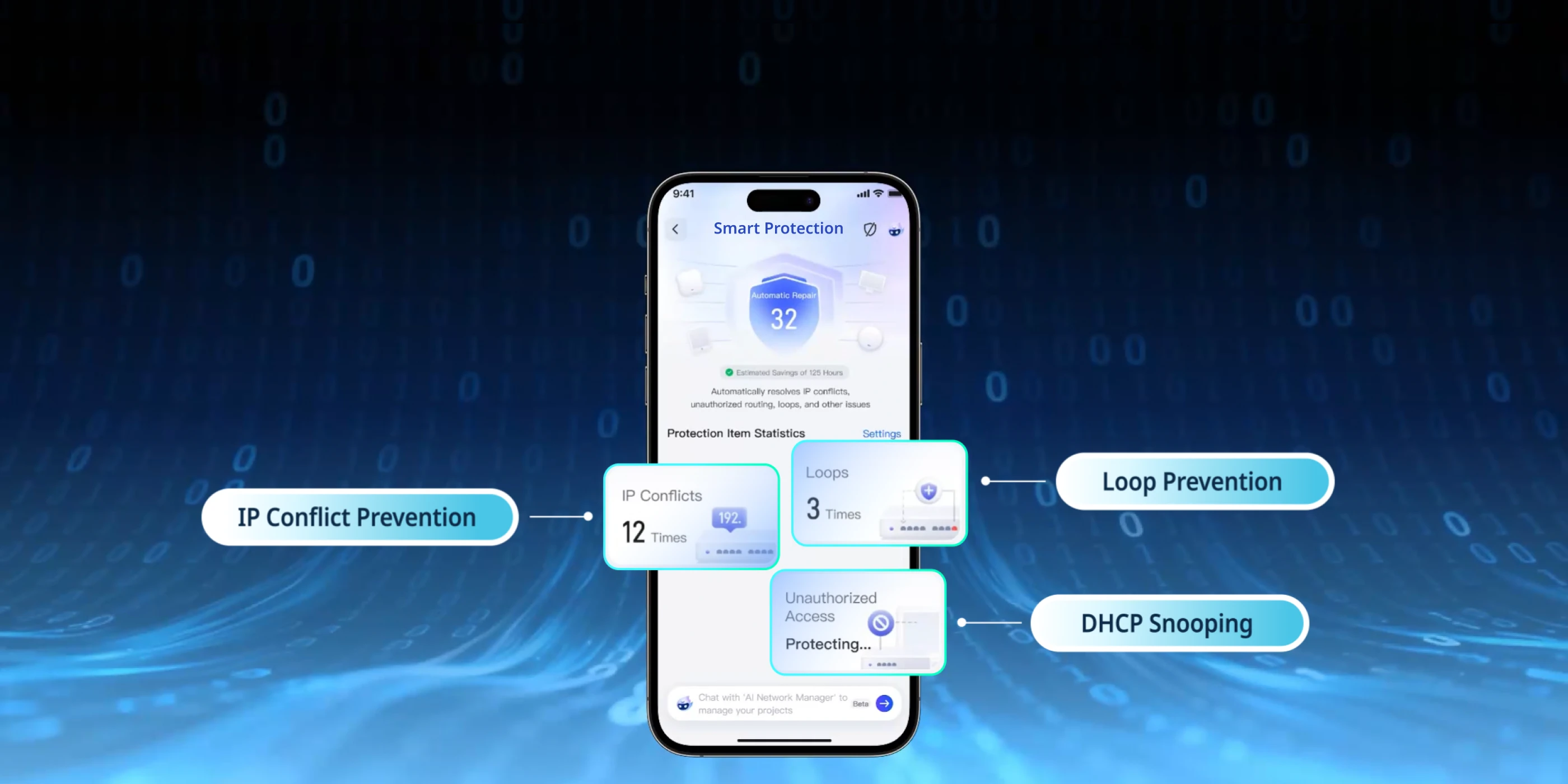

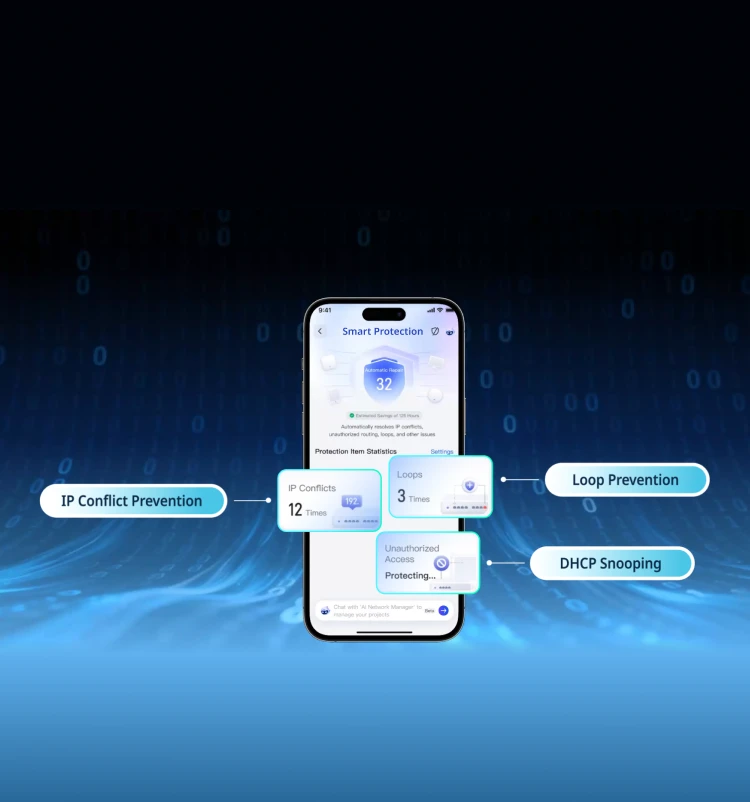

One Click Smart Protection to Prevent
Multiple After-Sales Issues

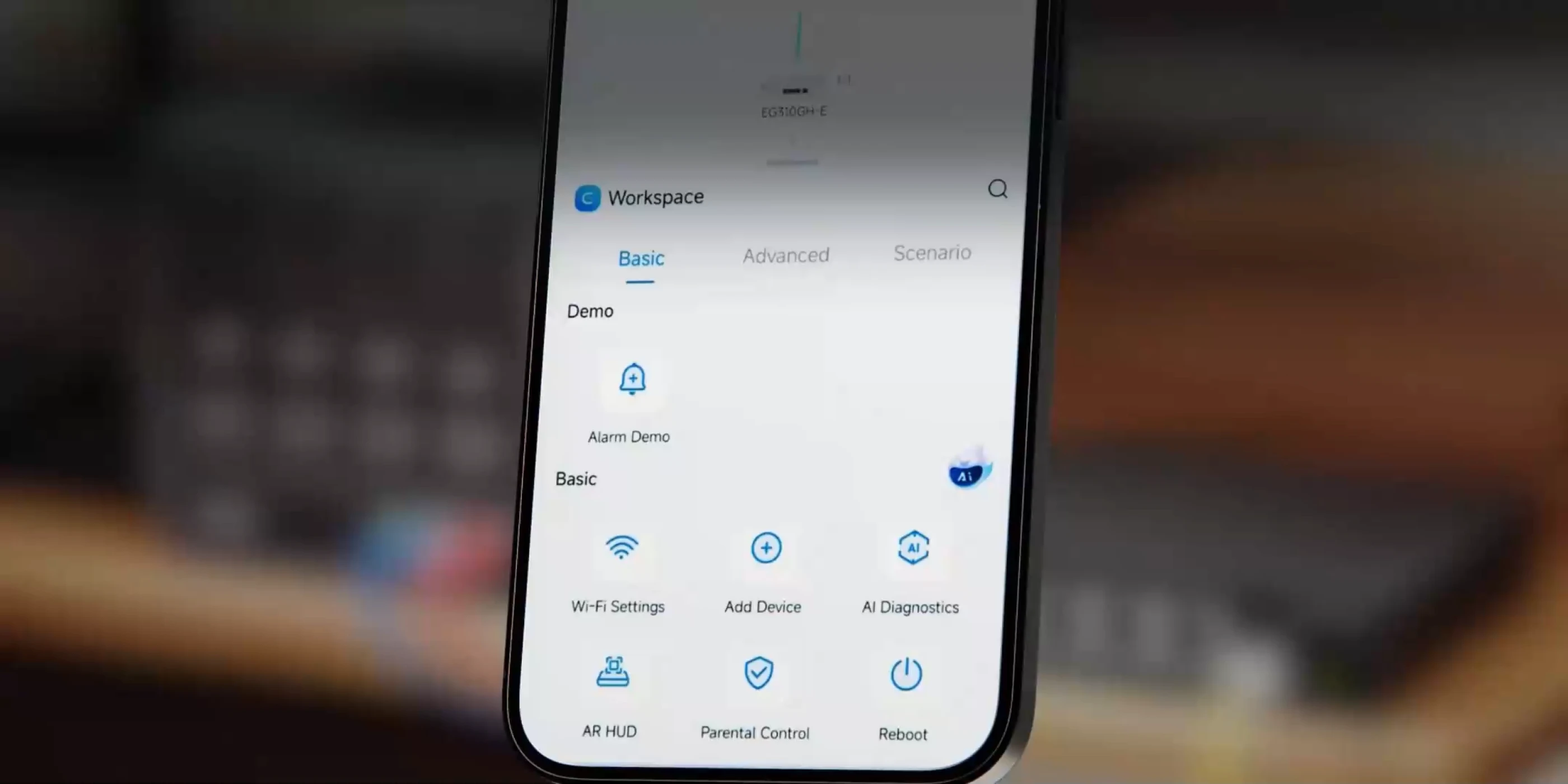

Cloud, Make Your Business Easy

Spécifications essentielles
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years

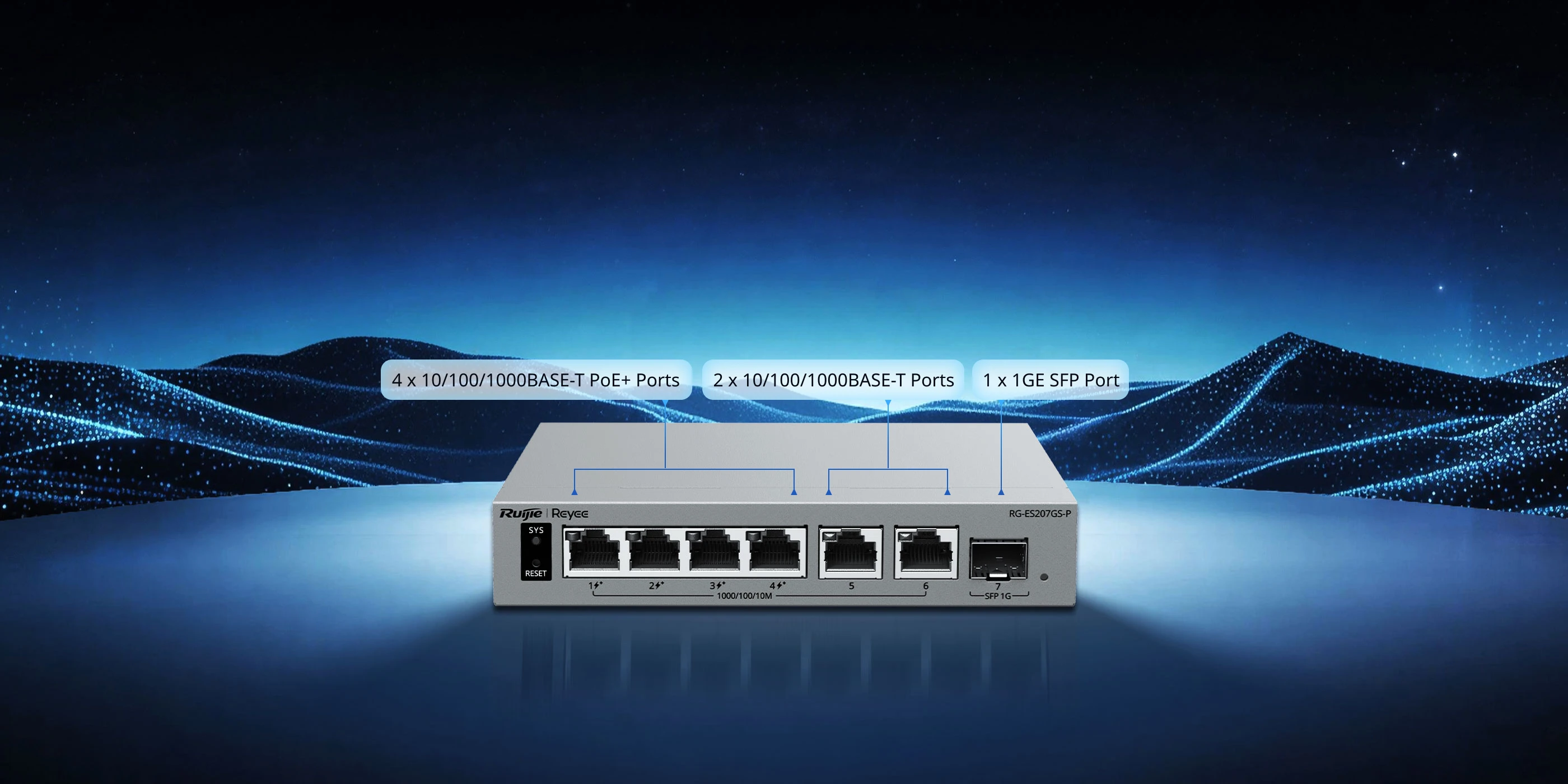

Port Specifications
Total number of RJ45 ports
  • 6
Total number of optical ports
  • 1
Number of 1GE SFP ports
  • 1
Number of 10/100/1000BASE-T ports
  • 6
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • 54 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 10.41 Mpps
Switching capacity
  • 14 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • 0°C to +40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
