RG-OCE Network Manager, Ruijie Omni-Control Engine Network Manager

Conçu pour les universités, les usines, les moyennes entreprises et d'autres scénarios de PME.

Modèles
Séries
Fonctionnalités particulières
  • Déploiement sur site
  • Gestion centralisée
  • Gestion multi-locataire et sous-compte
  • Gestion des appareils tiers
  • Approvisionnement sans contact
Sales Enquiry
Fitur

RG-OCE Network Manager

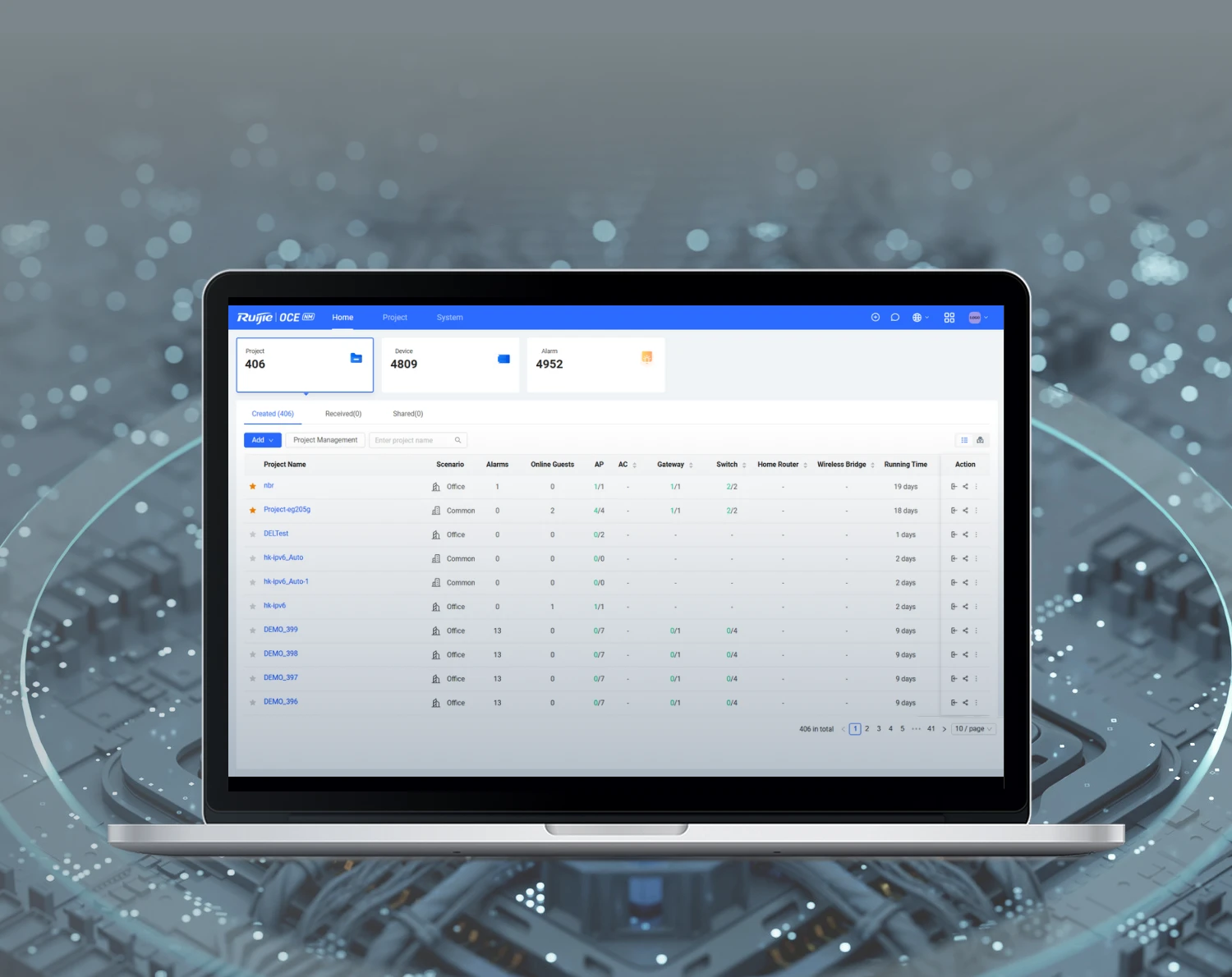

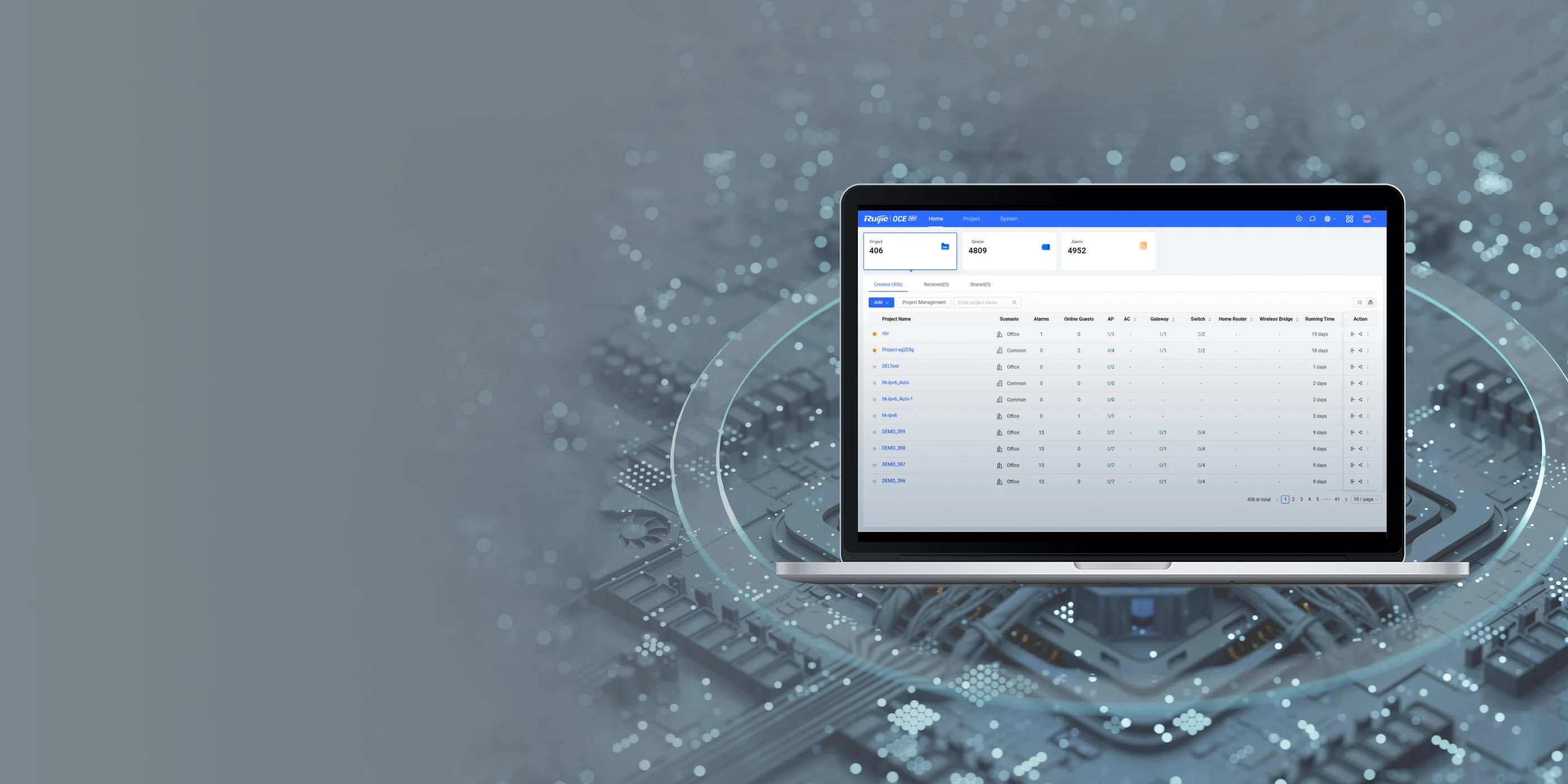

The RG-OCE Network Manager (RG-OCE-NM On-Premises) is a revolutionary device management software that supports unified device management and configuration of access points (APs), switches, and gateways, as well as Third-Party devices.

It consists of various feature modules such as management, monitoring, diagnostic tools, and captive portal authentication, significantly reducing the total cost of ownership while ensuring high usability.

Watch Video

RG-OCE Network Manager

Ruijie OCE On-Premises
Management Module

Ruijie OCE On-Premises
Management Module

  • On-Premises Deployment

    Secure and Reliable
  • Supports

    50 to 100,000 Devices

  • Standalone Deployment

    Installed in Minutes

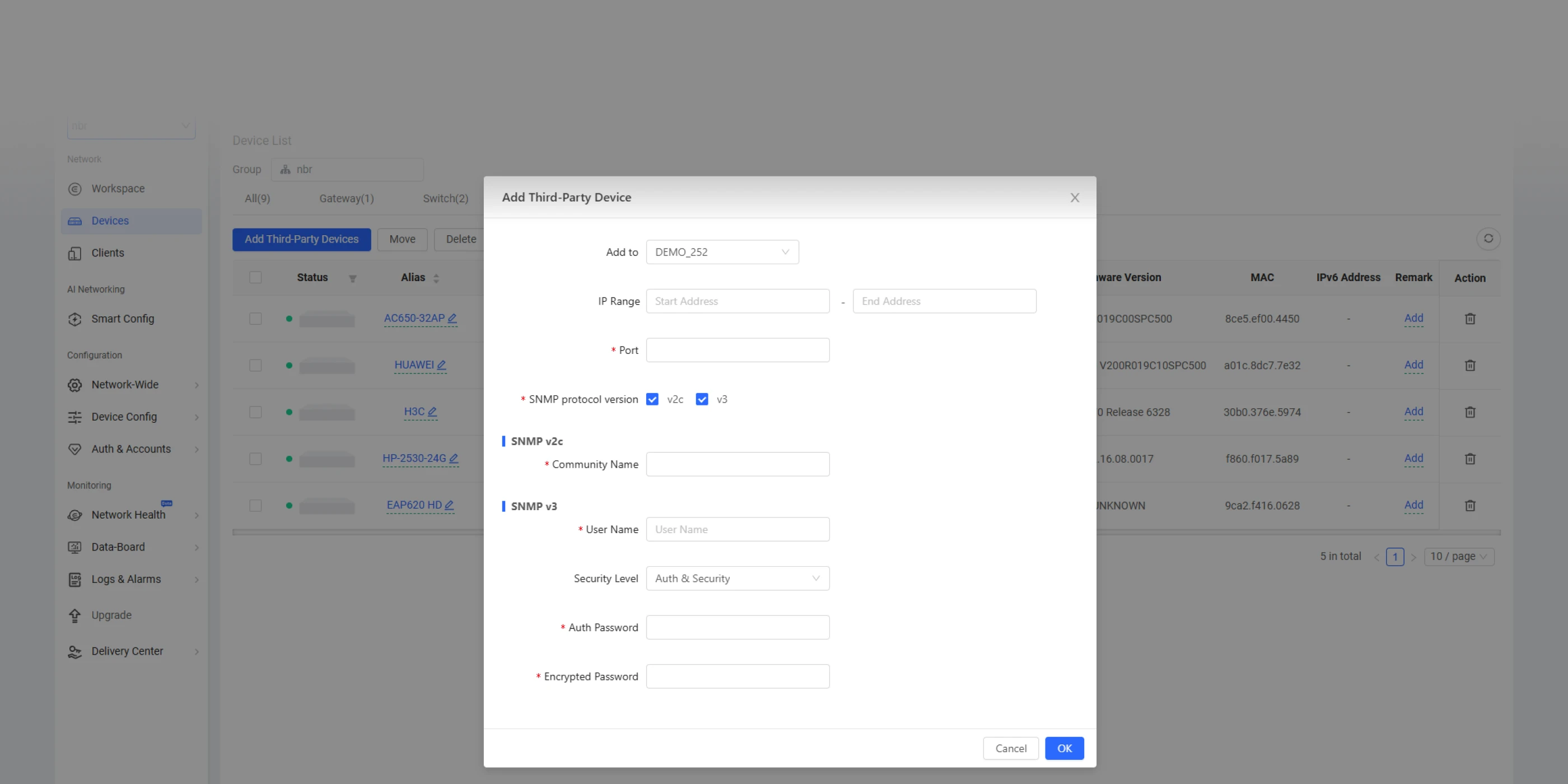

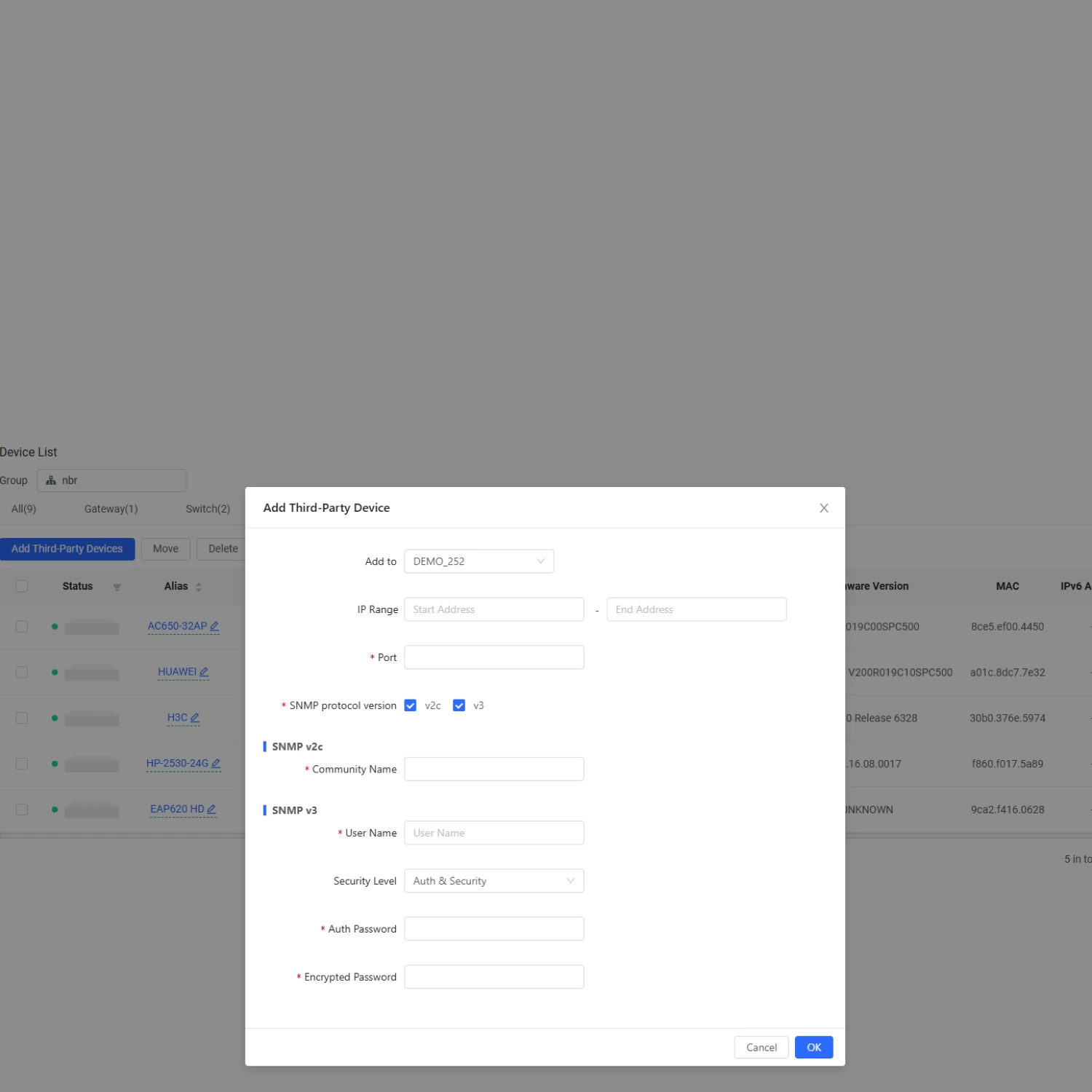

Manage Third-Party Devices with SNMP

Leverage SNMP for managing third-party devices, featuring actual topology display and
real-time alerts generated by SNMP traps.

Leverage SNMP for managing third-party devices, featuring actual topology display and real-time alerts generated by SNMP traps.

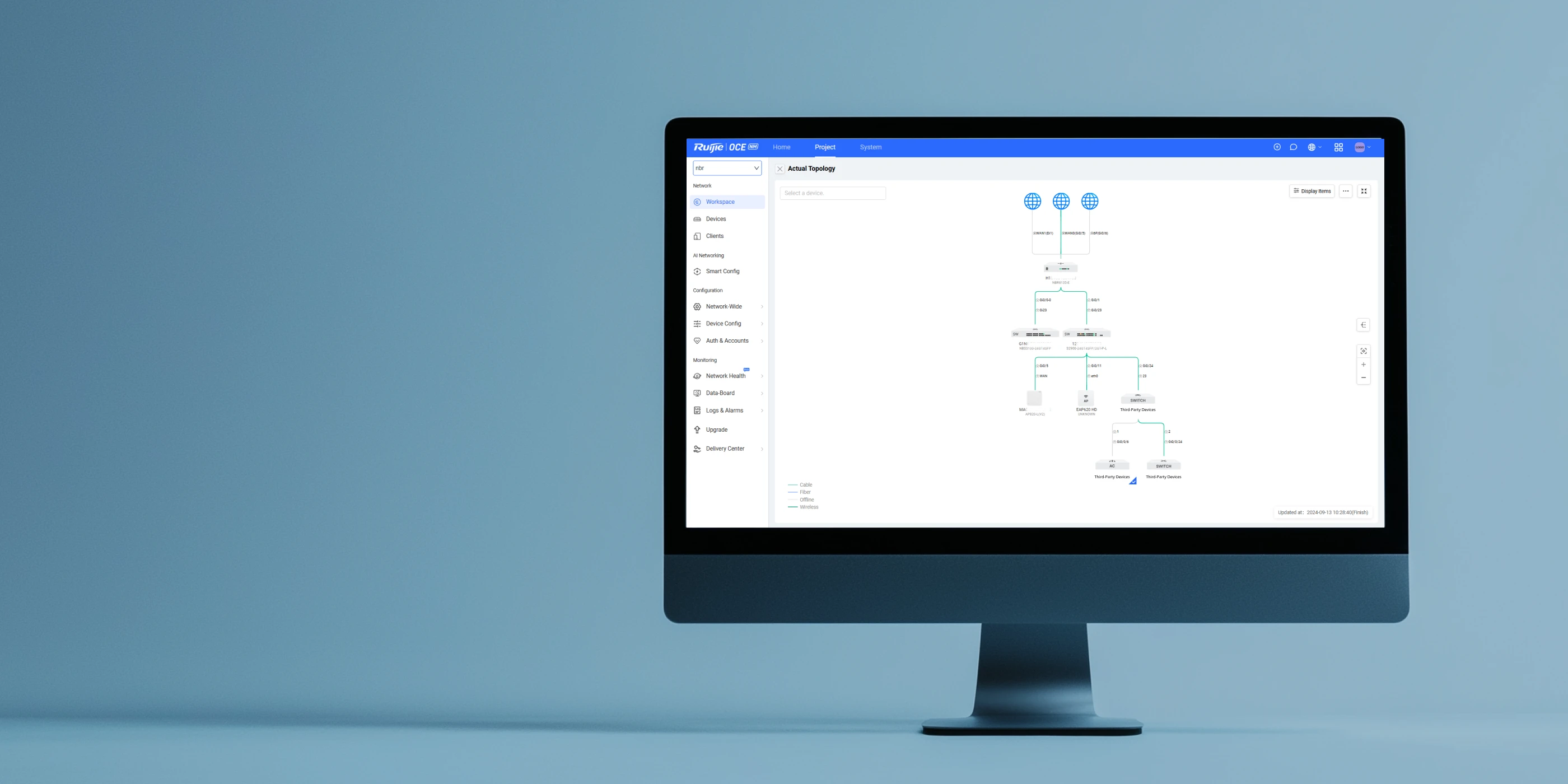

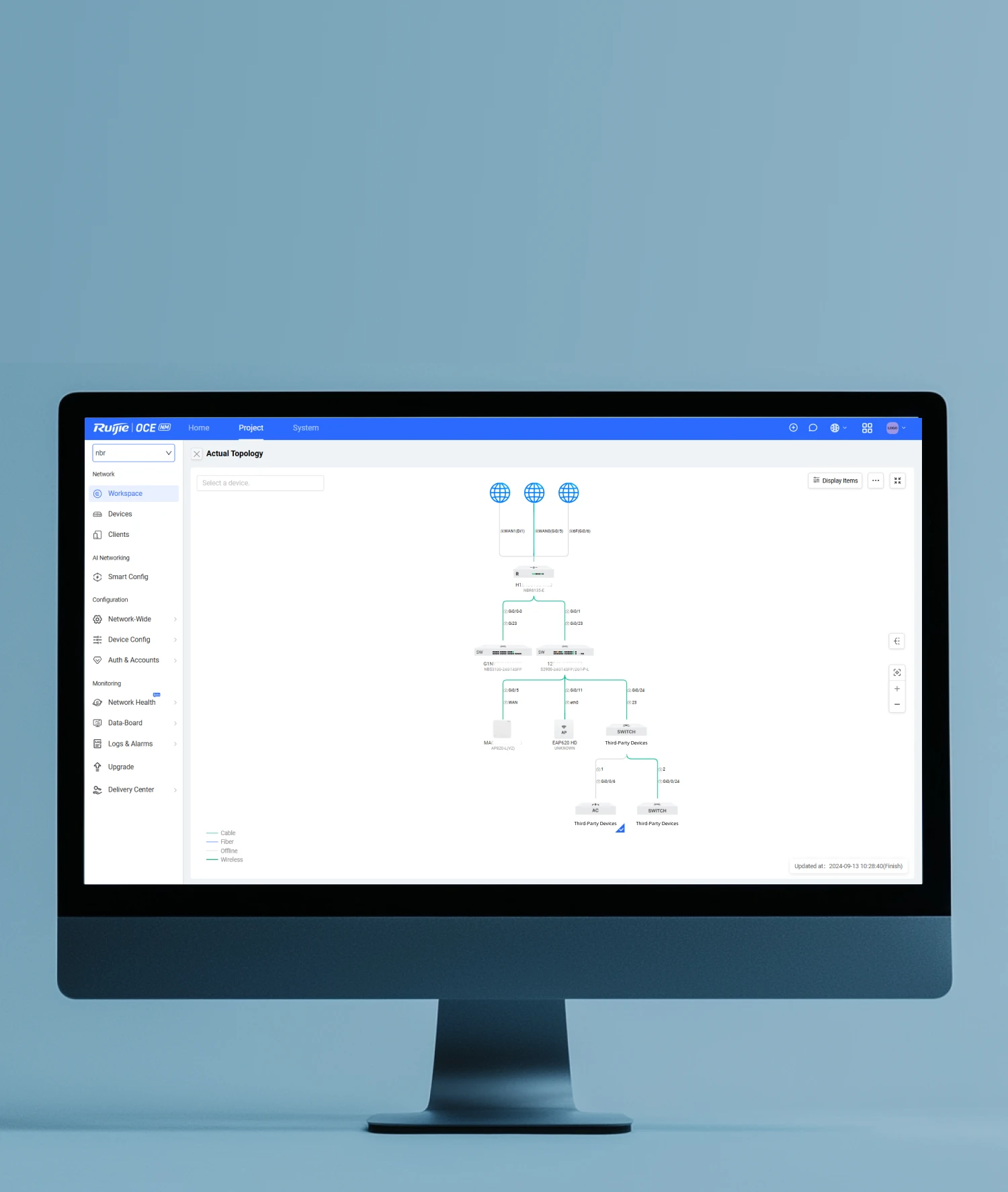

Actual Topology

Provide a clear view of network status and device statistics for intuitive monitoring.

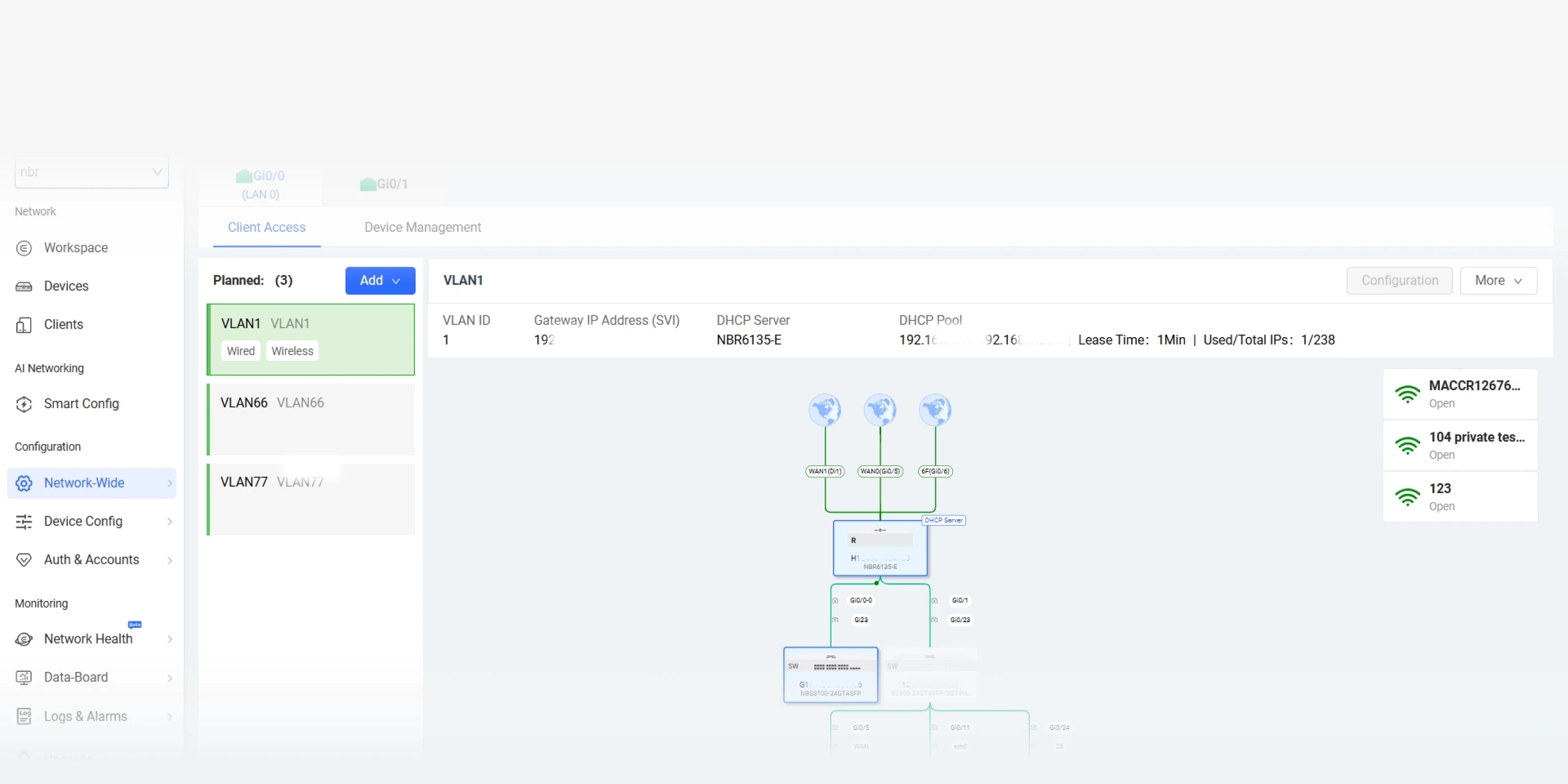

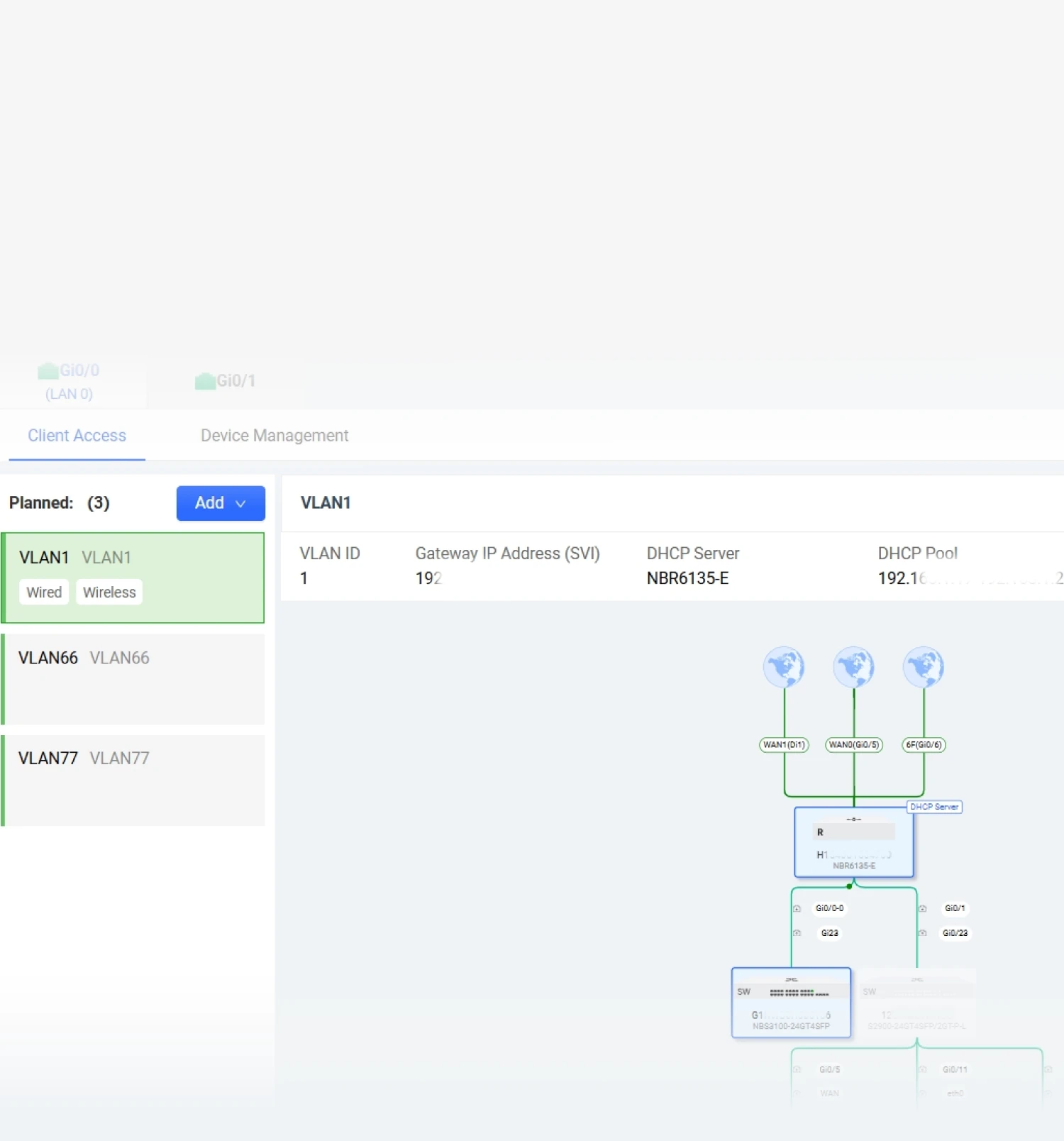

VLAN Visualization

Enable administrators to quickly and easily deploy wired and wireless networks
through VLAN visualization.

Enable administrators to quickly and easily deploy wired
and wireless networks through VLAN visualization.

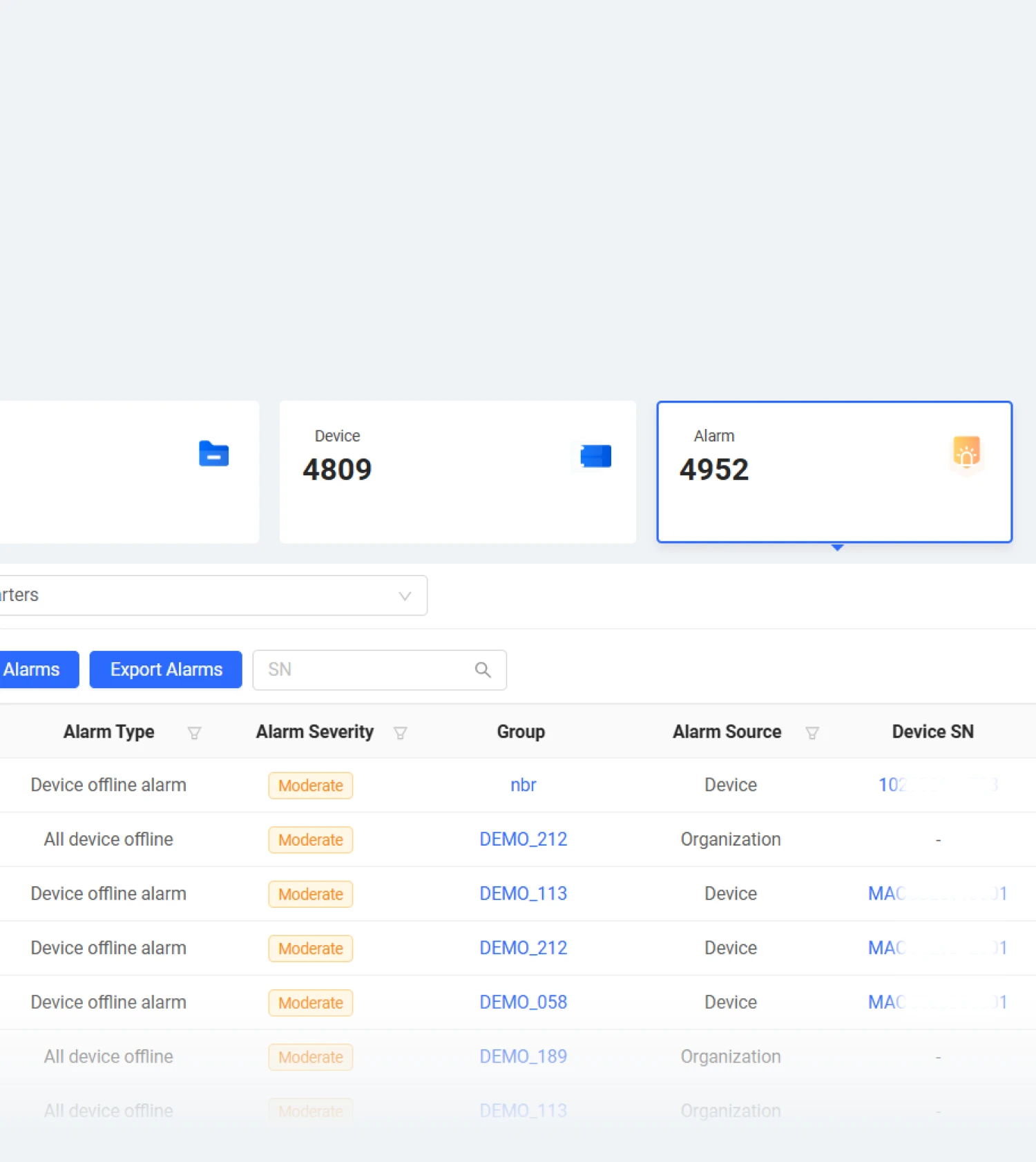

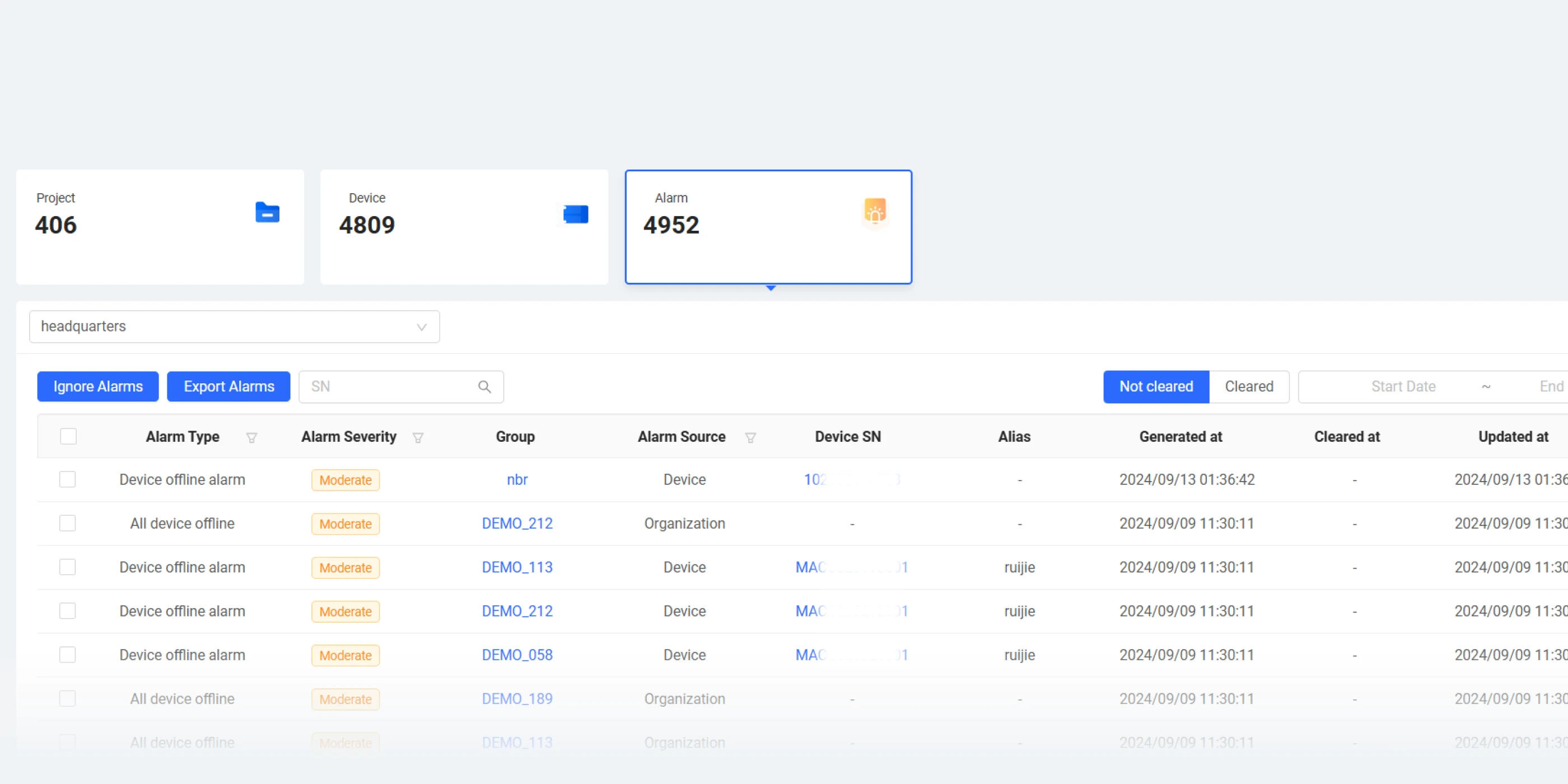

Operating Status, Offline Alarms, and Other Warnings

Operating Status/Offline Alarms
and Other Warnings

Easily trace the cause of each alarm based on the alarm severity, content, and time.

Easily trace the cause of each alarm based on the alarm
severity, content, and time.

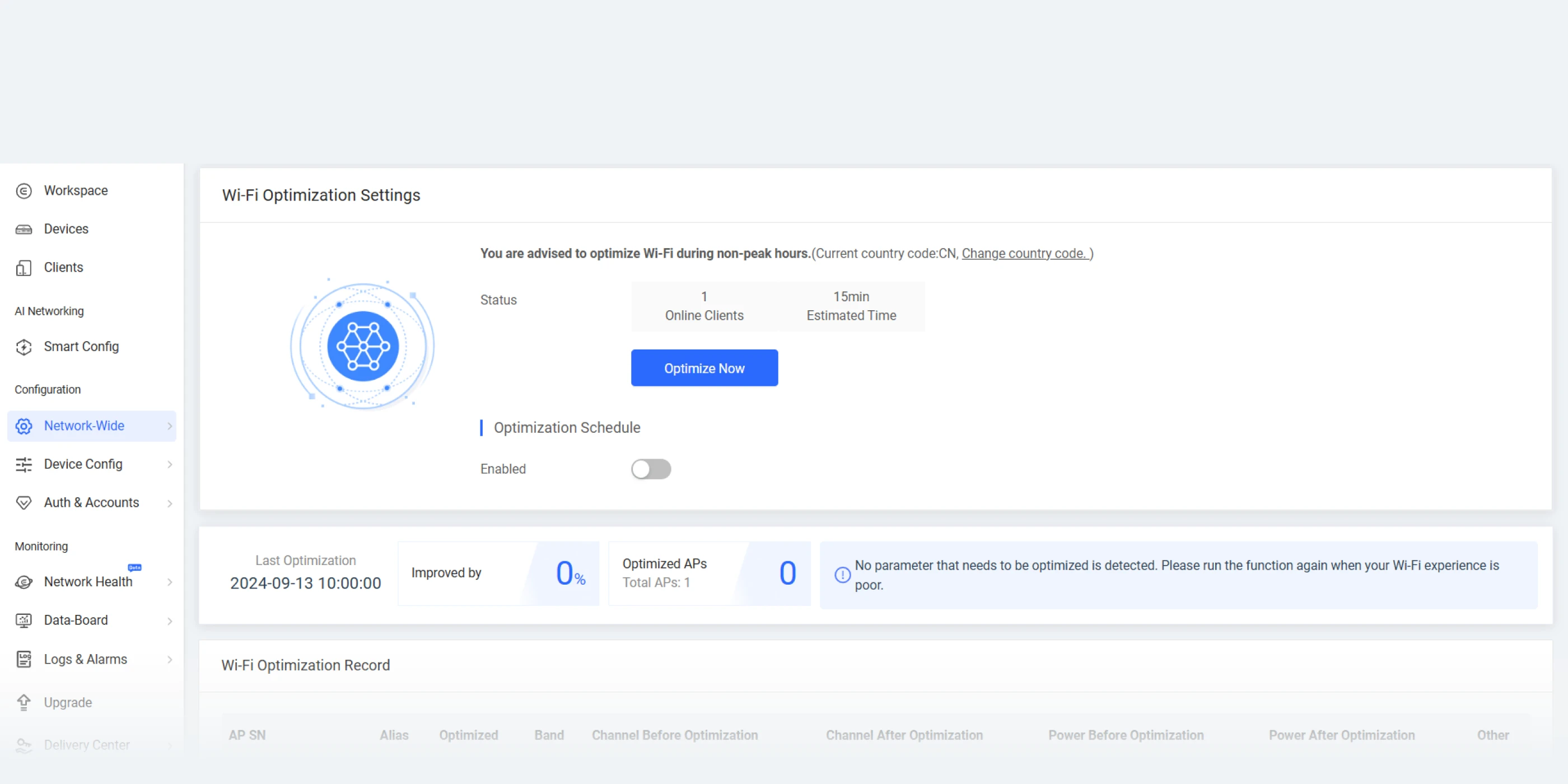

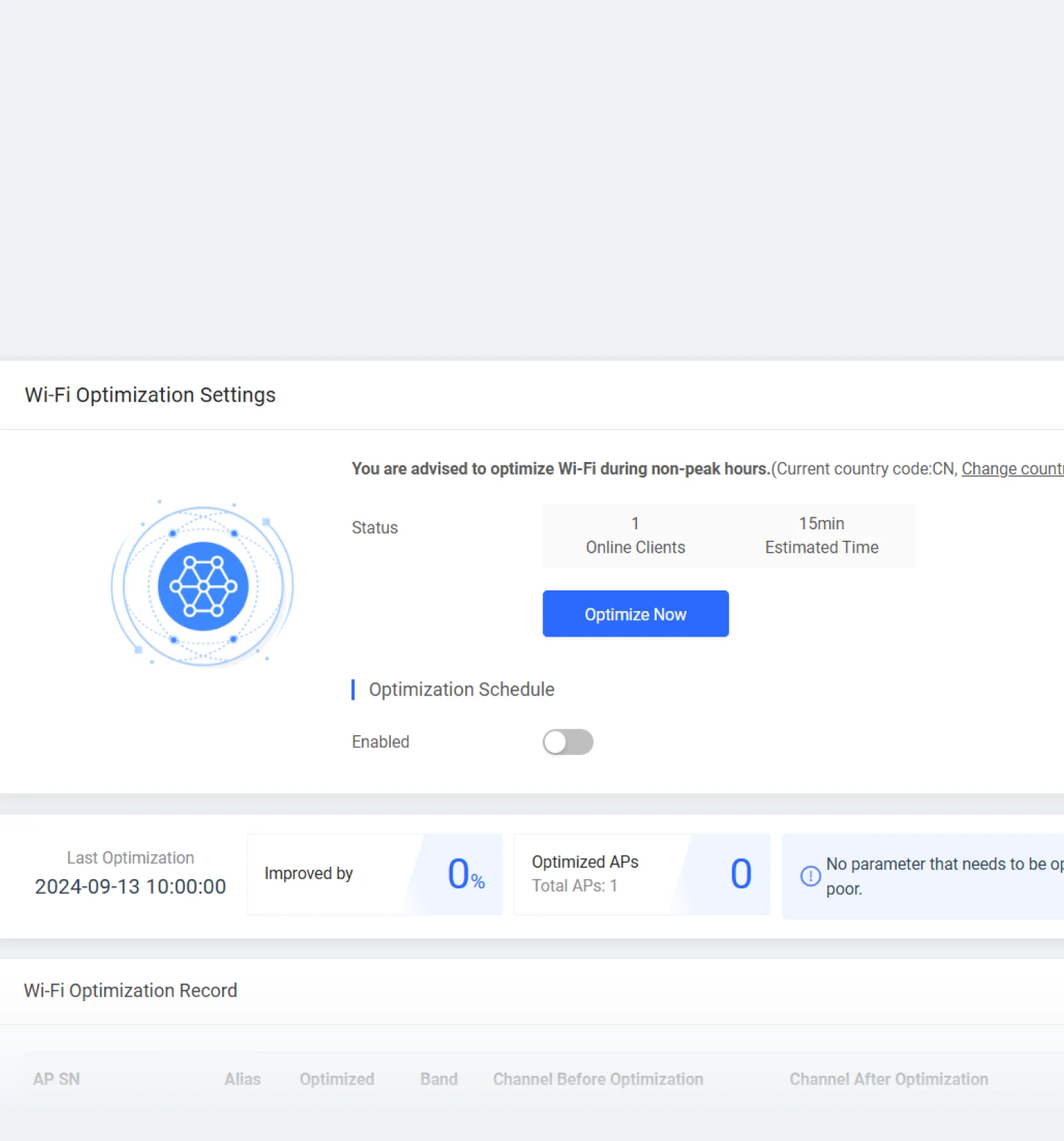

Wi-Fi Optimization

Achieve network optimization automatically with just one click.

Achieve network optimization automatically with just one
click.

Spesifikasi

 Specifications

RG-OCE Network Manager

Deployment Mode:

Single-Tenant (for on-premises deployment)

Multi-Tenant (fo private/cloud deployment)

Network Planning:

Location Planning (Google Map)

AP Layout Planning

Auto-configured Wired/Wireless Network

Wireless Configuration:

SSID Configuration

RF Configuration

Captive Portal Configuration

802.1X Authentication

Client-based Bandwidth Limit

AP Mesh

Layer2/Layer 3 Roaming

Client-based Blocklist/Allowlist

Switch Configuration:

Interface & VLAN Configuration

Voice VLAN

802.1X Configuration

DHCP Snooping

ACL Policy

Loop Prevention, Port Protection

Storm Control, IP Source Guard

Router/Gateway Configuration:

Interface and VLAN Configuration

Multi-WAN and Load Balancing

Routing (Static Routing/PBR)

QoS & App/URL Block

DDNS Configuration

√ (Ruijie DDNS Not Supported)

Captive Portal Authentication

PPPoE Server

VPN (L2TP/IPsec/PPTP/OpenVPN)

Monitoring:

Global View (Dashboard)

Network Health Insight

Egress Traffic Overview

Wi-Fi Health Monitoring

Device & Client List

Maintenance & Optimization:

Firmware Upgrade

Delivery Report

Auto RF Planning & Scheduled Optimization

 Specifications

RG-OCE Network Manager

VLAN Visualization

Operation/Configuration Logs

Alarm Notification

System Management:

Tenant Management

Role-based Privilege Management (Sub-account)

License Management

Account Language Support

Support:

Online RITA Support



Supported Models

Series

Models

AP/AC

AP8xx-L, AP6xx-L Series; AP680(CD), AP720-L, AP180, AP180P-L;

RAP73HD, RAP73 Pro, RAP72-Wall, RAP72 Pro,

RAP62-OD, RAP6262, RAP6262(H), RAP6262(H)-D RAP6260(H), RAP6260(H)-D,

RAP2260(H), RAP2260(E), RAP2260, RAP1260, RAP1261, RAP1200(P);

WS6000 Series

Switches

CS88, CS86, CS85, CS83, S2915-L Series;

NBS7000, NBS6000, NBS5500, NBS5300

NBS5200, NBS5100, NBS3300, NBS3200, NIS3100 Series;

Routers

NBR6120-E, NBR6205-E, NBR6210-E, NBR6215-E,

EG1510XS, EG310GH-P-E, EG310GH-E, EG305GH-P-E



System Requirements

Project Scale

Recommended System Specifications

Number of Devices

CPU & RAM & HDD x Number of Servers

< 100

4 Cores 24GB 150GB SSD

100 to 1000

4 Cores 32GB 200GB SSD

1000 to 5000

8 Cores 64GB 150GB SSD

5000 to 10,000

16 Cores 128GB 1TB SSD

> 10,000

Contact Ruijie sales representative for service deployment requirements.

HA Cluster Mode

Contact Ruijie sales representative for service cluster deployment requirements.



Show More
Resources All Resources
Learn about Products or Solutions
Informasi Pemesanan

Product Code

OCE Network Manager License

Default Built-in License

Free, 30 Days with 10 Devices Management

RG-OCE-NETWORK-BASE

The RG-OCE Network Manager Base license, supporting 10 devices (Note that if the demo license expires and the Base License is not installed, the system will no longer be operational.)

RG-OCE-NETWORK-LIC-50

RG-OCE NETWORK License for 50 devices Lifetime. Management of 50 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)

RG-OCE-NETWORK-LIC-100

RG-OCE NETWORK License for 100 devices Lifetime. Management of 100 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)

RG-OCE-NETWORK-LIC-500

RG-OCE NETWORK License for 500 devices Lifetime. Management of 500 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)

RG-OCE-NETWORK-LIC-1000

RG-OCE NETWORK License for 1000 devices Lifetime. Management of 1000 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)

RG-OCE-NETWORK-LIC-5000

RG-OCE NETWORK License for 5000 devices Lifetime. Management of 5000 devices during the software lifecycle (including managed devices such as Ruijie and third-party devices, etc.)

RG-OCE-SSP-1Y

Basic 1 Year Technical Service Support Package (SSP) (Annual Fee)

This service is charged annually and covers the following:

1. Technical support and fault resolution: Remote technical support during local office hours (9 hours a day, 5 days a week), including software updates, after-sales technical consultation, fault resolution, and a dedicated channel for submitting service complaints or suggestions.

Note: Basic technical services will no longer be provided once the validity period expires.

RG-OCE-CDS

Premium Technical Customization Development Service (Per-Incident Fee)

This service is charged on a per-incident basis and covers the following:

1. R&D support: Cluster deployment, cluster data migration, server migration, OCE service restoration after a server restart, remote data backup, and custom function development. (Charges are based on the number of man-days needed from R&D engineers.)
