Comparer

RG-ES207GS-PI-OD, Switch extérieur Gigabit à 7 ports avec entrée PoE/CC

CCTV, parcs, autoroutes, etc.

Modèles
RG-ES228GS-LP

24 x 10/100/1000BASE-T Ports PoE+, 2 x 10/100/1000BASE-T Ports, 2 x 1GE SFP Ports, 250 W

 RG-ES207GS-LP

4 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 1 port SFP 1GE

 RG-ES207GS-HP

2 ports PoE++ 10/100/1000BASE-T, 2 ports PoE+ 10/100/1000BASE-T, 2 ports 1GE, 1 port SFP 1GE

 RG-ES220GS-P-V2

16 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 2 ports SFP 1GE

 RG-ES211GS-LP

8 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 1 port SFP 1GE

 RG-ES211GS-P

8 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 1 port SFP 1GE

 RG-ES228GS-P-V2

24 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 2 ports SFP 1GE

 RG-ES207GS-P

4 ports PoE+ 10/100/1000BASE-T, 2 ports 10/100/1000BASE-T, 1 port SFP 1GE

 RG-ES207GS-AC-OD

Switch extérieur à 7 ports, 5 ports RJ45 1G, 2 ports de liaison montante SFP

 RG-ES207GS-PI-OD

Switch extérieur à 7 ports, 5 ports RJ45 1G, 2 ports de liaison montante SFP

 RG-ES206MG-P

4 ports PoE+ 10/100/1 000/2 500BASE-T, 1 port 10/100/2 500BASE-T, 1 port 10GE SFP+, budget PoE de 70

 RG-ES209MG-P

8 ports PoE+ 10/100/1 000/2 500BASE-T, 1 port 10GE SFP+, budget PoE de 130 W

 RG-ES205GC-P

5 ports gigabits, 4 PoE , 54W

 RG-ES220GS-LP

16 x 10/100/1000BASE-T Ports PoE+, 2 x 10/100/1000BASE-T Ports, 2 x 1GE SFP Ports, 130 W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES209GC-P

9 ports Gigabits, 8 PoE , 120W

 RG-ES206GS-P

Switch manageable, composé de 6 ports Gigabit, avec 4 ports PoE+ et 1 port combo

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W
Séries
Modèle PoE Modèle non-PoE
Sales Enquiry
Add to Favorites
Fonctionnalités particulières
  • Entrée PoE ou 12 V CC
  • 2 ports SFP pour ERPS
  • Switch extérieur tout-en-un, intégration 4 en 1
  • Protection renforcée contre les intempéries : indice de protection IP65, protection contre les surtensions PoE ±8 kV
  • Dépannage de la caméra
  • Alimentation électrique PoE ininterrompue
Sales Enquiry
Caractéristiques

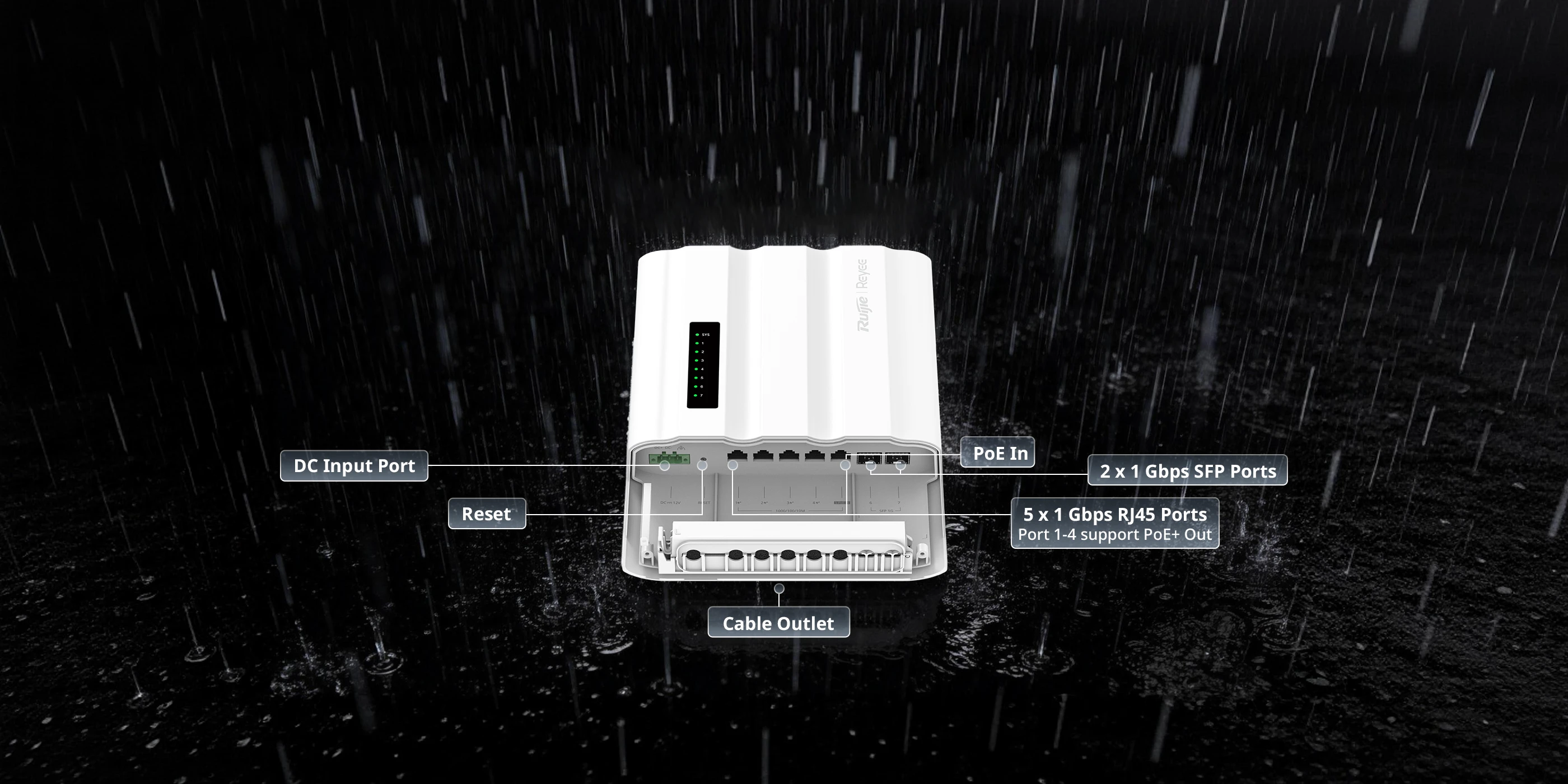

RG-ES207GS-PI-OD

Switch extérieur Gigabit à 7 ports avec entrée PoE/CC

  • Entrée
    12 V CC

  • Entrée PoE

  • Budget PoE
    60W

  • ERPS

  • Garantie de
    3 ans

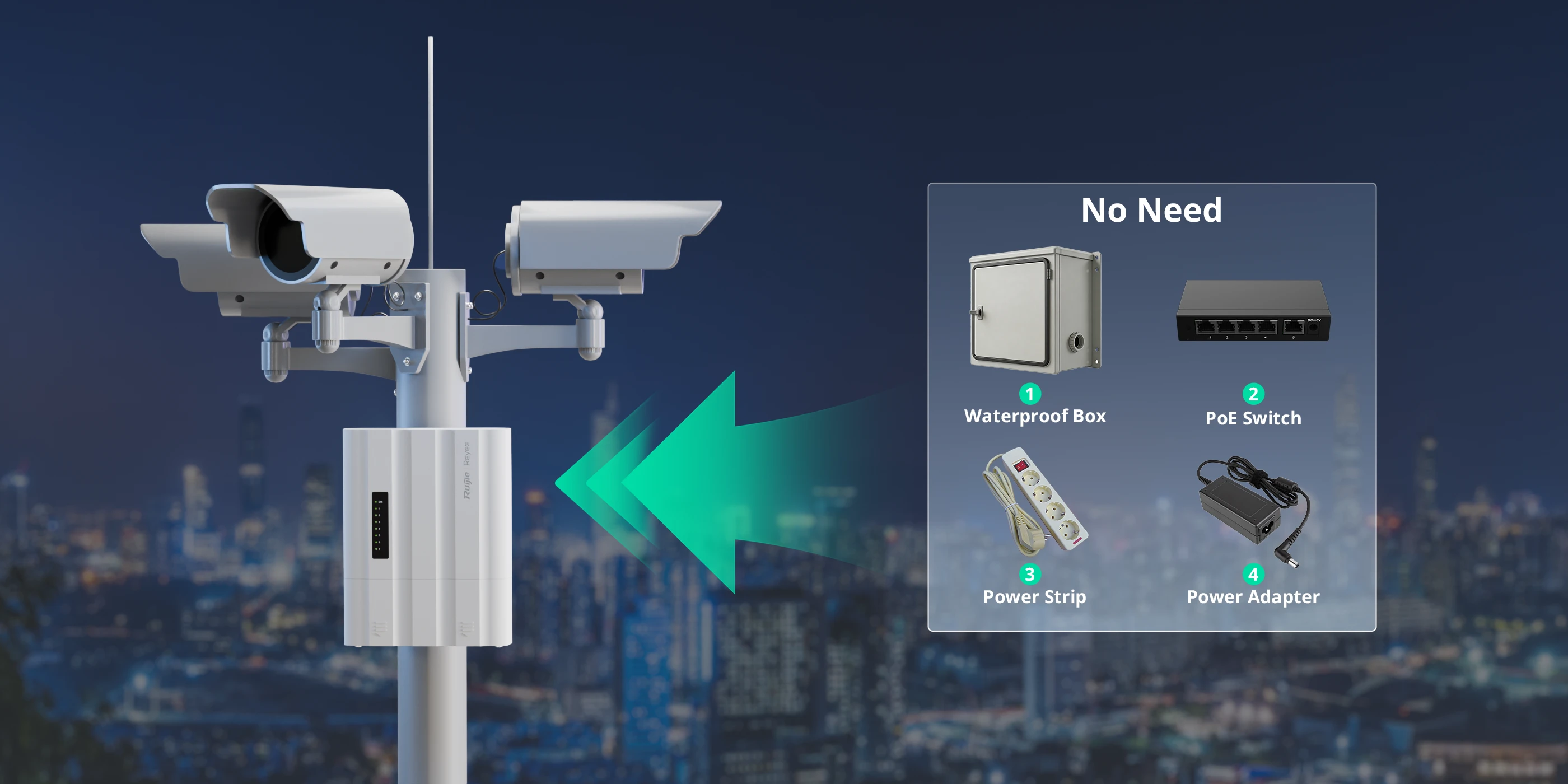

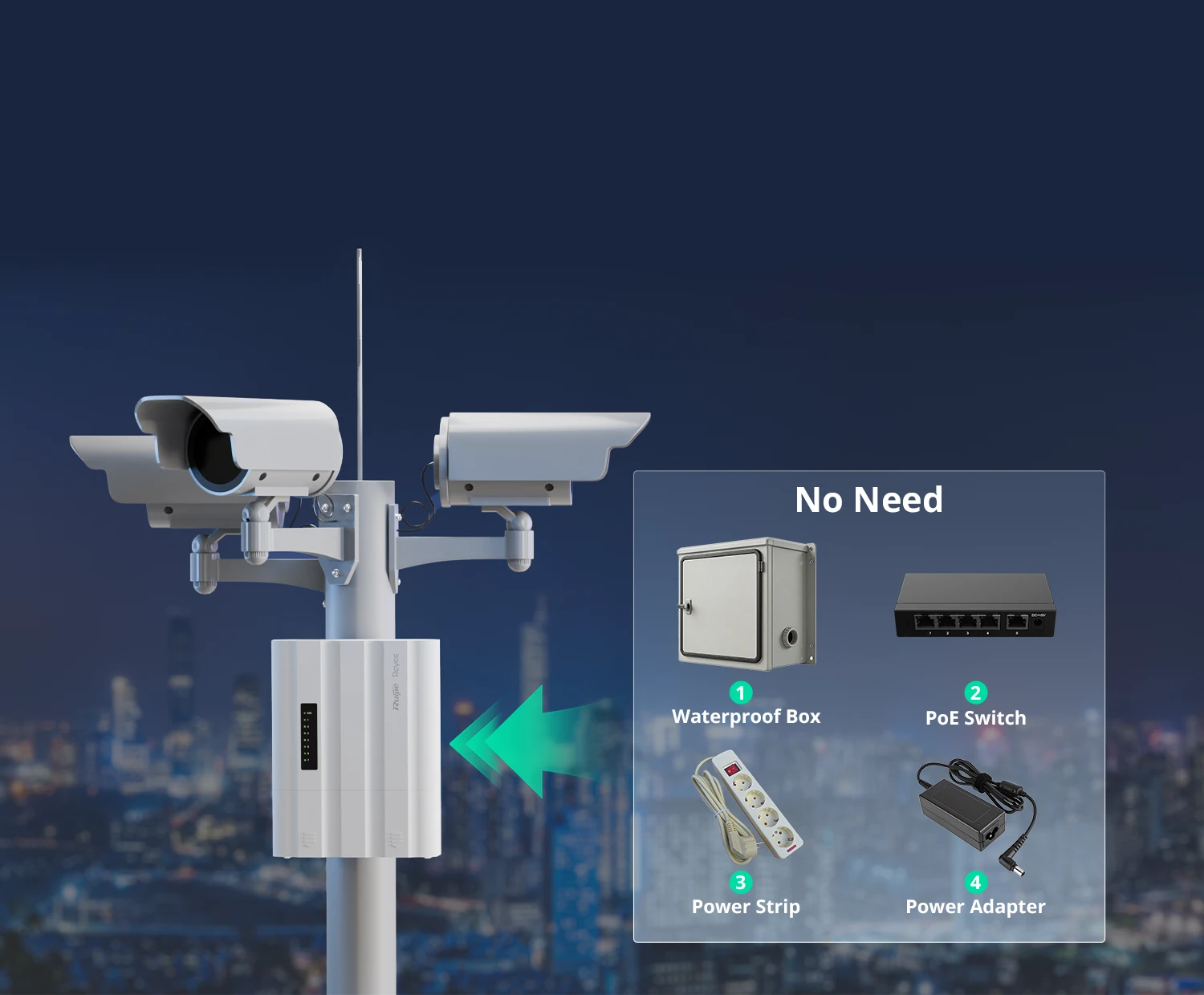

Tout-en-un

Combinez quatre appareils en un seul

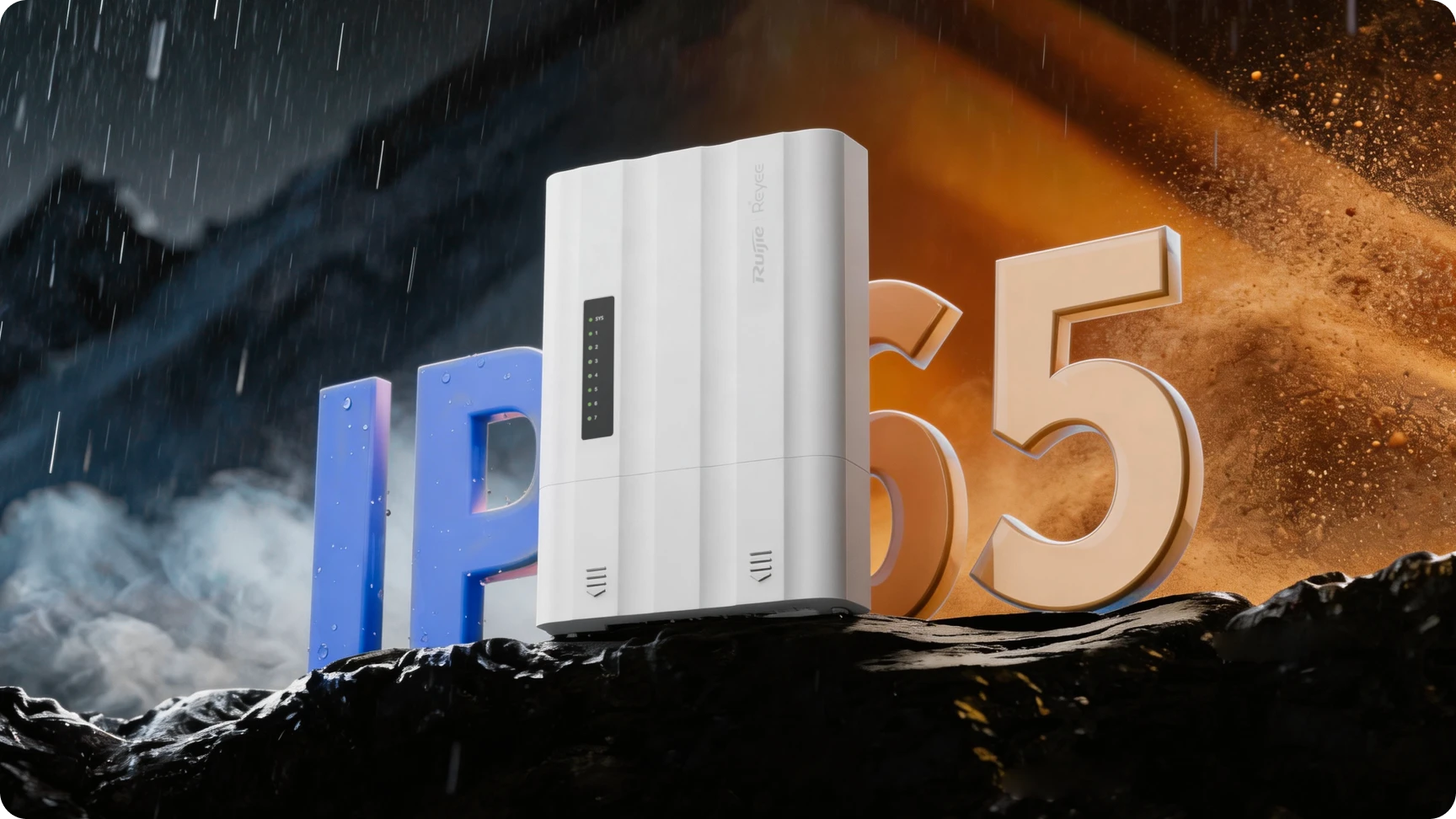

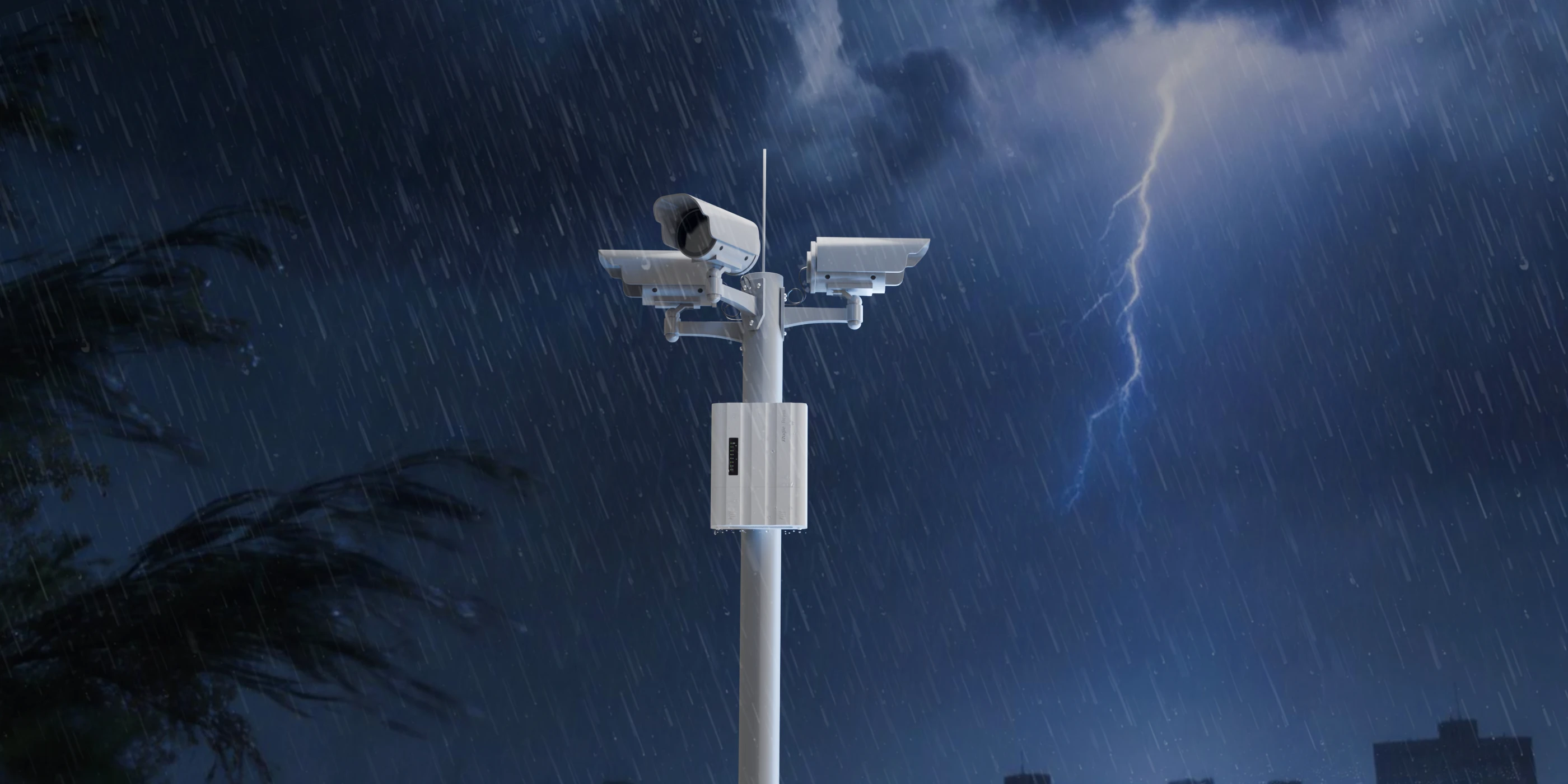

Niveau d'étanchéité élevé

Caractéristiques conçues pour une utilisation en extérieur dans des environnements difficiles

  • IP65

    Entièrement étanche à la poussière, Résistant aux jets d'eau

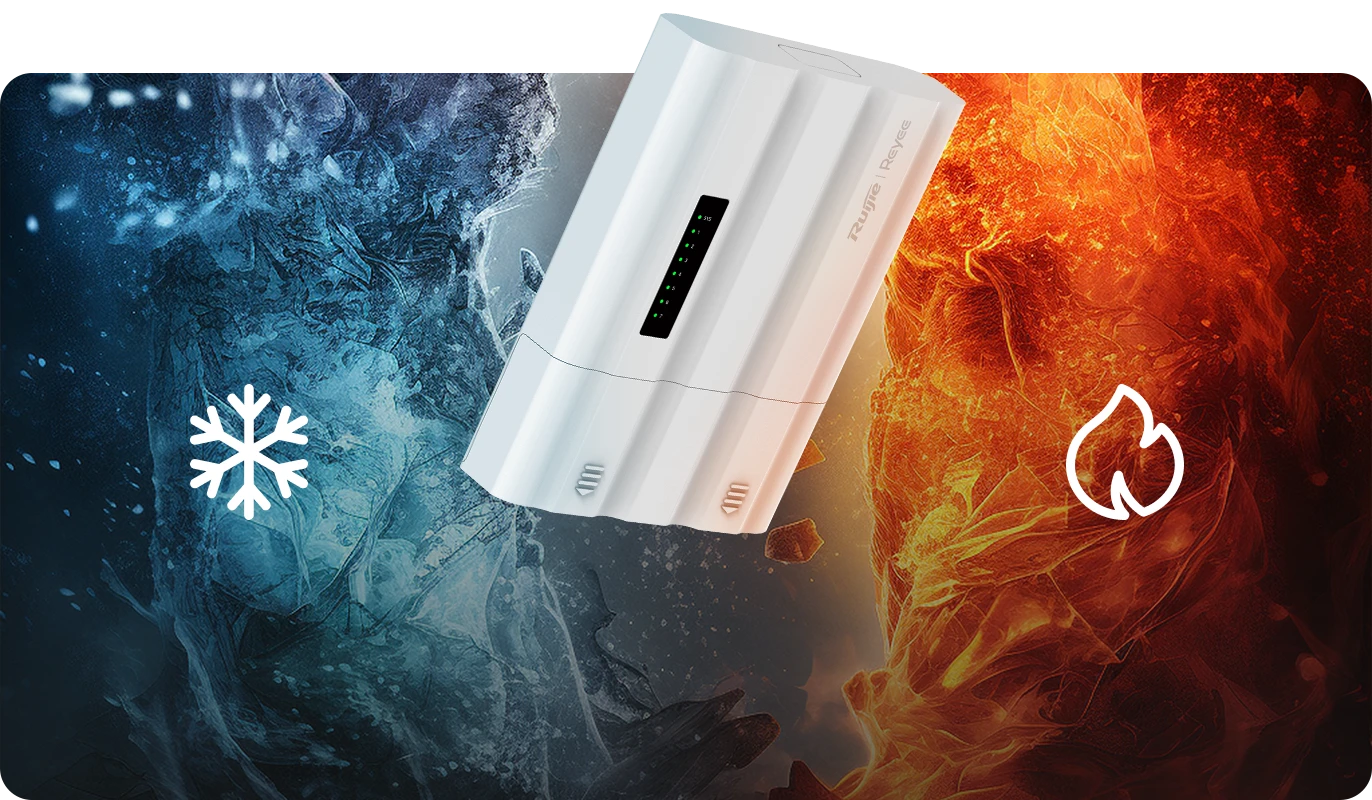

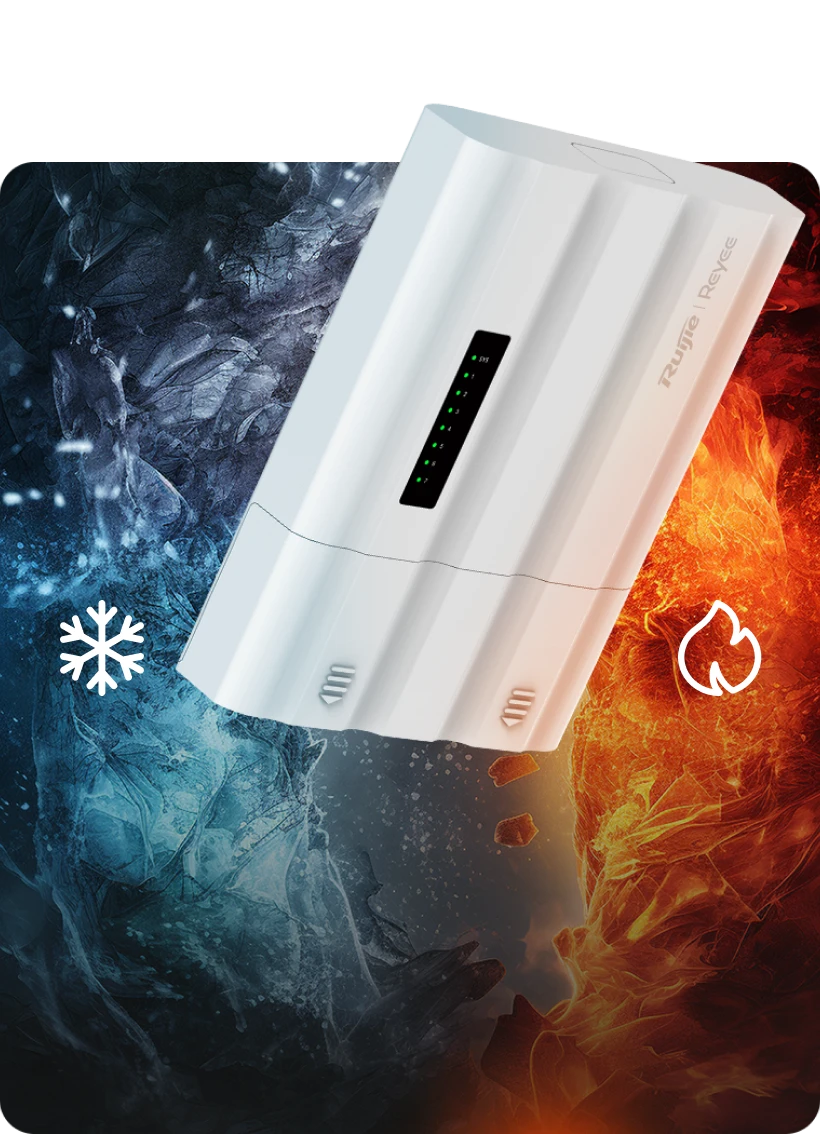

  • –30 °C à 65 °C (–22 °F à 149 °F)

    Large plage de températures de –30 °C à 65 °C

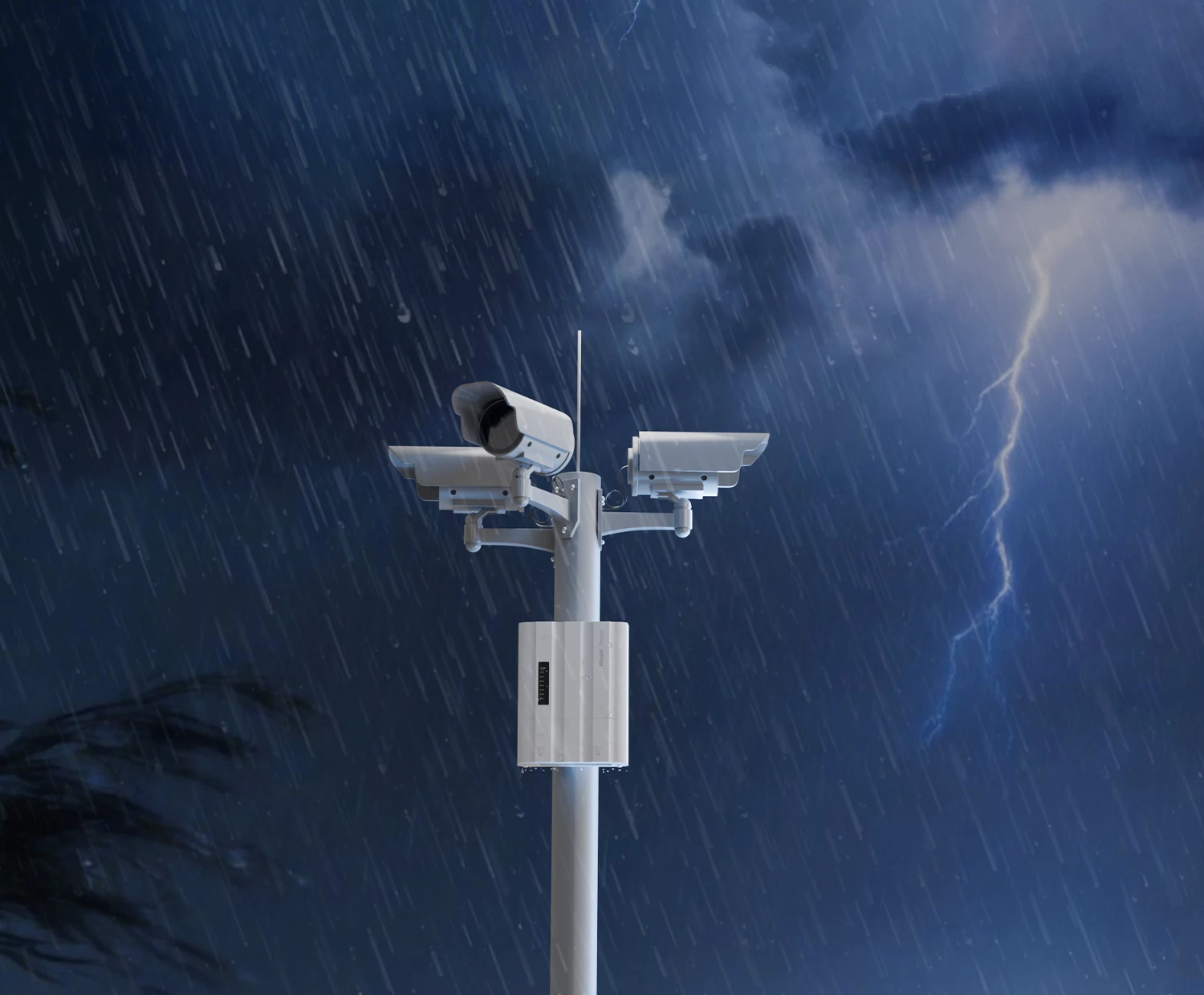

Protection contre les surtensions PoE : ±8 kV

Un bouclier fiable pour la stabilité du réseau

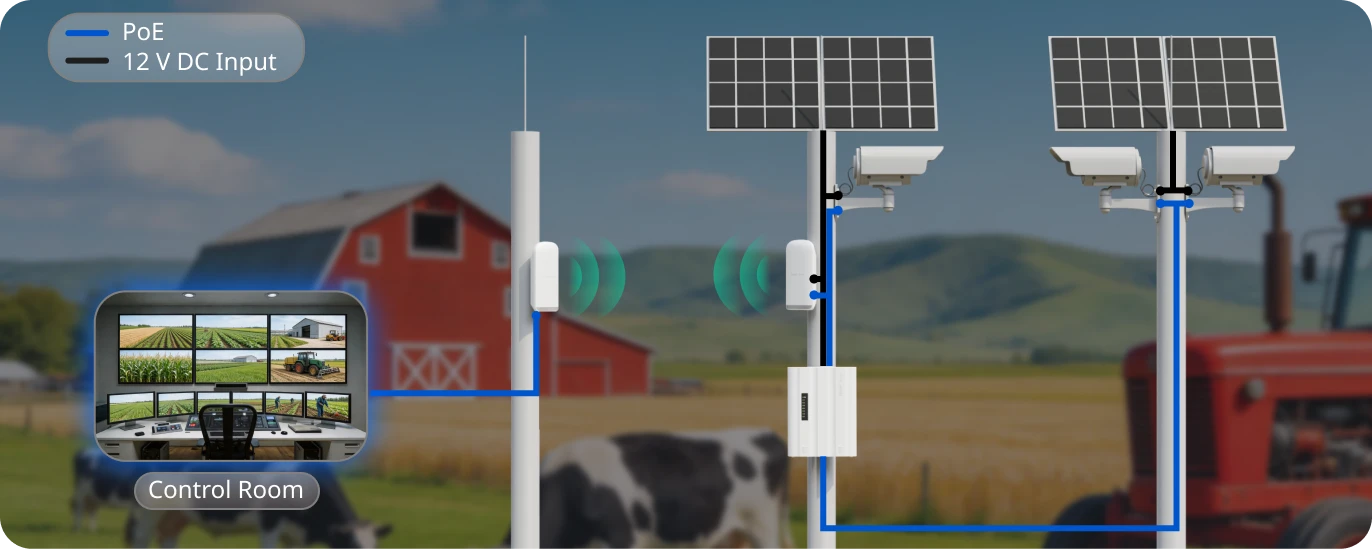

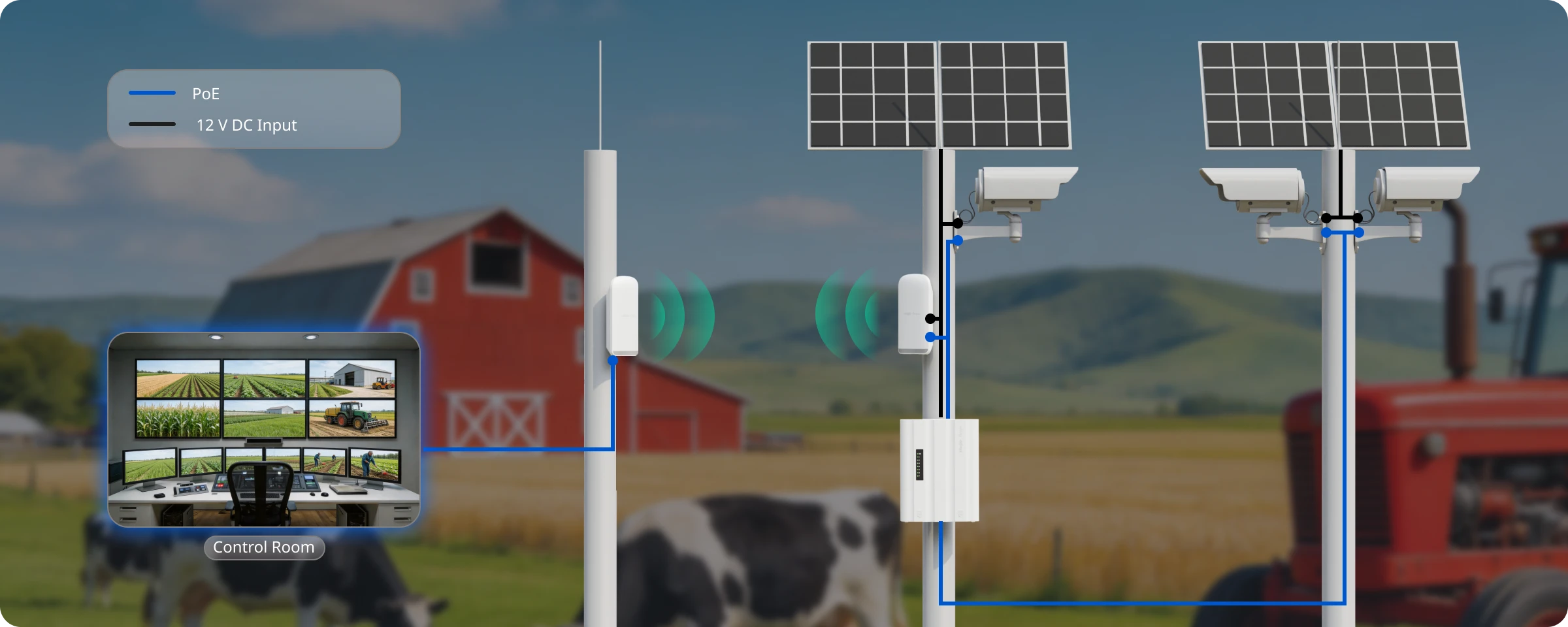

Liaison flexible

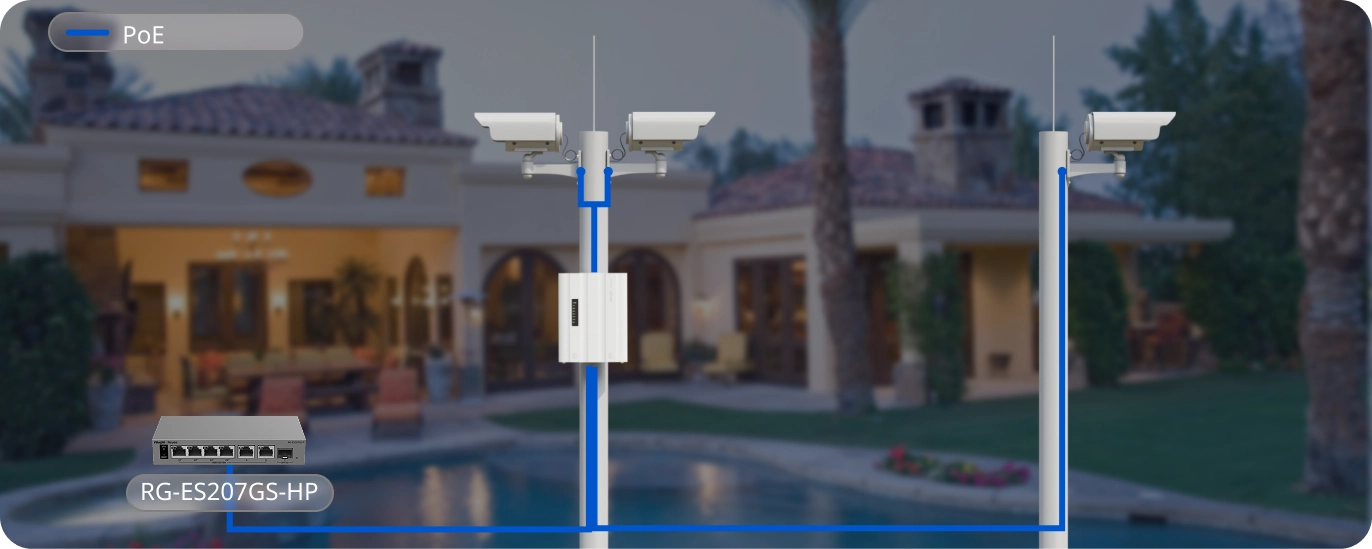

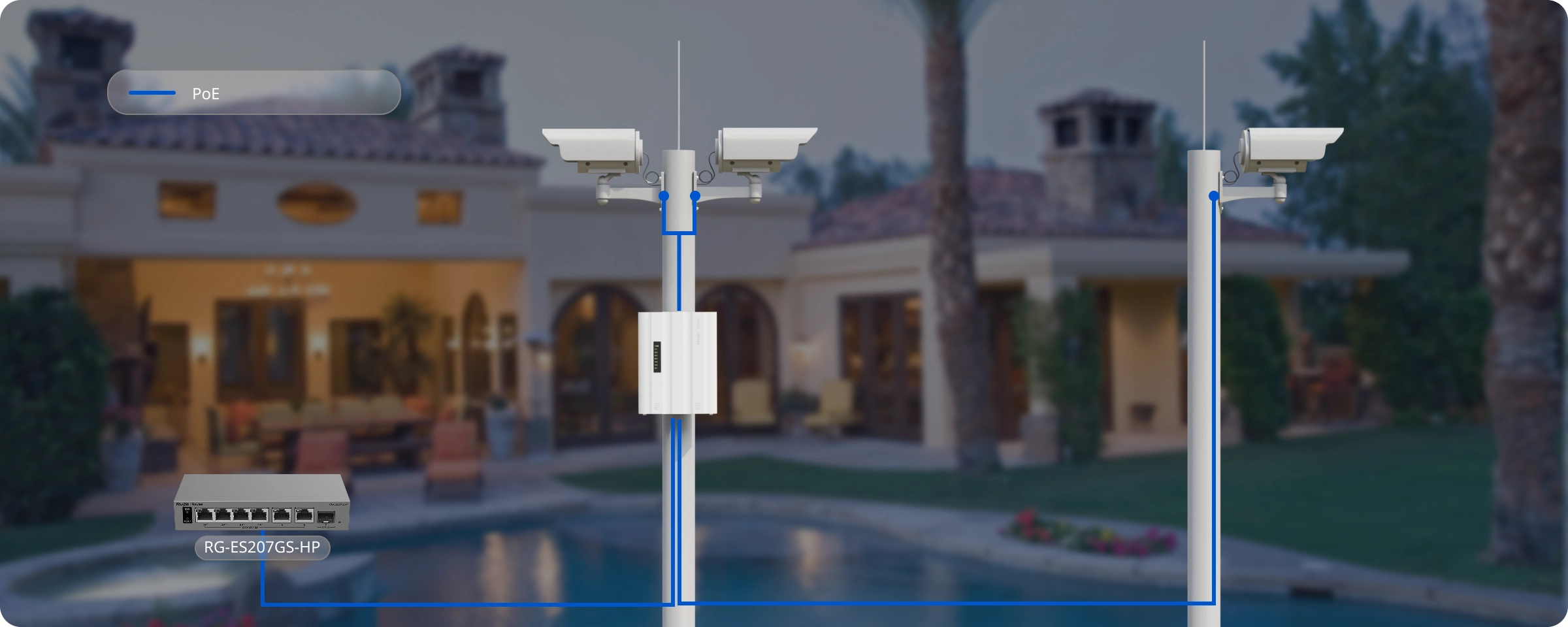

  • Entrée PoE

  • Énergie solaire

Aucun câblage d'alimentation dédié requis

Environnement extérieur alimenté à l'énergie solaire

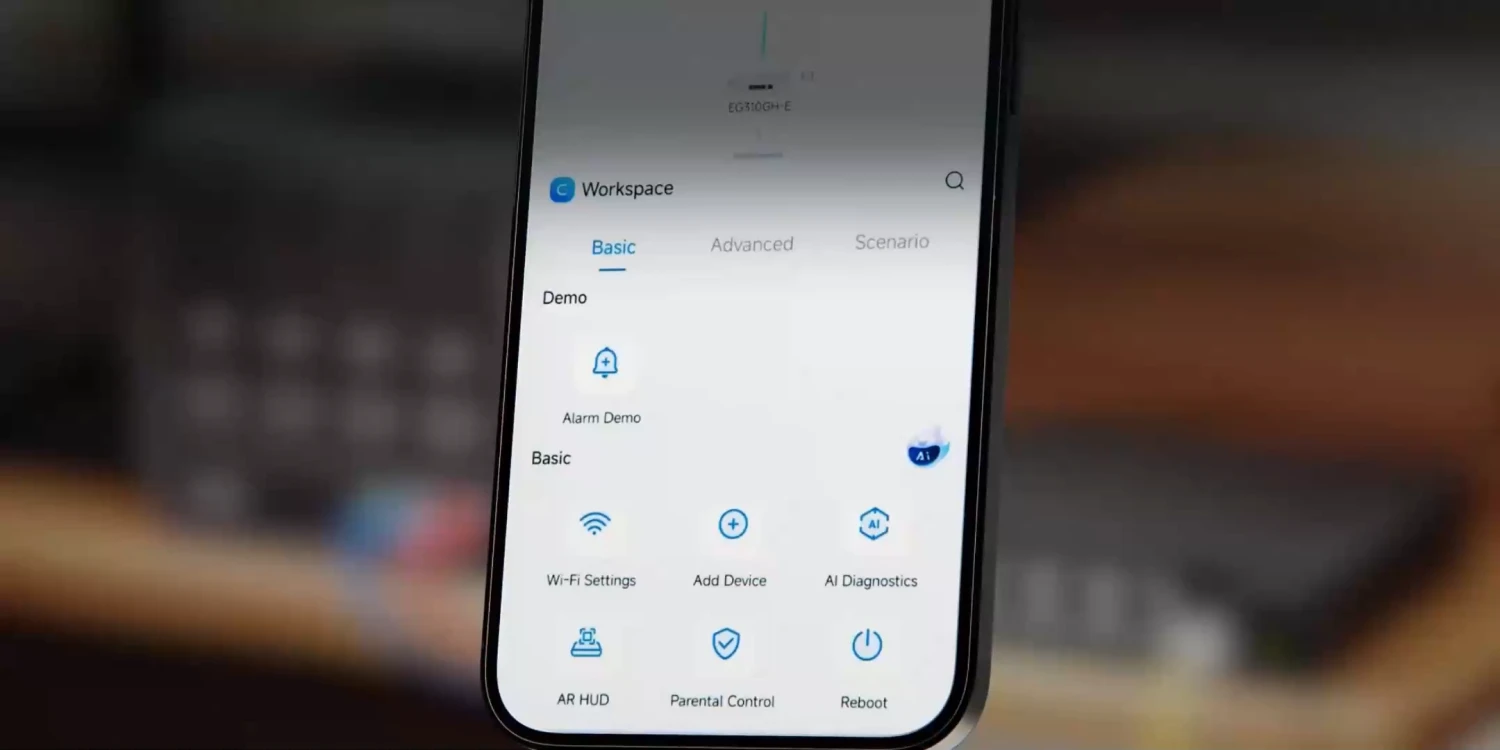

Le cloud facilite votre business

Spécifications essentielles
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years

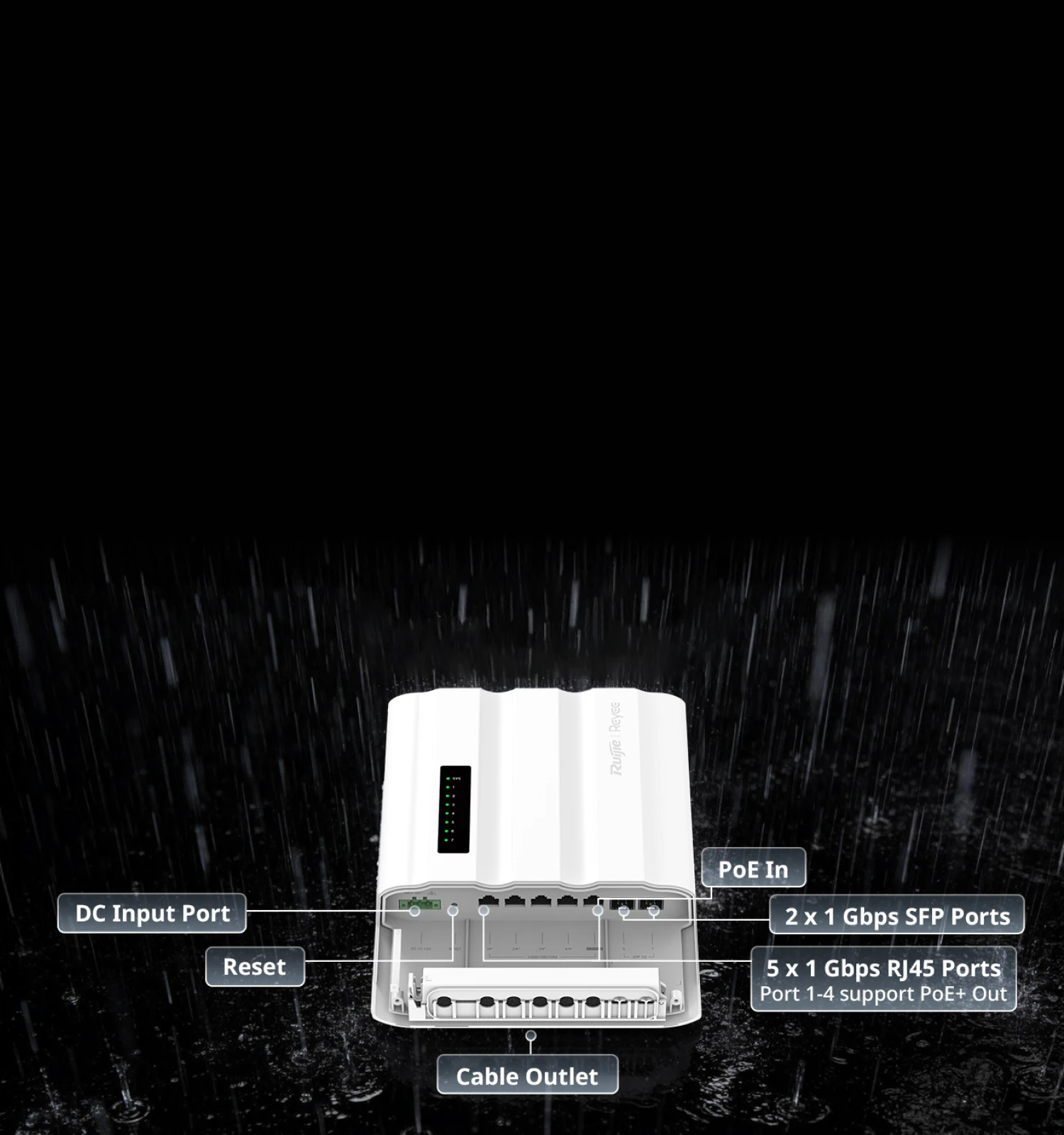

Port Specifications
Total number of RJ45 ports
  • 5
Total number of optical ports
  • 2
Number of 1GE SFP ports
  • 2
Number of 10/100/1000BASE-T ports
  • 5
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • PoE input (PoE++) at 90 W: 60 W
    PoE input (PoE++) at 60 W: 40 W
    PoE input (PoE+) at 30 W: 19 W
    PoE input (PoE) at 15.4 W: 6 W
PoE power pins
  • 1–2 (+), 3–6 (-)
Number of PoE In ports
  • 1
PoE In standard
  • ● IEEE 802.3af (PoE)
    ● IEEE 802.3at (PoE+)
    ● IEEE 802.3bt (PoE++)
System Specifications
Forwarding rate
  • 10.41 Mpps
Switching capacity
  • 14 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • –30°C to +65°C (-22°F to 149°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
