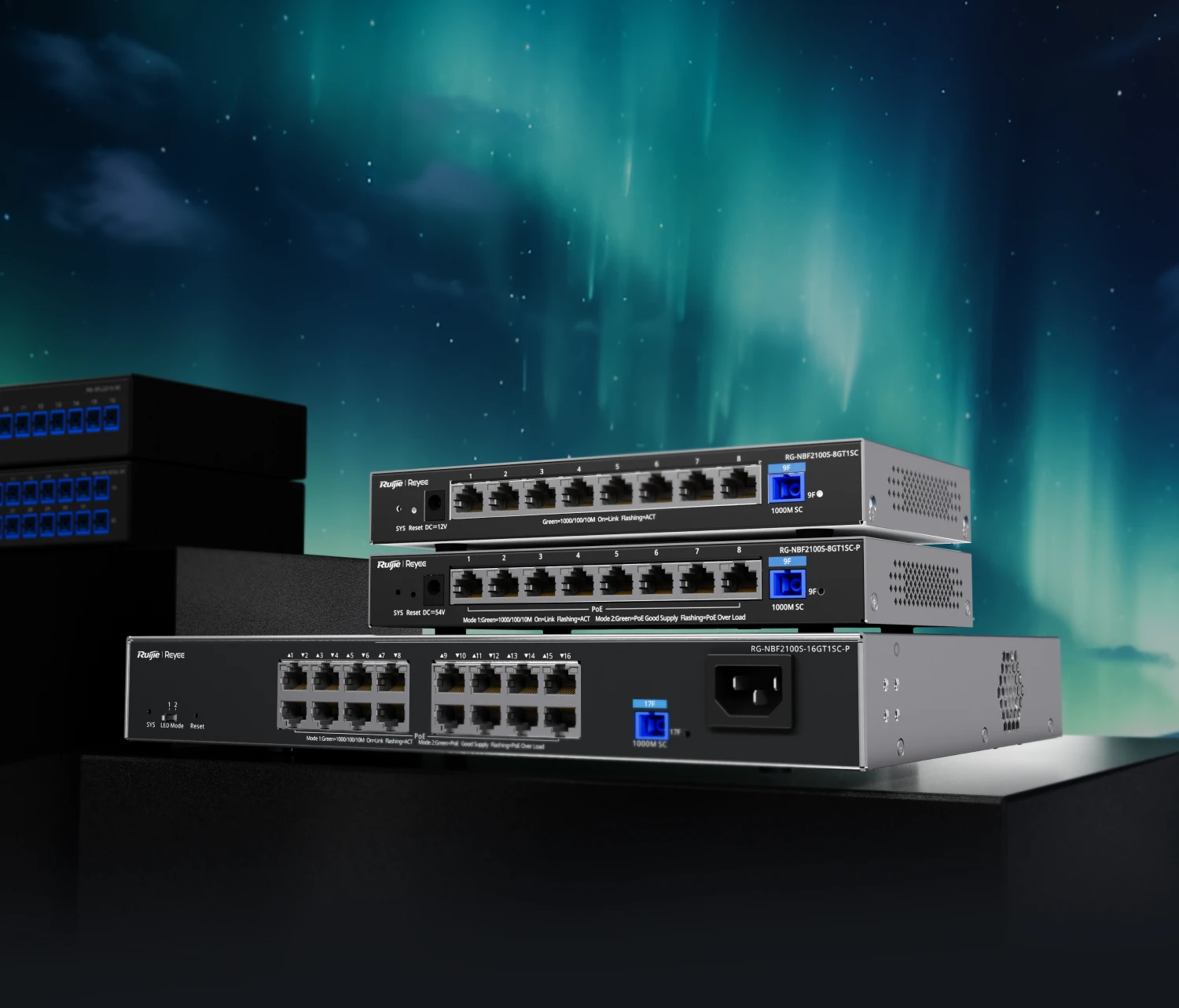

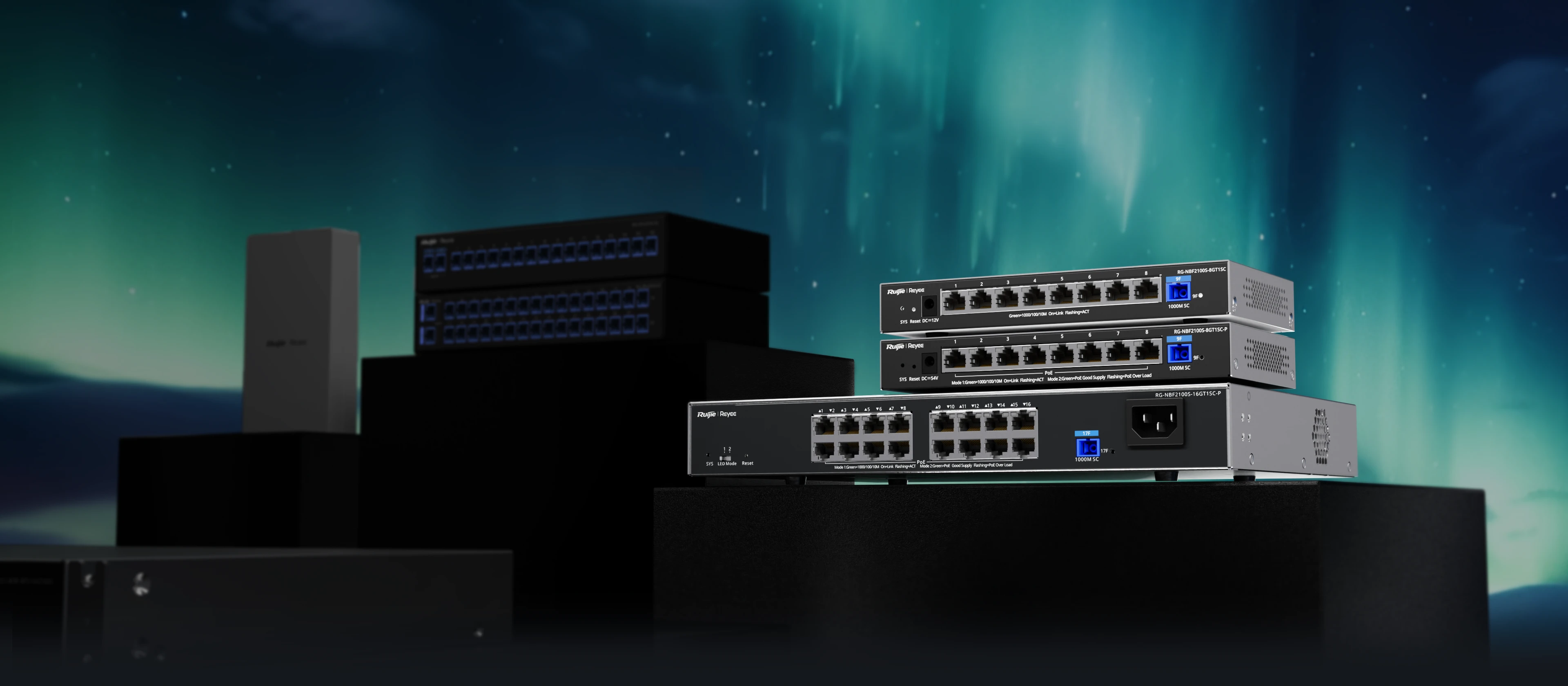

RG-NBF2100S-16GT1SC-P, 1G Layer 2 Cloud Managed PoE+ Switch

Hotel, Resort, Villa, Apartment, Factory, Enterprise, Education, etc.

Models
RG-NBF2100S-8GT1SC

8 x 1G Ethernet Ports,1 x 1G SC Port

 RG-NBF2100S-16GT1SC-P

16 x 1G PoE+ Ports,1 x 1G SC Port,240 W

 RG-NBF2100S-8GT1SC-P

8 x 1G PoE+ Ports,1 x 1G SC Port,120 W
Series
Switch 1G de Camada 2
Datasheet Sales Enquiry
Highlight Features
  • Passive Optical Networking Support
  • Free Layer 2 Cloud Management
  • Total PoE Power Output of 240 W
  • Supports VLAN Assignment
  • Supports Remote Reboot of Cameras
  • Direct Fiber Connection
Sales Enquiry
Key Specification
Features

NBF2 Series e-Lighten Access Switches

  • Direct Fiber Connection

  • Flexible Installation

    Easy Setup

  • Remote Camera Reboot

  • Loop Prevention

  • All-in-One Cloud

  • Direct Fiber Connection

  • Flexible
    Installation

    Easy Setup

  • Remote Camera
    Reboot

  • Loop Prevention

  • All-in-One Cloud

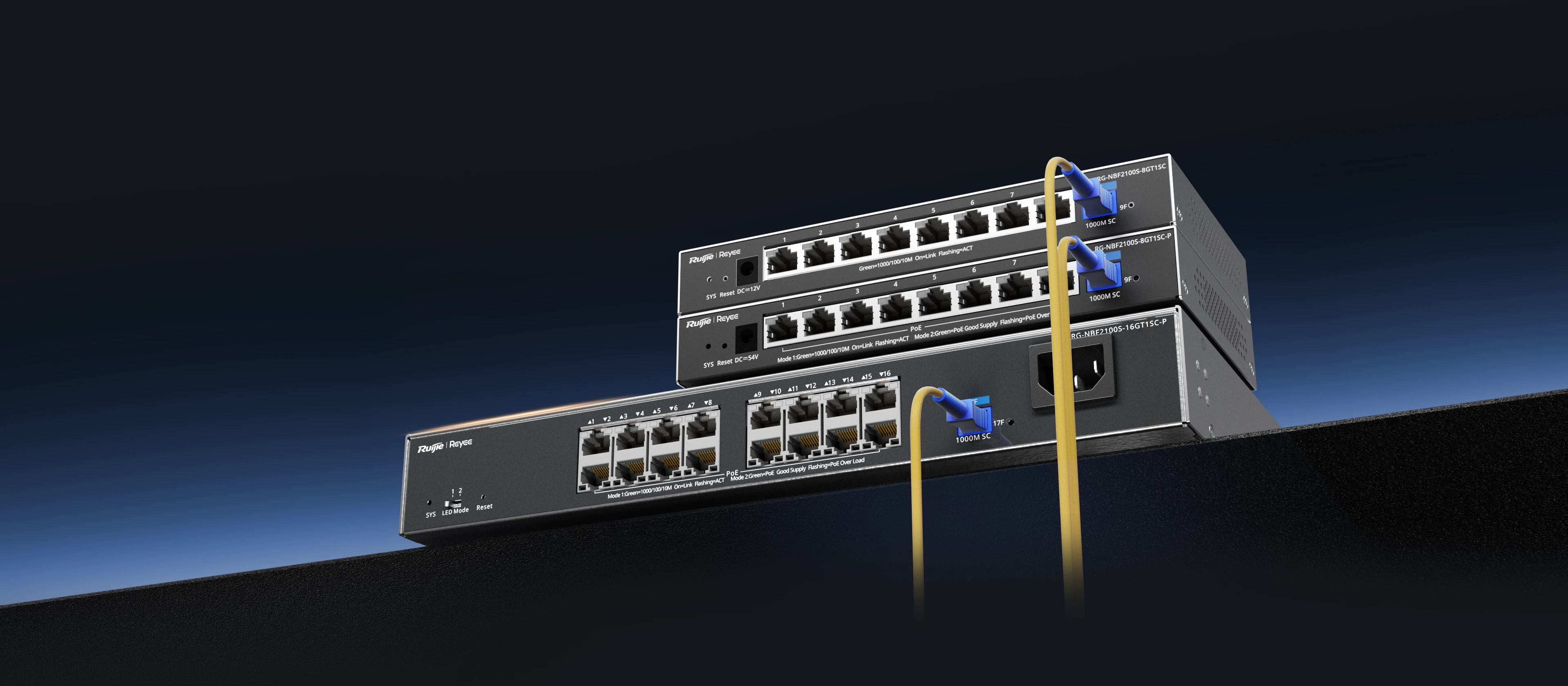

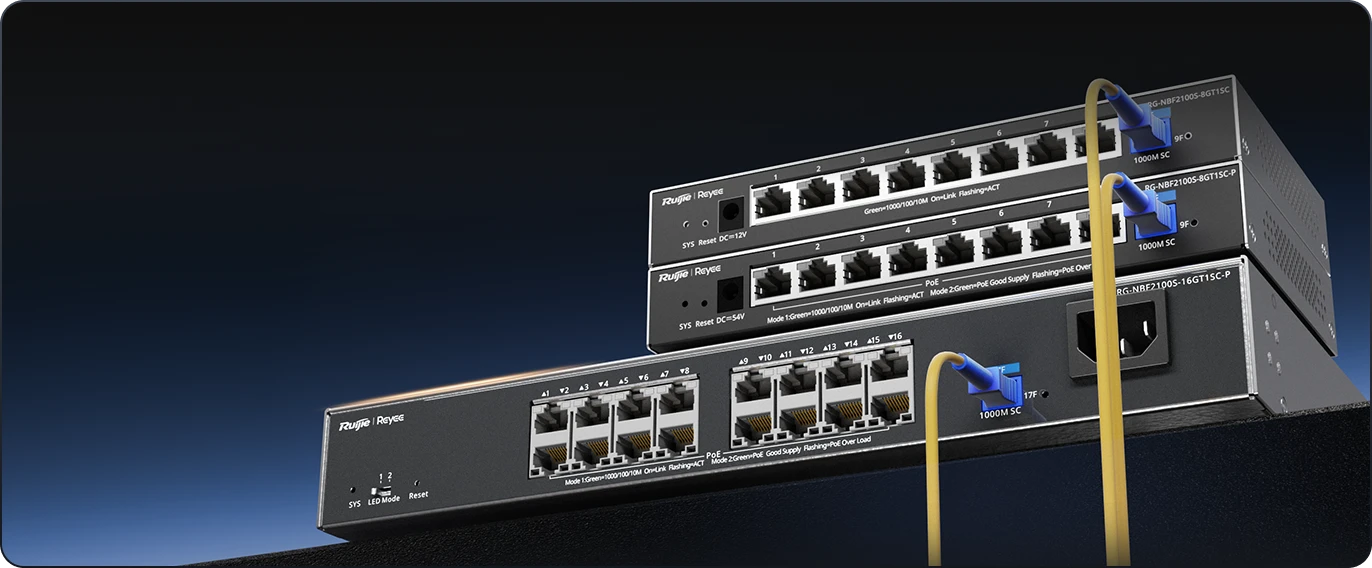

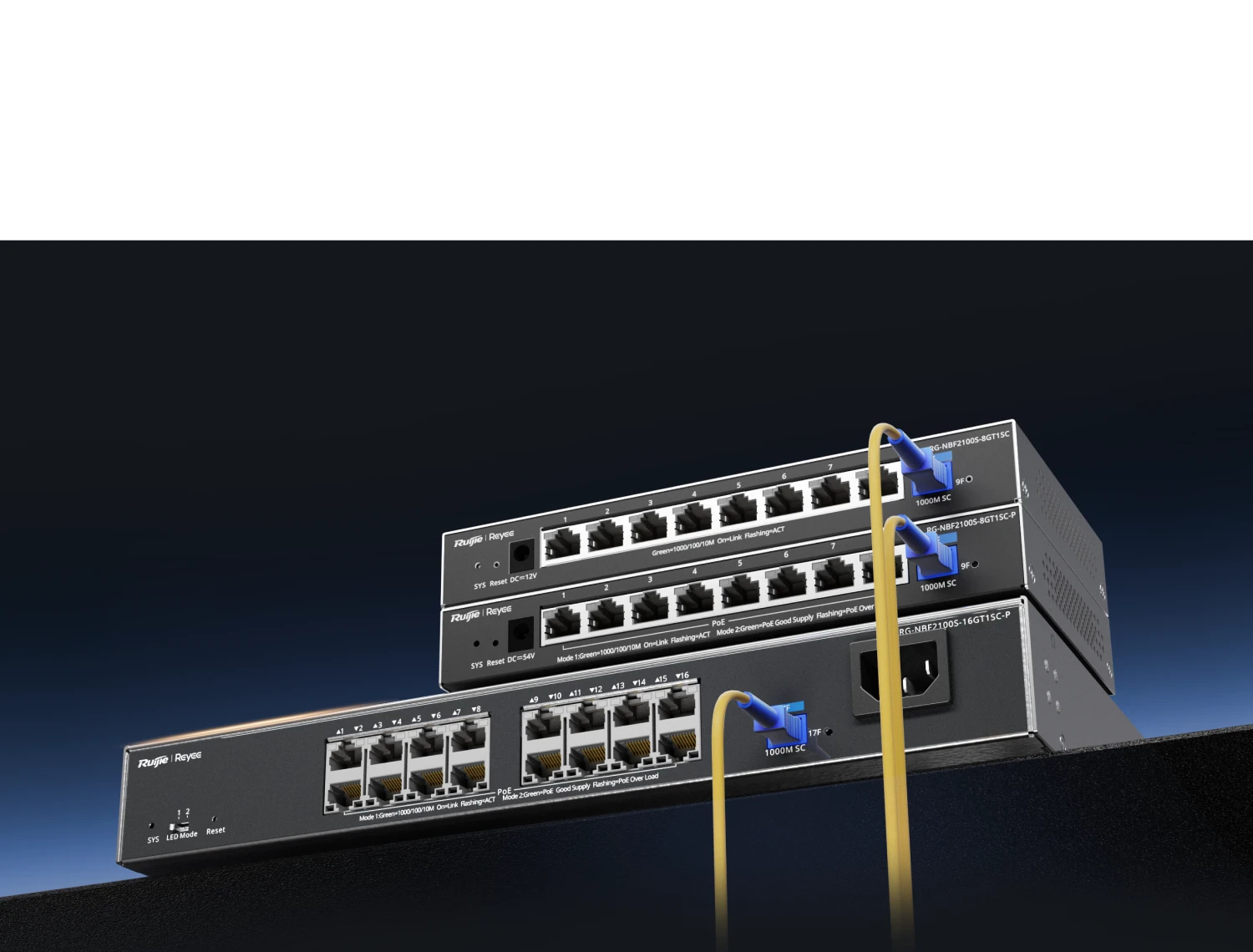

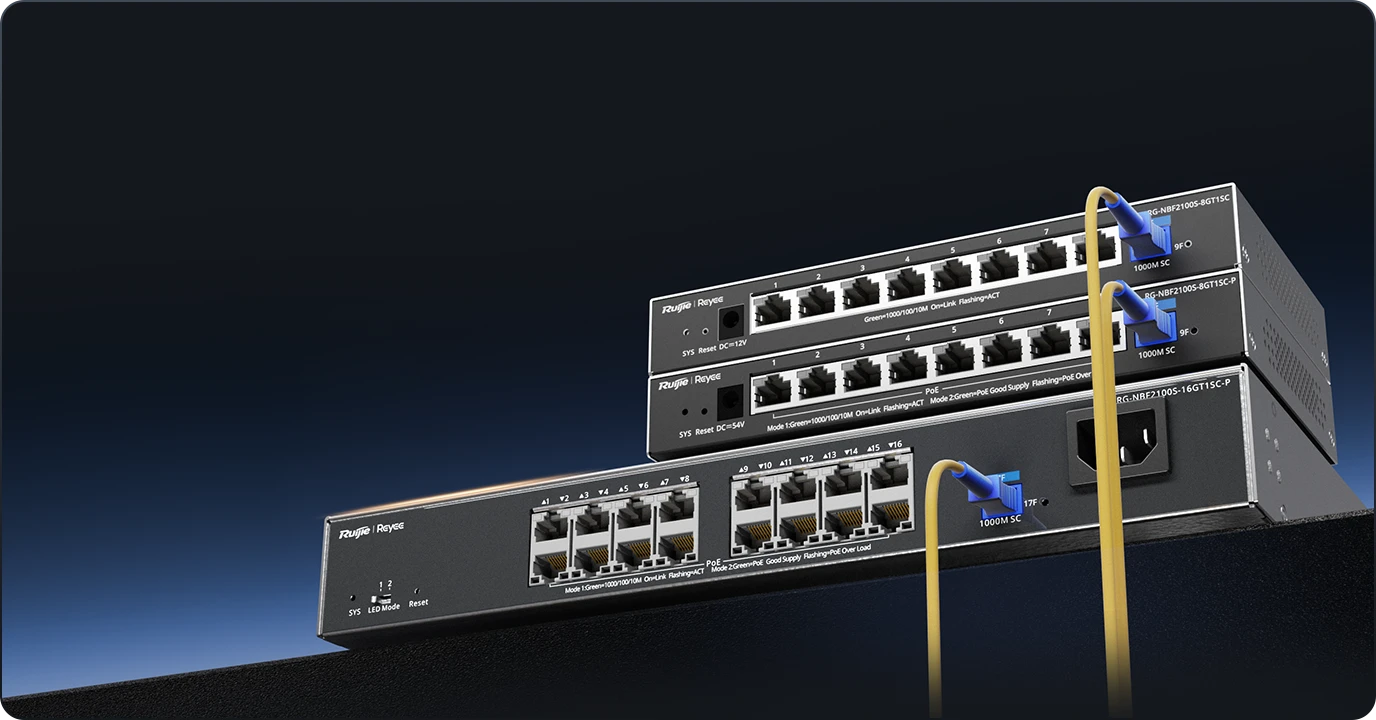

Direct Fiber Connection, Plug & Play

Direct Fiber Connection,
Plug & Play

Gigabit uplink SC port, fiber module-free
direct connection

Gigabit uplink SC port,
fiber module-free direct connection

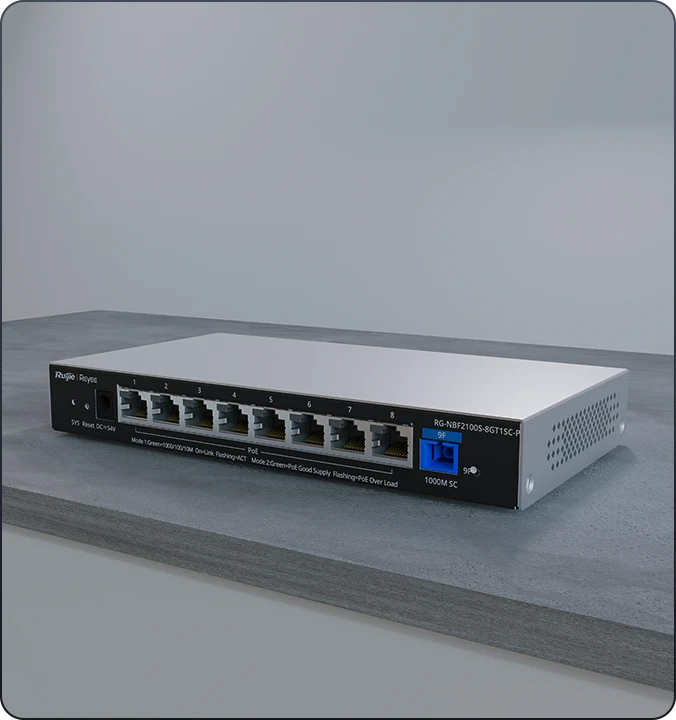

Compact Design, Flexible Installation

Compact Design,
Flexible Installation

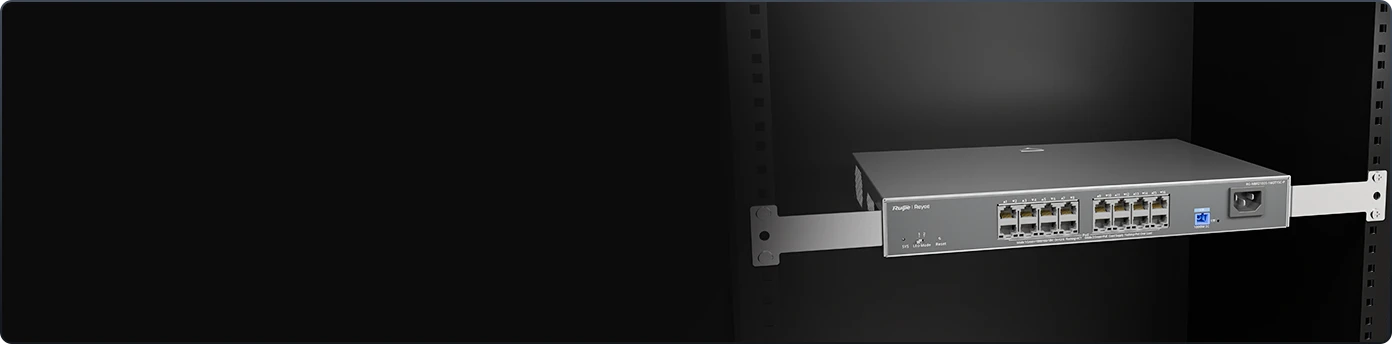

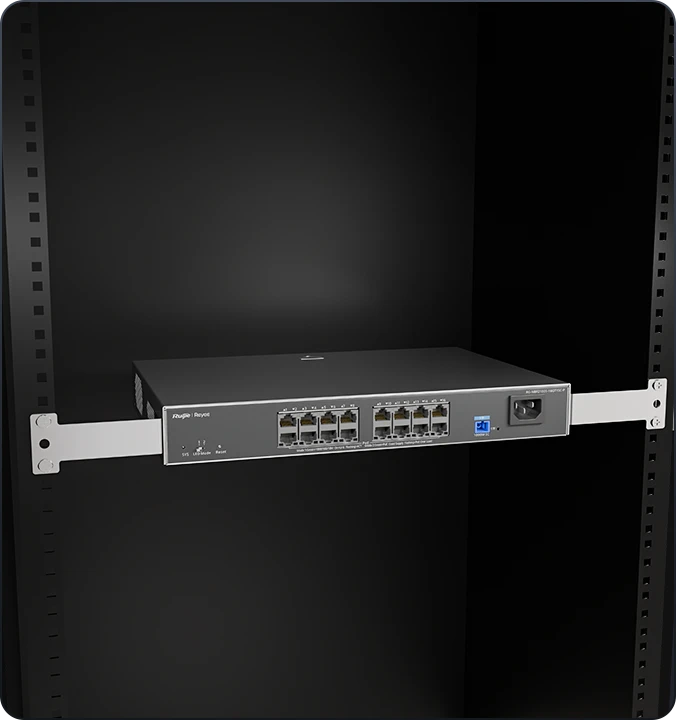

  • Rack Mounting

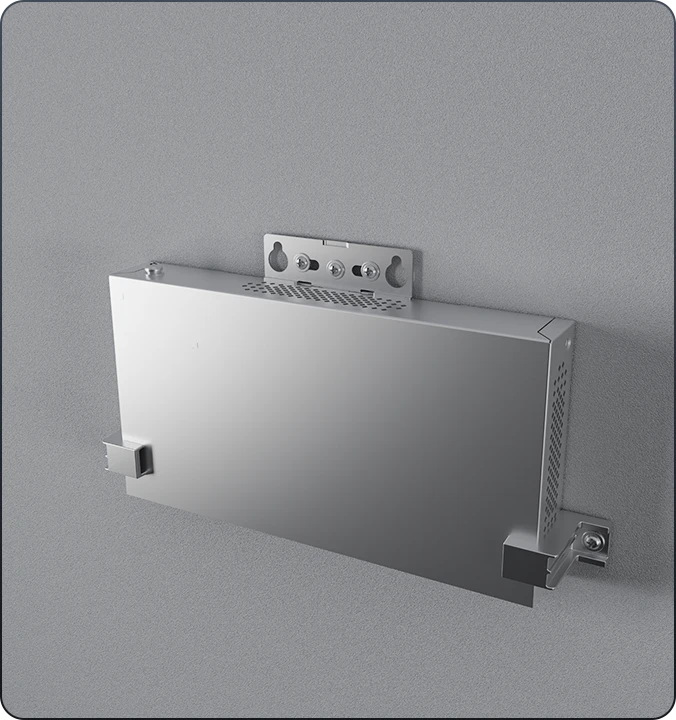

  • Wall Mounting*

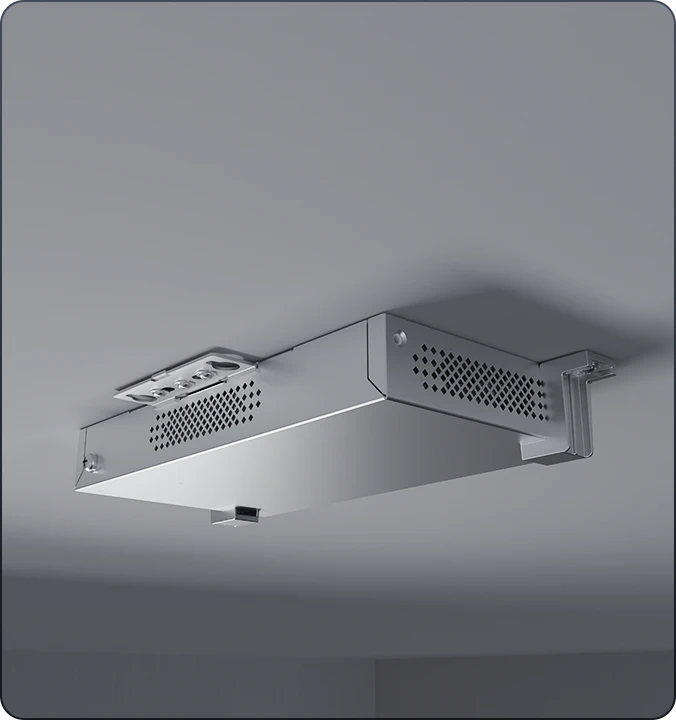

  • Ceiling Mounting*
  • Desktop Mounting

*Not supported by RG-NBF2100S-16GT1SC-P

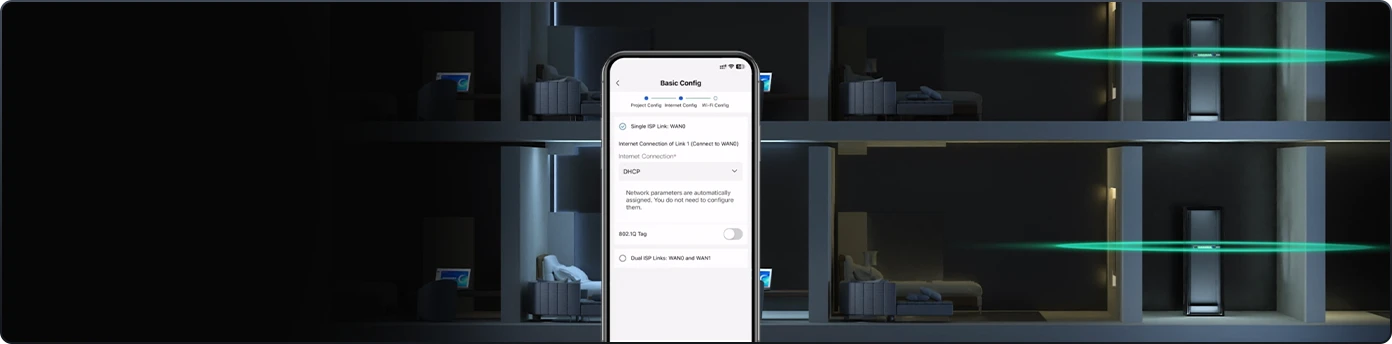

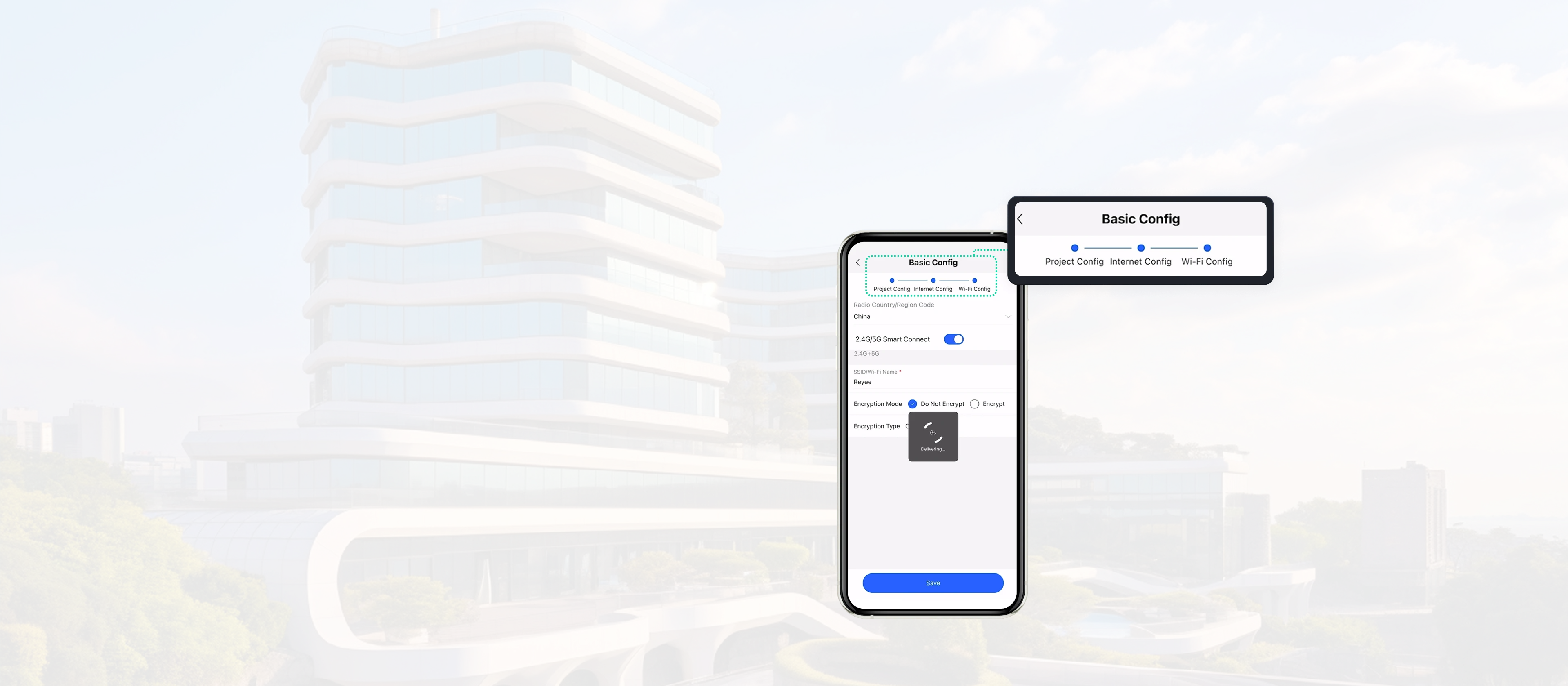

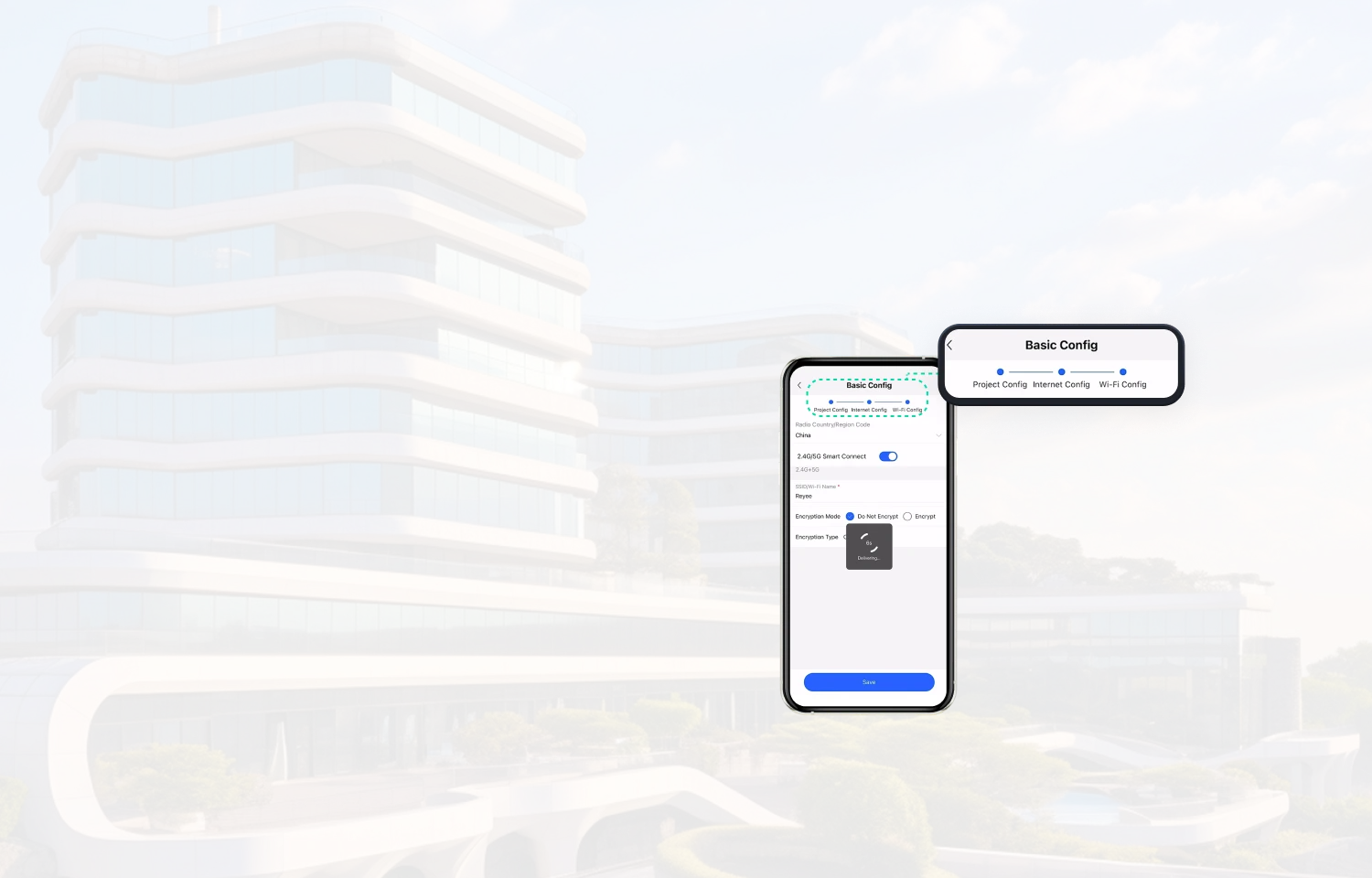

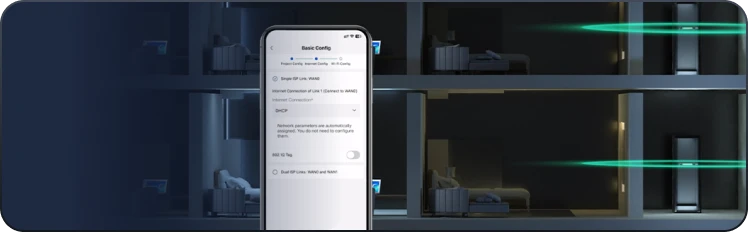

Easy Optical Network Setup in 3 Minutes

Easy Optical Network Setup
in 3 Minutes

With our Self-Organizing Networking (SON) technology,
an optical network can be effortlessly set up via Ruijie Cloud

With our Self-Organizing Networking (SON) technology, an optical network can be effortlessly set up via Ruijie Cloud.

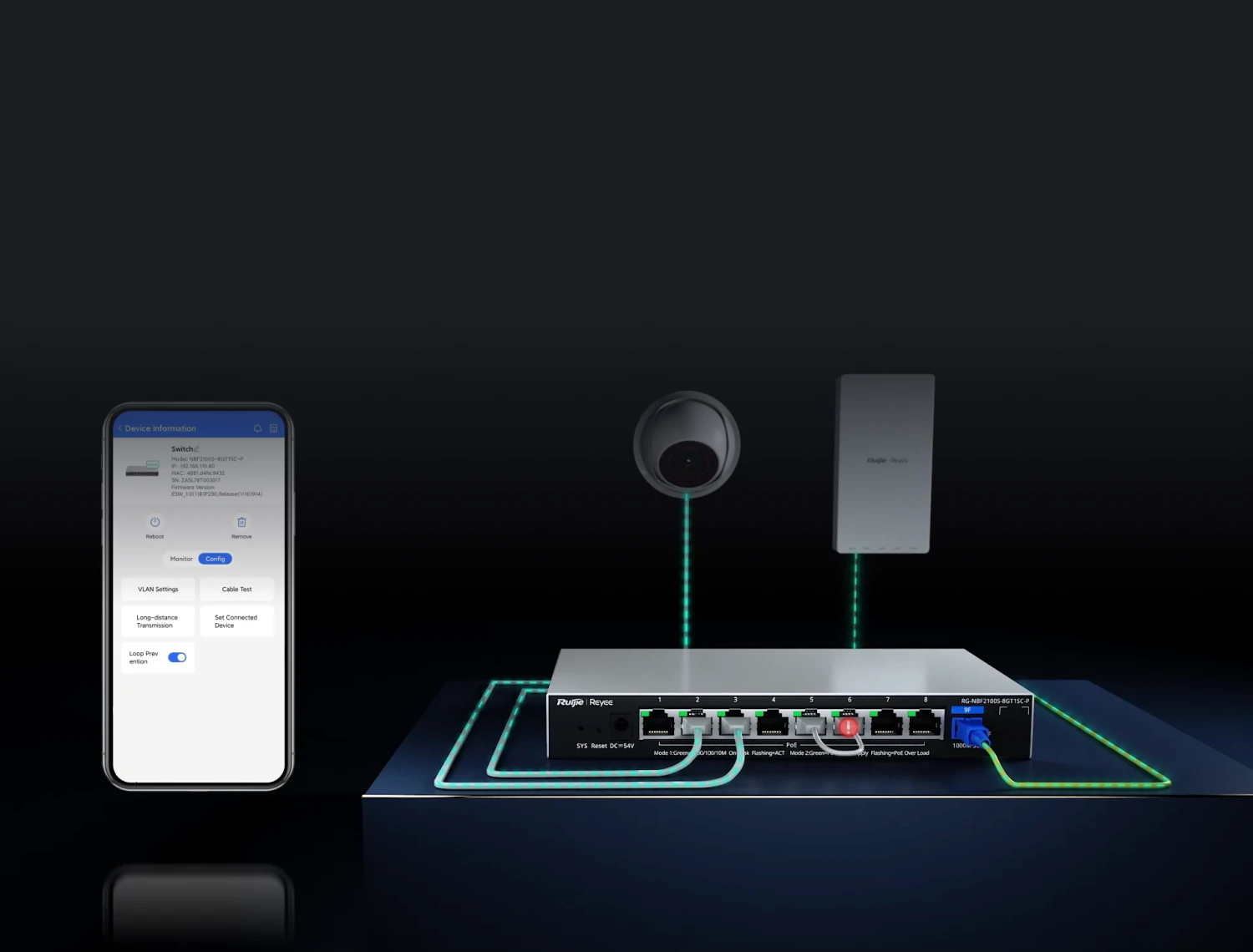

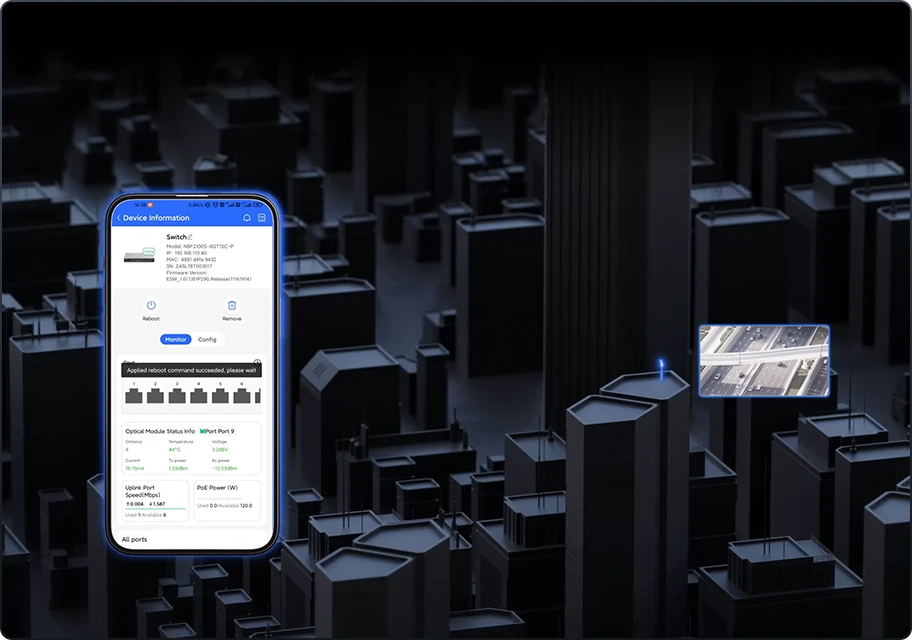

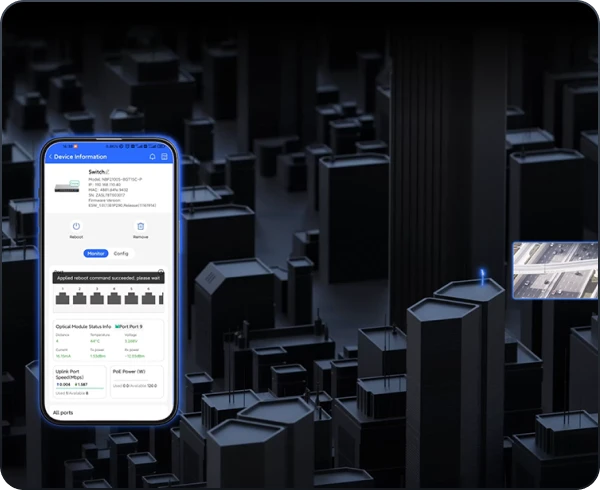

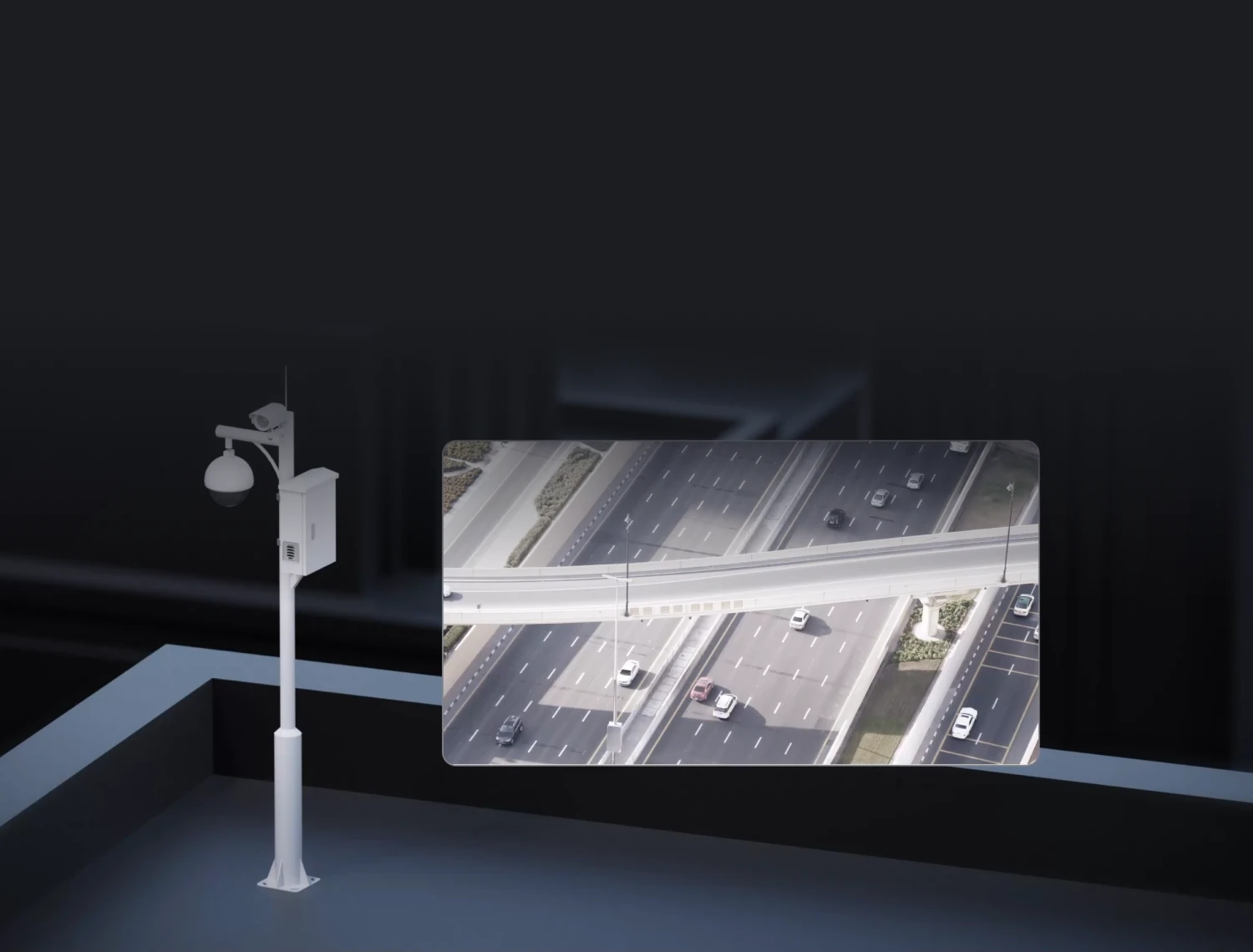

Remote Camera Reboot, No More On-site Visits*

Remote Camera Reboot,
No More On-site Visits*

*Supported by RG-NBF2100S-8GT1SC-P and RG-
NBF2100S-16GT1SC-P only. Internet connection is required.

*Supported by RG-NBF2100S-8GT1SC-P and RG-NBF2100S-16GT1SC-P only. Internet connection is required.

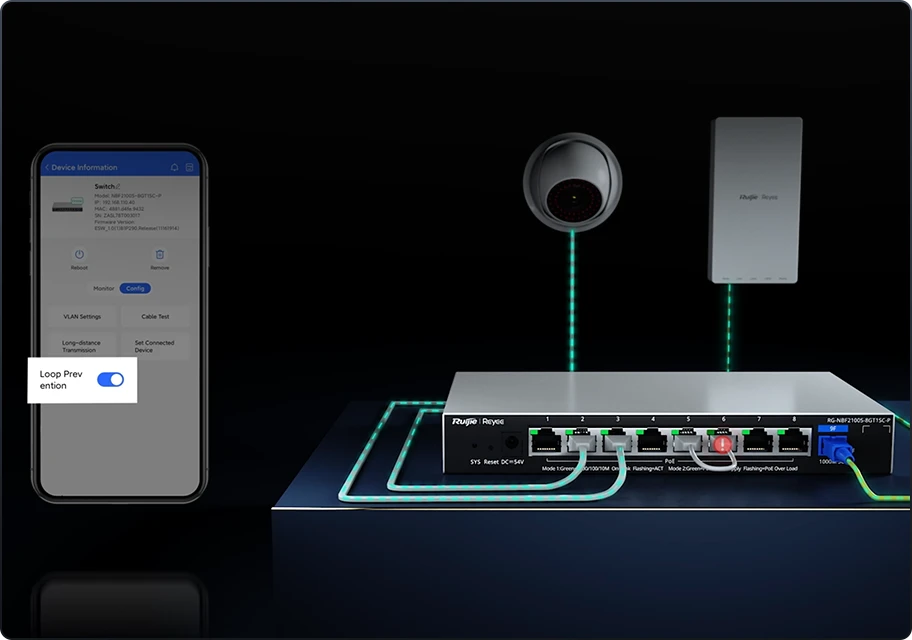

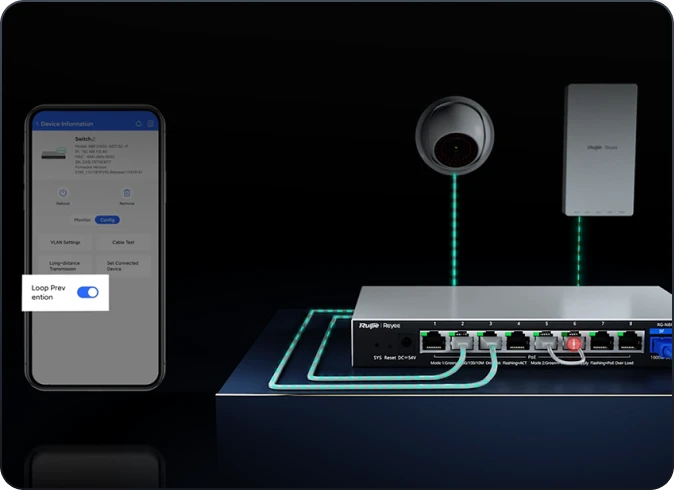

Loop Prevention Ensures Service Continuity

Loop Prevention Ensures
Service Continuity

Network stays connected even when a network loop occurs

Network stays connected even
when a network loop occurs

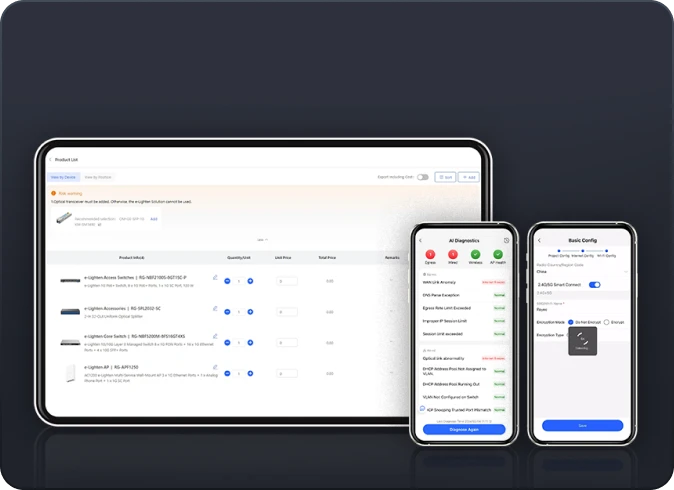

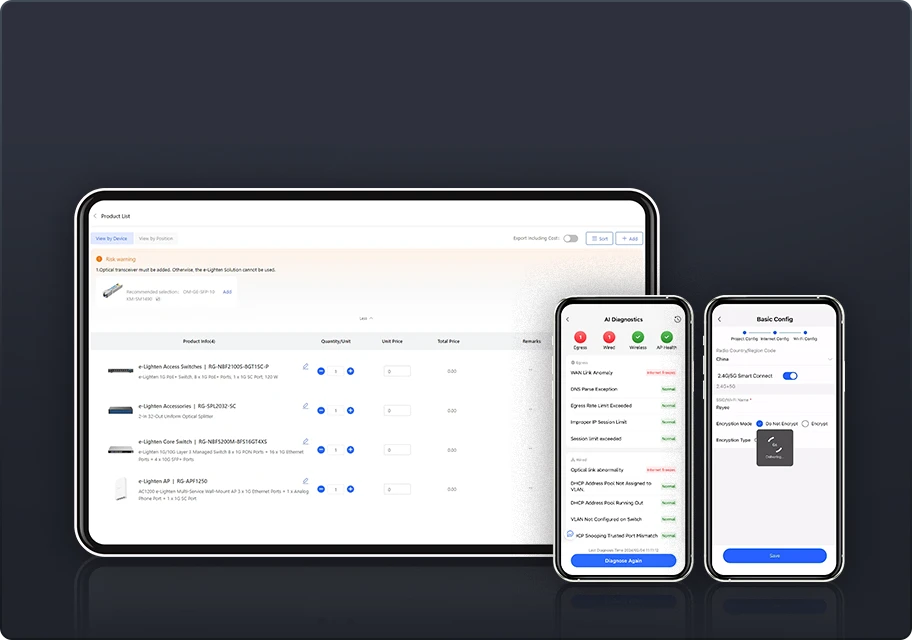

Cloud, Make Your Business Easy

  • Pre-Sale

  • Deployment

  • Post-Sale

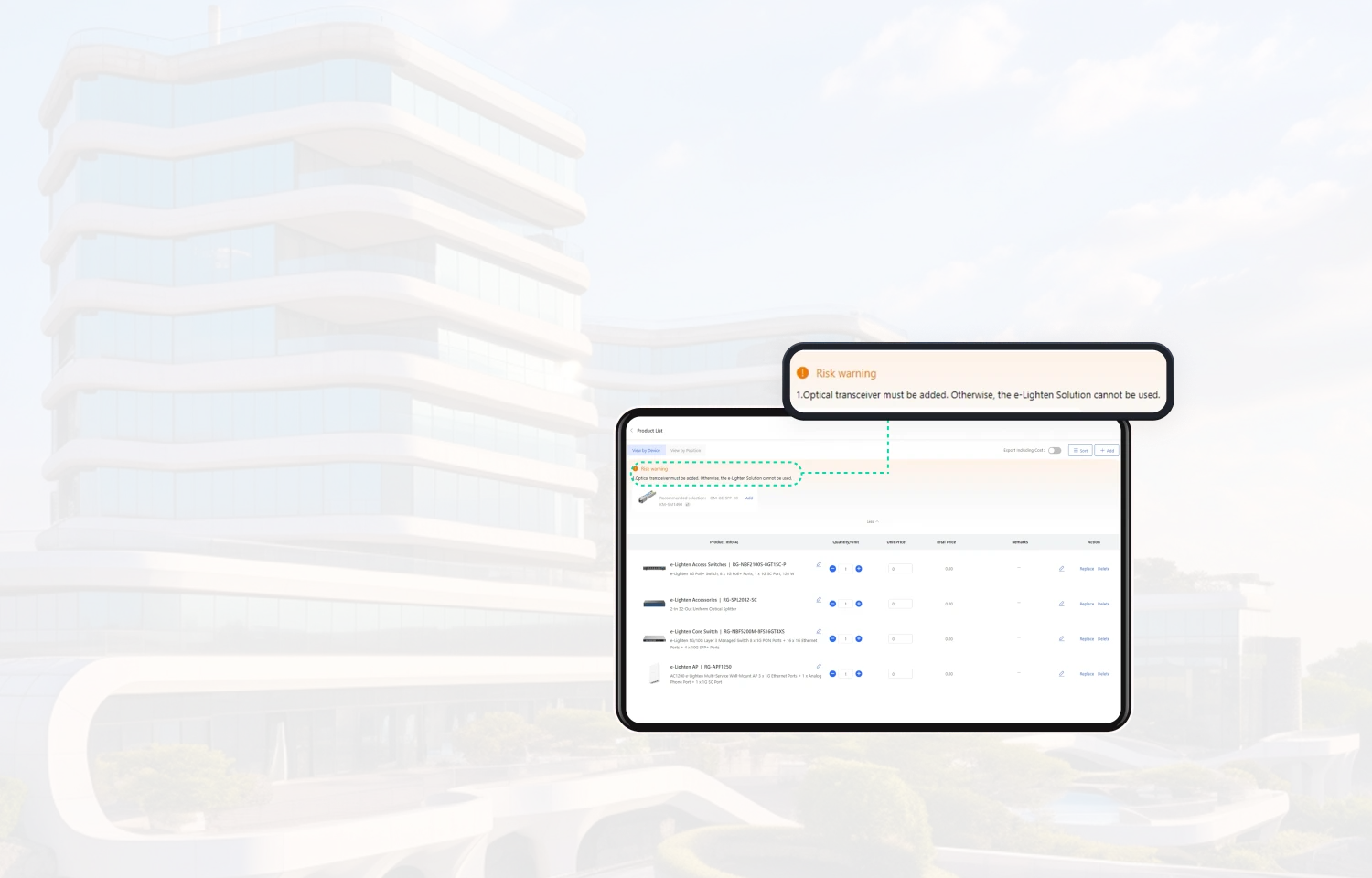

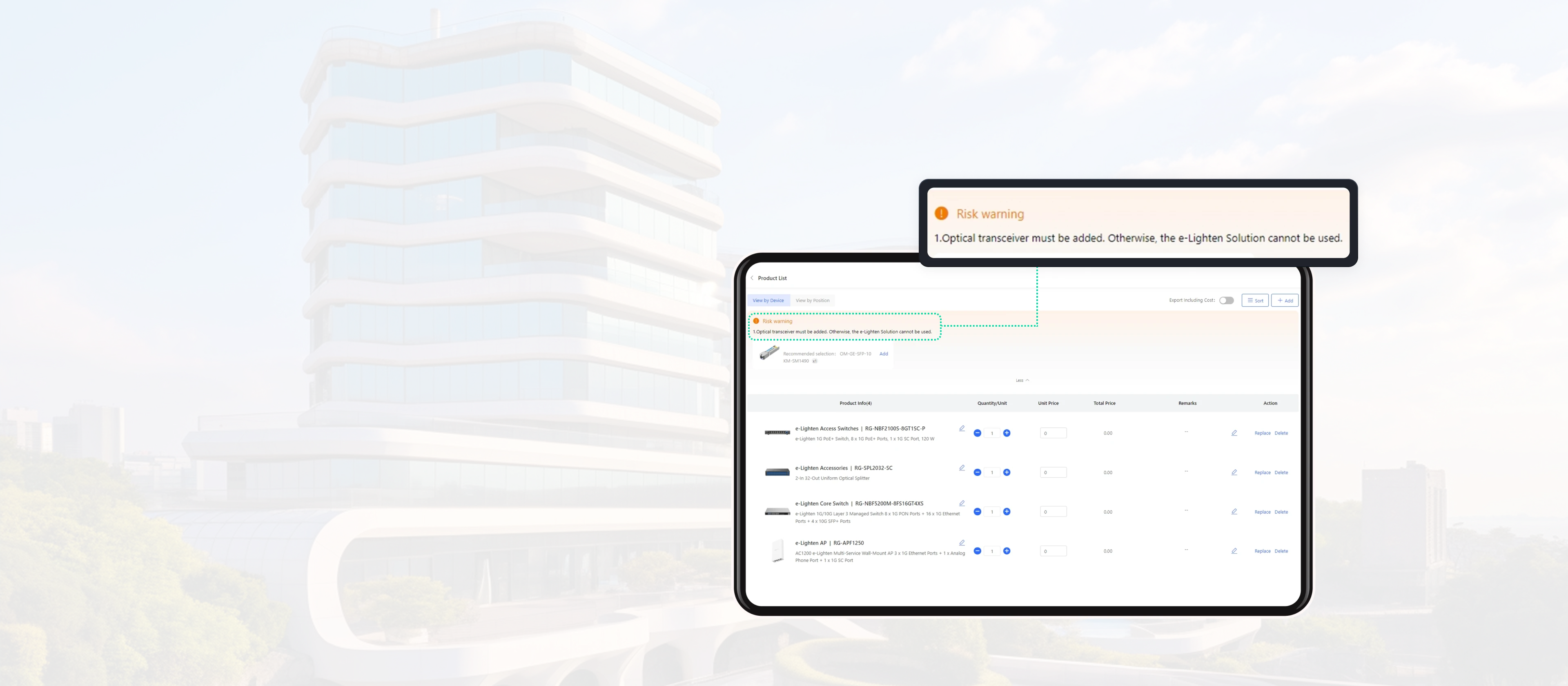

  • Easy BOM

    Automated validation of the
    e-Lighten BOM for accuracy     Automated
    validation of the
    e-Lighten BOM
    for accuracy

  • Easy Configuration

    Unified configuration of optical networks,
    Ethernet and telephony systems     Unified configuration
    of optical networks,
    Ethernet and
    telephony systems

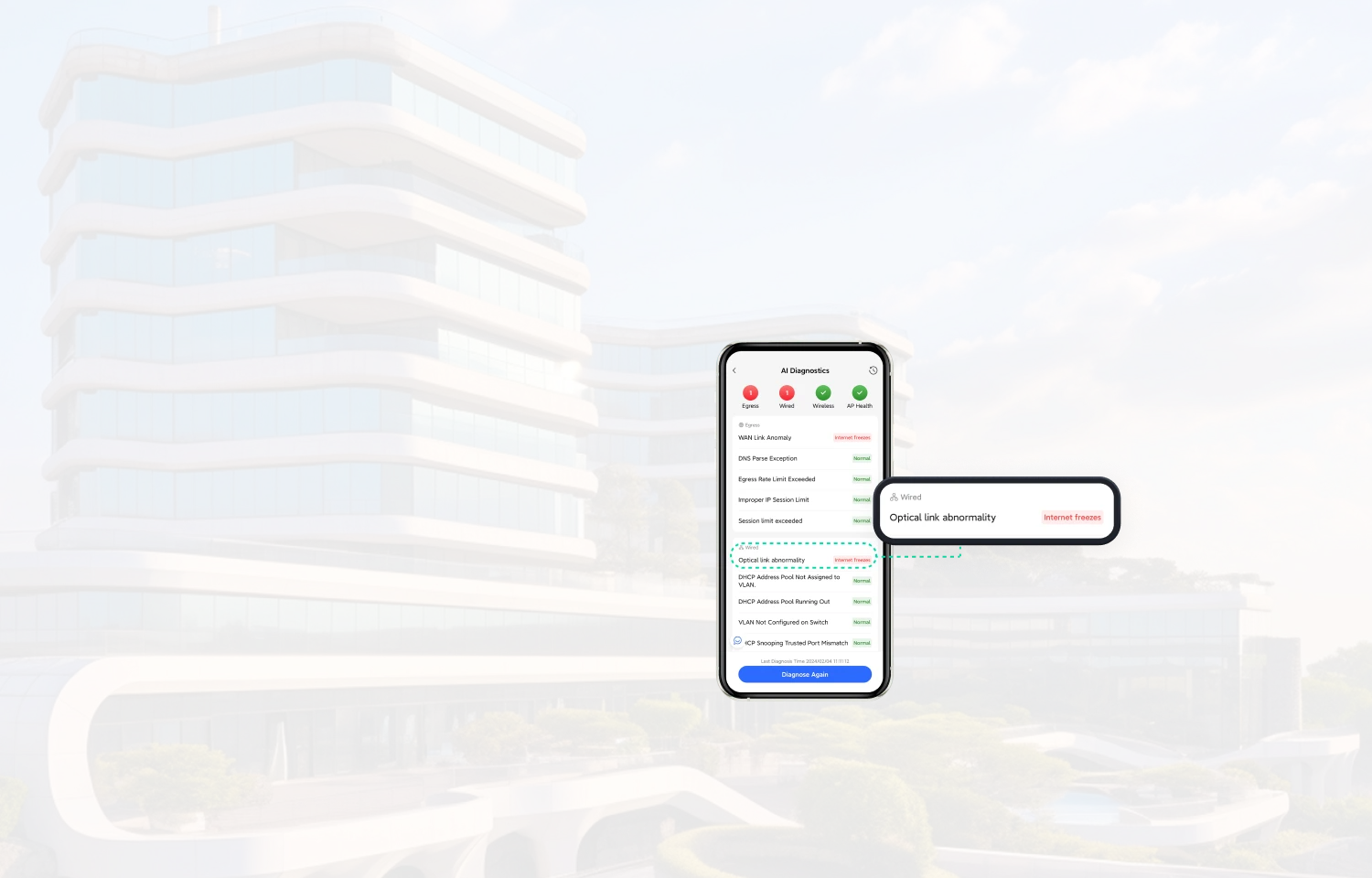

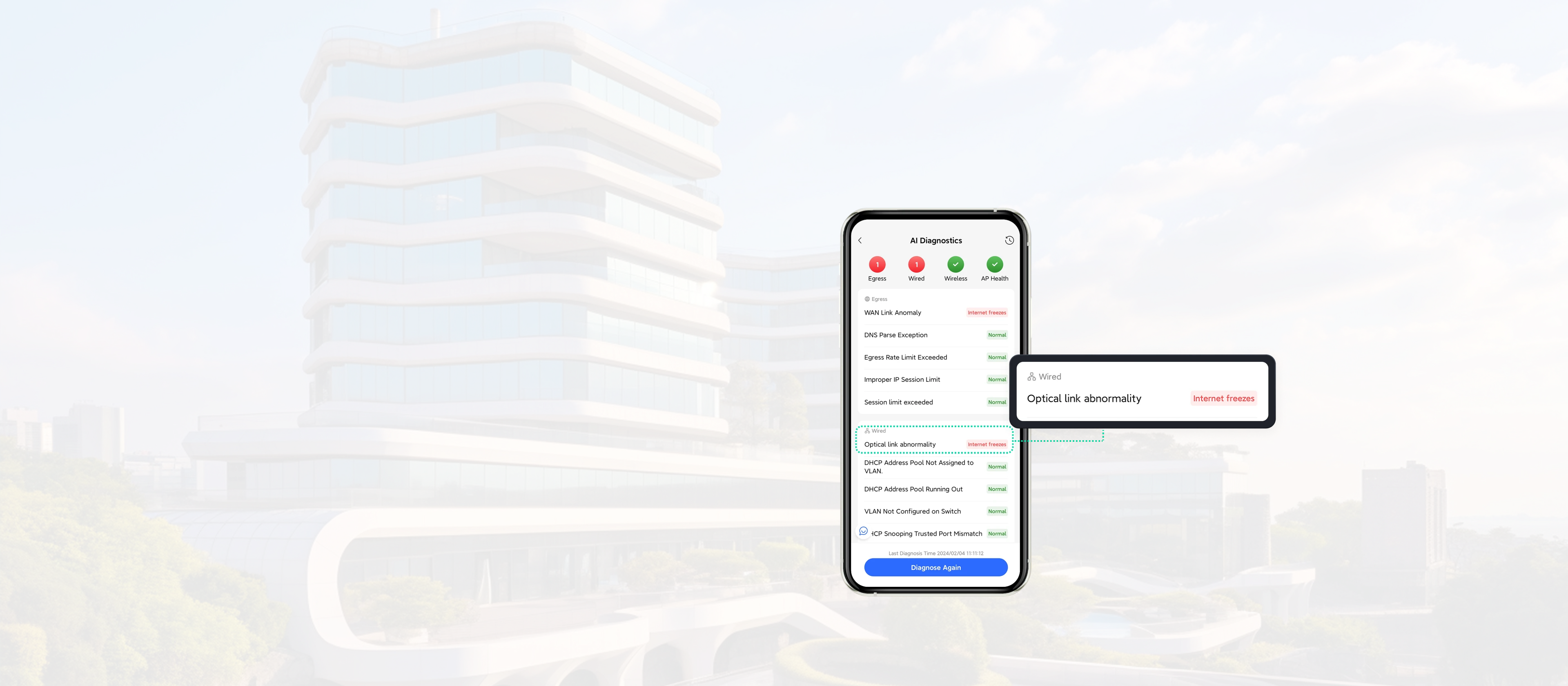

  • Easy Maintenance

    One-click AI troubleshooting to remotely
    resolve 90% of faults     One-click AI
    troubleshooting to
    remotely resolve 90%
    of faults

Specifications
Model RG-NBF2100S-16GT1SC-P RG-NBF2100S-8GT1SC-P RG-NBF2100S-8GT1SC
Hardware Specifications
Number of Line Card Slots 0 0 0
Number of 1000BASE-T Ports 16 8 8
Number of 1G SC Ports 1 1 1
Total Number of Optical Ports 1 1 1
Total Number of Ethernet Ports 16 8 8
Number of Management Ports N N N
Recommended Client Limits 100 100 100
Recommended Camera Limits 2MP H265:50
4MP H265:25		 2MP H265:50
4MP H265:25		 2MP H265:50
4MP H265:25
PoE Support Y Y N/A
PoE Standards IEEE802.af, EEE802.3at IEEE802.af, EEE802.3at N/A
Max. PoE Output Power per Device 240 W 120 W N/A
Max. PoE Output Power per Port 30 W 30 W N/A
Max. Power Consumption ≤ 290 W ≤ 130 W ≤ 12 W
Device Dimensions (W x D x H) 330 mm x 229 mm x 44 mm (12.99 in. x 9.02 in. x 1.73 in.) 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.) 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.)
Switching Capacity 34 Gbps 18 Gbps 18 Gbps
Forwarding Rate 25.296 Mpps 13.392 Mpps 13.392 Mpps
Power Supply Surge Protection Common: 6 kV/Differential: 6 kV Common: 4 kV/Differential: 4 kV Common: 4 kV/Differential: 4 kV
Port Surge Protection Common: 6 kV Common: 6 kV Common: 6 kV
Operating Temperature 0°C to 45°C (32°F to 113°F) 0°C to 45°C (32°F to 113°F) 0°C to 45°C (32°F to 113°F)
EMC GB9254 class A
EN 55032:2015+AC:2016
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55035:2017
ETSI EN 300 386 V2.1.1 (2016-07)		 GB9254 class A
EN 55032:2015+AC:2016
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55035:2017
ETSI EN 300 386 V2.1.1 (2016-07)		 GB9254 class A
EN 55032:2015+AC:2016
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55035:2017
ETSI EN 300 386 V2.1.1 (2016-07)
Casing Iron Iron Iron
Mounting Desktop/rack Desktop Desktop
Power Supply Options Fxied power supply module Power adapter Power adapter
DIP Switch Y Y N/A
Gross Weight 3.73 kg (8.22 lbs.) 1.29 kg (2.84 lbs.) 0.79 kg (1.74 lbs.)
Net Weight 2.95 kg (6.50 lbs.) 0.5 kg (1.10 lbs.) 0.5 kg (1.10 lbs.)
Reset Button Y Y Y
LEDs System
System LED: green
LINK/ACT:
RJ45 port LED: green
LINK/ACT:
SFP port LED: green		 System
System LED: green
LINK/ACT:
RJ45 port LED: green
LINK/ACT:
SFP port LED: green		 System
System LED: green
LINK/ACT:
RJ45 port LED: green
LINK/ACT:
SFP port LED: green
Storage Temperature –40°C to +70°C (–40°F to 158°F) –40°C to +70°C (–40°F to 158°F) –40°C to +70°C (–40°F to 158°F)
Operating Humidity 10% to 90% RH 10% to 90% RH 10% to 90% RH
Storage Humidity 5% to 95% RH 5% to 95% RH 5% to 95% RH
IP Rating IP20 IP20 IP20
Number of and Length of Power Cords Quantity: 1
Length: 1.5 m (4.92 ft)		 Powered by a power adapter, no power cord supplied Powered by a power adapter, no power cord supplied
Flash Memory 8 MB 8 MB 8 MB
IP-based Standard ACL N N N
Bi-directional Optical Sub Assembly (BOSA) Receiver Sensitivity –8 dB to –28 dB –8 dB to –28 dB –8 dB to –28 dB
Bi-directional Optical Sub Assembly (BOSA) Transmit Power 0 dB to 3 dB 0 dB to 3 dB 0 dB to 3 dB
Number of RJ11 Phone Ports 0 0 0
Digital Diagnostic Monitoring (DDM)
(Temperature/Voltage/Current/Rx Power/Tx Power)		 Y Y Y
Max. Uplink Bandwidth Supported by a 1G ONU >=900 Mbps >=900 Mbps >=900 Mbps
Max. Downlink Bandwidth Supported by a 1G ONU 997 Mbps 997 Mbps 997 Mbps
Min. Uplink Bandwidth Supported by a 1G ONU 10 Mbps 10 Mbps 10 Mbps
Optical Splitting/All-Optical Ethernet Mode Auto Switching N N N
Dynamic Bandwidth Allocation (DBA) Y Y Y
Static Bandwidth Allocation (SBA) Y Y Y
Dynamic Bandwidth Allocation (DBA): Maximum Bandwidth for ONUs Y Y Y
Unknown Unicast Rate Limiting Y Y Y
Disabling MAC Address Migration of the ONU Port (disabled by default) Y Y Y
Type B Dual-homing Protection N N N
Type C Dual-homing Protection N N N
Software Features
VLAN Y Y Y
N:1 mirroring Y Y Y
MAC-based Extended ACL N N N
IP-based Extended ACL N N N
Ingress ACL on Layer 2 Physical or Logical Interfaces N N N
Virtual Cluster Switching (VCS) N N N
MAC Address Table Size 8K 8K 8K
Static MAC Address Y Y Y
Port-Level Rate Limiting (Ingress/Egress) Y Y Y
Hardware-based CPU Protection Policy (CPP) Y Y Y
Ruijie Rapid Link Detection Protocol (RLDP) N N N
IPv6 N N N
IGMP Snooping N N N
