RG-EG406XS-P, 5-Port (4 PoE/PoE+) 2.5G Cloud Managed Router, 1 x 10G Port

Home Environments (e.g., Villas, Large Apartments, Bungalows), Small and Medium Offices, Restaurants, Multi-branch Chains, etc.

Models
RG-EG406XS

6 ports, 400 clients, débit de 2 500 Mbit/s, 100 tunnels VPN IPsec

 RG-EG406XS-P

6 x Ports (4 x PoE), 400 Clients, 2,500 Mbps Throughput, 100 IPsec VPN Tunnels
Series
EG100 Series EG1500 Series EG200 Series EG300 Series EG400 Series EG700 Series
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • Supporting up to 400 concurrent clients, with 4 PoE Out ports
  • High-performance router with 2.5 Gbps throughput for diverse network scenarios
  • Powerful VPN with up to 100 tunnels for branches and remote employees
  • Efficient bandwidth management based on applications and users
  • Multi-WAN, smart load balancing
  • Lifetime* free management on Ruijie Cloud anytime, anywhere
    * Lifetime means the lifespan of the product, subject to EOL policies.
Sales Enquiry
Features

RG-EG406XS-P

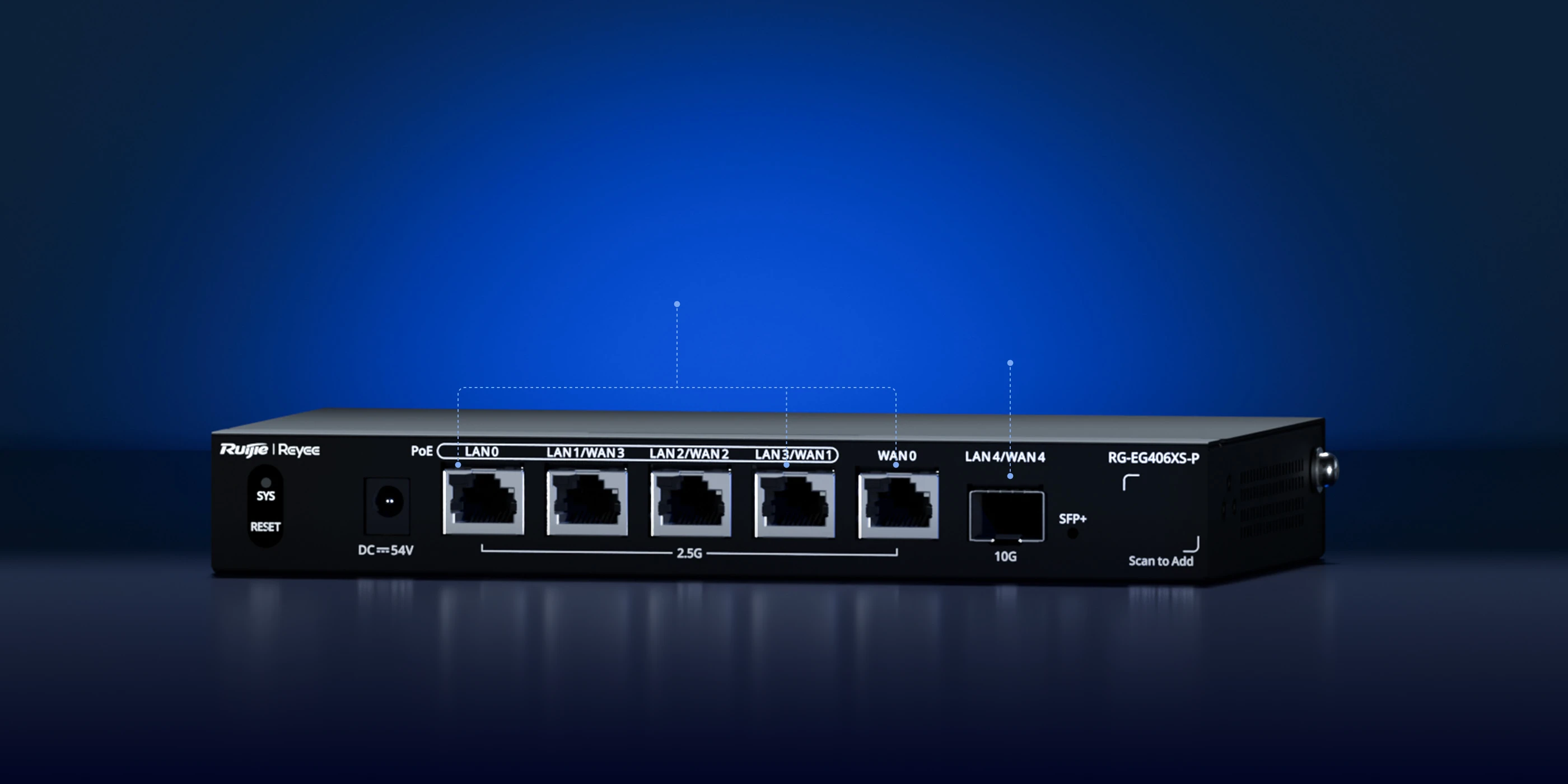

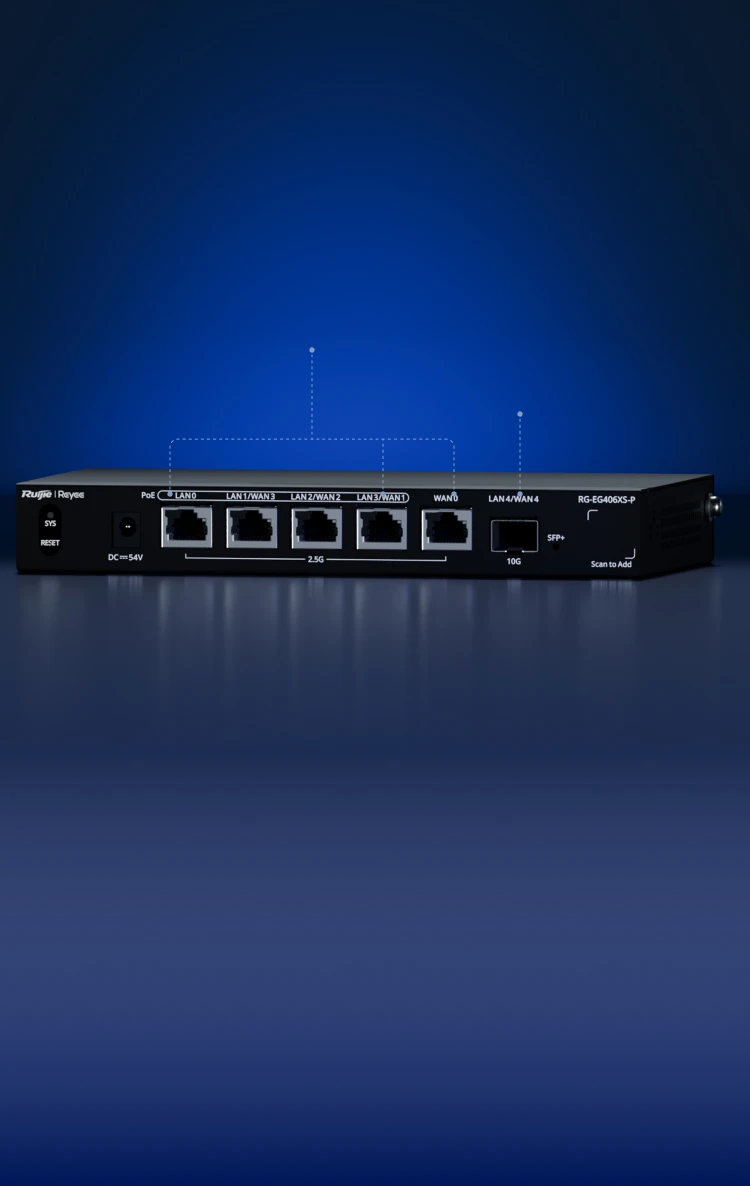

Unleashing Multi-Gig, Elevating Performance

  • 5 x 10/100/1000/2500BASE-T Ports

  • 1 x 10GE SFP+ Port

  • 4 x PoE Out Ports

  • 400
    Concurrent Clients

  • 100
    VPN Tunnels

  • 2.5 Gbps
    Throughput

  • Multi-WAN
    Load Balancing

Whole-Home 2.5G, Designed for Your Ideal Living

Empower every corner with ultra-fast,
intelligent connectivity

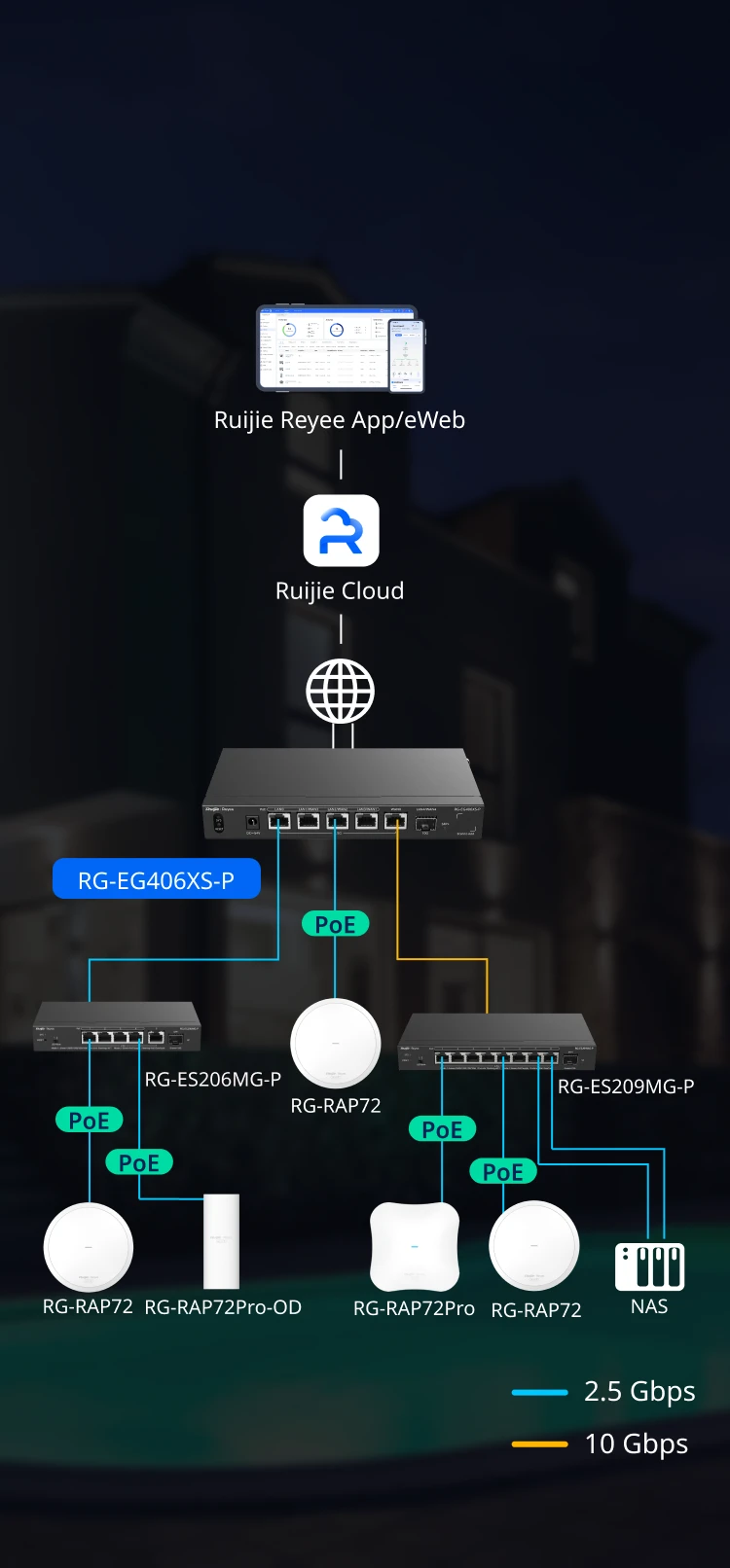

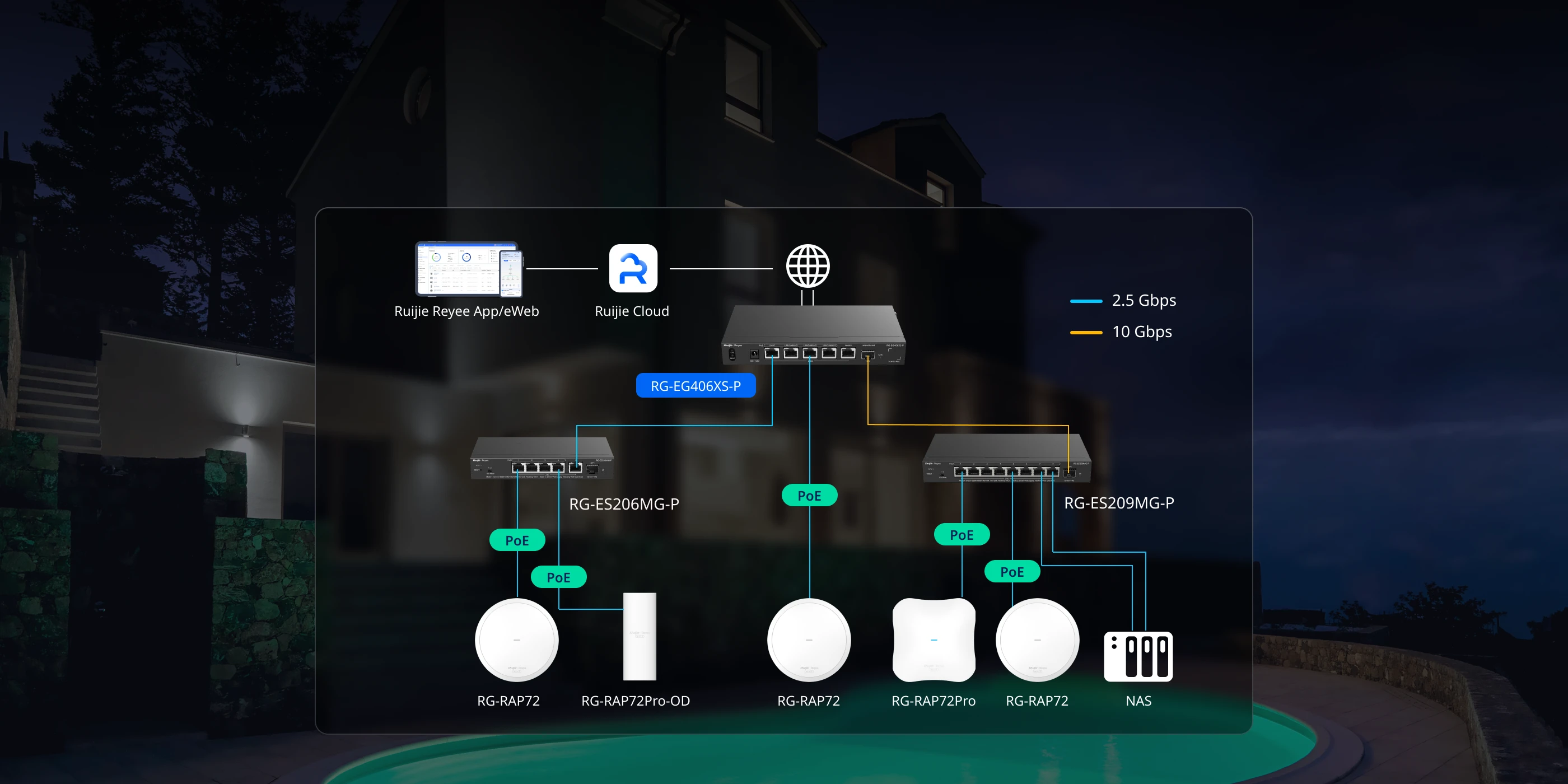

Full-Link 2.5G Network Solution
Unleash the Full Power of Wi-Fi 7

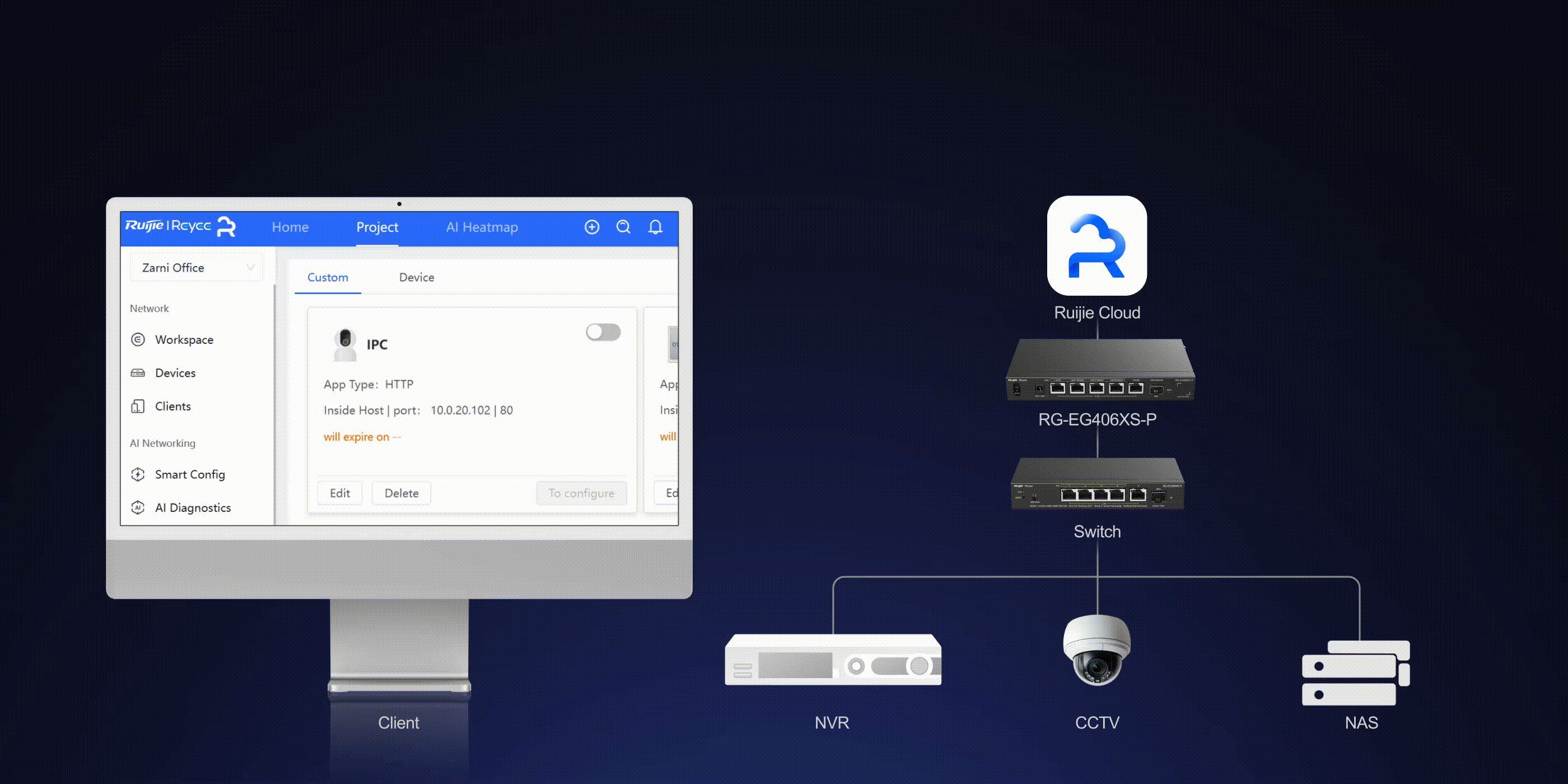

Easy NAT Traversal

The management console uniformly displays all third-party devices, enabling easy intranet access
and one-click links to their web interfaces.

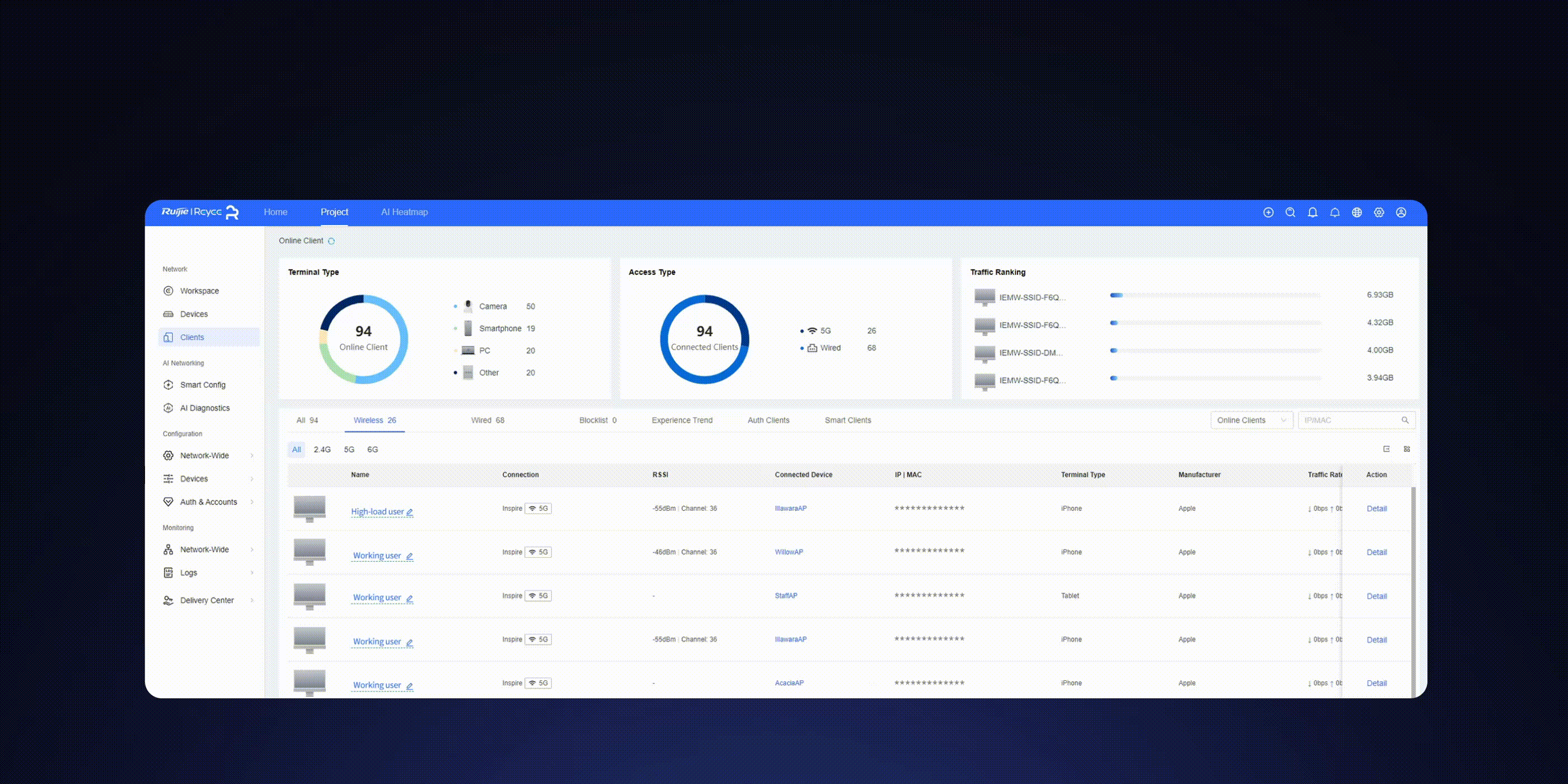

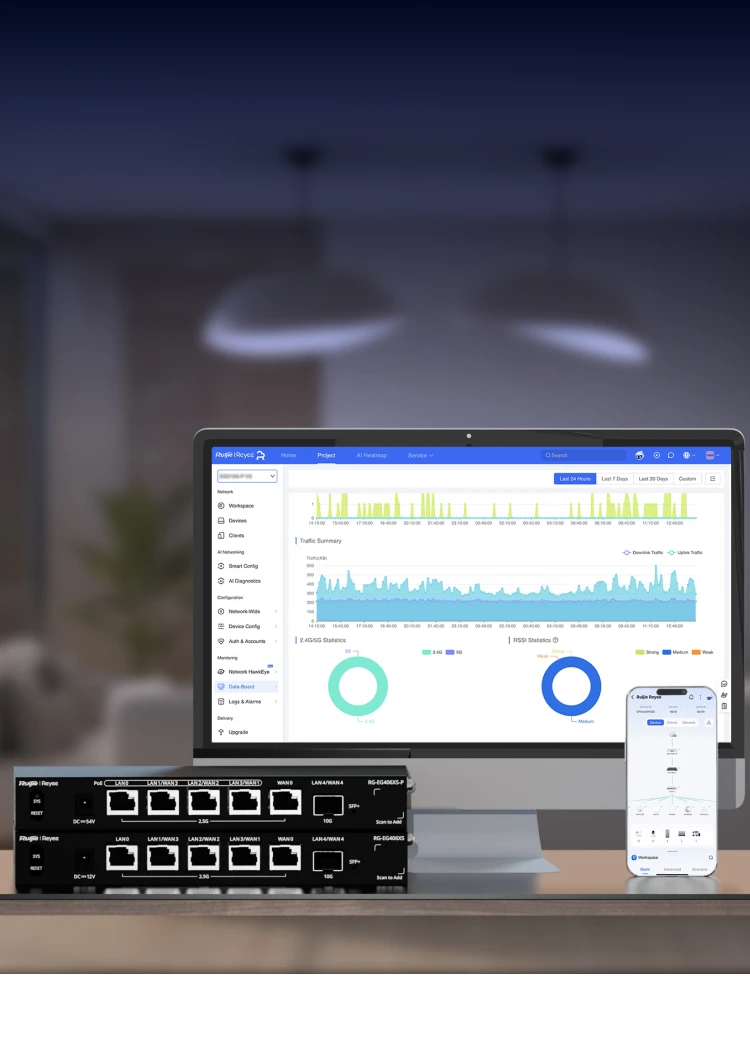

Client Recognition & Flow Control

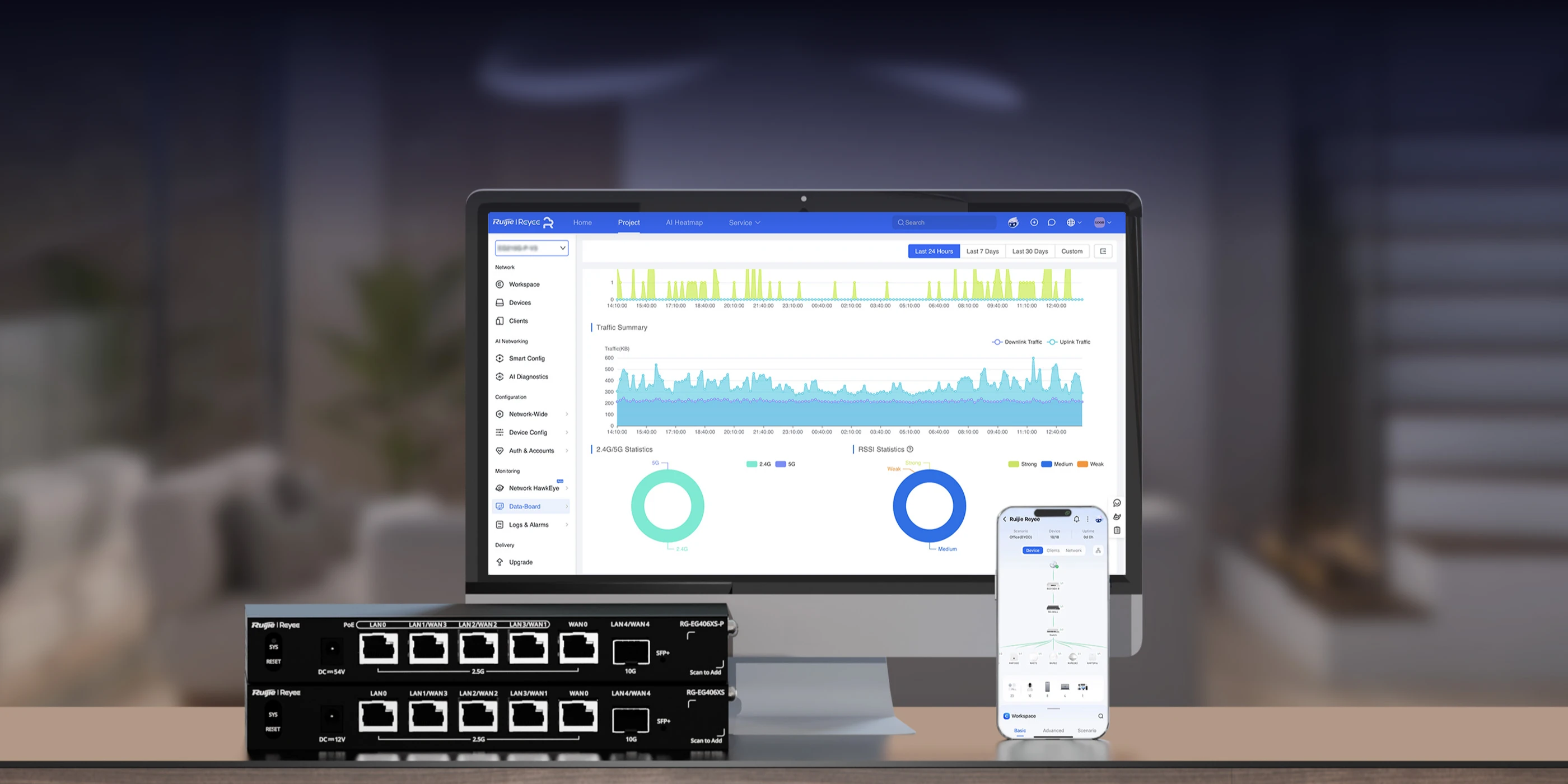

Cloud, Make Your Business Easy

  • Self-organizing network
  • Quick service setup by app
  • Scenario-based configuration guide
  • Marketing portal authentication

*Product images and videos are computer-generated for illustration purposes only. Actual products may vary in details, features, or appearance.

Key Specifications
Hardware Specifications
Port Specifications
Number of 10/100/1000/2500BASE-T ports
  • 5
Number of 10GE SFP+ ports
  • 1
Number of fixed LAN ports
  • 1
Number of fixed WAN ports
  • 1
System Specifications
CPU
  • Quad-core processor, 2.0 GHz clock frequency per core
Flash memory
  • 256 MB
RAM
  • 1 GB
Power Supply and Consumption
PoE budget
  • 110 W
Dimensions and Weight
Product dimensions (W x D x H)
  • 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.1 in.)
Weight
  • 0.62 kg (1.37 lbs)
Environment and Reliability
Mounting options
  • Desk
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Software Specifications
System Performance Capacity
Recommended number of concurrent clients
  • 400
Throughput
  • 2500 Mbps
