RG-EG310GH-E, Reyee 10-Port High-Performance Cloud Managed Office Router

Office, Hotel, School, Retail, CCTV, etc.

Models
RG-EG305GH-P-E

5-Port, 1.5Gbps, 350 Clients, 4 PoE Out, 64 VPN Tunnels

 RG-EG310GH-E

10-Port, 1.5Gbps, 350 Clients, 64 VPN Tunnels

 RG-EG310GH-P-E

10-Port, 1.5Gbps, 350 Clients, 8 PoE Out, 64 VPN Tunnels
Series
EG100 Series EG1500 Series EG200 Series EG300 Series
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • 1.5 Gbps throughput, high-performance VPN router for office networks
  • Powerful VPN for branches and remote employees
  • Traffic visualization and monitoring
  • Efficient bandwidth management based on applications and users
  • Multi-WAN, intelligent load balancing
Sales Enquiry
Key Specification
Features

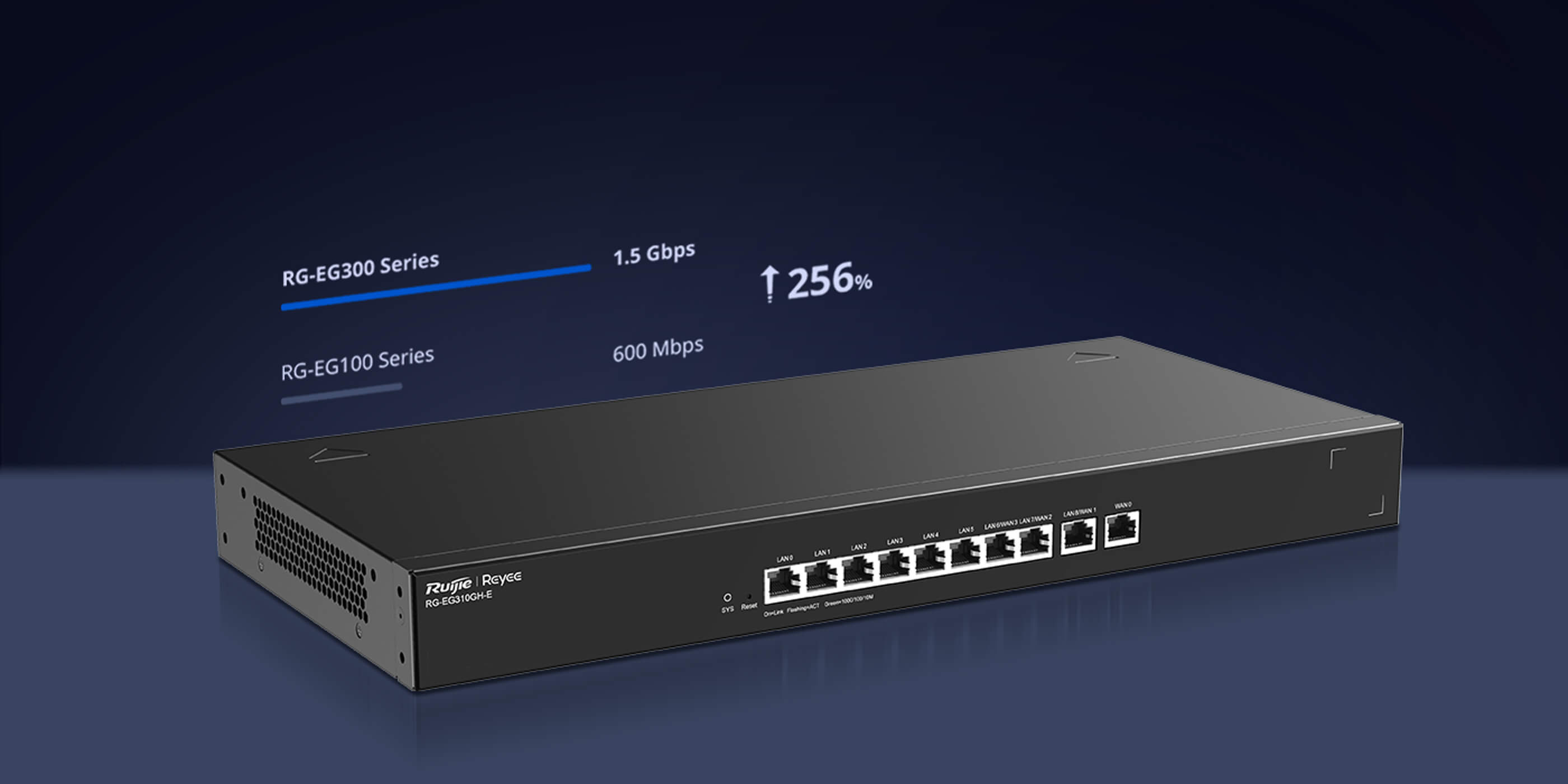

High-performance VPN Router for Office Networks

  • 350
    Concurrent Clients

  • 4
    WAN Ports

  • 64
    VPN Tunnels

  • Load
    Balancing

  • Free Cloud
    Management

Powerful VPN for Branches and Remote Employees

  • Up to
    300 VPN Users

  • Tunnel-based Traffic Control

  • OpenVPN, IPSec,
    L2TP, PPTP

How Is Your Internet Speed Affected?

Traffic visualization and monitoring help address this issue. You can view traffic user ranking or application ranking on the GUI.

Efficient Bandwidth Management

Application-based Bandwidth Management
  • Video
    Conference

    High-priority
    20 Mbps
  • HD
    Video


    5 Mbps
  • Social
    Media


    5 Mbps
User-based Bandwidth Management
  • User Group
    Boss


    50 Mbps
  • User Group
    Finance

    High-priority
    30 Mbps
  • User Group
    Other Employees


    100 Mbps

Multi-WAN, Intelligent Load Balancing

The RG-EG310GH-E supports load balancing, redundancy link, and PBR based on source IP addresses. It prevents login failures due to IP address changes for services such as e-banking.

  • Seamless
    Failover

  • Aggregated
    Bandwidth

  • Automatic
    Setup

  • Customized
    Link Weight

Cloud, Make Your Business Easy

  • Reyee free DDNS
  • Cloud portal authentication
  • Remote monitoring and maintenance
  • Firmware upgrade through Ruijie Cloud
  • Dynamic update of app library
  • Customized app library through Ruijie Reyee APP

Comparison
Network Interface
Max. WAN Ports
RAM
Storage
Recommended Bandwidth
Recommended Concurrent Clients
PoE Out
Installation
Power Supply
Max. VLAN Qty.
Application Based Speed Limit
Key Application Priority
User Group Based Speed Limit
Key User Priority
Load Balancing
Behavior Control
Basic Firewall
VPN
Max VPN Account Quantity
Max IPSec Active Tunnels
Max PPTP Active Tunnels
Max L2TP Active Tunnels
Max L2TP Over IPSec Active Tunnels
Max OpenVPN Active Tunnels
VPN Throughput of OpenVPN
VPN Throughput of IPSec
VPN Throughput of PPTP&L2TP
Captive Portal Authentication
Multiple LAN Network via VLAN
PPPoE Authentication Server
Max PPPoE Client Account
Max PPPoE Active Client
App Identification
Intelligent Traffic Control
Ruijie Free DDNS
Resources All Resources
Learn about Products or Solutions
Installation
Software and Configuration
Order Information
Device RG-EG305GH-P-E RG-EG310GH-P-E RG-EG310GH-E
Foot Pad 4 4 4
Power Adapter 1 1 1
Power Cord 1 1 1
Mounting Bracket - - 2
M4 x 8 mm Screw - - 6
Power Cord Retention Clip - - 1
User Manual 1 1 1
Warranty Card 1 1 1
Package Weight 1.5 kg 1.6 kg 3.4 kg
Package Dimension (w x d x h) 305 mm x 289 mm x 64
mm		 305 mm x 289 mm x 64
mm		 536 mm x 351 mm x 110
mm
