RG-ES08G
The perfect combination of quality, ease of use & cost effectiveness
Ruijie Real-easy Series Plastic Switch is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which consists of a total of 4 different models to meet the network needs of small enterprise customers. The switches feature plug and play, zero configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc., to offer fast deployment experience.

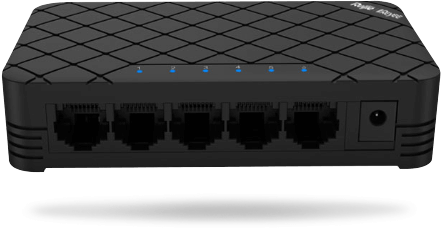

RG-ES05G/08G Series Plastic Case Unmanaged Desktop Switch
Fine Craftsmanship Exquisite and Powerful Design
Real 8-Pin Enterprise-grade Quality
Stringent Testing Worry-free
Plug and Play Energy Saving
Strong Adaptability Applicable for Various Scenarios
Exquisite Design, Powerful Performance

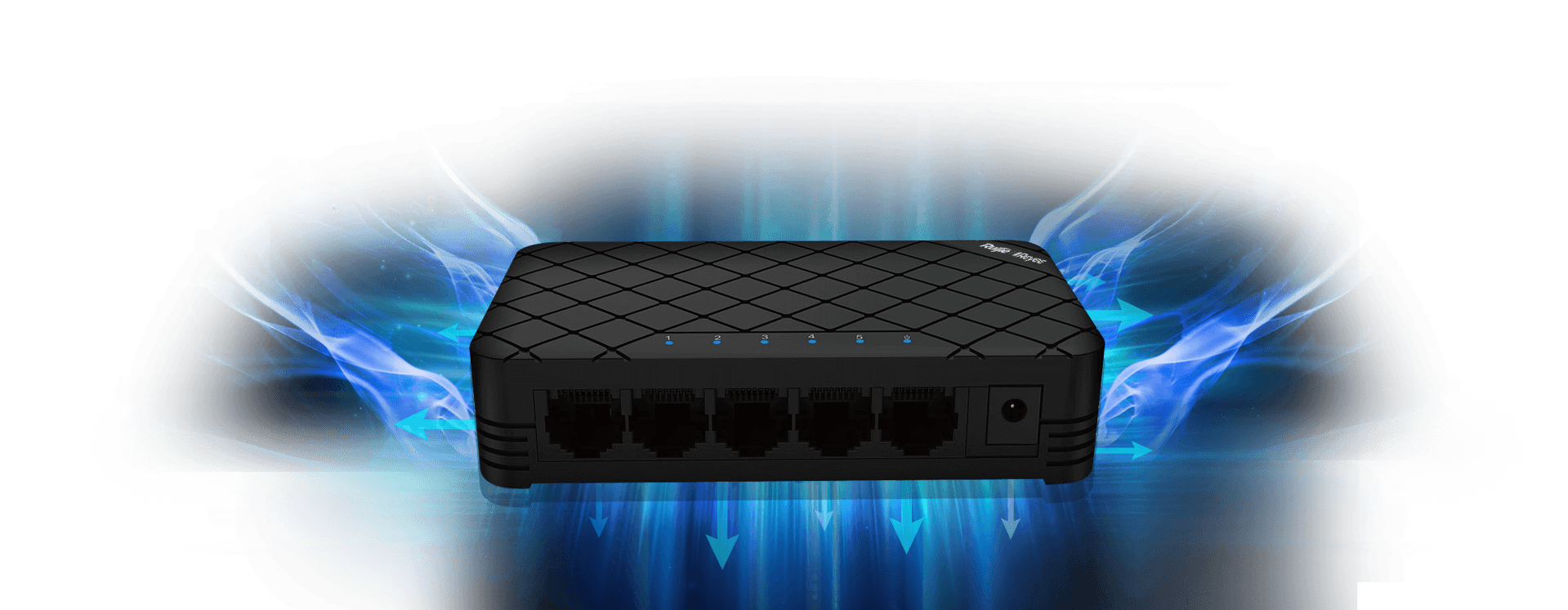

The matte-finish diamond pattern design with honeycomb heat dissipation holes at the bottom ensures effective heat dissipation while offering an exquisite appearance. The embedded foot pads and hidden hanging hole design also provide ease of use for the users
Matte-finish Diamond Pattern Design
Honeycomb Heat Dissipation Holes
Embedded Foot Pads
Hidden hanging Holes

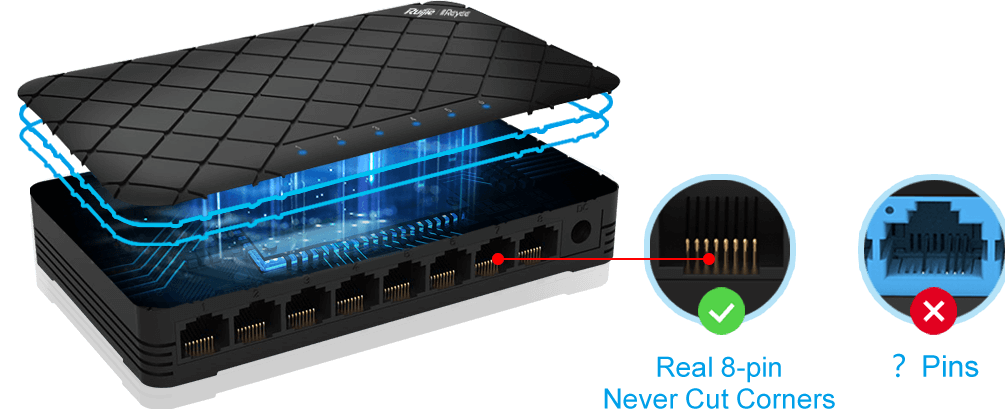

Enterprise-grade Quality Materials
The 8-pin port supports network cables of various qualities, and the enterprise-grade components ensure no packet loss or lagging for data transmission
Conduct Stringent Testing , Provide Worry-free Products
A series of rigorous tests have been performed in the manufacturing process, including anti-drop test, anti-collision test, high-temperature resistance test and humidity resistance test, to provide worry-free products.
Plug and Play & Energy Saving
Self-adaptive feature is supported for the network ports. With zero configuration, the device can operate instantly after plugging in. The energy saving feature enables the non-operating ports to automatically reduce power consumption, and the fanless design also enables noiseless operation
Energy Saving
Auto Power Reduction
Fansless
Noiseless
Strong Adaptability for Various Network Requirements
Ideal choice for surveillance, Small Business, school dormitories, SOHO, and home use
Model | RG-ES05 | RG-ES05G | RG-ES08 | RG-ES08G |
Ports | 5 10/100M Base-T ports | 5 10/100/1000M Base-T ports | 8 10/100M Base-T ports | 8 10/100/1000M Base-T ports |
Operating mode | Half-duplex, full-duplex, auto-negotiation mode Support auto MDI/MDIX |
|||
Backplane bandwidth | 1Gbps | 10Gbps | 1.6Gbps | 16Gbps |
Packet forwarding rate | 0.744Mpps | 7.44Mpps | 1.1904Mpps | 11.904Mpps |
MAC address | 1K | 2K | 1K | 4K |
Power supply | External, DC 5.0V / 600mA | External, DC 5.0V / 600mA | External, DC 5.0V / 600mA | External, DC 9.0V / 600mA |
Maximum power consumption | ≤2.5W | ≤3W | ≤3.5W | ≤6.5W |
Fan | Fanless | Fanless | Fanless | Fanless |
Dimensions | 108.1mm*64mm*24.8mm | 108.1mm*64mm*24.8mm | 144mm*85mm*23mm | 144mm*85mm*23mm |
Temperature | Operating temperature: 0 ℃ ~ 40 ℃ Storage temperature: -40 ℃ ~ 70 ℃ |
|||
Humidity | Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 95% RH |
|||
