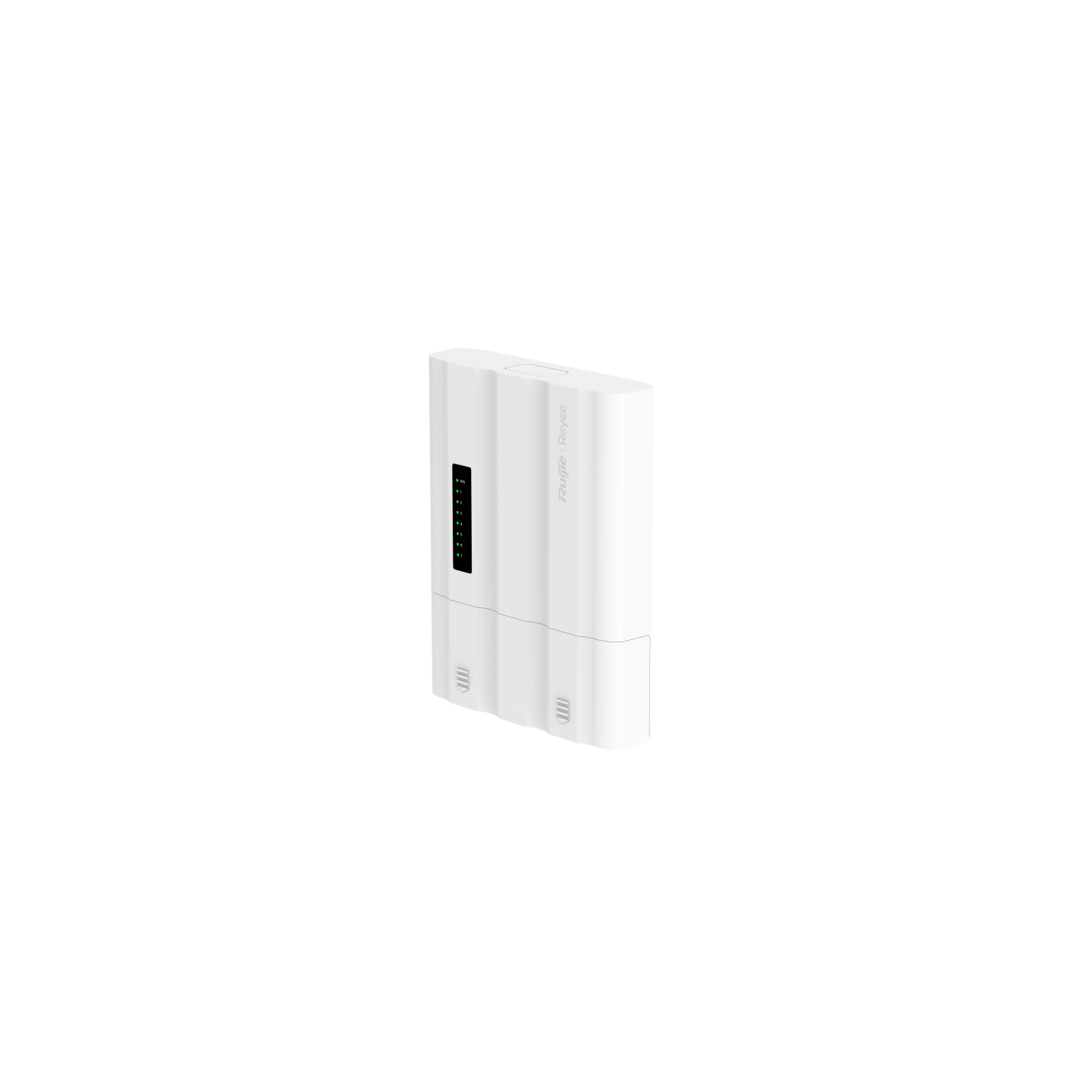

RG-ES207GS-PI-OD - 3
RG-ES207GS-PI-OD - 4

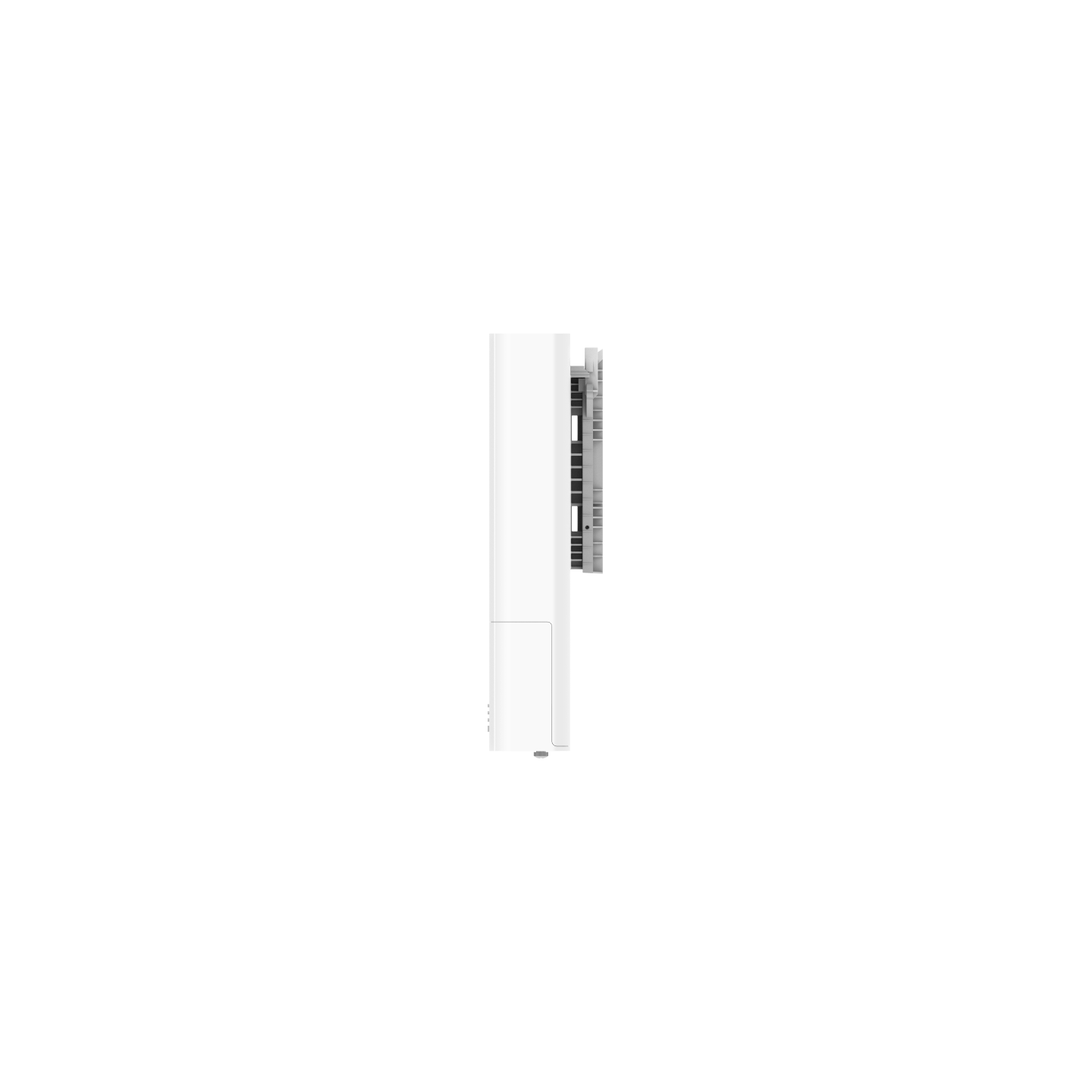

RG-ES207GS-PI-OD - 5
RG-ES207GS-PI-OD - 6
RG-ES207GS-PI-OD - 7

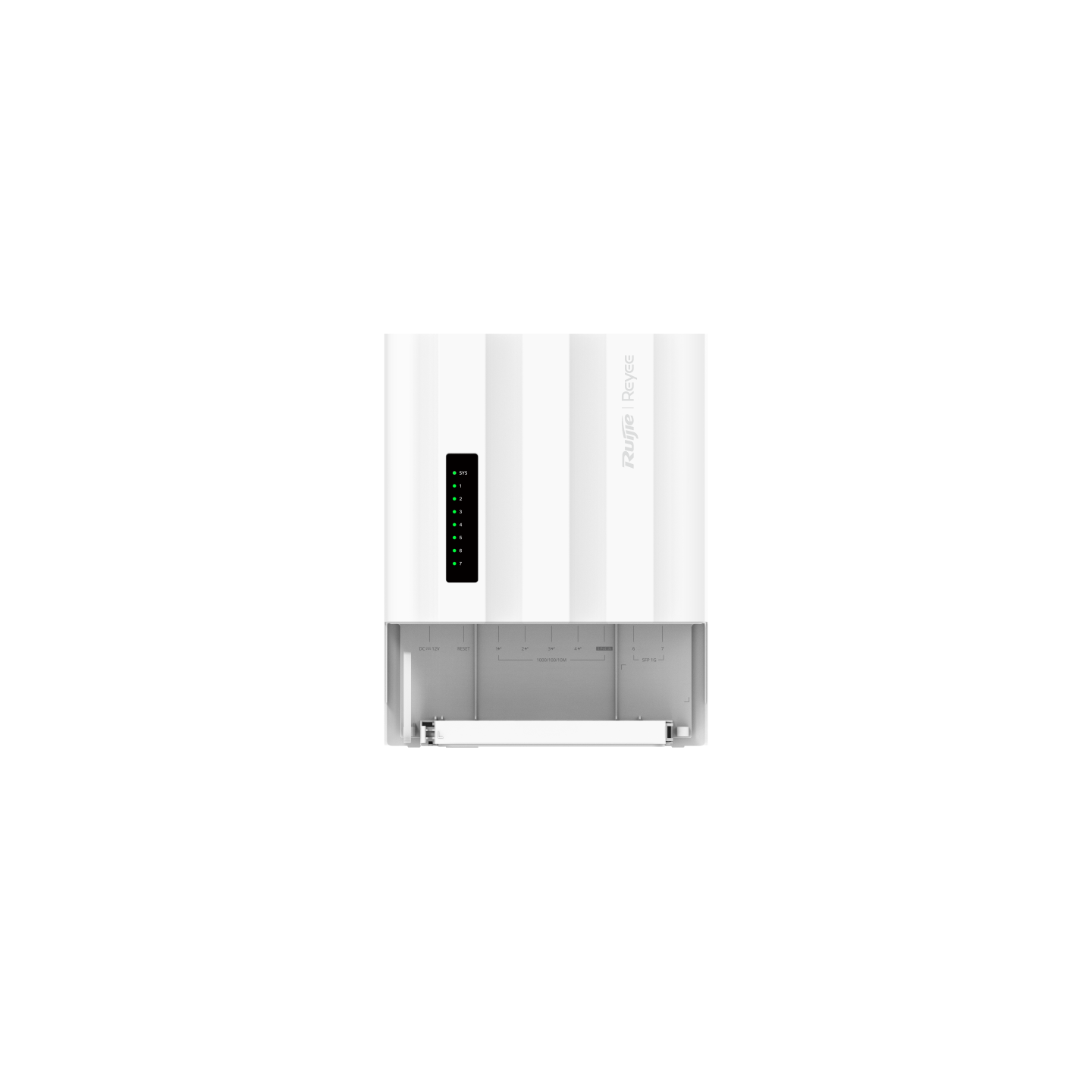

RG-ES207GS-PI-OD - 8
RG-ES207GS-PI-OD - 1
RG-ES207GS-PI-OD - 2
RG-ES207GS-PI-OD - 3
RG-ES207GS-PI-OD - 4
RG-ES207GS-PI-OD - 5
RG-ES207GS-PI-OD - 6
RG-ES207GS-PI-OD - 7
RG-ES207GS-PI-OD - 8
Compare

7-Port Gigabit Outdoor Switch with PoE/DC Input

CCTV, Parks, Highways, etc.

Models
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • PoE or 12 V DC Input.
  • 2 x SFP Ports for ERPS.
  • All-in-one Outdoor Switch, 4-in-1 Integration.
  • High-Level Weatherproofing: IP65 Rating, ±8 kV PoE Surge Protection.
  • Camera Troubleshooting.
  • Uninterrupted PoE Power Supply.
Sales Enquiry
Features

RG-ES207GS-PI-OD

7-Port Gigabit Outdoor Switch with PoE/DC Input

  • 12 V DC
    Input

  • PoE In

  • PoE Budget
    60W

  • ERPS

  • 3 Years
    Warranty

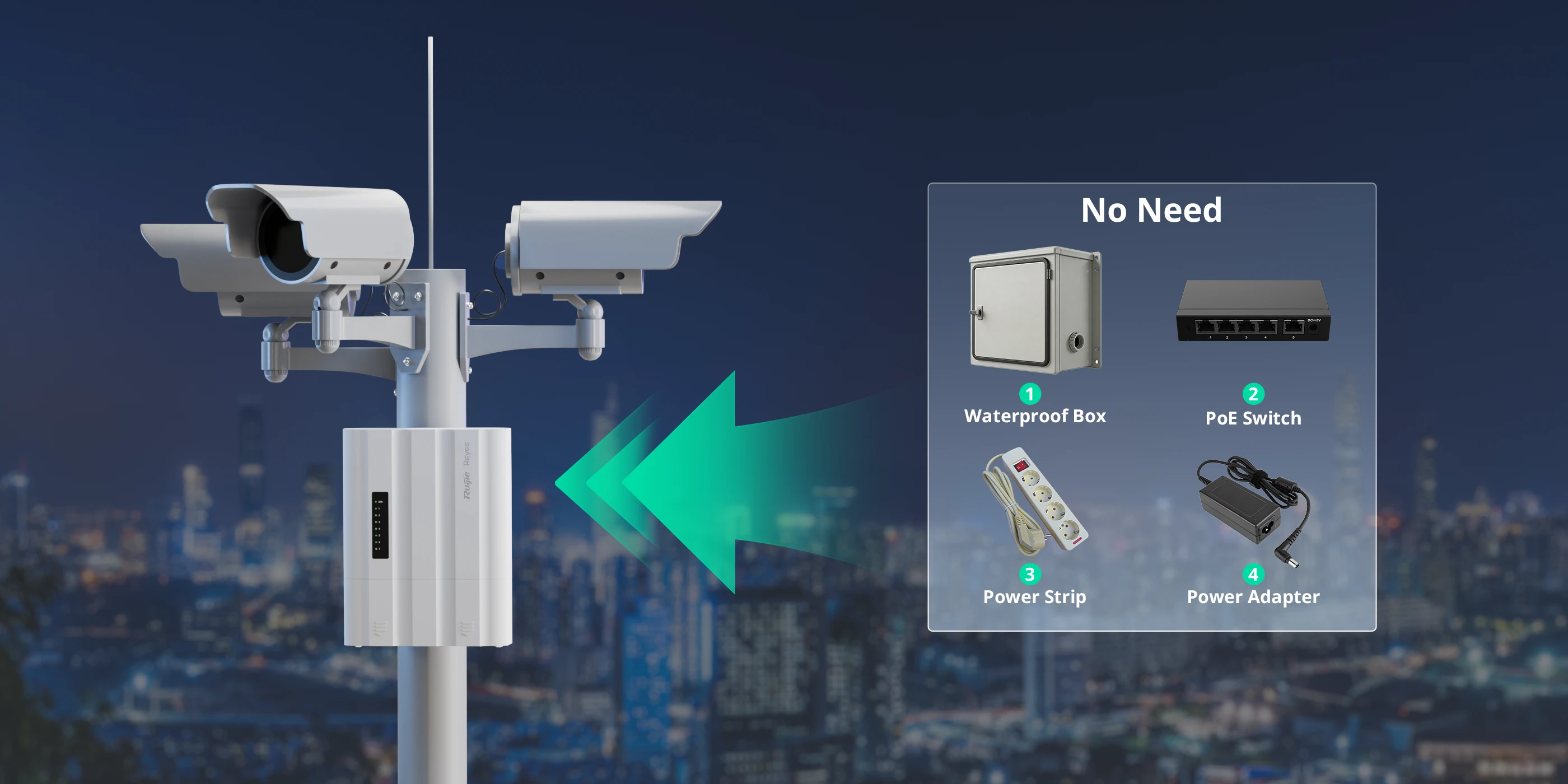

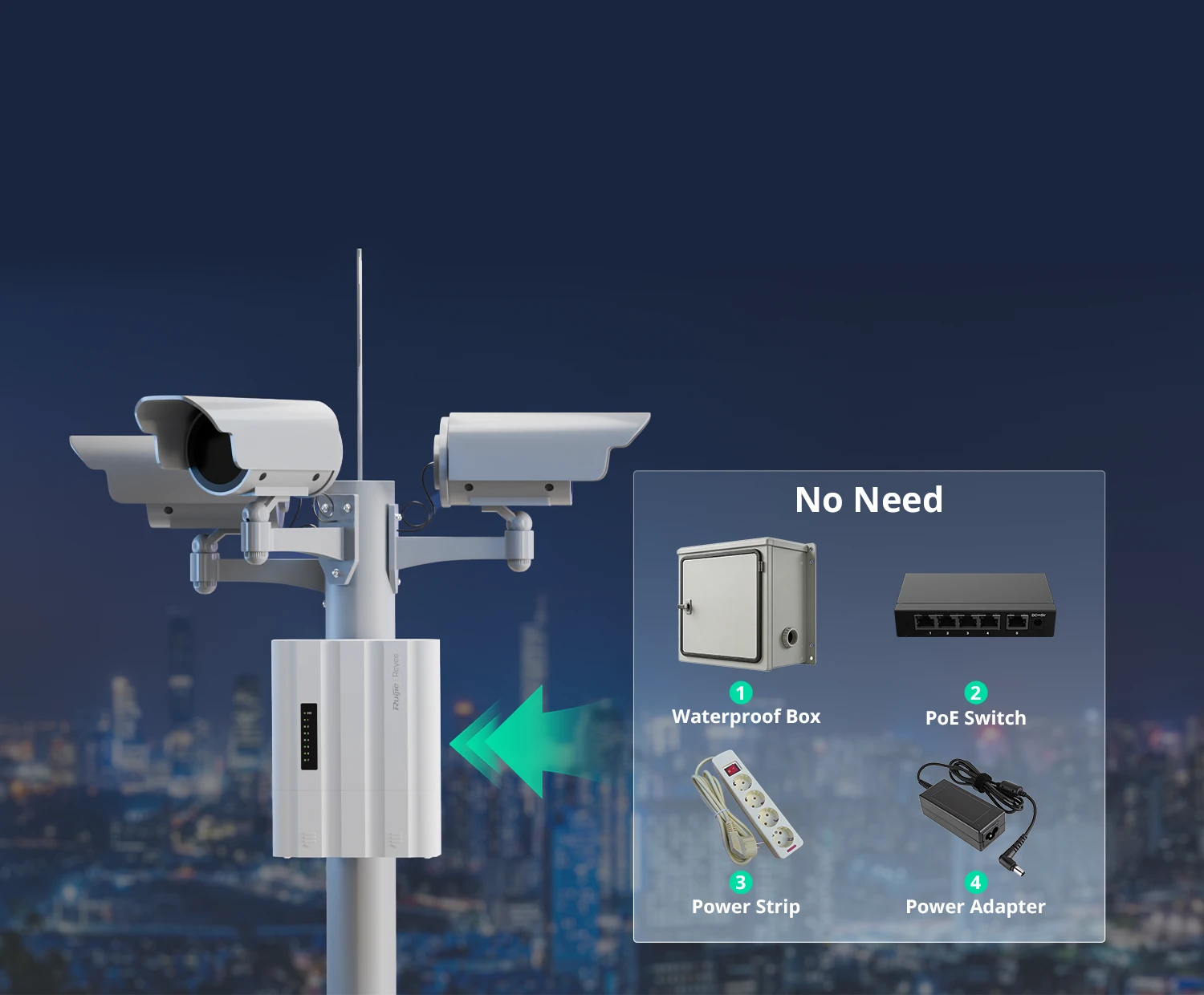

All in One

Combine four devices into one

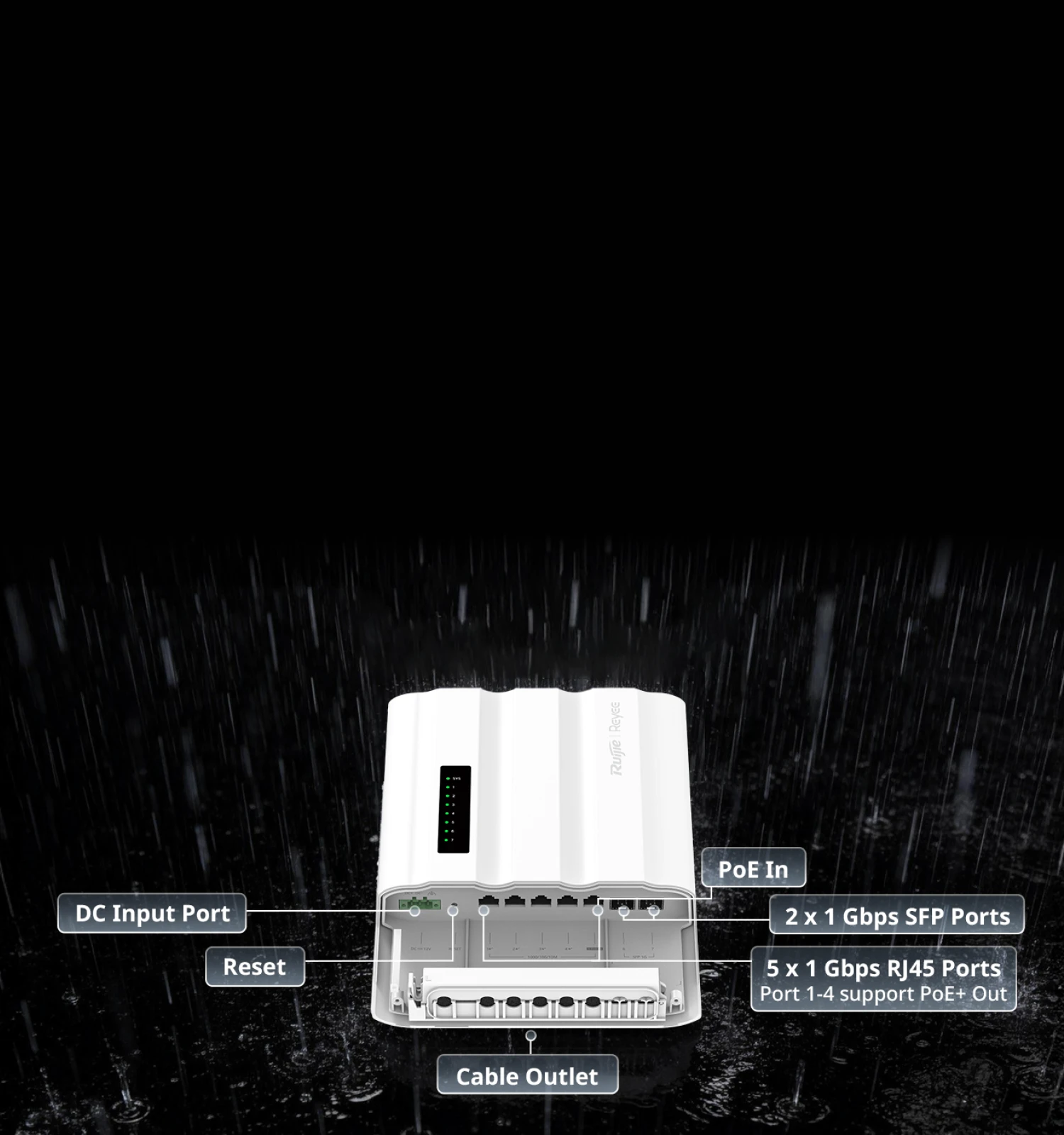

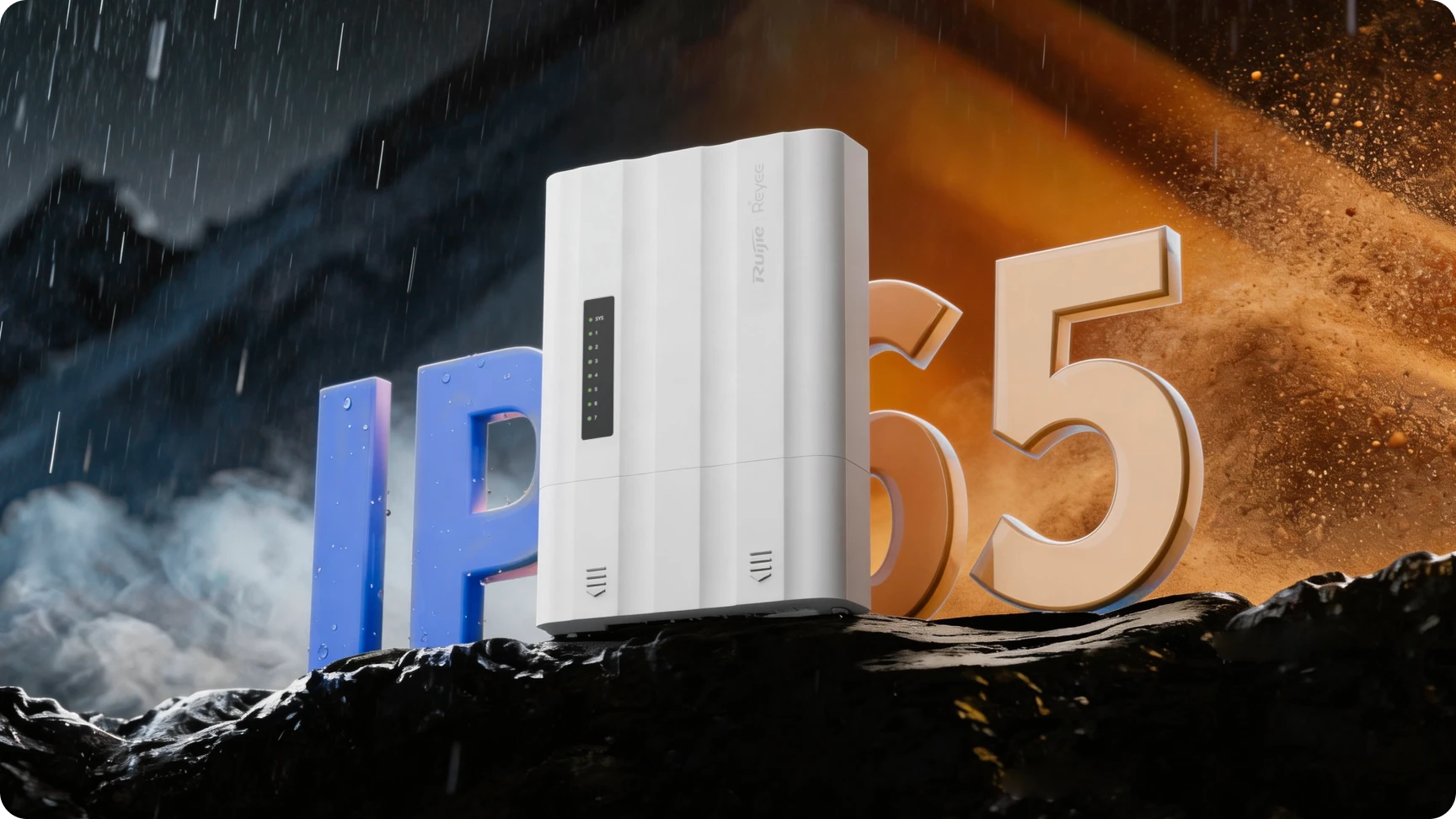

High Waterproof Level

Outdoor-Rated Features for Harsh Environments

  • IP65

    Fully Dustproof, Jet-Water Resistant

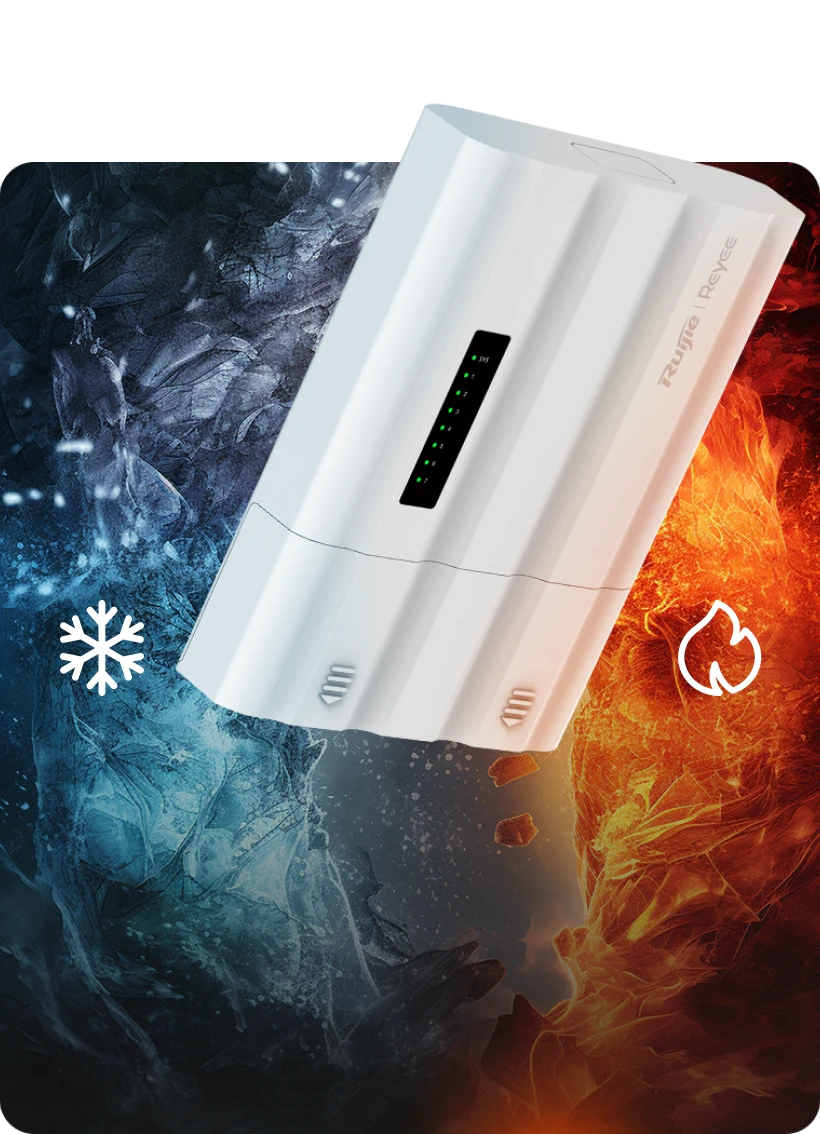

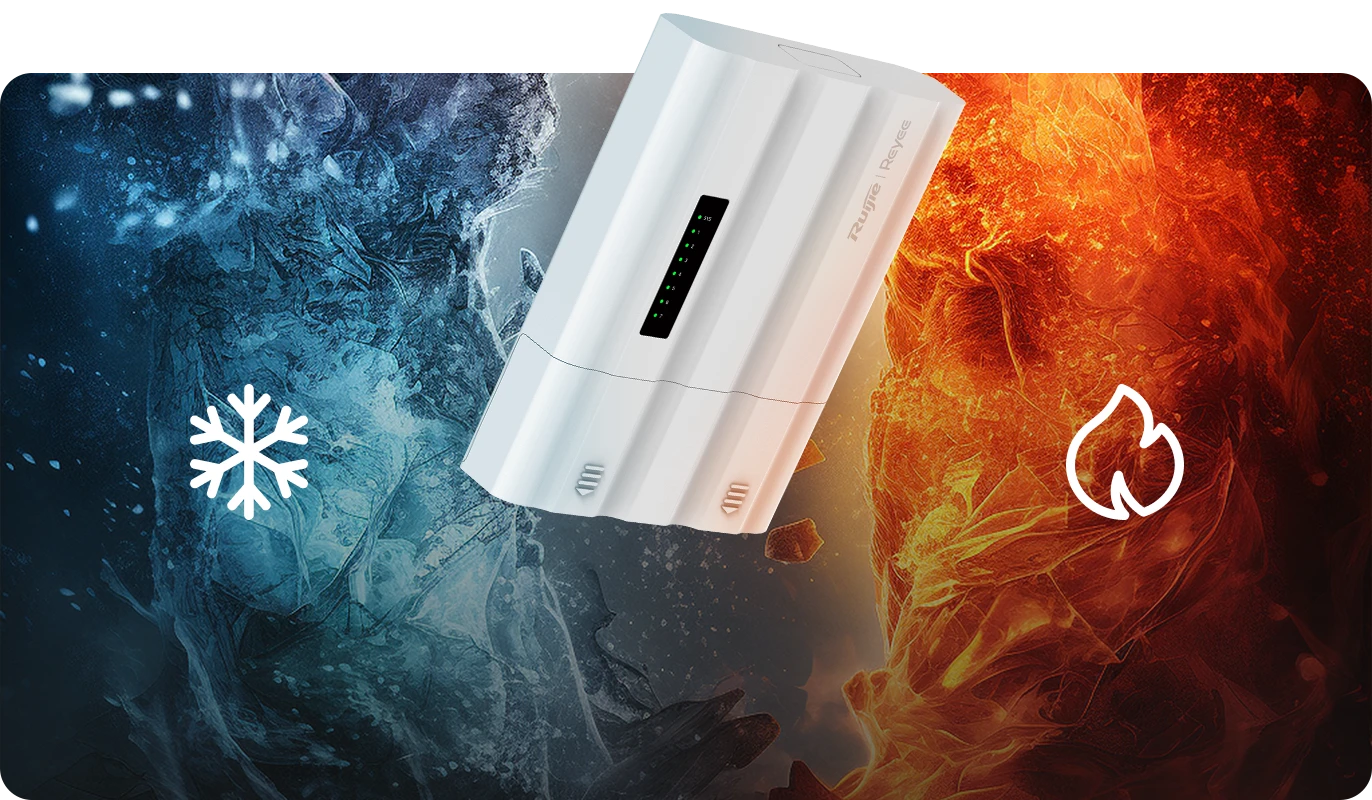

  • –30°C to 65°C (–22°F to 149°F)

    Wide Temperature Range from –-30℃ to +65℃

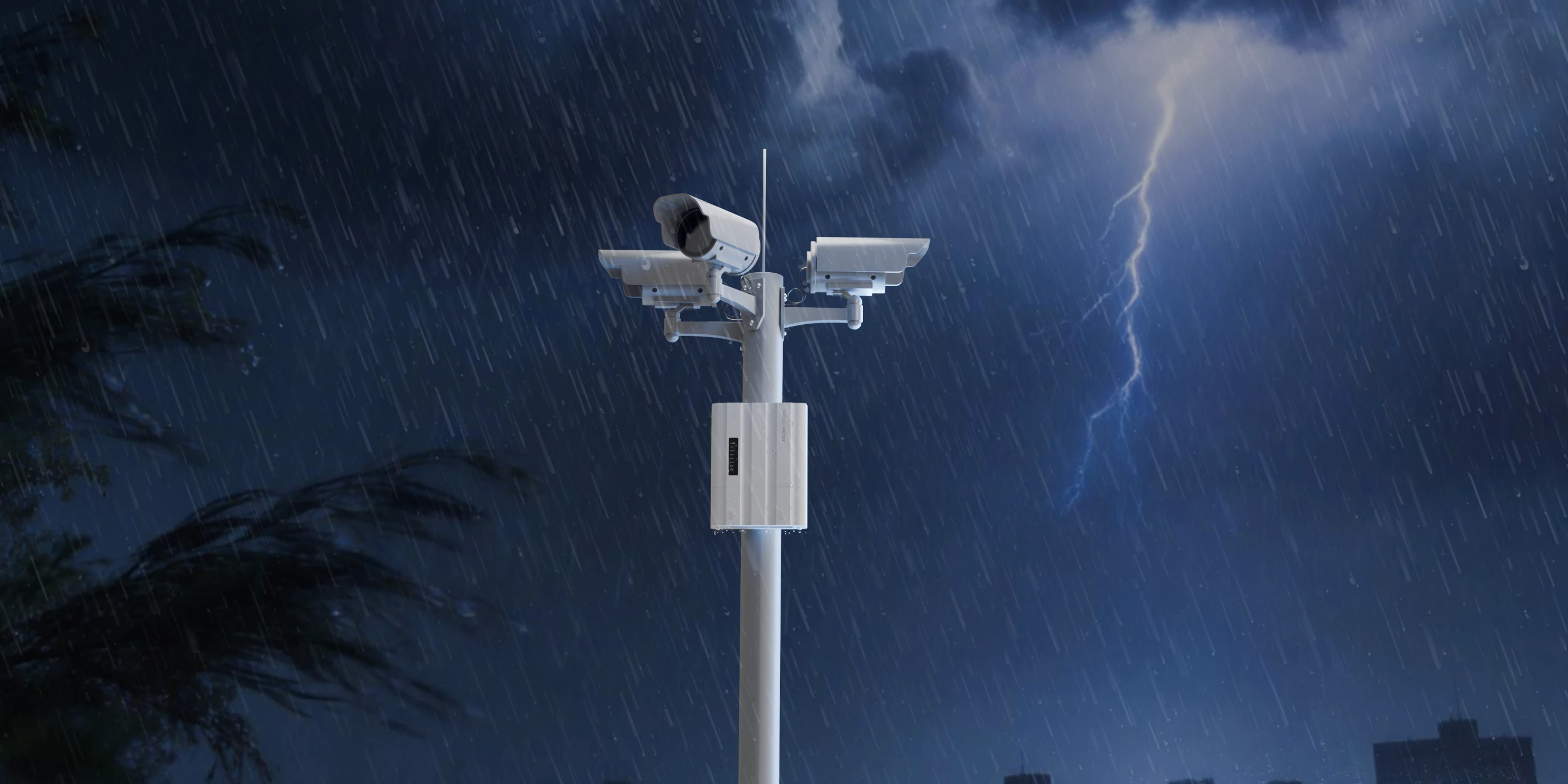

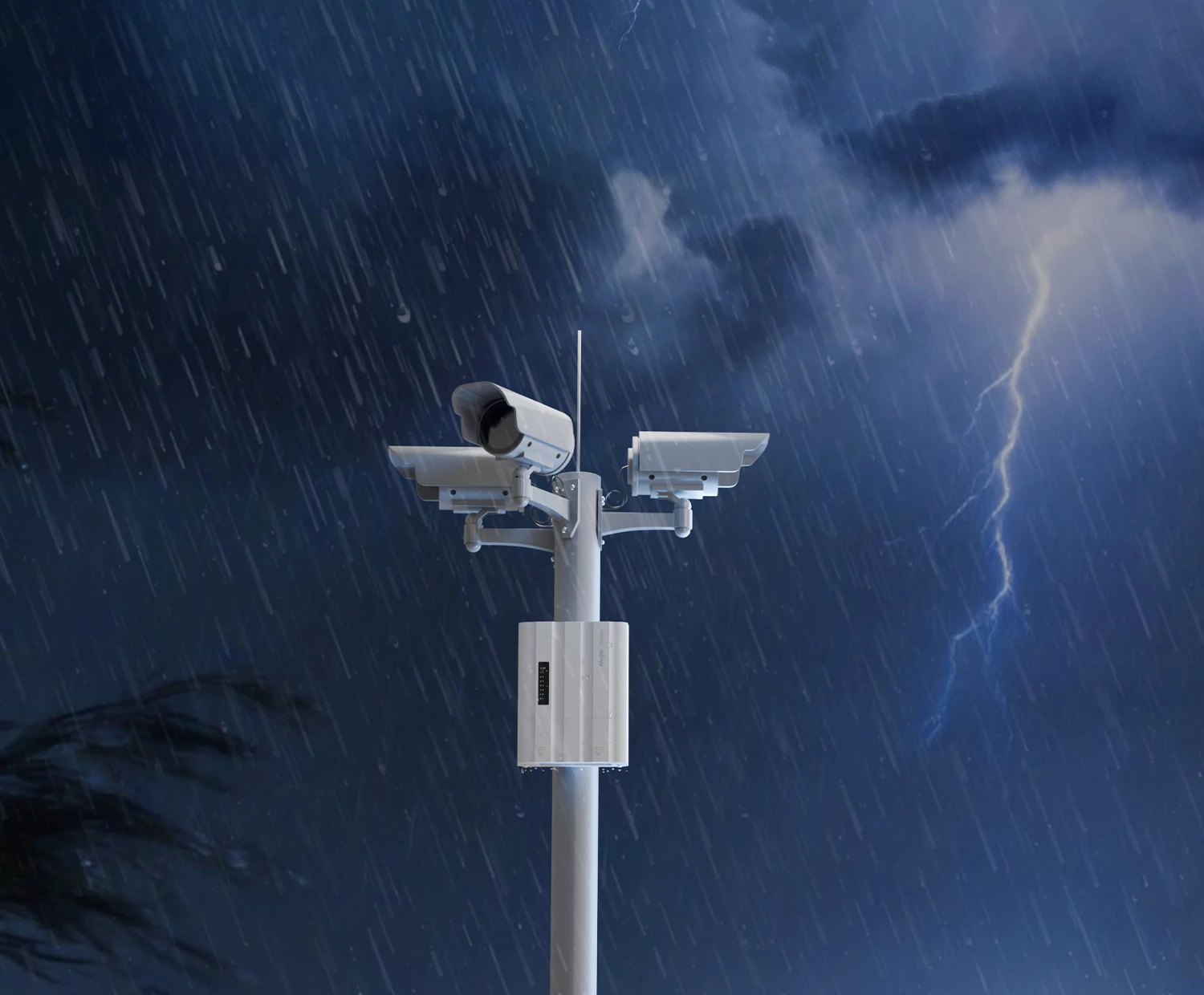

PoE Surge Protection: ±8 kV

Reliable Shield for Network Stability

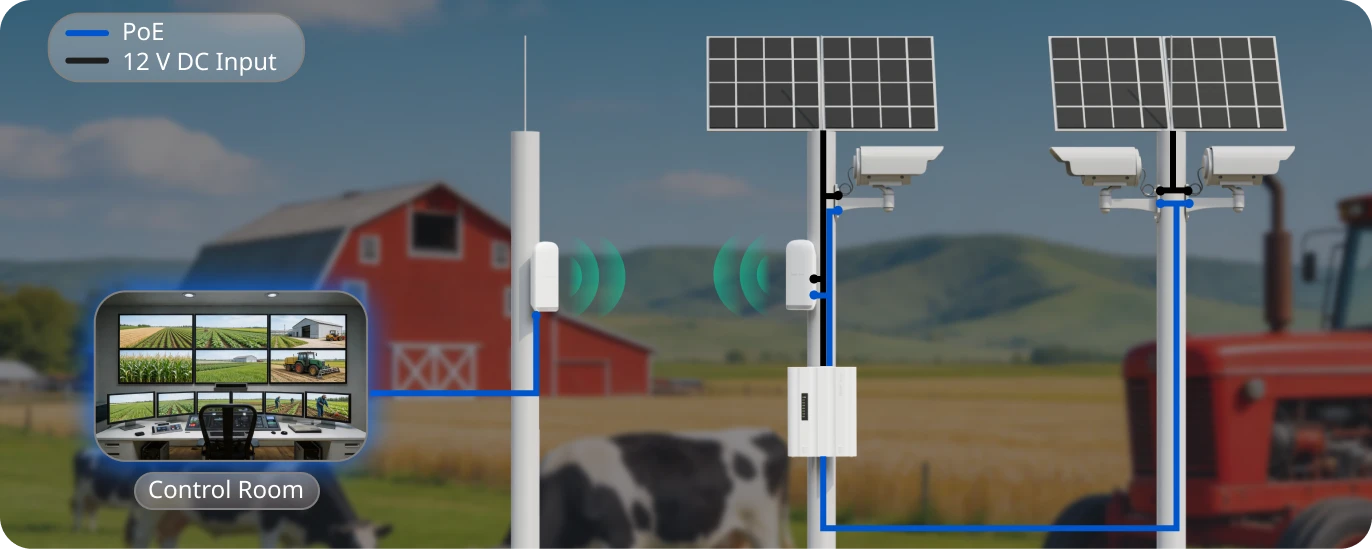

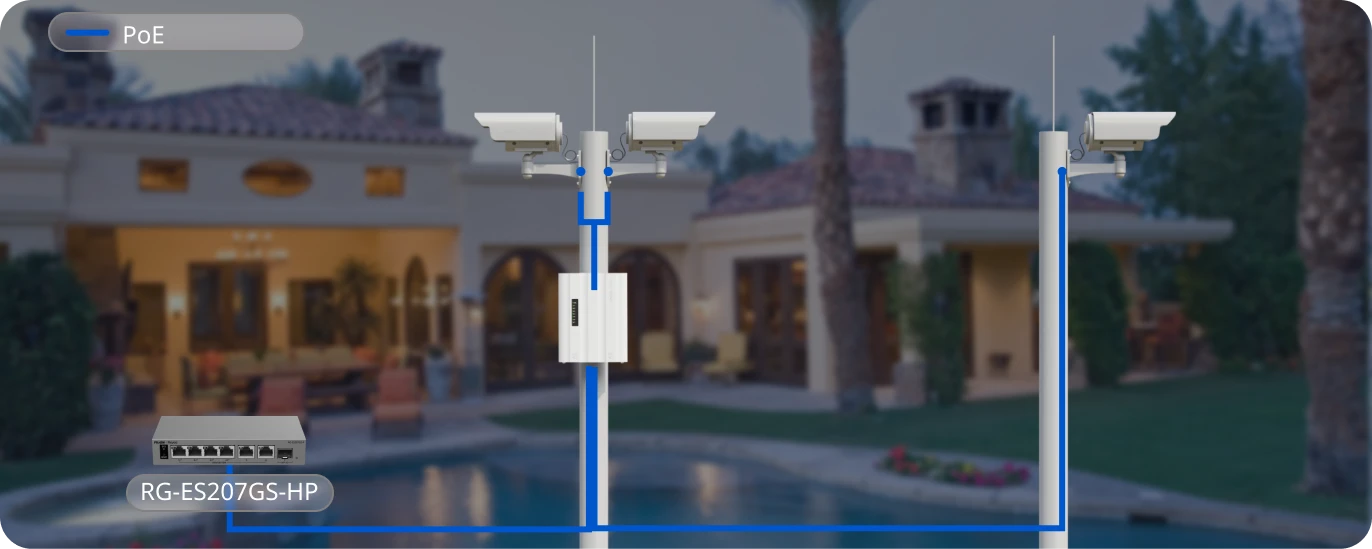

Flexible Link

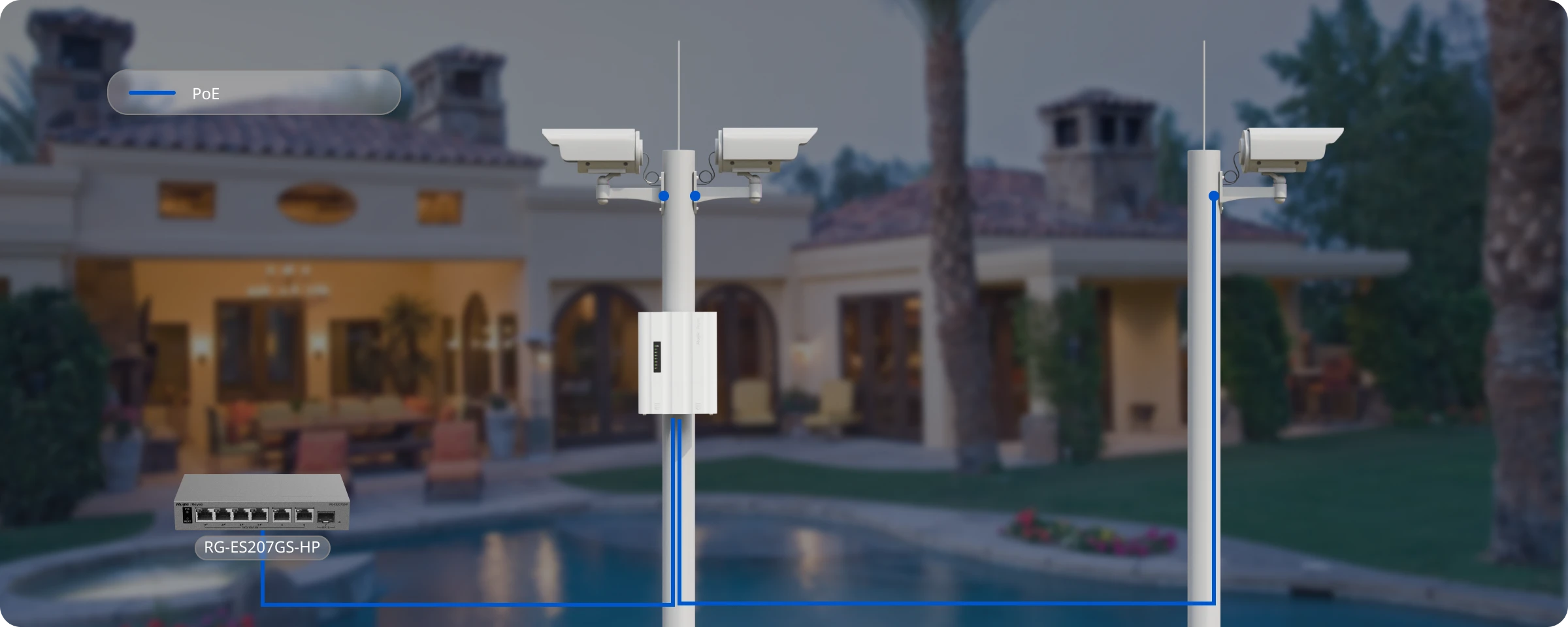

  • PoE in

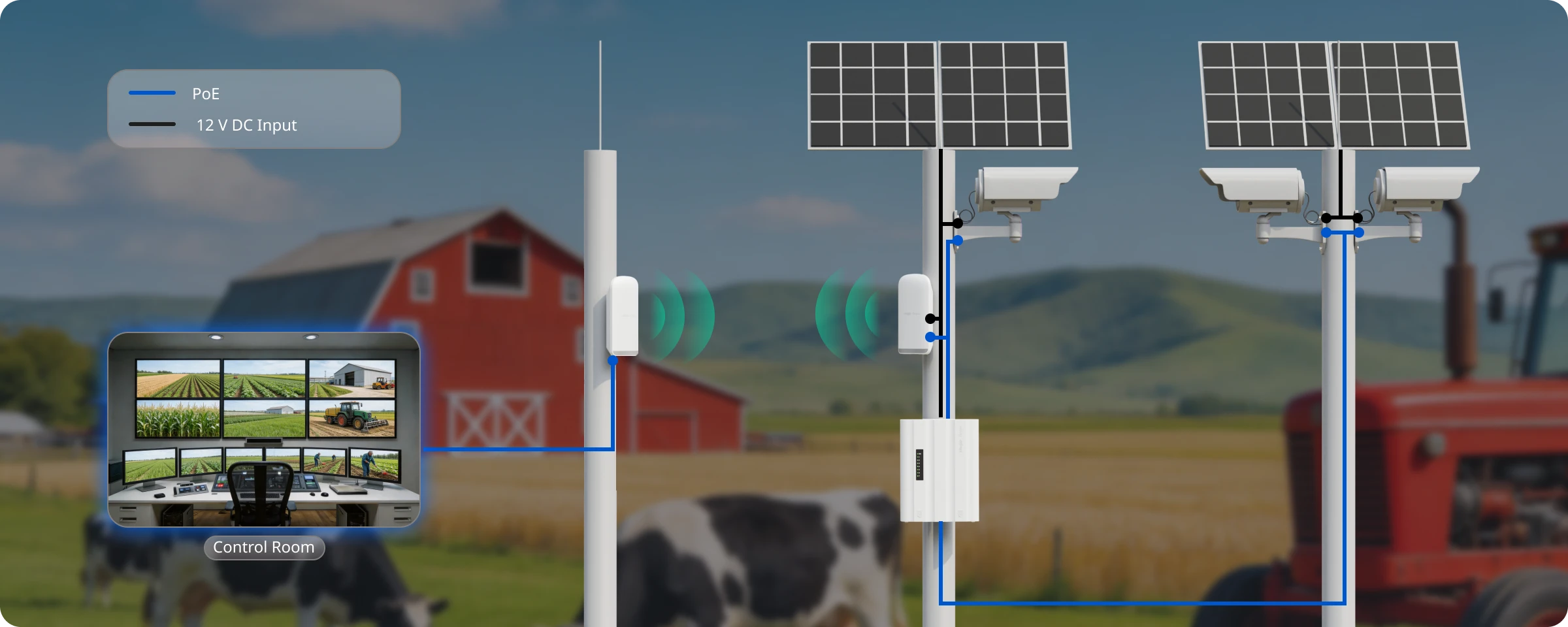

  • Solar Power

No Dedicated Power Cabling Required

Solar-Powered Outdoor Environment

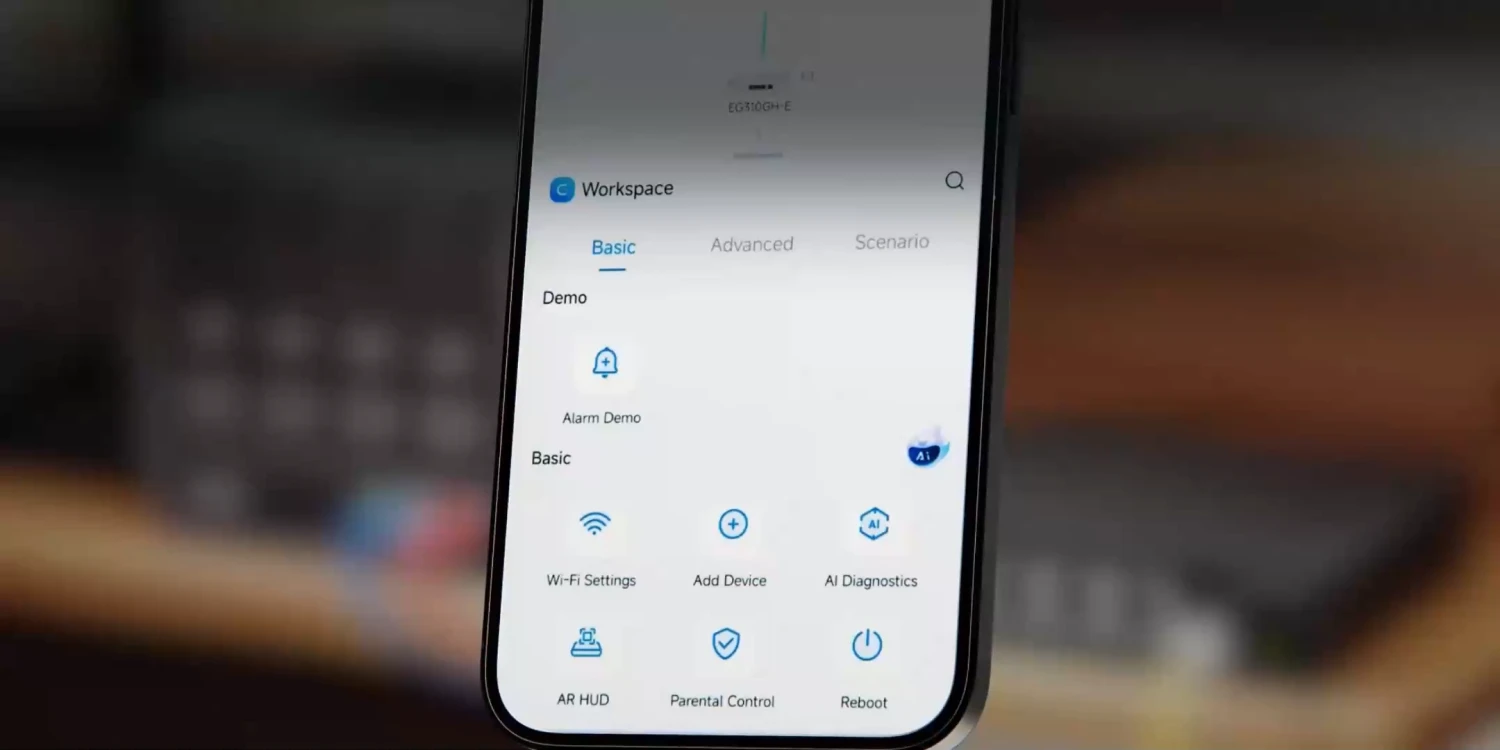

Cloud, Make Your Business Easy

Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years

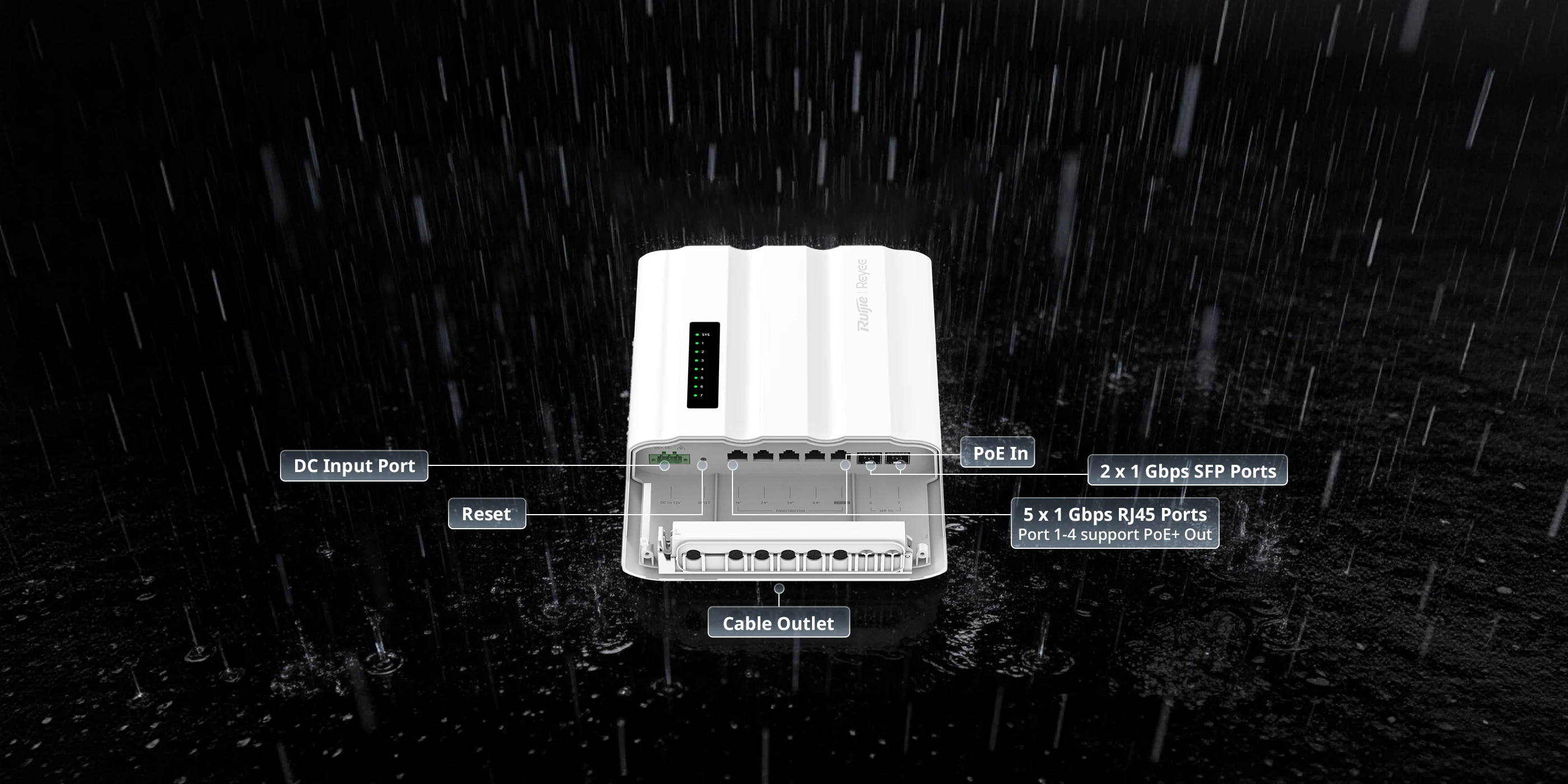

Port Specifications
Total number of RJ45 ports
  • 5
Total number of optical ports
  • 2
Number of 1GE SFP ports
  • 2
Number of 10/100/1000BASE-T ports
  • 5
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • PoE input (PoE++) at 90 W: 60 W
    PoE input (PoE++) at 60 W: 40 W
    PoE input (PoE+) at 30 W: 19 W
    PoE input (PoE) at 15.4 W: 6 W
PoE power pins
  • 1–2 (+), 3–6 (-)
Number of PoE In ports
  • 1
PoE In standard
  • ● IEEE 802.3af (PoE)
    ● IEEE 802.3at (PoE+)
    ● IEEE 802.3bt (PoE++)
System Specifications
Forwarding rate
  • 10.41 Mpps
Switching capacity
  • 14 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • –30°C to +65°C (-22°F to 149°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
