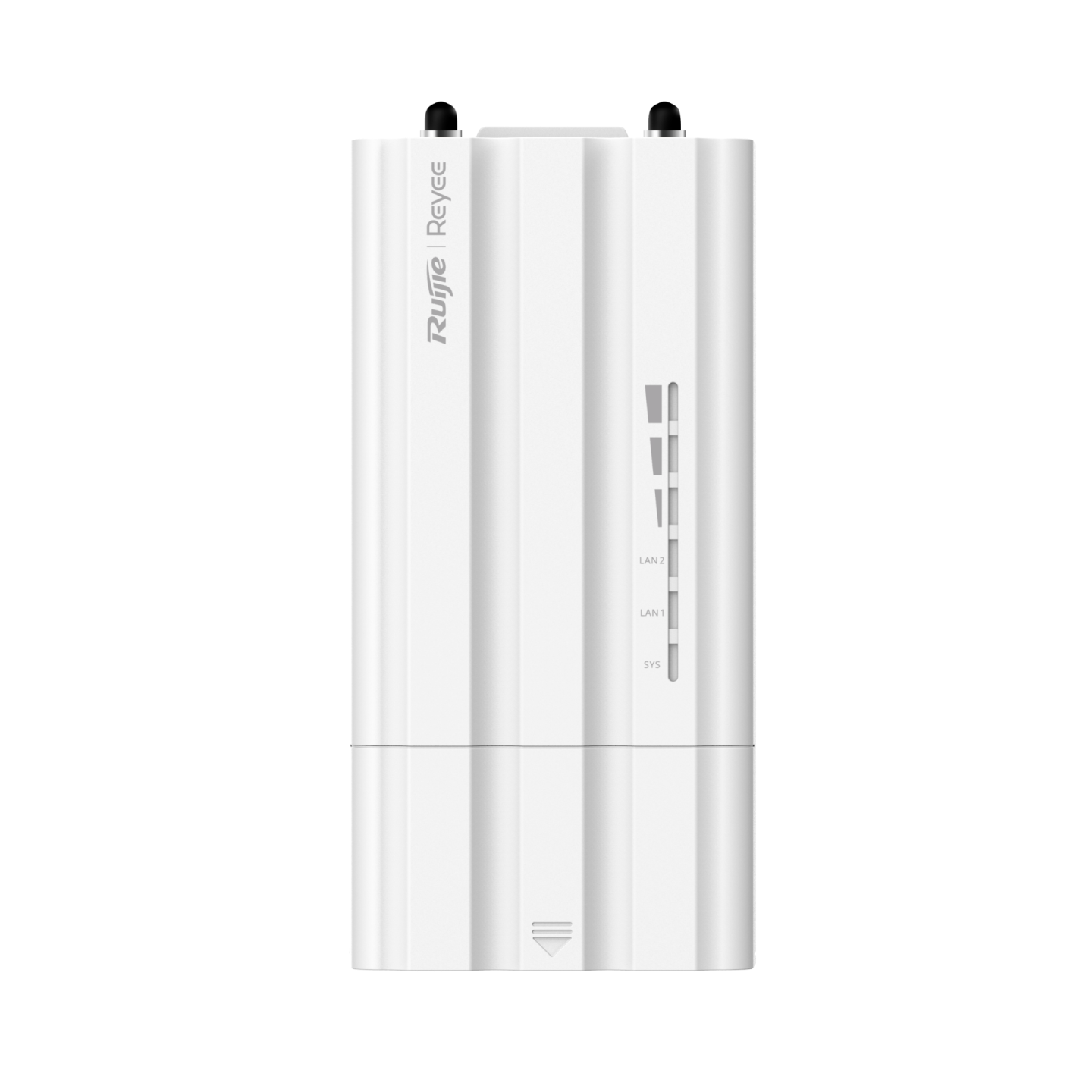

RG-AirMetro550G-B, station de base des ponts sans fil de la série RG-AirMetro

WISP, vidéosurveillance, villes, routes, usines, etc.

Modèles
RG-ANT13-360

Antenne omnidirectionnelle à 360° d'une portée de 2 km

 RG-ANT16S-120

Antenne sectorielle à 120° d'une portée de 5 km

 RG-ANT20S-90

Antenne sectorielle à 90° d'une portée de 10 km

 RG-AirMetro550G-B

Jusqu'à 867 Mbps à 5 GHz, Max. 1 à 32 stations de base PTMP avec 2 ports GE
Séries
PTMP Station PTP/PTMP CPE
Datasheet Sales Enquiry
Add to Favorites
Fonctionnalités particulières
  • Distance de transmission sans fil jusqu'à 10 km
  • Max. 1 à 32 liaisons PTMP, appairage facile en 30 secondes
  • 2 ports GE : Plus de possibilités de connexion
  • PoE passif 24 V et entrée 12 V CC : Alimentation solaire
  • IP55, protection contre les surtensions de 6 kV et les décharges électrostatiques de ±24 kV contre les environnements difficiles
  • La gestion en Cloud tout-en-un simplifie l'expérience  de l'utilisateur
Sales Enquiry
Key Specification
Fitur

Ponts sans fil de la
série RG-AirMetro

Lorsqu'ils sont associés à des CPE, les ponts prennent en charge :

  • 10km

    Jusqu'à 10 km de
    transmission sans fil

  • 32PTMP

    Jusqu'à 32 liaisons
    PTMP

  • Outil de sondage facile
    pour les sites

  • Gestion en Cloud
    tout-en-un

Station de base

Parfaitement adaptée aux différents dispositifs et scénarios

  • 867 Mbps

    5 GHz à double flux 802.11ac

  • Jusqu'à 32 liaisons PTMP

    AMRT

Appairage par simple
pression d'une touche

Appairage de tous les dispositifs par simple pression d'une touche et ce, en 30 secondes

Carte thermique basée sur l'IA pour le pont

Antennes

Les triples dispositifs, au-delà des triples choix

Le
Cloud
tout-en-un

Orientez votre expérience en toute sérénité

Scénarios
principaux

Choix idéal pour les scénarios WISP et de vidéosurveillance

Parfaitement adapté aux différents
dispositifs et scénarios

Appairage rapide

Appairage de tous les dispositifs via une seule touche en 30 secondes

Antennes

Les triples dispositifs, au-delà des triples choix

  • RG-ANT20S-90

    5 GHz, 20 dBi

    H: 90°，V: 7°

    10 km

  • RG-ANT16S-120

    5 GHz, 16 dBi

    H:120°，V:10°

    5 km

  • RG-ANT13-360

    5 GHz, 13 dBi

    H: 360°，V: 7°

    2 km

Toujours stable

Ne craint pas les environnements difficiles

  • IP55 Résistance aux intempéries
  • 220.32 km/h Résistance au vent (137 mph)
  • Protection contre les surtensions de 6 kV
  • 24kV Décharges électrostatiques par contact/air

PTMP

Jusqu'à 32 liaisons PTMP

WISP

Couverture étendue sans connexion par fibre optique

Vidéosurveillance

Une excellence abordable et une surveillance sans faille

Carte thermique basée sur l'IA pour le pont

Votre vrai compagnon d'aventure en plein air

Outil d'alignement

Votre outil pour gagner du temps et faire entendre votre voix

Analyse du spectre et optimisation des liaisons

Guide Thumbs-Up

  • Analyse des interférences des canaux en un seul clic pour tous les points

  • Recommandations d'optimisation automatiques

  • Gagnez du temps et de l'énergie

Disponible à la fois sur Ruijie Cloud et sur l'application Ruijie Reyee

Avec le Cloud, facilitez votre activité

All-in-one Cloud

Installation rapideSurveillance basée sur une topologie réelle et complèteIdentification des problèmes par alarme automatique

Comparaisons
PTP
PTMP
Antenne
Polarisation
Distance recommandée
Protocole
Débit maximum
Gamme de fréquences*
Indice IP
Spesifikasi
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km

Show More
