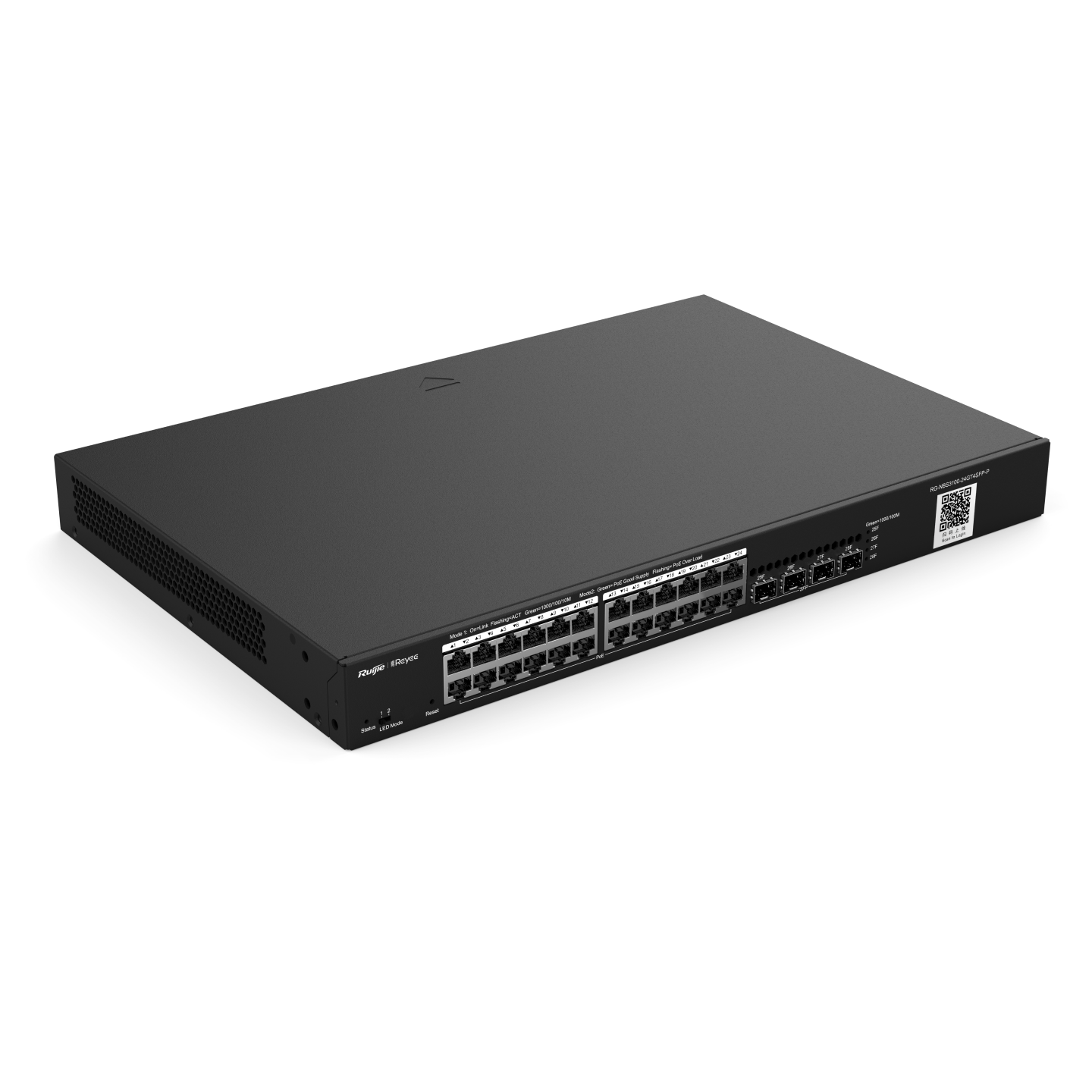

RG-NBS3100-24GT4SFP-P, 28-Port Gigabit Layer 2 Cloud Managed PoE Switch

Enterprise, Hospitality, Factory, Education, Retails etc.

Models

RG-NBS3100-8GT2SFP

8 Gigabit Ports, 2 SFP

RG-NBS3100-8GT2SFP-P-V2

8 Gigabit PoE+ Ports, 2 SFP, 125W

RG-NBS3100-8GT2SFP-P

8 Gigabit PoE+ Ports, 2 SFP, 125W

RG-NBS3100-24GT4SFP

24 Gigabit Ports, 4 SFP

RG-NBS3100-24GT4SFP-V2

24 Gigabit Ports, 4 SFP

RG-NBS3100-24GT4SFP-P

24 Gigabit PoE+ Ports, 4 SFP, 370W

RG-NBS3100-24GT4SFP-P-V2

24 Gigabit PoE+ Ports, 4 SFP, 370W

RG-NBS3100-48GT4SFP-P

48 Gigabit PoE+ Ports, 4 SFP, 370W

RG-NBS3200-24GT4XS

24 Gigabit Ports, 4 SFP+

RG-NBS3200-24GT4XS-P

24 Gigabit PoE+ Ports, 4 SFP+, 370W

RG-NBS3200-24SFP/8GT4XS

24 SFP Ports, 8 combo RJ45, 4 SFP+

RG-NBS3200-48GT4XS

48 Gigabit Ports, 4 SFP+

RG-NBS3200-48GT4XS-P

48 Gigabit PoE+ Ports, 4 SFP+, 370W

Series

Fixed 10G Up L2 Switch Fixed 1G Up L2 Switch

Datasheet Sales Enquiry

Add to Favorites

Highlight Features

28-Port gigabit Layer 2 managed PoE switch, 4 SFP uplink
Enterprise-class Quality Ensures High Performance
IP Camera Recognition, Unique Value for CCTV Network
Multiple Security Policies Protect Your Network
Lifetime management on Ruijie Cloud at anytime anywhere

Key Specification
Features
Comparison
Specifications
Resources
Order Information

Sales Enquiry

Key Specification

Features

RG-NBS3100-24GT4SFP-P

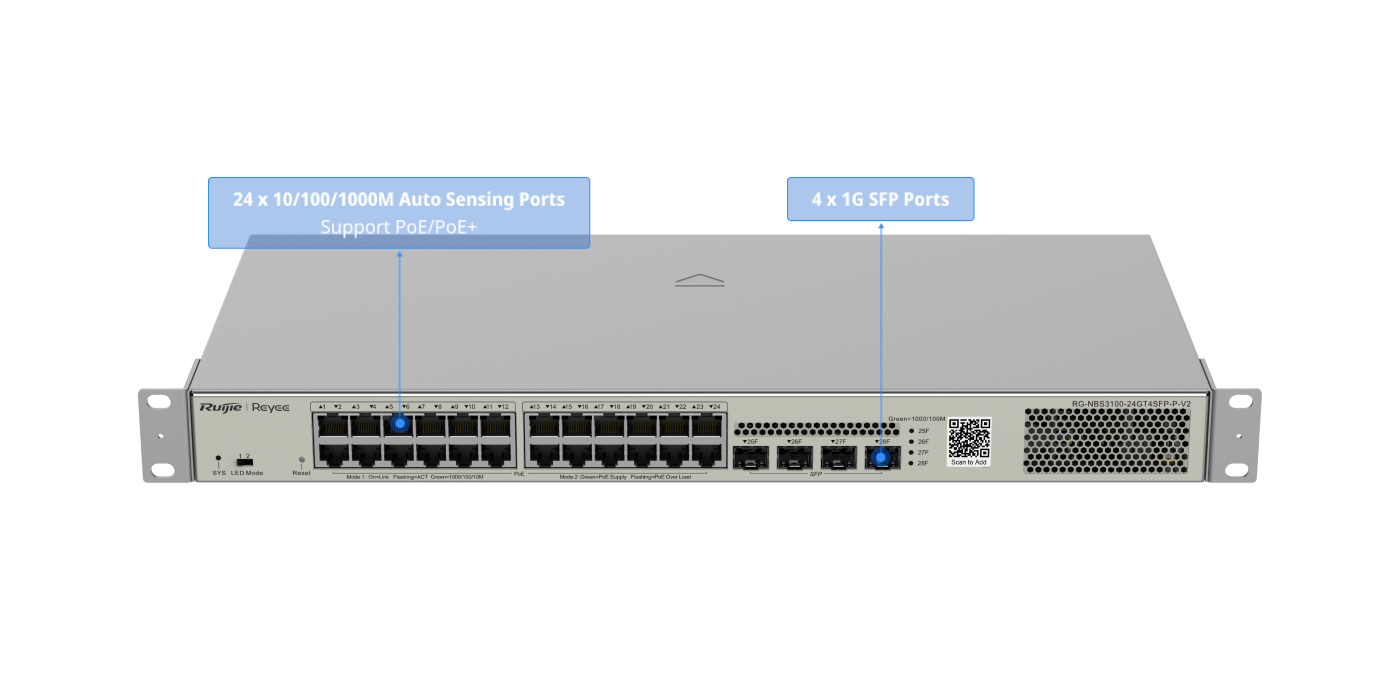

28-Port Gigabit Layer 2 Cloud Managed PoE Switch, 4 x SFP Uplinks

Switching Capacity
56 Gbps
Forwarding Rate
42 Mpps
5 Years
Warranty

Abundant PoE Application Scenarios

PoE Budget
370W
Max. 30W
on Each Port
Surge Protection
6KV

Performance
Features

Enterprise-class Quality Ensures High Performance

Link Aggregation
IGMP Snooping
VLAN

Multiple Security Policies Protect Your Network

Security
Stability

Cloud, Make Your Business Easy

SON, zero touch provisioning to Cloud
Monitor switch statistics at anytime anywhere

Configure VLANs on Ruijie Cloud APP
Easy maintainance, save onsite time and cost

Comparison

10/100/1000Base-T ports

SFP/SFP+

PoE/PoE+ ports

Max. PoE budget

Switching capacity

Forwarding rate

MAC address table

VLAN

Dimensions (W x D x H)

Weight (With package)

Jumbo Frame (MTU)

Link Aggregation Group (LAG)

ACL

STP/RSTP

Auto Errdisable Recovery

Voice VLAN

LLDP/LLDP-MED

IGMP Snooping v1/v2

CPP

EEE

Power supply

Fan

Airflow

Port surge

MTBF

Warranty

Specifications

Model	RG-NBS3100-8GT2SFP	RG-NBS3100-8GT2SFP-P	RG-NBS3100-24GT4SFP	RG-NBS3100-24GT4SFP-P
Basic
10/100/1000Base-T ports	8	8	24	24
SFP ports	2	2	4	4
SFP+ ports	-	-
PoE/PoE+ ports	-	8	FALES	24
Max. PoE budget	-	125W	-	370W
Layer Type	Layer 2	Layer 2	Layer 2	Layer 2
Switching capacity	20 Gbps	20 Gbps	56 Gbps	56 Gbps
Forwarding rate	14.88 Mpps	14.88 Mpps	41.67 Mpps	41.67 Mpps
Packet Buffer	4.1 Mbit	4.1 Mbit	4.1 Mbit	4.1 Mbit
MAC address table	8,000	8,000	8,000	8,000
Maximum VLAN Support	4094	4094	4094	4094
Dimensions (W x D x H)	260 mm x 120 mm x 43.6 mm	330 mmx 220 mm x 43.6 mm	440 mmx 165 mm x 44 mm	440 mmx 293 mm x 44 mm
Weight (With package)	1.2 kg	2 kg	2.4 kg	4.5 kg
MTBF	> 200,000	> 200,000	> 200,000	> 200,000
Warranty	5 Years	5 Years	5 Years	5 Years
Layer 2 Features
Jumbo Frame	9216	9216	9216	9216
Flow Control	✔️	✔️	✔️	✔️
STP (IEEE 802.1d)	✔️	✔️	✔️	✔️
RSTP (IEEE 802.1w)	✔️	✔️	✔️	✔️
MSTP (IEEE 802.1s)	-	-	-	-
Port Fast	✔️	✔️	✔️	✔️
BPDU Guard	✔️	✔️	✔️	✔️
Errdisable Recovery	✔️	✔️	✔️	✔️
Max. Aggregation Group	8	8	8	8
Max. Member per Group	8	8	8	8
Unknow Unicast Storm Suppression	✔️	✔️	✔️	✔️
Multicast / Broadcast Storm Suppression	✔️	✔️	✔️	✔️
Many-to-One Mirroring	✔️	✔️	✔️	✔️
VLAN Range	1-4094	1-4094	1-4094	1-4094
Port-based VLAN	✔️	✔️	✔️	✔️
MAC-based VLAN	✔️	✔️	✔️	✔️
IP-based VLAN	✔️	✔️	✔️	✔️
Voice VLAN	✔️	✔️	✔️	✔️
RLDP	✔️	✔️	✔️	✔️
LLDP / LLDP-MED	✔️	✔️	✔️	✔️
Cable Testing	✔️	✔️	✔️	✔️
IGMP Snooping v1/v2/v3	✔️	✔️	✔️	✔️
Software Features
Ping	✔️	✔️	✔️	✔️
Traceroute	✔️	✔️	✔️	✔️
ACL Entries	1200	1200	1200	1200
IP Standard ACL	✔️	✔️	✔️	✔️
MAC-based Extended ACL	✔️	✔️	✔️	✔️
IP-based Extended ACL	✔️	✔️	✔️	✔️
Port-based Rate Limit (Ingress/Egress)	✔️	✔️	✔️	✔️
SNMP v1/v2c/v3	✔️	✔️	✔️	✔️
Web Management	✔️	✔️	✔️	✔️
Management IP	10.44.77.200
HTTP/HTTPS	✔️	✔️	✔️	✔️
Cloud Management	✔️	✔️	✔️	✔️
SON (Self-Organizing Network) with IP	✔️	✔️	✔️	✔️
Camera Recognition	✔️	✔️	✔️	✔️
Loop Prevention	✔️	✔️	✔️	✔️
Loop Notification	✔️	✔️	✔️	✔️
PoE Usage Alarm	-	✔️	-	✔️
Protection Port	✔️	✔️	✔️	✔️
IP Source Guard	✔️	✔️	✔️	✔️
Anti-ARP Spoofing	✔️	✔️	✔️	✔️
DHCP Snooping	✔️	✔️	✔️	✔️
DHCP Client	✔️	✔️	✔️	✔️
Physical Features
Reset Button	Front	Front	Front	Front
Cable Hot-swappable	✔️	✔️	✔️	✔️
Power Supply Slot	Power adpater	Single, fixed power supply	Single, fixed power supply	Single, fixed power supply
Power Supplies	100 - 240V AC, 1A	100 - 240V AC, 2A	100 - 240V AC, 0.6A	100 - 240V AC, 6A
Power Consumption	≤ 8W	≤ 145W	≤ 21W	≤ 443W
EEE	✔️	✔️	✔️	✔️
Fan	-	-	-	1
Airflow	-	-	-	Left-to-Right
Fan Adaptive Speed Adjustment	-	-	-	✔️
Acoustic Noise	Noiseless	Noiseless	Noiseless	< 45dB
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% RH
Storage Humidity	5% to 95% RH
Port Surge	6 kV
Operating Altitude (meters)	-500 to 5000
Certificate	CE, RoHS

No part of this document may be reproduced or transmitted in any form or any means without prior written consent of Ruijie Networks Co., Ltd.

Notice

This content is applicable only to regions outside the China mainland. Ruijie Networks Co., Ltd. reserves the right to interpret this content.

The information contained herein is subject to change without notice. Nothing herein should be construed as constituting an additional warranty. Ruijie Networks Co., Ltd. shall not be liable for technical or editorial errors or omissions contained herein.

Resources All Resources

Learn about Products or Solutions

Installation

Installation Guide

Software and Configuration

Order Information

Device	RG-NBS3100-24GT4SFP-P
Mounting Bracket	2
Foot pad	4
Power supply	Power cord
Quick Start Guide	1
Warranty Card	1
Accesories	Screws * 6
Package Weight	4.5 kg
Package Dimension (w x d x h)	573 mm x 401 mm x 145 mm
