RG-NBS5200-24GT4XS, 24-port Gigabit Layer 3 Non-PoE Switch, 4 SFP+ Uplink

Enterprise, Hospitality, Factory, Education, Retails etc.

Models
RG-NBS5200-24GT4XS

24 Gigabit Ports, 4 SFP+

 RG-NBS5200-24GT4XS-P

24 Gigabit Ports, 370W, 4 SFP+

 RG-NBS5200-24SFP/8GT4XS

8 Gigabit Combo Ports, 24 SFP, 4 SFP+

 RG-NBS5200-48GT4XS

48 Gigabit Ports, 4 SFP+

 RG-NBS5200-48GT4XS-UP

48-port Gigabit Layer 3 PoE Switch, 4 SFP+ Uplink

 RG-NBS5300-8MG2XS-UP

Layer 3,8 PoE++ Ports,2 SFP+ Uplink Ports
Series
Chassis/Modular L3 Switch Fixed 10G Up L3 Switch Fixed 1G Up L3 Switch
Datasheet Sales Enquiry
Highlight Features

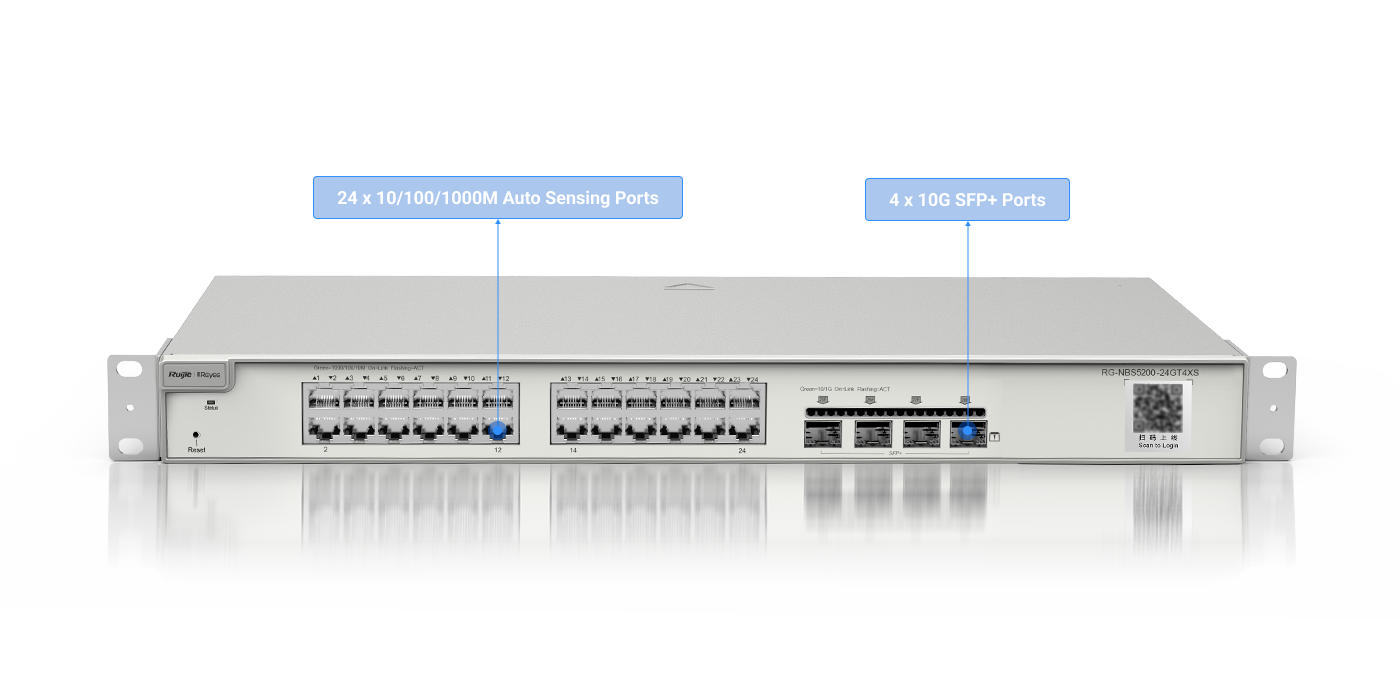

  • 24-Port gigabit Layer 3 managed non-PoE switch, 4 SFP+ uplink
  • Enterprise-class Quality Ensures High Performance
  • 6KV surge protection reduces the possibility of port damage
  • Multiple Security Policies Protect Your Network
  • Lifetime management on Ruijie Cloud at anytime anywhere
Sales Enquiry
Key Specification
Features

RG-NBS5200-24GT4XS

24-port Gigabit Layer 3 Cloud Managed Switch, 4 x SFP+ Uplinks

  • Switching Capacity
    128 Gbps

  • Forwarding Rate
    96 Mpps

  • 5 Years
    Warranty

Abundant PoE Application Scenarios

  • Performance
Enterprise-class Quality Ensures High Performance
  • Link Aggregation
  • IGMP Snooping
  • VLAN
Multiple Security Policies Protect Your Network
  • Security
  • Stability
Cloud, Make Your Business Easy
  • SON, zero touch provisioning to Cloud
  • Monitor switch statistics at anytime anywhere
  • Configure VLANs on Ruijie Cloud APP
  • Easy maintainance, save onsite time and cost











Comparison
10/100/1000Base-T ports
SFP (1G)
SFP+ (10G)
Layer Type
Switching capacity
Forwarding rate
MAC address table
VLAN range
Dimensions (W x D x H)
Weight (With package)
Jumbo Frame (MTU)
Link Aggregation Group (LAG)
ACL
STP/RSTP
Auto Errdisable Recovery
Voice VLAN
LLDP/LLDP-MED
IGMP Snooping v1/v2
CPP
EEE
Power supply
Fan
Airflow
Port surge
MTBF
Warranty
Resources All Resources
Learn about Products or Solutions
Installation
Software and Configuration
Order Information
Device RG-NBS5200-24GT4XS
Mounting Bracket 2
Foot pad 4
Power supply Power cord
Quick Start Guide 1
Warranty Card 1
Accesories Screws * 6
Package Weight 2.4 kg
Package Dimension (w x d x h) 513 mm x 333 mm x 145 mm
