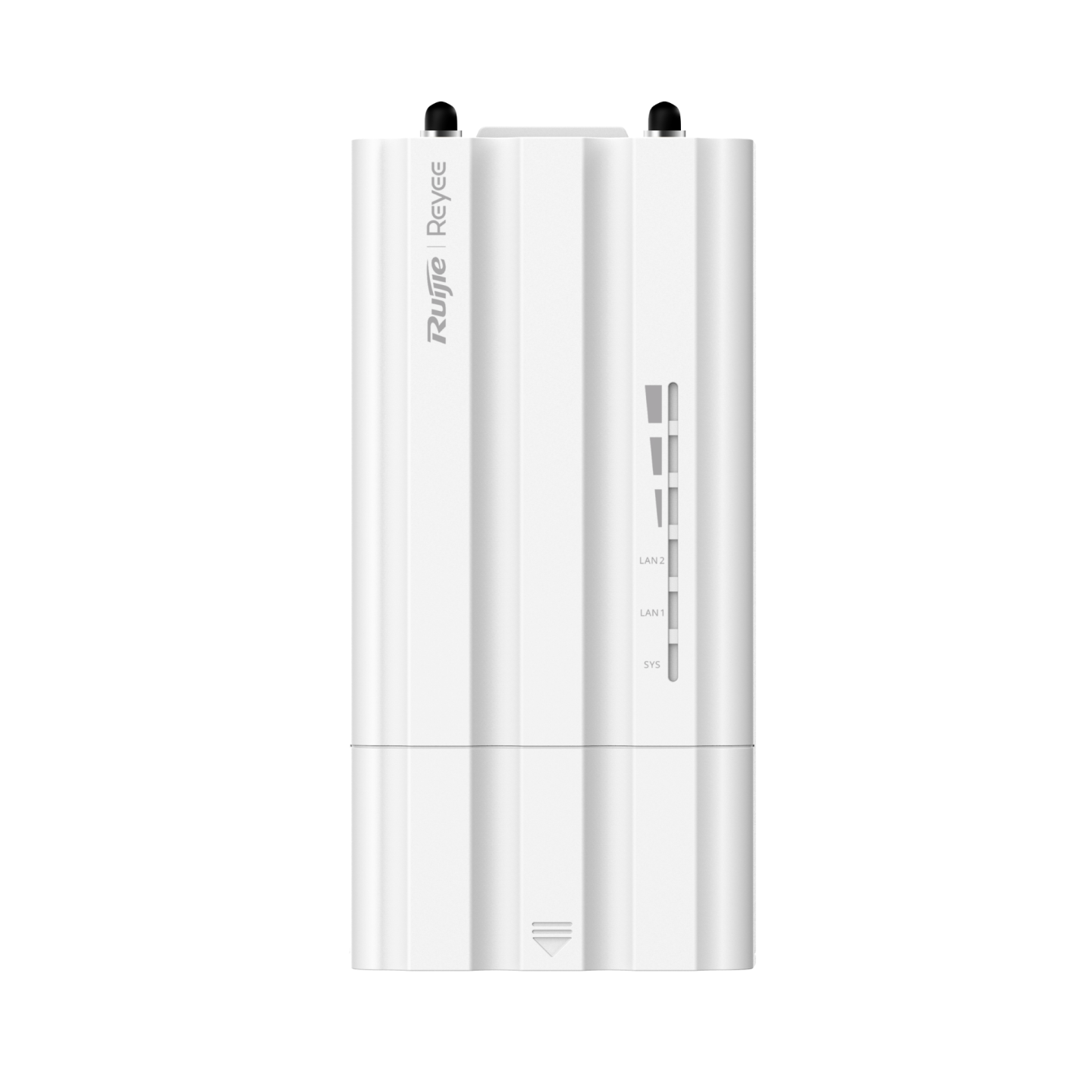

RG-AirMetro550G-B, Base Station of RG-AirMetro Series Wireless Bridges

WISP, CCTV, Town, City Road, Factory, etc.

Models
RG-AirMetro550G-B

Up to 867 Mbps at 5 GHz, Max. 1:32 PTMP Links Base Station with 2 GE Ports

 RG-ANT20S-90

90°, 10 km Sector Antenna

 RG-ANT16S-120

120°, 5 km Sector Antenna

 RG-ANT13-360

360°, 2 km Omnidirectional Antenna
Series
PTMP Station PTP/PTMP CPE
Datasheet Sales Enquiry
Highlight Features
  • Up to 10 km Wireless Transmission Distance
  • MAX. 1:32 PTMP Links, Easy Pairing in 30 sec

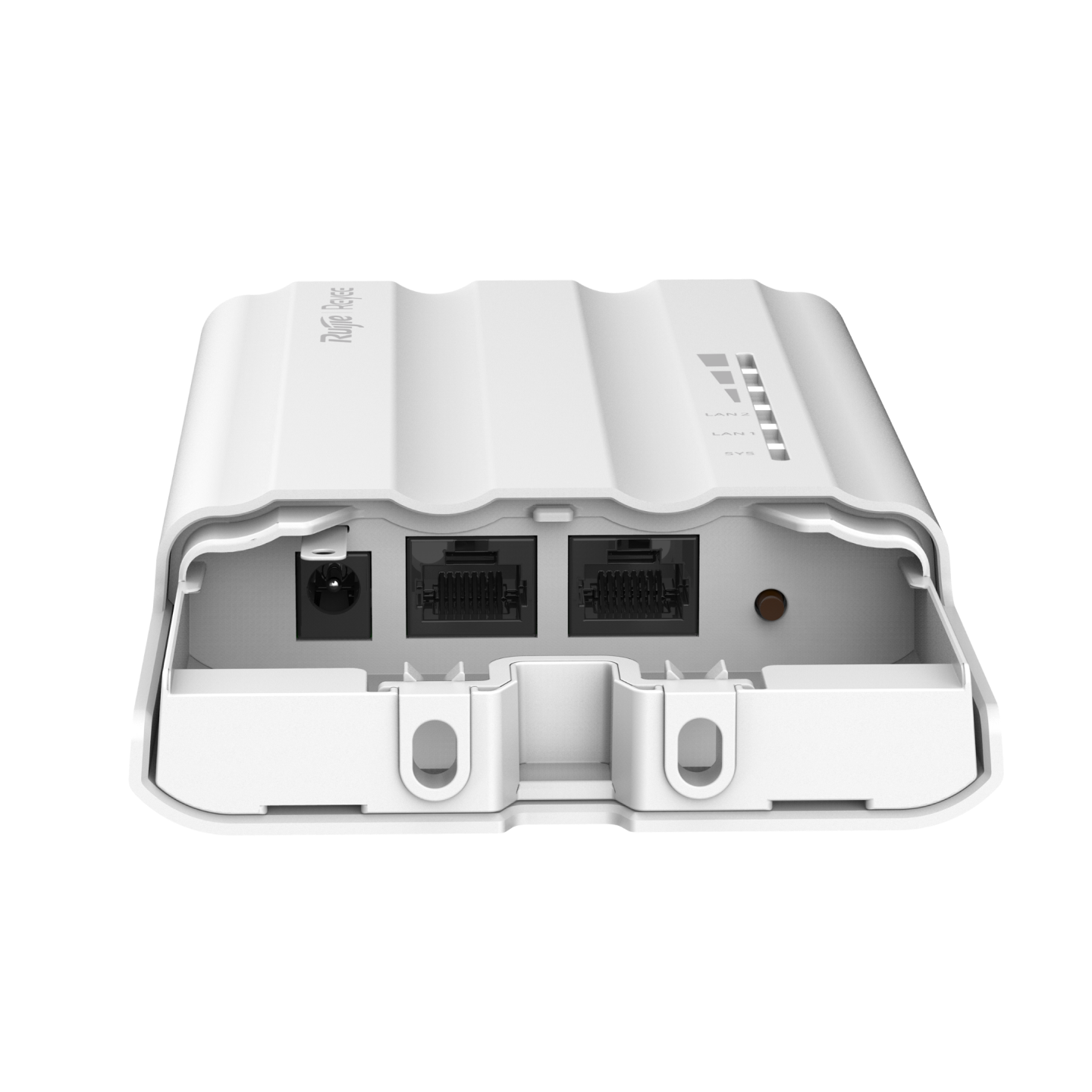

  • 2 x GE Ports: More Possibilities of Connections
  • 24 V Passive PoE and 12 V DC Input: Solar Power Supply
  • IP55, 6 kV Surge Protection and ±24 kV ESD against Harsh Environment
  • All-in-one Cloud Management Simplifies the User Journey
Sales Enquiry
Key Specification
Features

RG-AirMetro Series
Wireless Bridges

Paired with CPEs, the bridges support:

  • 10km

    Up to 10 km
    Wireless Transmission

  • 32PTMP

    Up to 32 PTMP
    Links

  • Easy Site Survey
    Tool

  • All-in-One Cloud
    Management

Base Station

A Perfect Match for Different Devices and Scenarios

  • 867 Mbps

    5 GHz Dual-Stream 802.11ac

  • Up to 32 PTMP Links

    TDMA

One-Touch
Pairing

One-Touch Pairing All in 30 sec

AI Heatmap for Bridge

Antennas

Triple Devices, Beyond Triple Choices

All in
One
Cloud

Guide Your Worry-Free Journey

Principal
Scenarios

Ideal Choice for both WISP and CCTV Scenarios

A Perfect Match for Different
Devices and Scenarios

Fast Pairing

One-Touch Pairing All in 30 sec

Antennas

Triple Devices, Beyond Triple Choices

  • RG-ANT20S-90

    5 GHz, 20 dBi

    H: 90°，V: 7°

    10 km

  • RG-ANT16S-120

    5 GHz, 16 dBi

    H:120°，V:10°

    5 km

  • RG-ANT13-360

    5 GHz, 13 dBi

    H: 360°，V: 7°

    2 km

Still Stable

Fearless of Harsh Environment

  • IP55 Weatherproof
  • 220.32 km/h
    (137 mph)     Wind Survivability
  • 6kV Surge Protection
  • 24kV
    Contact/Air     ESD

PTMP

Up to 32 PTMP Links

WISP

Extensive Coverage Without Fiber Connections

CCTV

Affordable Excellence and Smooth Surveillance

AI Heatmap for Bridge

Your Real Outdoor Adventure Companion

Alignment Tool

Your Big-Voice, Time-Saver Guide

Spectrum Scan and Link Optimization

Thumbs-Up Guide

  • One-Click Channel Interference Scanning for All Points

  • Automatic Optimization Recommendations

  • Save Time and Effort

Available on both Ruijie Cloud and Ruijie Reyee App

Cloud, Make Your Business Easy

All-in-one Cloud

Quick SetupMonitoring based on Real, Complete TopologyIdentifying Issues by Auto-Alarm

Comparison
PTP
PTMP
Antenna
Polarization
Recommended Distance
Maximum Throughput
Frequency Range*
IP Rating
Specifications
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
