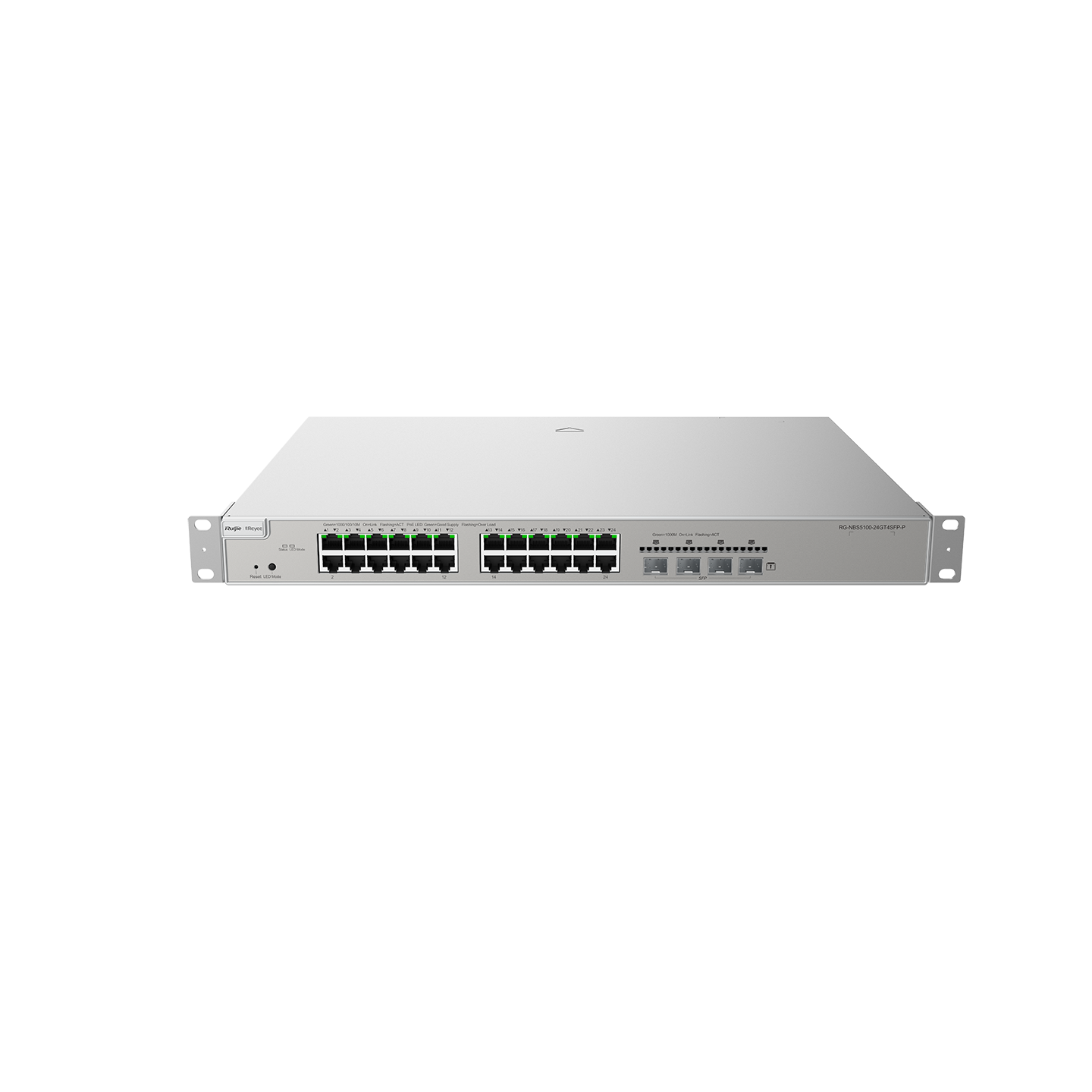

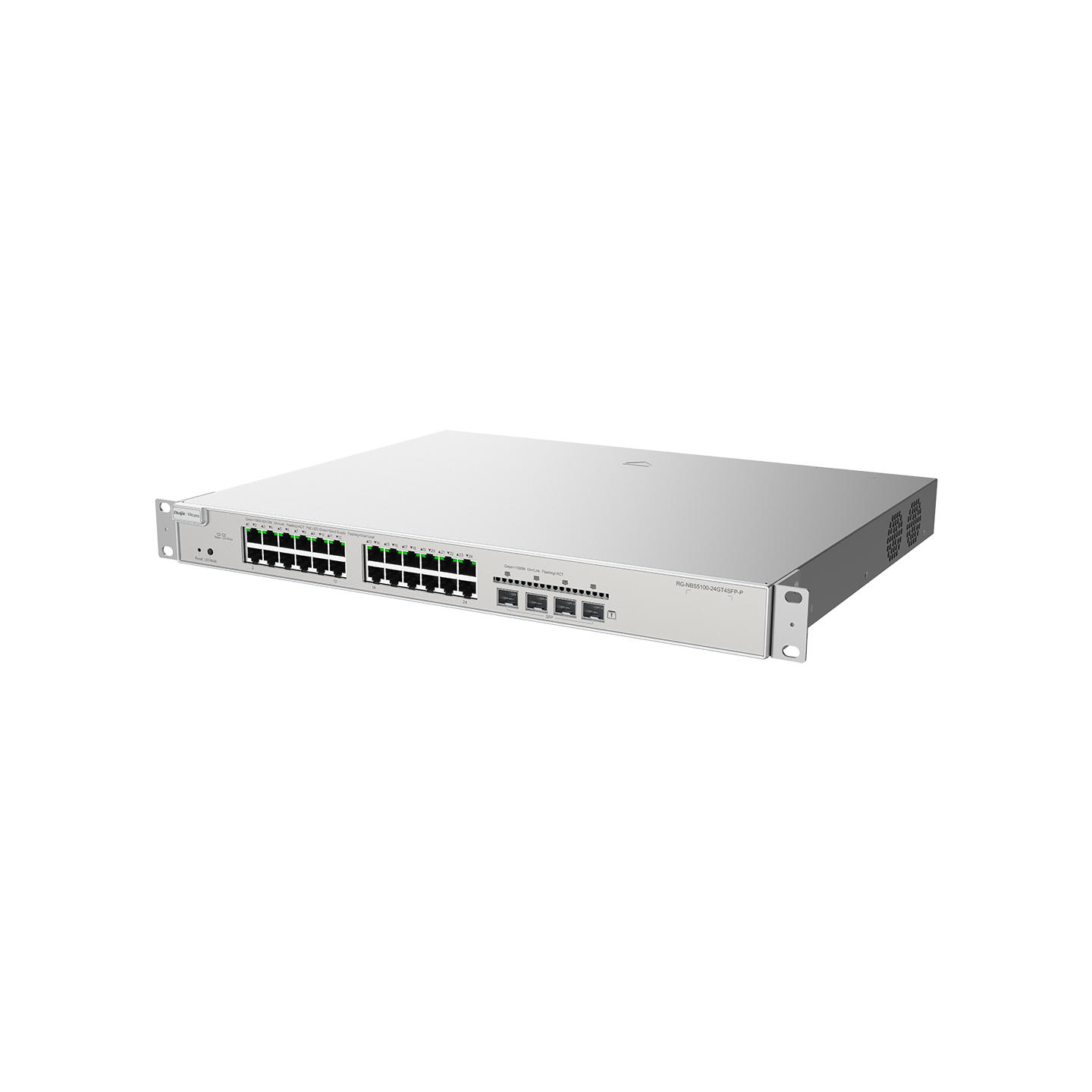

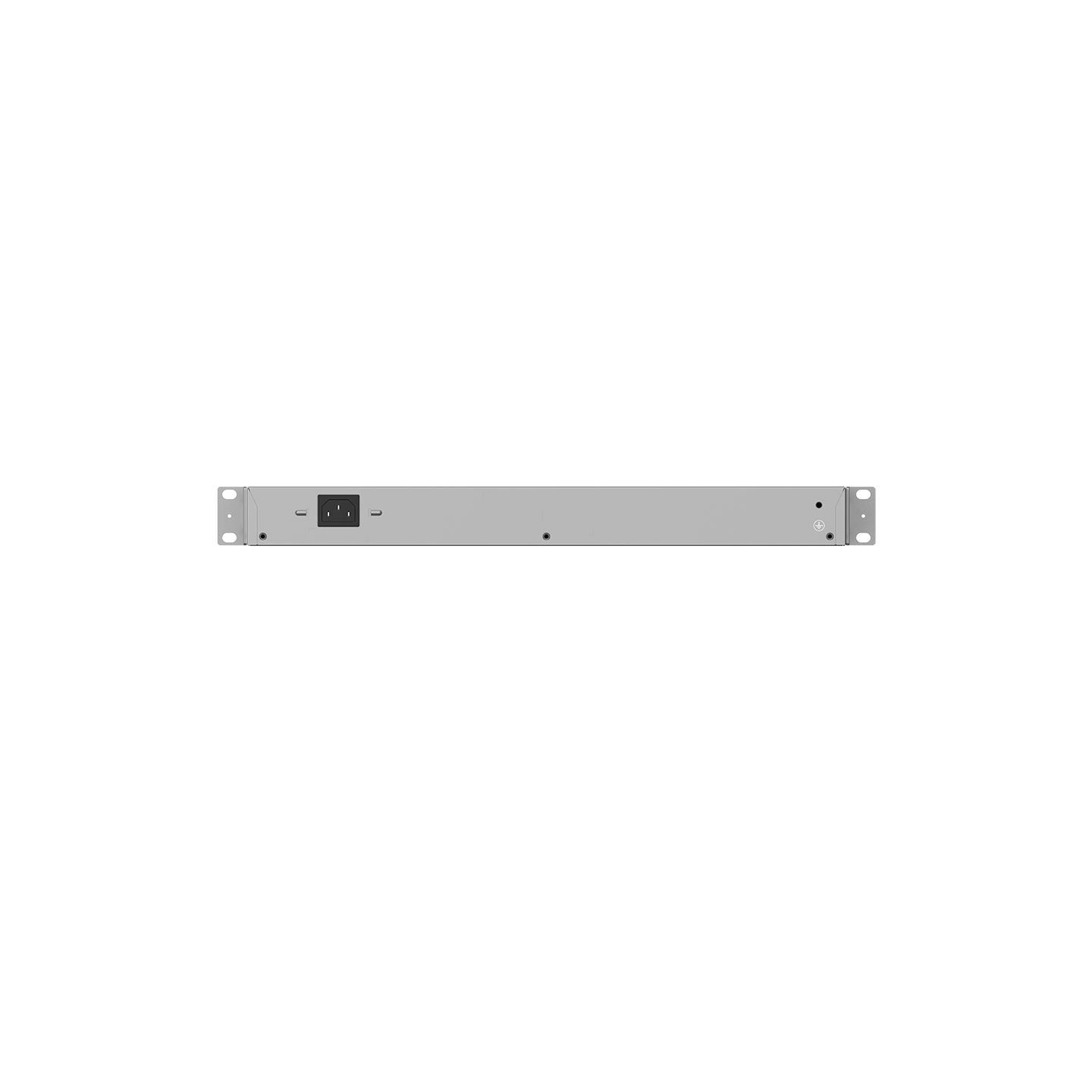

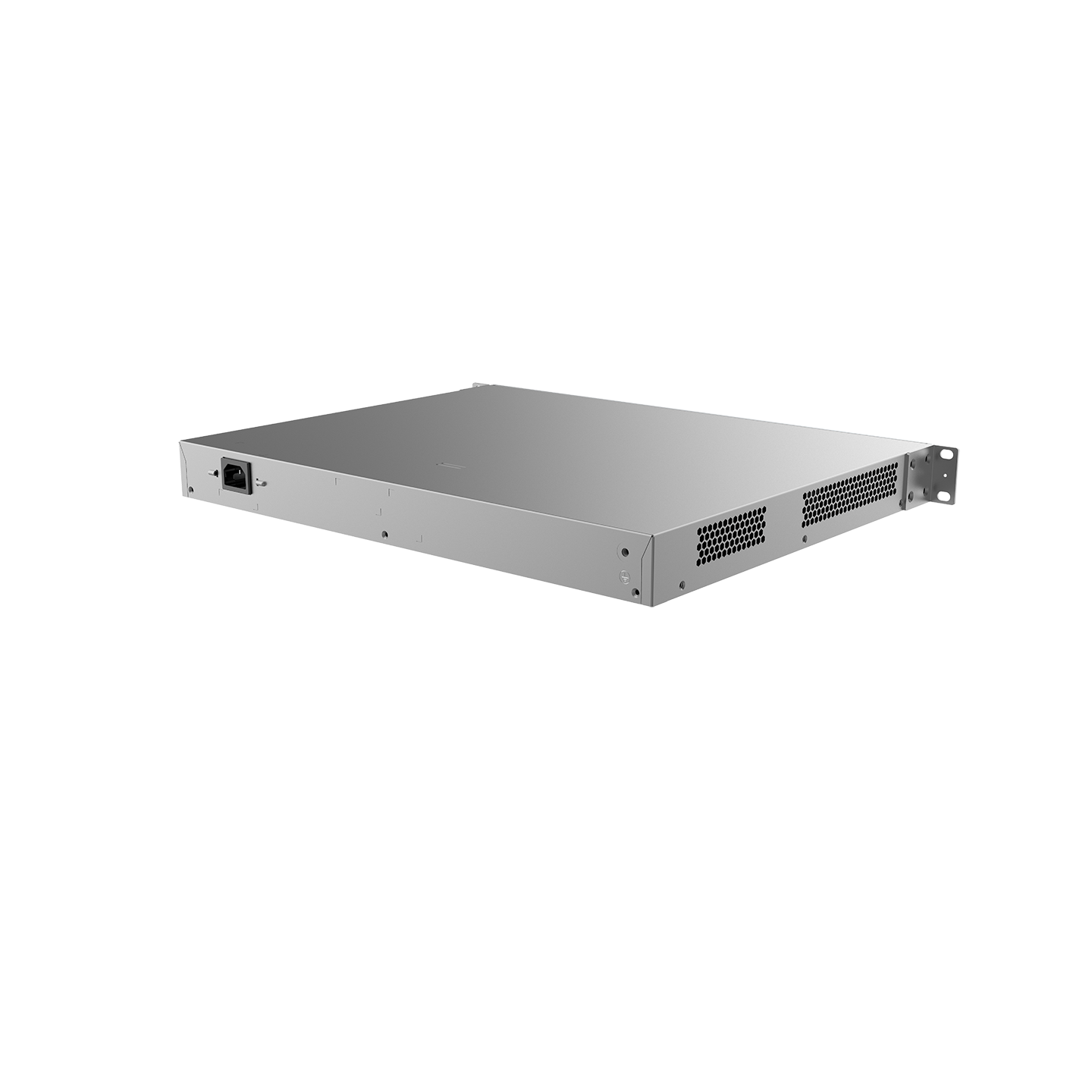

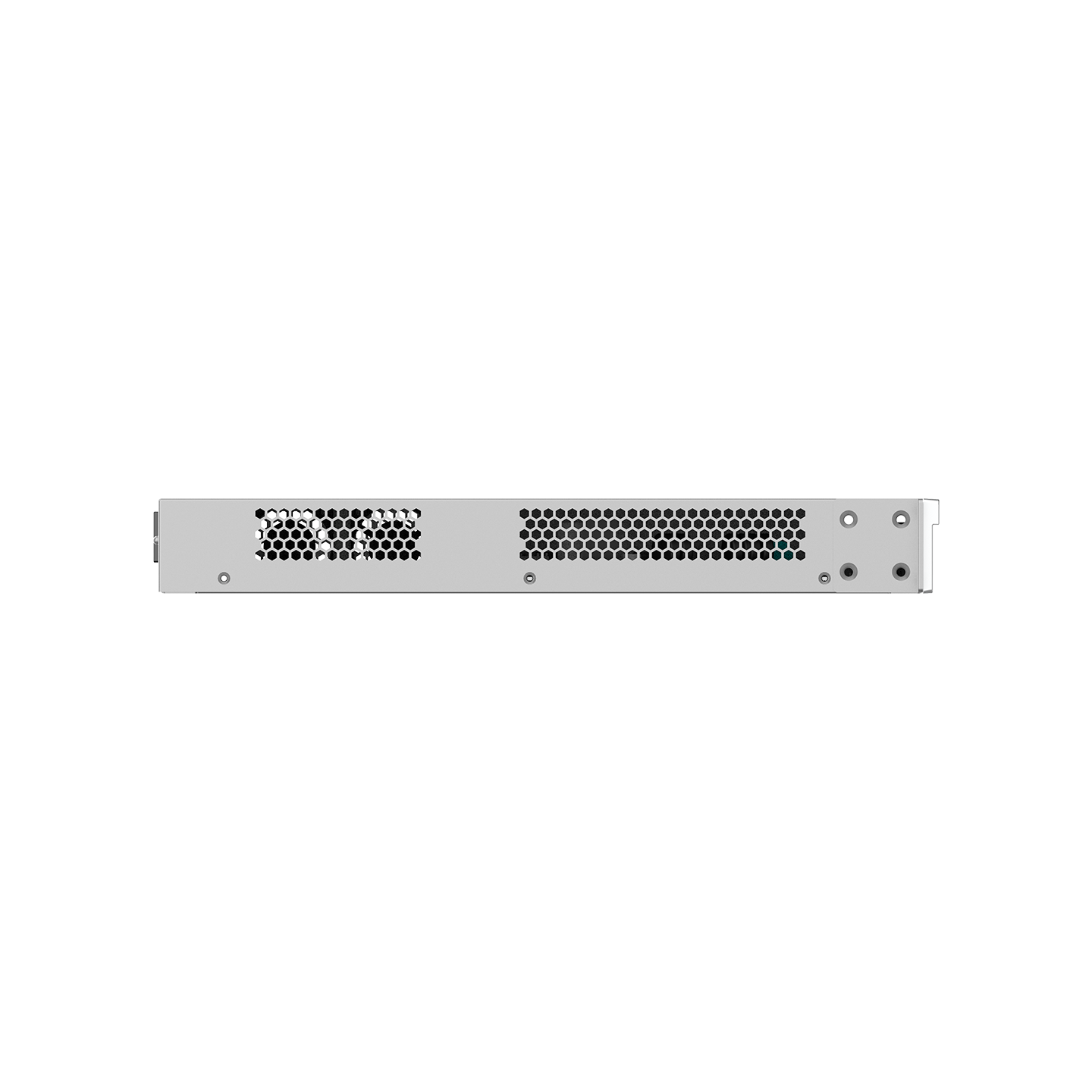

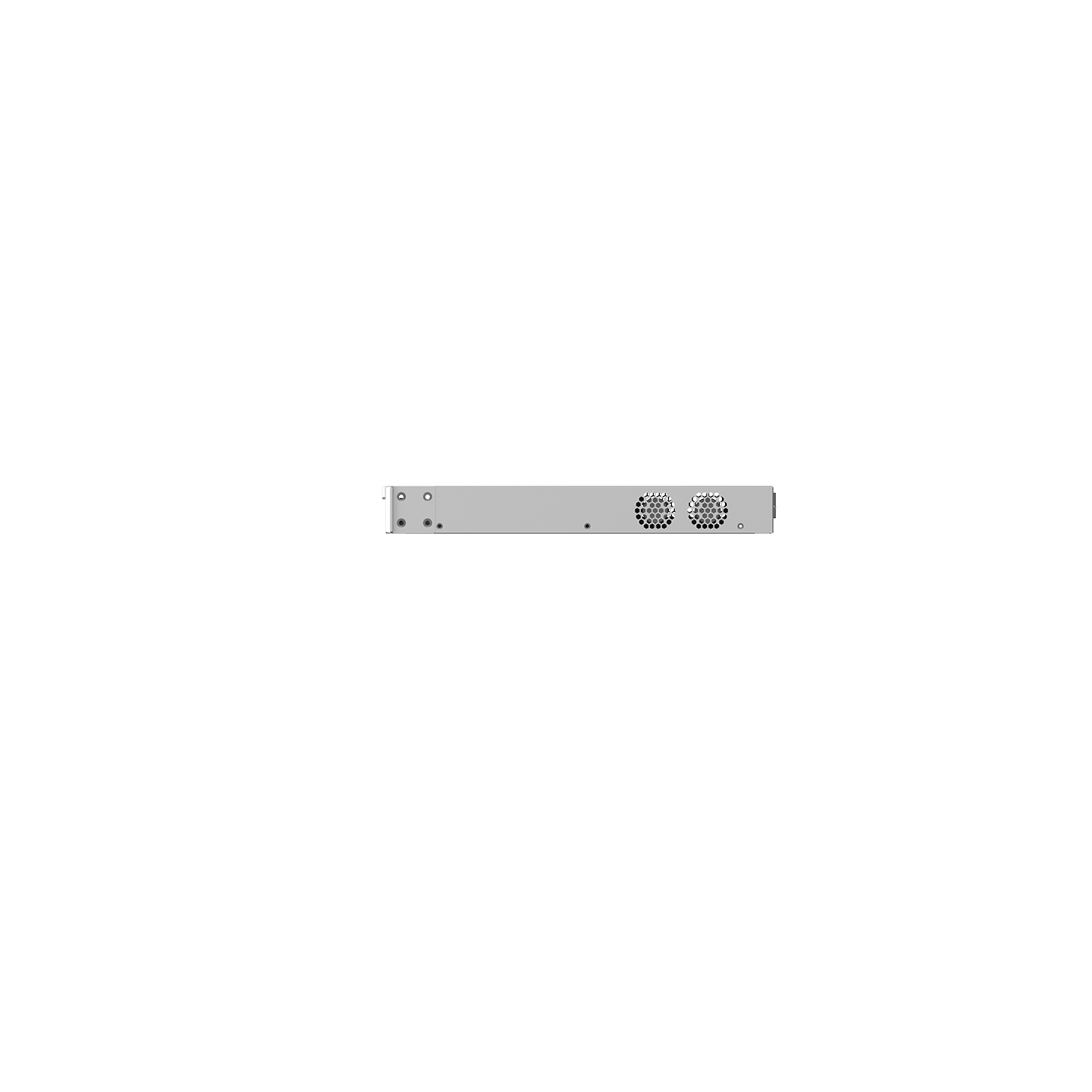

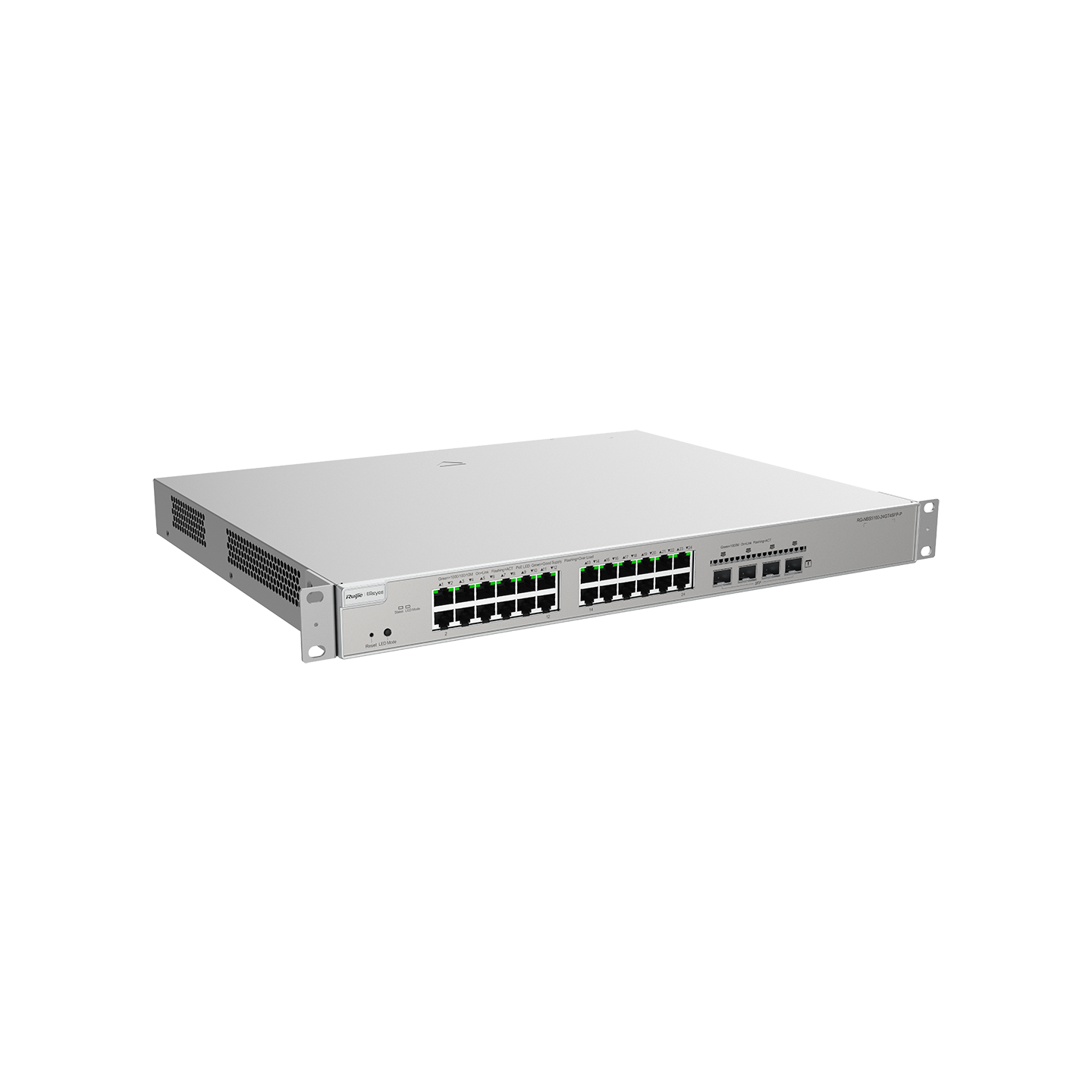

RG-NBS5100-24GT4SFP-P, conmutador no PoE de 28 puertos Gigabit de capa 3

Empresas, Hostelería, Fabricas, Educación, Retail, etc.

Modelos
RG-NBS5100-24GT4SFP

24 puertos Gigabit, 4 SFP

 RG-NBS5100-24GT4SFP-P

24 puertos Gigabit, 4 SFP, 370W

 RG-NBS5100-48GT4SFP

48 puertos Gigabit, 4 SFP
Series
Switch Capa 3 10G de enlace ascendente fijo Switch Capa 3 fijo 1G de enlace ascendente Switch de Chasis/Modular Capa 3
Datasheet Sales Enquiry
Add to Favorites
Características destacadas
  • Conmutador no PoE de 28 puertos Gigabit de capa 3 administrado, 4 enlaces ascendentes SFP
  • La calidad de clase empresarial garantiza un alto rendimiento
  • La protección contra sobretensiones de 6 kV reduce la posibilidad de daños en el puerto
  • Múltiples políticas de seguridad protegen su red
  • Gestión de por vida en Ruijie Cloud en cualquier momento y en cualquier lugar






Sales Enquiry
Características

RG-NBS5100-24GT4SFP-P

Conmutador no PoE de 28 puertos Gigabit de capa 3 administrado, 4 enlaces ascendentes SFP

  • Capacidad de conmutación
    56 Gbps

  • Tasa de reenvío
    42 Mpps

  • 5 años
    de garantía

Numerosos escenarios de aplicación PoE



  • Presupuesto PoE
    370W

  • Máx. 30 W
    en cada puerto

  • Protección contra sobretensiones
    6KV

  • Rendimiento
  • Características
Enterprise-class Quality Ensures High Performance
  • Link Aggregation
  • IGMP Snooping
  • VLAN
Múltiples políticas de seguridad protegen su red
  • Seguridad
  • Estabilidad
La nube, Simplifique Su Negocio
  • SON, aprovisionamiento sin intervención en la nube
  • Supervise las estadísticas del conmutador en cualquier momento y en cualquier lugar
  • Configure VLAN en la aplicación Ruijie Cloud
  • Fácil mantenimiento, ahorre tiempo y costes in situ











Especificaciones clave
Product Information
Product Category
Product Category
  • Layer 3
Hardware Specifications
Product Information
Warranty
  • 5 years
Port Specifications
Total number of RJ45 ports
  • 24
Total number of optical ports
  • 4
Number of 1GE combo ports
  • No
Number of 1GE SFP ports
  • 4
Number of 10GE SFP+ ports
  • No
Number of 10/100BASE-T ports
  • No
Number of 10/100/1000BASE-T ports
  • 24
Number of 10/100/1000/2500BASE-T ports
  • No
Number of 100/1000/2.5G/5G/10GBASE-T ports
  • No
Power Supply and Consumption
Number of PoE Out ports
  • 24
Number of PoE/PoE+ Out ports
  • 24
Number of PoE/PoE+/PoE++ Out ports
  • No
PoE budget
  • 370 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 41.66 Mpps
Switching capacity
  • 56 Gbps(bit/s)
Environment and Reliability
MTBF
  • 400,000 hours
Operating temperature
  • 0°C to +50°C (32°F to 122°F)
Altitude
  • Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
    Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Surge protection
  • Service port: ±6 kV for common mode
    Power connector: ±6 kV for both common mode and differential mode
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Interface
Jumbo frame length (MTU)
  • 9216 bytes (interface configuration mode)
Security
Port isolation
  • Yes
Broadcast storm control
  • Yes
