RG-ES206MG-P, Switch PoE gestionado en la nube de 5 puertos 2,5 G, 1 enlace ascendente de 10 G

Oficina, colegio, villa, local comercial, apartamento, etc.

Modelos
RG-ES205GC-P

5 puertos Gigabit, 4 PoE , 54W

 RG-ES206GC-P

6 puertos Gigabit, 4 PoE , 54W

 RG-ES209GC-P

9 puertos Gigabit, 8 PoE , 120W

 RG-ES210GC-LP

puertos Gigabit, 8 PoE , 70W

 RG-ES218GC-P

16 puertos gigabit PoE+, 2 SFP, 240W

 RG-ES206GS-P

Swi6 puertos Gigabit, 4 puertos PoE+,1 puerto combo

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

 RG-ES226GC-P

24 puertos gigabit PoE+, 2 SFP, 370W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES228GS-LP

24 puertos 10/100/1000BASE-T PoE+, 2 puertos 10/100/1000BASE-T Ports, 2 puertos 1GE SFP, 250 W

 RG-ES220GS-LP

16 puertos 10/100/1000BASE-T PoE+, 2 puertos 10/100/1000BASE-T Ports, 2 puertos 1GE SFP, 130 W

 RG-ES209MG-P

8 puertos PoE+ 10/100/1000/2500BASE-T, 1 puerto SFP+ 10 GE, presupuesto PoE de 130 W

 RG-ES206MG-P

4 puertos 10/100/2500BASE-T PoE+, 1 puerto 10/100/2500BASE-T-T Ports, 1 puerto 10 GE SFP, 70 W
Series
Modelo con PoE Modelo sin PoE
Datasheet Sales Enquiry
Add to Favorites
Características destacadas

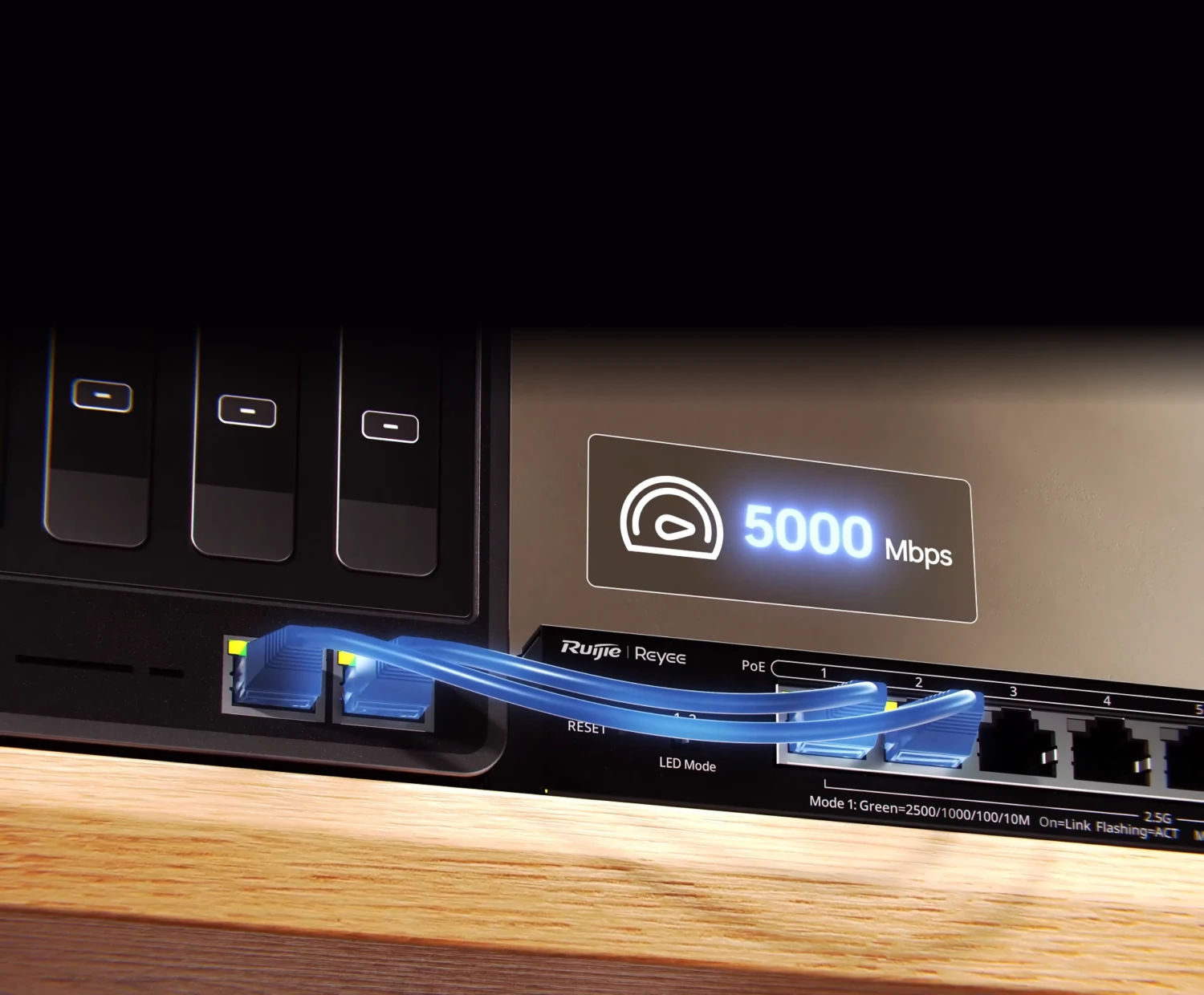

  • 5 puertos 2,5 G y 1 puerto SFP+ 10 GE para un mayor rendimiento de la red
  • 4 puertos de salida PoE compatibles con los estándares IEEE 802.3 af/at, presupuesto PoE de 70 W
  • Agregación de hasta 4 puertos, lo que permite una mayor velocidad de red
  • Switches gestionados en la nube inteligentes y rentables
  • Gestión de la nube gratuita de por vida en Ruijie Cloud en cualquier momento y en cualquier lugar
Sales Enquiry
Características

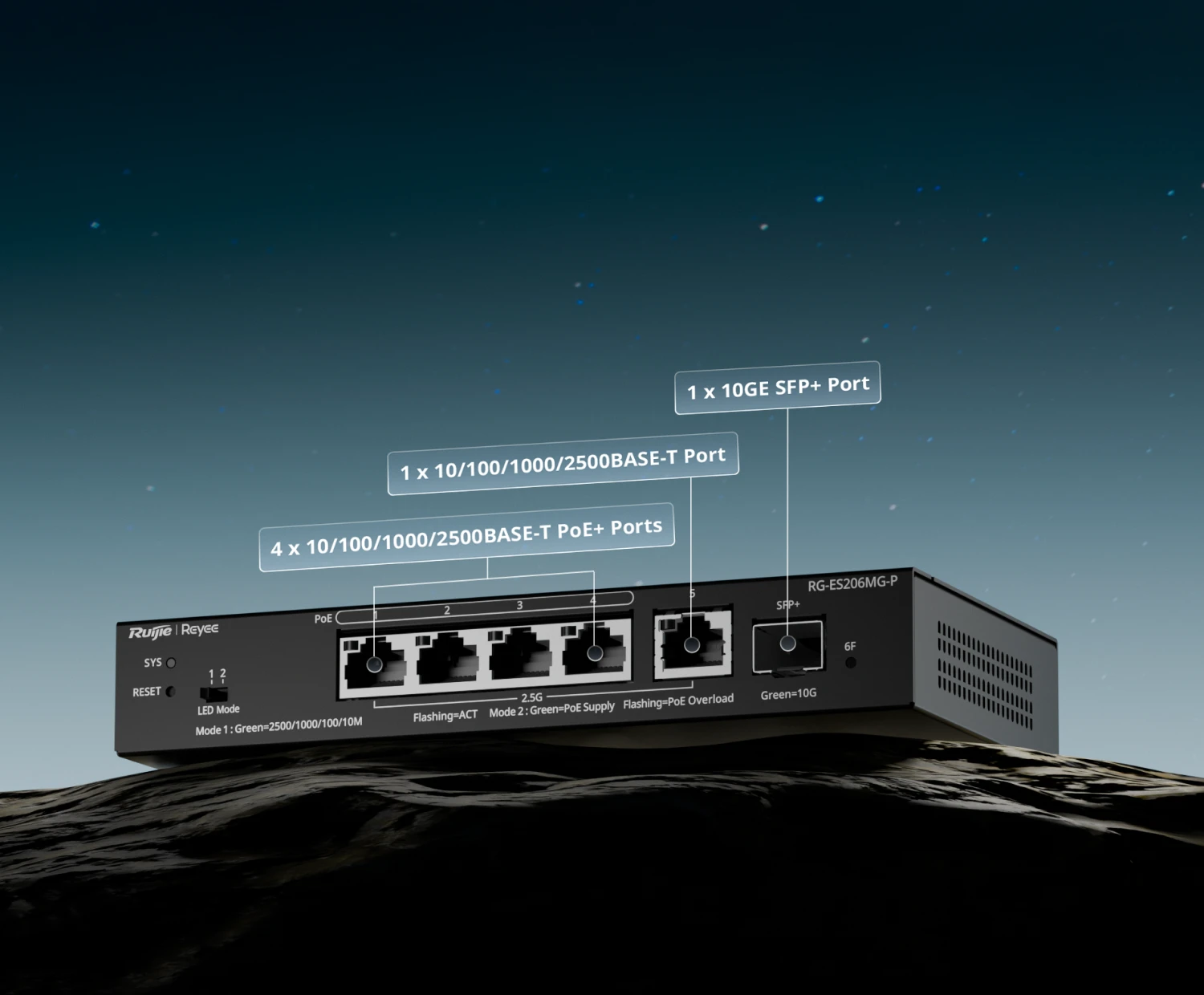

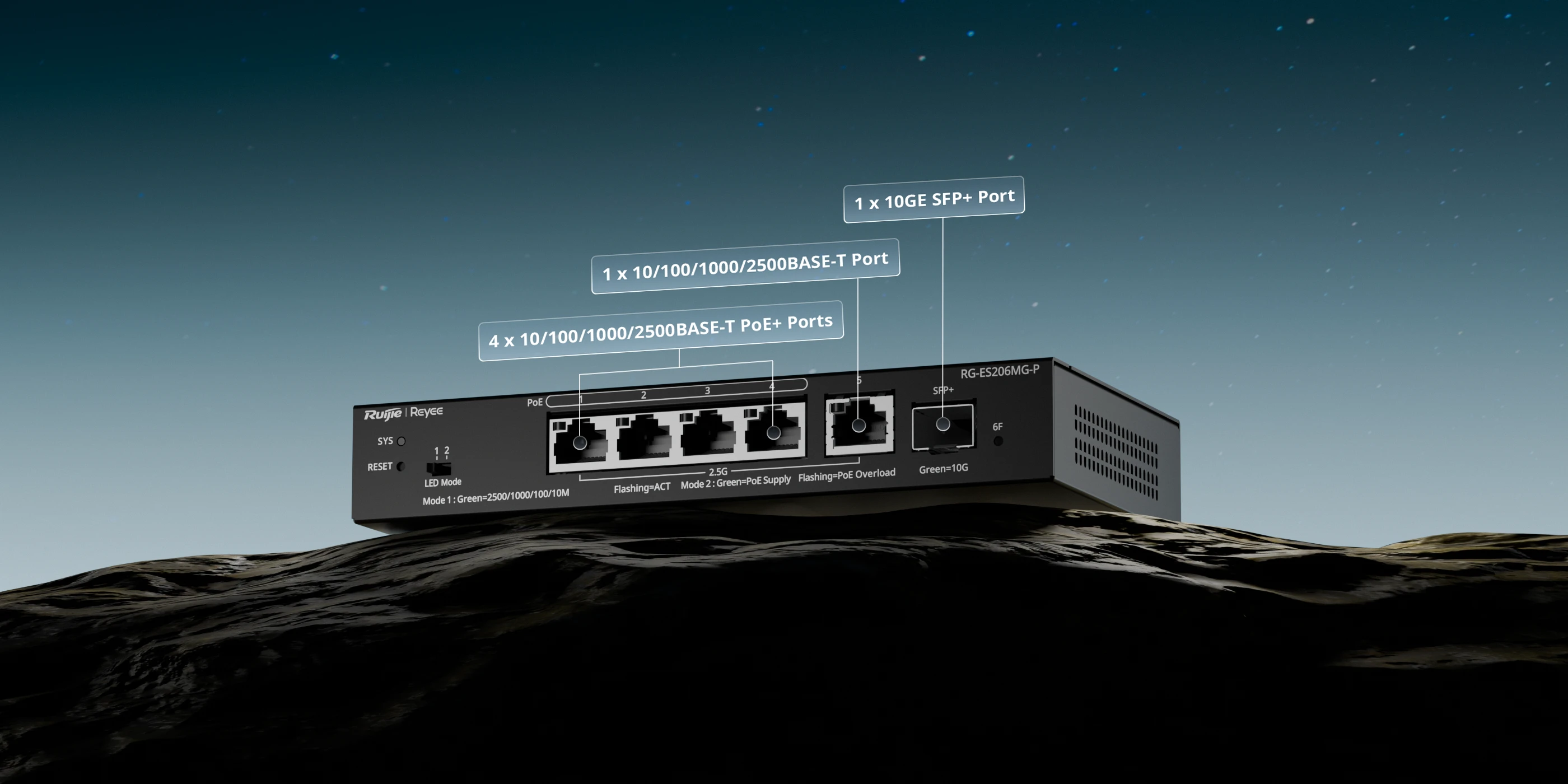

RG-ES206MG-P

Switch PoE gestionado en la nube de 5 puertos y 2,5 Gigabits, 1 enlace ascendente SFP+

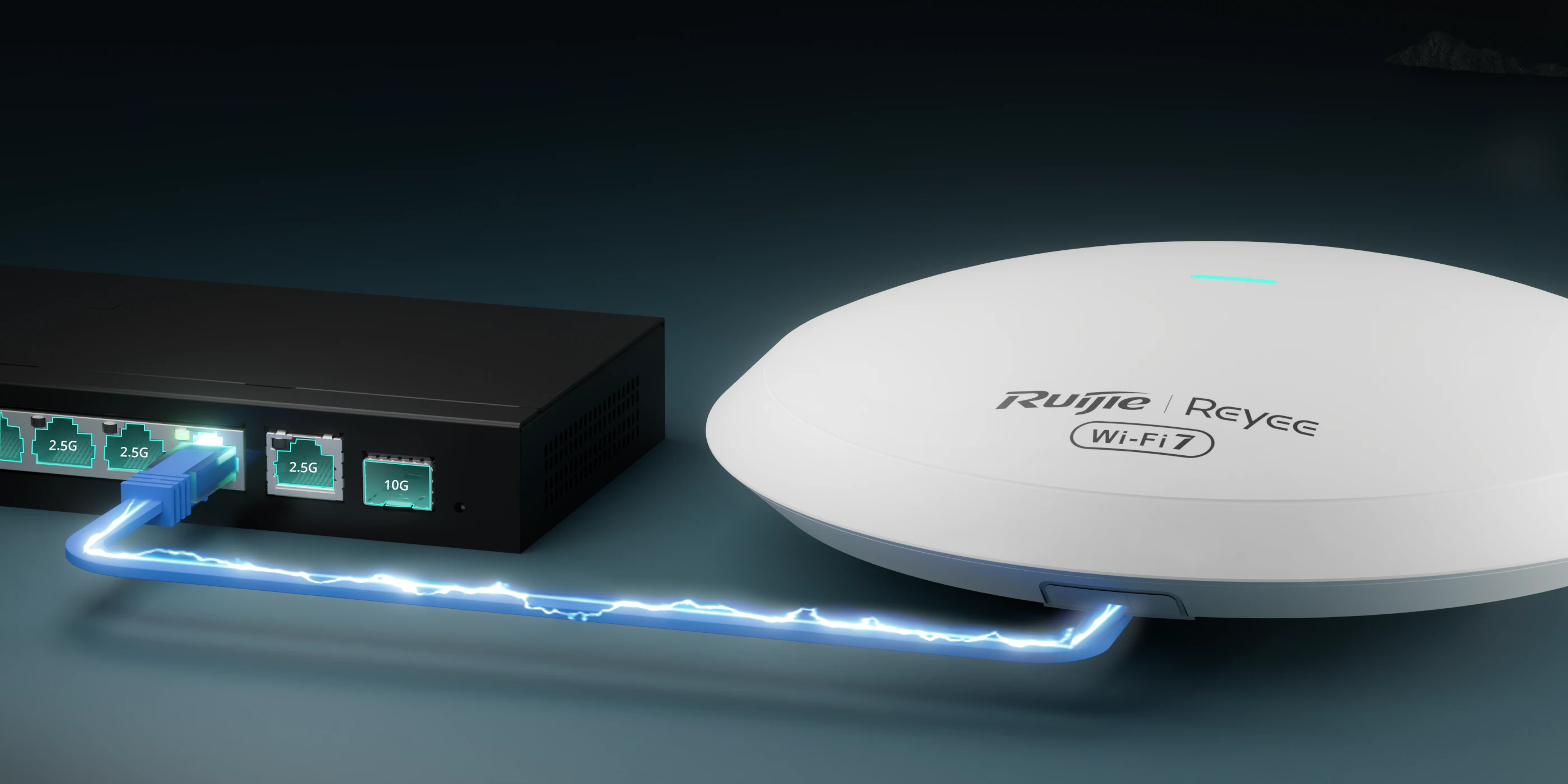

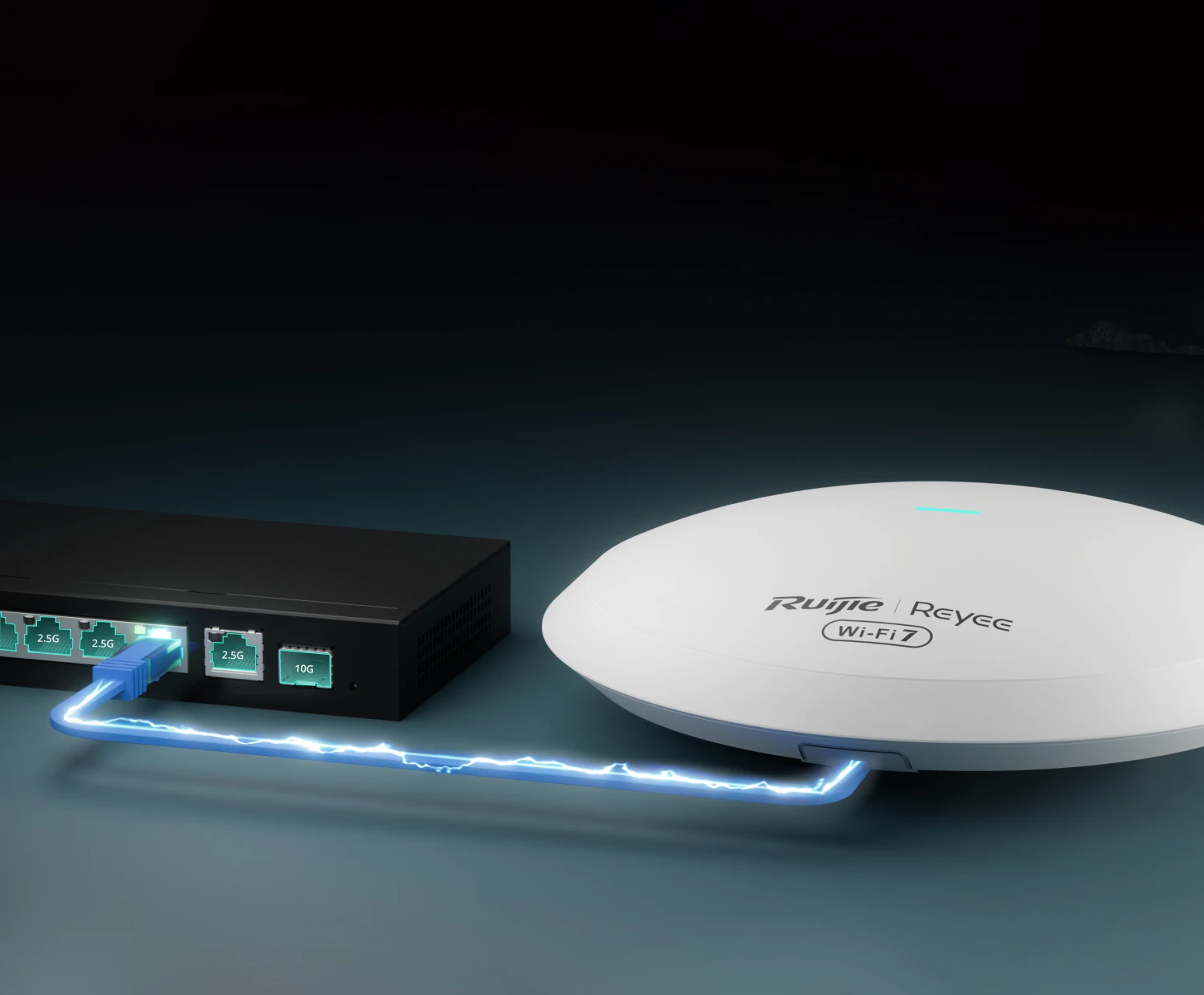

Liberando toda la potencia
de Wi-Fi 7

Aumente el rendimiento,
maximice la estabilidad

Rompa los límites de la red: libere todo la potencia de Wi-Fi 7

¿Por qué no 2,5 Gbps en cada puerto?

  • Mayor rendimiento de la red interna, rendimiento más fluido durante las horas pico.
  • Experimente el rendimiento inalámbrico sin límites.
  • Haz que cada gig cuente sin descuidar el ancho de banda.

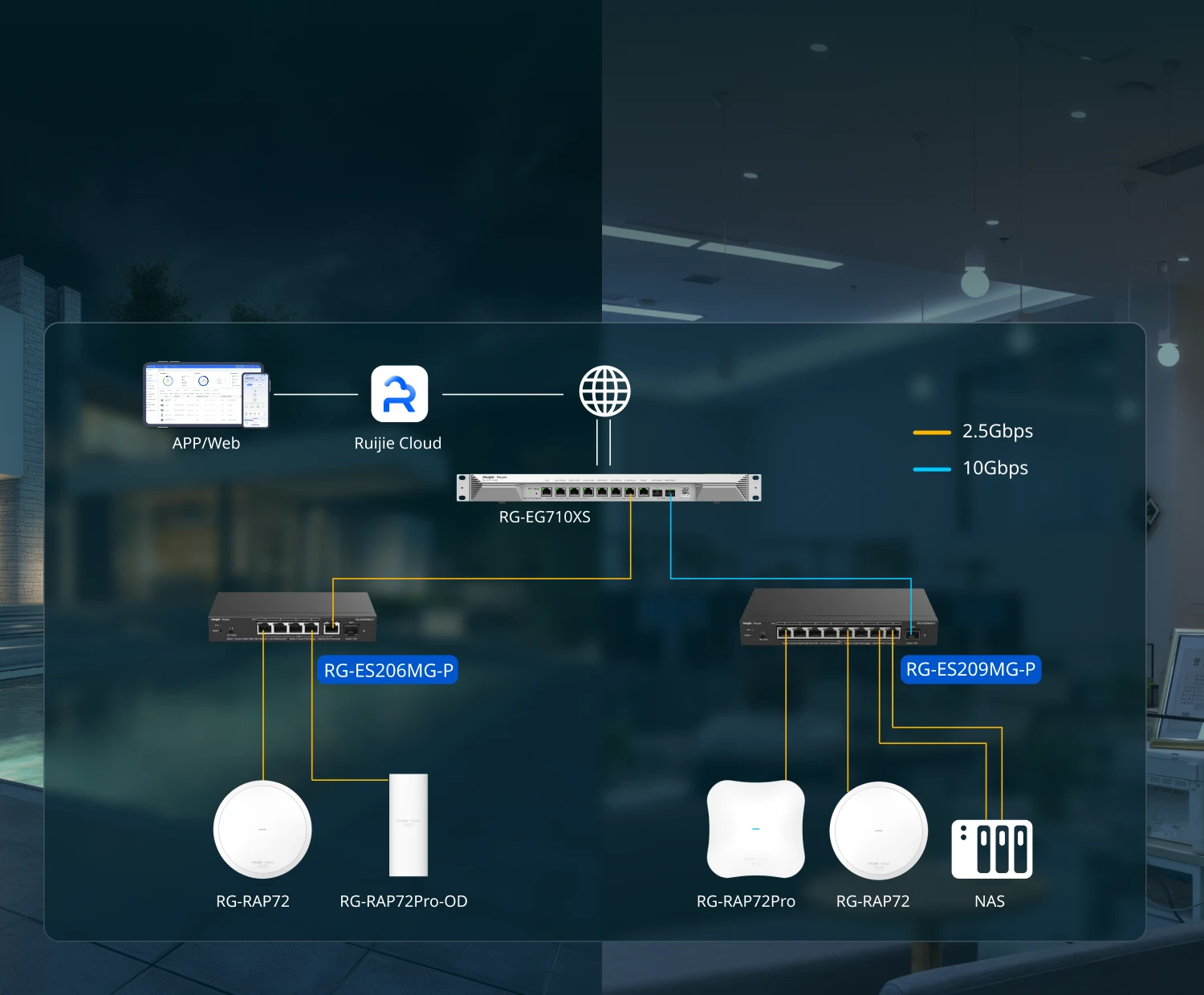

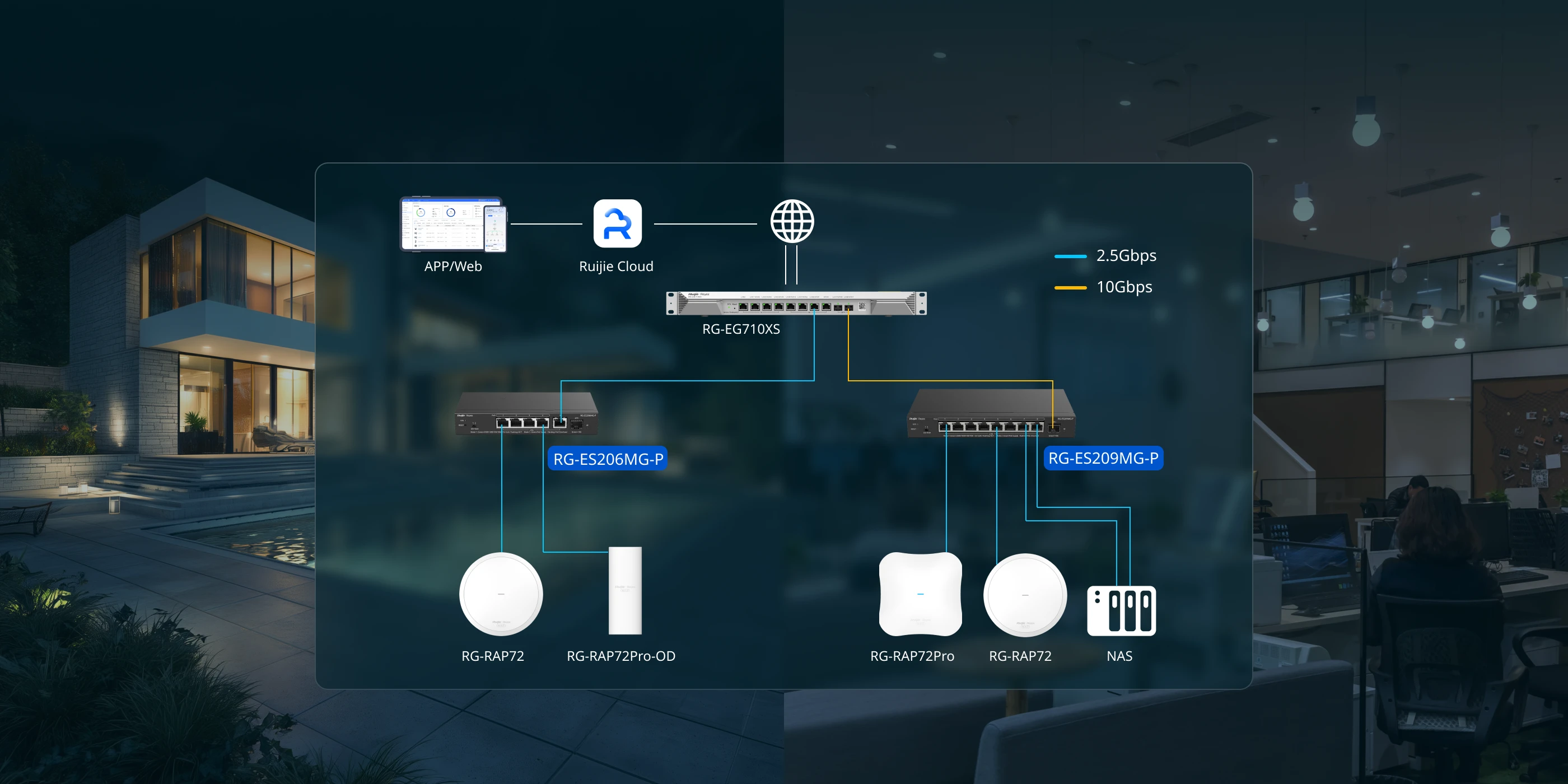

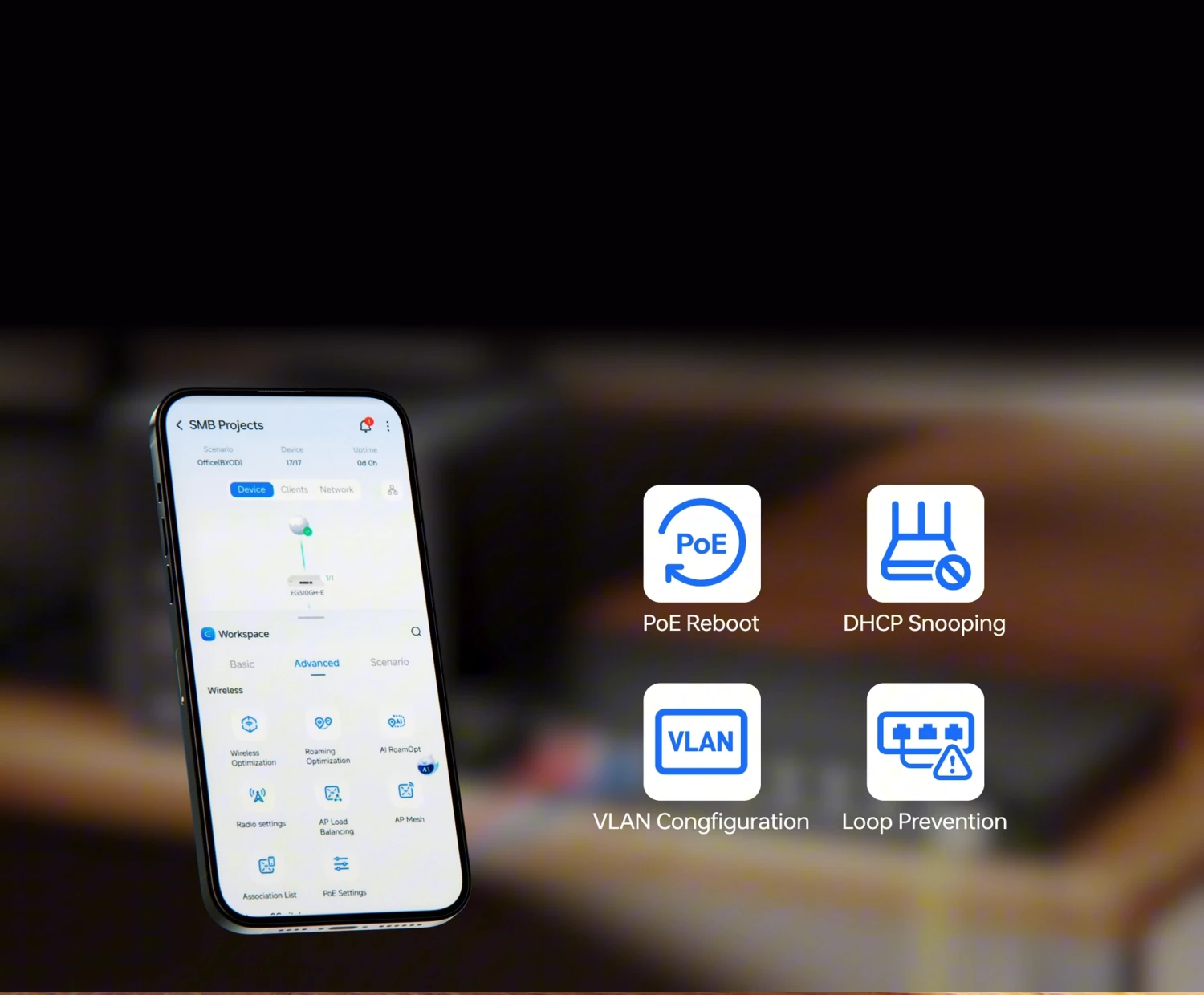

Nube, haga fácil su negocio

Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 5
Total number of optical ports
  • 1
Number of 10GE SFP+ ports
  • 1
Number of 10/100/1000/2500BASE-T ports
  • 5
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • 70 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 33.75 Mpps
Switching capacity
  • 45 Gbps (bit/s)
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
