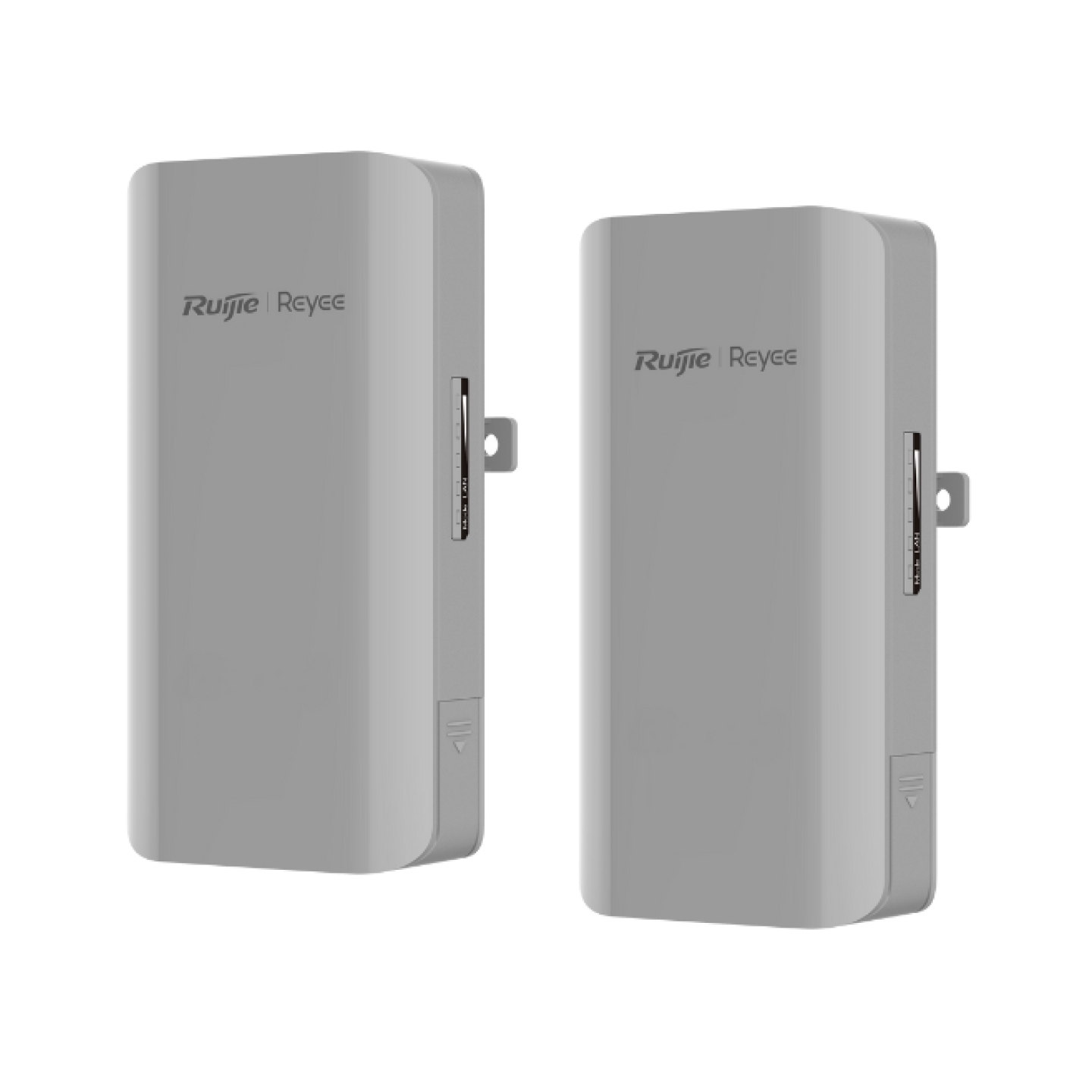

RG-EST310 V2 - 1

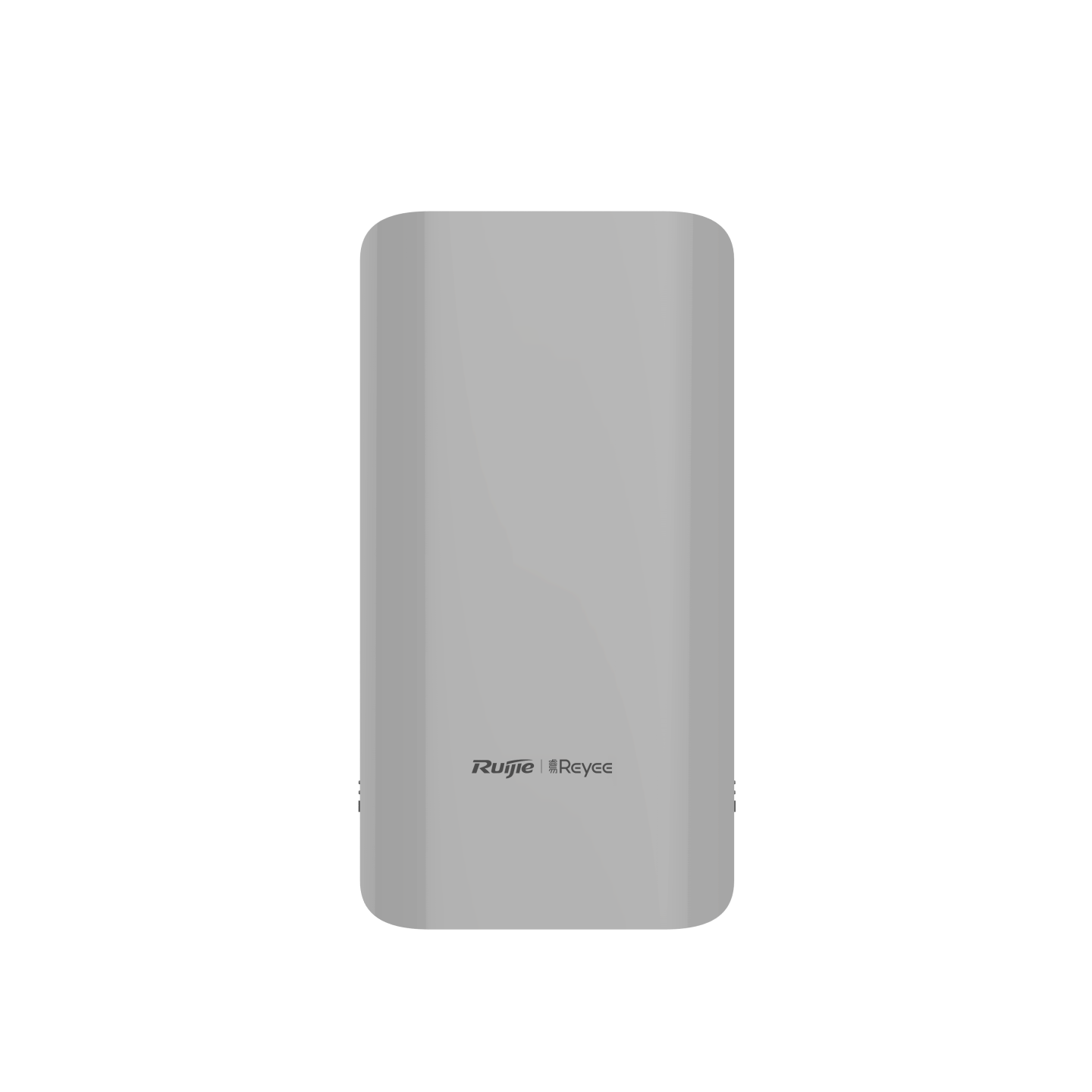

RG-EST310 V2 - 2
RG-EST310 V2 - 3
RG-EST310 V2 - 4
RG-EST310 V2 - 1
RG-EST310 V2 - 2
RG-EST310 V2 - 3
RG-EST310 V2 - 4

RG-EST310 V2 Enlace inalámbrico de 1 km, 802.11ac, doble flujo y 5 GHz

Ascensores, campus, edificios, etc.

Modelos
Series
Características destacadas
  • Transmisión de tráfico estable a 1 km de distancia
  • Emparejado de fábrica, reconexión automática al restaurar la energía
  • Con Protección IP54 y un amplio rango de temperatura operacional (de -30 °C a +55 °C) garantizan un funcionamiento estable en diferentes entornos
  • Solución inalámbrica ideal para CCTV, evitando obras de cableado
Sales Enquiry
Key Specification
Features

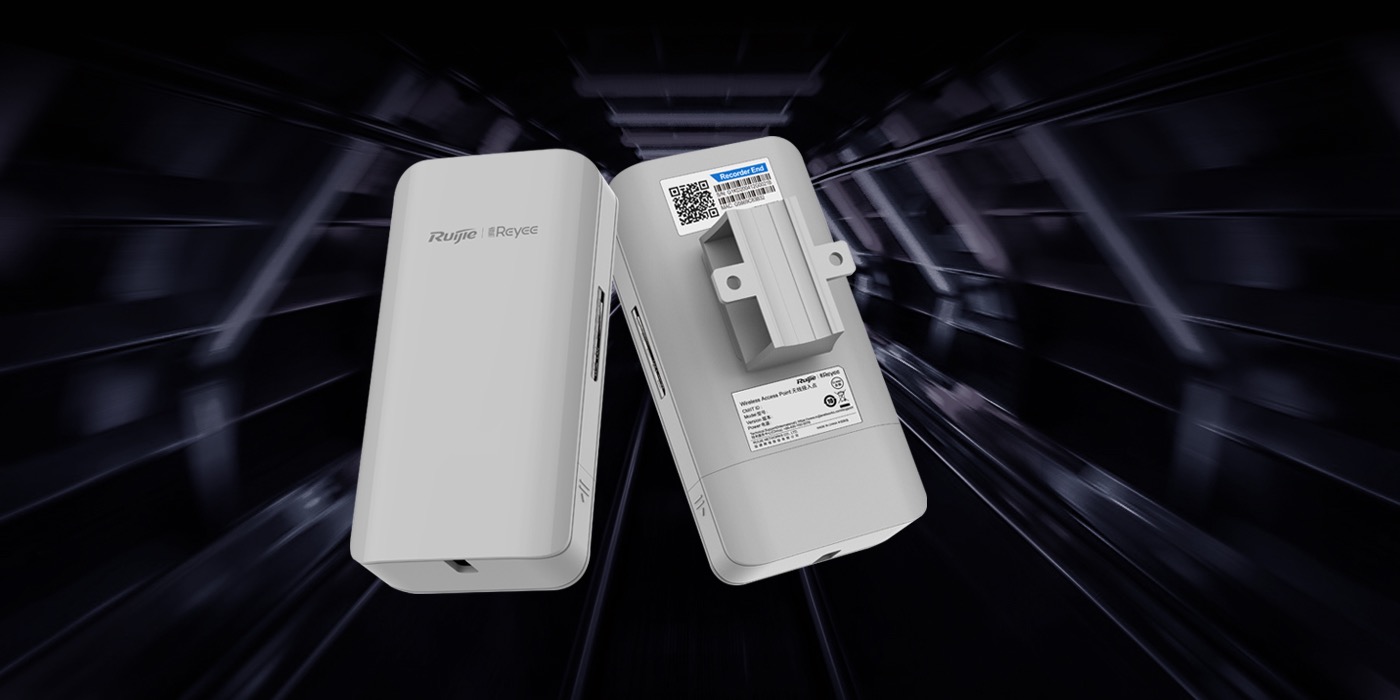

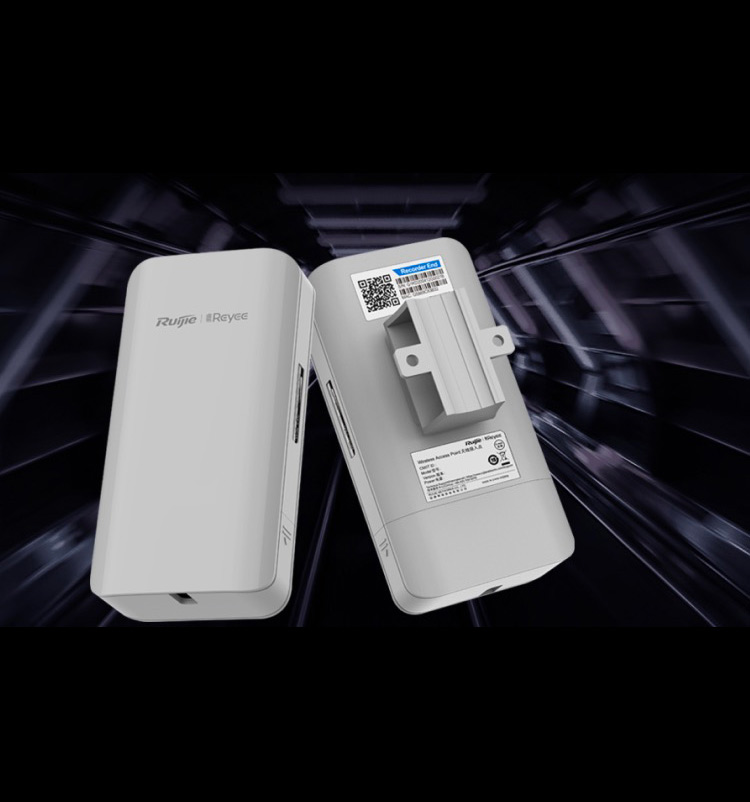

RG-EST310 V2

Puente inalámbrico basado en el estándar 802.11ac, de doble flujo, banda única y 5 GHz

  • 5 GHz, MIMO 2×2

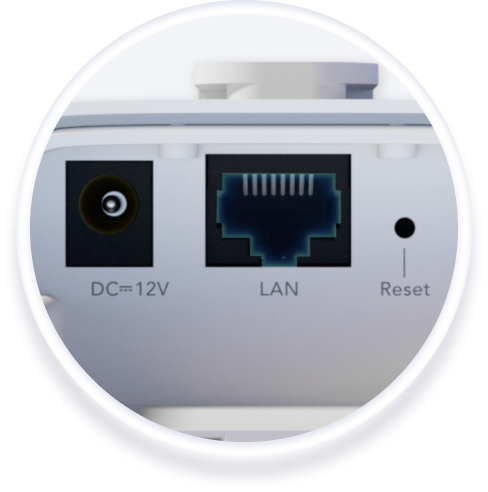

  • 1 puerto FE

No limitado a 1 km

Puente inalámbrico perfecto para escenarios de CCTV

  • 867 Mbps
  • PTP/PTMP

Gran adaptabilidad y alta escalabilidad

  • Clasificación V0
    de resistencia al fuego
  • Clasificación IP54
    de resistencia a la intemperie
  • Temperatura de funcionamiento
    de entre -30 y 55 °C

Alta calidad
Alto rendimiento

El RG-EST310 V2 se basa en la nueva solución de alto rendimiento con chip de doble flujo y banda única a 5GHz , que ofrece una velocidad de transmisión de hasta 867Mbps y mejora notablemente la eficiencia y la estabilidad de la transmisión de datos del puente de red.

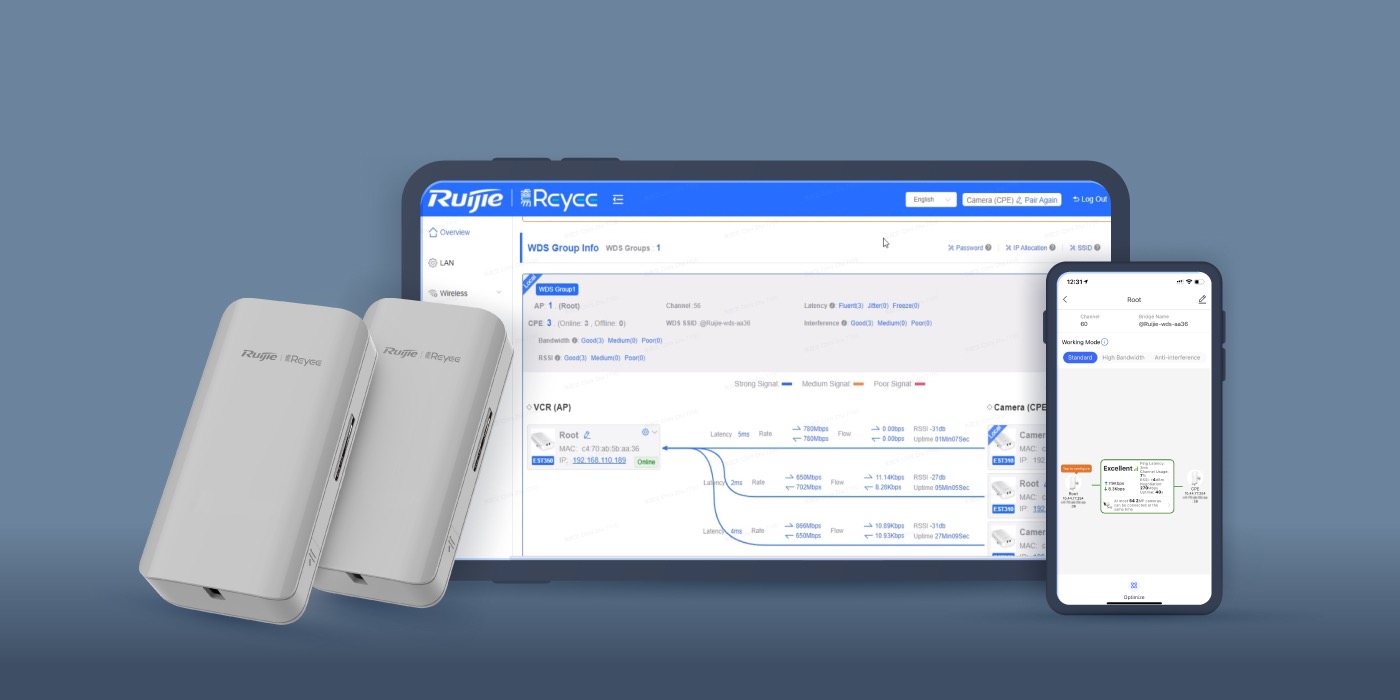

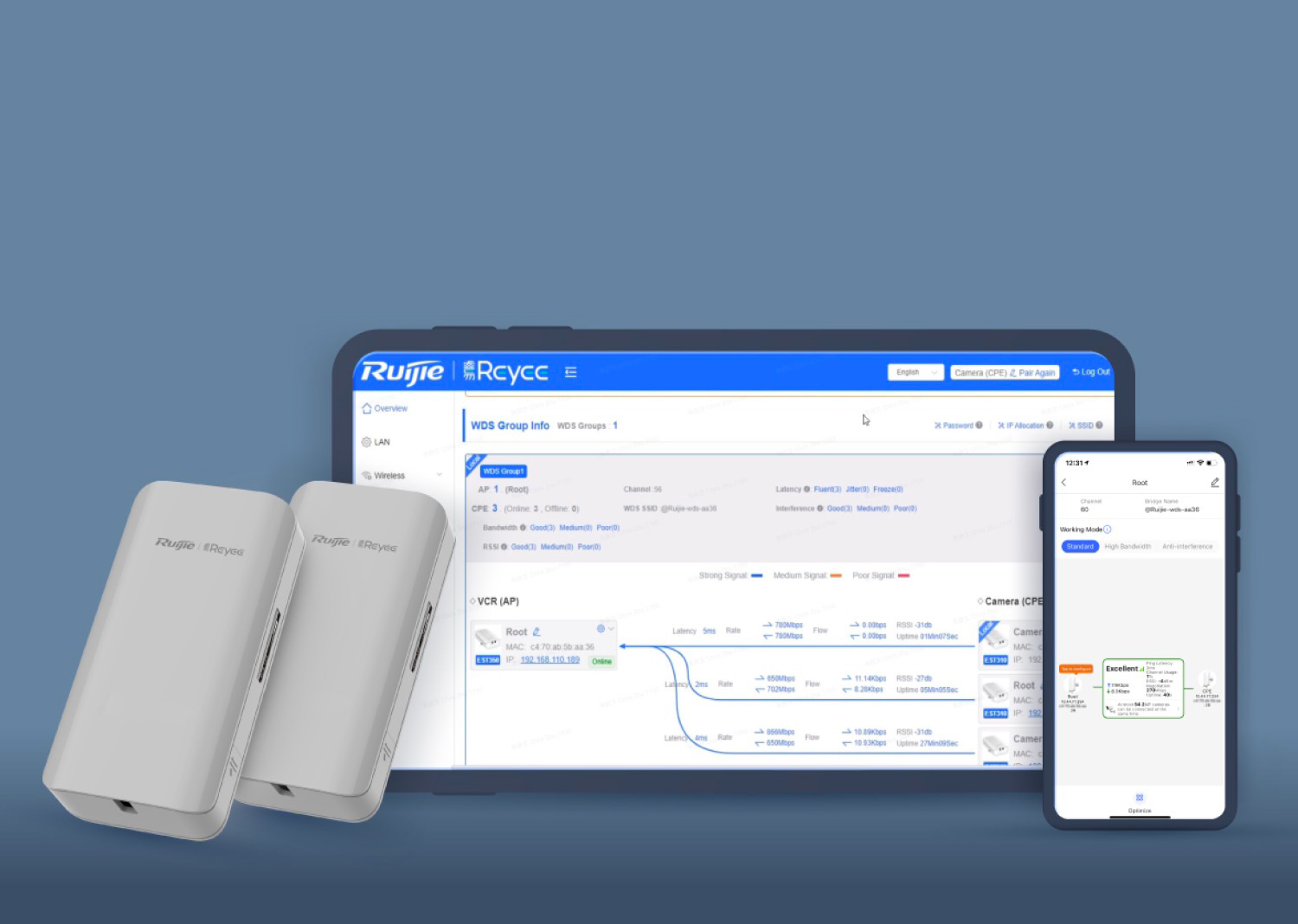

Agilice su negocio gracias a la gestión en la nube

Comparison
Estándares wifi
Banda de funcionamiento
MIMO
Máx. velocidad inalámbrica
Ganancia de la antena
Polarización
Distancia recomendada
Puertos fijos
Memoria/unidad flash
Clasificación IP
Potencia de transmisión
Vinculación automática
Punto a multipunto
Gestión
Reinicio automático
Protección contra rayos
Alimentación
Consumo de energía
Dimensiones
Peso
Temperatura de funcionamiento
MTBF
Certificaciones
Garantía
Specifications
Model Bridging Performance RSSI (dBm) Throughput & Camera Limits
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-EST100-E 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)
–58 dBm/100 m
–68 dBm/500 m
10/100 m
5/500 m
6/100 m
3/500 m
3/100 m
1/500 m
3/100 m
1/500 m
RG-EST310 V2 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)
40 Mbps/2 km (HT40)
–52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km
–75 dBm/2 km
16/100 m
16/500 m
16/1 km
6/2 km
10/100 m
10/500 m
10/1 km
4/2 km
7/100 m
7/500 m
7/1 km
3/2 km
5/100 m
5/500 m
5/1 km
2/2 km
RG-EST350 V2 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
–58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km
50/1 km
45/3 km
20/5 km
30/1 km
25/3 km
12/5 km
20/1 km
13/3 km
8/5 km
15/1 km
12/3 km
6/5 km
RG-AirMetro460G Wireless Bridge 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)
–58/1 km
–66/3 km
–70/5 km
–78/10 km
50/1 km
45/3 km
20/5 km
16/10 km
30/1 km
25/3 km
12/5 km
8/10 km
20/1 km
13/3 km
8/5 km
5/10 km
15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F Wireless Bridge 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40)
–58/1 km
–66/3 km
–70/5 km
–78/10 km
12/1 km
12/3 km
10/5 km
6/10 km
8/1 km
8/3 km
6/5 km
4/10 km
6/1 km
6/3 km
5/5 km
3/10 km
4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B 200 Mbps/1 km (HT40)
180 Mbps/3 km (HT40)
100 Mbps/5 km (HT40)
-60/1 km
-68/3 km
-75/5 km
35/1 km
30/3 km
16/5 km
20/1 km
16/3 km
10/5 km
15/1 km
12/3 km
6/5 km
10/1 km
8/3 km
5/5 km
