RG-EST330F-P, Pont sans fil RG-EST330F-P, 3 km, 13 dBi

Rue, bâtiment, campus, ferme, usine, etc.

Modèles
RG-EST330F-P

3 ports FE,dont 2 ports de sortie PoE
Séries
1 km PTP/PTMP 3 km PTP/PTMP 5 km PTP/PTMP PTMP Station PTP de 500 mètres
Datasheet Sales Enquiry
Add to Favorites
Fonctionnalités particulières
  • 3 ports FE, dont 2 ports de sortie PoE
  • Prise en charge de 3 options d'alimentation : 12 V CC, PoE passif, 802.3af/at
  • Support TDMA
  • Support SON
Sales Enquiry
Caractéristiques

RG-EST330F-P

Pont EST à distance de travail de 3 km

  • 13 dBi

  • 5 GHz, 867 Mbps

  • H : 30°, V : 30°

  • 3 km

  • TDMA

  • IP55
    Résistant aux
    intempéries

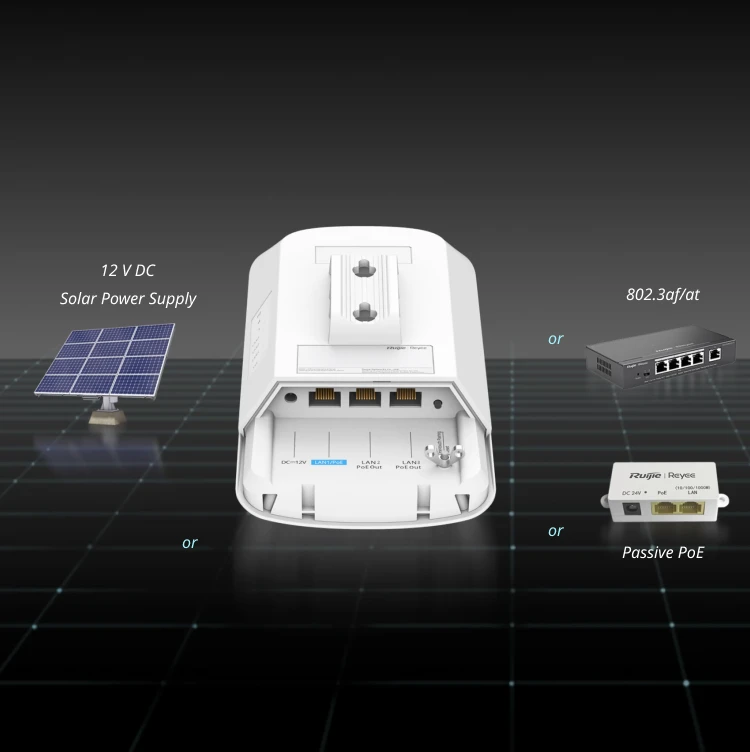

Options d'entrée d'alimentation triple pour un déploiement flexible

  • 3 ports FE

  • Garantie de 3 ans

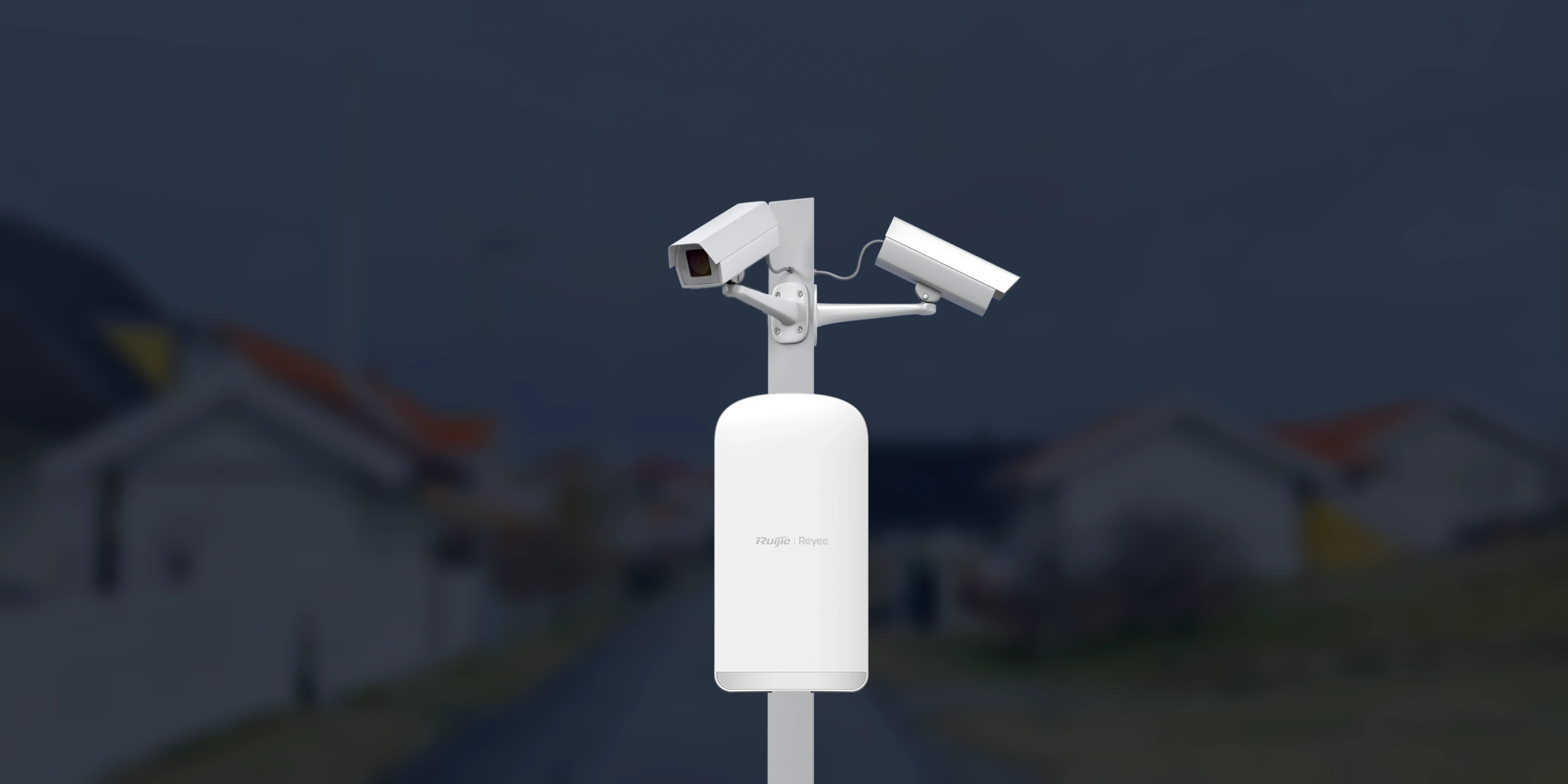

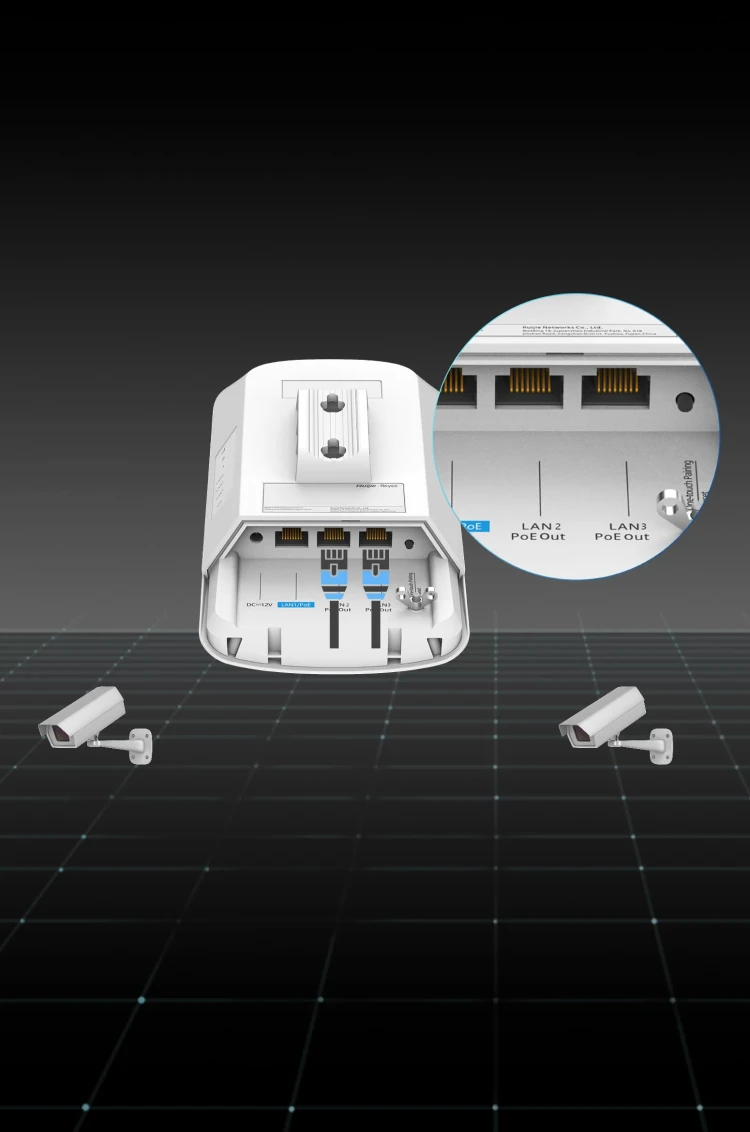

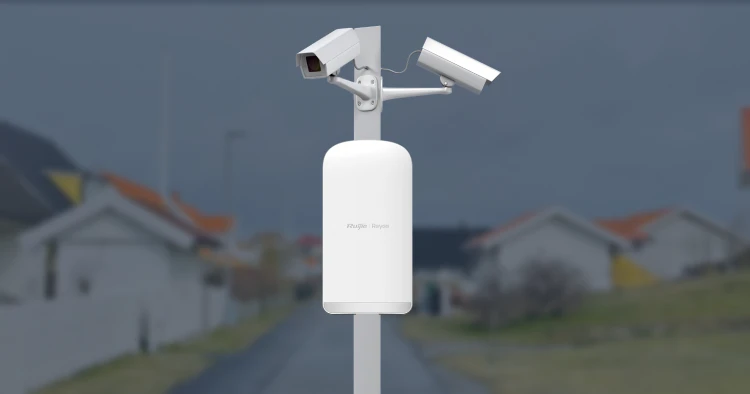

Sortie PoE double par souci de rentabilité

Sortie PoE double par souci de rentabilité

Puissance de sortie totale : 802.3af

Remarque : la puissance de sortie réelle dépend de la puissance d'entrée du pont et des environnements réels du projet. Remarque : la puissance de sortie réelle dépend de la puissance d'entrée du pont et des environnements réels du projet.

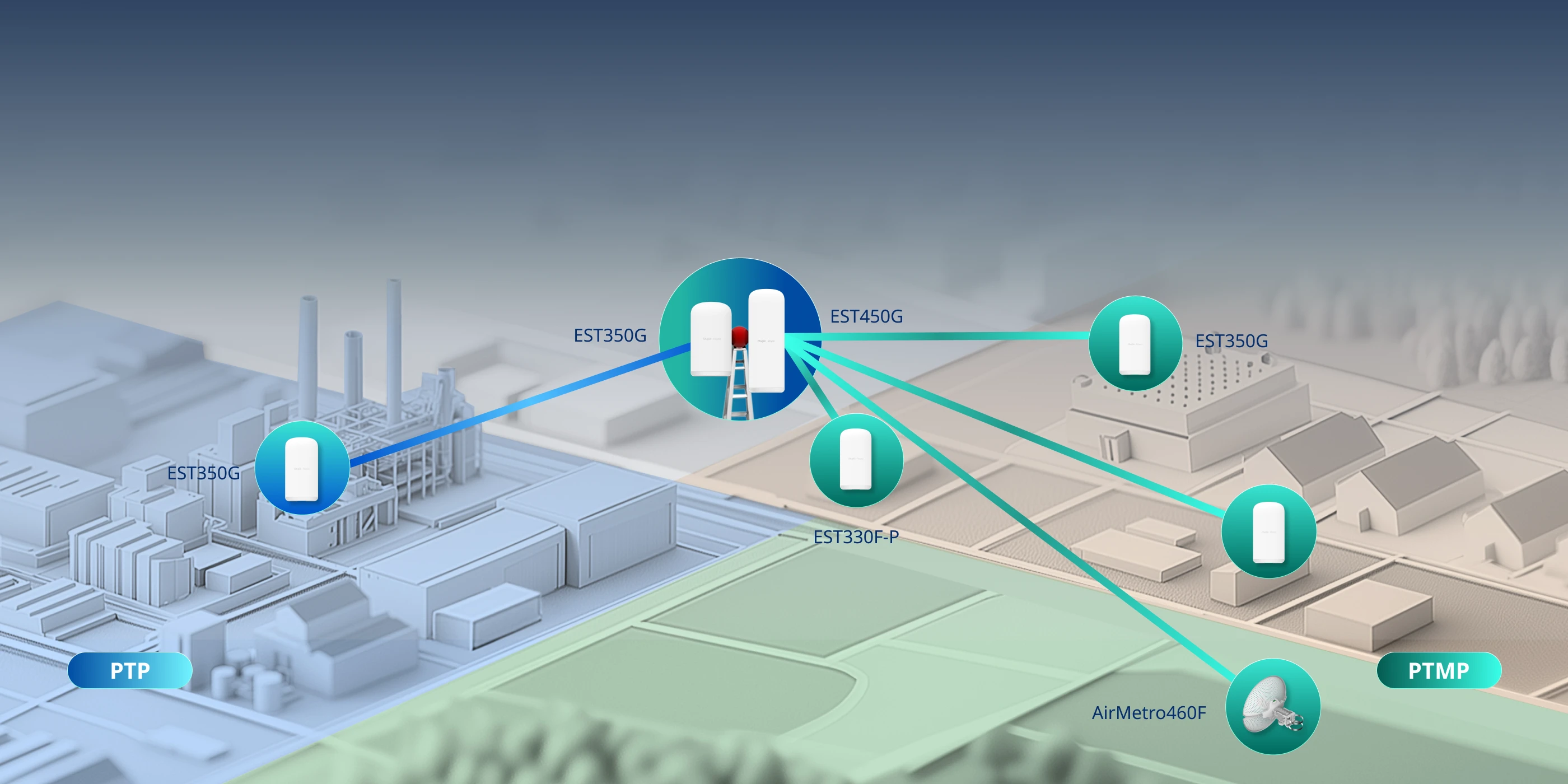

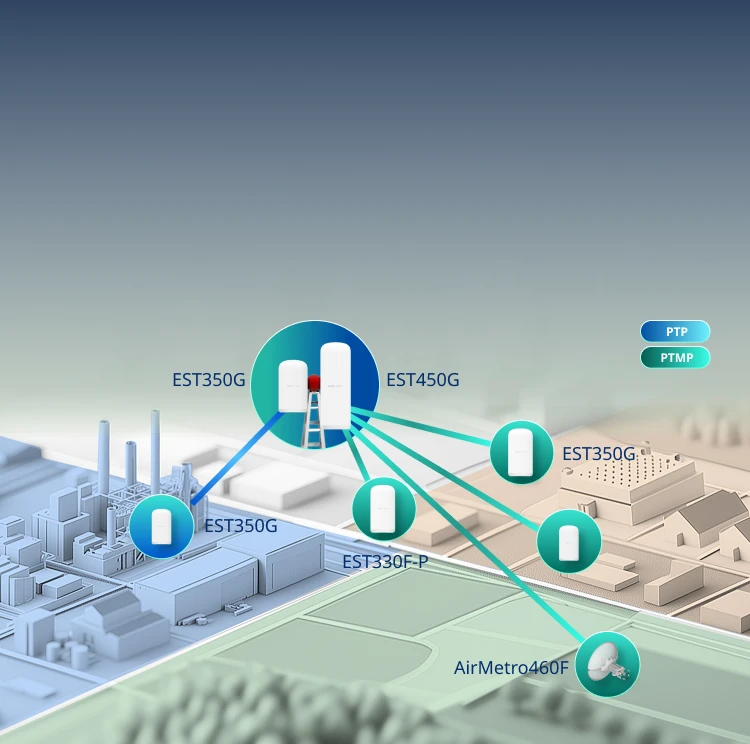

Passerelle pour les appareils alimentés par TDMA de différentes séries

Les nouveaux EST et AirMetro peuvent être combinés pour être reliés à un TDMA activé

Cloud, Faciliter votre activité

  • SON

  • Outil d'alignement

  • Balayage du spectre

  • Surveillance et
    configuration

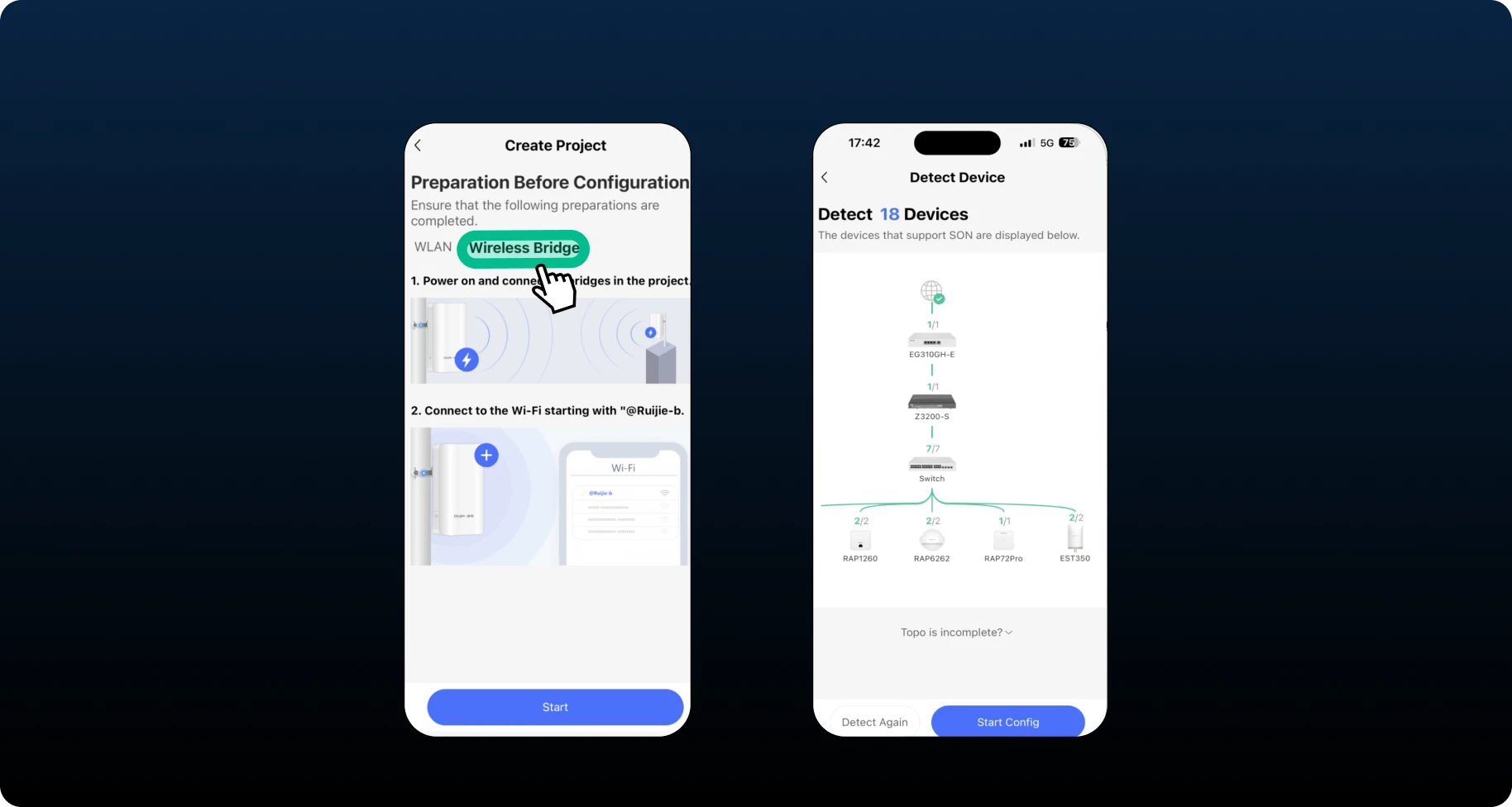

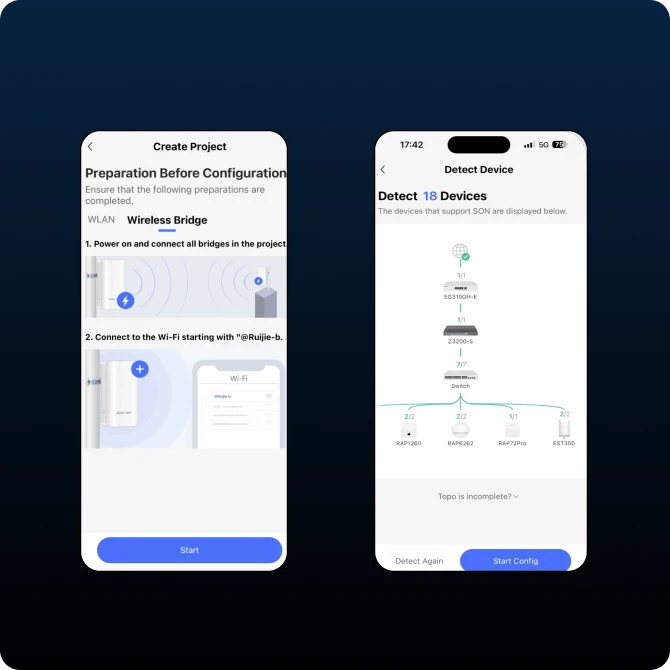

Réseau auto-organisé rapide pour le pont

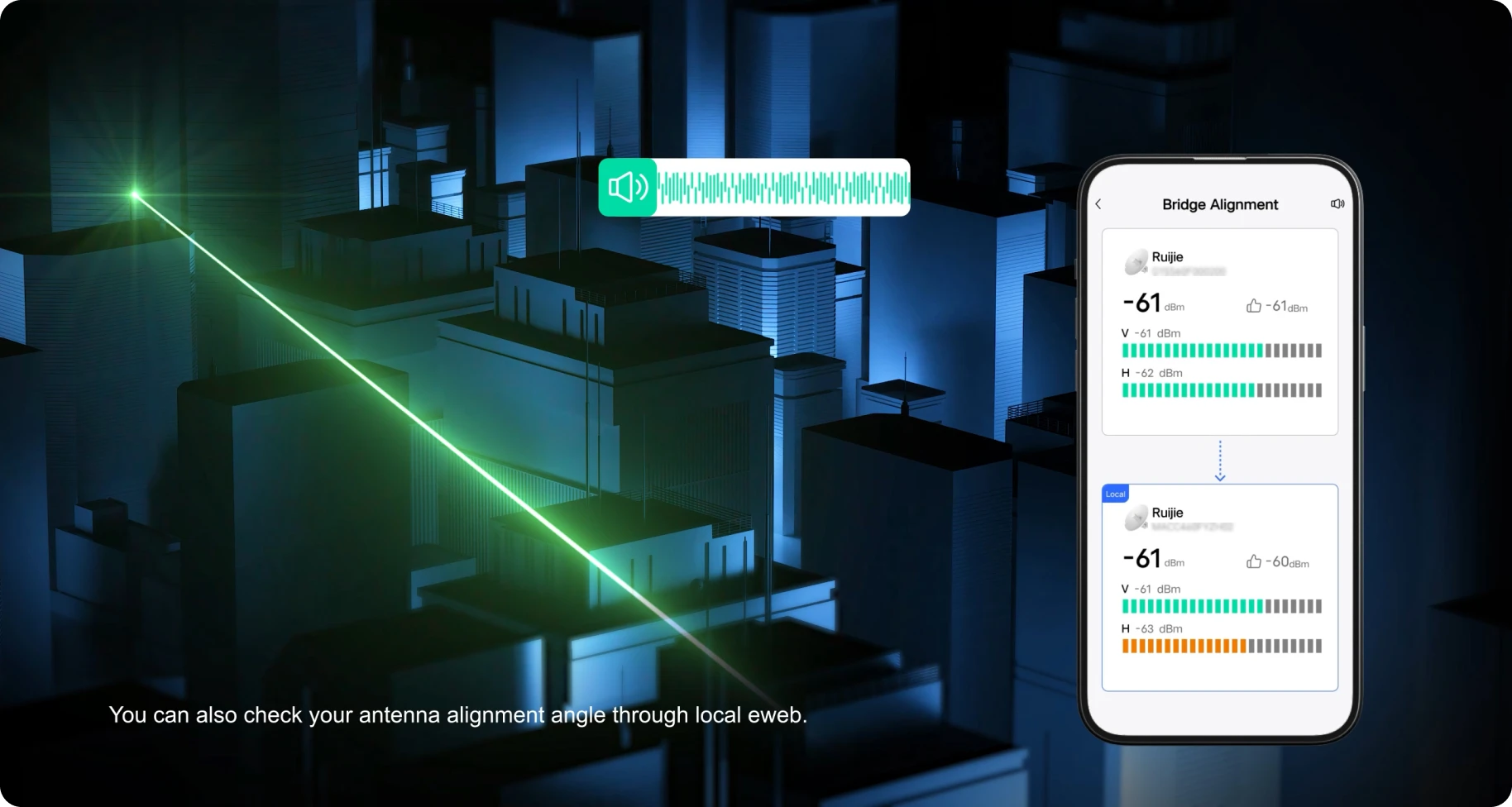

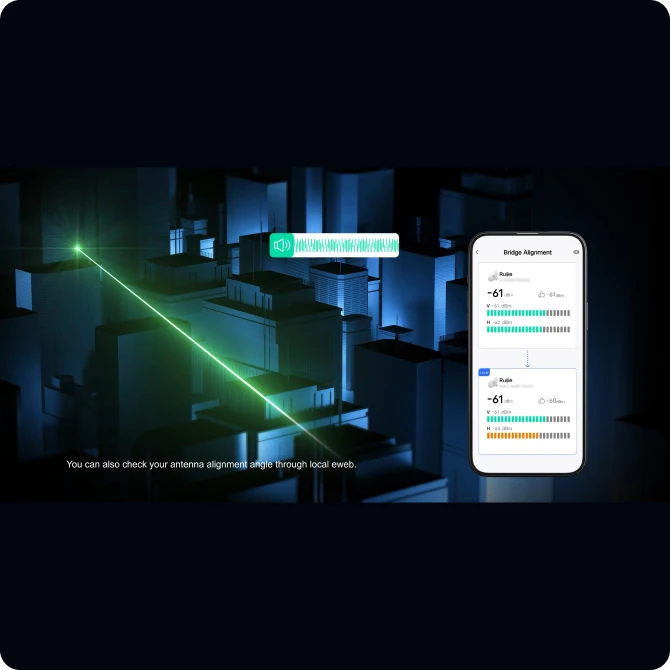

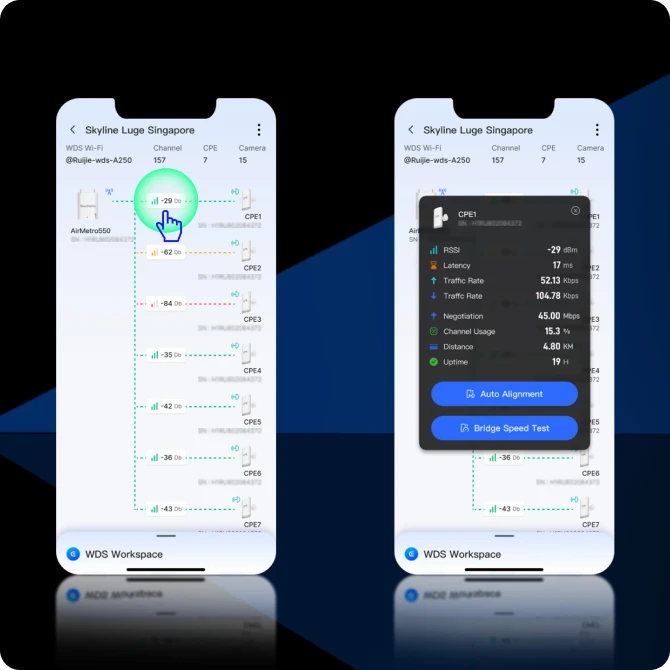

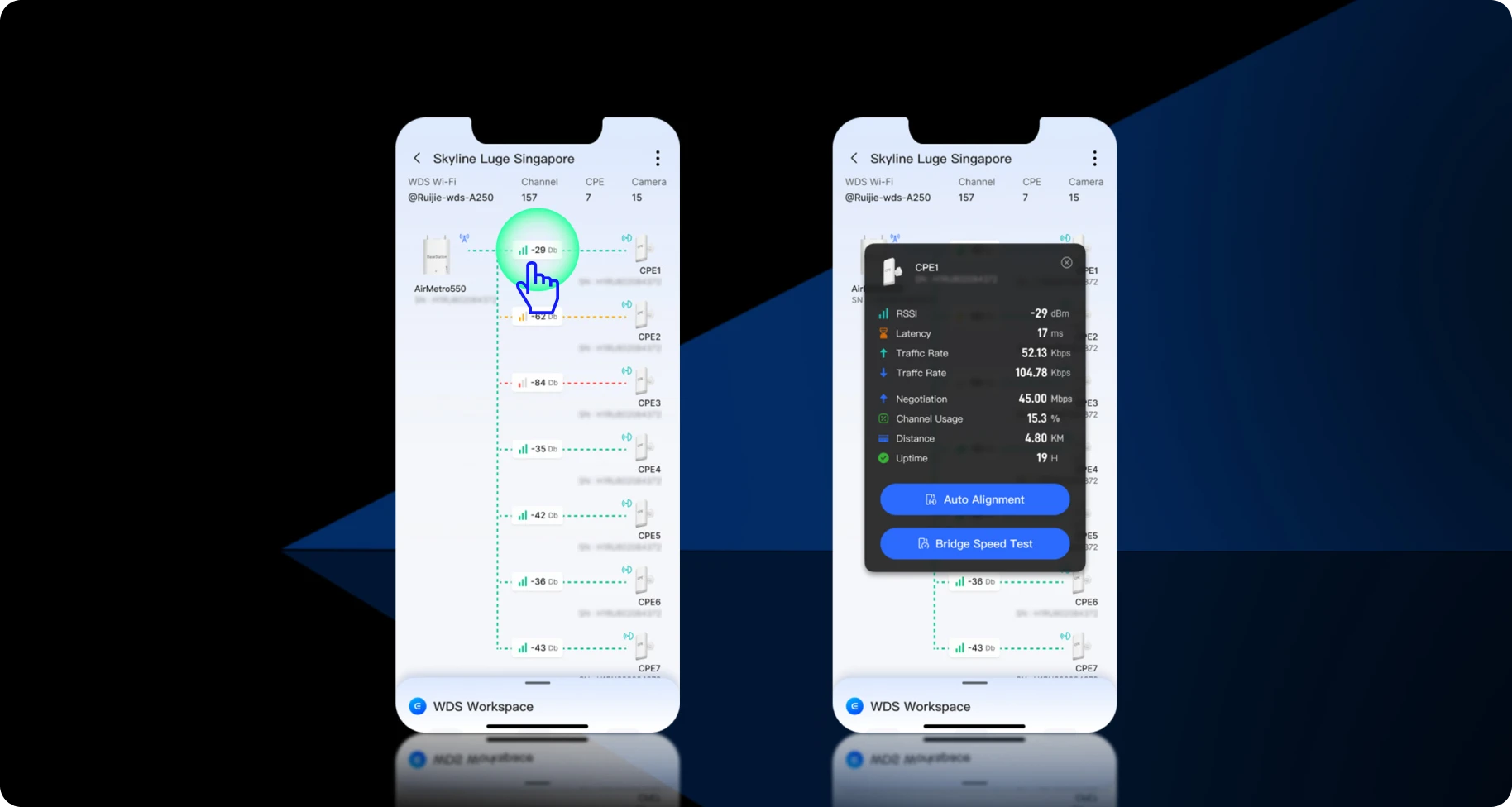

Outil d'alignement, votre guide à grande voix pour gagner du temps

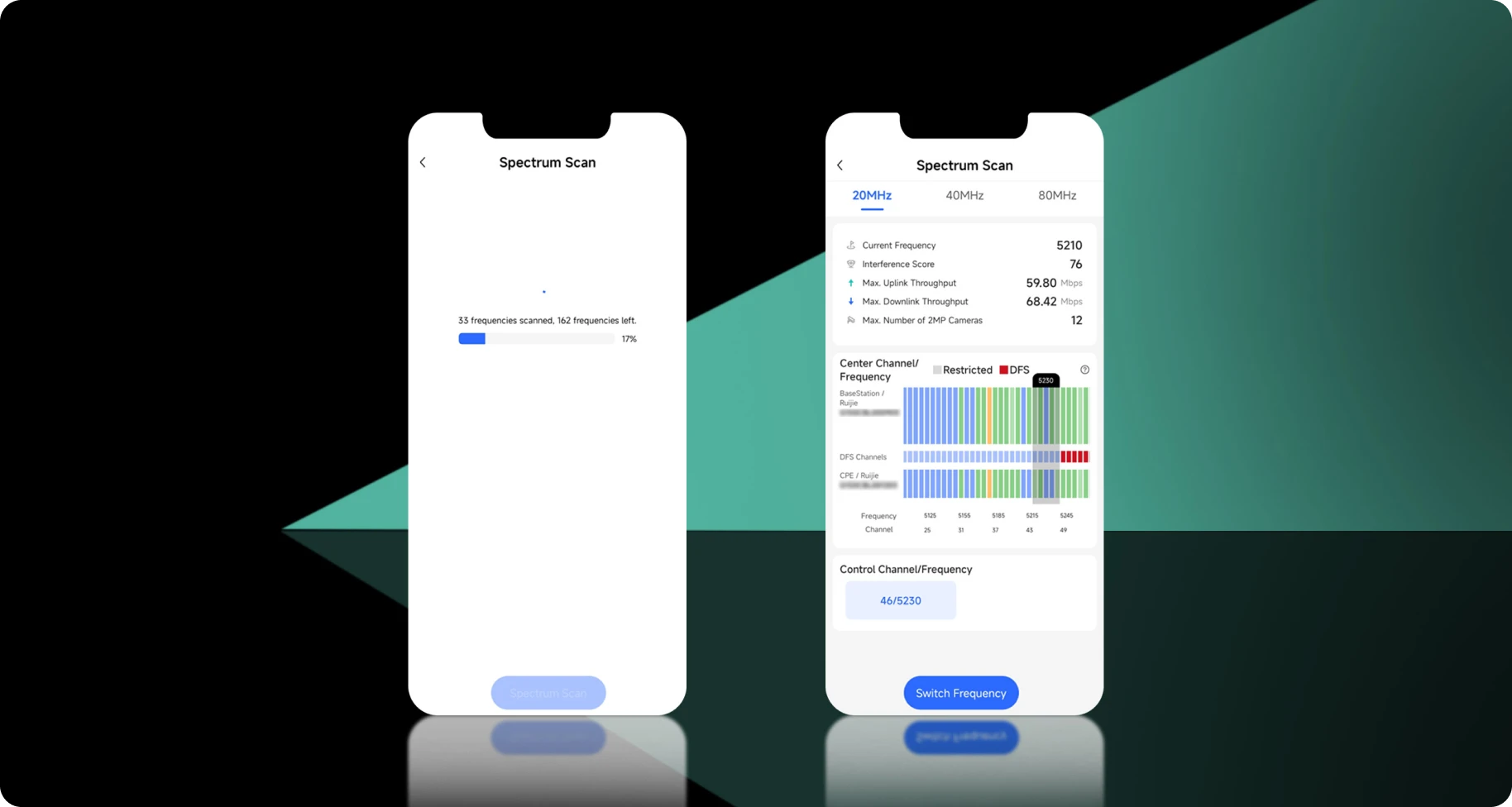

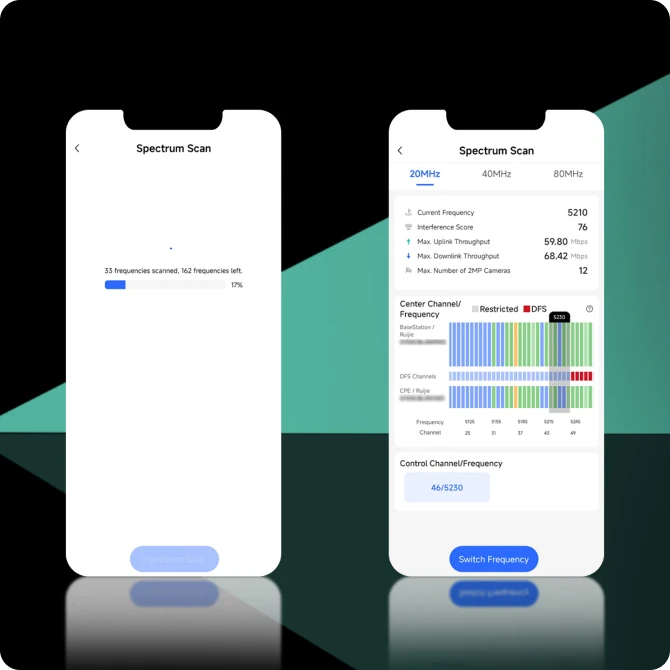

Analyse du spectre et optimisation des liens

Surveillance et configuration complètes de l'état du pont en temps réel

SON

Réseau auto-organisé rapide pour le pont

Outil d'alignement

Outil d'alignement, votre guide à grande voix pour gagner du temps

Balayage du spectre

Analyse du spectre et optimisation des liens

Surveillance et configuration

Surveillance et configuration complètes de l'état du pont en temps réel

Key Specifications
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    3 spatial streams
    ● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
    ● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width
  • Auto/20/40 MHz
5 GHz channel width
  • Auto/20/40/80 MHz
Power Supply and Consumption
Number of PoE In ports
  • 1
Number of PoE/PoE+ In ports
  • 1
Number of PoE Out ports
  • 2
Software Specifications
WLAN
Bridge speed test
  • Yes
Network Management and Monitoring
SON
  • Yes
AI heatmap
  • Yes
Restarting devices through Ruijie Reyee App
  • Yes
SNMPv1, v2c, and v3
  • No
