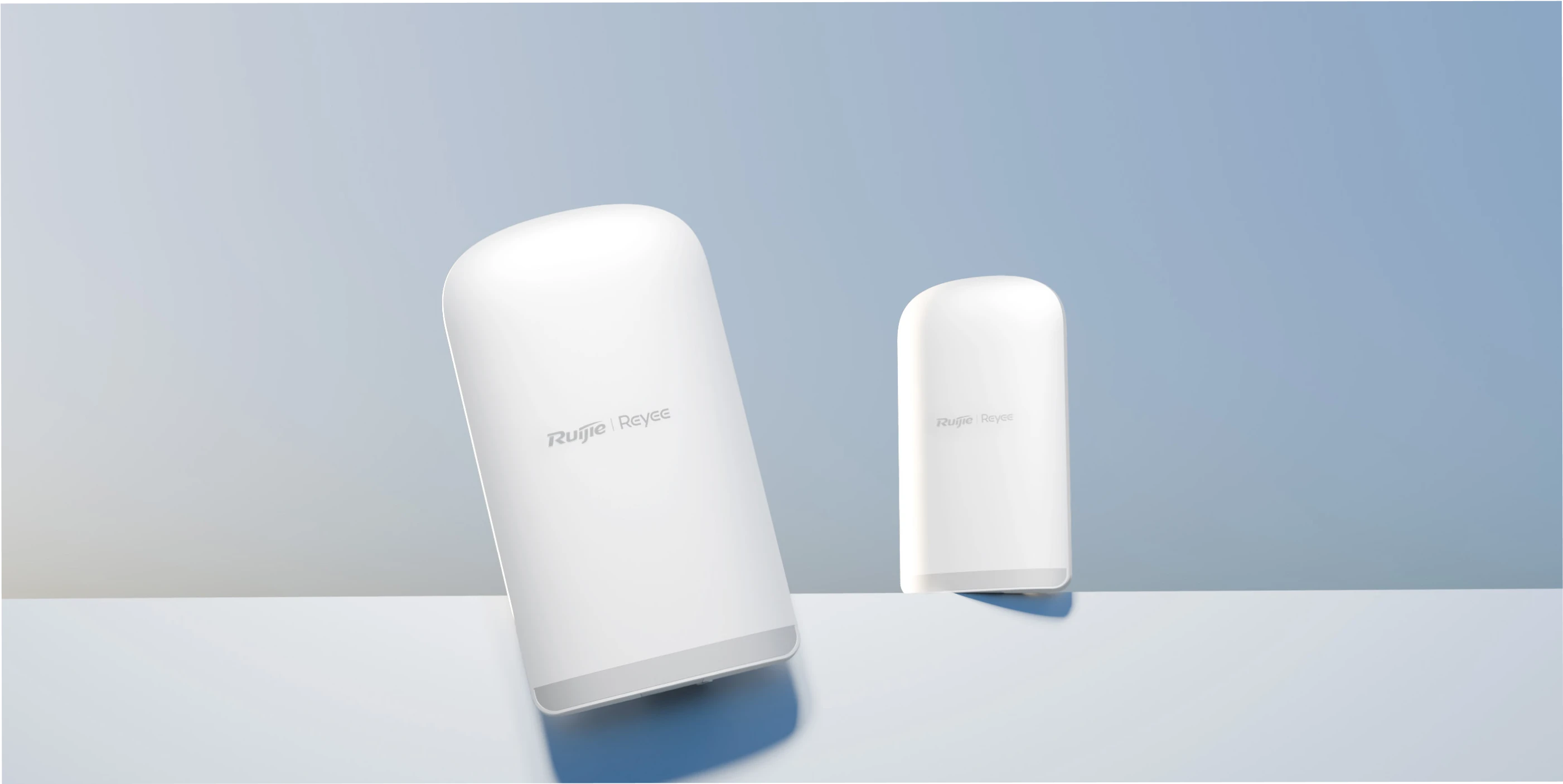

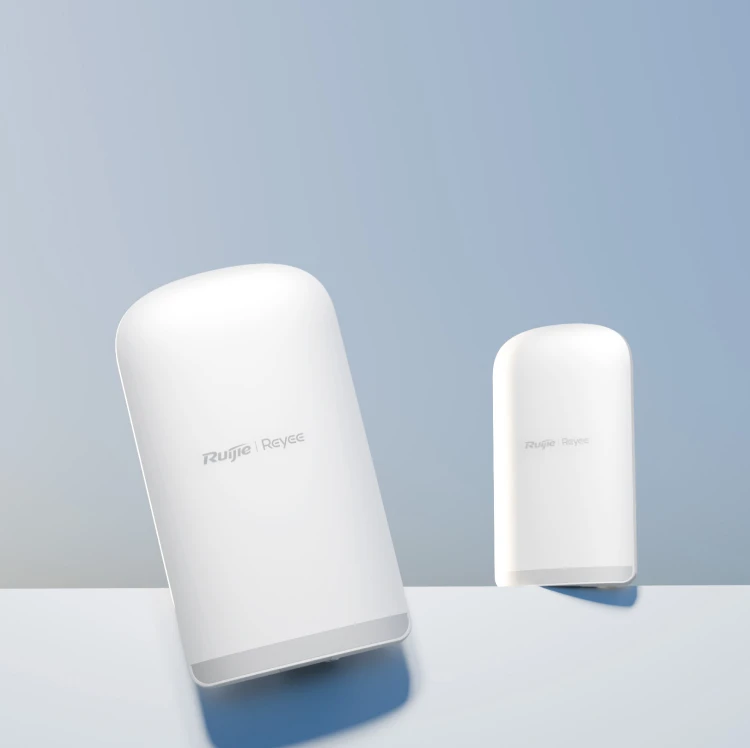

RG-EST350G, 5 km, 16 dBi Drahtlosbrücke

Straße, Gebäude, Campus, Bauernhof, Fabrik usw.

Models
RG-EST350 V2

5KM, 2 GE ports

 RG-EST350G

5 km, 3 GE-Anschlüsse
Series
1 km PTP/PTMP 3 km PTP/PTMP 5 km PTP/PTMP 500 Meter PTP PTMP Station
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • 3 GE-Anschlüsse
  • Unterstützt 3 Stromversorgungsoptionen: 12 V DC, passives PoE, 802.3af/at
  • Automatische PTP-Kopplung
  • One-Touch-Kopplung für den PTMP-Modus
  • Unterstützt TDMA
  • Unterstützt SON
Sales Enquiry
Funktionen

RG-EST350G

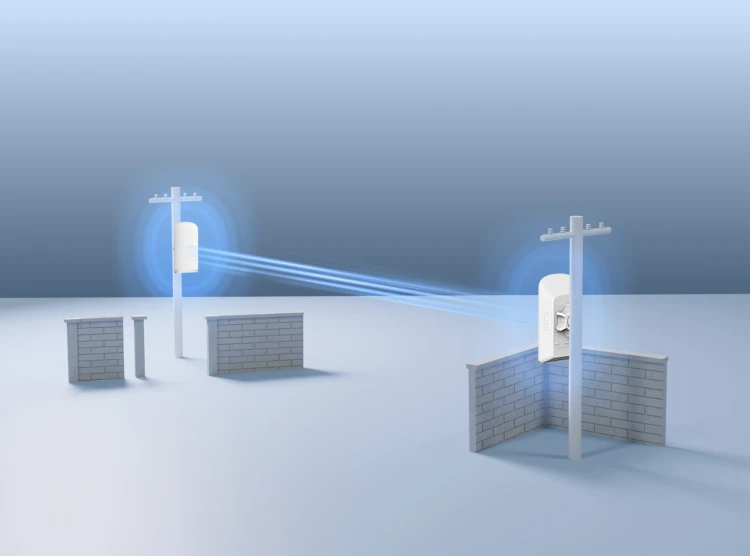

EST-Brücke mit 5 km Arbeitsabstand

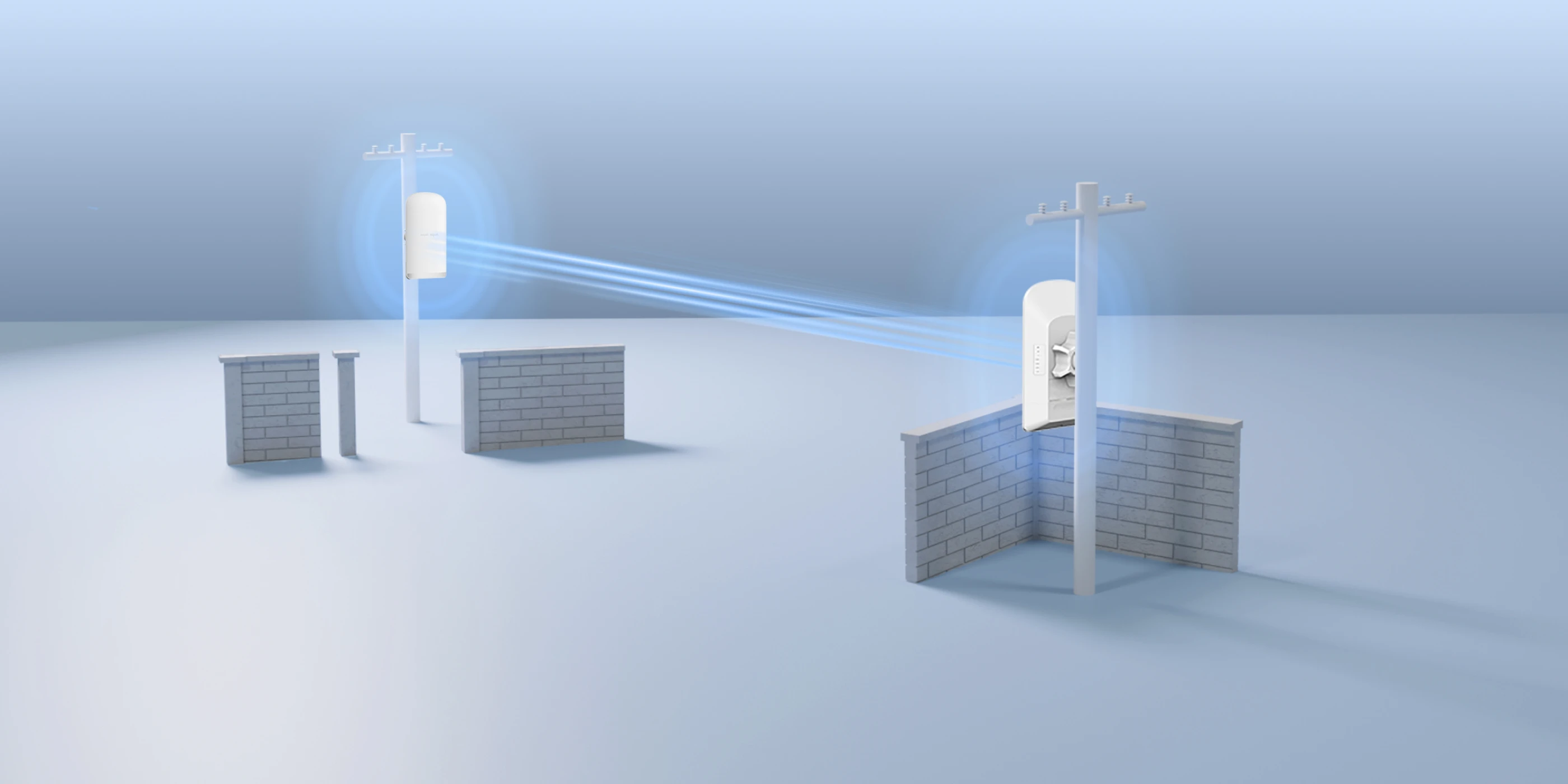

Automatische PTP-Kopplung

  • 5 GHz, 867 Mbit/s

  • H: 31°, V: 14°

  • 16 dBi

  • 5 km Abstand

  • IP55
    Wetterfest

  • TDMA

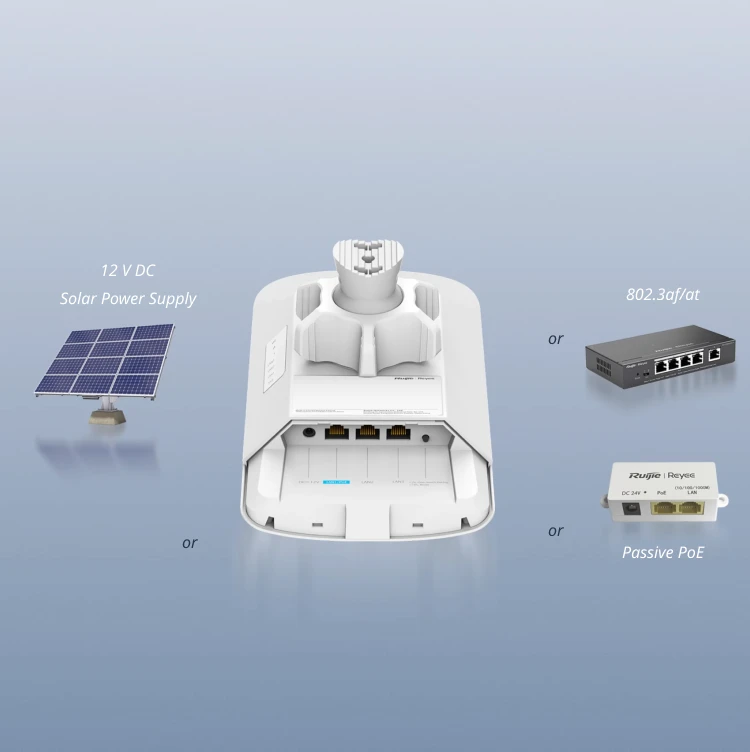

Dreifache Stromeingangsoptionen für flexiblen Einsatz

  • 3 FE-Anschlüsse

  • 3 Jahre Garantie

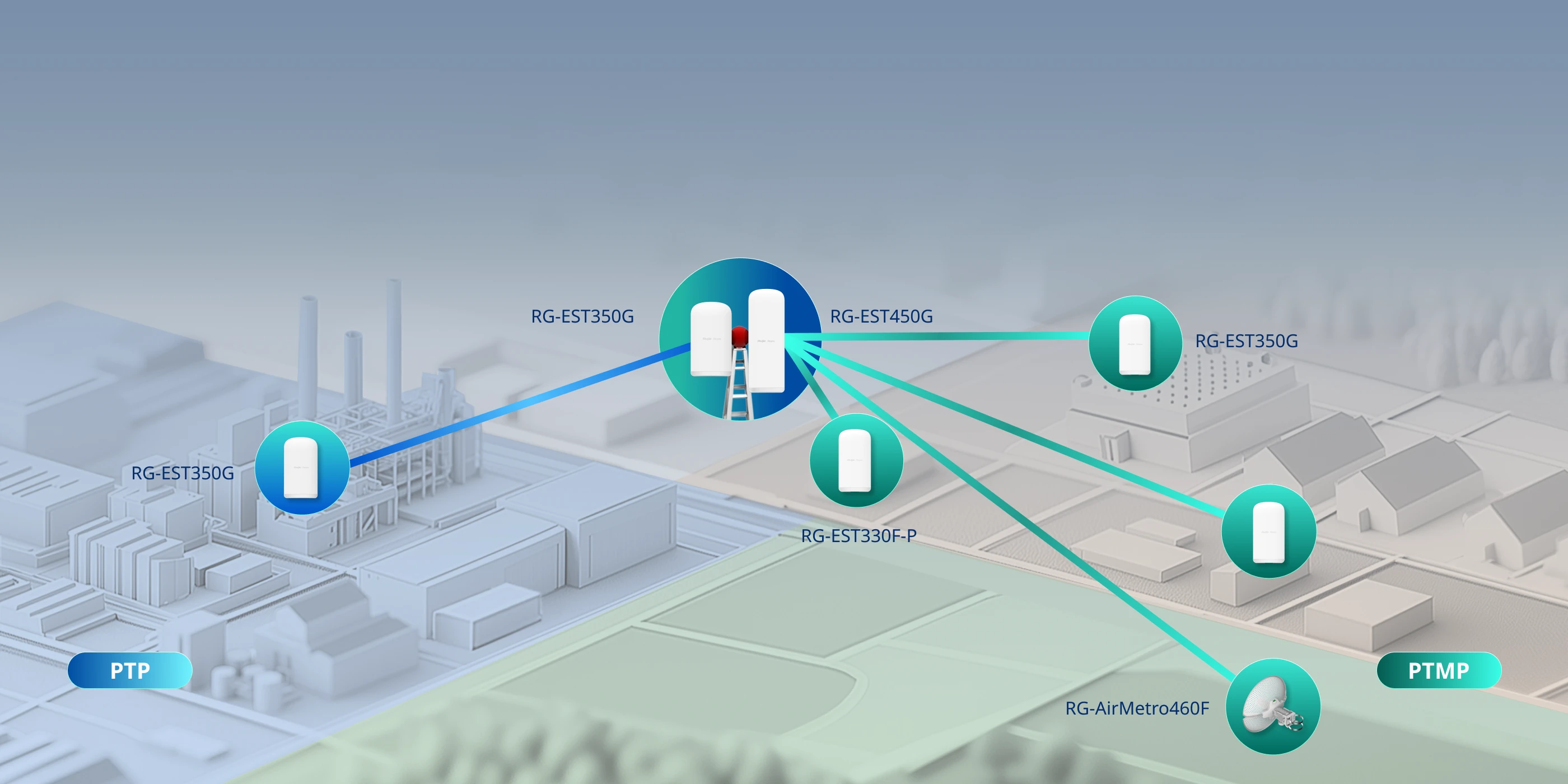

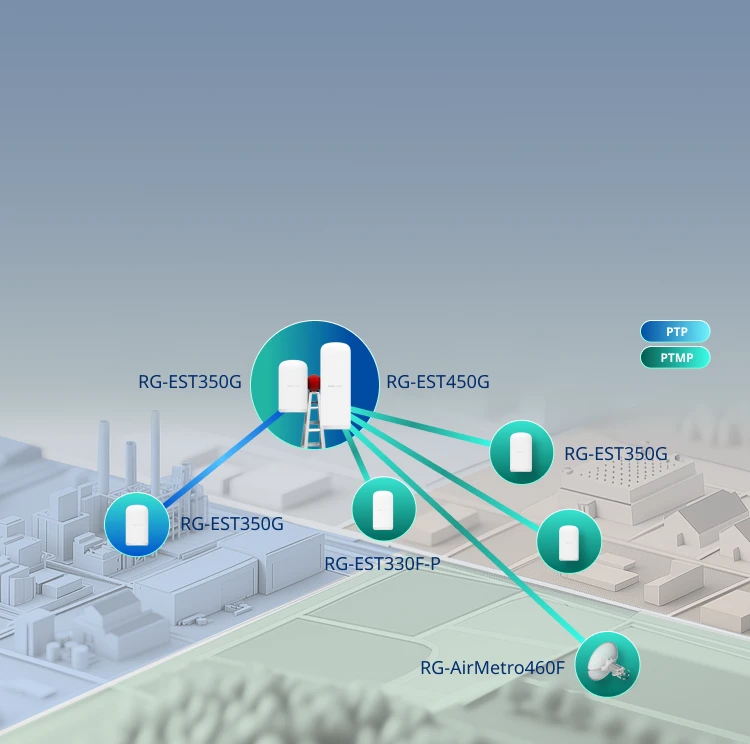

Überbrückung für TDMA-betriebene Geräte verschiedener Serien

Die neuen EST und AirMetro können für die Überbrückung mit aktiviertem TDMA gemischt werden

Cloud macht Ihr Unternehmen einfach

  • SON

  • Ausrichtungstool

  • Spektralscan

  • Spektralscan und
    Link-Optimierung

Schnelles Selbst-Organisierendes Netzwerk für die Brücke

Ausrichtungstool, Ihre große Stimme, Zeitsparende Anleitung

Spektralscan und Link-Optimierung

Umfassende Überwachung und Konfiguration des Brückenstatus in Echtzeit

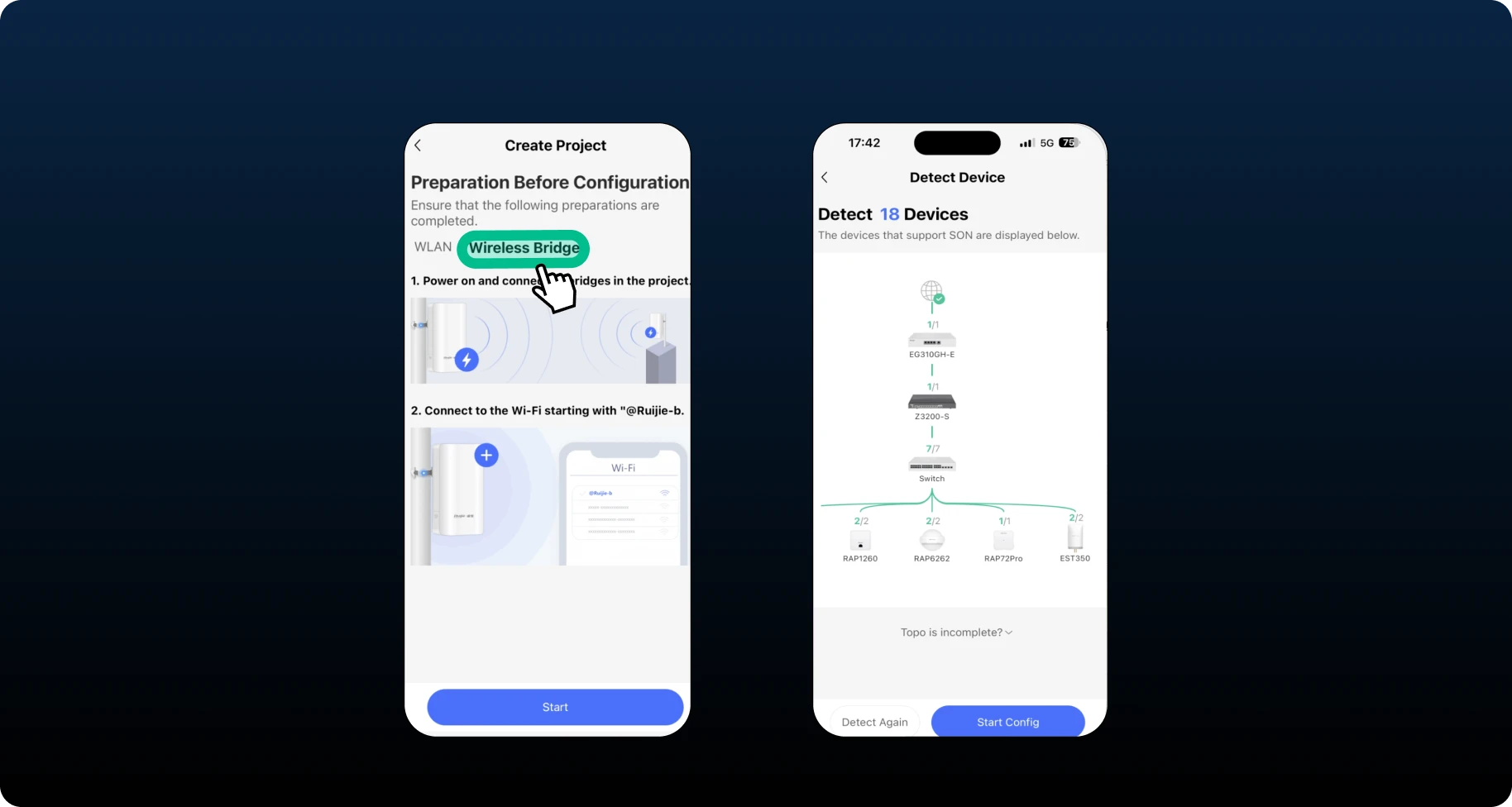

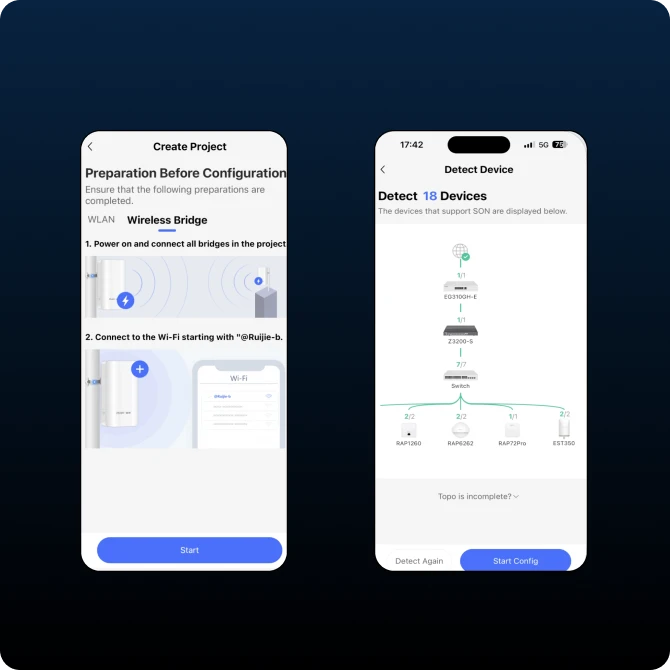

SON

Schnelles Selbst-Organisierendes Netzwerk für die Brücke

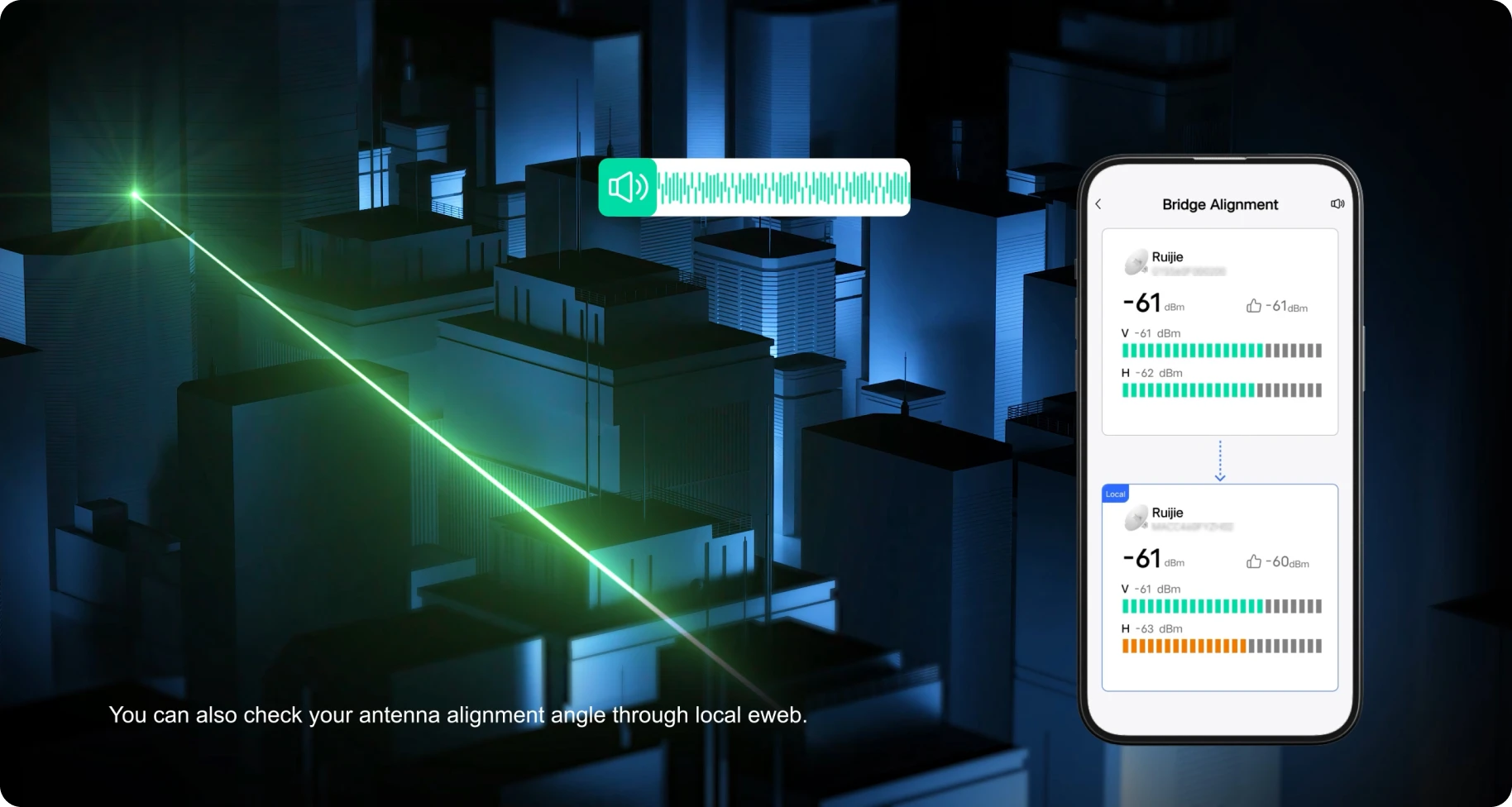

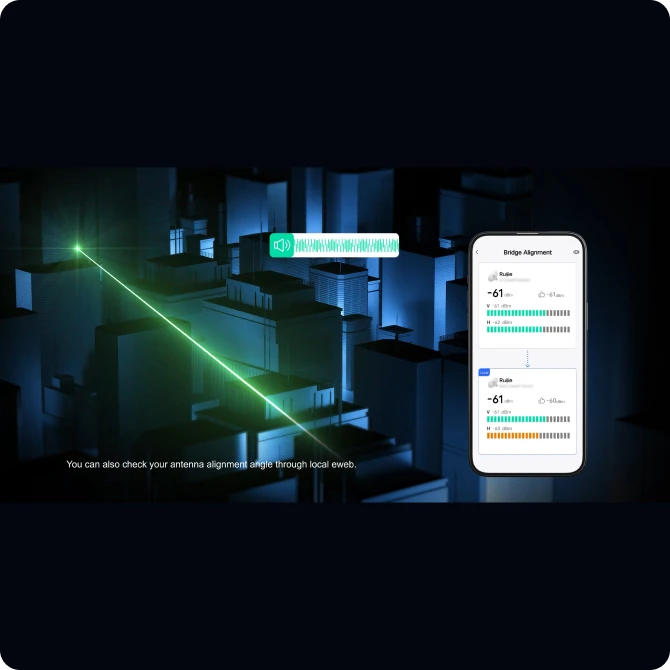

Ausrichtungstool

Ausrichtungstool, Ihre große Stimme, Zeitsparende Anleitung

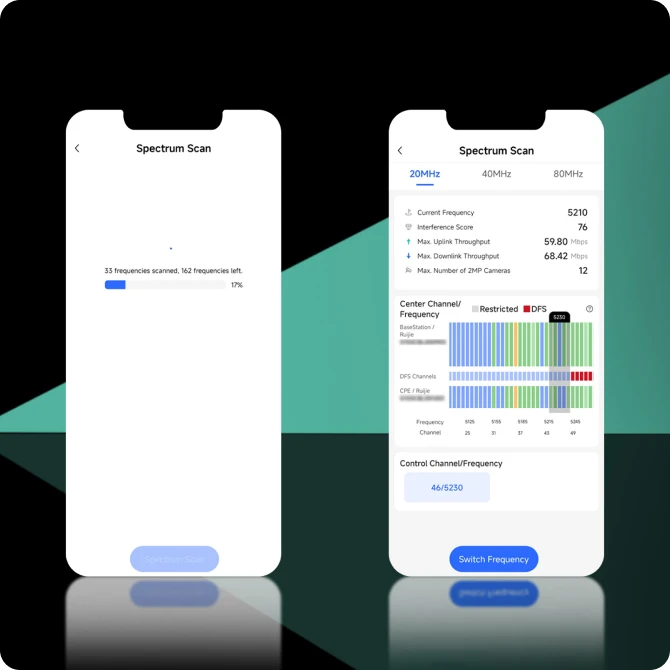

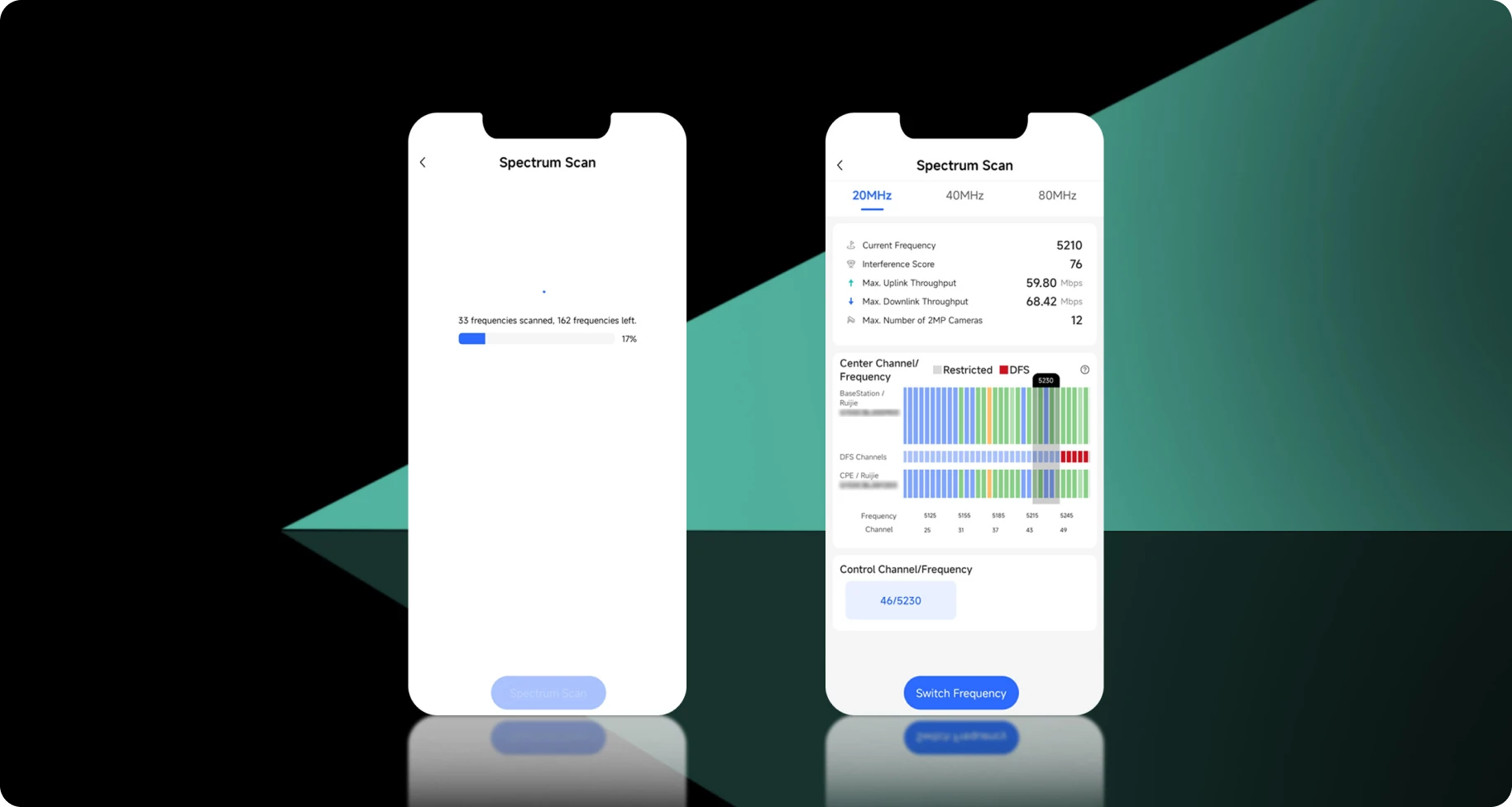

Spektralscan

Spektralscan und Link-Optimierung

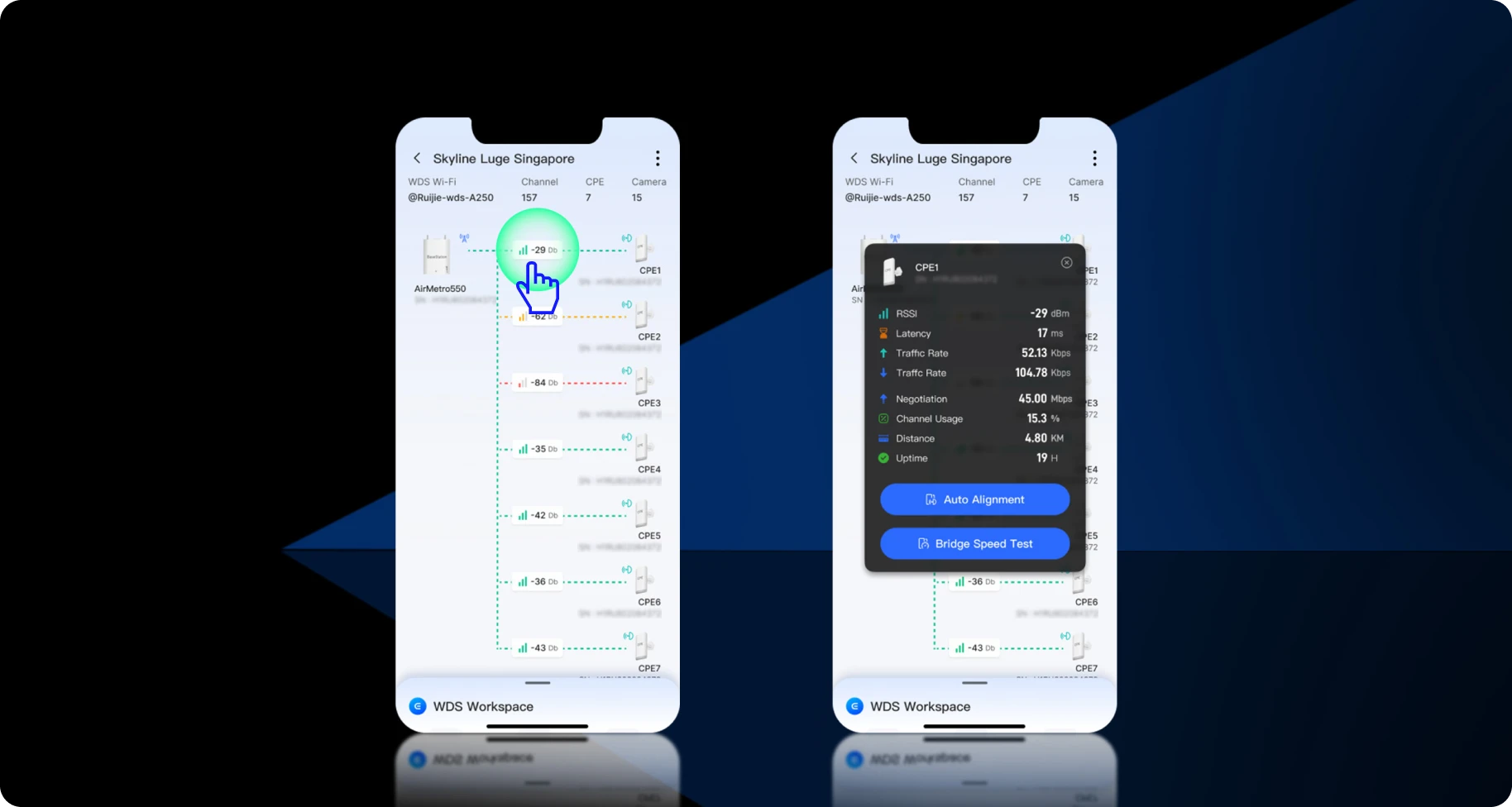

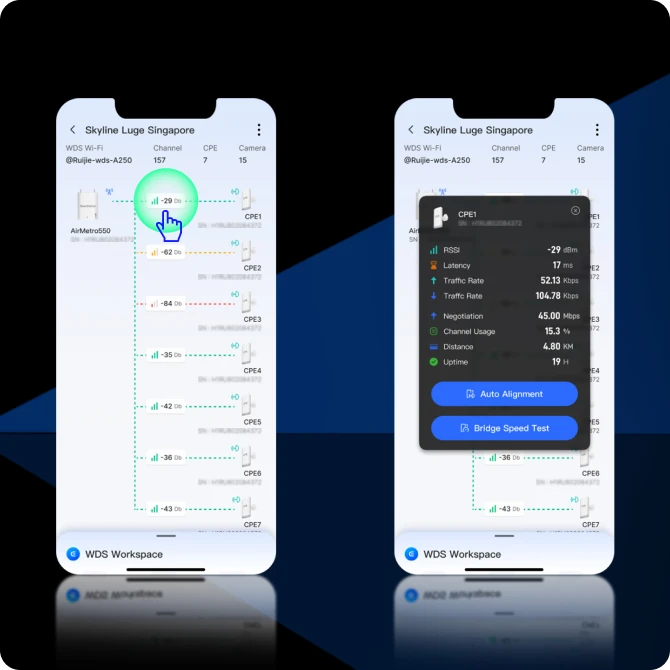

Überwachung und Konfiguration

Umfassende Überwachung und Konfiguration des Brückenstatus in Echtzeit

Ruijie Networks websites use cookies to deliver and improve the website experience.

See our cookie policy for further details on how we use cookies and how to change your cookie settings.

Accept All

Manage Cookies

Cookie Manager

When you visit any website, the website will store or retrieve the information on your browser. This process is mostly in the form of cookies. Such information may involve your personal information, preferences or equipment, and is mainly used to enable the website to provide services in accordance with your expectations. Such information usually does not directly identify your personal information, but it can provide you with a more personalized network experience. We fully respect your privacy, so you can choose not to allow certain types of cookies. You only need to click on the names of different cookie categories to learn more and change the default settings. However, blocking certain types of cookies may affect your website experience and the services we can provide you.

  • Performance cookies

    Through this type of cookie, we can count website visits and traffic sources in order to evaluate and improve the performance of our website. This type of cookie can also help us understand the popularity of the page and the activity of visitors on the site. All information collected by such cookies will be aggregated to ensure the anonymity of the information. If you do not allow such cookies, we will have no way of knowing when you visited our website, and we will not be able to monitor website performance.

  • Essential cookies

    This type of cookie is necessary for the normal operation of the website and cannot be turned off in our system. Usually, they are only set for the actions you do, which are equivalent to service requests, such as setting your privacy preferences, logging in, or filling out forms. You can set your browser to block or remind you of such cookies, but certain functions of the website will not be available. Such cookies do not store any personally identifiable information.

Accept All

View Cookie Policy Details

Contact Us

Contact Us

How can we help you?

Contact Us

Get an Order help

Contact Us

Get a tech support

TOP
Key Specifications
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    3 spatial streams
    ● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
    ● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width
  • Auto/20/40 MHz
5 GHz channel width
  • Auto/20/40/80 MHz
Power Supply and Consumption
Number of PoE In ports
  • 1
Number of PoE/PoE+ In ports
  • 1
Software Specifications
WLAN
Bridge speed test
  • Yes
Network Management and Monitoring
SON
  • Yes
AI heatmap
  • Yes
Restarting devices through Ruijie Reyee App
  • Yes
SNMPv1, v2c, and v3
  • Yes
