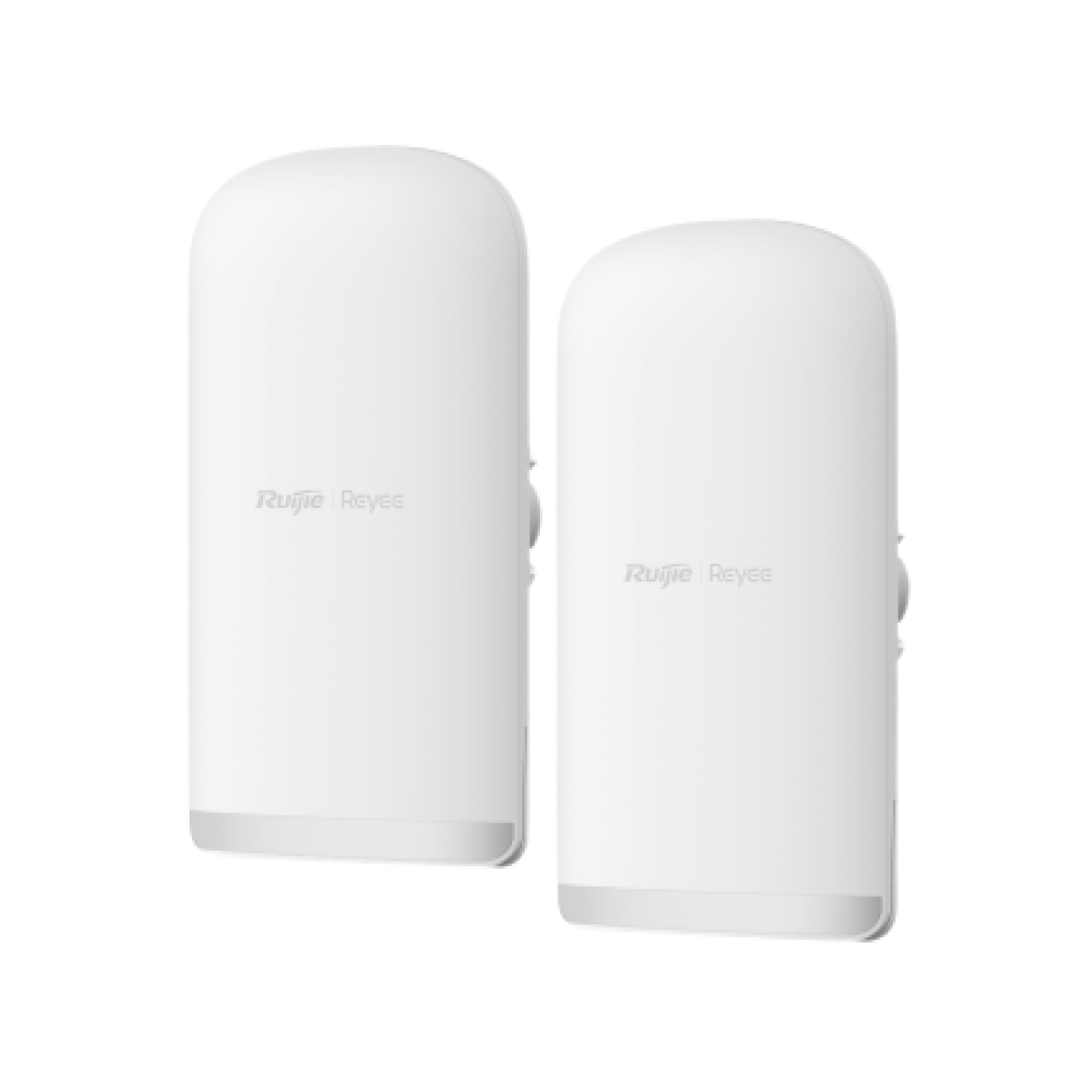

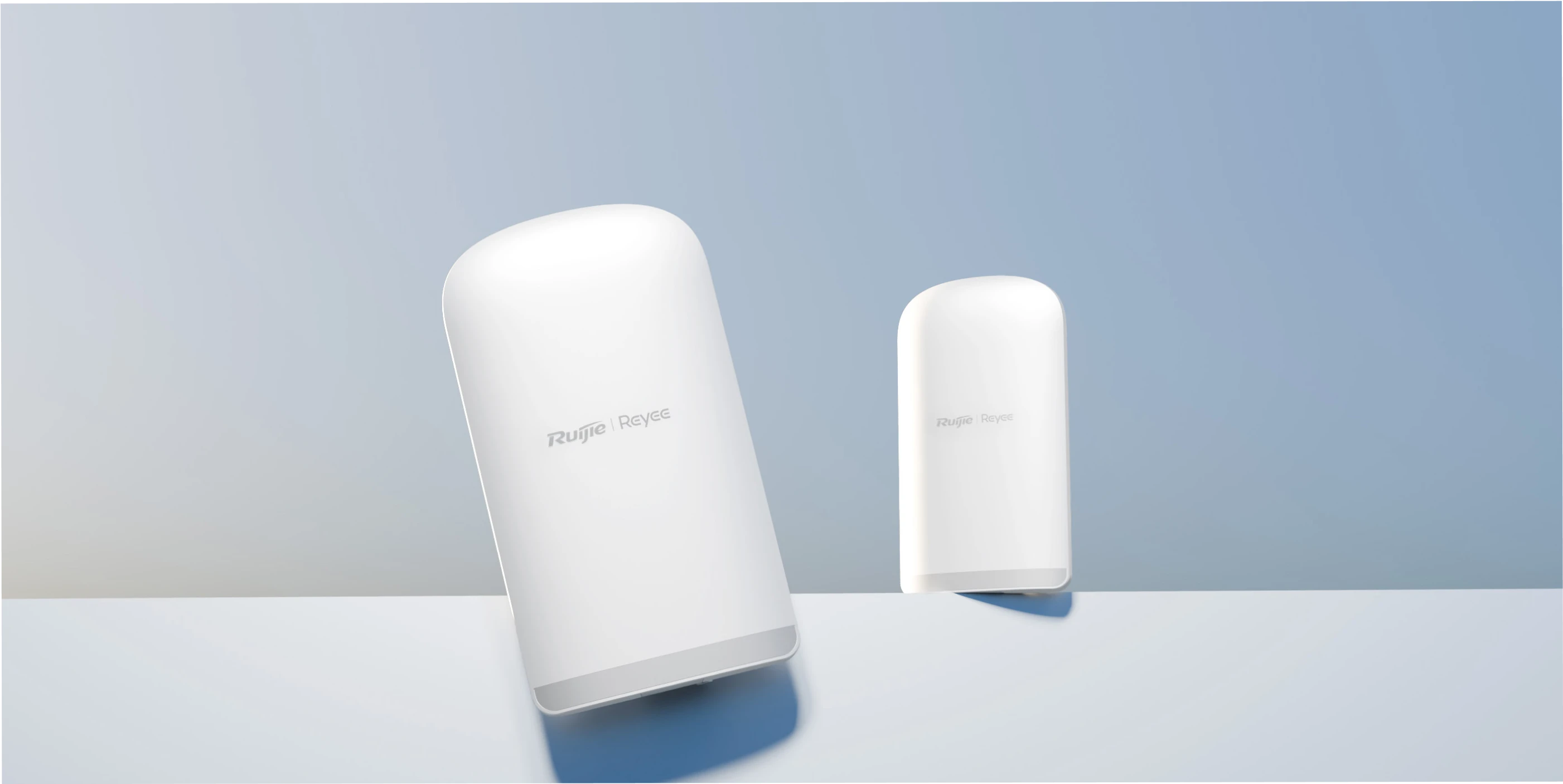

RG-EST350G, 5 km, 16 dBi Wireless Bridge

Street, Building, Campus, Farm, Factory, etc.

Models
RG-EST350G

5 km, 3 x GE Ports

 RG-EST350 V2

5KM, 2 GE ports
Series
1 km PTP/PTMP 3 km PTP/PTMP 5 km PTP/PTMP 500 meters PTP PTMP Station
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • 3 x GE Ports
  • Support 3 Power Supply Options: 12 V DC, Passive PoE, 802.3af/at
  • Automatic PTP Pairing
  • One-Touch Pairing for PTMP Mode
  • Support TDMA
  • Support SON
Sales Enquiry
Features

RG-EST350G

5 km Working Distance EST Bridge

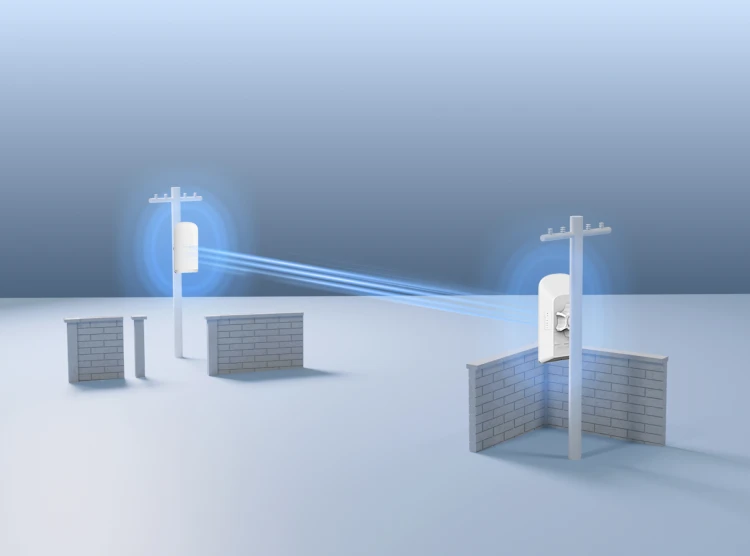

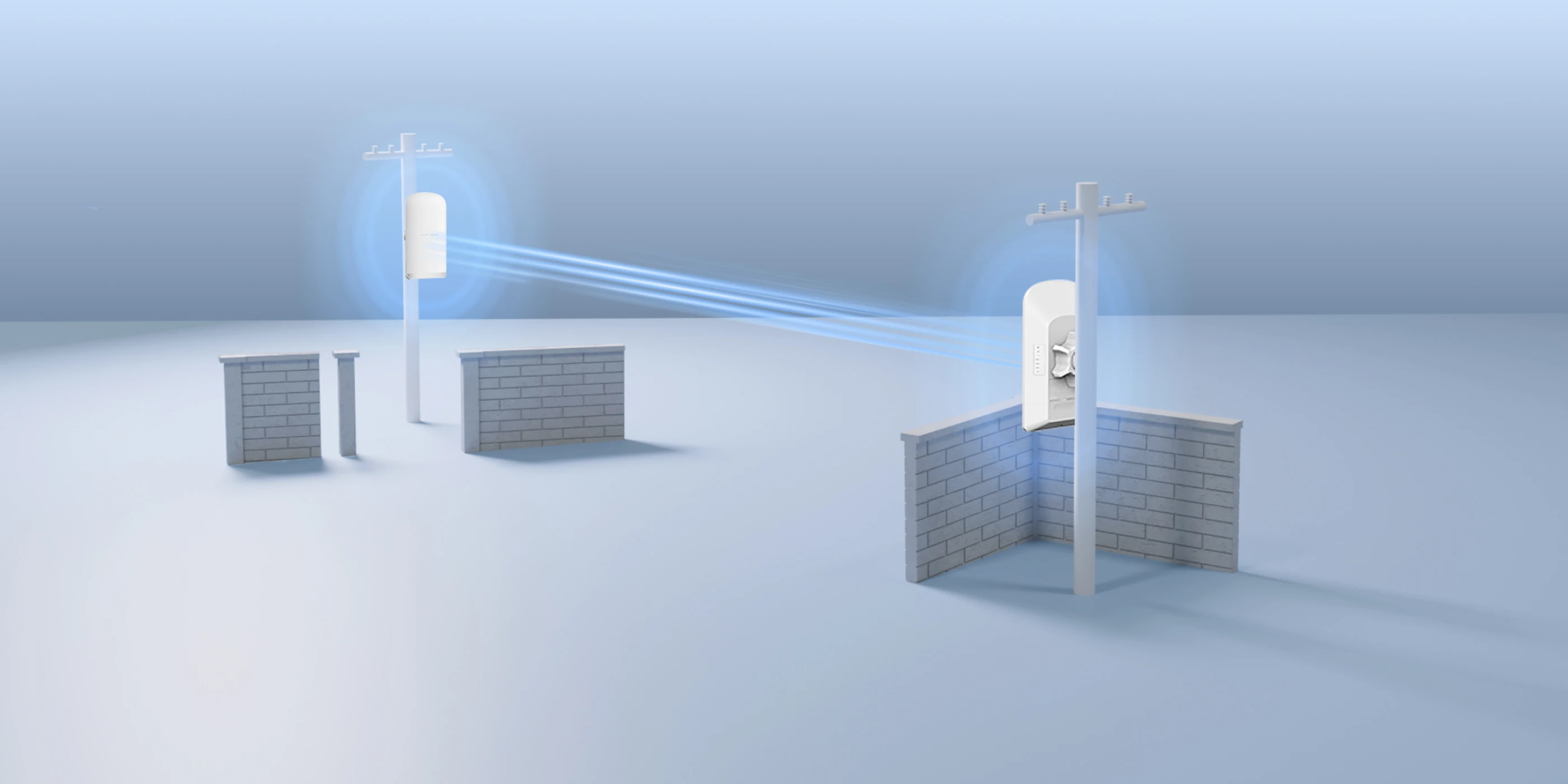

Automatic PTP Pairing

  • 5 GHz, 867 Mbps

  • H: 31°, V: 14°

  • 16 dBi

  • 5 km distance

  • IP55
    Weatherproof

  • TDMA

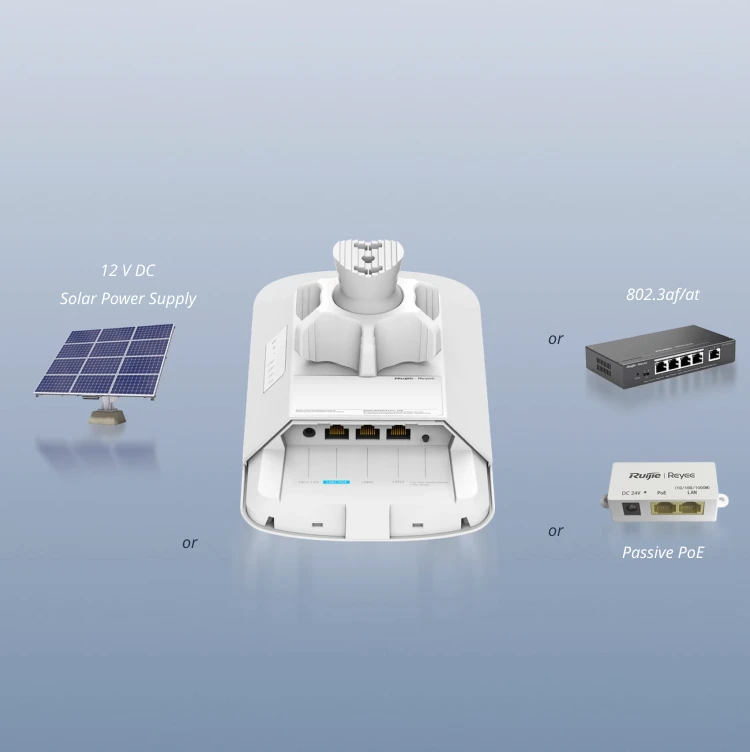

Triple Power Input Options for Flexible Deployment

  • 3 x GE Ports

  • 3-Year Warranty

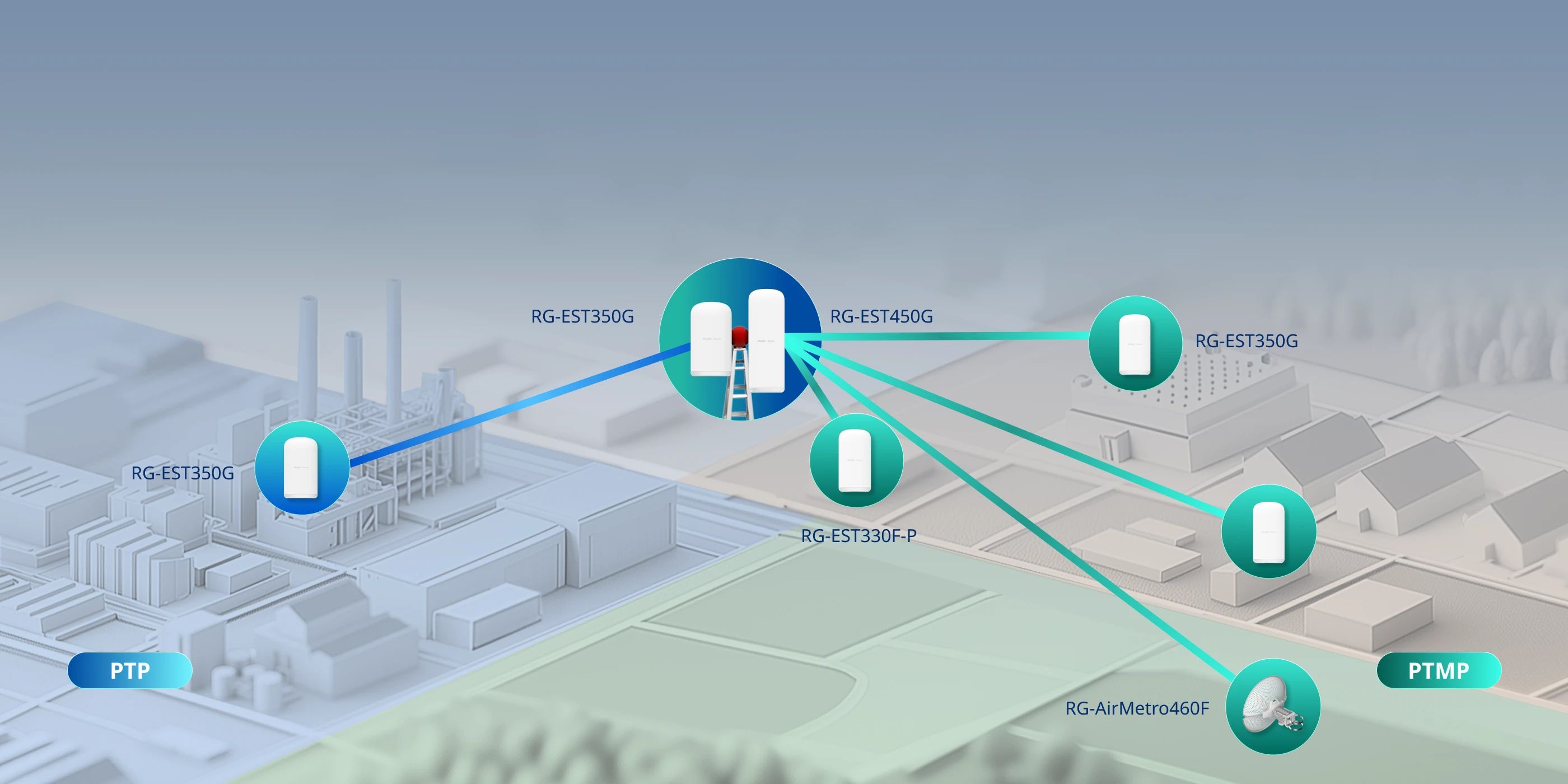

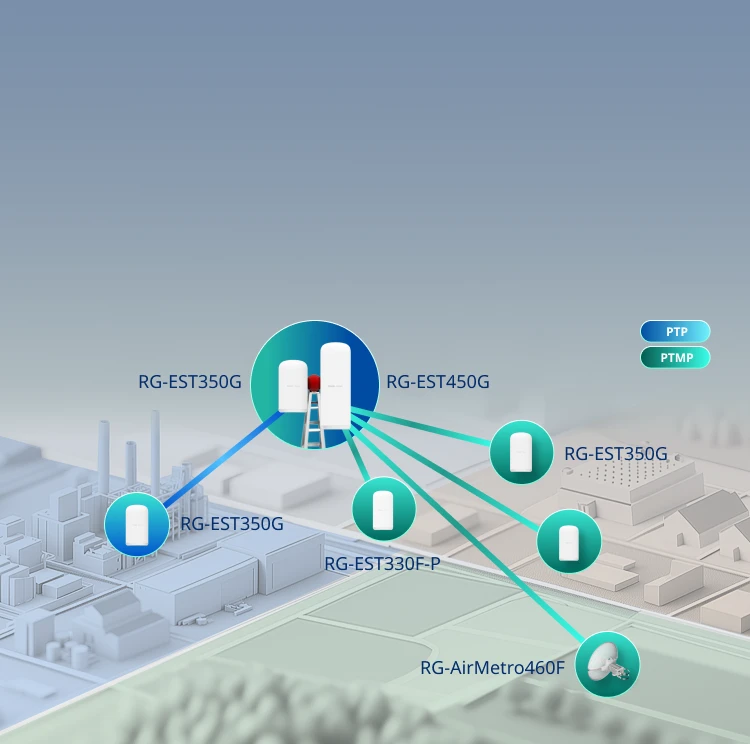

Bridging for TDMA-Powered Devices of Different Series

The new EST and AirMetro can be mixed for bridging with TDMA enabled

Cloud, Make Your Business Easy

  • SON

  • Alignment Tool

  • Spectrum Scan

  • Monitoring &
    Configuration

Quick Self-Organizing Network for Bridge

Alignment Tool, Your Big-Voice, Time-Saver Guide

Spectrum Scan and Link Optimization

Real-time Comprehensive Bridge Status Monitoring & Configuration

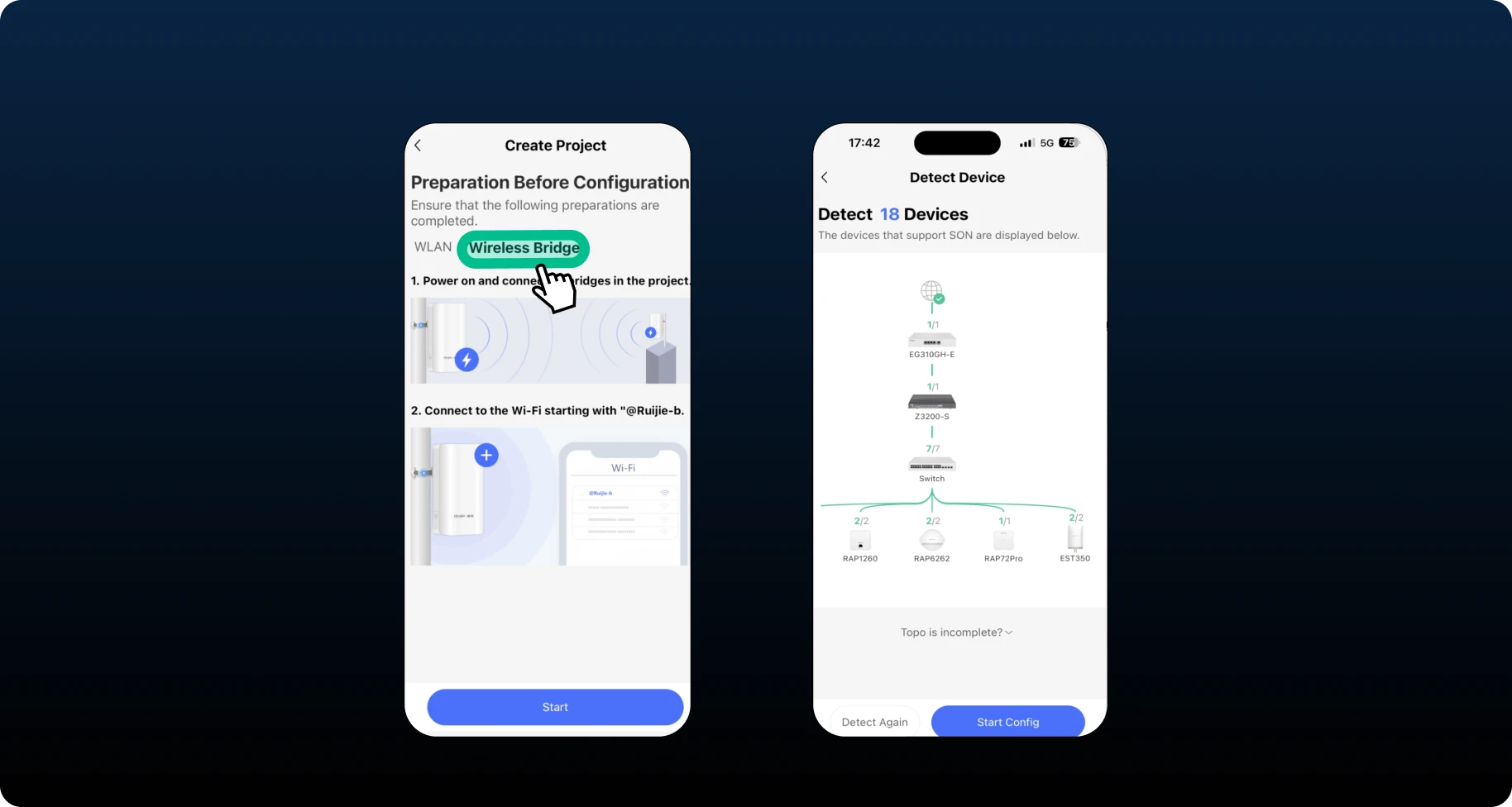

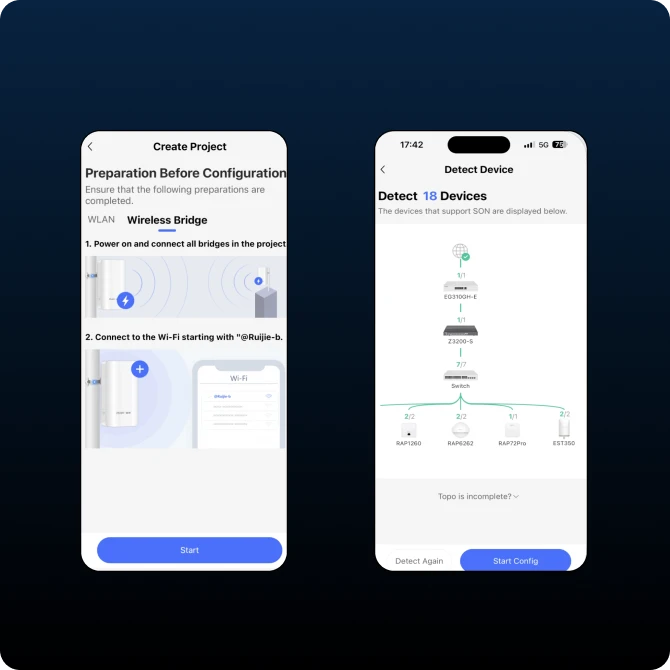

SON

Quick Self-Organizing Network for Bridge

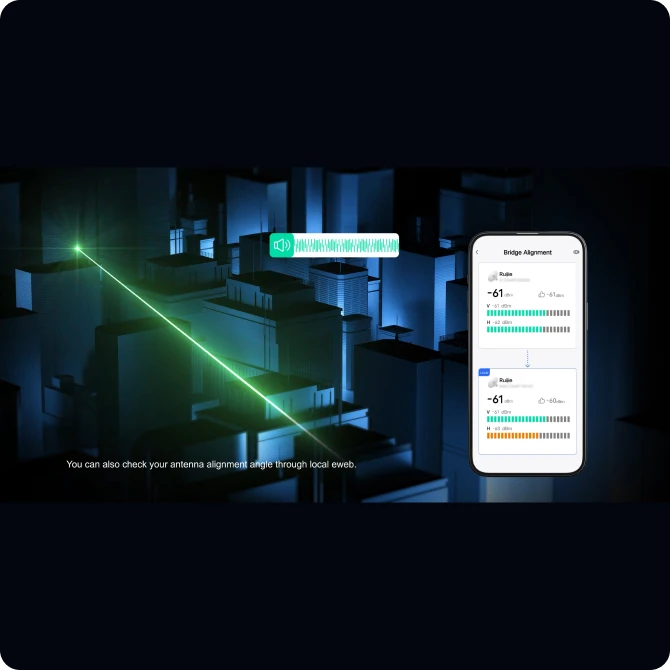

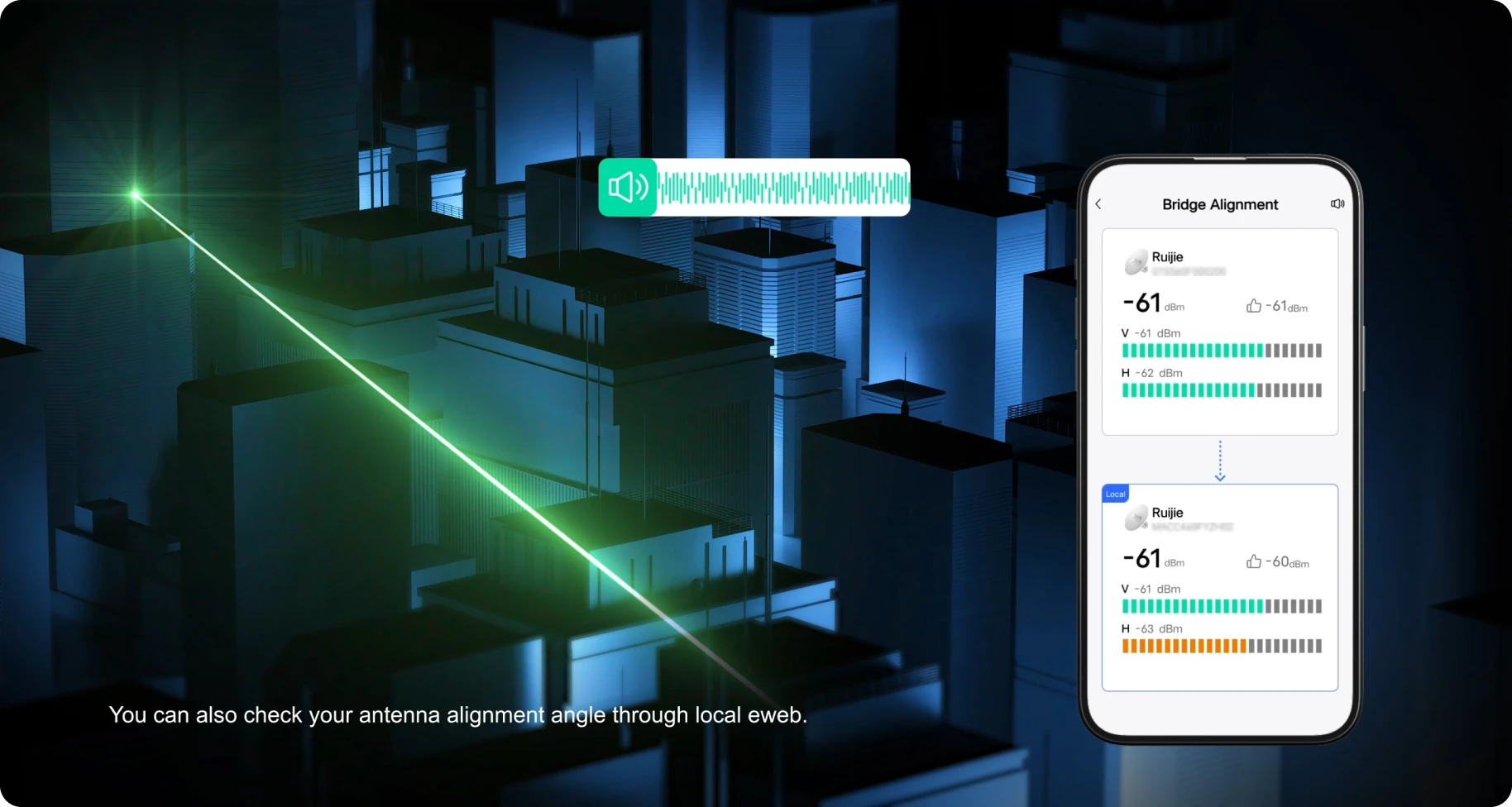

Alignment Tool

Alignment Tool, Your Big-Voice, Time-Saving Guide

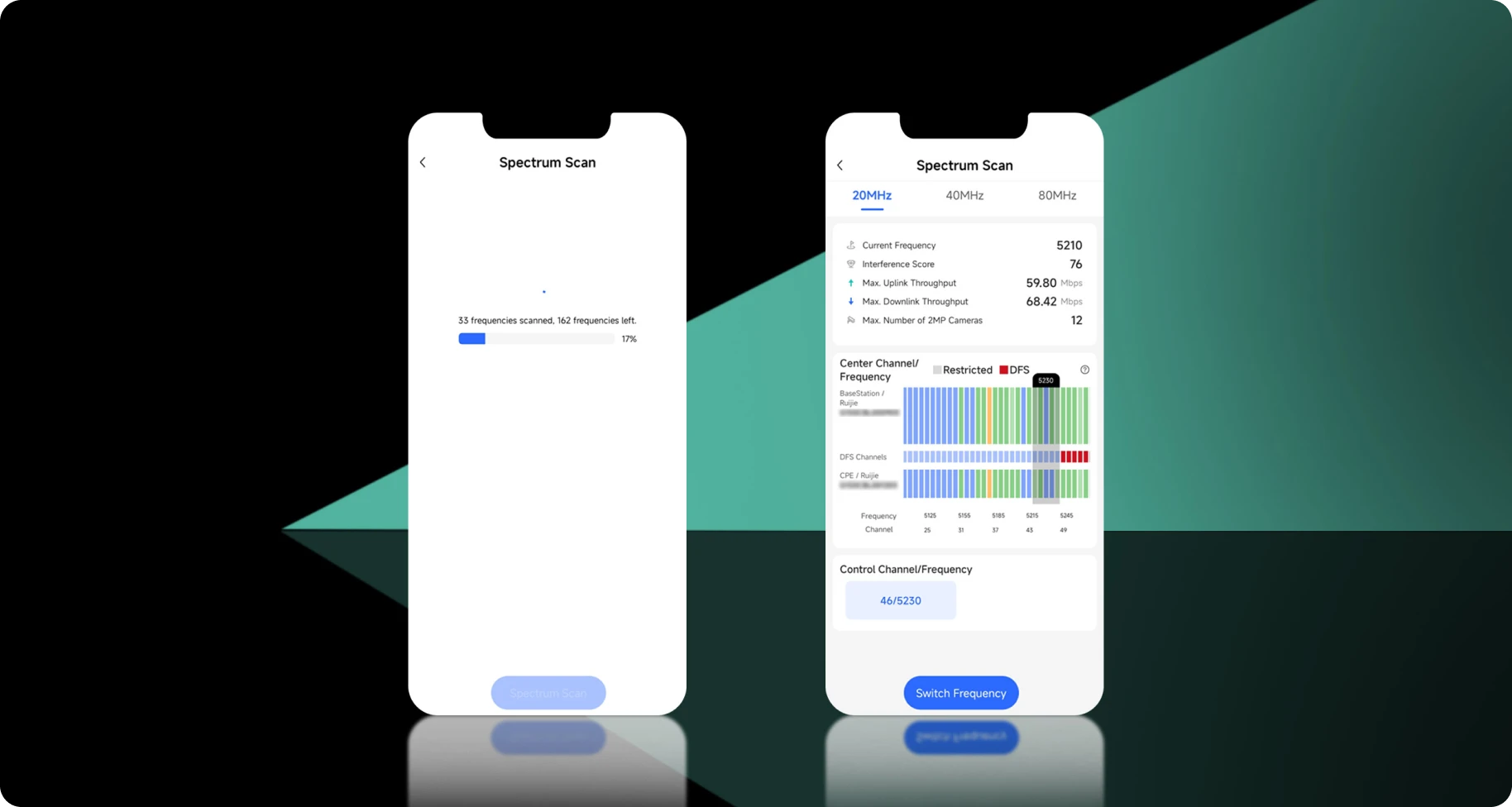

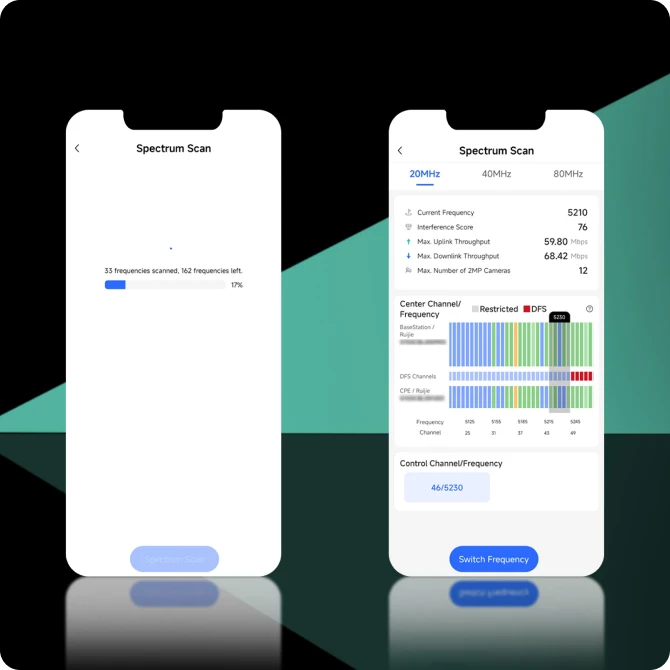

Spectrum Scan

Spectrum Scan and Link Optimization

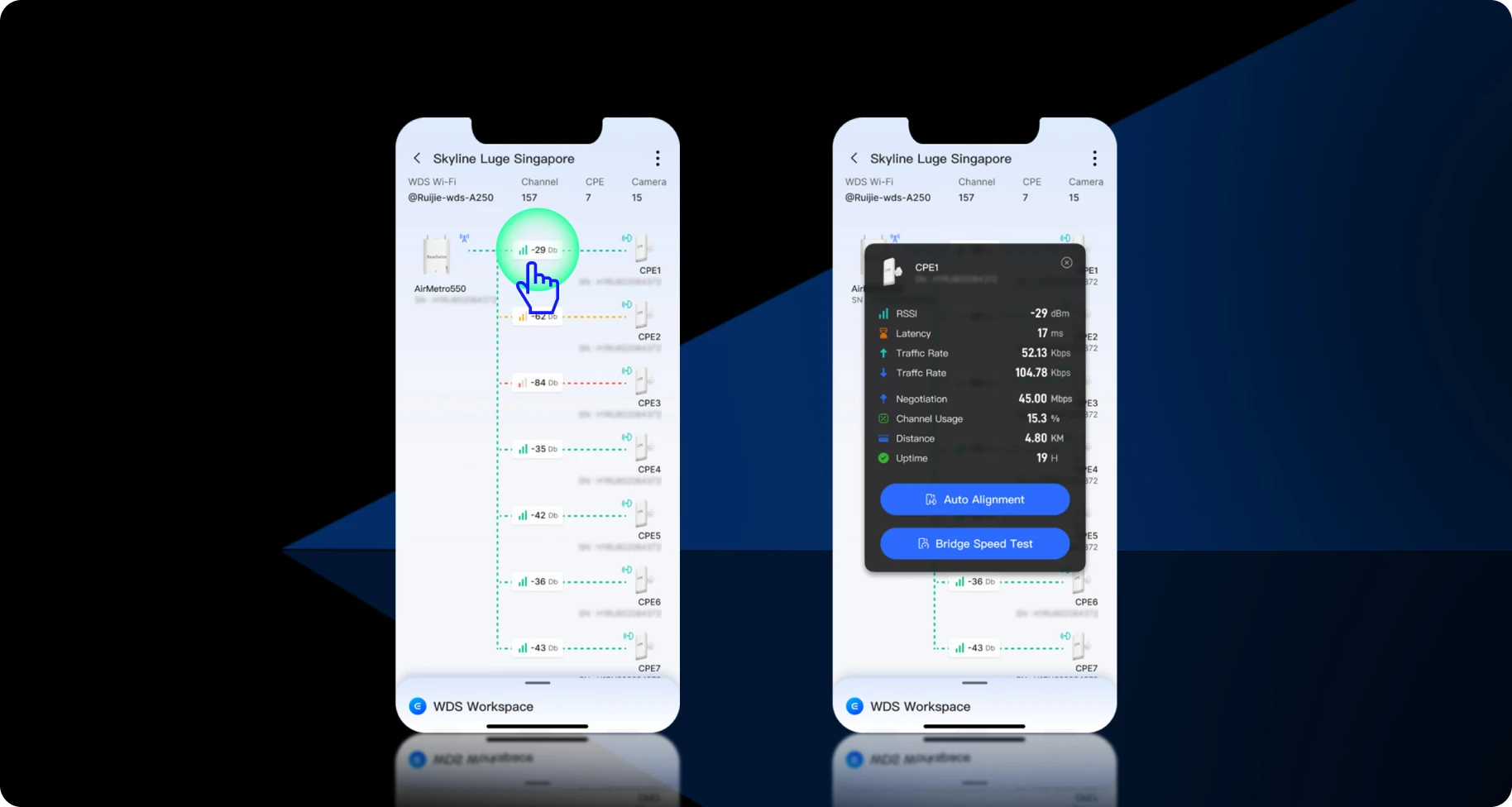

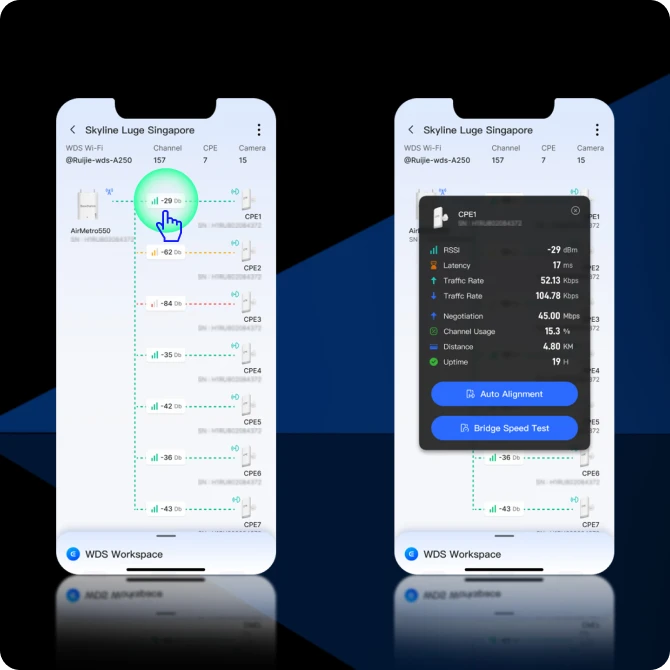

Monitoring & Configuration

Real-time and Comprehensive Bridge Status Monitoring & Configuration

Key Specifications
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    3 spatial streams
    ● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
    ● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width
  • Auto/20/40 MHz
5 GHz channel width
  • Auto/20/40/80 MHz
Power Supply and Consumption
Number of PoE In ports
  • 1
Number of PoE/PoE+ In ports
  • 1
Software Specifications
WLAN
Bridge speed test
  • Yes
Network Management and Monitoring
SON
  • Yes
AI heatmap
  • Yes
Restarting devices through Ruijie Reyee App
  • Yes
SNMPv1, v2c, and v3
  • Yes
Applications
Product Model Bridging Performance RSSI (dBm) Throughput & Camera Limits
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-EST100-E 60 Mbps/100 m (328.08 ft.) (HT20)
30 Mbps/500 m (0.31 miles) (HT20)		 –58 dBm/100 m (328.08 ft.)
–68 dBm/500 m (0.31 miles)		 10/100 m (328.08 ft.)
5/500 m (0.31 miles)		 6/100 m (328.08 ft.)
3/500 m (0.31 miles)		 3/100 m (328.08 ft.)
1/500 m (0.31 miles)		 3/100 m (328.08 ft.)
1/500 m (0.31 miles)
RG-EST310 V2 90 Mbps/100 m (328.08 ft.) (HT40)
80 Mbps/500 m (0.31 miles) (HT40)
80 Mbps/1 km (0.62 miles) (HT40)
40 Mbps/2 km (1.24 miles) (HT40)		 –52 dBm/100 m (328.08 ft.)
–65 dBm/500 m (0.31 miles)
–68 dBm/1 km (0.62 miles)
–75 dBm/2 km (1.24 miles)		 16/100 m (328.08 ft.)
16/500 m (0.31 miles)
16/1 km (0.62 miles)
6/2 km (1.24 miles)		 10/100 m (328.08 ft.)
10/500 m (0.31 miles)
10/1 km (0.62 miles)
4/2 km (1.24 miles)		 7/100 m (328.08 ft.)
7/500 m (0.31 miles)
7/1 km (0.62 miles)
3/2 km (1.24 miles)		 5/100 m (328.08 ft.)
5/500 m (0.31 miles)
5/1 km (0.62 miles)
2/2 km (1.24 miles)
RG-EST350 V2 230 Mbps/1 km (0.62 miles) (HT40)
200 Mbps/3 km (1.86 miles) (HT40)
150 Mbps/5 km (3.11 miles) (HT40)		 –58 dBm/1 km (0.62 miles)
–66 dBm/3 km (1.86 miles)
–70 dBm/5 km (3.11 miles)		 50/1 km (0.62 miles)
45/3 km (1.86 miles)
20/5 km (3.11 miles)		 30/1 km (0.62 miles)
25/3 km (1.86 miles)
12/5 km (3.11 miles)		 20/1 km (0.62 miles)
13/3 km (1.86 miles)
8/5 km (3.11 miles)		 15/1 km (0.62 miles)
12/3 km (1.86 miles)
6/5 km (3.11 miles)
RG-EST330F-P 90 Mbps/0.5 km (0.31 miles) (HT40)
80 Mbps/1 km (0.62 miles) (HT40)
60 Mbps/2 km (1.24 miles) (HT40)
40 Mbps/3 km (1.86 miles) (HT40)		 -53 dBm/0.5 km (0.31 miles)
-59 dBm/1 km (0.62 miles)
-65 dBm/2 km (1.24 miles)
-70 dBm/3 km (1.86 miles)		 18/0.5 km (0.31 miles)
16/1 km (0.62 miles)
12/2 km (1.24 miles)
8/3 km (1.86 miles)		 12/0.5 km (0.31 miles)
10/1 km (0.62 miles)
8/2 km (1.24 miles)
5/3 km (1.86 miles)		 8/0.5 km (0.31 miles)
7/1 km (0.62 miles)
5/2 km (1.24 miles)
3/3 km (1.86 miles)		 5/0.5 km (0.31 miles)
5/1 km (0.62 miles)
2/2 km (1.24 miles)
1/3 km (1.86 miles)
RG-EST350G 230 Mbps/1 km (0.62 miles) (HT40)
200 Mbps/3 km (1.86 miles) (HT40)
150 Mbps/5 km (3.11 miles) (HT40)		 –56 dBm/1 km (0.62 miles)
–64 dBm/3 km (1.86 miles)
–68 dBm/5 km (3.11 miles)		 50/1 km (0.62 miles)
45/3 km (1.86 miles)
20/5 km (3.11 miles)		 30/1 km (0.62 miles)
25/3 km (1.86 miles)
12/5 km (3.11 miles)		 20/1 km (0.62 miles)
13/3 km (1.86 miles)
8/5 km (3.11 miles)		 15/1 km (0.62 miles)
12/3 km (1.86 miles)
6/5 km (3.11 miles)
RG-EST450G 200 Mbps/1 km (0.62 miles) (HT40)
130 Mbps/3 km (1.86 miles) (HT40)
80 Mbps/5 km (3.11 miles) (HT40)		 –59 dBm/1 km (0.62 miles)
–67 dBm/3 km (1.86 miles)
–73 dBm/5 km (3.11 miles)
(Pairing with the CPE RG-EST350G)		 40/1 km (0.62 miles)
30/3 km (1.86 miles)
15/5 km (3.11 miles)		 25/1 km (0.62 miles)
18/3 km (1.86 miles)
10/5 km (3.11 miles)		 18/1 km (0.62 miles)
10/3 km (1.86 miles)
7/5 km (3.11 miles)		 13/1 km (0.62 miles)
8/3 km (1.86 miles)
5/5 km (3.11 miles)
RG-AirMetro460G Wireless Bridge 230 Mbps/1 km (0.62 miles) (HT40)
200 Mbps/3 km (1.86 miles) (HT40)
150 Mbps/5 km (3.11 miles) (HT40)
80 Mbps/10 km (6.21 miles) (HT40)		 –58 dBm/1 km (0.62 miles)
–66 dBm/3 km (1.86 miles)
–70 dBm/5 km (3.11 miles)
–78 dBm/10 km (6.21 miles)		 50/1 km (0.62 miles)
45/3 km (1.86 miles)
20/5 km (3.11 miles)
16/10 km (6.21 miles)		 30/1 km (0.62 miles)
25/3 km (1.86 miles)
12/5 km (3.11 miles)
8/10 km (6.21 miles)		 20/1 km (0.62 miles)
13/3 km (1.86 miles)
8/5 km (3.11 miles)
5/10 km (6.21 miles)		 15/1 km (0.62 miles)
12/3 km (1.86 miles)
6/5 km (3.11 miles)
4/10 km (6.21 miles)
RG-AirMetro460F Wireless Bridge 80 Mbps/1 km (0.62 miles) (HT40)
80 Mbps/3 km (1.86 miles) (HT40)
70 Mbps/5 km (3.11 miles) (HT40)
50 Mbps/10 km (6.21 miles) (HT40)		 –58 dBm/1 km (0.62 miles)
–66 dBm/3 km (1.86 miles)
–70 dBm/5 km (3.11 miles)
–78 dBm/10 km (6.21 miles)		 12/1 km (0.62 miles)
12/3 km (1.86 miles)
10/5 km (3.11 miles)
6/10 km (6.21 miles)		 8/1 km (0.62 miles)
8/3 km (1.86 miles)
6/5 km (3.11 miles)
4/10 km (6.21 miles)		 6/1 km (0.62 miles)
6/3 km (1.86 miles)
5/5 km (3.11 miles)
3/10 km (6.21 miles)		 4/1 km (0.62 miles)
4/3 km (1.86 miles)
3/5 km (3.11 miles)
2/10 km (6.21 miles)
RG-AirMetro550G-B Installing the device on the RG-ANT13-360：
179 Mbps/1 km (0.62 miles) (HT40)
111 Mbps/2 km (1.24 miles) (HT40)
Installing the device on the RG-ANT16S-120：
204 Mbps/1 km (0.62 miles) (HT40)
153 Mbps/3 km (1.86 miles) (HT40)
94 Mbps/5 km (3.11 miles) (HT40)
Installing the device on the RG-ANT20S-90：
204 Mbps/3 km (1.86 miles) (HT40)
153 Mbps/5 km (3.11 miles) (HT40)
77 Mbps/10 km (6.21 miles) (HT40)		 Installing the device on the RG-ANT13-360：
-64 dBm/1 km (0.62 miles)
-70 dBm/2 km (1.24 miles)
Installing the device on the RG-ANT16S-120：
-58 dBm/1 km (0.62 miles) (HT40)
-66 dBm/3 km (1.86 miles) (HT40)
-72 dBm/5 km (3.11 miles) (HT40)
Installing the device on the RG-ANT20S-90:
-60 dBm/3 km (1.86 miles) (HT40)
-66 dBm/5 km (3.11 miles) (HT40)
-73 dBm/10 km (6.21 miles) (HT40)		 Installing the device on the RG-ANT13-360：
41/1 km (0.62 miles)
26/2 km (1.86 miles)
Installing the device on the RG-ANT20S-120：
47/1 km (0.62 miles)
35/3 km (1.86 miles)
22/5 km (3.11 miles)
Installing the device on the RG-ANT20S-90：
47/3 km (1.86 miles)
35/5 km (3.11 miles)
18/10 km (6.21 miles)		 Installing the device on the RG-ANT13-360：
25/1 km (0.62 miles)
15/2 km (1.24 miles)
Installing the device on the RG-ANT16S-120：
28/1 km (0.62 miles)
21/3 km (1.86 miles)
13/5 km (3.11 miles)
Installing the device on the RG-ANT20S-90:
28/3 km (1.86 miles)
21/5 km (3.11 miles)
10/10 km (6.21 miles)		 Installing the device on the RG-ANT13-360：
18/1 km (0.62 miles)
11/2 km (1.24 miles)
Installing the device on the RG-ANT16S-120：
20/1 km (0.62 miles)
15/3 km (1.86 miles)
9/5 km (3.11 miles)
Installing the device on the RG-ANT20S-90:
28/3 km (1.86 miles)
21/5 km (3.11 miles)
10/10 km (6.21 miles)		 Installing the device on the RG-ANT13-360：
15/1 km (0.62 miles)
9/2 km (1.24 miles)
Installing the device on the RG-ANT16S-120
17/1 km (0.62 miles)
13/3 km (1.86 miles)
8/5 km (3.11 miles)
Installing the device on the RG-ANT20S-90：
17/3 km (1.86 miles)
13/5 km (3.11 miles)
6/10 km (6.21 miles)
