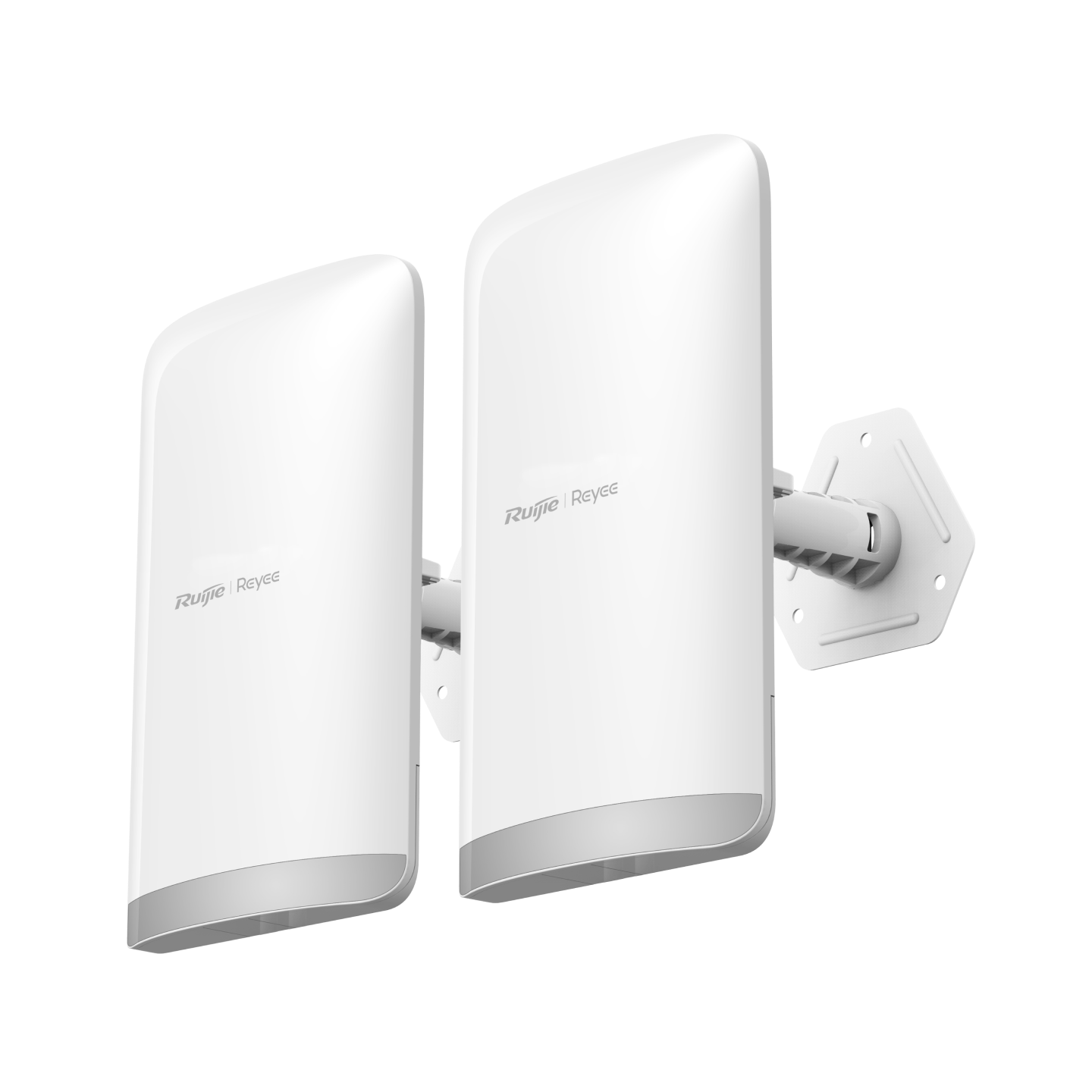

RG-EST350 V2, 5GHz Dual-stream 802.11ac 5KM Wireless Bridge

Factory, Surveillance, Transportation, etc.

Models
RG-EST350 V2

5KM, 2 GE ports
Series
1 km PTP/PTMP 5 km PTP/PTMP 500 meters PTP
Datasheet Sales Enquiry
Highlight Features
  • RG-EST350 V2 can easily transmit data from 5KM away in real time
  • Factory-paired bridges for long-distance installation, without complex alignment
  • IP54 Weatherproof, -30℃~65℃ guarantee stable operating
  • Support maximum 45 * 2MP cameras loading at 3KM, 20 * 2MP cameras loading at 5KM
  • Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Sales Enquiry
Key Specification
Features
RG-EST350 V2
5GHz Dual-stream 802.11ac Next-generation Wireless Bridge
5GHz 2x2 MIMO
2 x GE Ports
Long Range
High-speed wireless data transmission at 5KM range
867 Mbps
PTP/PTMP
5KM Operating distance
High Capacity
45 cameras maximum at 3KM, 20 cameras maximum at 5KM*
*H.265, 2MP Cameras, 3Mbps. To guarantee the transmission quality, the environment should be kept as open as possible to reduce the interference.
At the same time, it is recommended to adjust it to the best alignment angle with the signal strength indicator or Ruijie Cloud APP.
Reliable
V0 level
flame retardant
IP54
Weatherproof
-30~65℃ operating
temperature
Convenient
Zero configuration automatic pairing
Plug and Play
Easy to Install
Cloud, Make Your Business Easy
Comparison
Wi-Fi Standards
MIMO
Max. Wireless Speed
Antenna Gain
Polarization
Recommended Distance
Fixed Ports
Memory/Flash
Weatherproof
Transmit Power
Automatic Pairing
Point-to-Multipoint
Management
Automatic Restart
Lightning Protection
Power Supply
Power Consumption
Dimensions
Weight
Operating Temperature
MTBF
Certifications
Warranty
Specifications
Model Bridging Performance RSSI (dBm) Throughput & Camera Limits
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-EST100-E 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)
40 Mbps/2 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km
–75 dBm/2 km		 16/100 m
16/500 m
16/1 km
6/2 km		 10/100 m
10/500 m
10/1 km
4/2 km		 7/100 m
7/500 m
7/1 km
3/2 km		 5/100 m
5/500 m
5/1 km
2/2 km
RG-EST350 V2 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
RG-AirMetro460G 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)

 –58/1 km
–66/3 km
–70/5 km
–78/10 km		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40)

 –58/1 km
–66/3 km
–70/5 km
–78/10 km		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B 200 Mbps/1 km (HT40)
180 Mbps/3 km (HT40)
100 Mbps/5 km (HT40)

 -60/1 km
-68/3 km
-75/5 km		 35/1 km
30/3 km
16/5 km		 20/1 km
16/3 km
10/5 km		 15/1 km
12/3 km
6/5 km		 10/1 km
8/3 km
5/5 km
Show More
Resources All Resources
Learn about Products or Solutions
Installation
Software and Configuration
Order Information
Device RG-EST350 V2
2
Mounting Bracket 2
Hose Clamps 2
Universal Joint Assemblies 2
Power supply Power adapter  2
User Manual 1
Wall Anchors 6
Phillips Pan Head Screws 8
Package Weight 2.3 kg 2.3 kg
Package Dimension (w x d x h)  490 mm * 363 mm * 80 mm
