RG-ES103F-P, Switch no gestionado PoE de 3 puertos

Circuito cerrado de televisión

Modelos
RG-ES05G-L

5 GE

 RG-ES08G-L

8 GE

 RG-ES08F

8 FE

 RG-ES05F

5 FE

 RG-ES103F-P

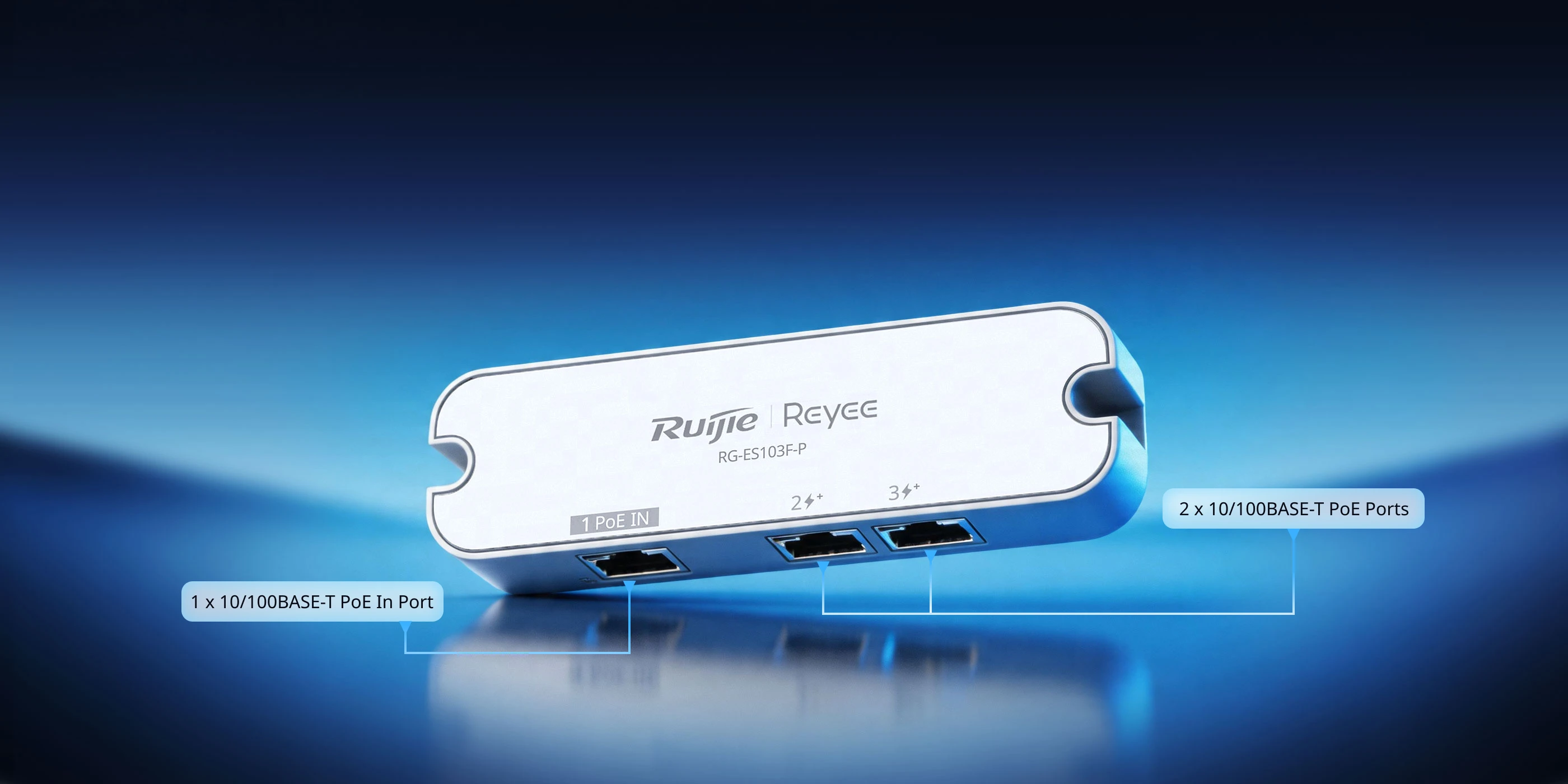

2 puertos PoE+ 10/100BASE-T, 1 puerto de entrada PoE 10/100BASE-T
Series
Carcasa de plástico Carcasa metálica
Sales Enquiry
Add to Favorites
Características destacadas
  • Plug and Play
  • Switch de buena relación calidad-precio
  • Hasta 2 conexiones de cámara simultáneas
  • Entrada PoE
Sales Enquiry
Características

RG-ES103F-P

Switch no gestionado PoE de entrada de 3 puertos

  • Máxima potencia PoE de 30 W

  • Entrada y salida PoE

  • Protección contra sobretensiones de 4 kV

  • Sin ventilador y compacto

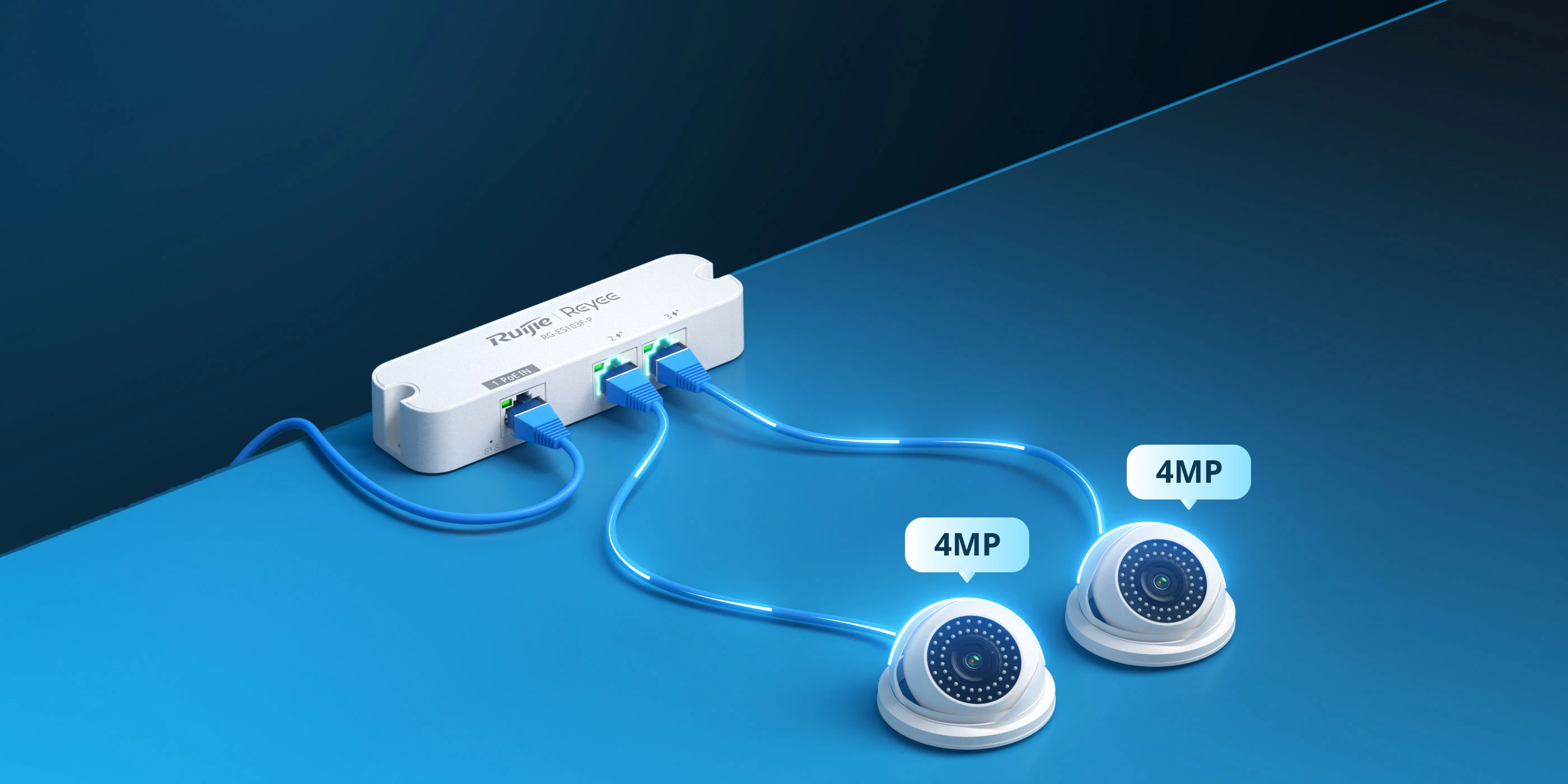

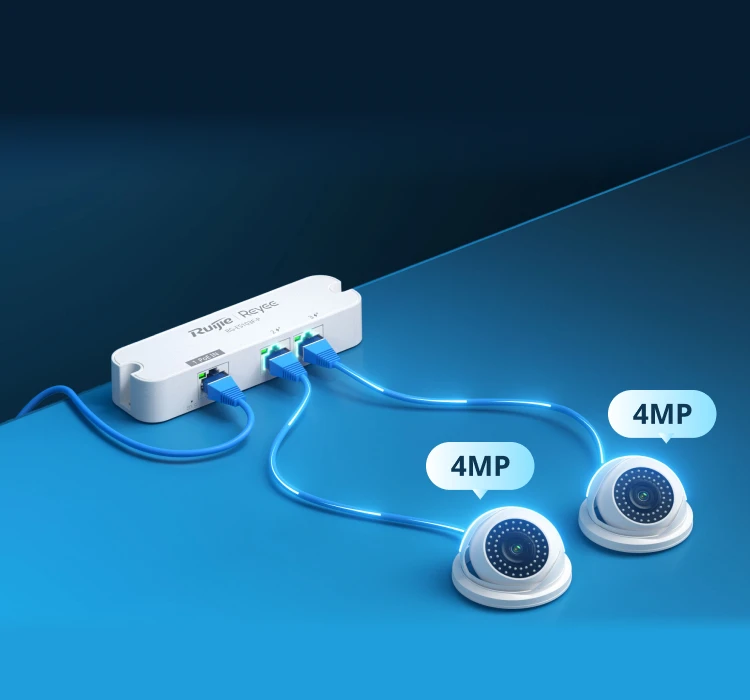

Admite hasta 2 cámaras de 4 MP

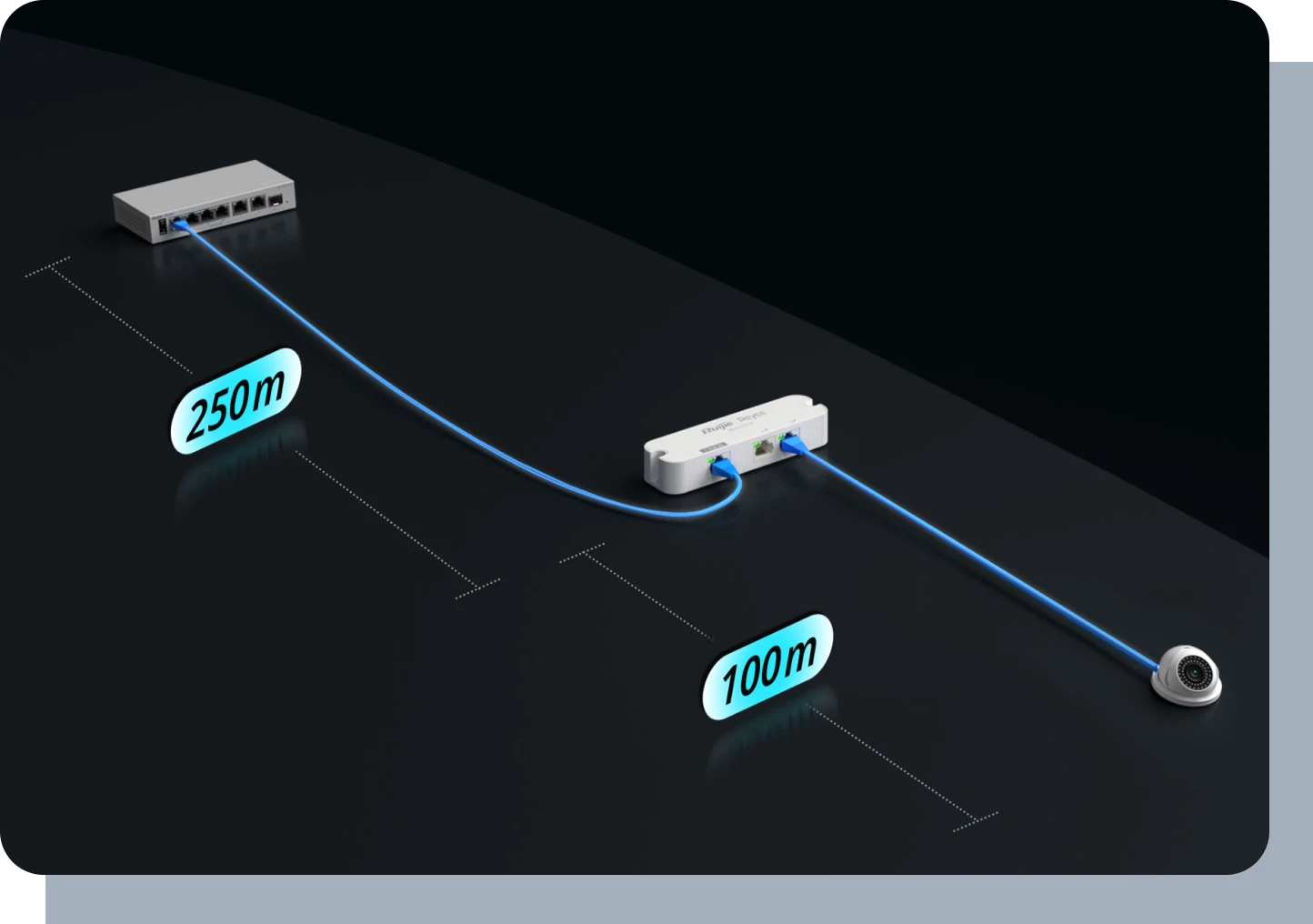

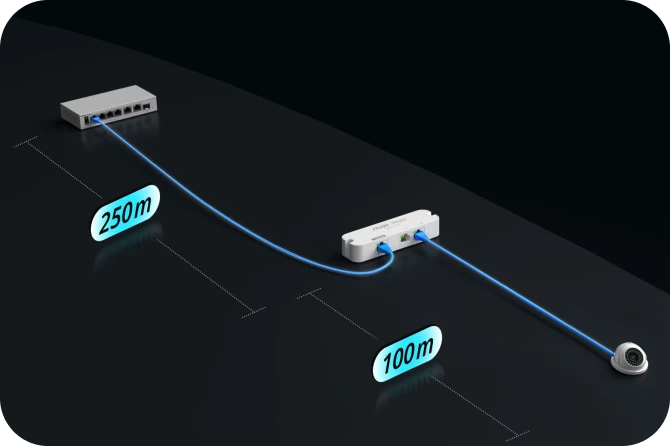

Aumente la capacidad de su puerto y la distancia de cobertura.

  • *La distancia de cobertura alcanza hasta 350 m (1148,29 pies) y requiere compatibilidad con transmisión de larga distancia en el dispositivo uplink.
  • *Para una transmisión de 350 m (1148,29 pies), se recomienda conectar solo una cámara downlink.
  • *El rendimiento real puede variar dependiendo del entorno y la calidad del cable.

Especificaciones clave
Hardware Specifications
Product Information
Warranty
  • 3 years
Port Specifications
Total number of RJ45 ports
  • 3
Number of 10/100BASE-T ports
  • 3
Power Supply and Consumption
Number of PoE Out ports
  • 2
Number of PoE/PoE+ Out ports
  • 2
PoE budget
  • 30 W
PoE power pins
  • 1-2(+), 3-6(-)
System Specifications
Forwarding rate
  • 0.45 Mpps
Switching capacity
  • 0.6 Gbps(Gbit/s)
Environment and Reliability
Operating temperature
  • 0℃~40°C
