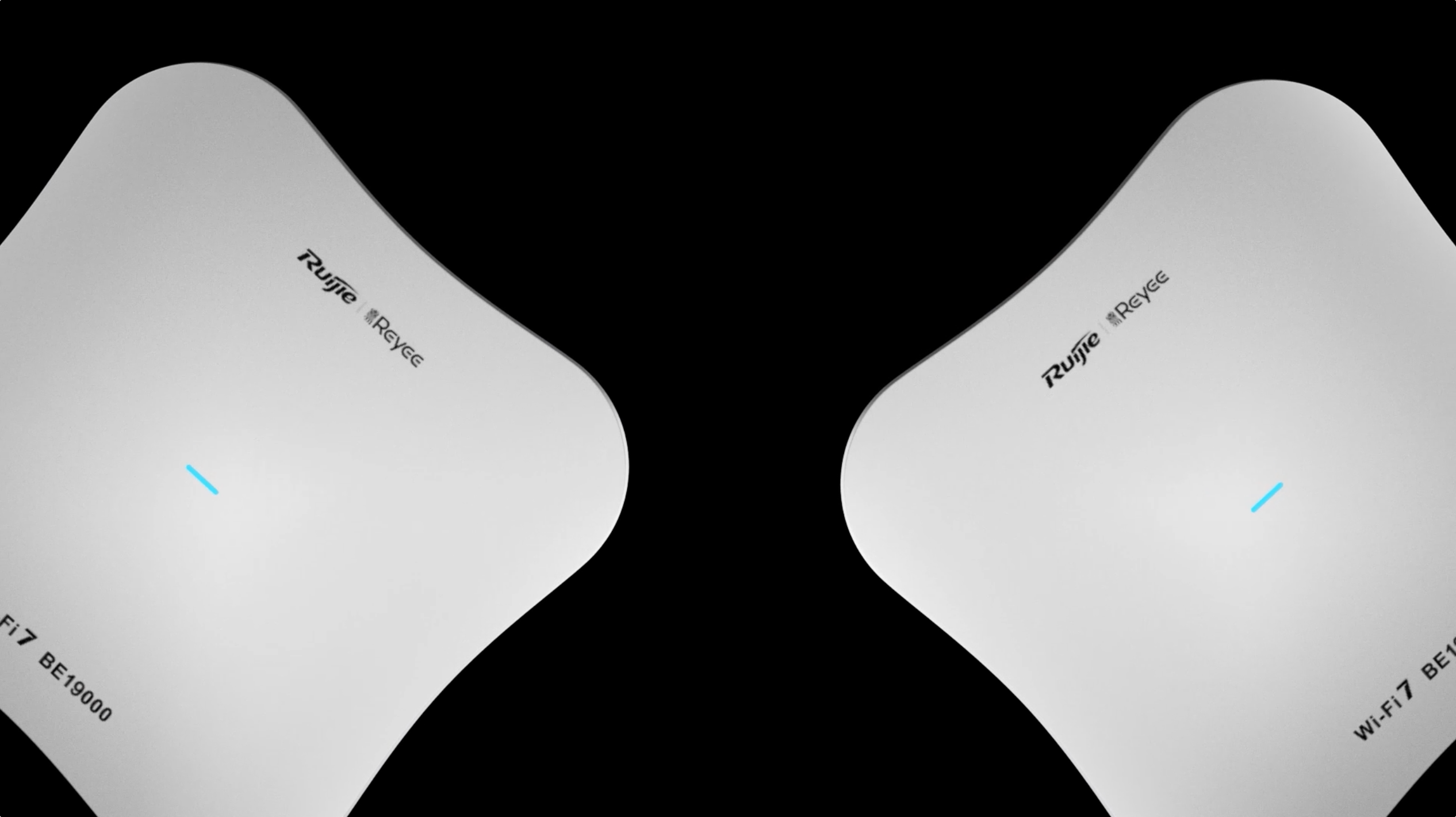

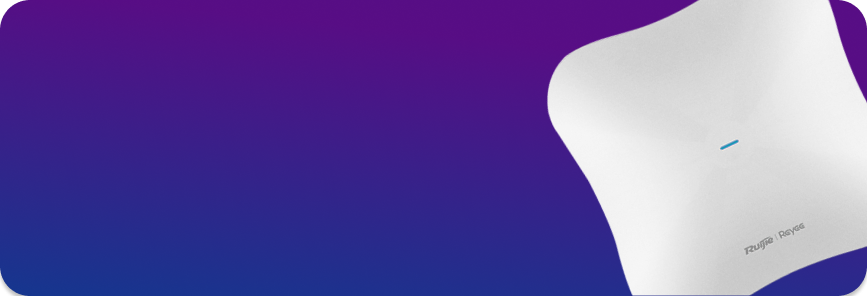

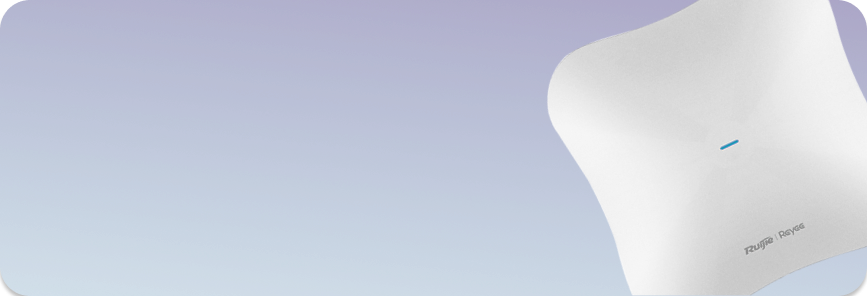

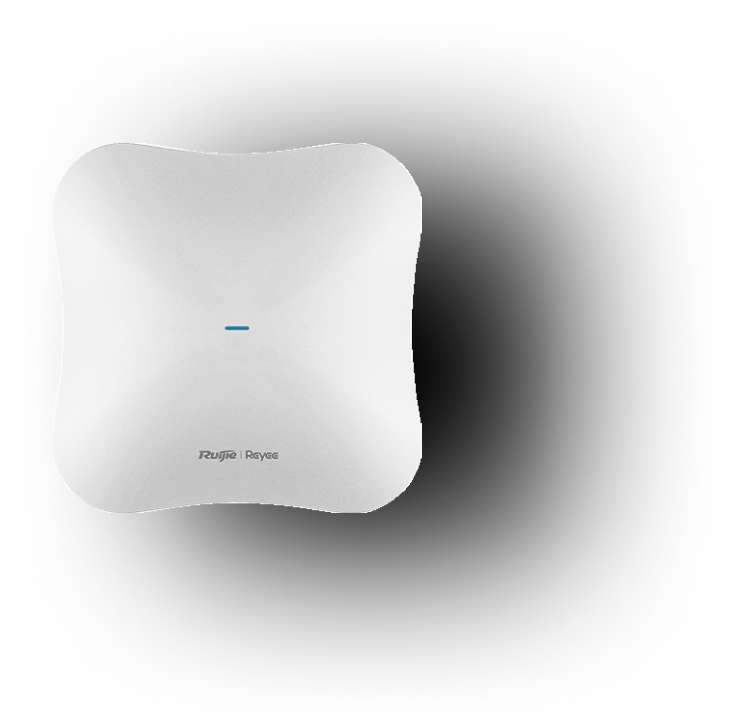

RG-RAP73HD, จุดเชื่อมต่อแบบติดเพดาน Reyee Wi-Fi 7 สามวิทยุ BE19000

โรงแรม ออฟฟิศ ฯลฯ

Models
Series
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • ประสิทธิภาพสามวิทยุ 6G/320MHz นำเสนออัตราการเชื่อมต่อไร้สายที่สูงอย่างยิ่ง
  • ประสบการณ์สตรีมมิ่งที่ดีขึ้นด้วยคุณสมบัติพิเศษของ Wi-Fi 7 อย่าง MLO
  • เพิ่มความจุการเข้าถึงในความหนาแน่นสูงได้สูงสุดถึง 1024 อุปกรณ์
  • 4K-QAM ส่งผ่านแพ็กเก็ตข้อมูลได้ดีขึ้นเพื่อความเร็วที่สูงขึ้น
  • สามารถทำงานกับสวิตช์ระดับองค์กรเพื่อสร้างเครือข่ายสำนักงานระดับมืออาชีพ
Sales Enquiry
ฟีเจอร์

Wi-Fi 7 Tri-Radio BE19000
High-Performance Ceiling
Access Point

RG-RAP73HD
  • Wi-Fi 7 มาตรฐาน BE19000

    ความเร็วสูงสุด18658Mbps

  • MLO

    8K Ultra HD

  • 6 GHz

    320Mhz

    3 คลื่นความถี่วิทยุ

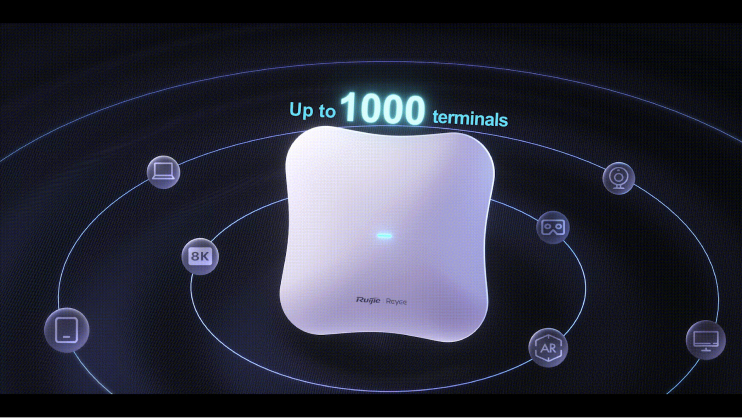

  • ความจุในการเข้าถึงสูง
    โดยสูงถึง 1,024 เครื่อง

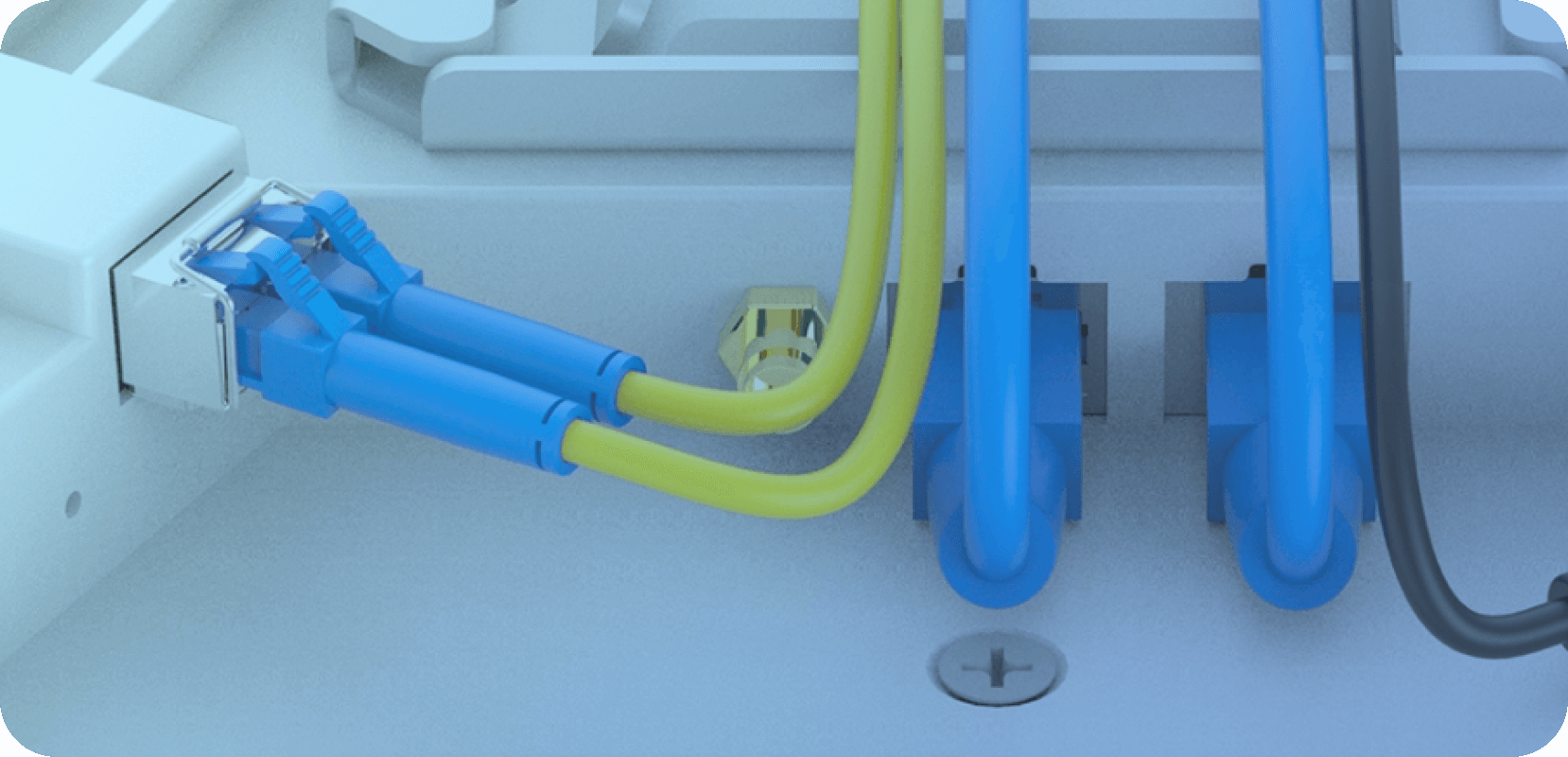

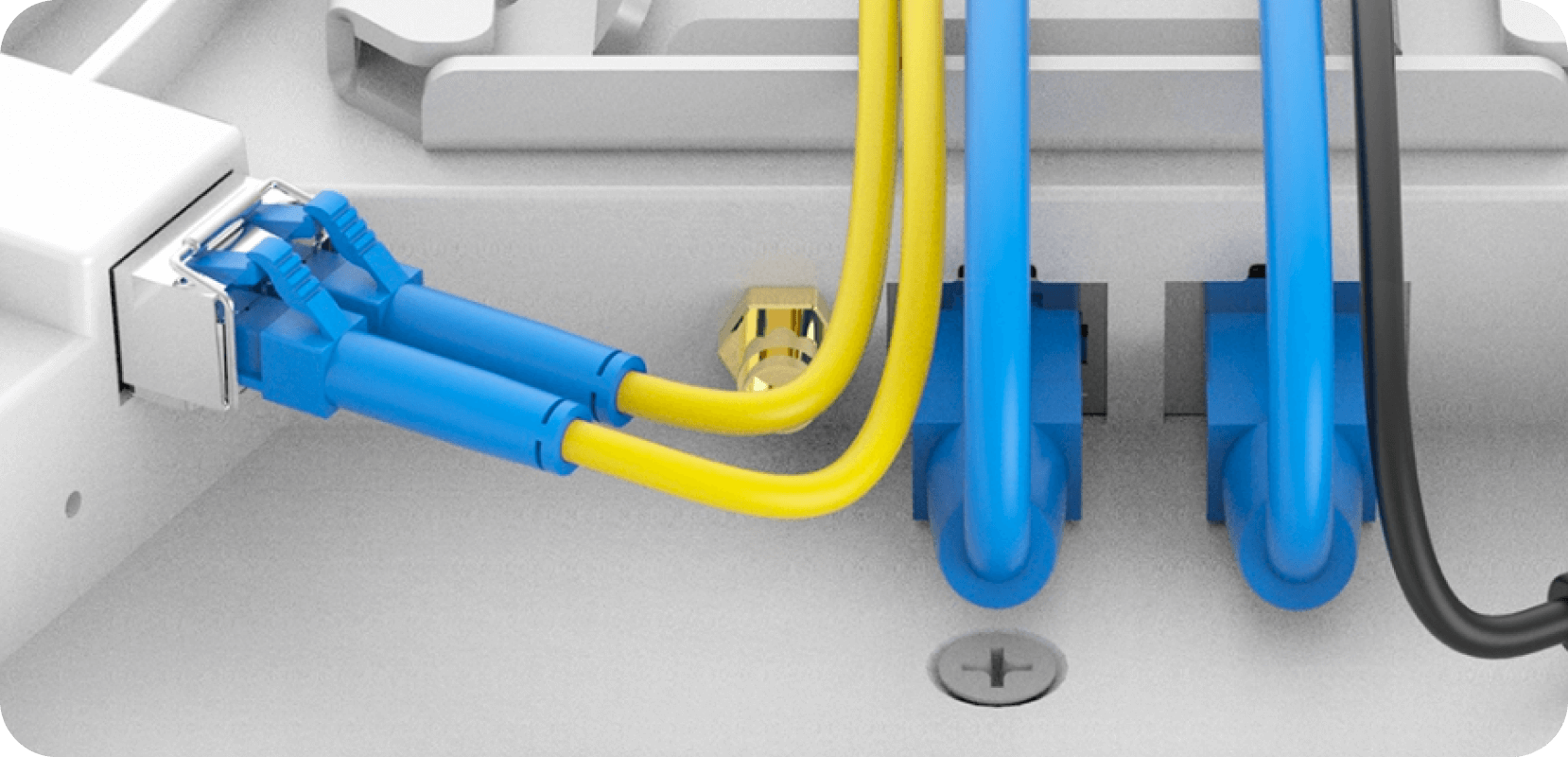

  • มีพอร์ตหลายพอร์ต
    1 พอร์ต 10GE จำนวน 2 พอร์ต , 1 SFP+

Surf The Future, See Never Seen

Learn more

สัมผัสประสบการณ์เร่งความเร็วที่มีความรวดเร็วอย่างแท้จริงด้วยการใช้เครื่องมือที่มีความเร็วสูงไปอีกขั้น

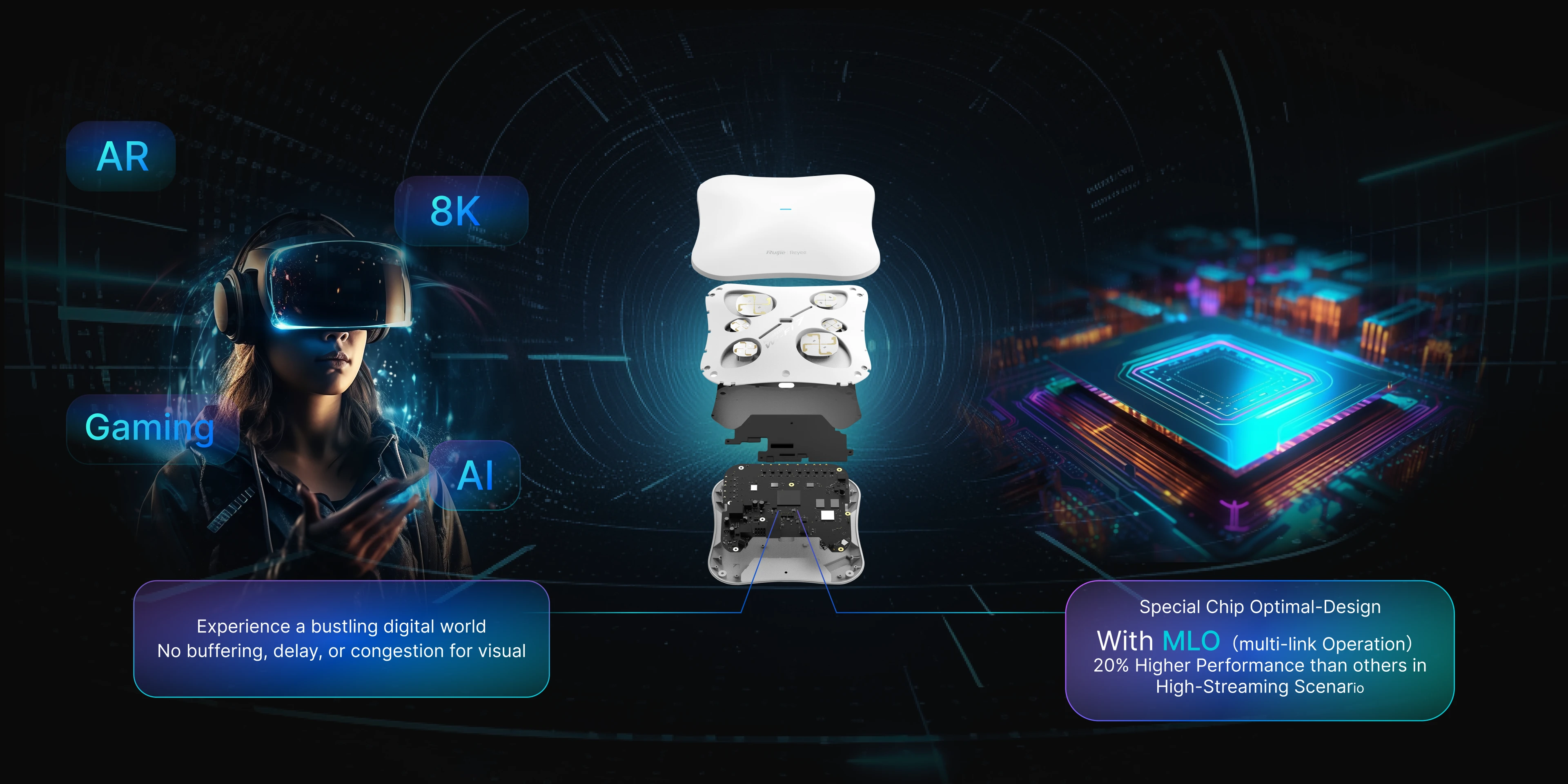

การสตรีมมิ่งที่มีคุณภาพสูงที่สุด
และประสิทธิภาพสูงขึ้น 20%
ด้วยการทำงานของฟีเจอร์ MLO

ฟีเจอร์ขั้นสูงที่จะเพิ่มประสิทธิภาพให้
Wi-Fi 7 สูงขึ้นไปอีกขั้น

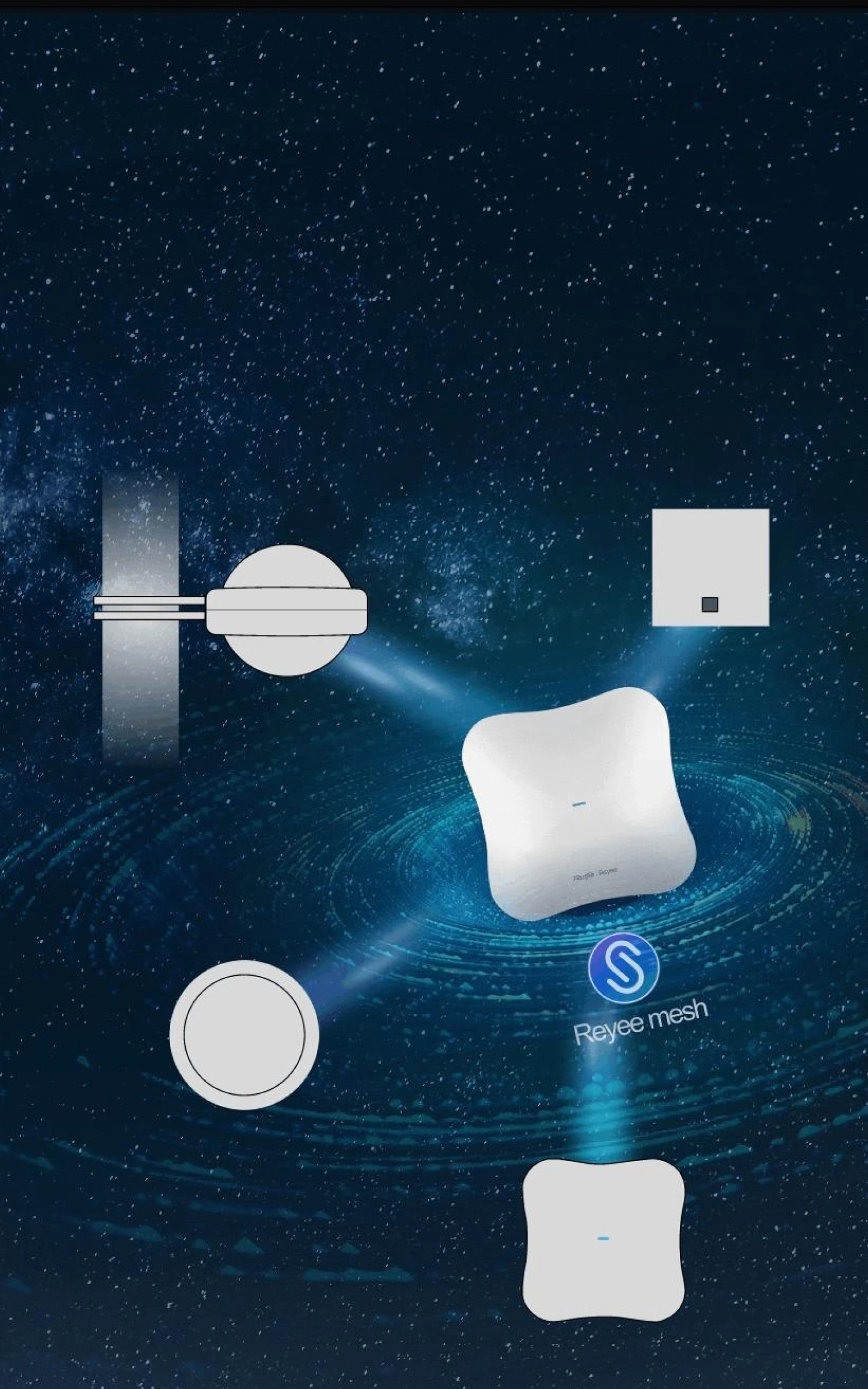

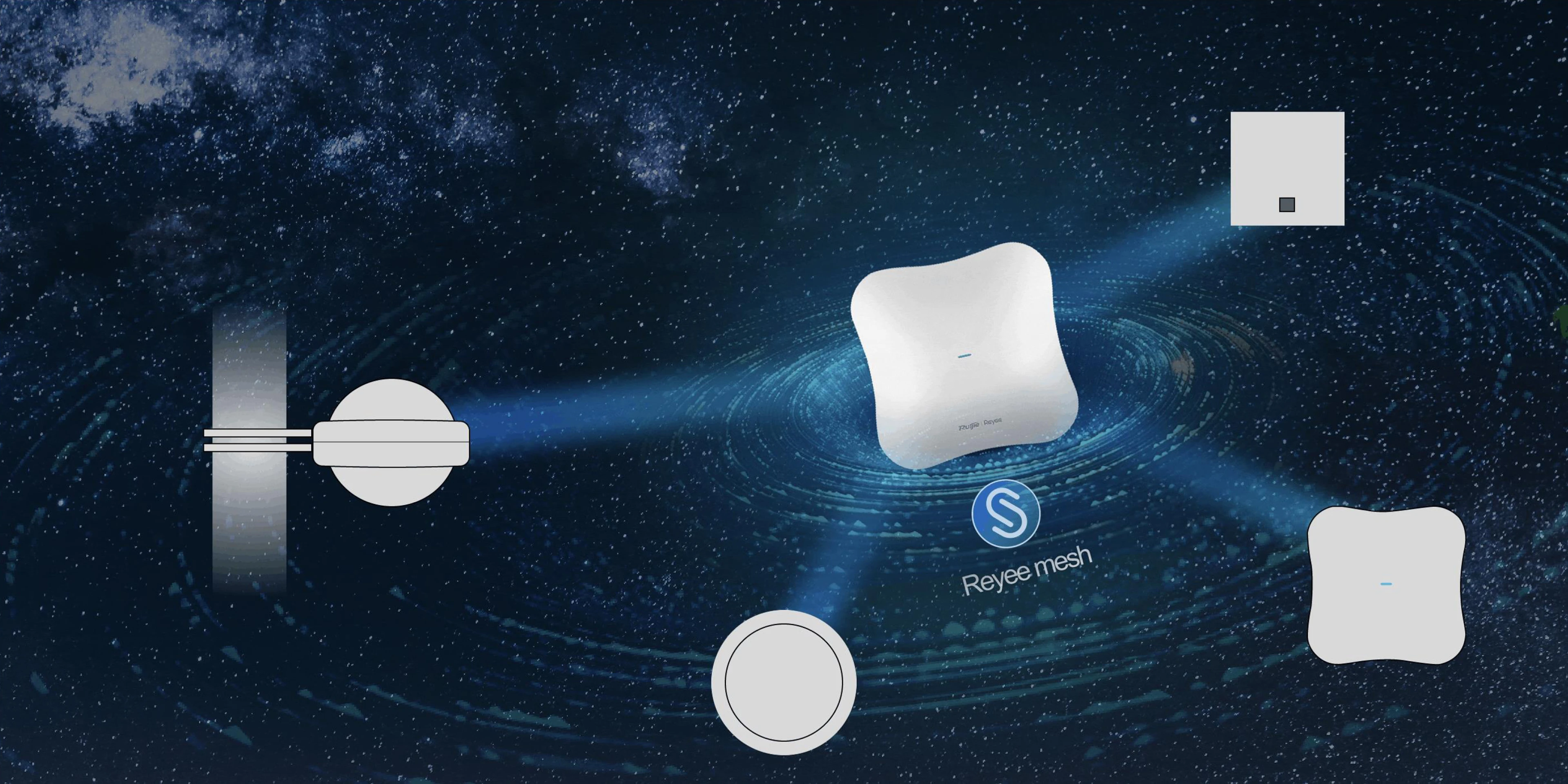

  • Mesh ของ Reyee

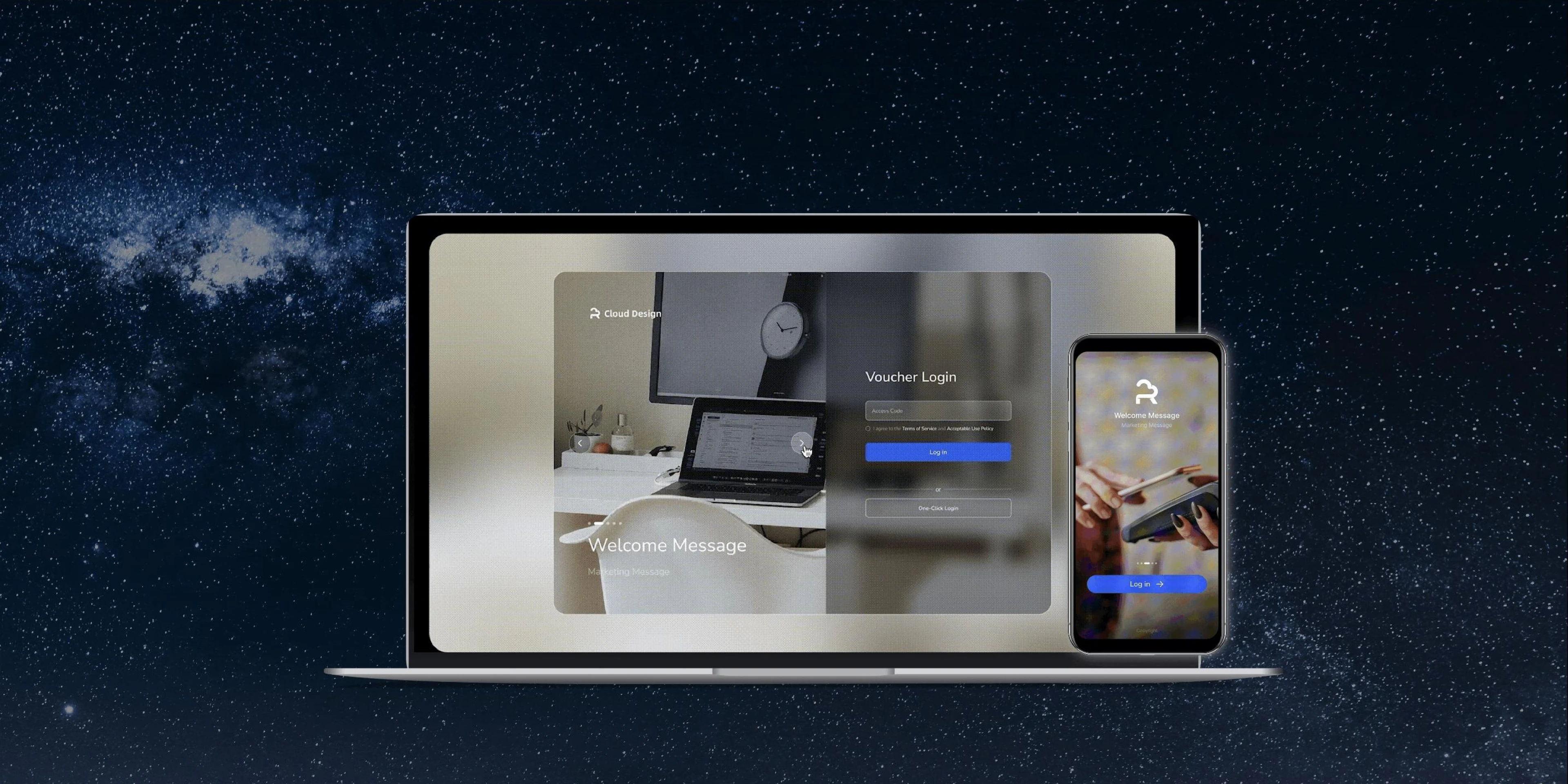

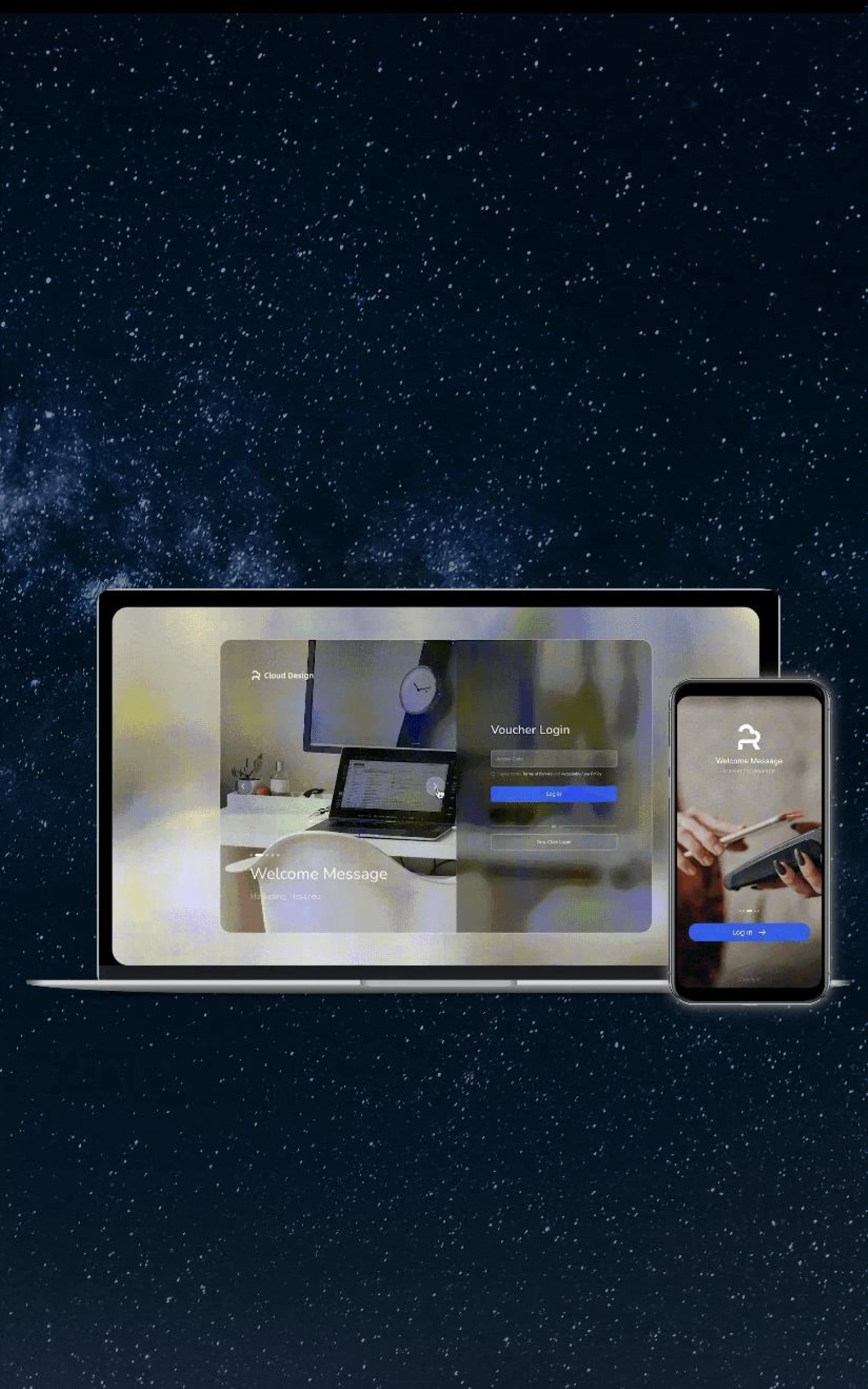

  • พอร์ทัล AP

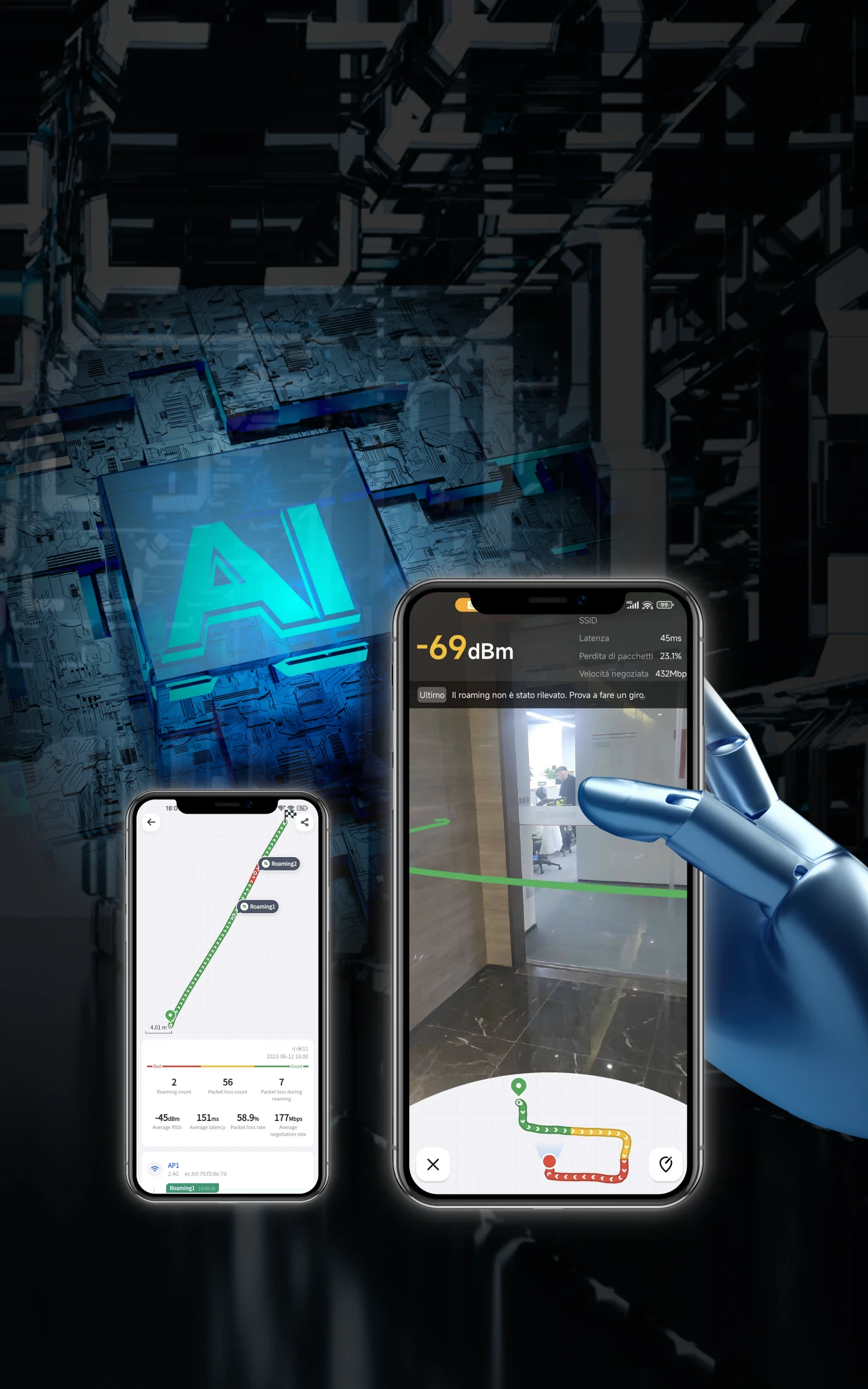

  • การโรมมิ่งอัจฉริยะ

สายเคเบิลไม่รุงรัง ชีวิตก็ไม่ยุ่งเหยิง ทำให้การยืนยันตัวตนปลอดภัยและมีการแสดงข้อความที่ชัดเจน กำหนดนิยามใหม่ให้กับการโรมมิ่งที่ดีที่สุด

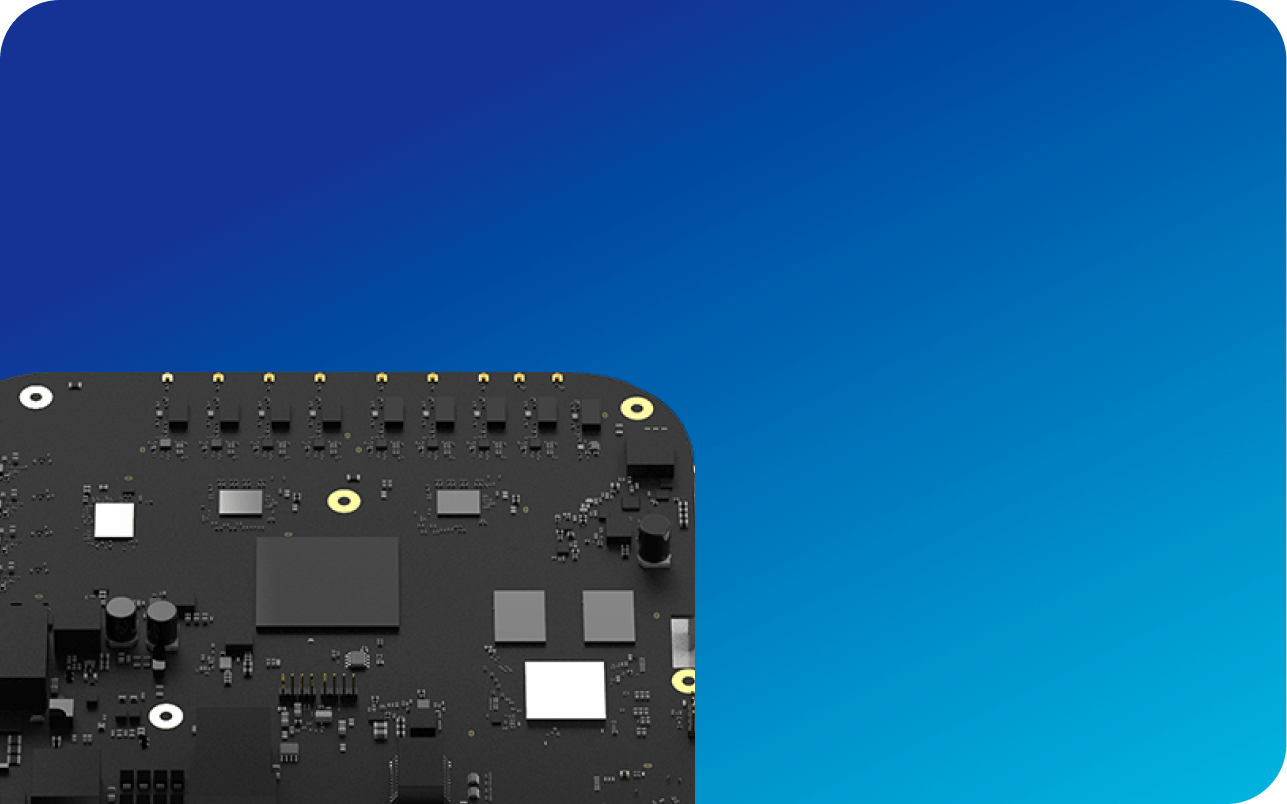

การใช้งานที่มีความล่าช้าต่ำและความจุสูงเป็นพิเศษ

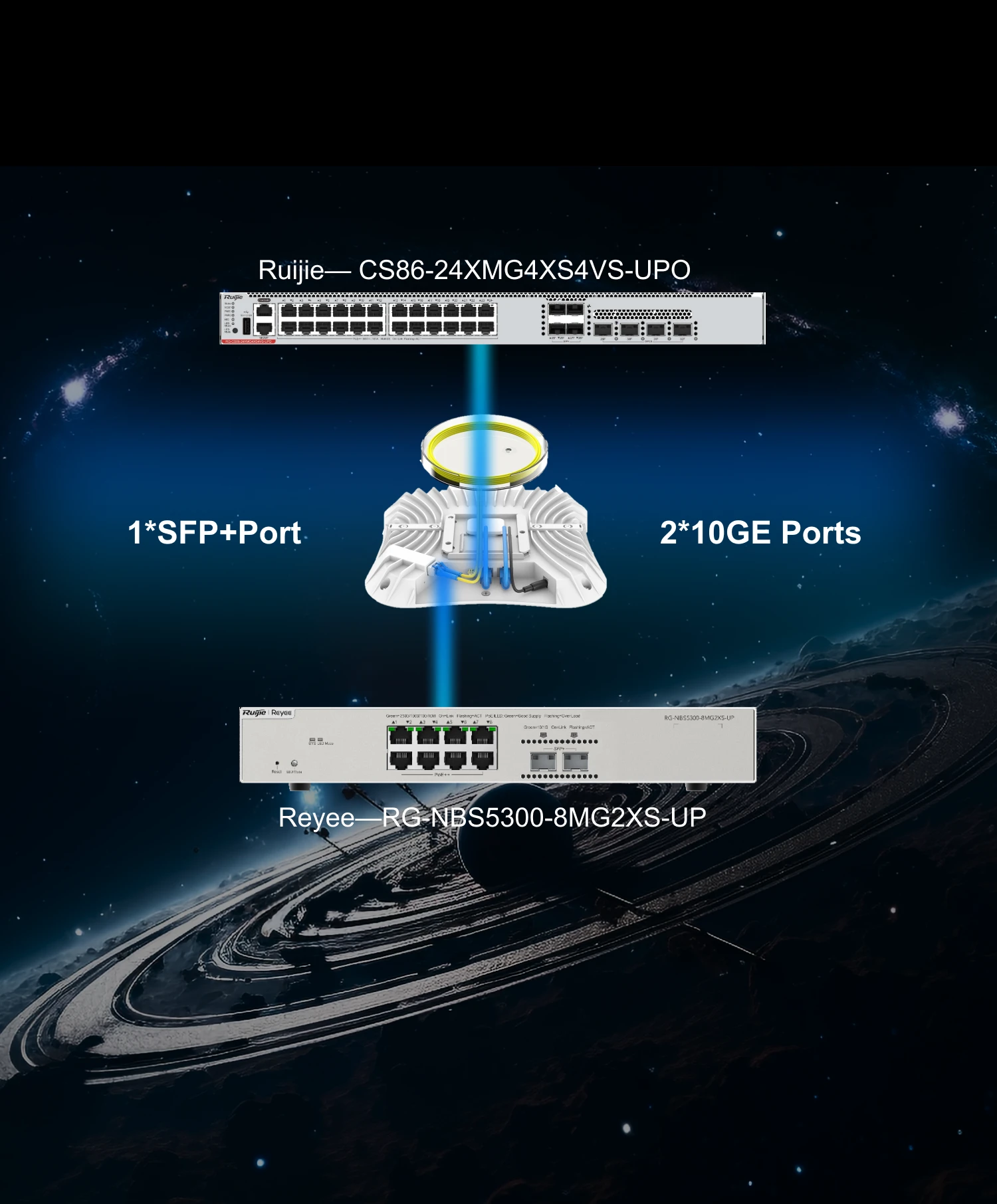

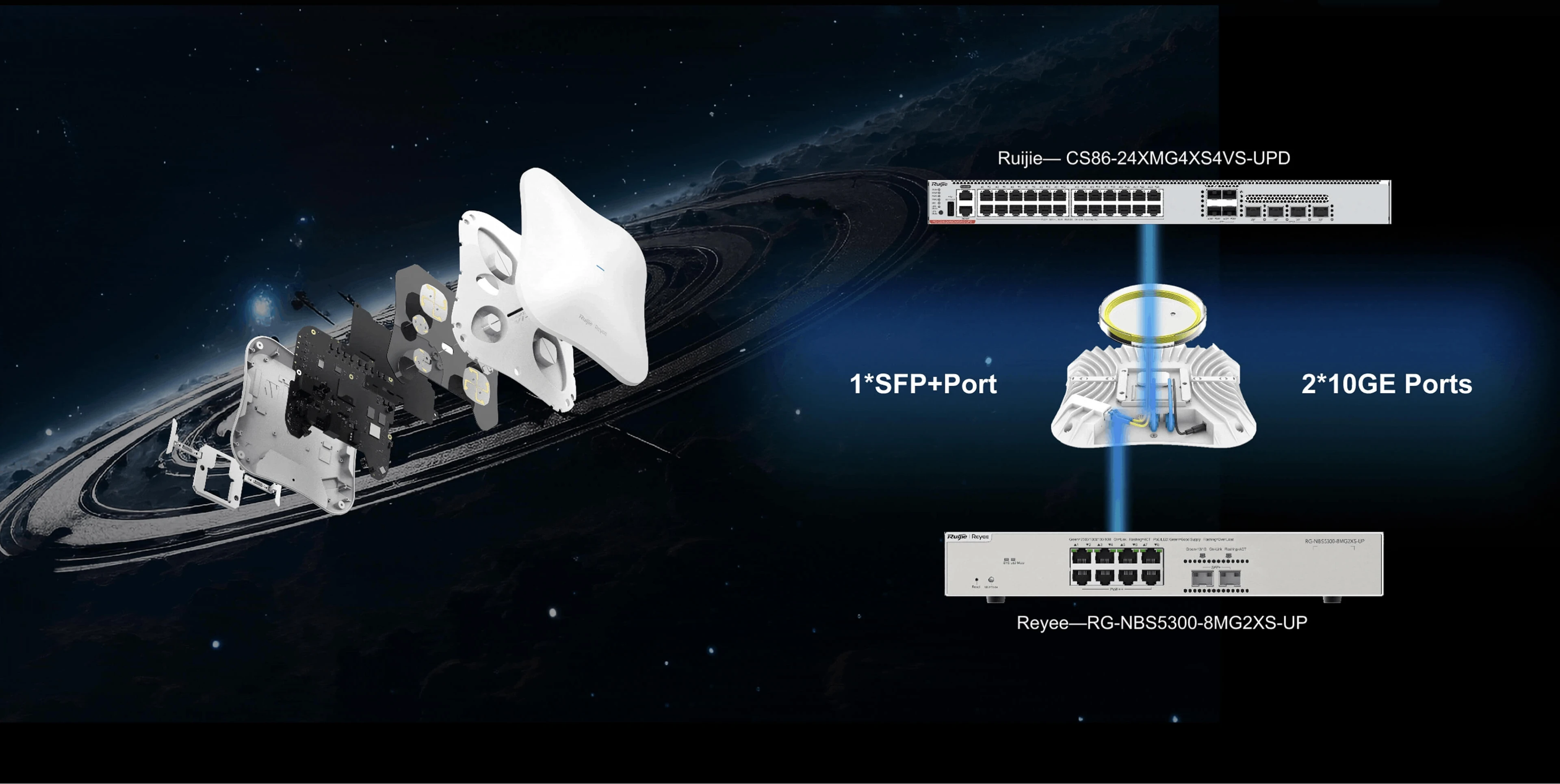

สวิตช์ PoE แบบ 10G พร้อมสำหรับ Wi-Fi 7 แล้ว

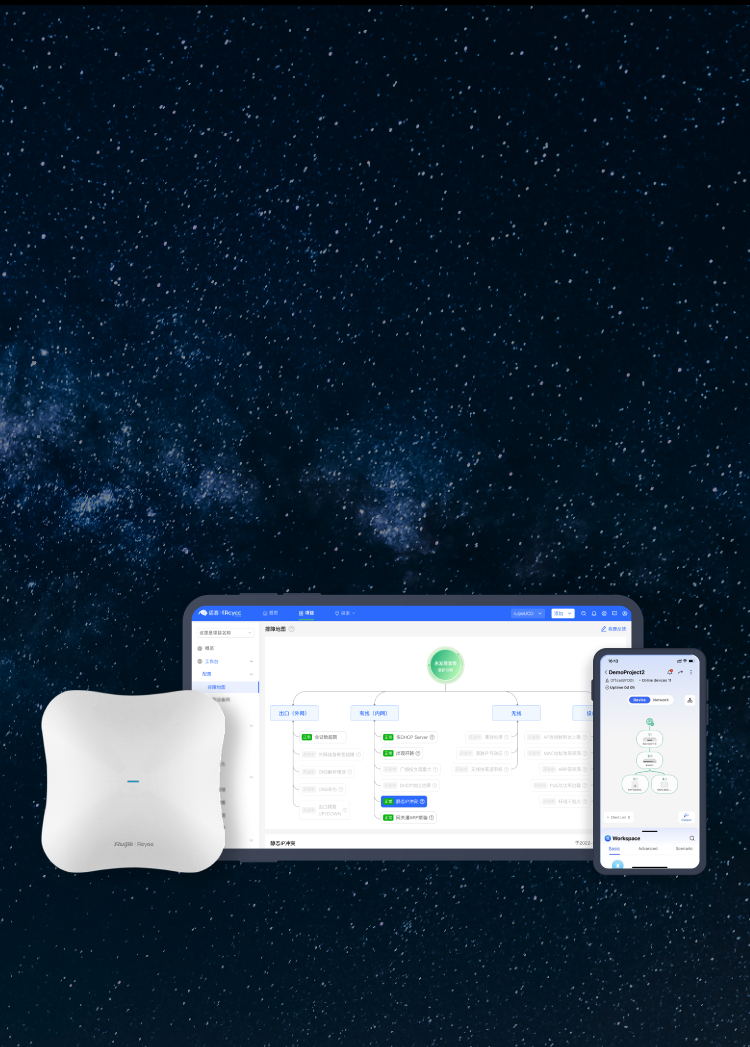

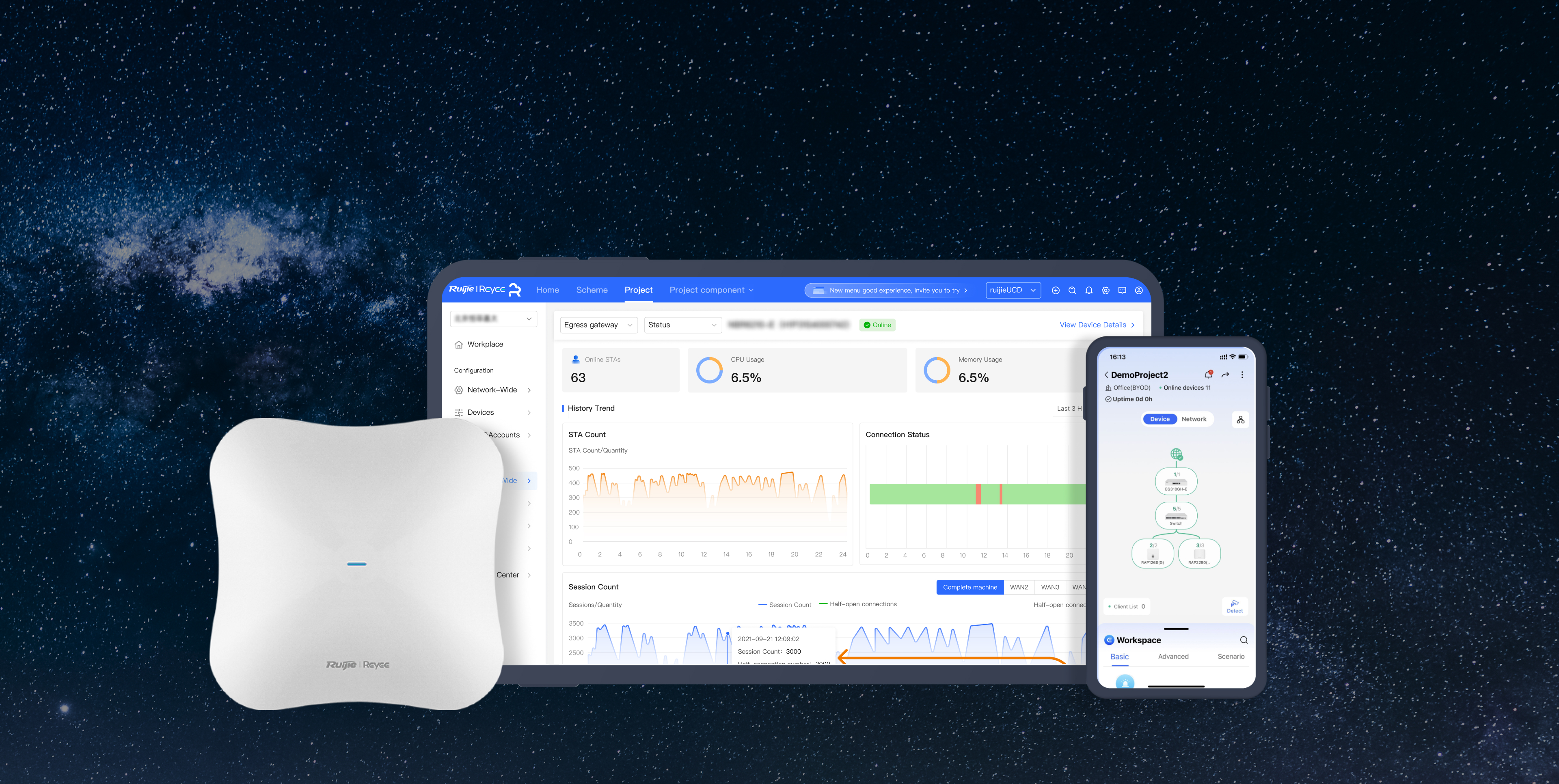

ระบบคลาวด์ช่วยให้ธุรกิจของคุณสะดวกสบาย

  • เครือข่ายแบบจัดการตนเอง
  • การติดตามและปรับปรุงระบบจากระยะไกล
  • การอัปเกรดเฟิร์มแวร์ผ่านคลาวด์
  • การอัปเดตไลบรารีแอปแบบไดนามิก

Key Specifications
Product Information
Product Type
Product Type
  • Ceiling AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Tri-radio
    12 spatial streams
    ● 2.4 GHz: 4 x 4, MU-MIMO
    ● 5 GHz: 4 x 4, MU-MIMO
    ● 6 GHz: 4 x 4, MU-MIMO
Maximum wireless data rate
  • 18668 Mbps
6 GHz wireless data rate
  • 11528 Mbps
5 GHz wireless data rate
  • 5764 Mbps
2.4 GHz wireless data rate
  • 1376 Mbps
Antenna
Antenna
  • 2.4 GHz: 5 built-in omnidirectional antennas
    5 GHz:4 built-in omnidirectional antennas
    6 GHz: 5 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
  • 258 mm x 258 mm x 59.5 mm (10.16 in. x 10.16 in. x 2.34 in.) (excluding the mounting bracket)
Color
  • White
Weight
  • ≤ 2.0 kg (4.41 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
  • 1
Number of 100/1000/2.5G/5G/10GBASE-T ports
  • 1
Number of 10GE SFP+ ports
  • 1
Power Supply and Consumption
Power supply
  • ● DC power adapter
    ● PoE+/PoE++
    Note: If both the DC power adapter and PoE+/PoE++ are available for power supply, the DC power adapter is preferred.
Local power supply
  • Yes, one DC power connector (48 V, 1.48 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE budget
  • No
Maximum power consumption
  • 60 W
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Mounting options
  • Ceiling/Wall
IP rating
  • IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 512 (2.4 GHz)
    512 (5 GHz)
    512 (6 GHz)
    1024 (2.4 GHz, 5 GHz, and 6 GHz enabled)
Maximum number of devices that can be managed
  • 300
