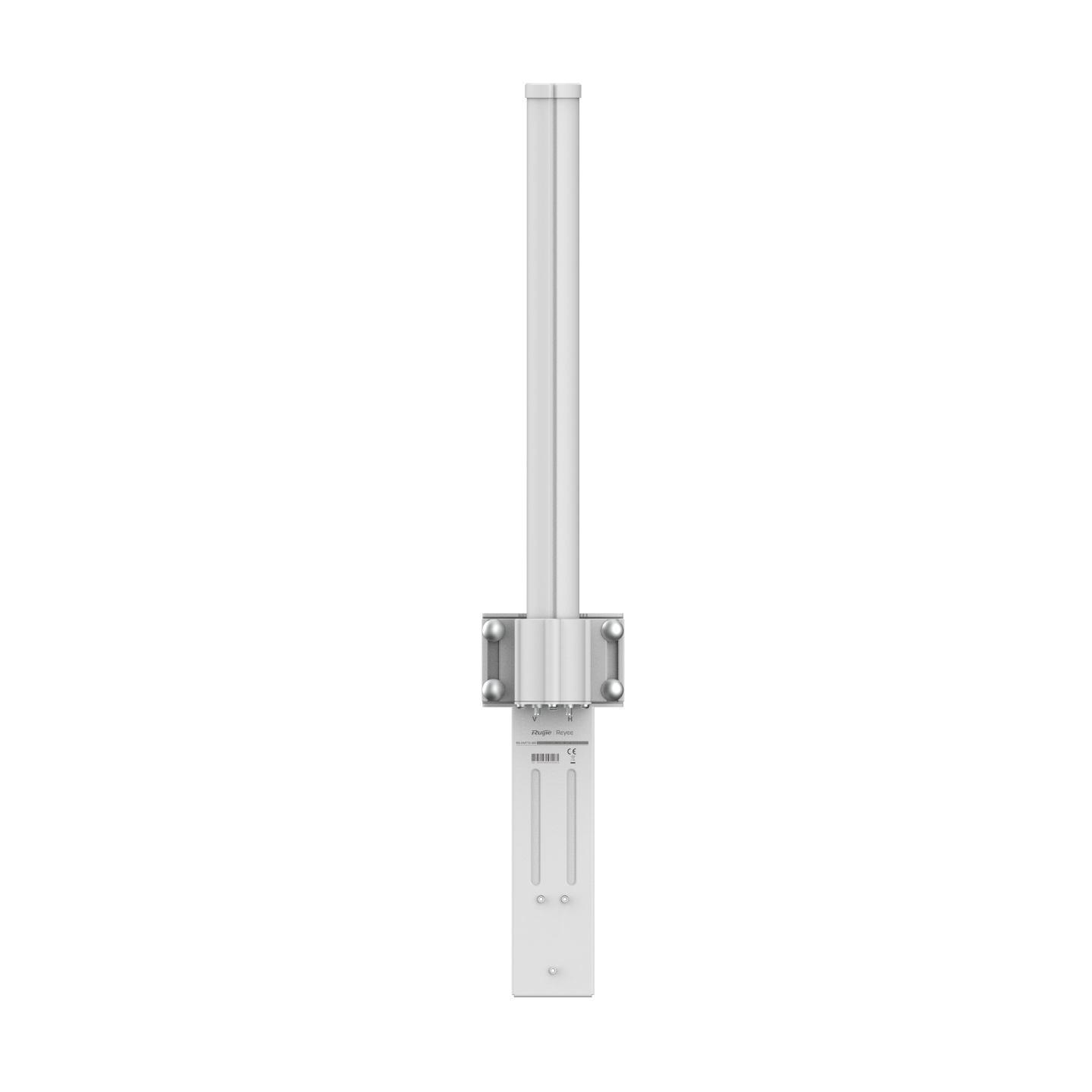

RG-ANT13-360 - 1

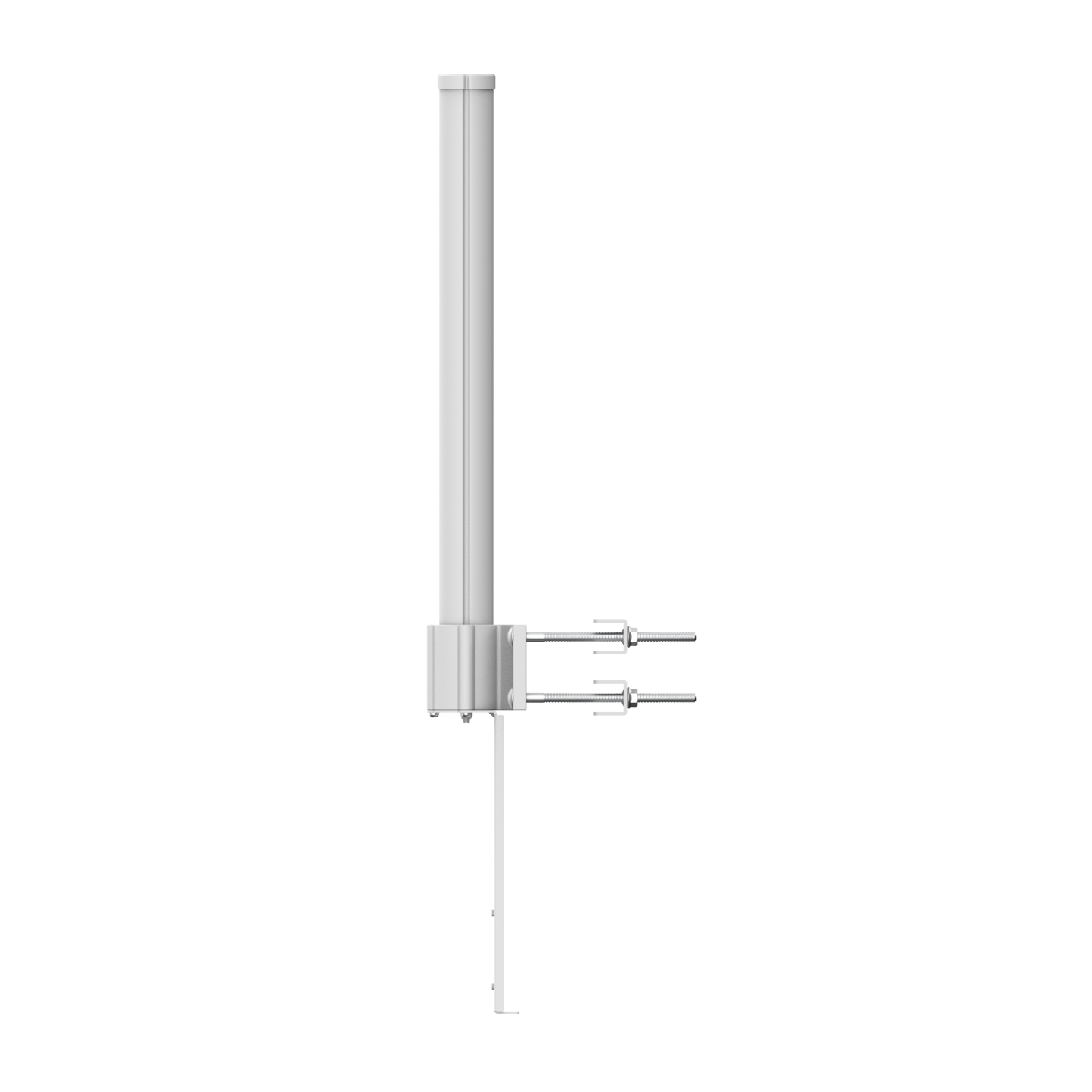

RG-ANT13-360 - 2

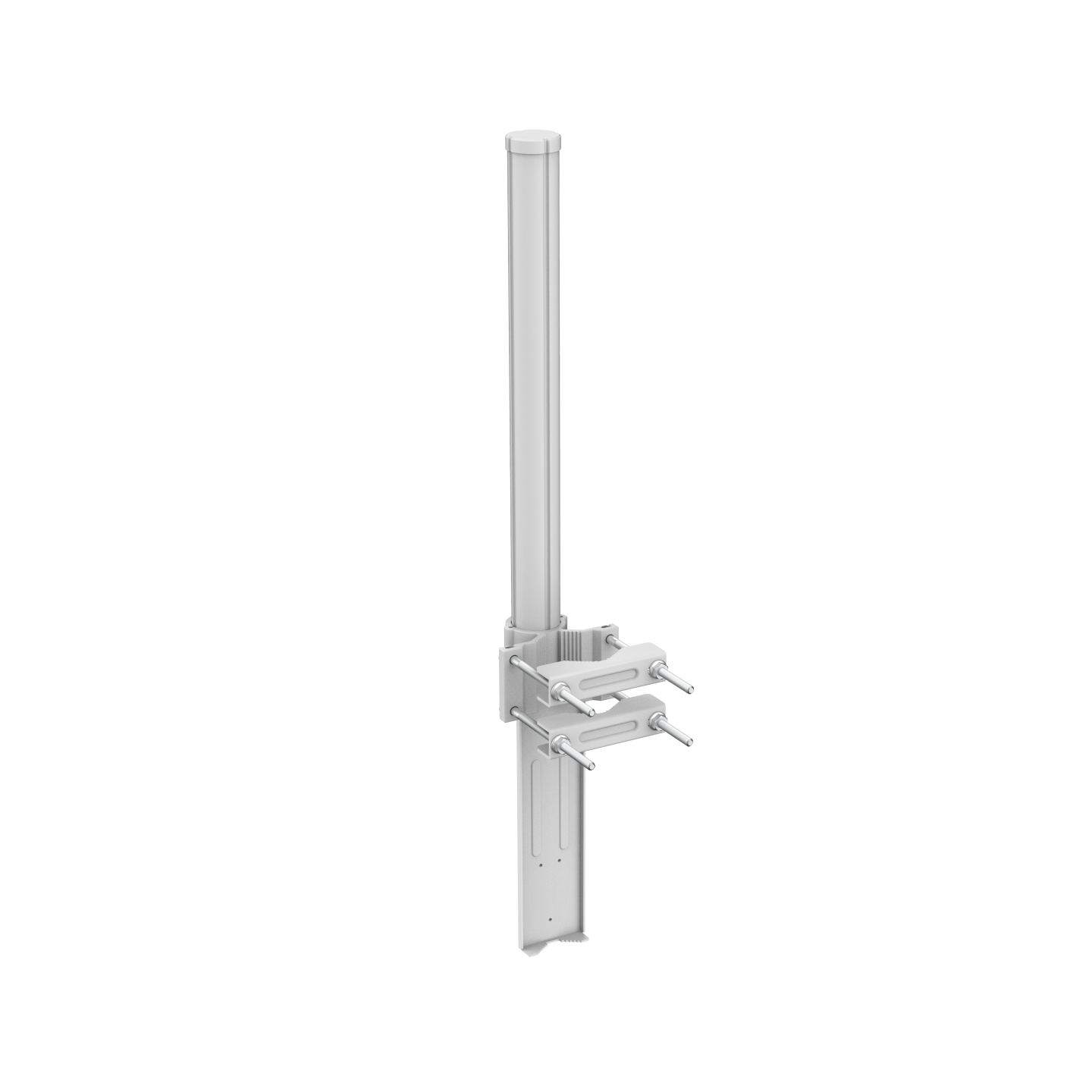

RG-ANT13-360 - 3
RG-ANT13-360 - 1
RG-ANT13-360 - 2
RG-ANT13-360 - 3

RG-ANT13-360, RG-AirMetro Serisi Kablosuz Köprüler için 360° Çok Yönlü Anten

WISP, CCTV, Kasaba, Şehir-içi Yollar, Fabrikalar vb.

Models
RG-ANT13-360

360°, 2 km Çok Yönlü Anten

 RG-AirMetro550G-B

5 GHz’de en fazla 867 Mbps, 2 GE Portlu, maksimum 1 ila 32 PTMP Baz İstasyonu

 RG-ANT16S-120

120°, 5 km Sektör Anten

 RG-ANT20S-90

90°, 10 km Sektör Anten
Series
PTMP Station PTP/PTMP CPE
Sales Enquiry
Highlight Features
  • Farklı Senaryolar için Üç Anten Tipinden Birini Seçin
  • Zorlu Ortam Koşullarına Karşı IP55 Koruma Sınıfı
  • Hepsi Bir Arada Cloud Yönetimi Kullanıcı Deneyimini Basitleştirir
Sales Enquiry
Ana Teknik Özellikler
Features

RG-AirMetro Serisi
Kablosuz Köprüler

CPE’ler ile eşleştirildiğinde, köprü aşağıdakileri destekler:

  • 10km

    10 km’ye kadar
    Kablosuz iletim

  • 32PTMP

    32 adede kadar PTMP
    Linki

  • Kolay Saha Keşfi
    Aracı

  • Hepsi bir arada Cloud
    Yönetimi

Baz İstasyonu

Farklı Cihazlara ve Senaryolara Mükemmel Uyum

  • 867 Mbps

    5 GHz Dual-Stream 802.11ac

  • 32 adede kadar PTMP Linki

    TDMA

Tek Dokunuşla
Eşleştirme

30 saniye içerisinde Tek Dokunuşla Eşleştirme

Köprü için Yapay Zeka (AI) Isı Haritası

Antenler

Üçlü Cihazlar, Üçlü Seçeneğin Ötesinde Esneklik

Hepsi
Bir Arada
Cloud

Sorunsuz bir Yolculuk için size Rehberlik eder

Temel
Senaryolar

Hem WISP hem de CCTV Senaryoları için İdeal Seçim

Farklı Cihazlara ve Senaryolara
Mükemmel Uyum

Hızlı Eşleştirme

30 saniye içerisinde Tek Dokunuşla Eşleştirme

Antenler

Üçlü Cihazlar, Üçlü Seçeneğin Ötesinde Esneklik

  • RG-ANT20S-90

    5 GHz, 20 dBi

    Yatay: 90°, Dikey: 7°

    10 km

  • RG-ANT16S-120

    5 GHz, 16 dBi

    Yatay: 120°, Dikey: 10°

    5 km

  • RG-ANT13-360

    5 GHz, 13 dBi

    Yatay: 360°, Dikey: 7°

    2 km

Her Zaman Kararlı

Zorlu Ortam Koşullarında Kullanıma Uygun

  • IP55 Hava Koşullarına Dayanım
  • 220.32 km/h
    (137 mph)     Rüzgar Dayanımı
  • 6kV Aşırı Gerilim Koruması
  • 24kV
    Kontak/Hava     ESD Koruması

PTMP

32 adede kadar PTMP Linki

WISP

Fiber Bağlantıları Olmadan Geniş Kapsama

CCTV

Uygun Fiyatlı Mükemmellik ve Kesintisiz Gözetim

Köprü için Yapay Zeka (AI) Isı Haritası

Dış Ortamda Gerçek Dostunuz

Hizalama Aracı

İç Sesiniz, Size Zaman Kazandıran Kılavuzunuz

Spektrum Taraması ve Link Optimizasyonu

Mükemmel Kılavuz

  • Tüm Noktalar için Tek Tıklamayla Kanal Girişimi Taraması

  • Otomatik Optimizasyon Tavsiyeleri

  • Zaman ve Çabadan Tasarruf Edin

Hem Ruijie Cloud hem de Reyee App’da Mevcuttur

Cloud, İşinizi Kolaylaştırır

Hepsi bir arada Cloud

Hızlı KurulumGerçek, Eksiksiz Topolojiye Dayanan İzlemeOtomatik Alarm Yoluyla Sorunların Belirlenmesi

Comparison
PTP
PTMP
Anten
Polarizasyon
Tavsiye Edilen Mesafe
Protokol
Maksimum Throughput
Frekans Aralığı*
IP Koruma Sınıfı
Specifications
Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-AirMetro460G PTP
1 x RG-AirMetro460G + 1 x RG-AirMetro460G		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)
80 Mbps/10 km (HT40)		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 50/1 km
45/3 km
20/5 km
16/10 km		 30/1 km
25/3 km
12/5 km
8/10 km		 20/1 km
13/3 km
8/5 km
5/10 km		 15/1 km
12/3 km
6/5 km
4/10 km
RG-AirMetro460F PTP
1 x RG-AirMetro460F + 1 x RG-AirMetro460F		 80 Mbps/1 km (HT40)
80 Mbps/3 km (HT40)
70 Mbps/5 km (HT40)
50 Mbps/10 km (HT40		 –58 dBm/1 km (HT40)
–66 dBm/3 km (HT40)
–70 dBm/5 km (HT40)
–78 dBm/10 km (HT40)		 12/1 km
12/3 km
10/5 km
6/10 km		 8/1 km
8/3 km
6/5 km
4/10 km		 6/1 km
6/3 km
5/5 km
3/10 km		 4/1 km
4/3 km
3/5 km
2/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 179 Mbps/1 km (HT40)
111 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 41/1 km
26/2 km		 25/1 km
15/2 km		 18/1 km
11/2 km		 15/1 km
9/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/1 km (HT40)
153 Mbps/3 km (HT40)
94 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 47/1 km
35/3 km
22/5 km		 28/1 km
21/3 km
13/5 km		 20/1 km
15/3 km
9/5 km		 17/1 km
13/3 km
8/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460G
2≤N≤32		 204 Mbps/3 km (HT40)
153 Mbps/5 km (HT40)
77 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 47/3 km
35/5 km
18/10 km		 28/3 km
21/5 km
10/10 km		 20/3 km
15/5 km
7/10 km		 17/3 km
13/5 km
6/10 km
RG-AirMetro550G-B+
RG-ANT13-360		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 162 Mbps/1 km (HT40)
100 Mbps/2 km (HT40)		 -61 dBm/1 km(HT40)
-67 dBm/2 km(HT40)		 37/1 km
23/2 km		 22/1 km
14/2 km		 16/1 km
10/2 km		 14/1 km
8/2 km
RG-AirMetro550G-B+
RG-ANT16S-120		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/1 km (HT40)
139 Mbps/3 km (HT40)
85 Mbps/5 km (HT40)		 -58 dBm/1 km (HT40)
-66 dBm/3 km (HT40)
-72 dBm/5 km (HT40)		 43/1 km
32/3 km
19/5 km		 26/1 km
19/3 km
12/5 km		 18/1 km
14/3 km
8/5 km		 16/1 km
12/3 km
7/5 km
RG-AirMetro550G-B+
RG-ANT20S-90		 PTMP
1 x RG-AirMetro550G-B + N x RG-AirMetro460F
2≤N≤32		 185 Mbps/3 km (HT40)
139 Mbps/5 km (HT40)
69 Mbps/10 km (HT40)		 -60 dBm/3 km (HT40)
-66 dBm/5 km (HT40)
-73 dBm/10 km (HT40)		 43/3 km
32/5 km
16/10 km		 26/3 km
19/5 km
9/10 km		 18/3 km
14/5 km
7/10 km		 16/3 km
12/5 km
6/10 km
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m
RG-EST310 V2 PTP
1 x RG-EST310 V2 + 1 x RG-EST310 V2		 90 Mbps/100 meters (HT40)
80 Mbps/500 meters (HT40)
80 Mbps/1 km (HT40)		 –52 dBm/100 m
–65 dBm/500 m
–68 dBm/1 km		 16/100 m
16/500 m
16/1 km		 10/100 m
10/500 m
10/1 km		 7/100 m
7/500 m
7/1 km		 5/100 m
5/500 m
5/1 km
RG-EST350 V2 PTP
1 x RG-EST350 V2+ 1 x RG-EST350 V2		 230 Mbps/1 km (HT40)
200 Mbps/3 km (HT40)
150 Mbps/5 km (HT40)		 –58 dBm/1 km
–66 dBm/3 km
–70 dBm/5 km		 50/1 km
45/3 km
20/5 km		 30/1 km
25/3 km
12/5 km		 20/1 km
13/3 km
8/5 km		 15/1 km
12/3 km
6/5 km
